Product Description
DN15 High Temp Digital Glue Level Sensor for Hot Melt Glue Machine Glue Tank Capacitive Level Switch 230℃ DC24V IP65
DN15 High Temp Digital Glue Level Sensor for Hot Melt Glue Machine Glue Tank Capacitive Level Switch 230℃ DC24V IP651. NOTE
Power supply: DC 24V
Display options: Available with or without display
Insertion depth: 63 mm
Connection: G1/2 threaded connection
Temperature resistance: Up to 230°C
Output mode: Normally open or normally closed
Commissioning: Adjustment-free design, no debugging required

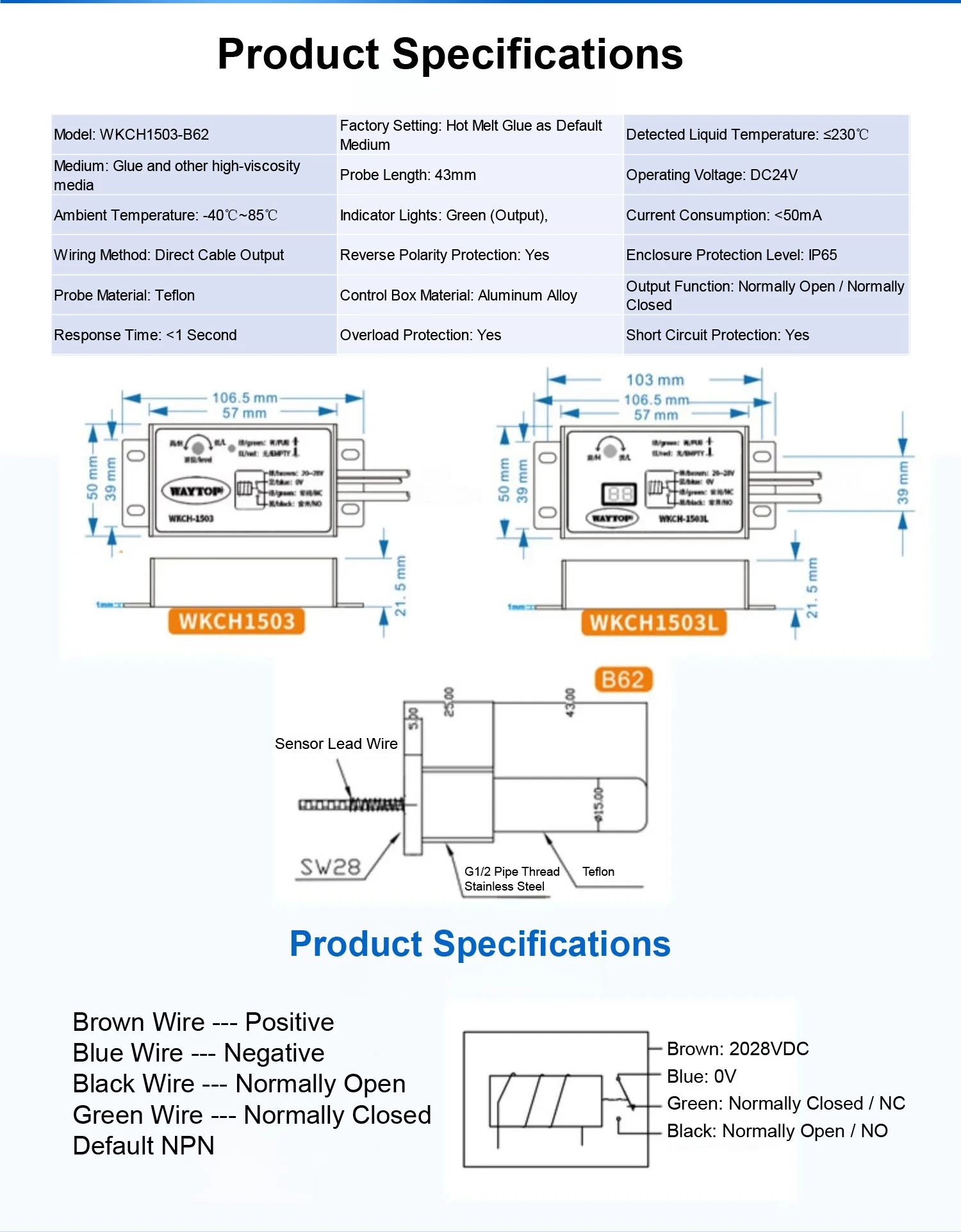

2. Parameters
Parameter | Specification |
Model | WKCH1503-B62 |
Medium | Hot melt glue, viscous media |
Probe Length | 43mm |
Operating Voltage | DC 24V |
Medium Temperature Range | ≤230°C |
Ambient Temperature Range | -40°C~85°C |
Indicator Light | Green (Output), Red (Power) |
Current Consumption | <50mA |
Output Mode | Normally Open / Normally Closed |
Response Time | <1s |
Wiring Method | Direct cable output |
Reverse Polarity Protection | Yes |
Overload Protection | Yes |
Short Circuit Protection | Yes |
Housing Material | Aluminum alloy (control box) |
Probe Material | Teflon |
Protection Grade | IP65 |
3. Features
No Calibration Required
Factory pre-configured for hot melt glue detection. Ready to use immediately after installation.

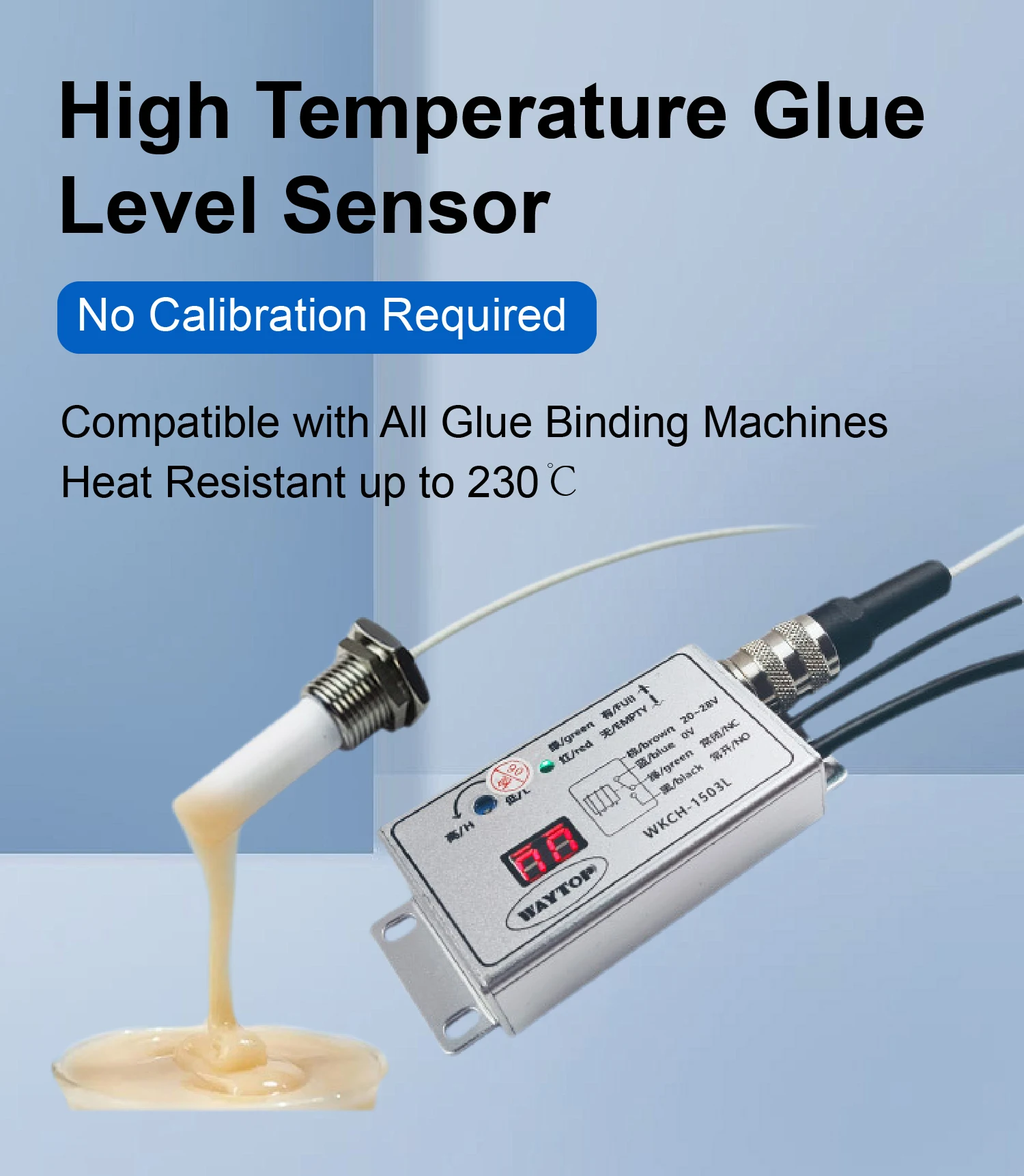

High Temperature Resistance up to 230°C
Designed for demanding glue tank applications and high-temperature working environments.

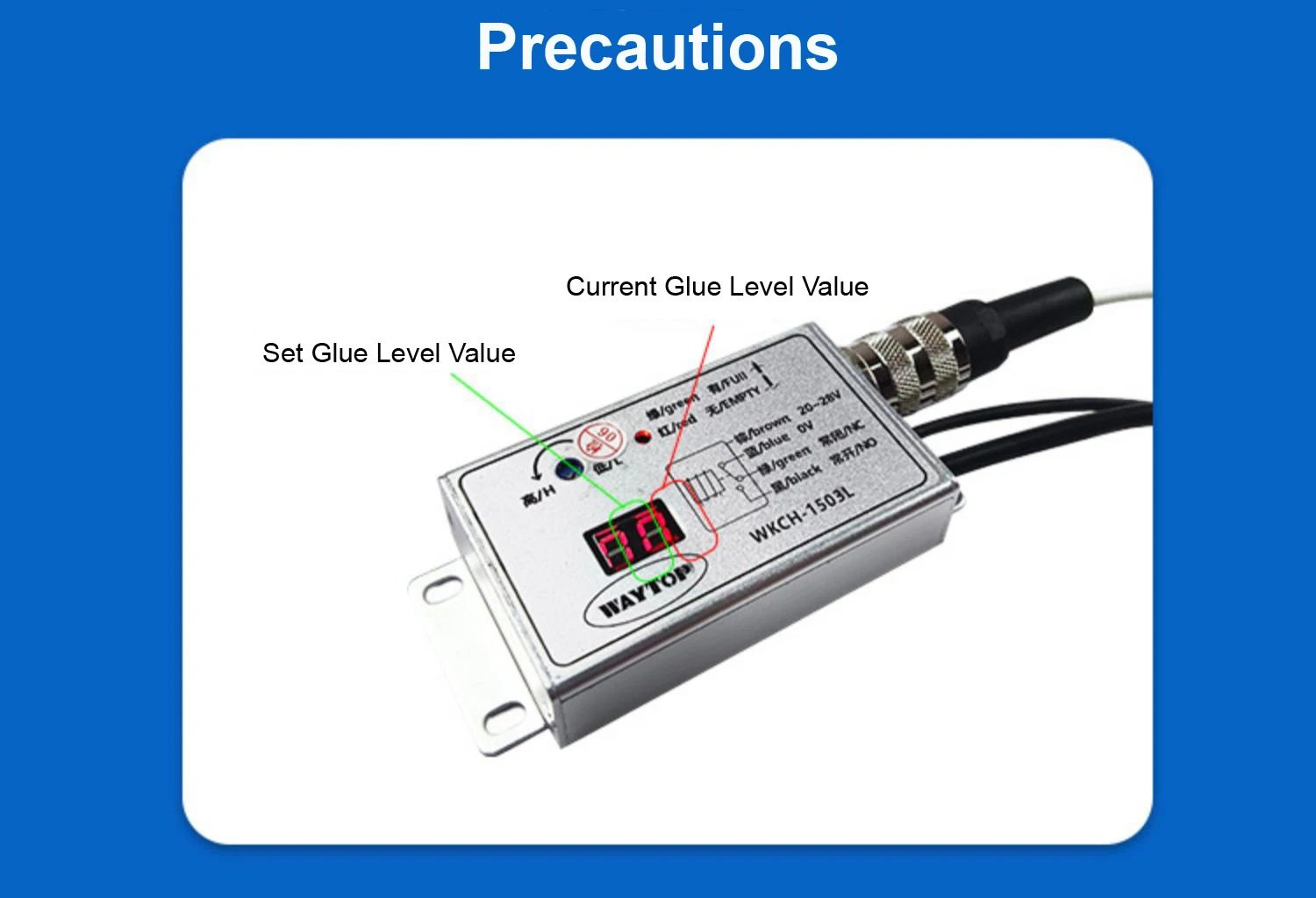

Digital Level Display with LED Indicators
Provides clear real-time monitoring through both digital screen display and LED light signals.
Universal Machine Compatibility
Compatible with all standard glue binding machines without modification.
Fast Response and High Reliability
Responds in less than 1 second, with built-in overload protection and short-circuit protection for safer operation.

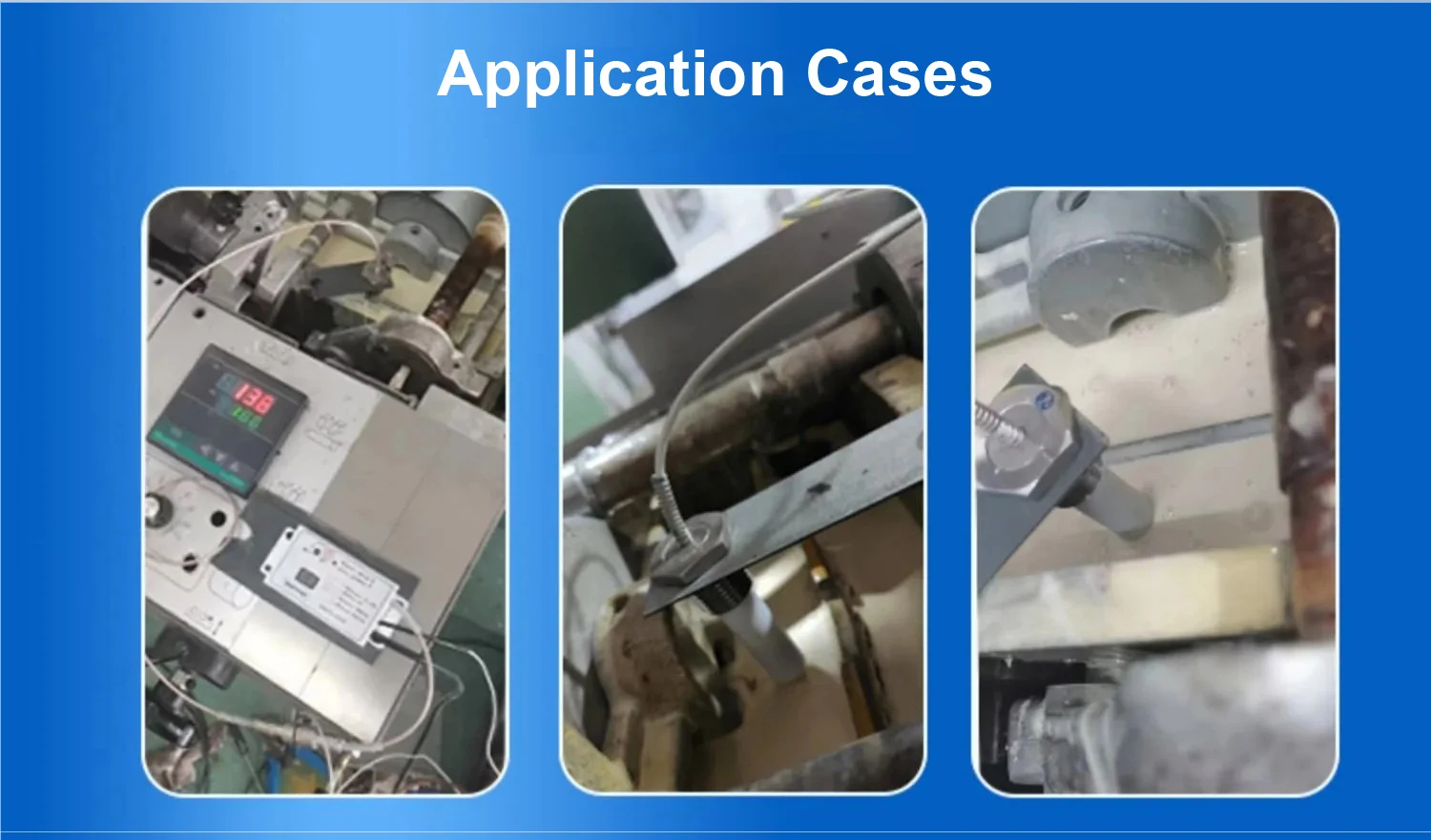

4. Applications
Ideal for glue tanks, bookbinding machines, hot melt adhesive systems, and industrial high-temperature level detection applications.
5. FAQs
Q1: Does this sensor need to be calibrated before use?
A1: No. The sensor is factory preset for hot melt glue applications and is ready to use immediately.
Q2: Is it compatible with all glue binding machines?
A2: Yes. This sensor is designed with universal compatibility and can be used with most glue binding machines.
Q3: What protection features does it have?
A3: It is equipped with short circuit protection, reverse polarity protection, and overload protection for safer and more reliable operation.
