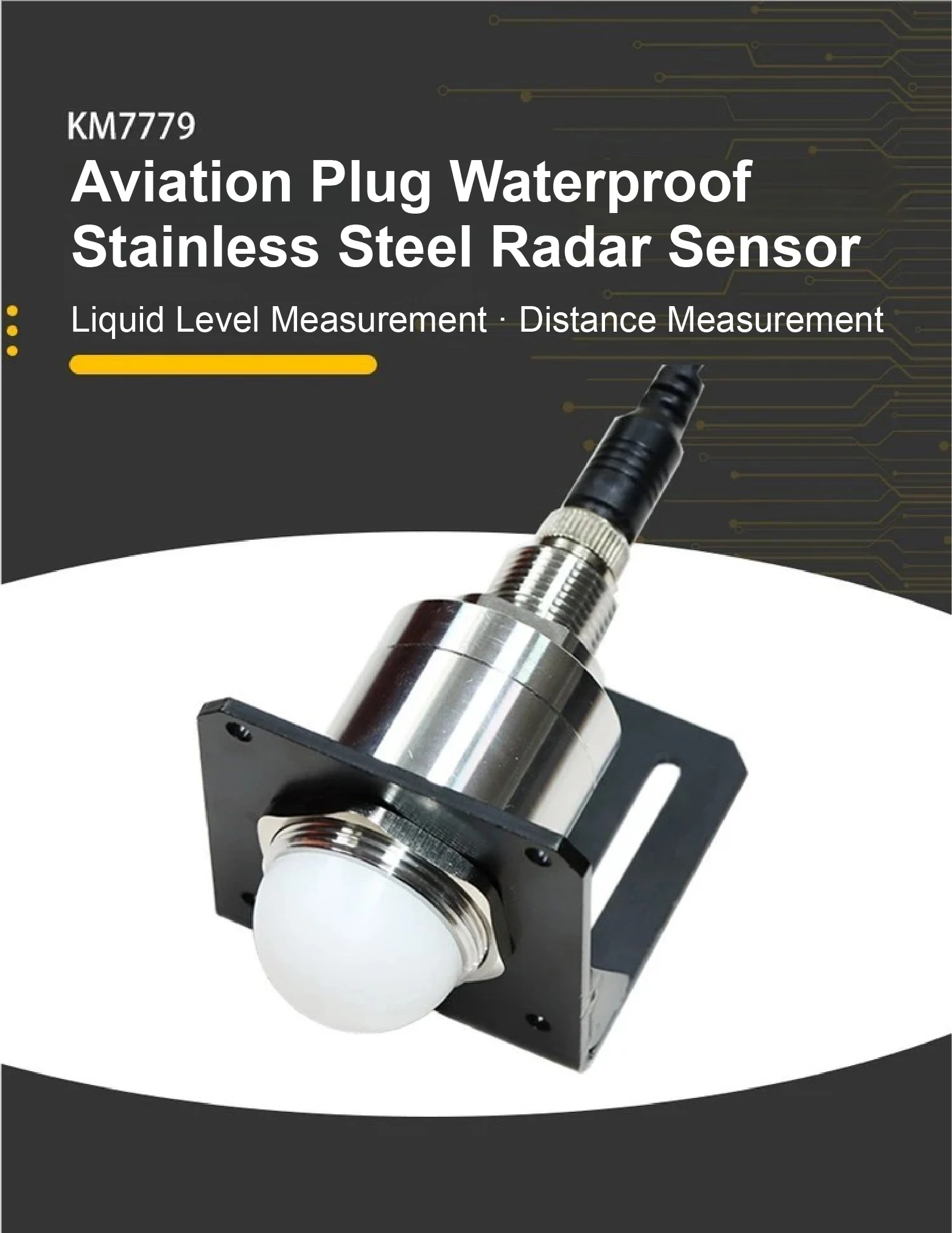

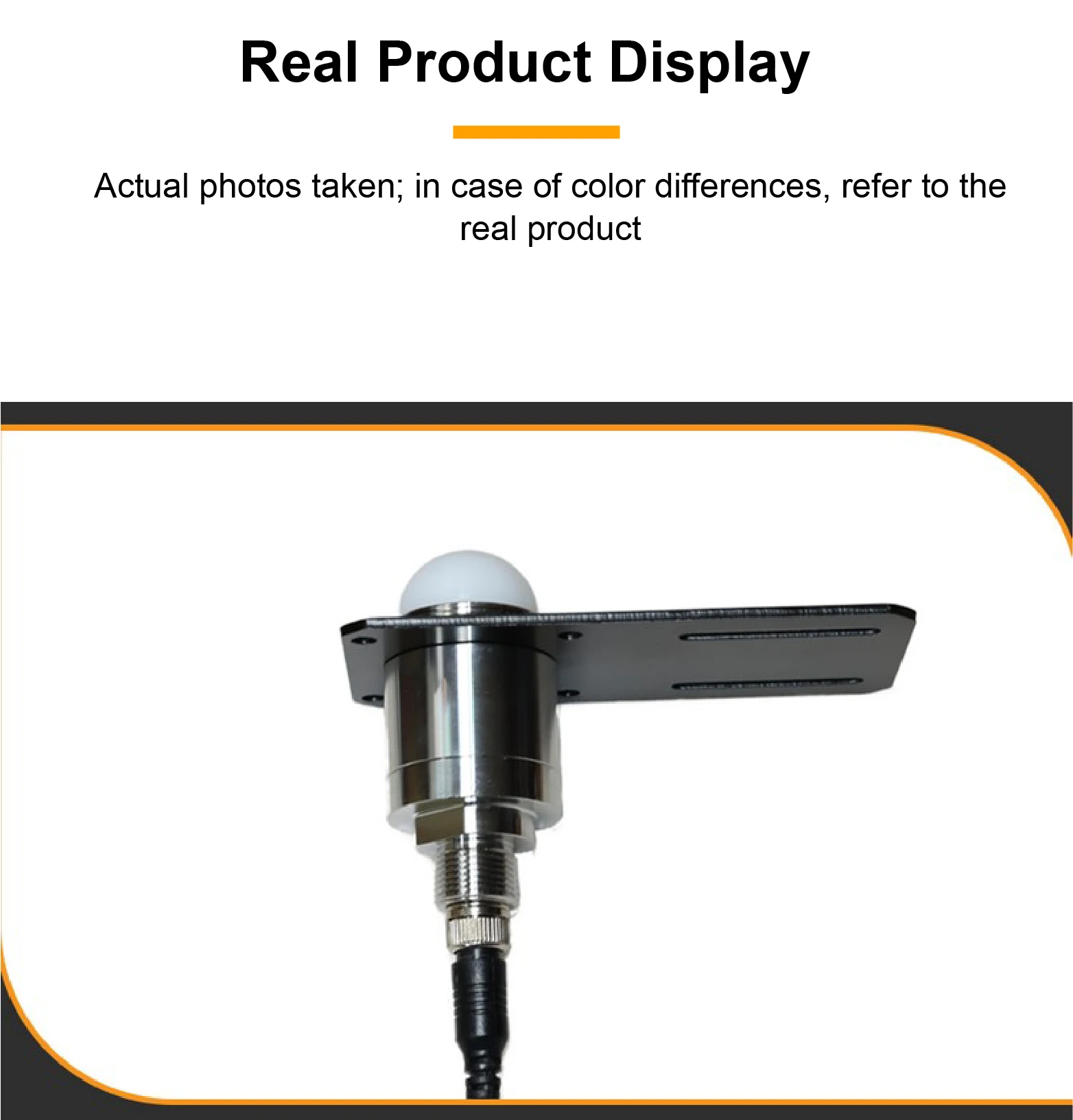

80GHz Aviation Connector Radar Level Sensor Waterproof Stainless Steel 3-12m RS4

Product Description

Please note: this radar level sensor is designed for measuring water only. It cannot be used for other types of liquids.

1.Default Specifications

Measuring Range: 3 m / 7 m / 12 m
Radar Frequency: 80 GHz
Measurement Accuracy: ±2 mm
Power Supply: DC 5–28 V or DC 18–28 V
Output Options: RS485, TTL, 4–20 mA
Standard Cable Length: 2 meters

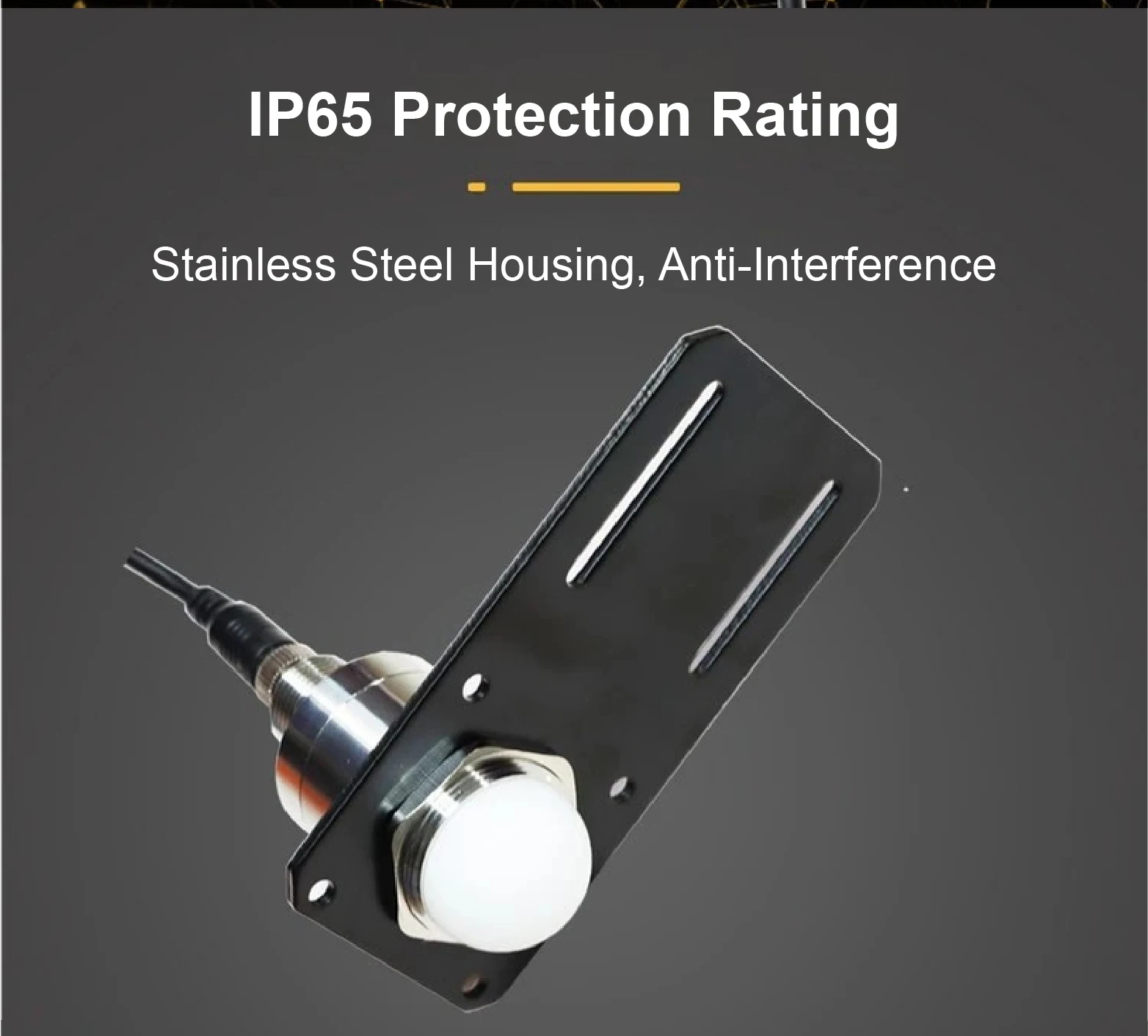

Protection Rating: IP65
Operating Temperature: -30°C to 85°C

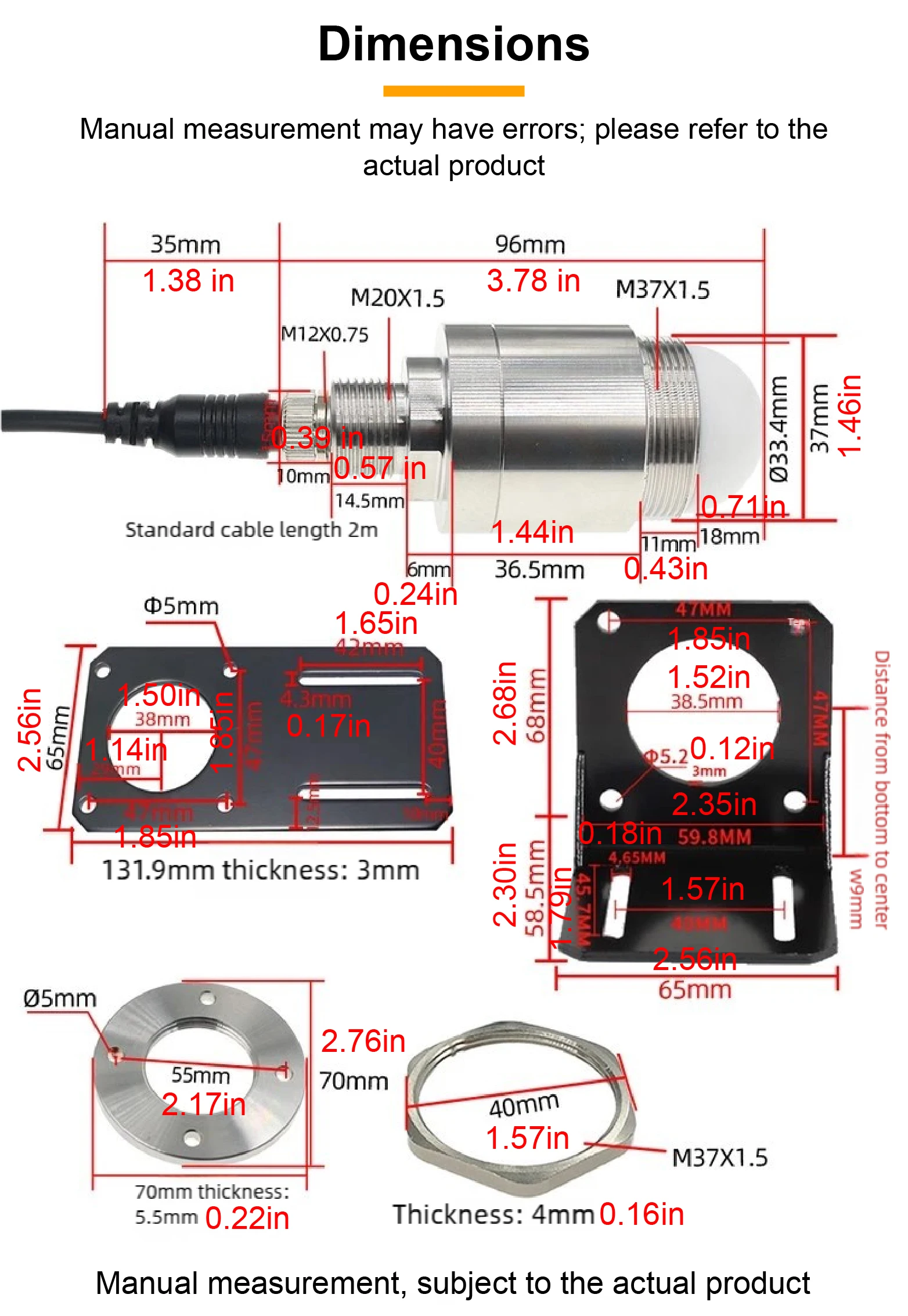

Installation Method: Front panel mounting (standard), optional bracket mounting available

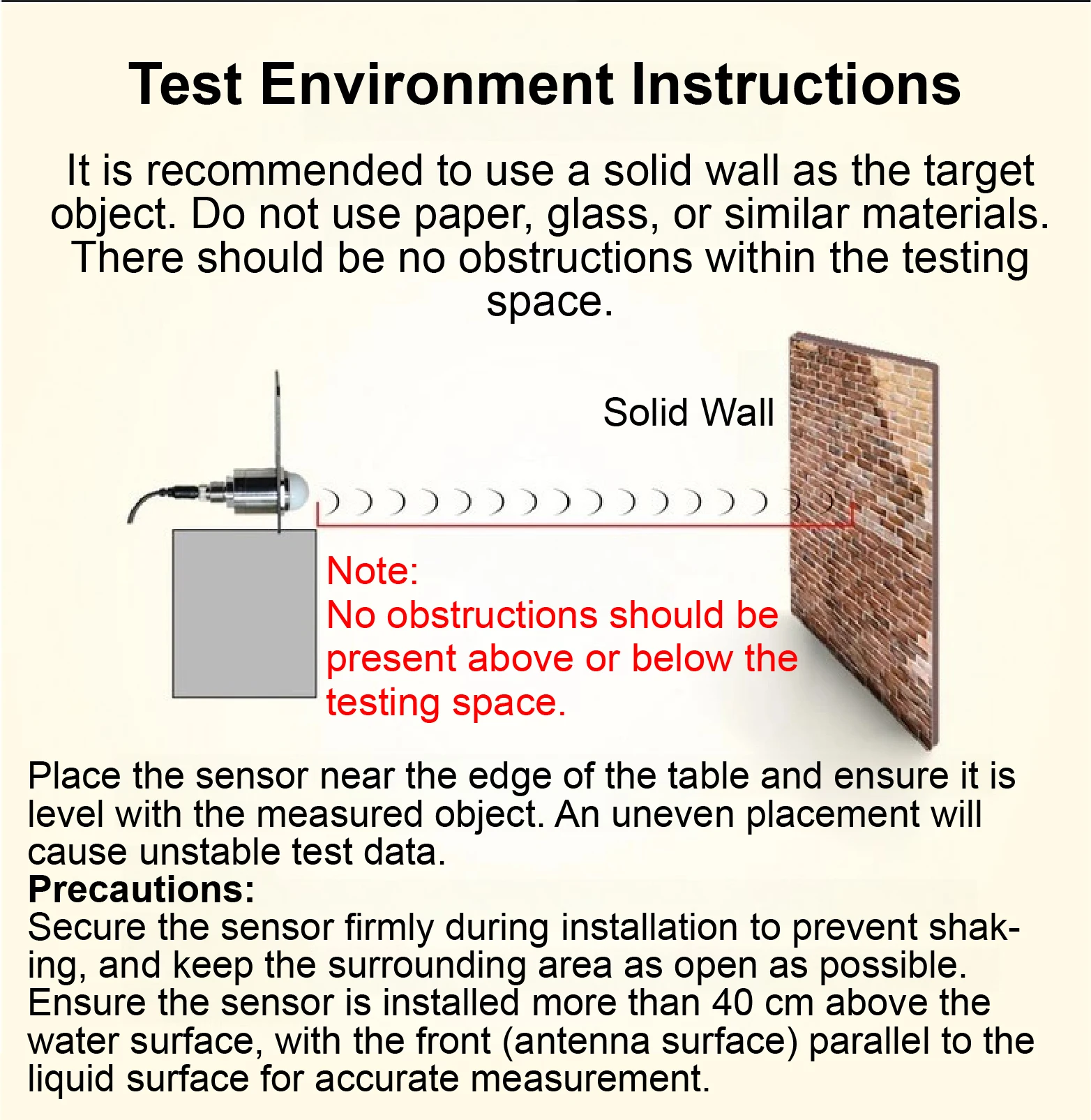

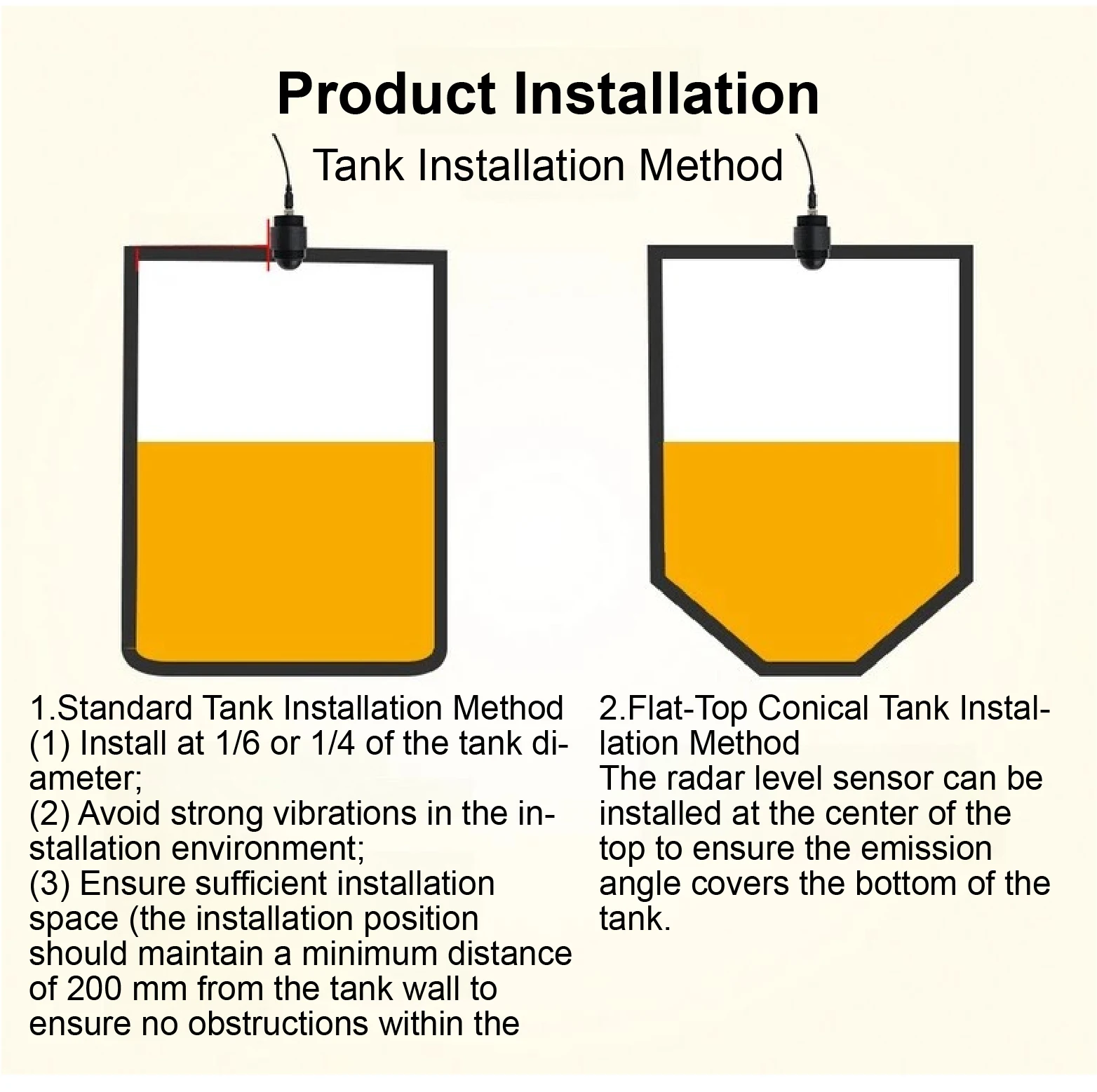

Installation Guidelines

For optimal measurement performance, the sensor should be installed firmly and securely to avoid vibration or movement during operation. The installation area should remain as open and unobstructed as possible to maintain stable signal transmission and accurate readings.

The sensor must be mounted at least 40 cm above the water surface. During installation, ensure that the front side of the sensor (antenna side) is parallel to the liquid surface for precise level detection.

Customization & Support

If you have any questions or special customization requirements, please feel free to contact us.

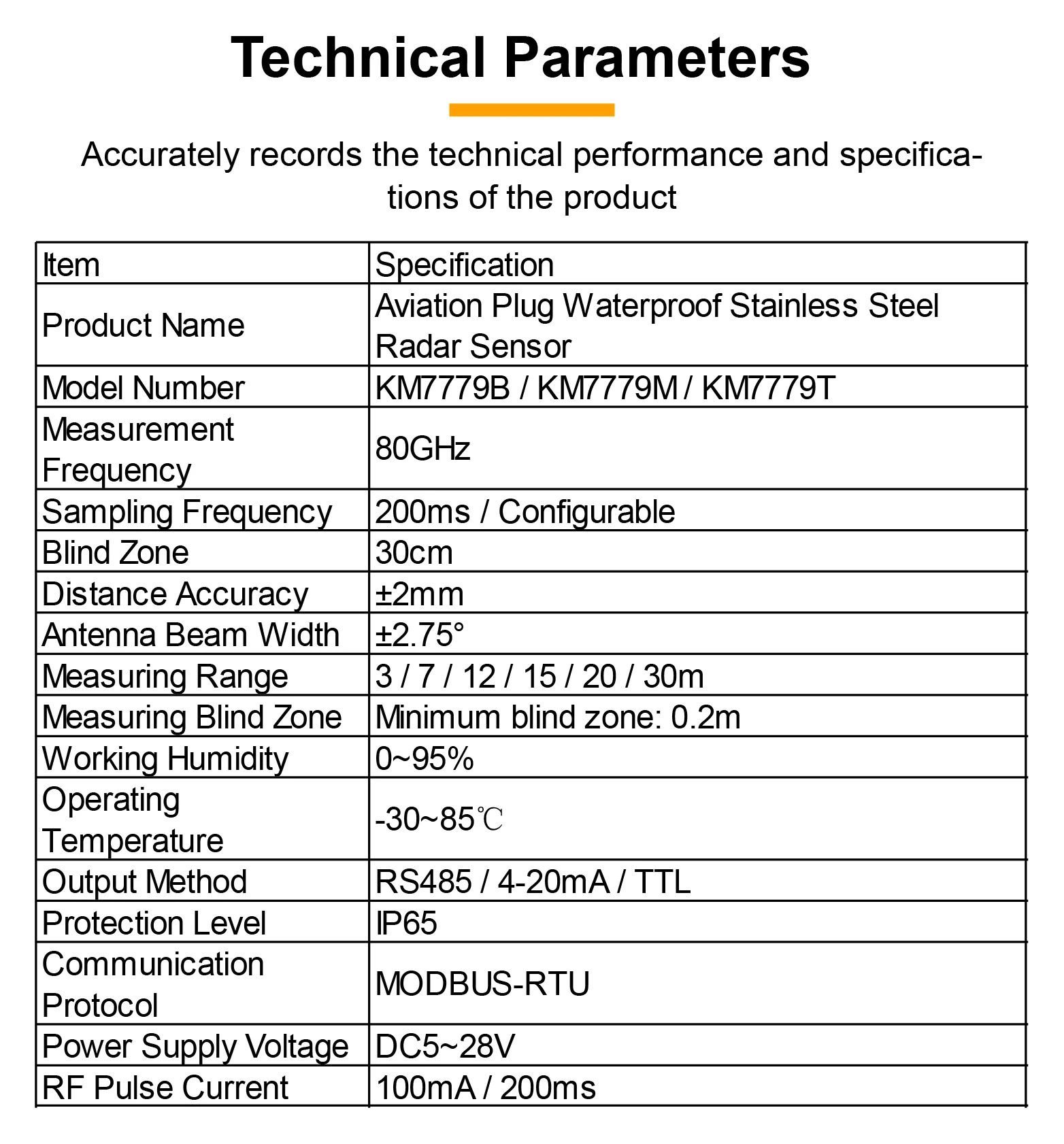

2. Parameters

3. Product Features

80 GHz High-Frequency Radar Technology

Powered by advanced 80 GHz radar technology, this sensor offers excellent signal penetration through dust, vapor, steam, and foam. It ensures stable and reliable liquid level measurement even in harsh or complex industrial environments.

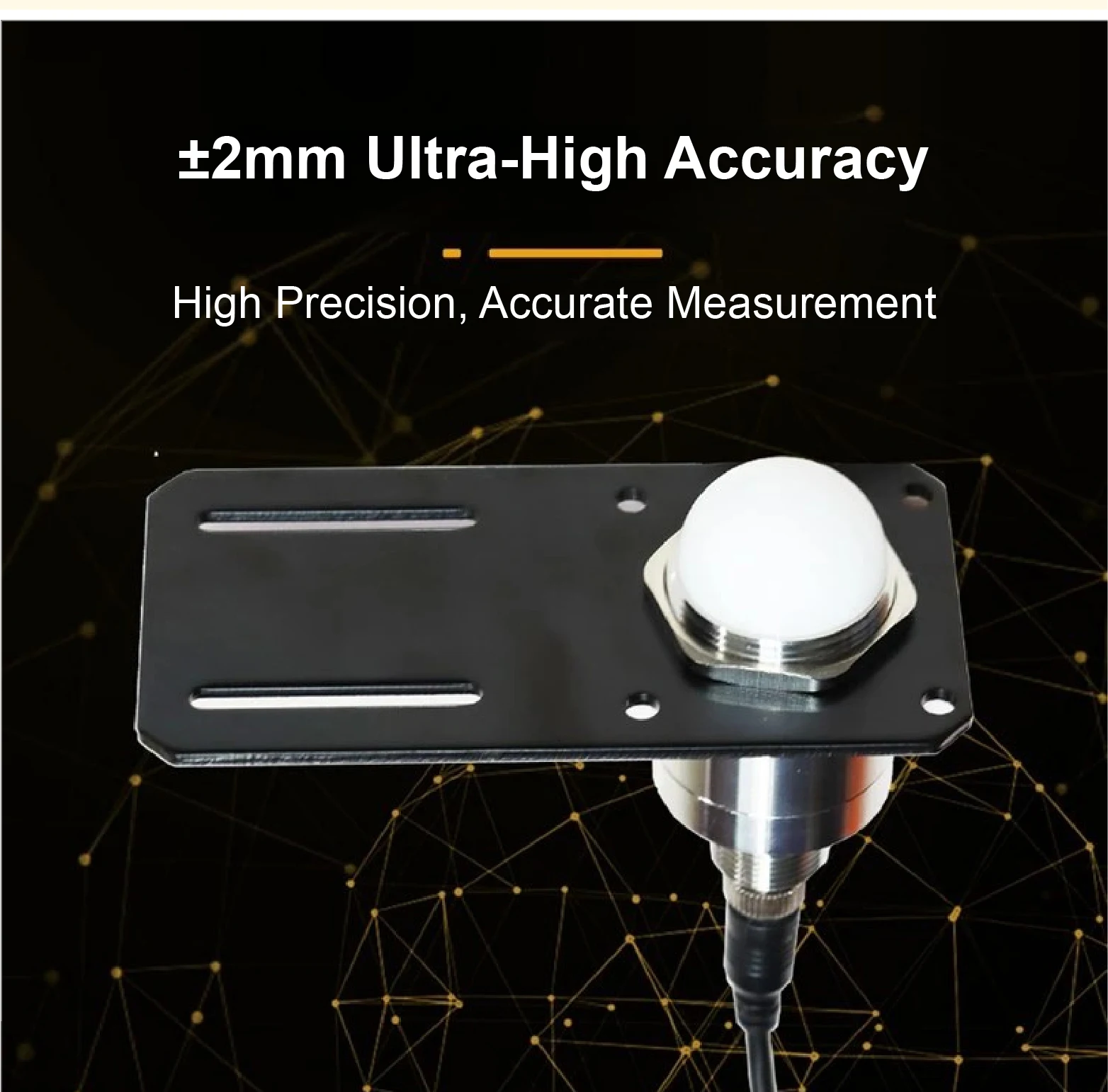

High Precision Measurement

With measurement accuracy up to ±2 mm, the sensor provides highly accurate distance and liquid level monitoring, making it ideal for applications that require precise and stable performance.

Durable Stainless Steel Housing

The sensor features a corrosion-resistant stainless steel enclosure designed for long-term use in demanding conditions, including high temperature, high humidity, and strong electromagnetic interference environments.

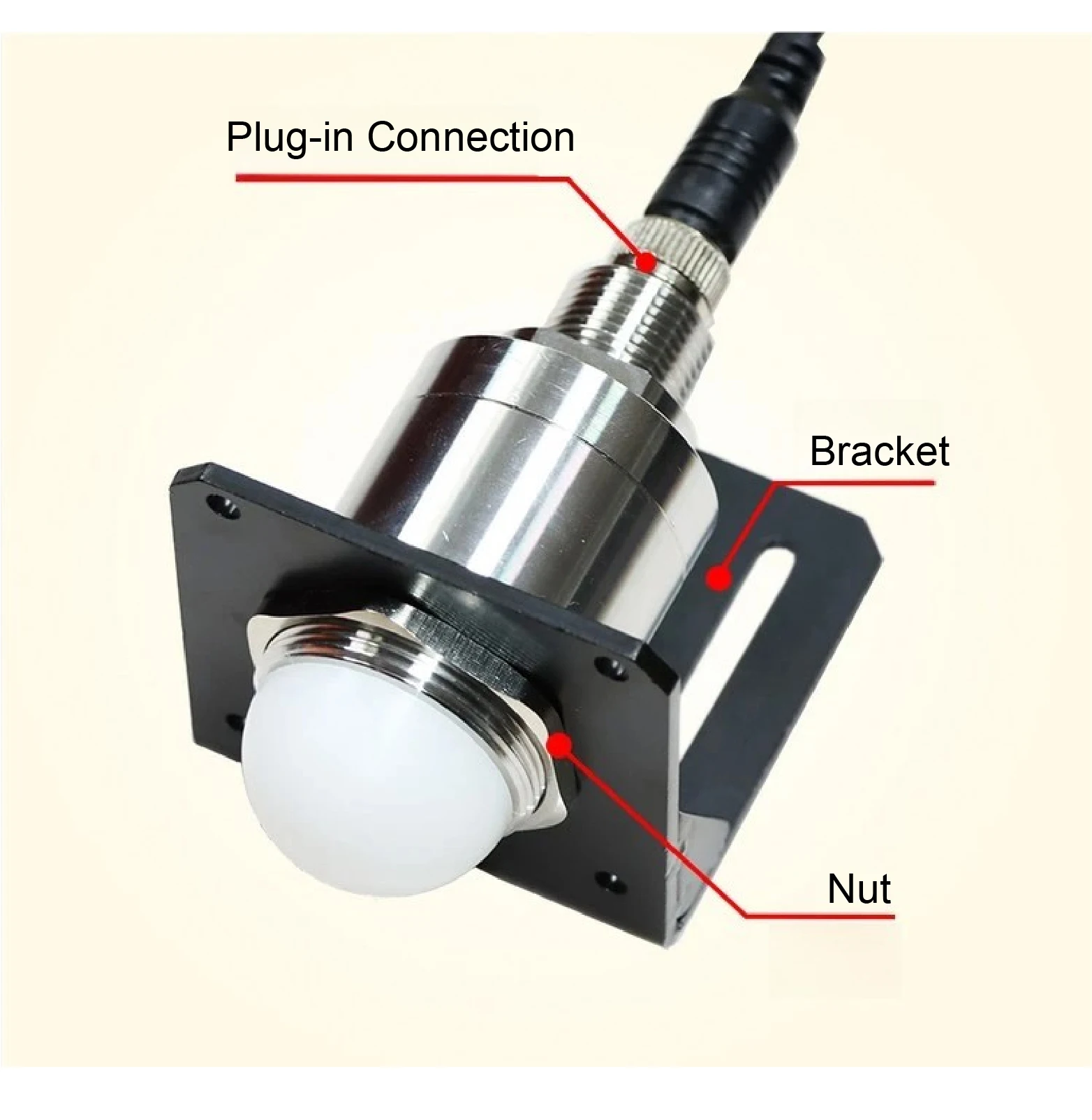

Aviation Plug Quick Connection

Equipped with a professional aviation connector for quick installation, secure wiring, and easy maintenance, improving overall installation efficiency and reliability.

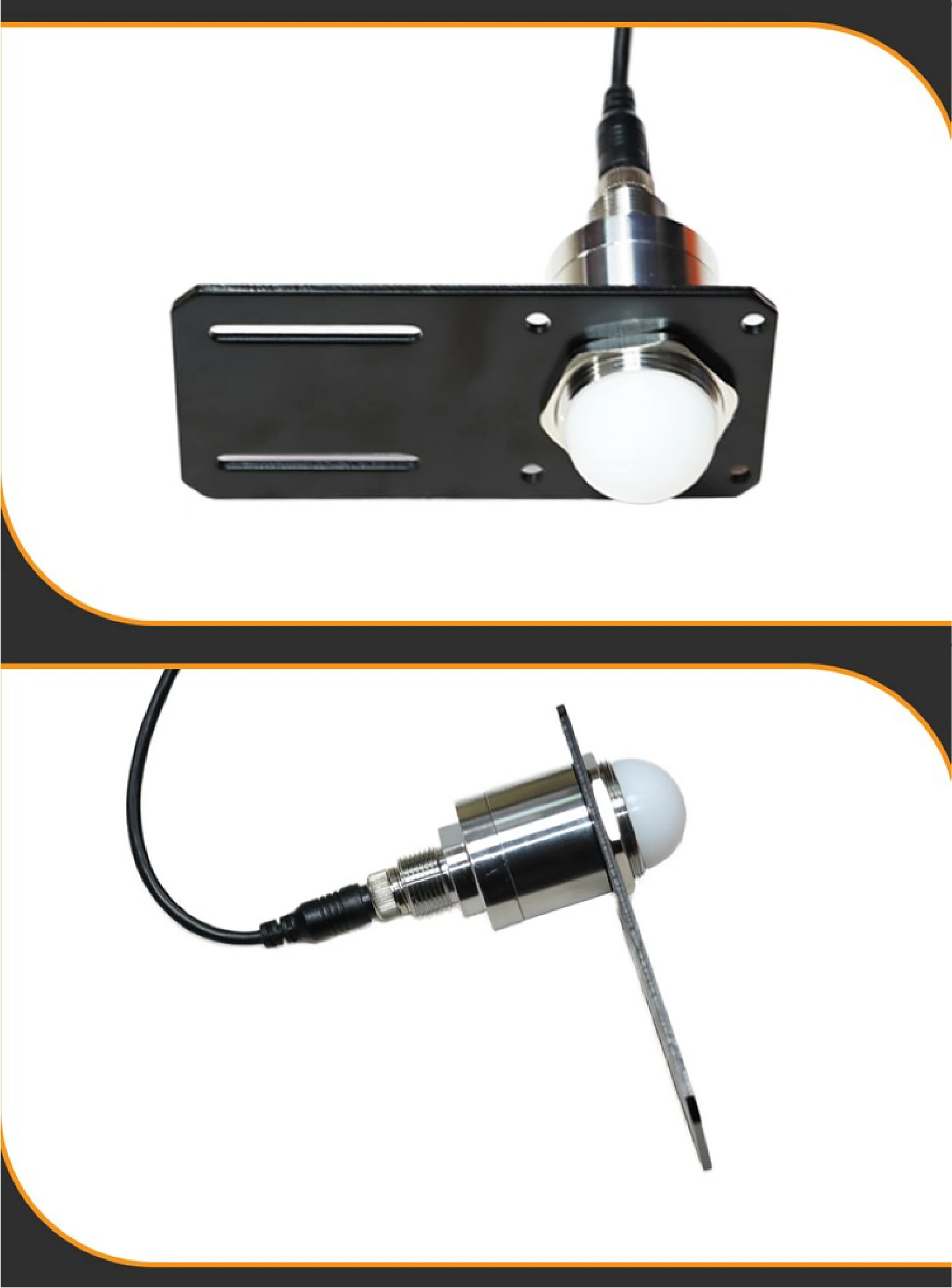

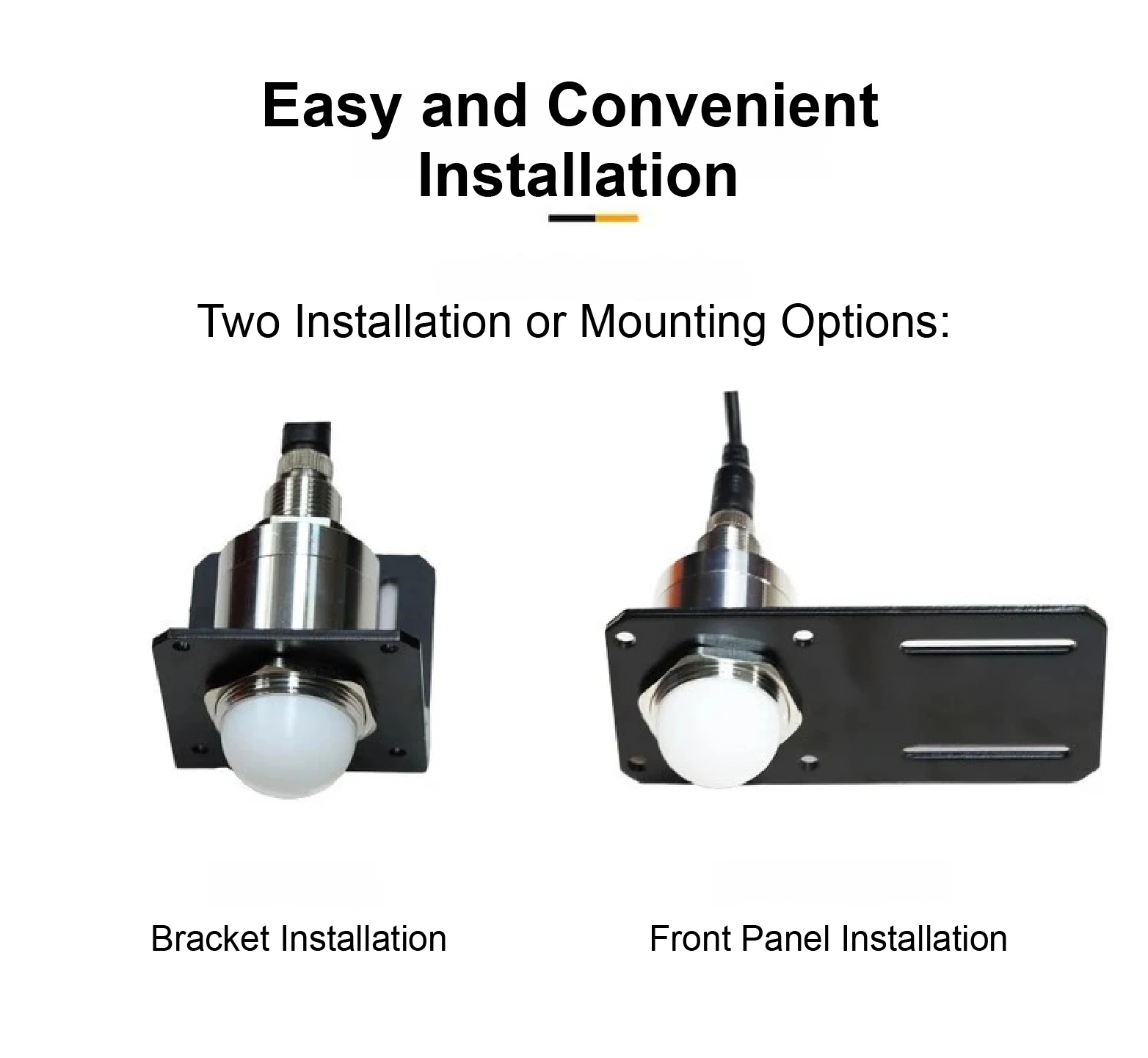

Flexible Installation Options

Supports both front panel mounting and optional bracket mounting, allowing flexible installation based on different equipment structures and project requirements.

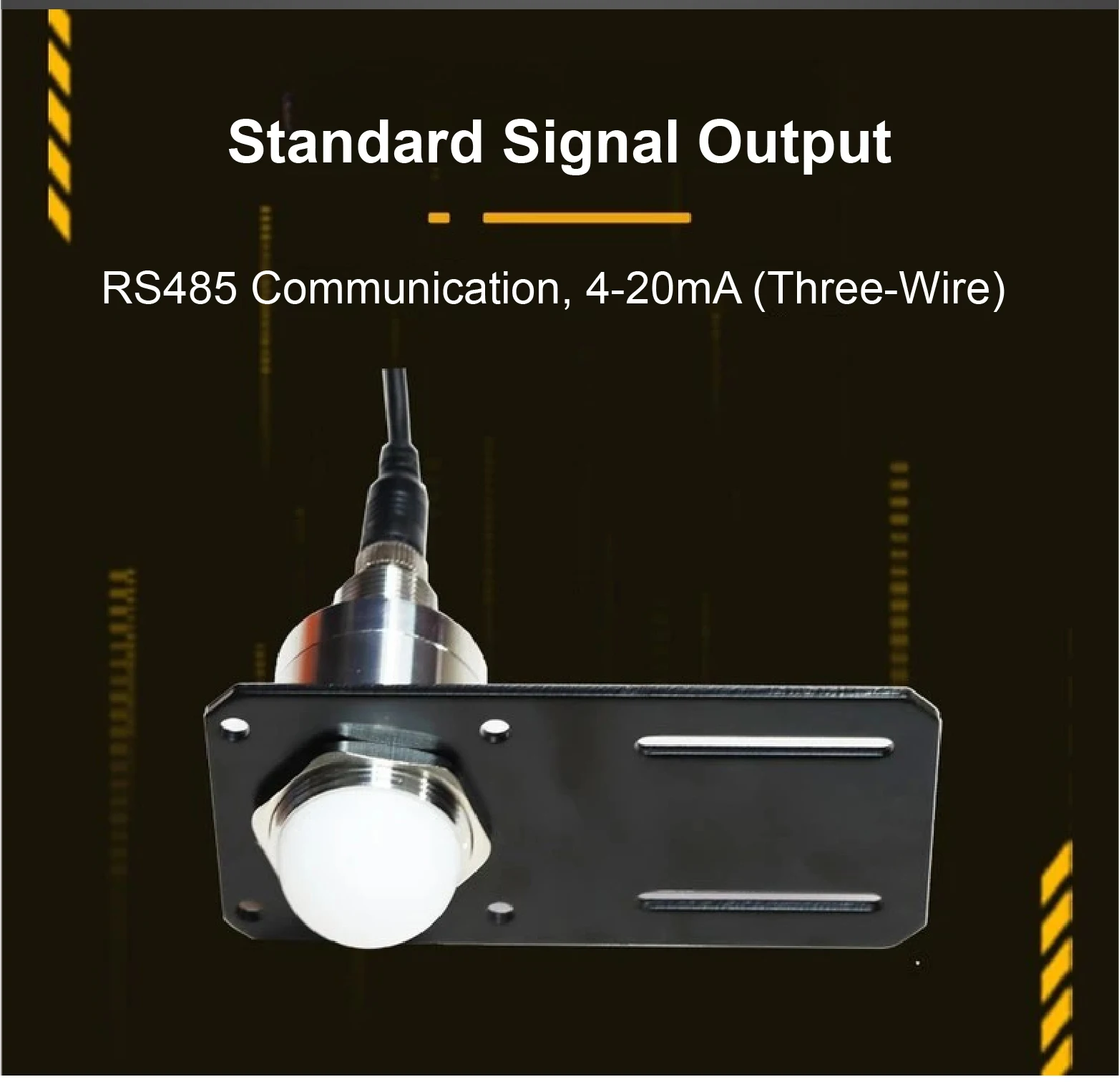

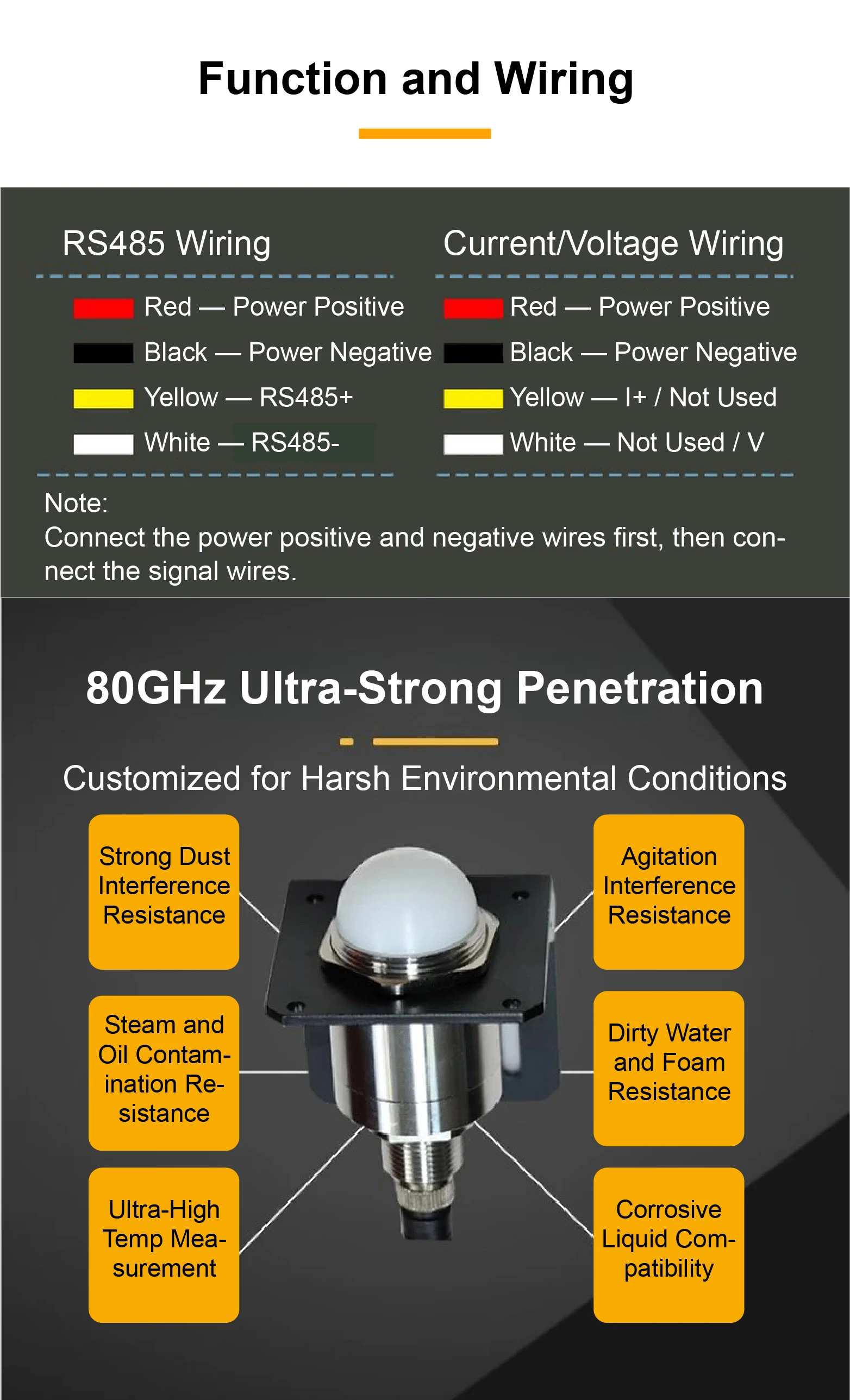

Multiple Output Interfaces

Available with RS485, 4–20 mA, and TTL output options for easy integration with PLC systems, industrial controllers, and various monitoring platforms.

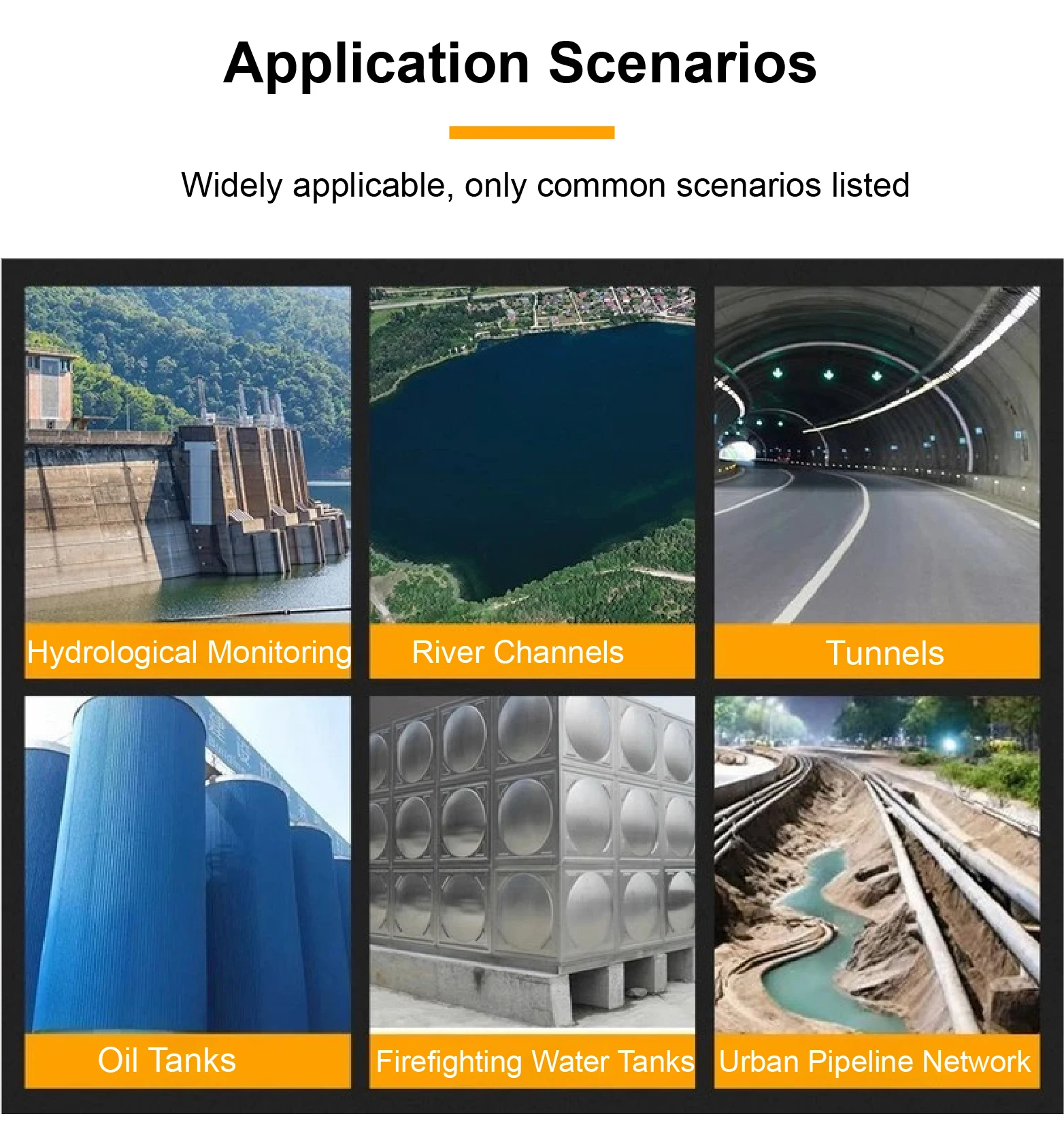

4. Applications

This radar sensor is widely used for liquid level and distance monitoring in a variety of applications, including:

Reservoirs
Rivers
Tunnels
Oil storage tanks
Sewage wells
Urban drainage systems
Municipal infrastructure monitoring

5. Frequently Asked Questions

Q1: Is this sensor suitable for environments with heavy dust or steam?

A1: Yes. The advanced 80 GHz radar technology, combined with the durable stainless steel housing, allows the sensor to operate stably and reliably in environments with dust, steam, mist, or oily vapor.

Q2: Can it measure liquids with foam or surface turbulence?

A2: Yes. The sensor is designed to reduce interference caused by foam, liquid surface fluctuations, and minor contamination, ensuring stable and accurate measurement results.

Q3: What installation options are available?

A3: The sensor supports both front panel mounting and optional bracket mounting, providing flexible installation solutions for different equipment and application environments.
