Product Description

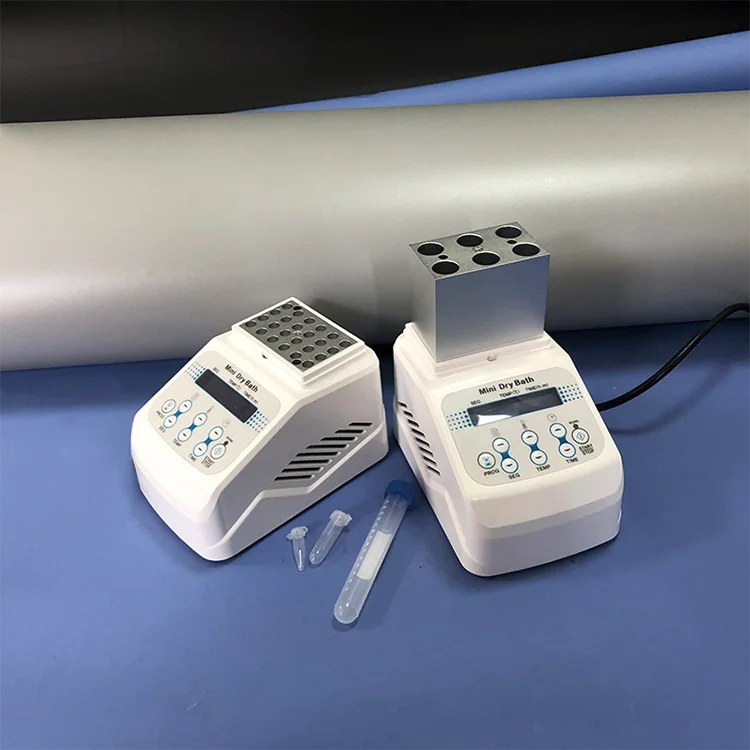

M-JSY Dry Bath Incubator Metal Bath Heater Cooler 10-100°C RT+5-100°C PCR DNA Protein Denaturation Lab Heating
M-JSY Dry Bath Incubator Metal Bath Heater Cooler 10-100°C RT+5-100°C PCR DNA Protein Denaturation Lab Heating1.NOTE
Default Specifications
Model Options:
JSY-H Heating Only
Temperature Range: RT +5°C to 100°C
Power Supply: 12V / 5A
M-JSY-HF Heating and Air Cooling
Temperature Range: RT +5°C to 100°C
Power Supply: 12V / 5A
M-JSY-HL Heating and Cooling
Temperature Range: 10°C to 100°C
Power Supply: 15V / 5A

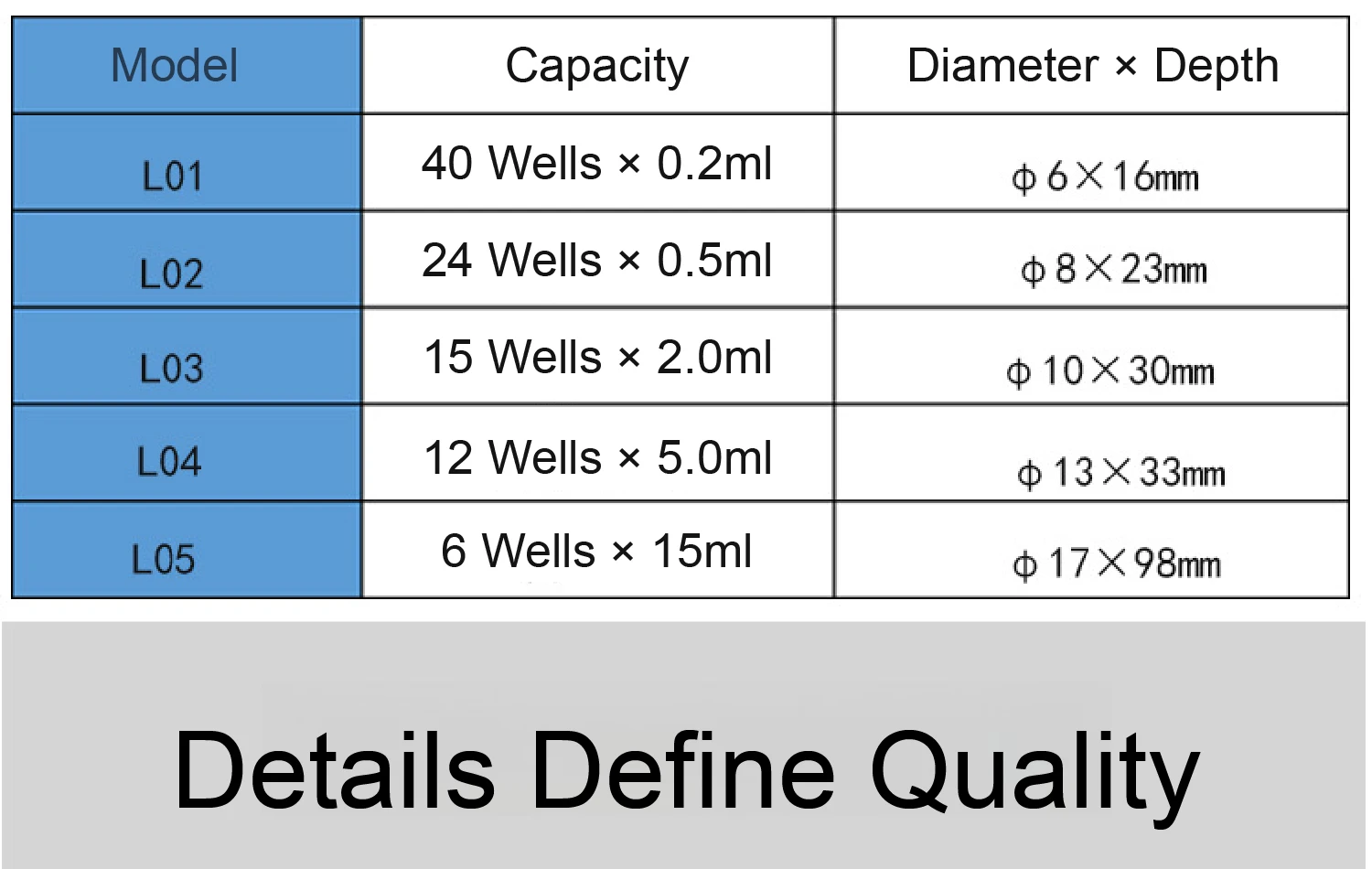

Default Block Module:
15 × 2.0ml
Customizable Options
Multiple interchangeable block modules are available to meet different application needs:
40 × 0.2ml
24 × 0.5ml
12 × 5.0ml
32 × 0.2ml, specially designed for milk applications
2.Parameters
Parameter | M-JSY-HL | M-JSY-H | M-JSY-HF |
Temperature Control Range | 10 – 100°C | RT +5 – 100°C | RT +5 – 100°C |
Time Setting Range | 1 min – 99 h 59 min | 1 min – 99 h 59 min | 1 min – 99 h 59 min |
Temperature Fluctuation | ≤ ±0.5°C | ≤ ±0.5°C | ≤ ±0.5°C |
Block Temperature Uniformity | ≤ ±0.5°C | ≤ ±0.5°C | ≤ ±0.5°C |
Temperature Control Accuracy | ≤ ±0.3°C | ≤ ±0.3°C | ≤ ±0.3°C |
Display Accuracy | ±0.1°C | ±0.1°C | ±0.1°C |
Temperature Deviation Correction | Supported | Supported | Supported |
Multi-point Program Control | Up to 5 temperature/time sets | Up to 5 temperature/time sets | Up to 5 temperature/time sets |
Power Supply | 15V / 5A | 12V / 5A | 12V / 5A |
Safety Features | Startup self-check, overheat protection, fault alarms | Same | Same |
Cooling Method | Semiconductor cooling | Natural cooling | Fast fan cooling |
Net Weight | 1.8 kg | 1.2 kg | 1.2 kg |
Dimensions | 110 × 170 × 140 mm | 110 × 170 × 140 mm | 110 × 170 × 140 mm |
Max Power | 60W | 30W | 30W |
Module Capacity | 1 block | 1 block | 1 block |
3.Features
Accurate Real-Time Temperature Control
Displays both real-time temperature and countdown timer, providing clear monitoring and reliable performance throughout the experiment process.
Programmable Temperature Settings
Supports up to 5 programmable stages for temperature and timing control, making it suitable for complex and multi-step experimental procedures.
Replaceable Aluminum Heating Blocks
Interchangeable anodized aluminum blocks provide rapid heating, excellent thermal conductivity, and easy cleaning and maintenance.
Built-in Over-Temperature Protection
Equipped with self-diagnostic functions and automatic shutdown protection to help prevent overheating and ensure safe operation.
Transparent Thermal Cover
Helps minimize temperature fluctuations caused by airflow or water vapor, improving overall experimental accuracy and stability.
Compact and Durable Design
Made with a high-strength ABS housing and efficient ventilation system, designed for long-term and continuous laboratory use.
4.Applications
Nucleic acid and protein denaturation
Enzyme preservation and reaction incubation
PCR sample preparation and pre-electrophoresis treatment
Serum coagulation experiments
General laboratory sample heating and sample preservation
5.FAQs
Q1: Can the heating blocks be customized or replaced?
A: Yes. The device supports interchangeable aluminum heating blocks in multiple formats, allowing compatibility with different tube sizes and application requirements.
Q2: Does the device support cooling?
A: Yes, depending on the model selected. The M-JSY-HL version features semiconductor cooling, while the JSY-H and M-JSY-HF models use natural cooling or fan-assisted air cooling.
Q3: Is it suitable for time-based thermal cycling?
A: Yes. The programmable multi-stage temperature control system allows users to preset up to 5 temperature and time stages for automatic sequential operation.
