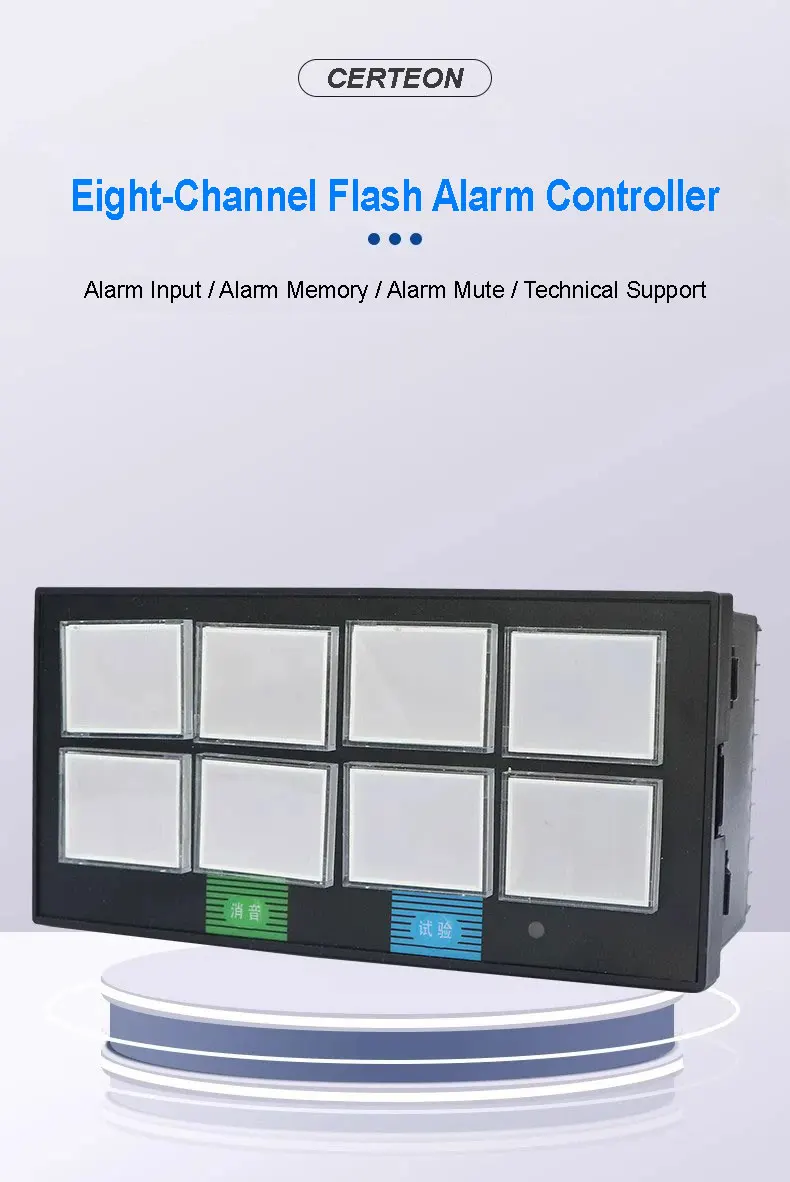

8 Channel Flashing Alarm Annunciator Audible Visual Alarm Panel AC220V DC24V for

Product Description

1.NOTE

This 8-channel flashing alarm device supports standard TTL signal input (0–5V, high-level trigger) and relay control output (ON/OFF).

Power Supply
Supports AC220V or DC24V power input. Please confirm the correct power supply before installation to prevent equipment damage.

Operating Conditions
Recommended operating environment:
Temperature: 0–50°C
Humidity: ≤85% RH
Keep away from strong corrosive gases and harsh environments.

Input Requirements
Passive contact input only. Do not apply any external voltage or power to the input terminals.

Alarm and Mute Function
When multiple alarms are triggered simultaneously, pressing the mute button will silence the buzzer while the corresponding alarm indicators remain active until all alarm conditions are cleared.

Optional Functions
External mute button and external test button functions are available upon request.

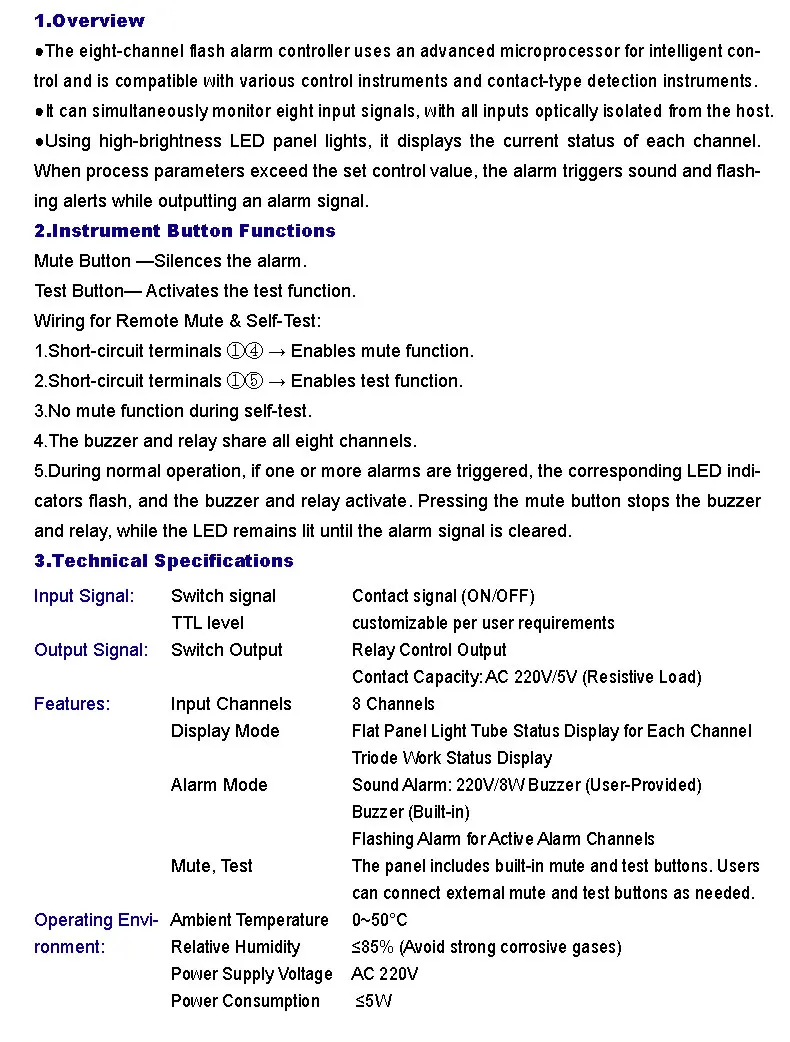

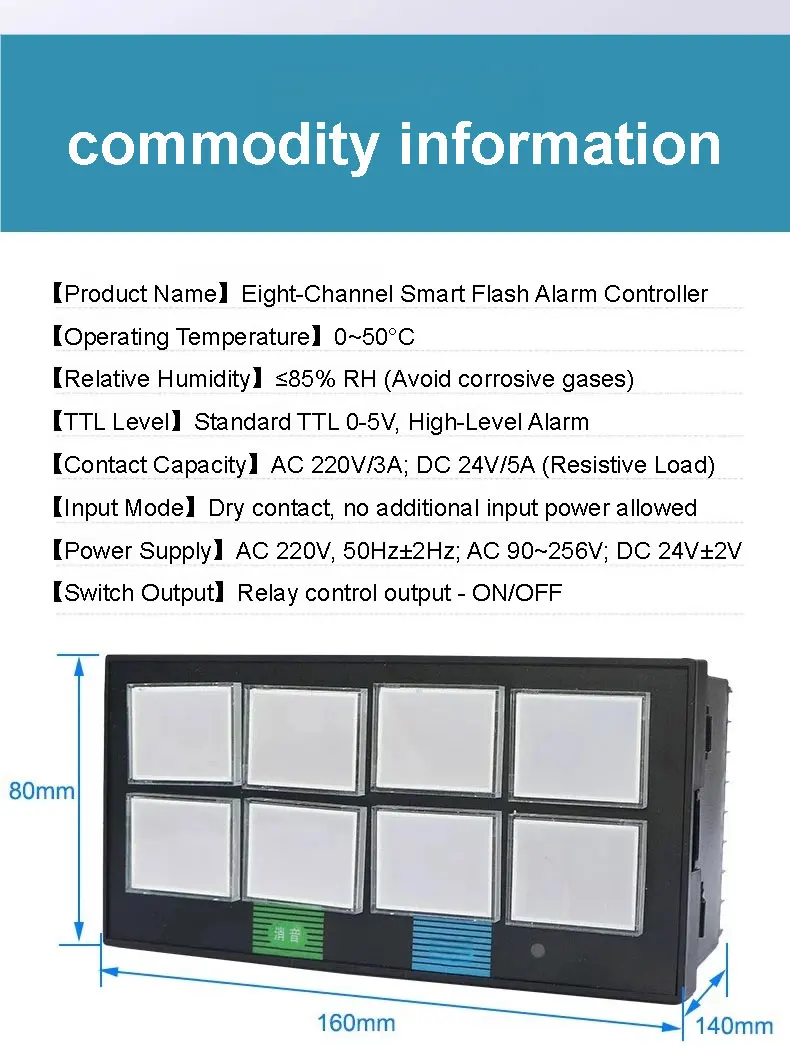

2.Parameters

3.Features

Multi-Channel Monitoring
Supports 8-channel signal input monitoring with optoelectronic isolation design for improved operational safety and signal stability.

Real-Time LED Indication
Equipped with high-brightness LED indicators for clear and instant display of each channel’s operating status.

Comprehensive Alarm Function
Provides audible and flashing visual alarms when monitored parameters exceed preset limits, helping operators respond quickly to abnormal conditions.

Flexible Control Operation

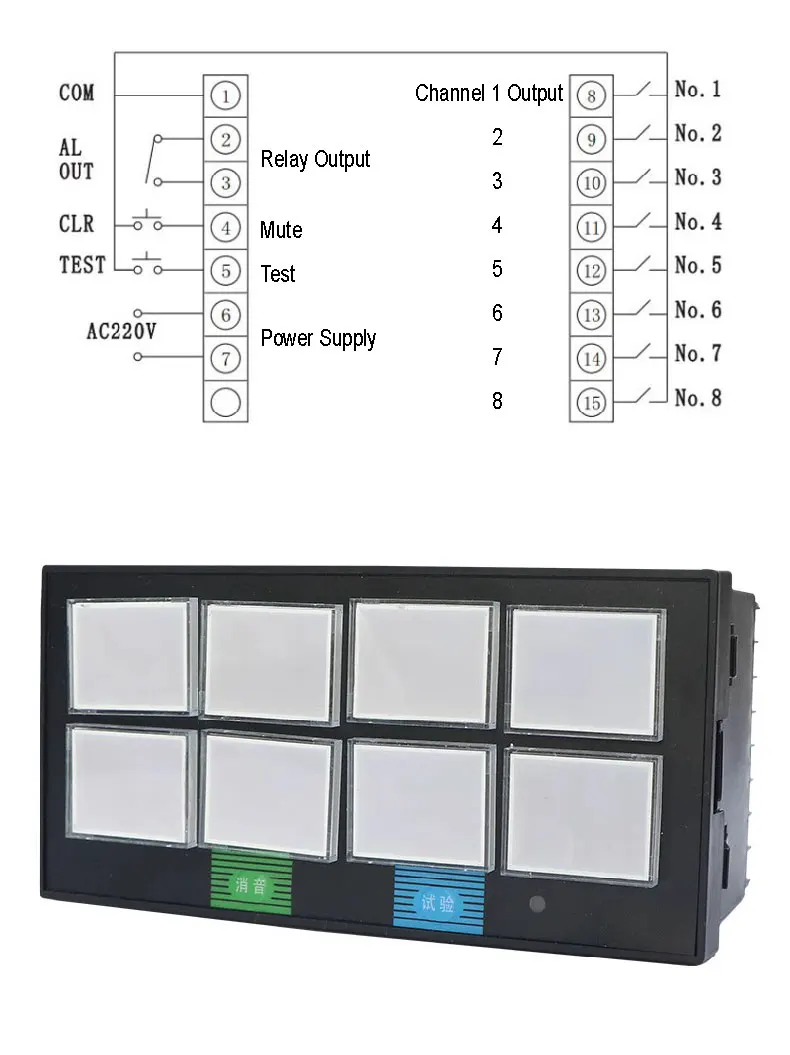

Built-in mute and test buttons for convenient operation. Supports remote mute and remote self-test functions for easier system management.

Industrial-Grade Reliability
Designed for industrial applications with strong anti-interference capability, stable performance, and high reliability.

4.Applications

Petroleum and Chemical Industry

Metallurgy and Power Plants

Light Industry Automation

Safety Monitoring Systems

5.FAQs

Q: Can this device operate in high-humidity environments?
A: Yes, the device can operate in environments with relative humidity up to 85% RH. However, it should be kept away from corrosive gases and harsh chemical environments.

Q: Does the input signal require an external power supply?
A: No, the device uses passive contact input only and does not require any additional external power for the input signals.

Q: What types of alarm functions are supported?
A: The device supports both audible alarms through the built-in buzzer and flashing visual alarms for clear and effective alert notification.
