Guided Wave Radar Level Transmitter DC24V 4-20mA for Wastewater Underground Chem

Product Description

1.Note

This guided wave radar level transmitter is specially designed for accurate and reliable level measurement of liquids and powder solids.

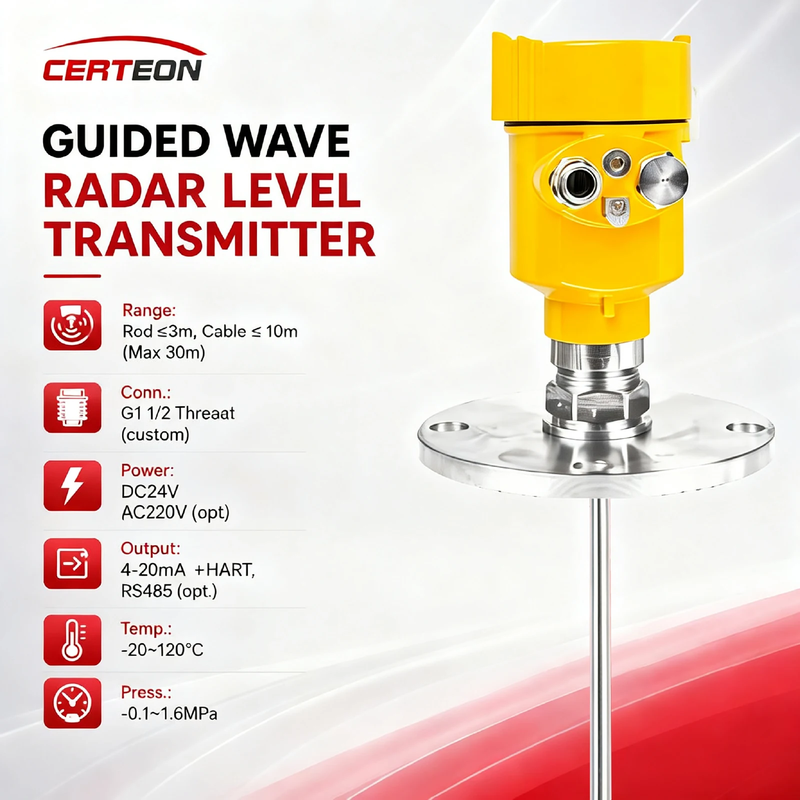

Standard Configuration:
Frequency range: 100MHz–1.8GHz
Pressure resistance: -0.1~1.6MPa
Medium temperature: -20~120°C
Measuring range:
Rod type: 1m
Cable type: 3m / 5m / 10m

Process connection:
Standard G1½ thread
Customized flanges and thread connections available upon request

Power supply:
DC24V standard
AC220V optional

Signal output:
4–20mA with HART protocol
RS485 optional

This transmitter offers stable performance, high measurement accuracy, and strong adaptability for various industrial applications.

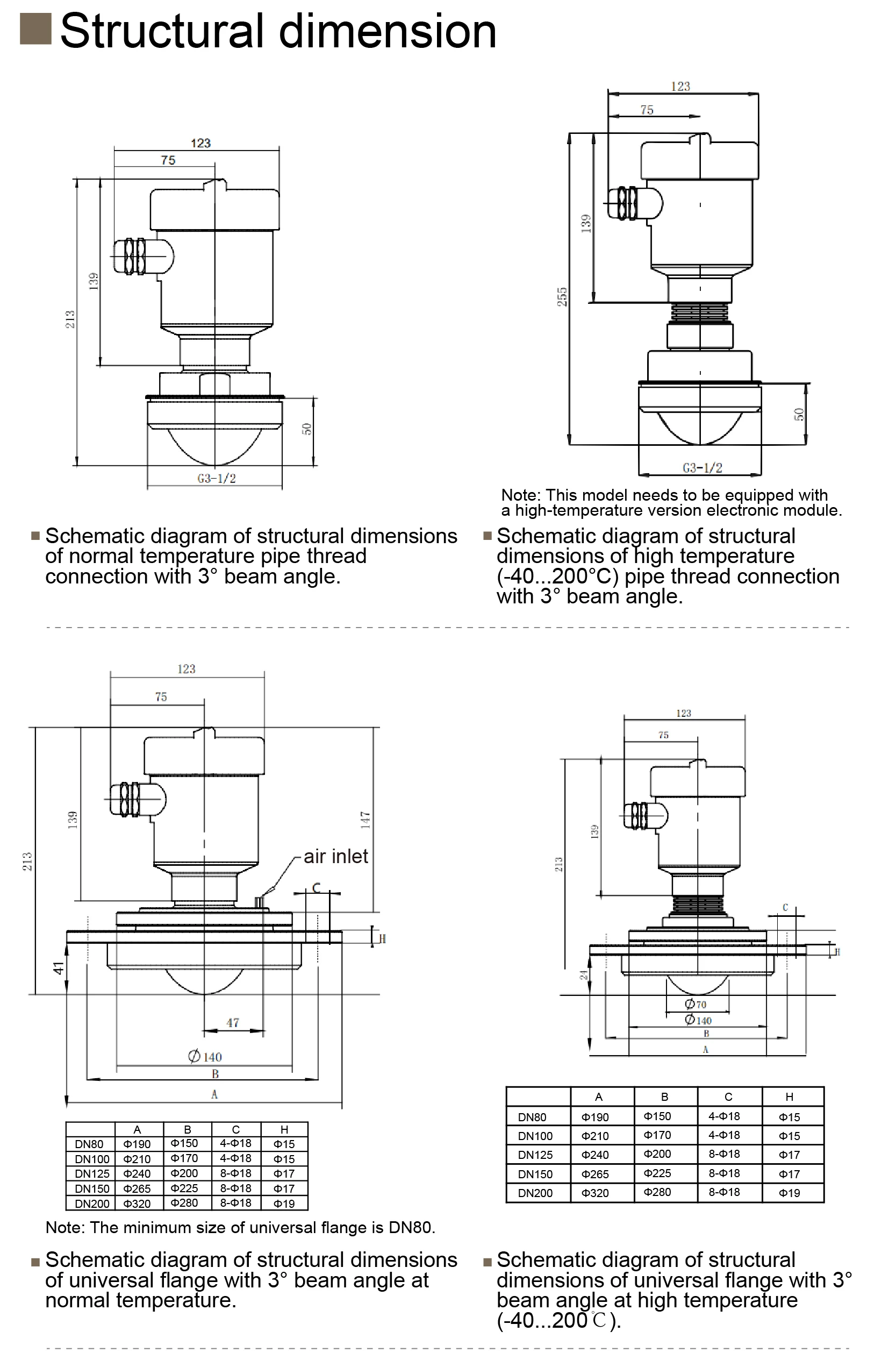

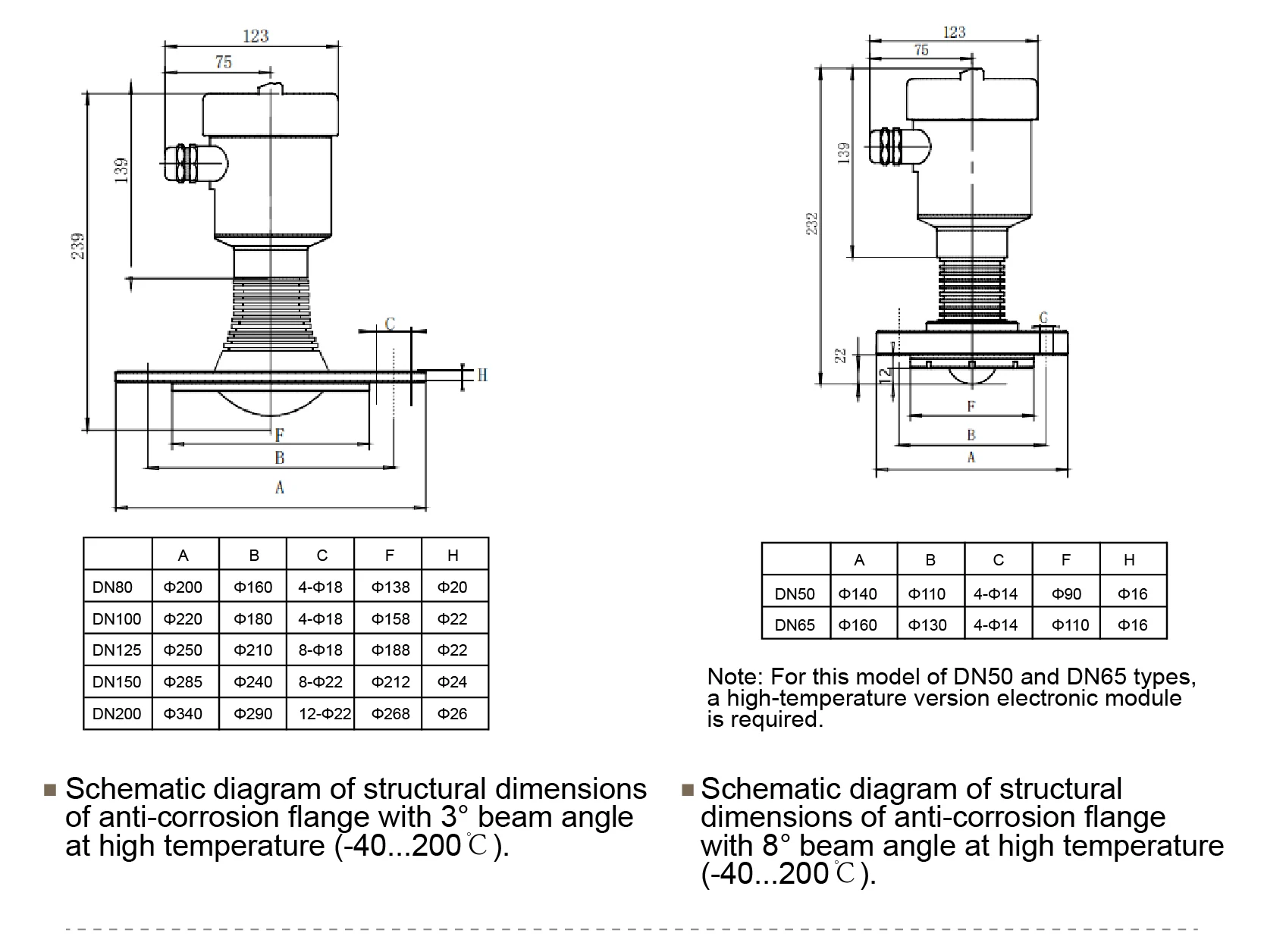

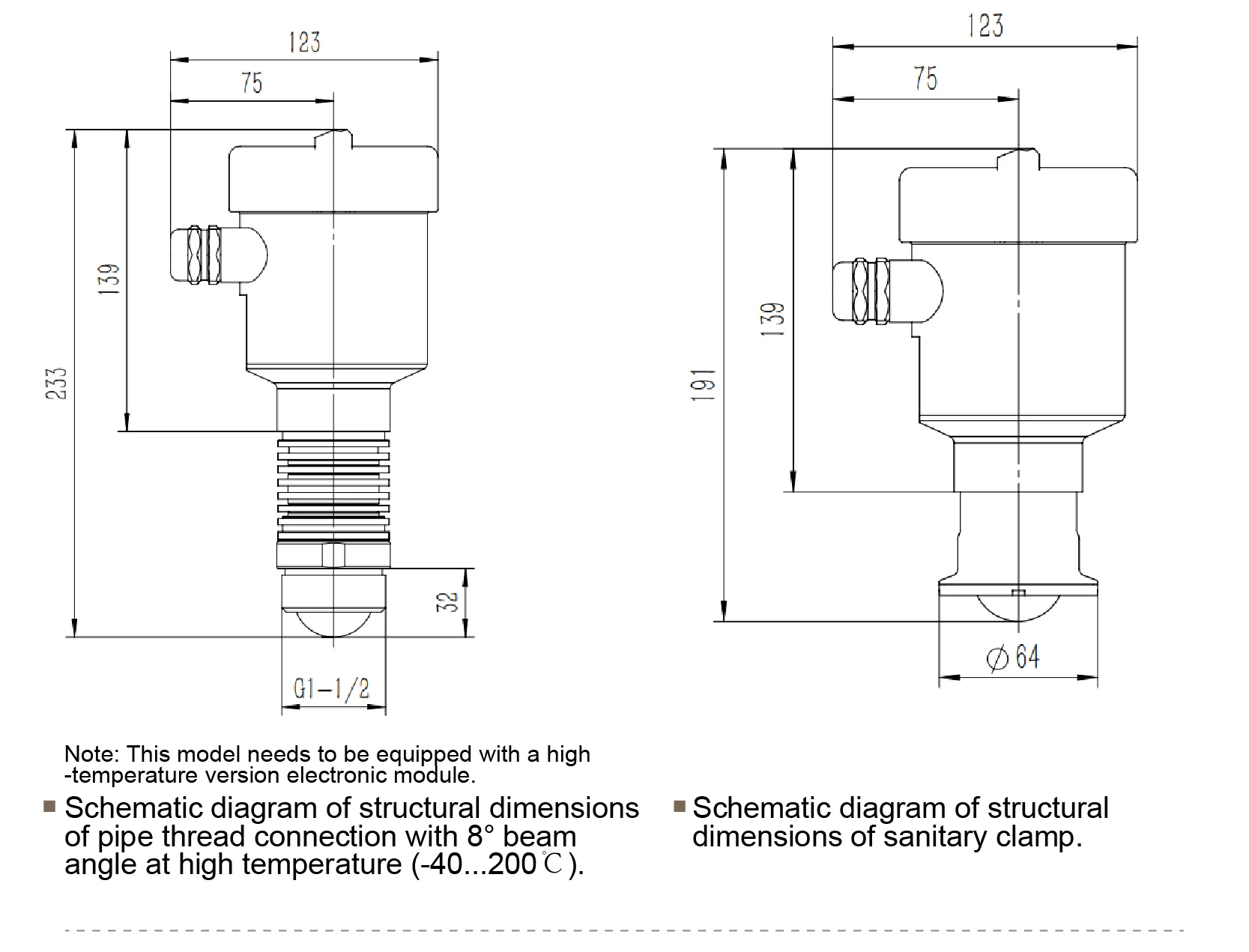

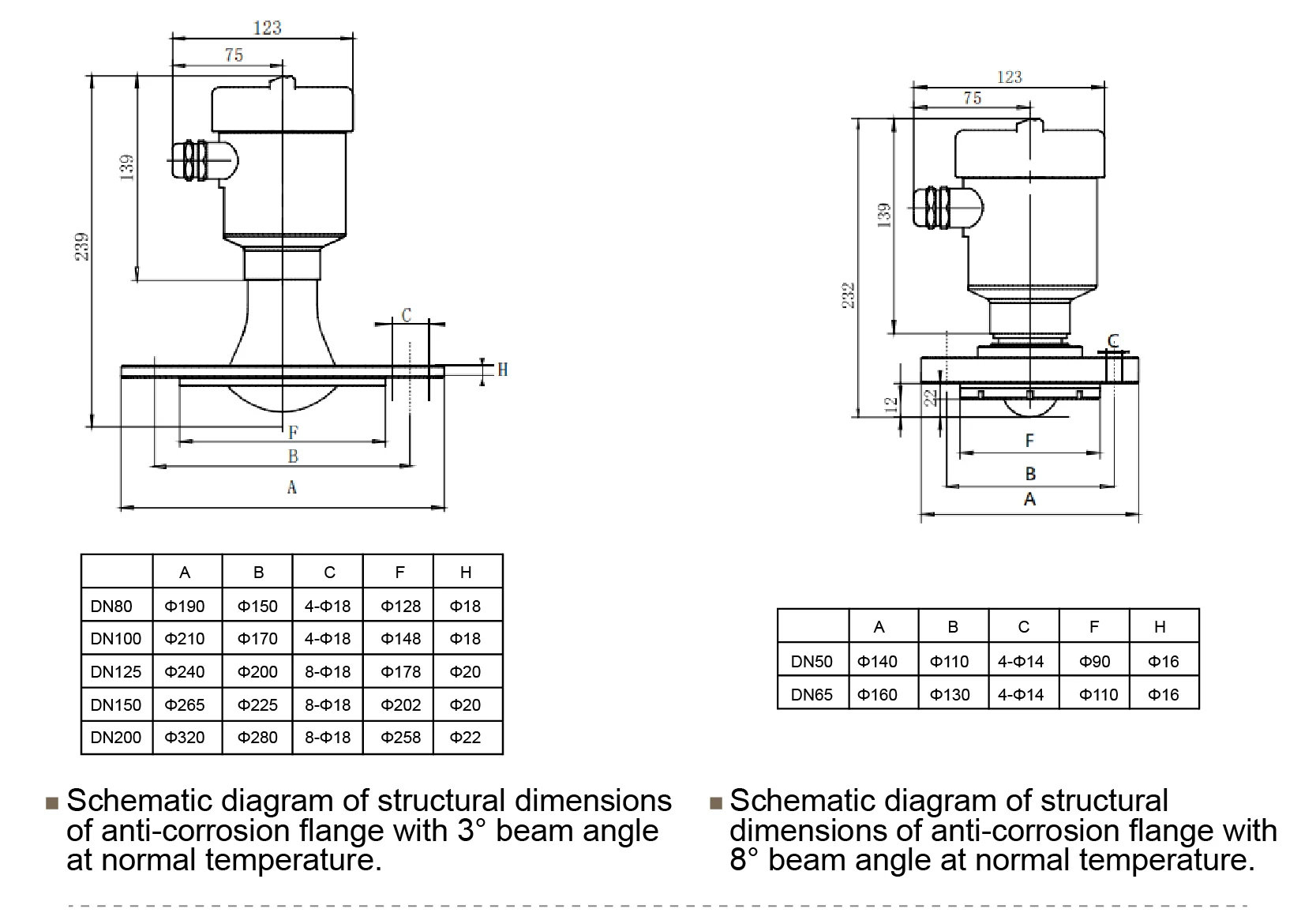

The default flange connection standard is DIN/EN1092-1-2018 (German/European standard). Please refer to the dimension chart on the product details page for specific flange sizes.

If you require customized flanges in other standards such as ANSI/ASME (American standard), JIS (Japanese standard), BS (British standard), or GOST (Russian standard), please contact us.

2. Parameters

3. Features

Stable and Accurate Performance
Provides reliable and precise level measurement even in environments with dust, vapor, or other challenging conditions.

Integrated and Compact Design
Compact structure for easy installation and convenient setup, suitable for various tank and container designs.

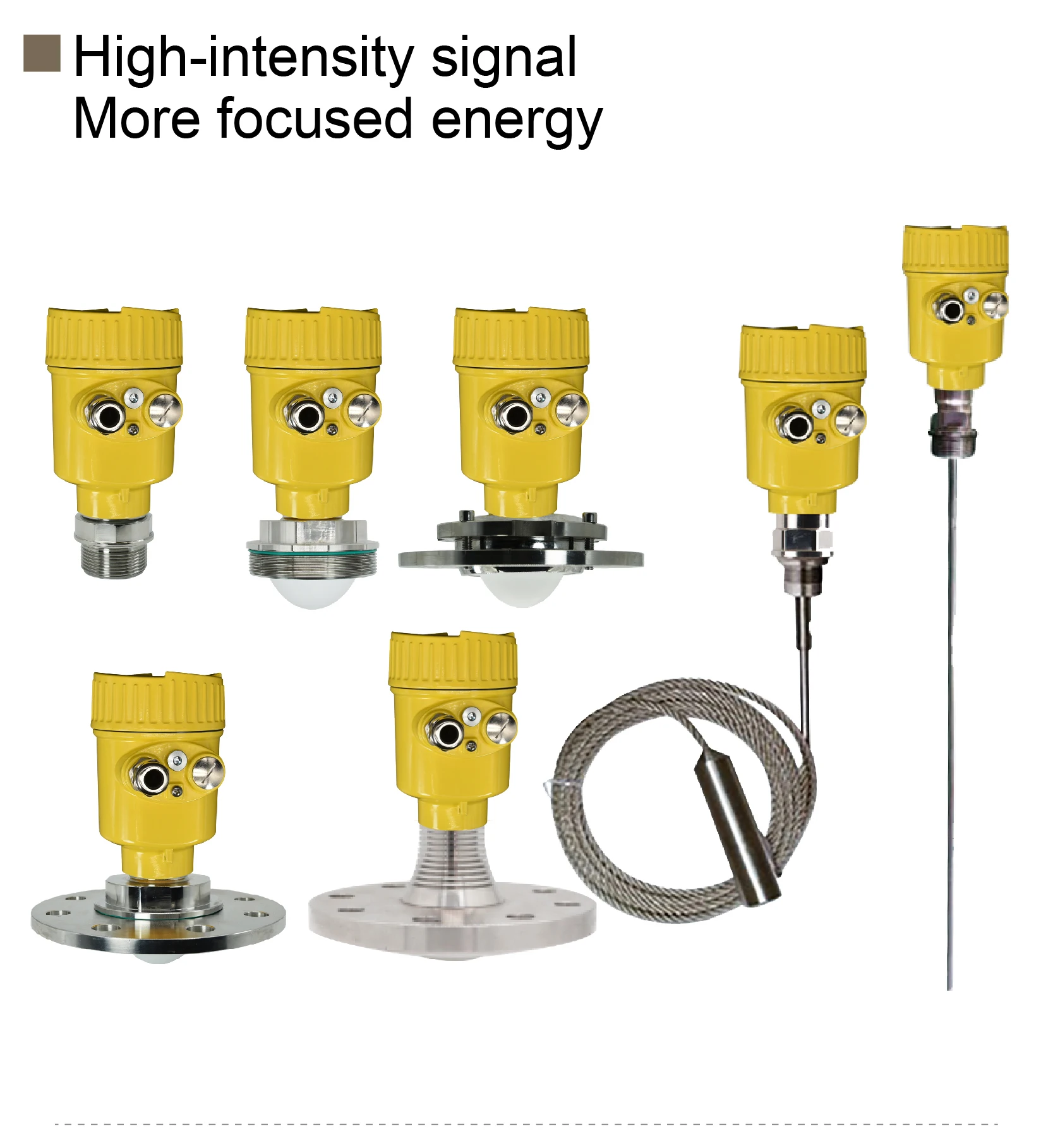

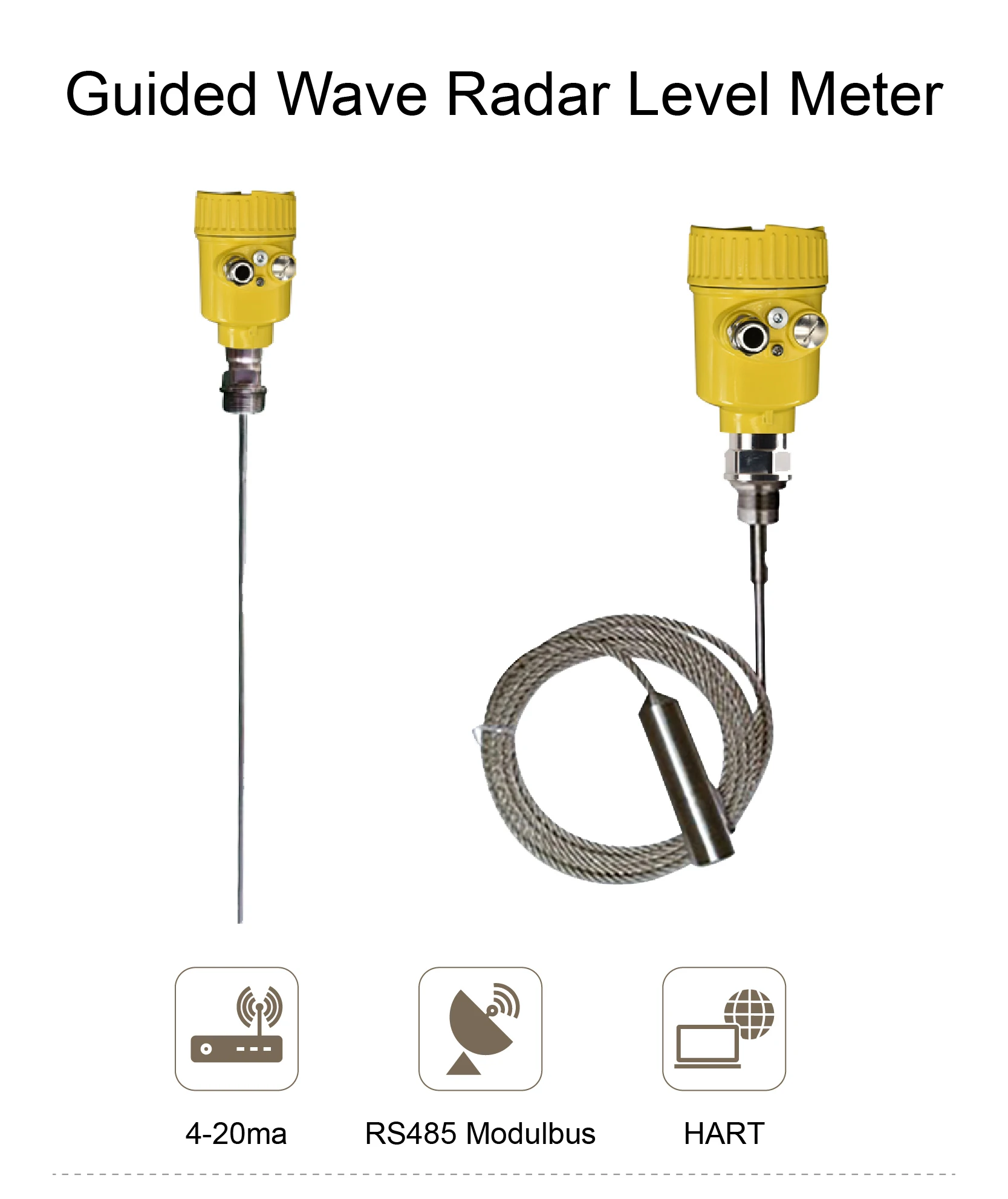

Flexible Probe Options
Available with both rod and cable probe types to meet different installation heights and space requirements.

Wide Communication Compatibility
Supports 4–20mA with HART protocol, with optional RS485 communication for seamless integration into industrial automation systems.

4. Applications

Ideal for level measurement and monitoring of:

Liquids:
Wastewater treatment systems
Underground storage tanks
Chemical storage tanks
Beverage and liquid processing tanks

Powders and Solids:
Grain silos
Feed storage bins
Flour and cement storage
Chemical powder containers

Designed for stable operation in dusty, humid, and demanding industrial environments.

5. FAQs

Q1: Can this device measure solid powders?
A1: Yes. The cable-type probe is especially suitable for bulk solid materials such as grain, cement, flour, and animal feed.

Q2: What is the measurement accuracy?
A2: Measurement accuracy is up to ±5mm for liquids and ±10mm for powders or bulk solids, depending on actual working conditions.

Q3: Does it support remote configuration and monitoring?
A3: Yes. The transmitter supports remote parameter setting and data monitoring via RS485 or Bluetooth communication.
