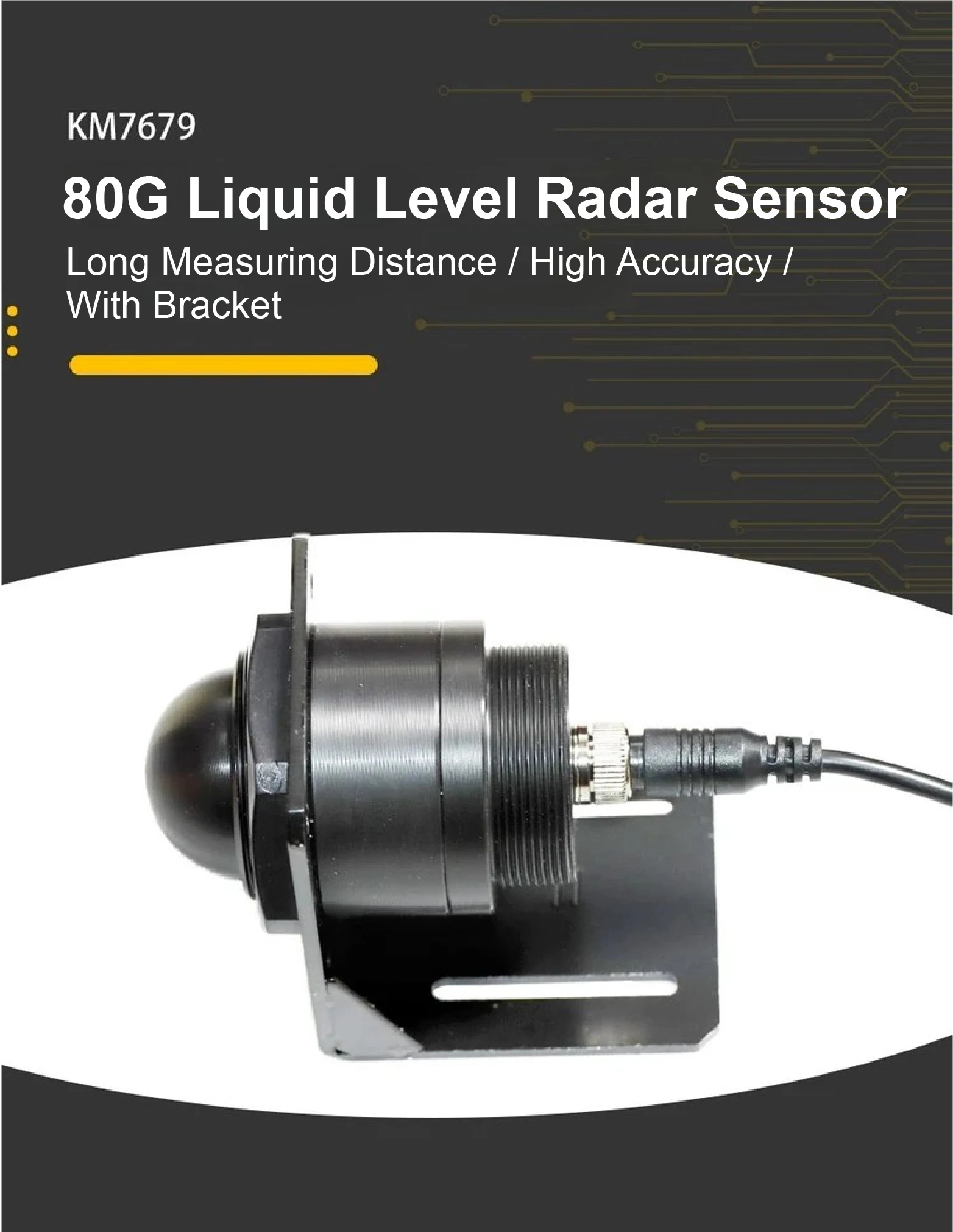

KM7679 Radar Level Transmitter Probe Water Level Sensor DC5~28V RS485 4-20mA 0-

Product Description

Please note: this radar level sensor is designed for measuring water only. It cannot be used for other types of liquids.

1.NOTE

Detection distance: 3m, 7m, 12m (selectable)

Measurement accuracy: ±2mm

Power supply: DC5~28V

Output options: RS485, 4-20mA, 0-10V (selectable)

Frequency range: 79GHz~81GHz

Standard cable length: 2 meters

Protection level: IP65

Mounting options: Flat bracket, L-shaped bracket (selectable)

If you have any questions, please contact us.

2. Parameters

3. Features

High Precision Measurement
±2mm theoretical accuracy ensures reliable level monitoring in demanding applications.

80GHz Frequency Band
Strong signal penetration and resistance to interference make it ideal for liquids and solids.

Flexible Installation Options
Supports bracket and front-panel mounting for versatile integration.

Plug-and-Play Wiring
Includes a pre-wired 2-meter cable for fast setup and testing.

IP65 Protection
Water and dust resistant, suitable for outdoor and industrial environments.

Low Power Consumption
Operates efficiently with only 0.3W average power usage.

4. Applications

Ideal for use in hydrological monitoring, river channels, tunnels, oil tanks, fire water tanks, and municipal pipeline systems.

5. FAQs

Q1: Is this radar sensor suitable for outdoor use?
A1: Yes. With IP65 protection and a wide operating temperature range, it's designed for reliable outdoor performance.

Q2: Can it detect both liquids and solid materials?
A2: Yes. The 80GHz frequency and FMCW technology provide strong penetration for both types of media.

Q3: How is the sensor installed?
A3: It supports both bracket and front-panel mounting. Mounting accessories are available upon request.
