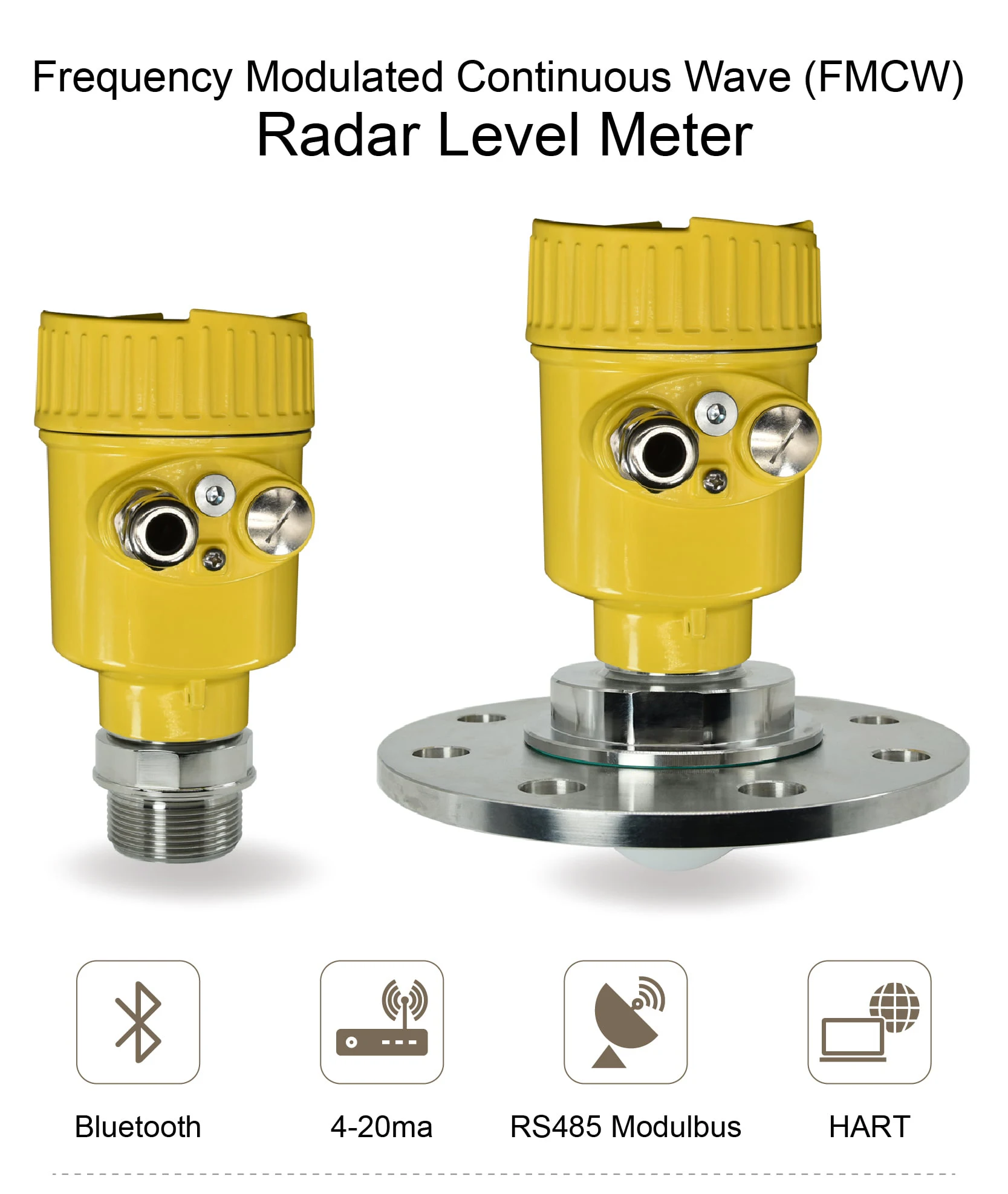

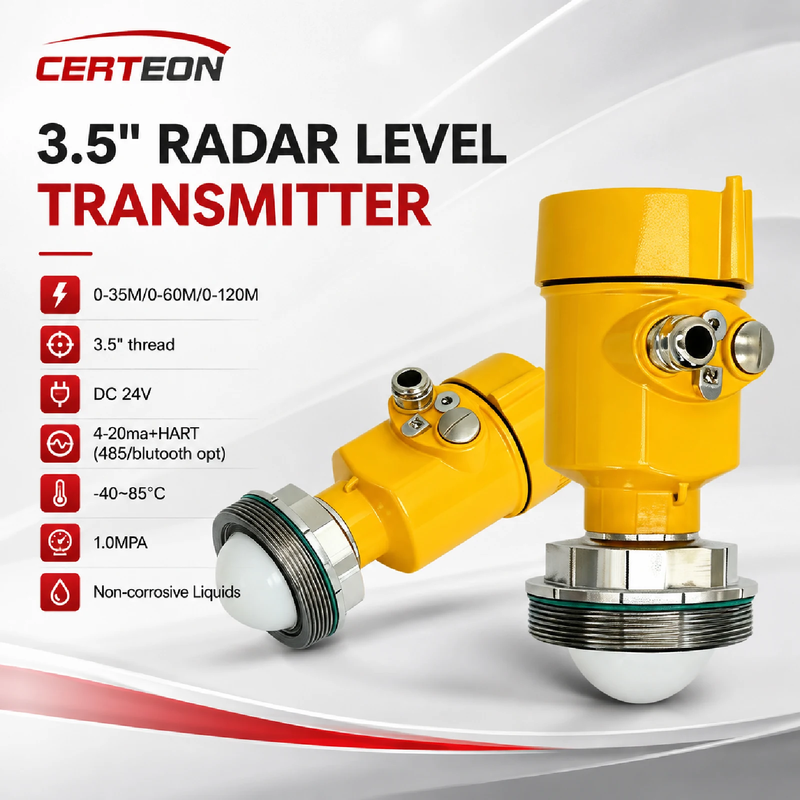

80GHz Radar Level Sensor 0-35M Non-contact Liquid Solid Measurement 4-20mA 3.5 I

Product Description

1.NOTE

Default Configuration:
Application: Suitable for both liquid and solid measurements
Measurement Range: 0-35M (Please specify your preferred range in the order notes, e.g., 0-5M, 0-10M, or any range within 35M. If no range is specified, the default 0-35M will be shipped.)
Accuracy: ±1mm
Power Supply: 15-28VDC
Operating Temperature: -40°C to 85°C

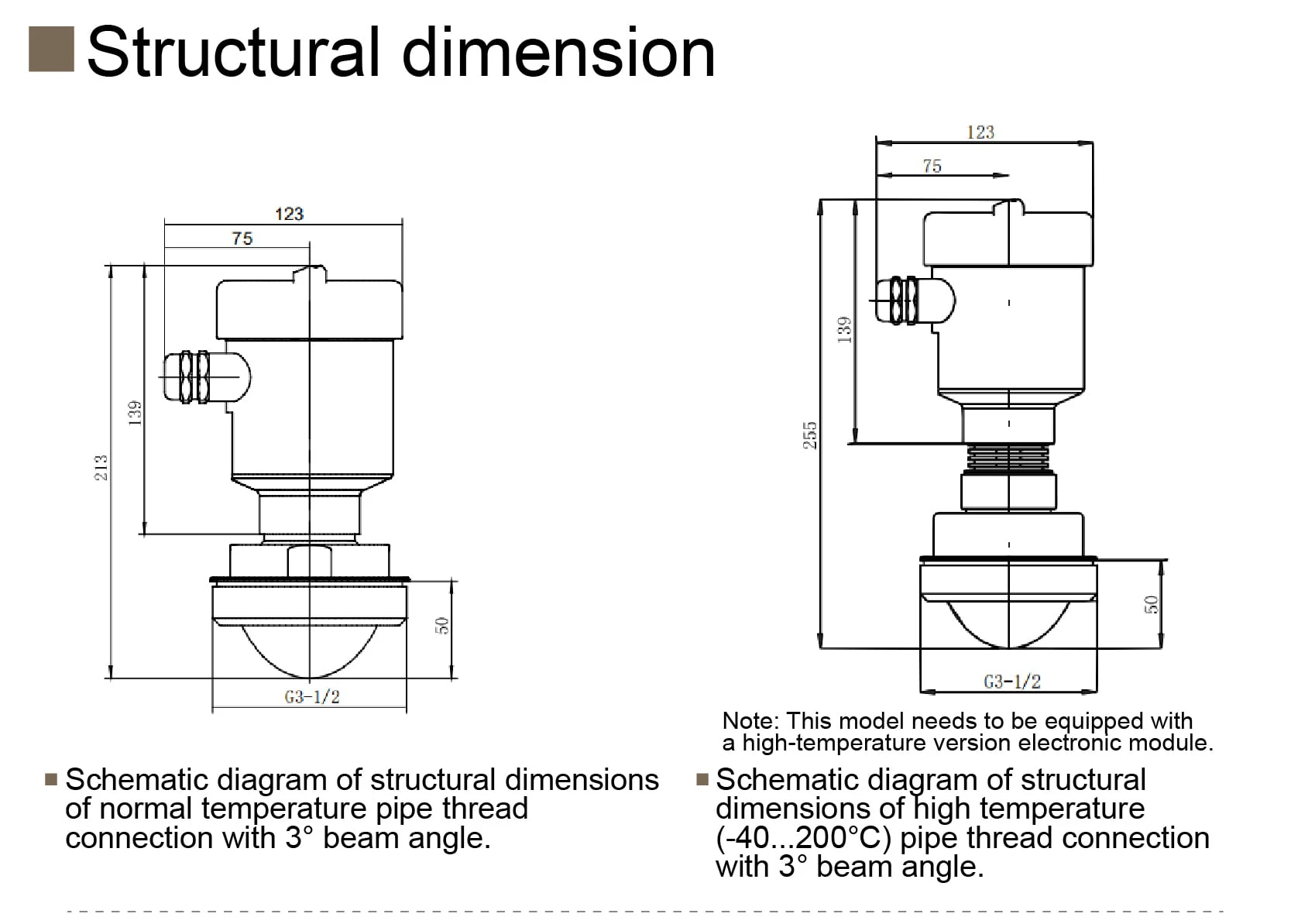

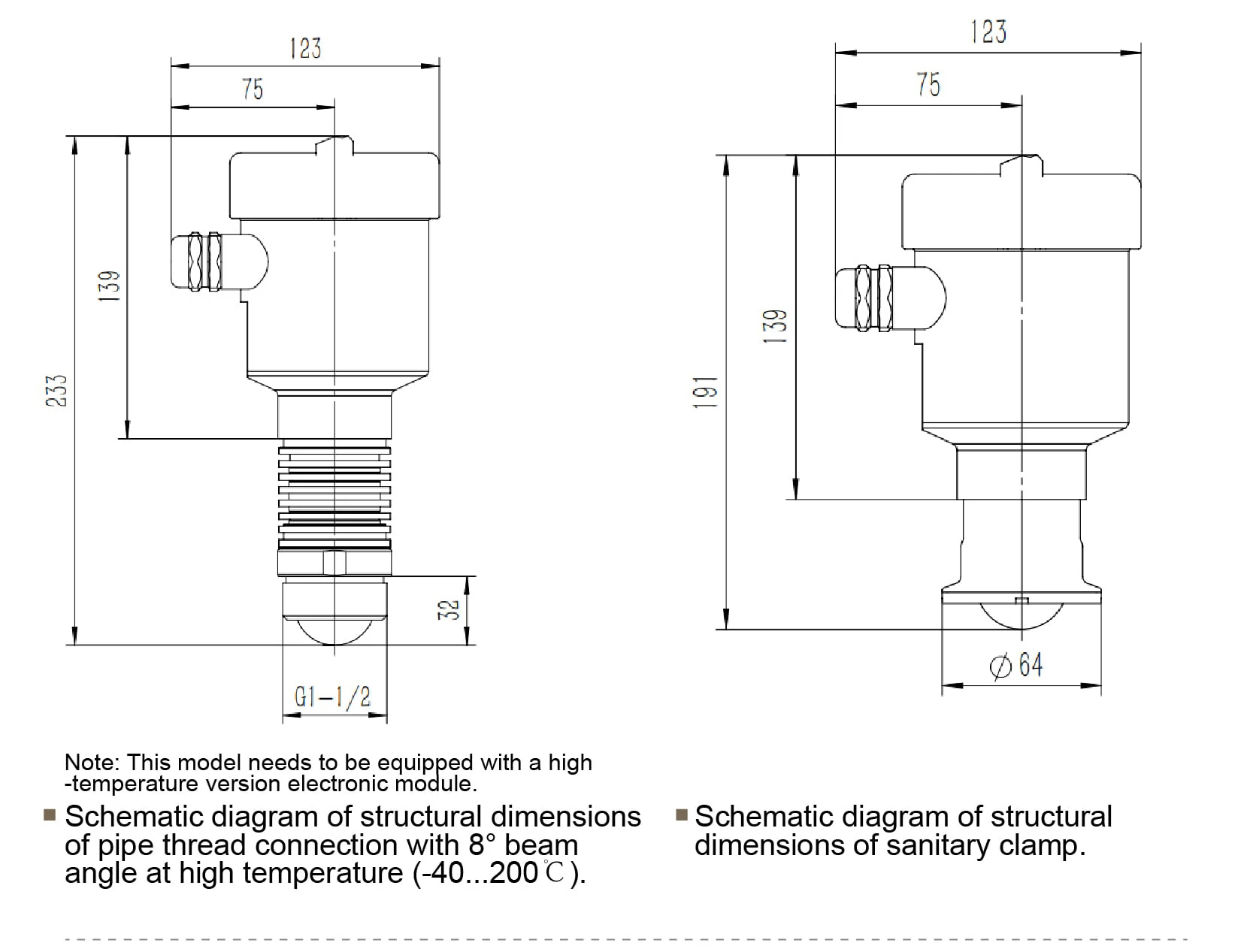

Installation: G3½ threaded type
Signal Output: 4-20mA with HART
Pressure Tolerance: 1.6MPa

Customizable Options:
Extended Temperature Range: -40°C to 600°C
Voltage Options: DC12V or AC220V

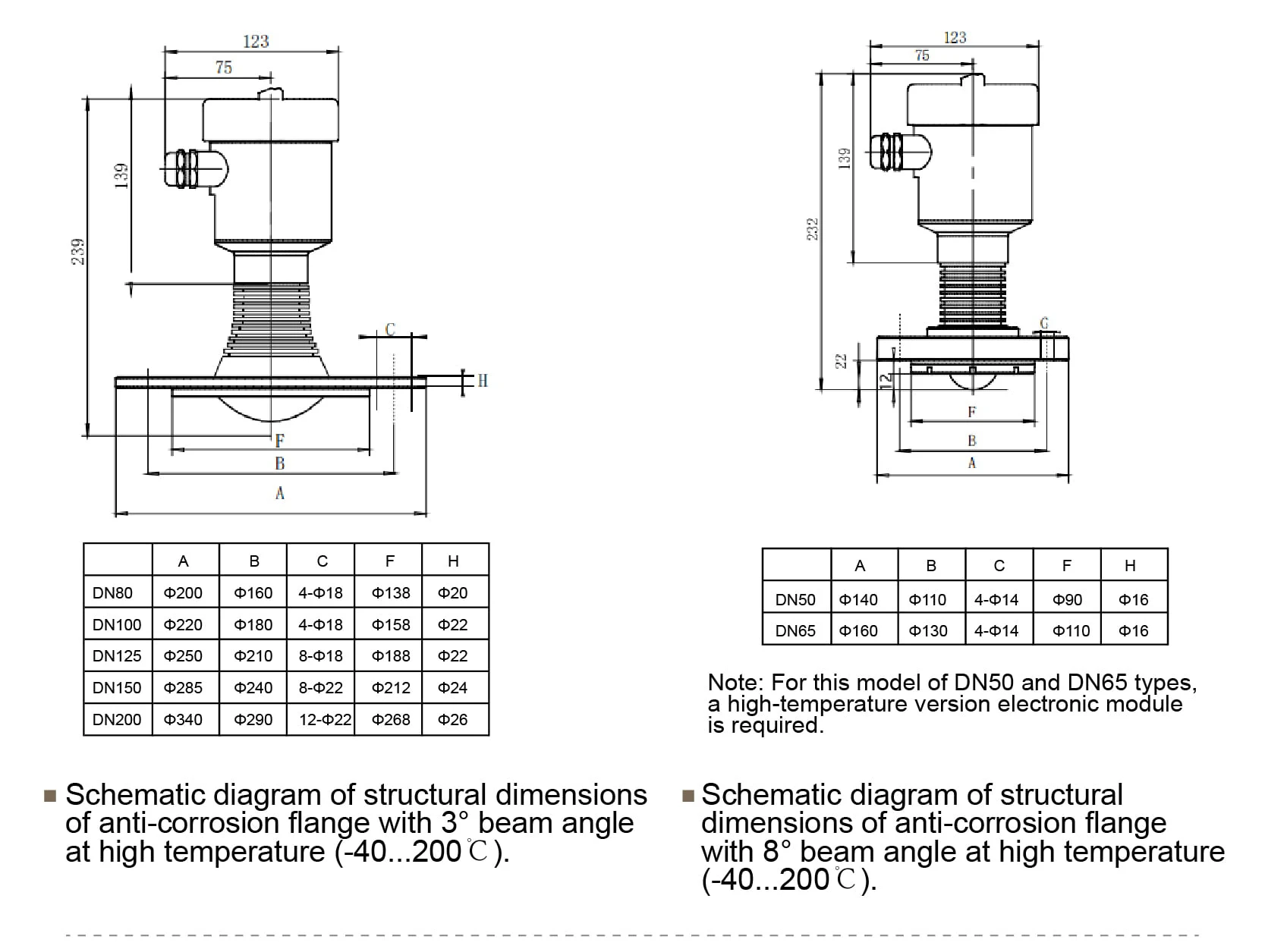

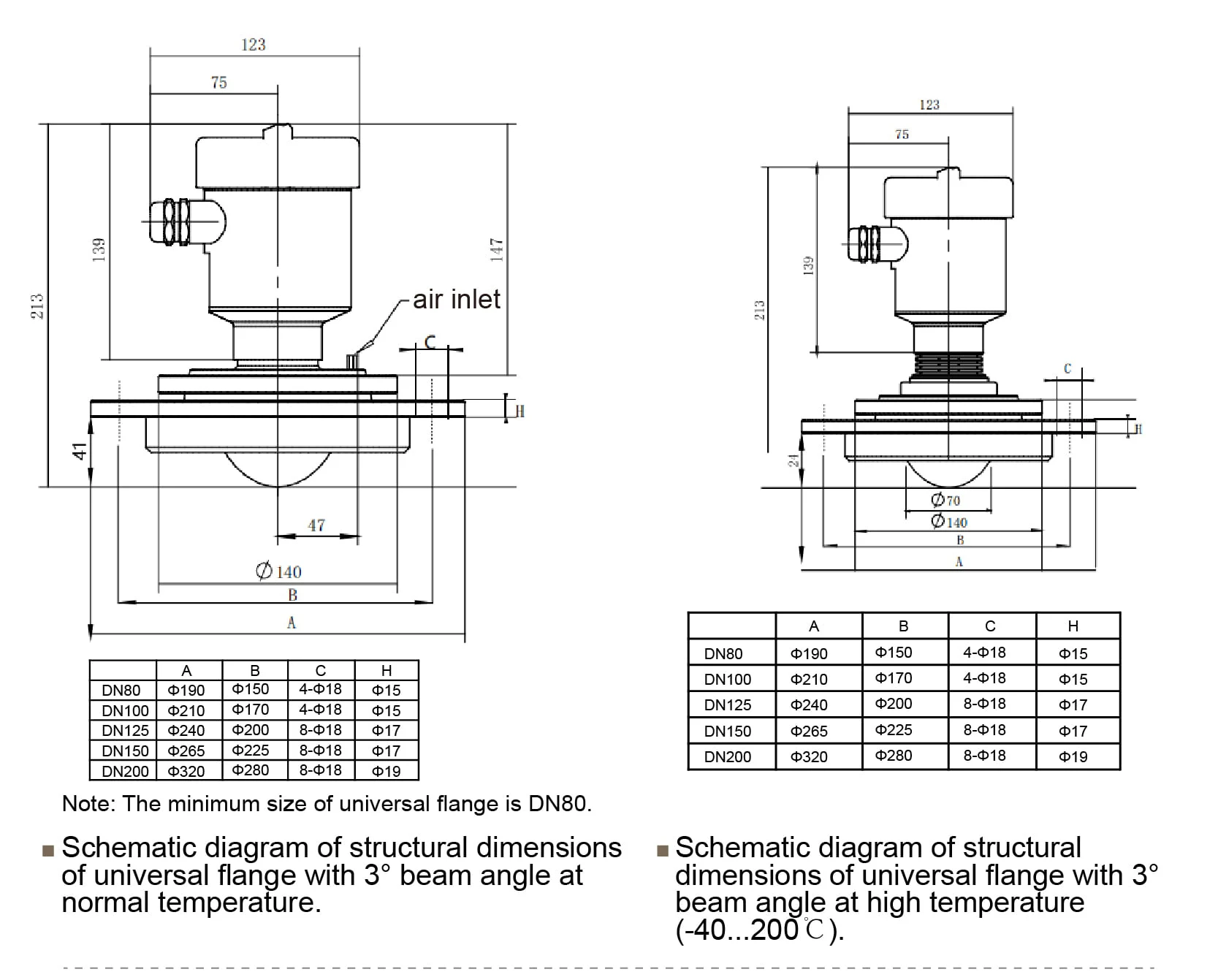

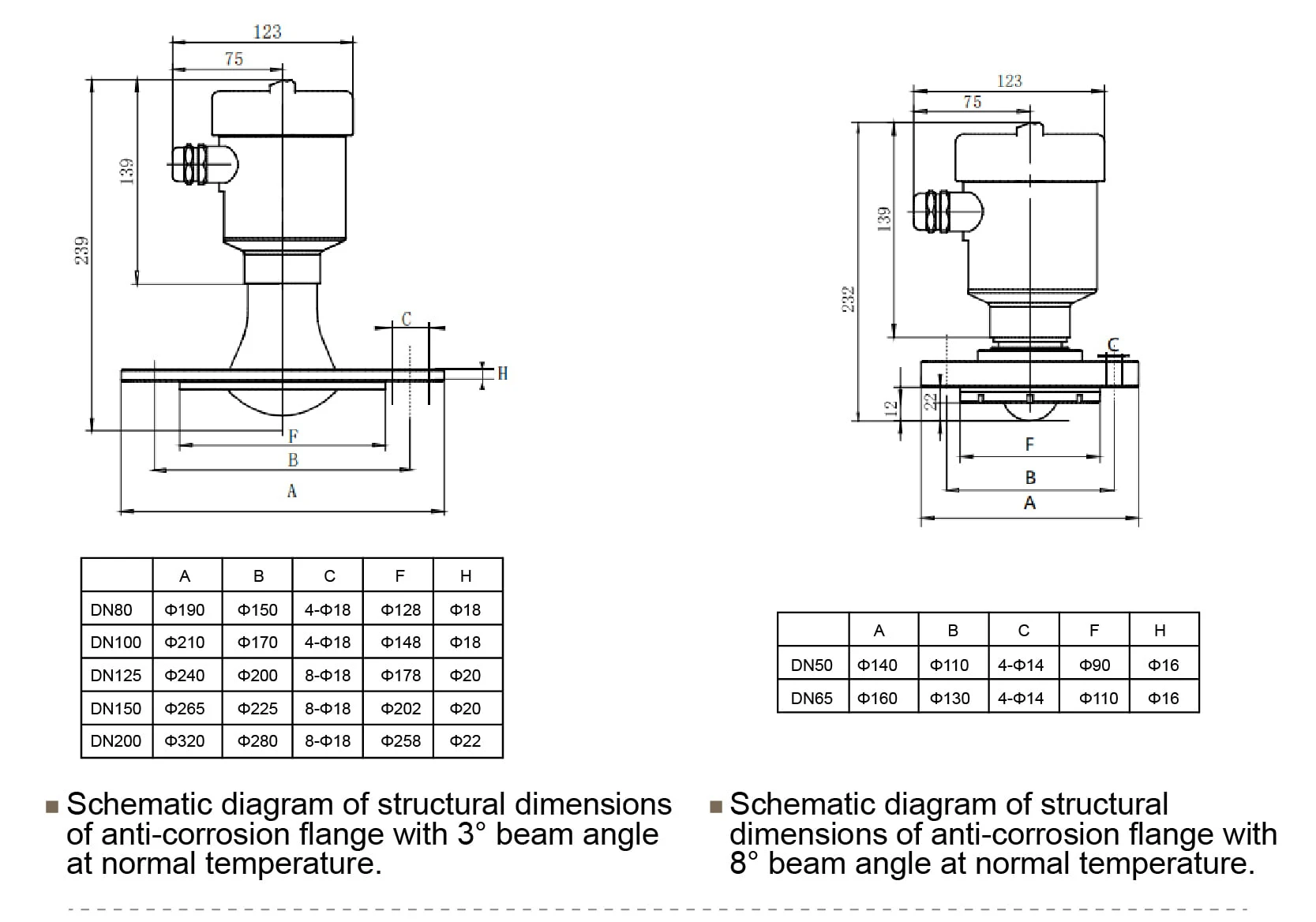

Flanged Installation: DN50, DN80, DN100 available
Enhanced Pressure Tolerance: up to 2.0MPa
Extended Measuring Range: up to 0-120M

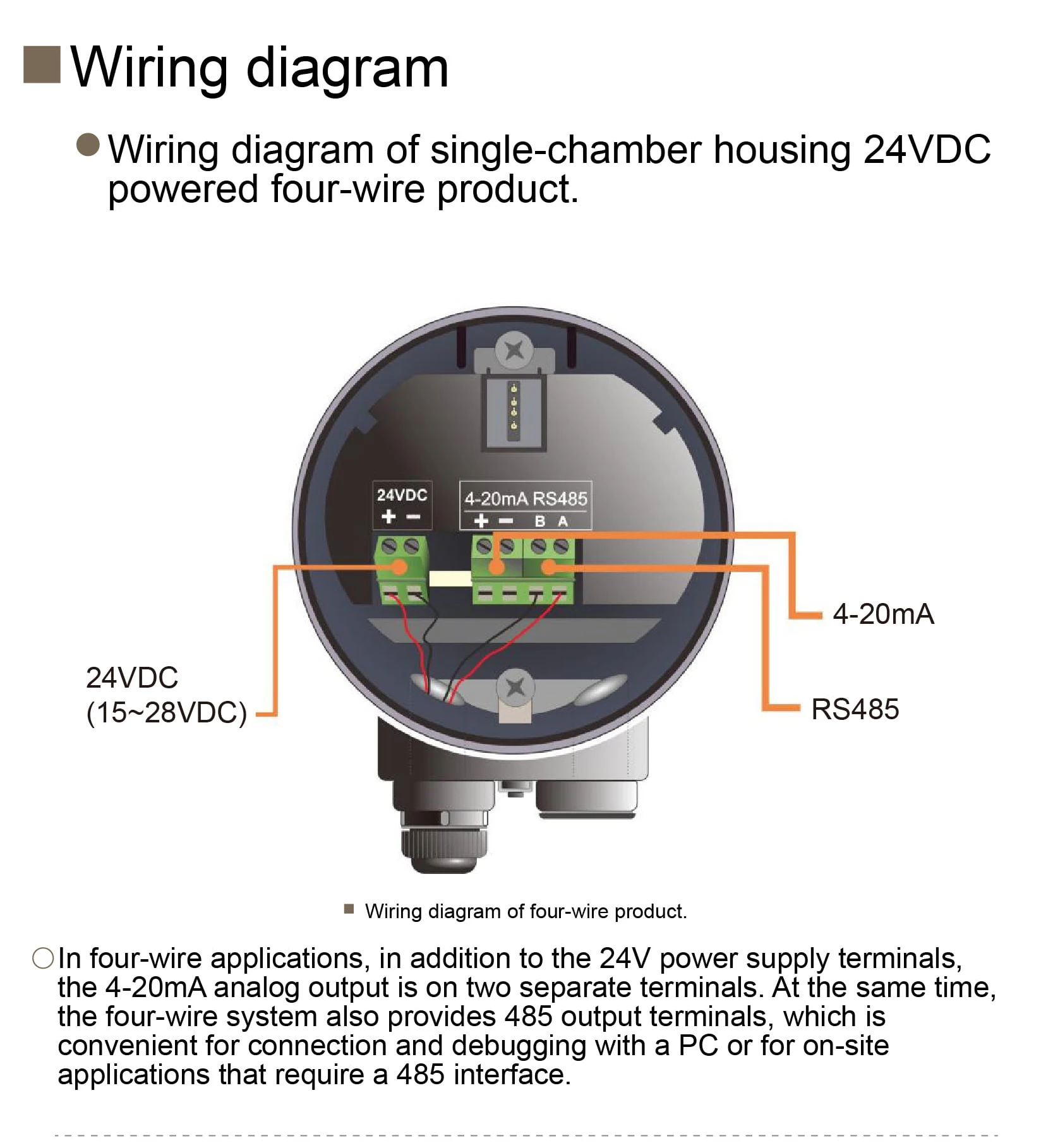

Additional Communication Protocols: RS485 MODBUS or Bluetooth

As a professional industrial instrument supplier, we provide extensive customization options and competitive pricing. If you need any parameter adjustments to meet your specific application requirements, please contact us at any time.

2.Parameters

3.Features

High Precision with Minimal Interference
The focused energy and narrow 3° beam angle reduce signal interference, ensuring accurate echo detection.

Multi-Condition Adaptability
Perfect for measuring water, chemical liquids, or slurry levels, even in challenging conditions such as high temperatures or foaming surfaces.

Advanced 80GHz Technology
High-frequency chips provide smaller blind zones and superior measurement resolution.

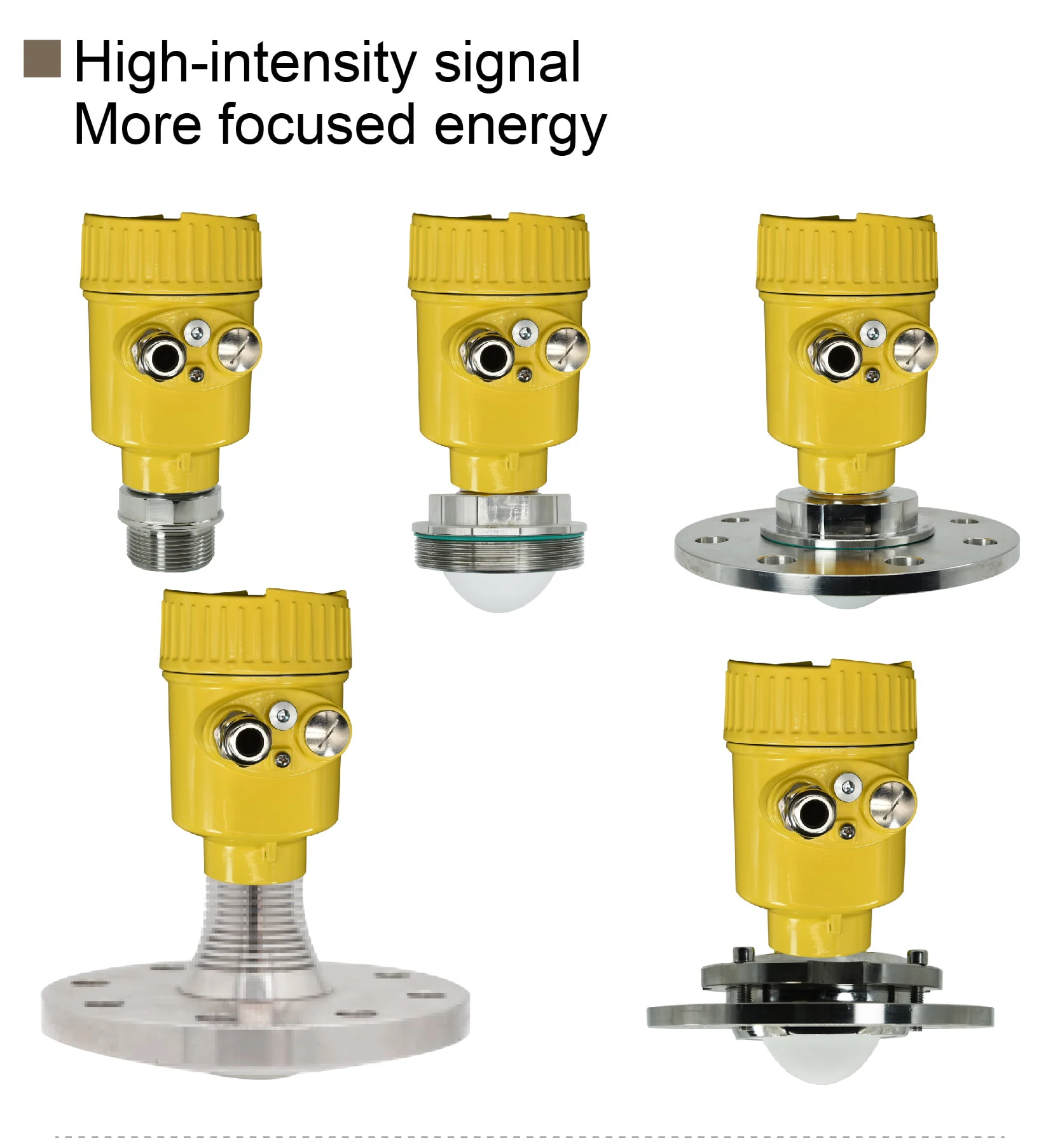

Versatile Installation Options
Supports threaded, flange, and corrosion-resistant mounts, offering flexibility for various applications.

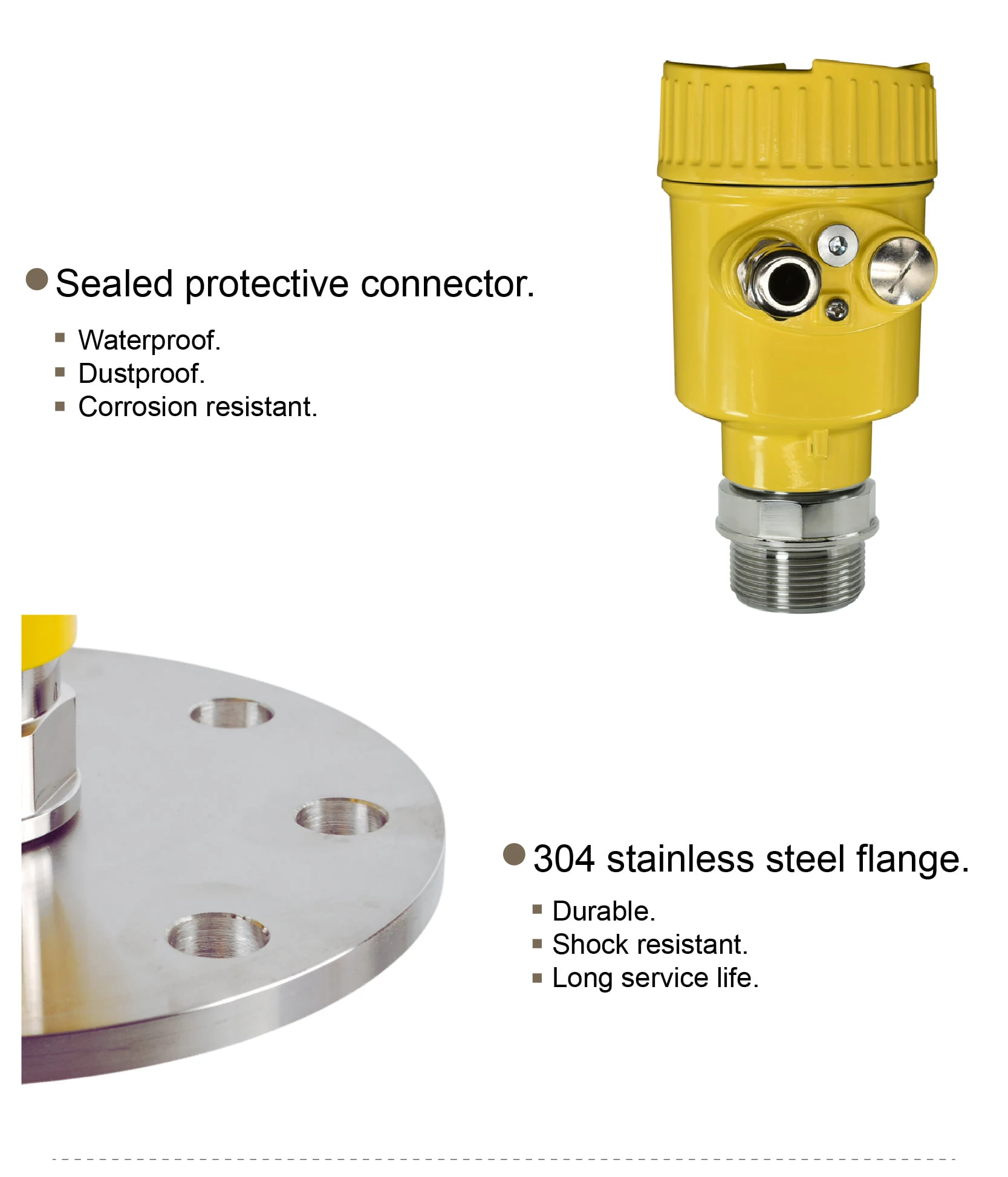

Robust Construction

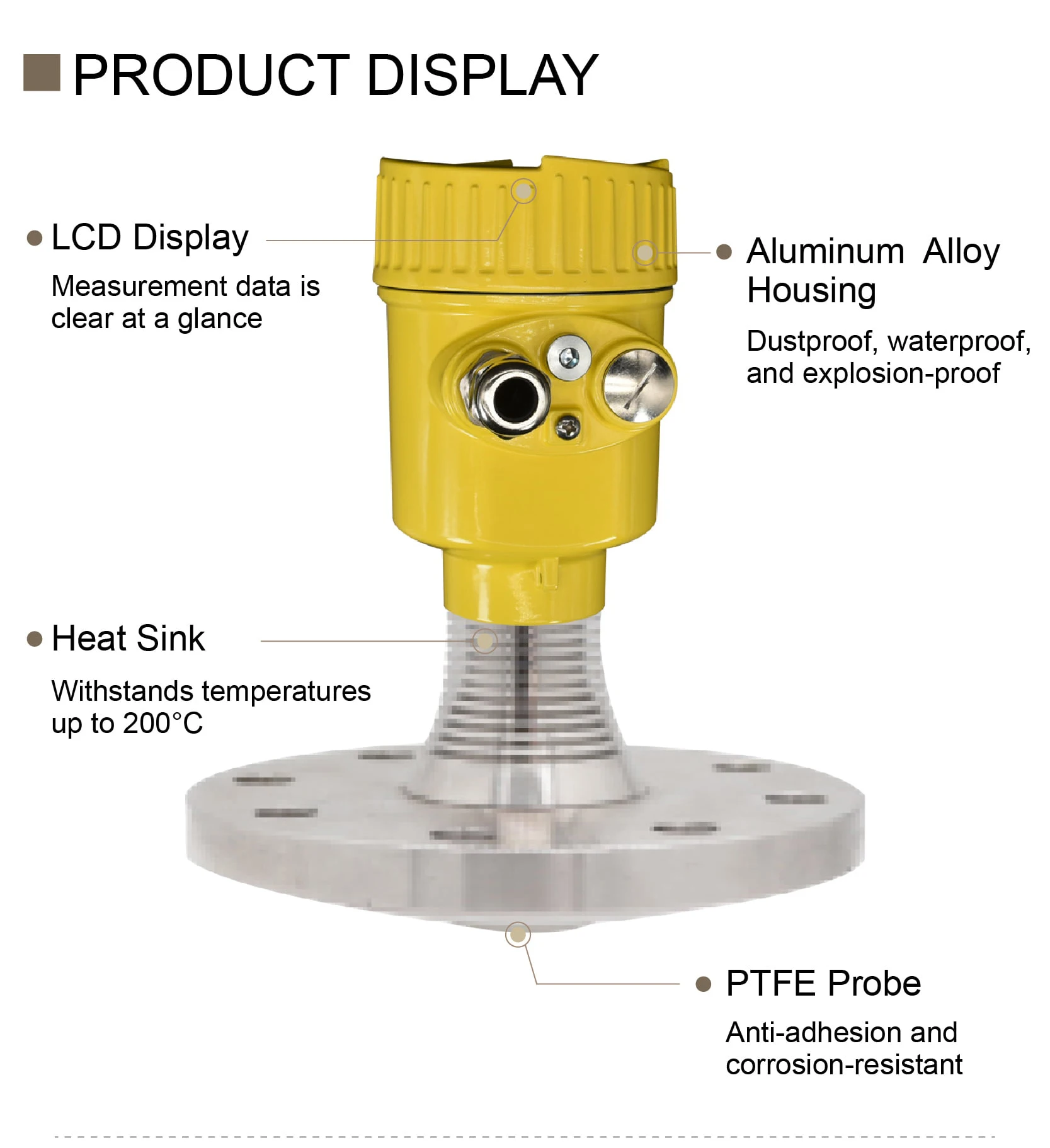

Constructed from aluminum alloy or stainless steel with IP65 protection, built to withstand harsh environments and extreme conditions.

4.Applications

Suitable for measuring liquid, water, and solid levels in industrial environments, including settings with extreme temperatures or high pressure.

Ideal for high-corrosion or foam-prone conditions, such as chemical storage tanks, hydrology systems, and other challenging applications.

5.FAQs

Q: Can this radar operate in high-temperature environments?
A: Yes, certain models can withstand temperatures up to 600°C.

Q: What types of signal outputs are available?
A: The transmitter supports 4-20mA, RS485, MODBUS, HART, and Bluetooth.

Q: Is it compatible with corrosive chemicals?
A: Yes, versions with corrosion-resistant antennas are available.
