Product Description

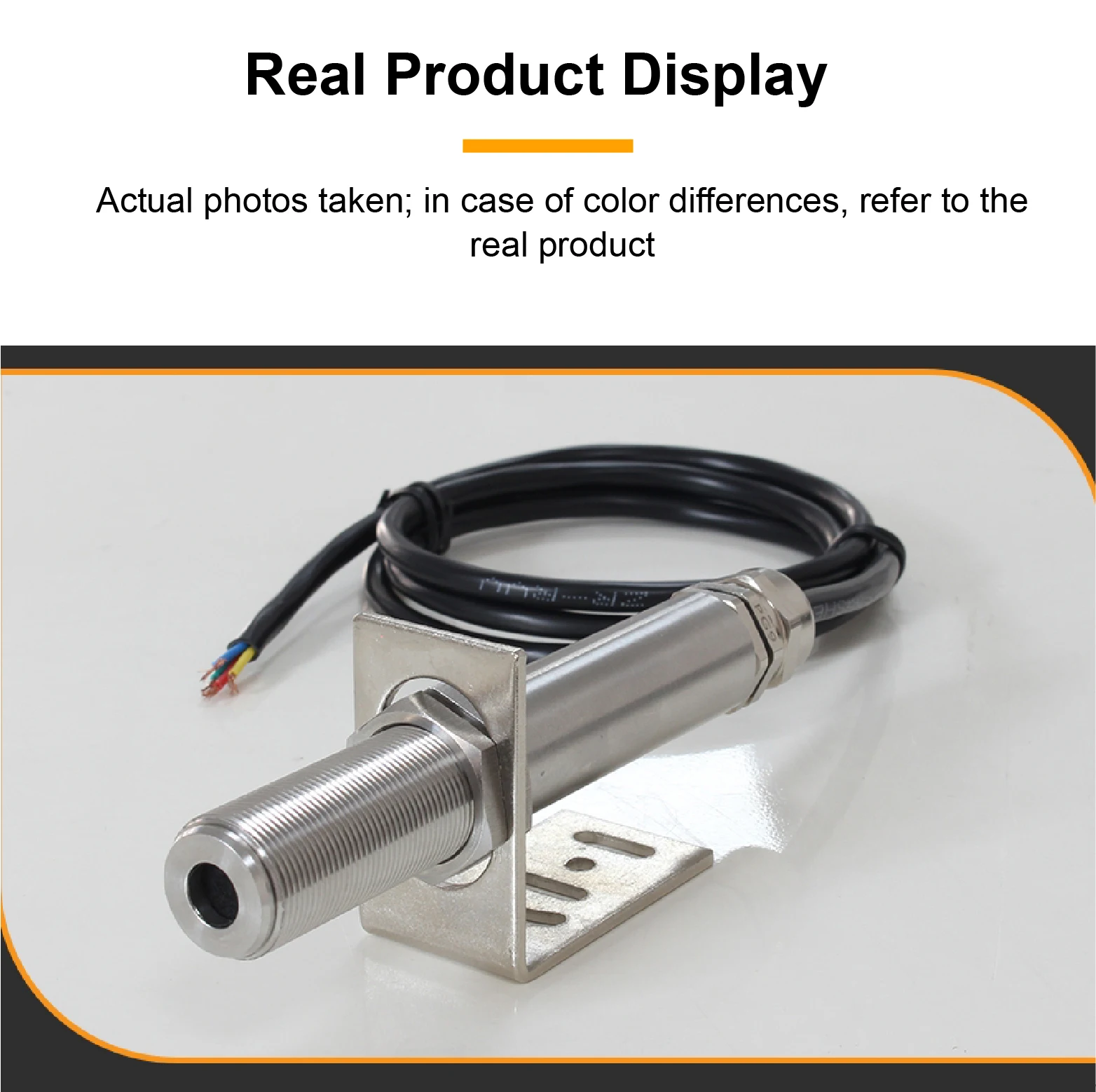

KM8765 Stainless Steel Noise Sensor Sound Level Meter Noise Monitor 30-130dBA DC6-24V for Library Warehouse Workshop Factory
KM8765 Stainless Steel Noise Sensor Sound Level Meter Noise Monitor 30-130dBA DC6-24V for Library Warehouse Workshop Factory1.Note
Default Configuration:
Measuring Range: 30~130dB
Power Supply: DC6~24V / DC12~24V
Output Options: RS485 / 4-20mA / 0-5V / 0-10V (optional)
Operating Conditions: -40~85°C, 0~90%RH
Housing Material: Stainless Steel

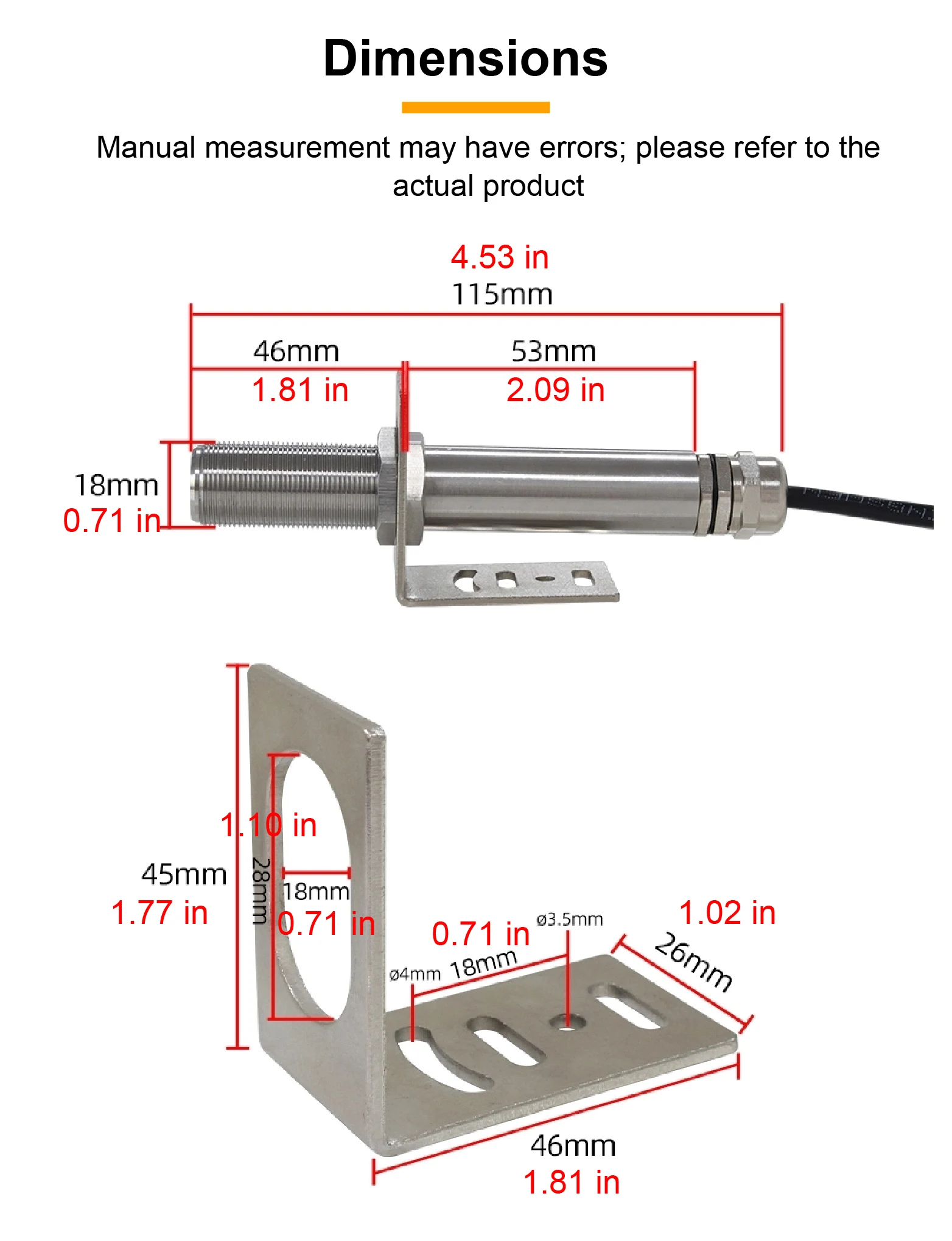

Thread Size: M18×1.0
Installation Method: Thread Mount / Bracket Mount
Due to limited page space, some configuration options may not be displayed. If you need other specifications or have any questions, please feel free to contact us.

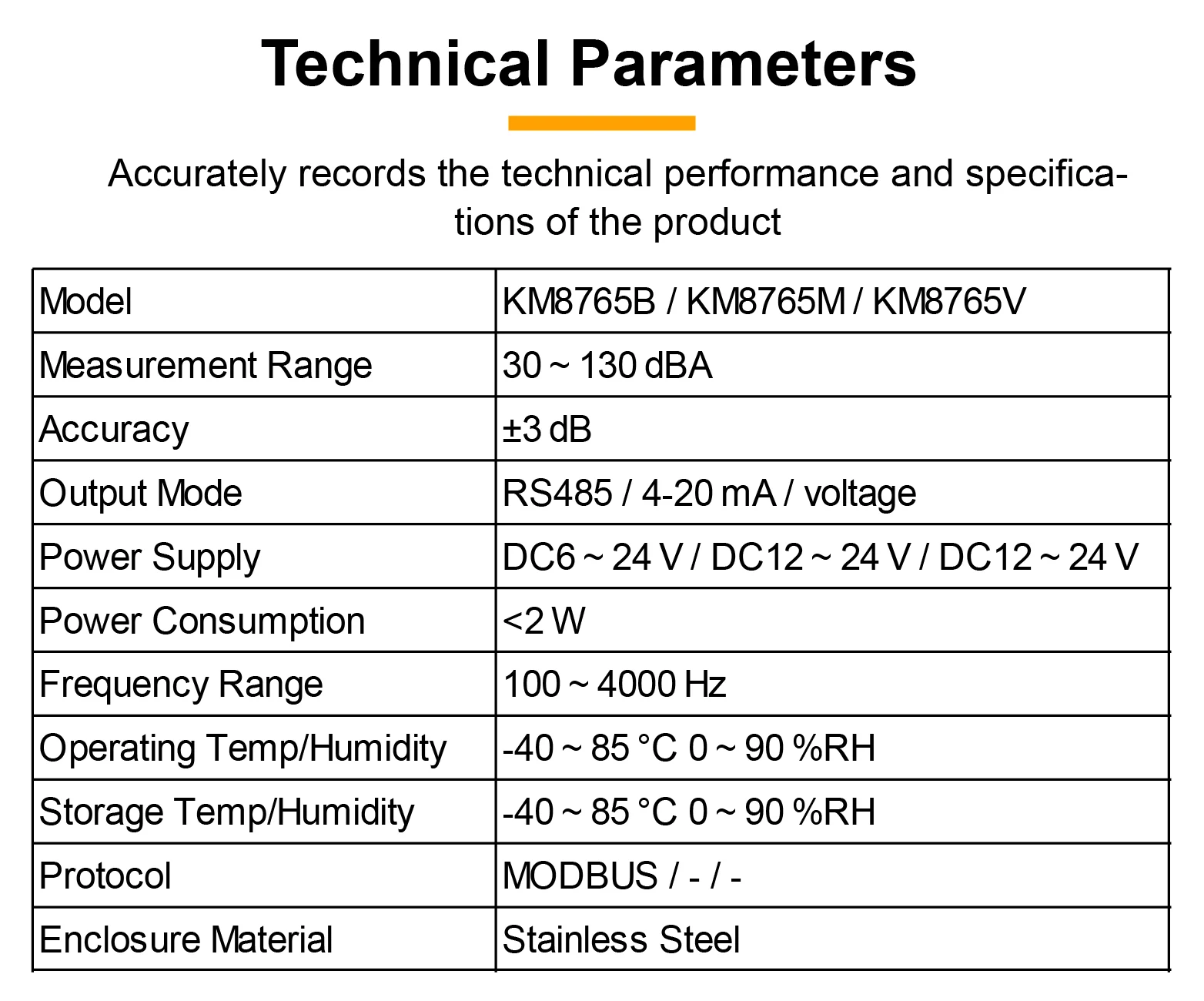

2. Parameters
Parameter | Specification | ||
Model Number | KM8765B | KM8765V | KM8765V |
Measuring Range | 30~130 dBA | ||
Accuracy | ±3 dB | ||
Output Type | RS485 | 4-20mA | Voltage |
Power Supply | DC6~24V | DC12~24V | DC12~24V |
Power Consumption | < 2W | ||
Frequency Range | 100 ~ 4000 Hz | ||
Operating Temperature & Humidity | -40~85℃, 0~90%RH | ||
Storage Temperature & Humidity | -40~85℃, 0~90%RH | ||
Protocol Supported | MODBUS | - | - |
Enclosure Material | Stainless Steel |
3.Features

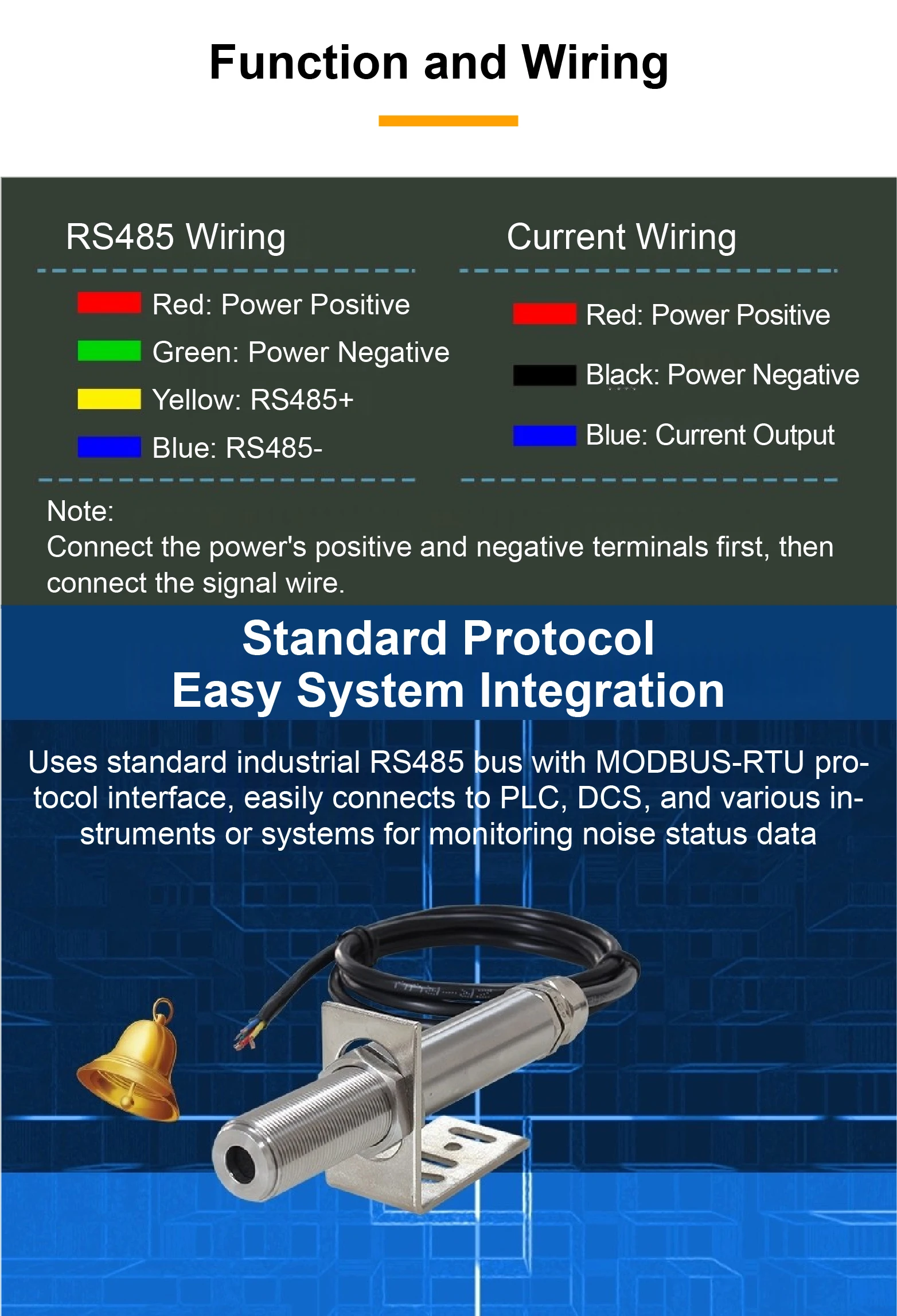

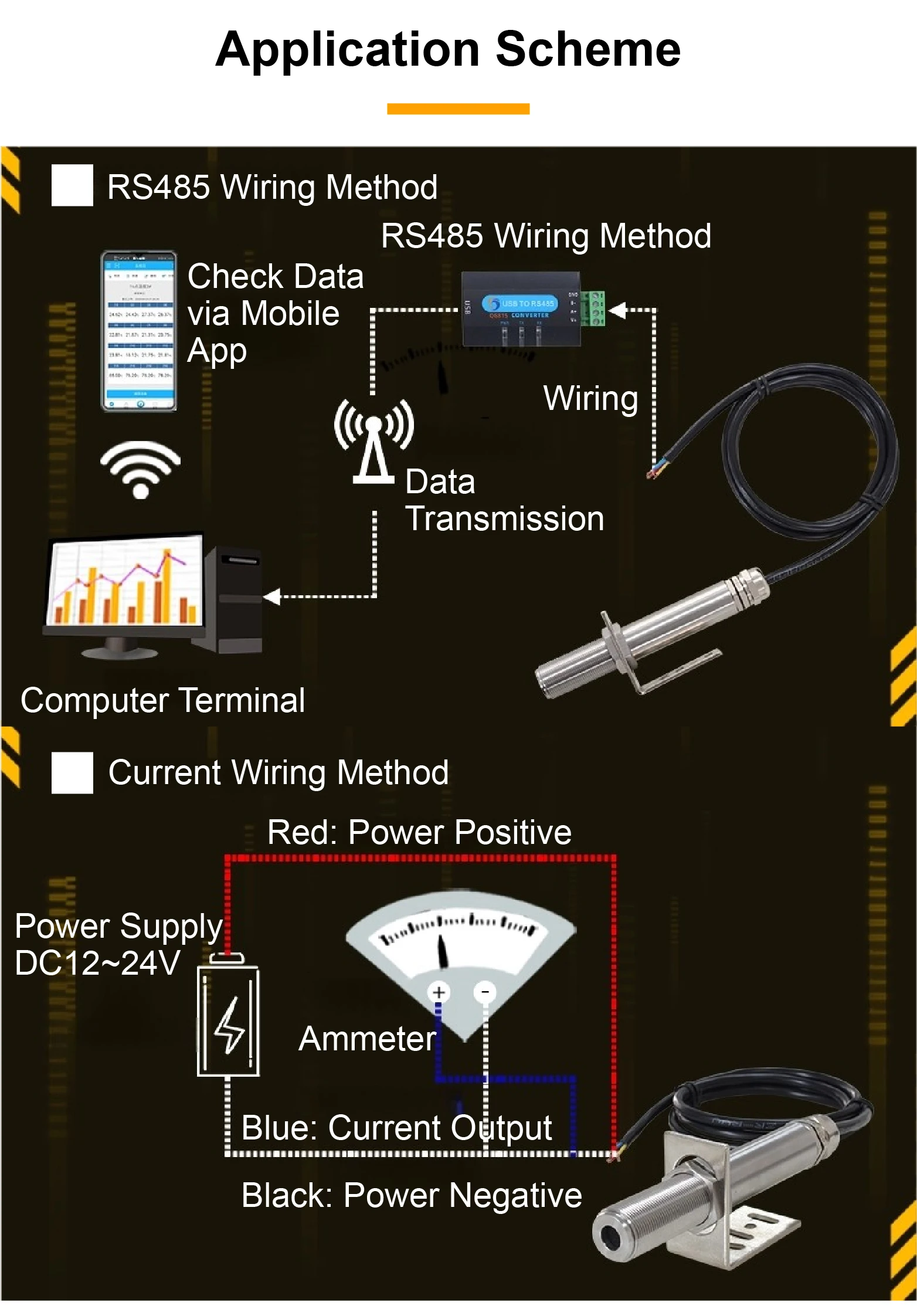

MODBUS-RTU Protocol Support
Supports RS485 communication for easy integration with PLC, DCS, and various industrial monitoring systems.

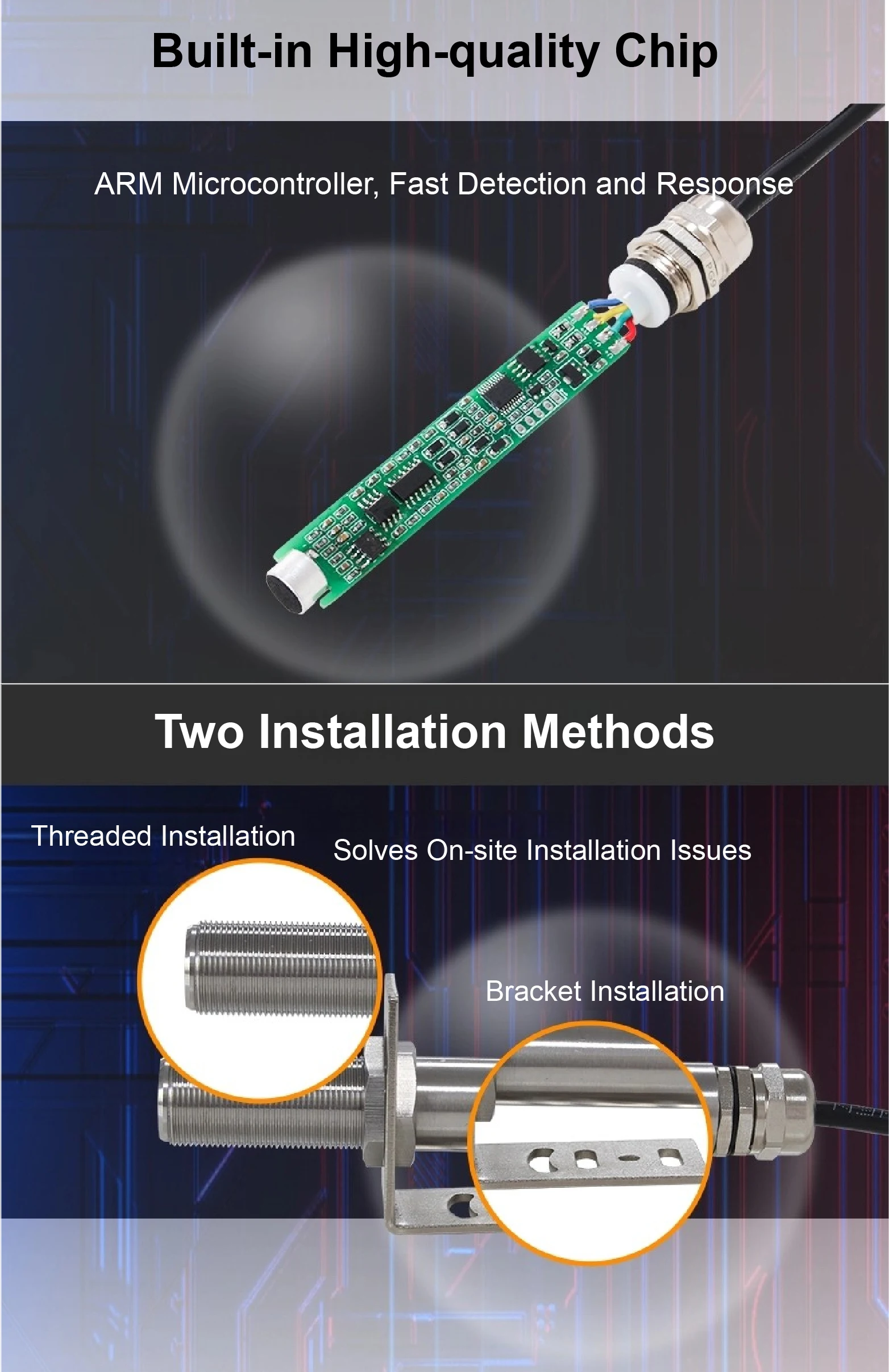

High-Performance ARM Microcontroller
Built with a fast-response ARM processor to ensure stable and accurate noise monitoring performance.

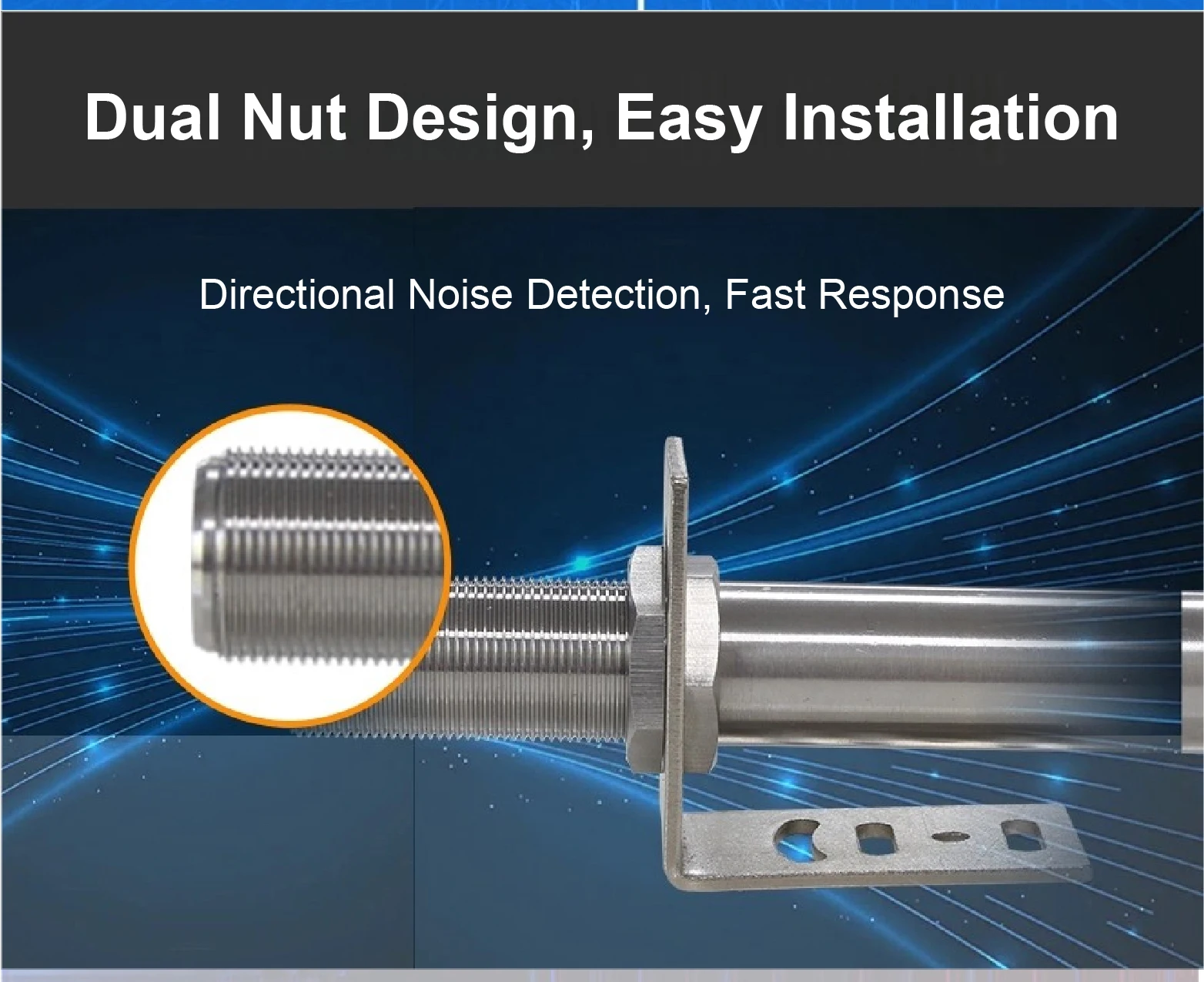

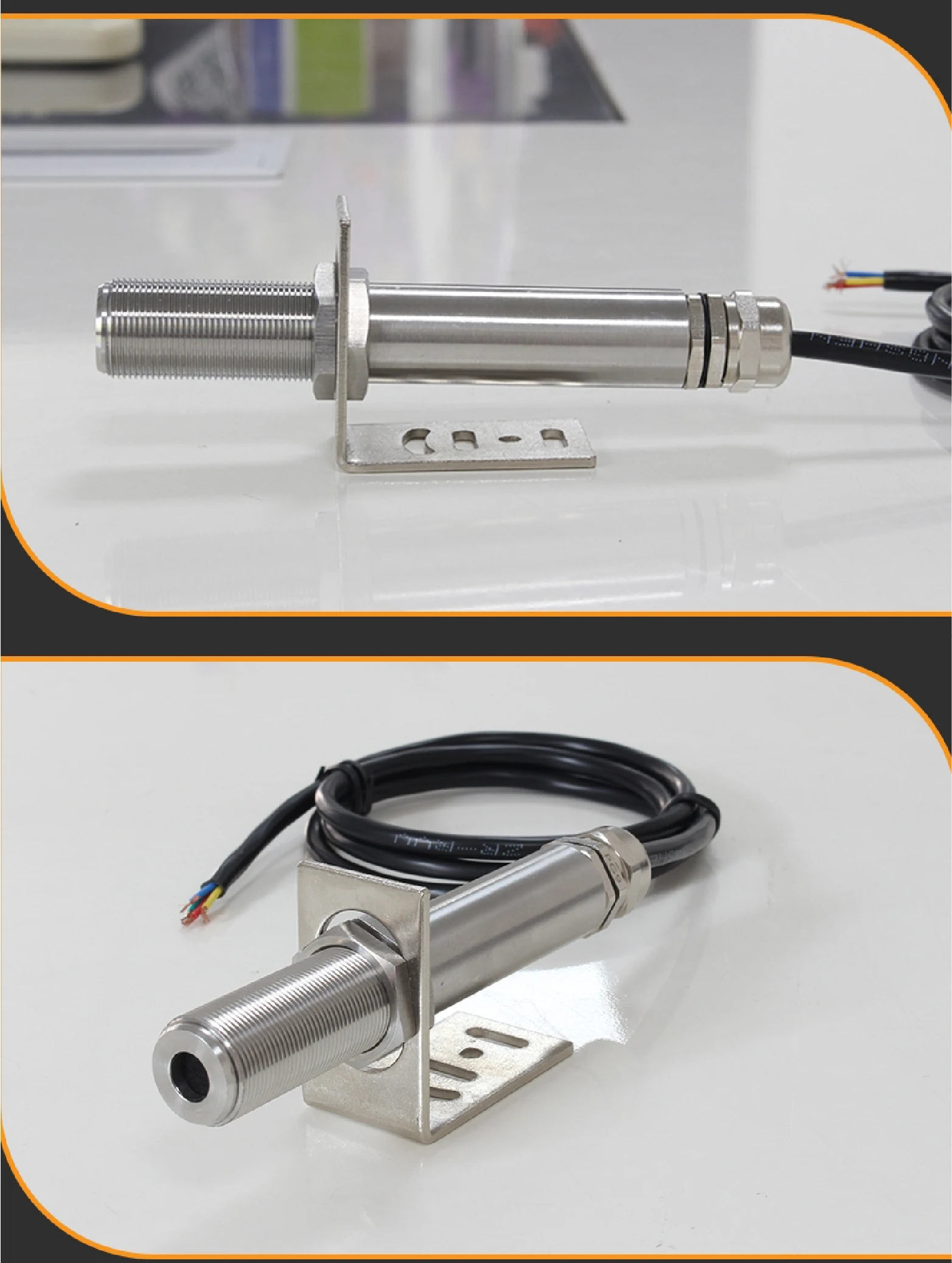

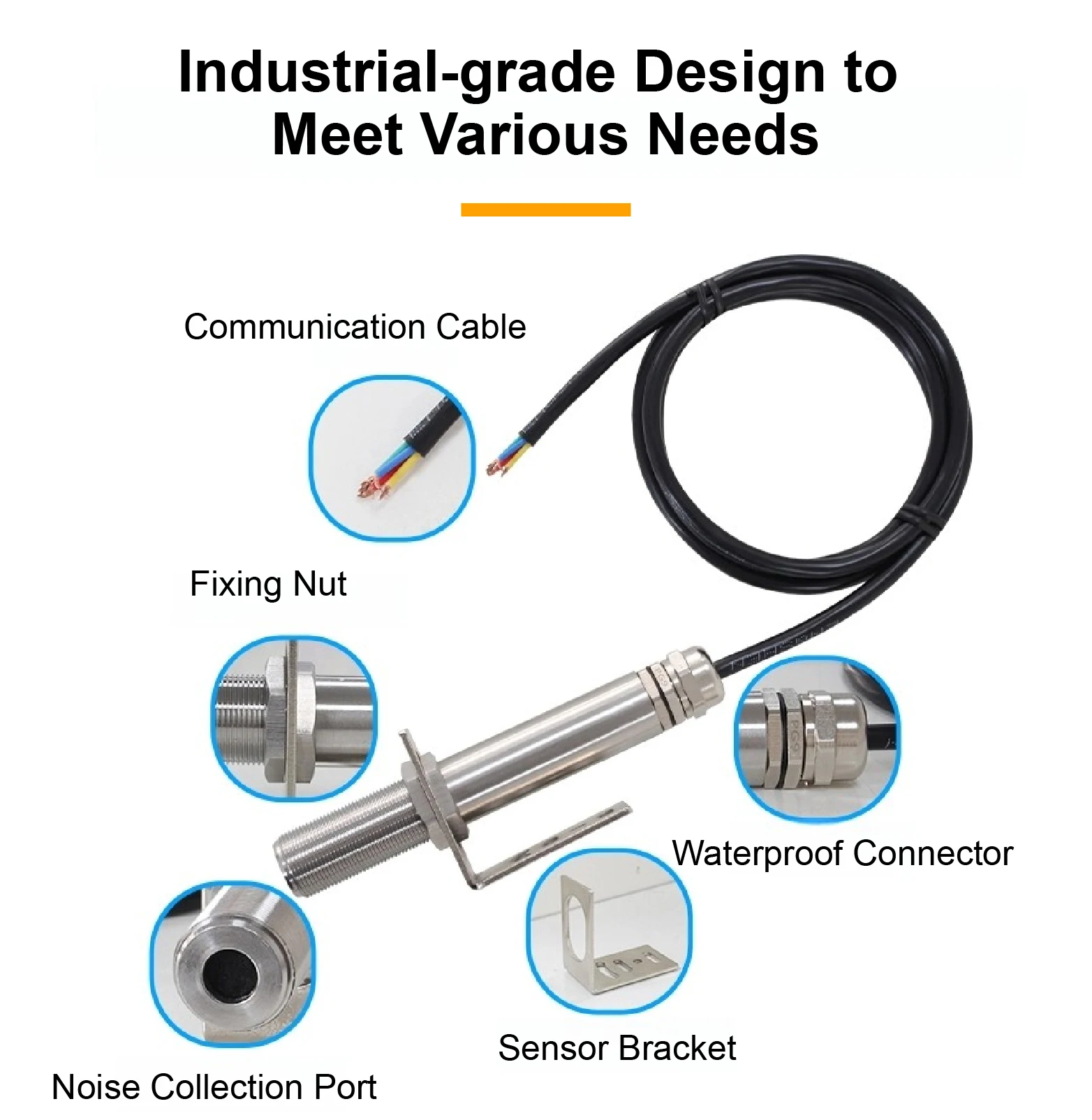

Flexible Installation Options
Supports both threaded mounting and bracket mounting for convenient installation in different environments.

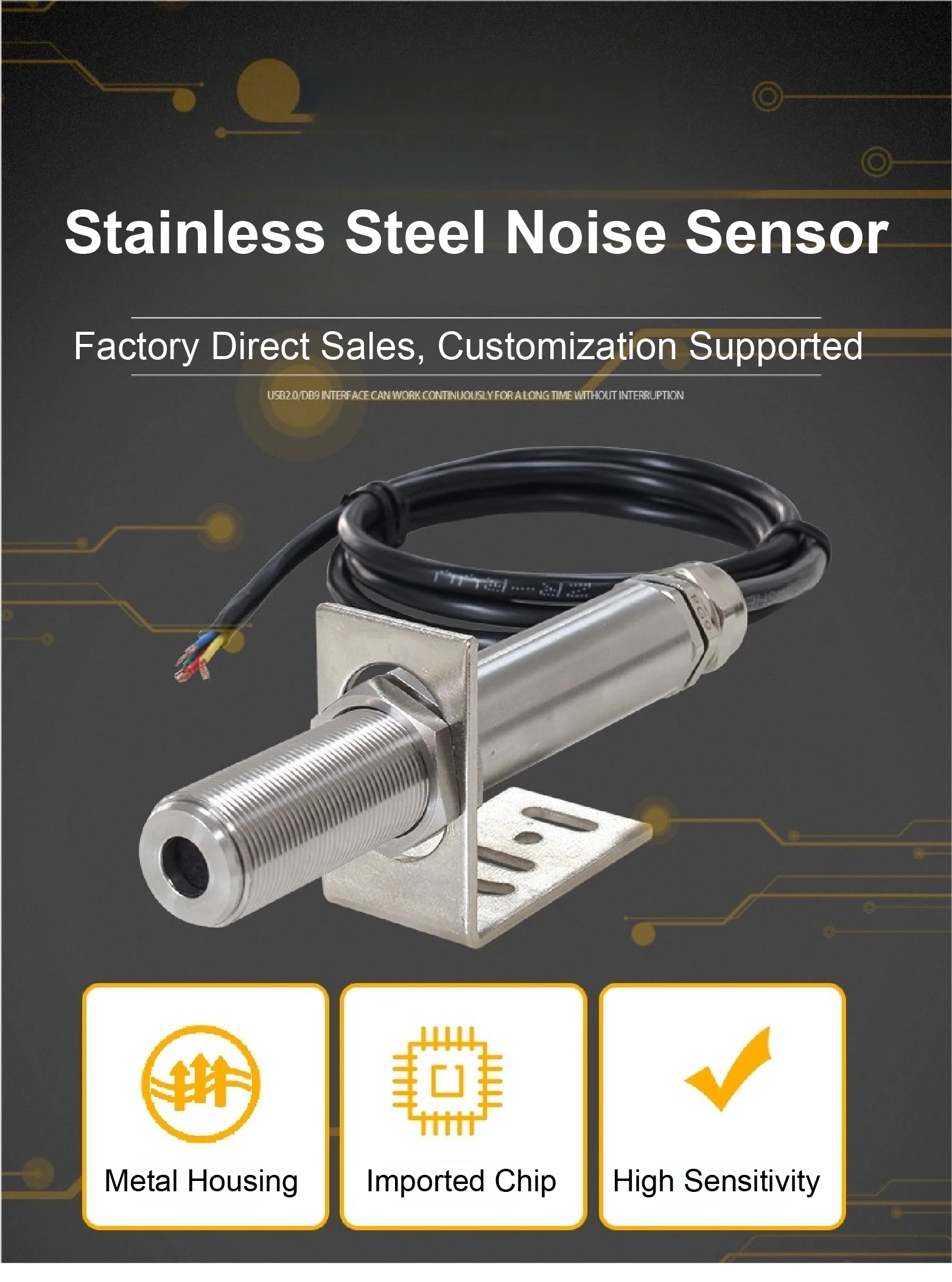

Durable Stainless Steel Housing
Made of corrosion-resistant stainless steel, suitable for long-term use in harsh industrial conditions.
Wide Voltage Compatibility
Compatible with DC6~24V and DC12~24V power supply systems for flexible application requirements.
4.Applications
Widely used for noise monitoring in archives, greenhouses, libraries, workshops, warehouses, retail stores, factories, and other indoor or industrial environments.
5.FAQs
Q1: Is the sensor compatible with industrial control systems such as PLC or DCS?
A1: Yes, the sensor supports RS485 communication with MODBUS-RTU protocol, allowing easy integration with most industrial control and monitoring systems.
Q2: Can the sensor be used in outdoor or semi-outdoor environments?
A2: Yes, the stainless steel housing and wide operating temperature range of -40~85°C make it suitable for indoor as well as semi-outdoor applications.
Q3: What installation methods are available?
A3: The sensor supports both threaded mounting and bracket mounting, providing flexible installation options for different setups.
