Product Description
CKSP-100 RF Capacitance Level Switch DC24V SUS304 Capacitive Sensor for Liquid Powder Hopper Tank Detection

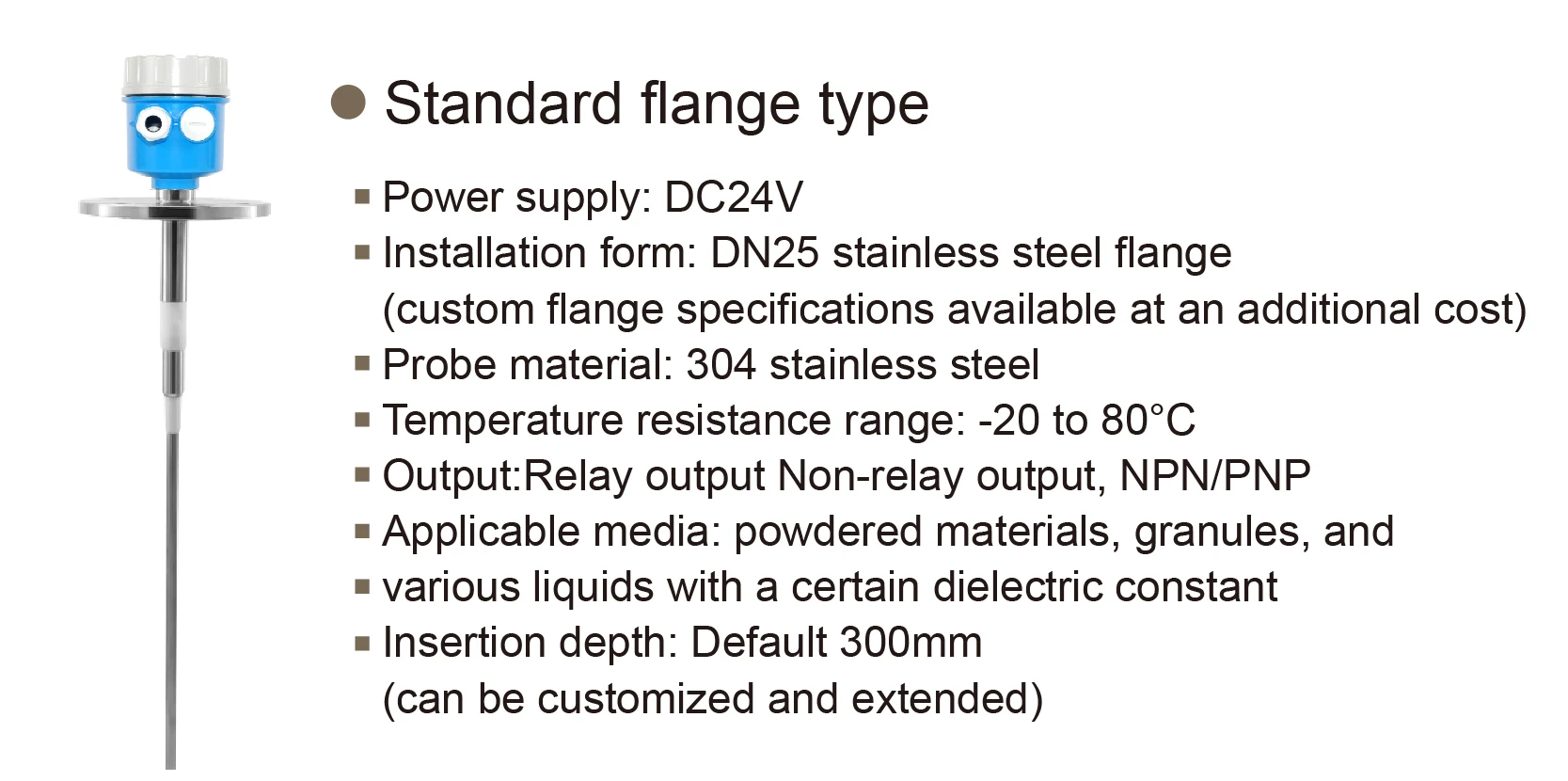

CKSP-100 RF Capacitance Level Switch DC24V SUS304 Capacitive Sensor for Liquid Powder Hopper Tank DetectionThe default flange connection standard is DIN/EN1092-1-2018 (German/European standard). Please refer to the dimension chart on the product details page for specific flange sizes.
If you require customized flanges in other standards such as ANSI/ASME (American standard), JIS (Japanese standard), BS (British standard), or GOST (Russian standard), please contact us.
NOTE
Suitable for level and liquid level control applications.
Due to page limitations, some configurations and lengths may not be fully listed. For special requirements, please contact us for customization.
Default Configuration

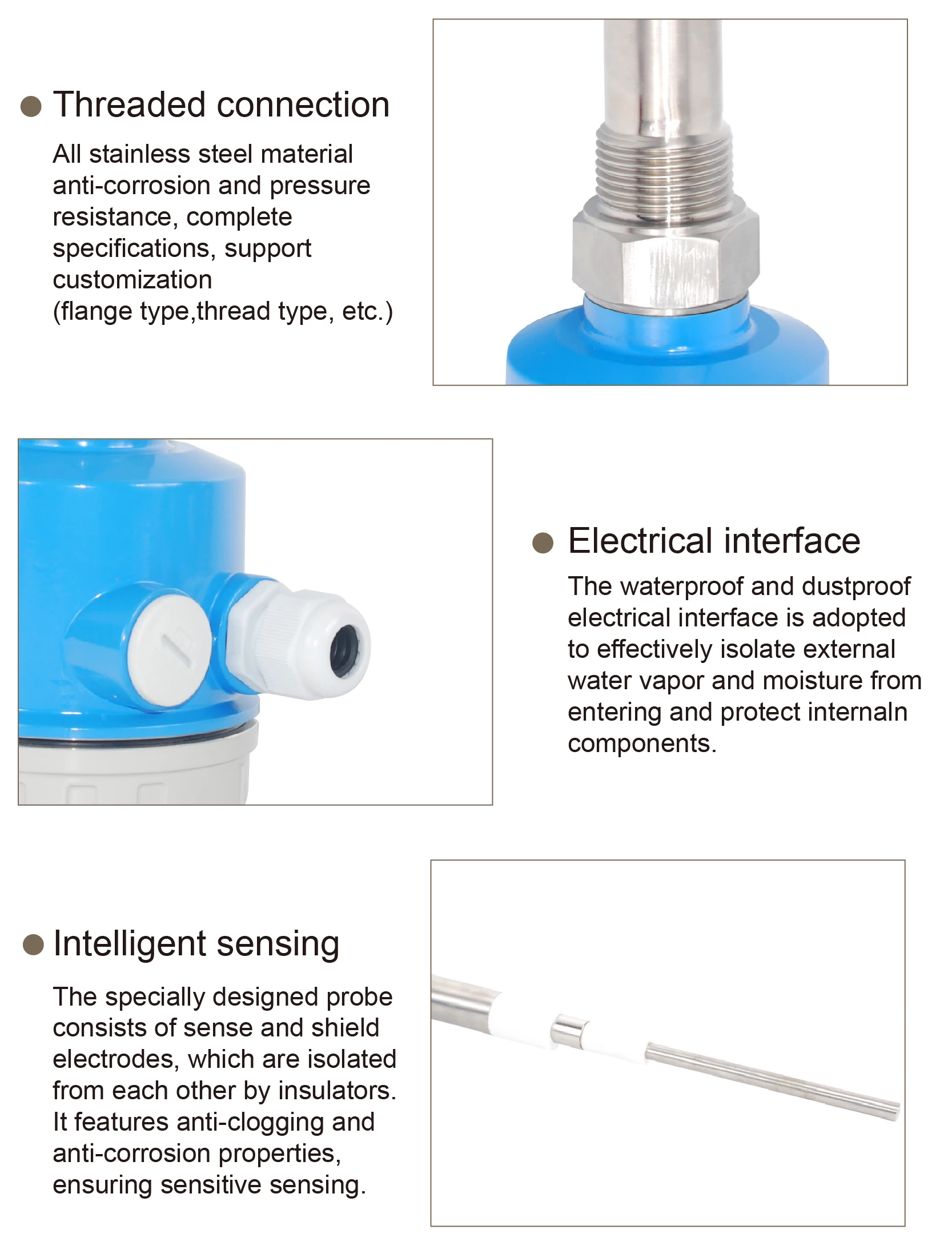

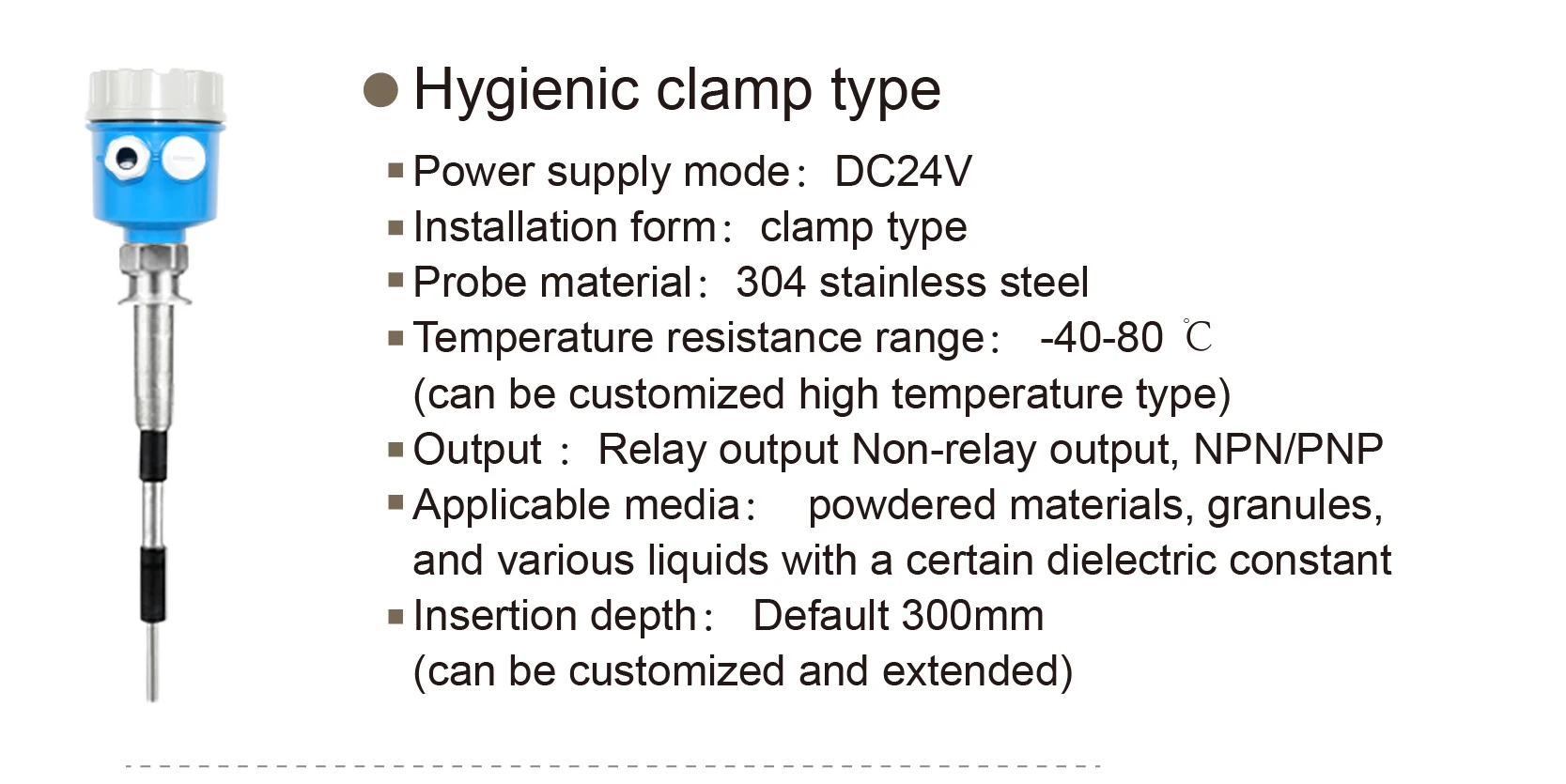

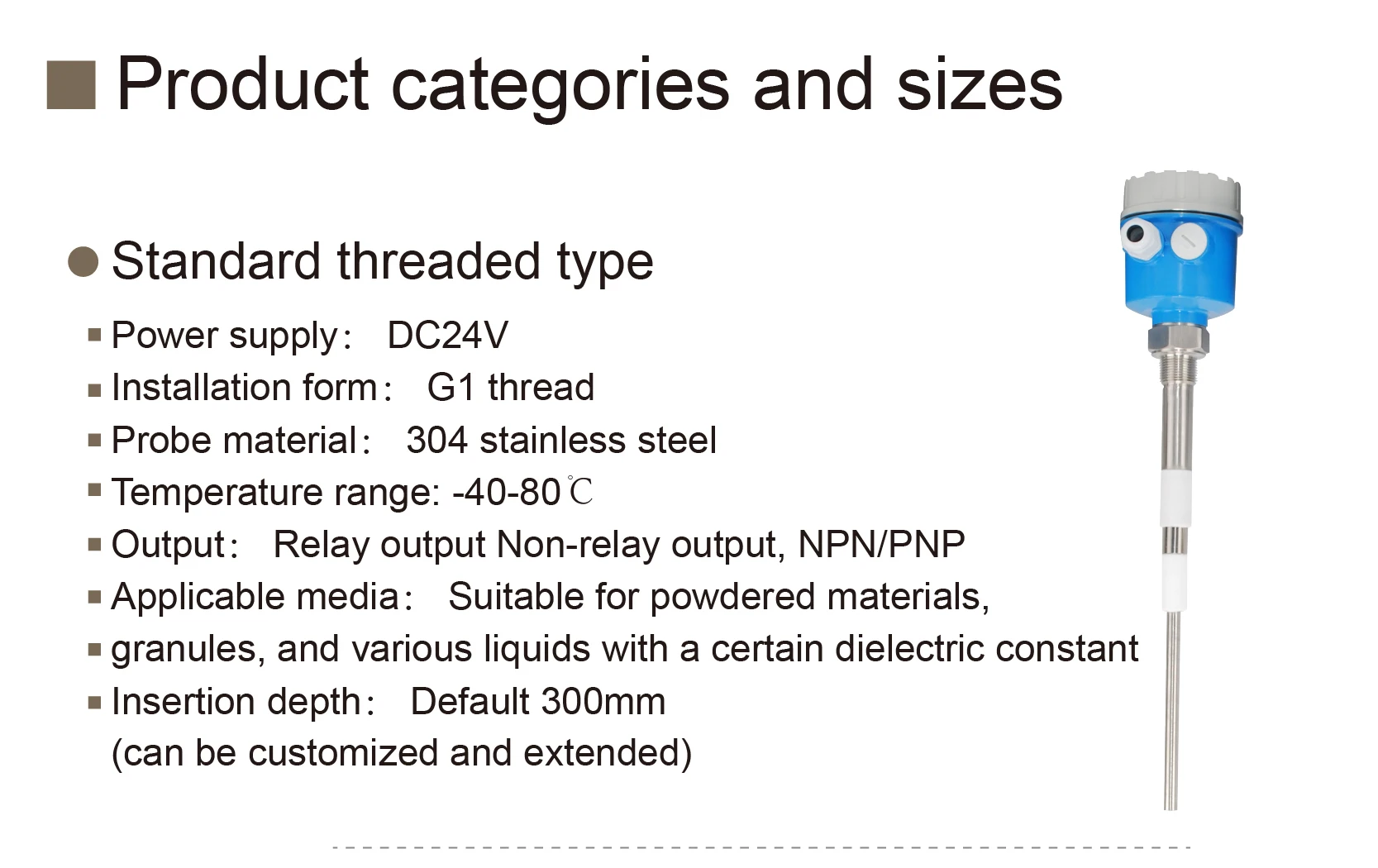

Installation: Standard G1 thread and flange. Clamp connection, flange size, and thread size can be customized.
Power Supply: DC 24V. AC 220V and AC 110V can be customized.
Length: Standard 300 mm. Minimum length is 150 mm, customizable up to 3000 mm.
Steel Cable Type Length: Minimum 1 m, customizable up to 15 m.

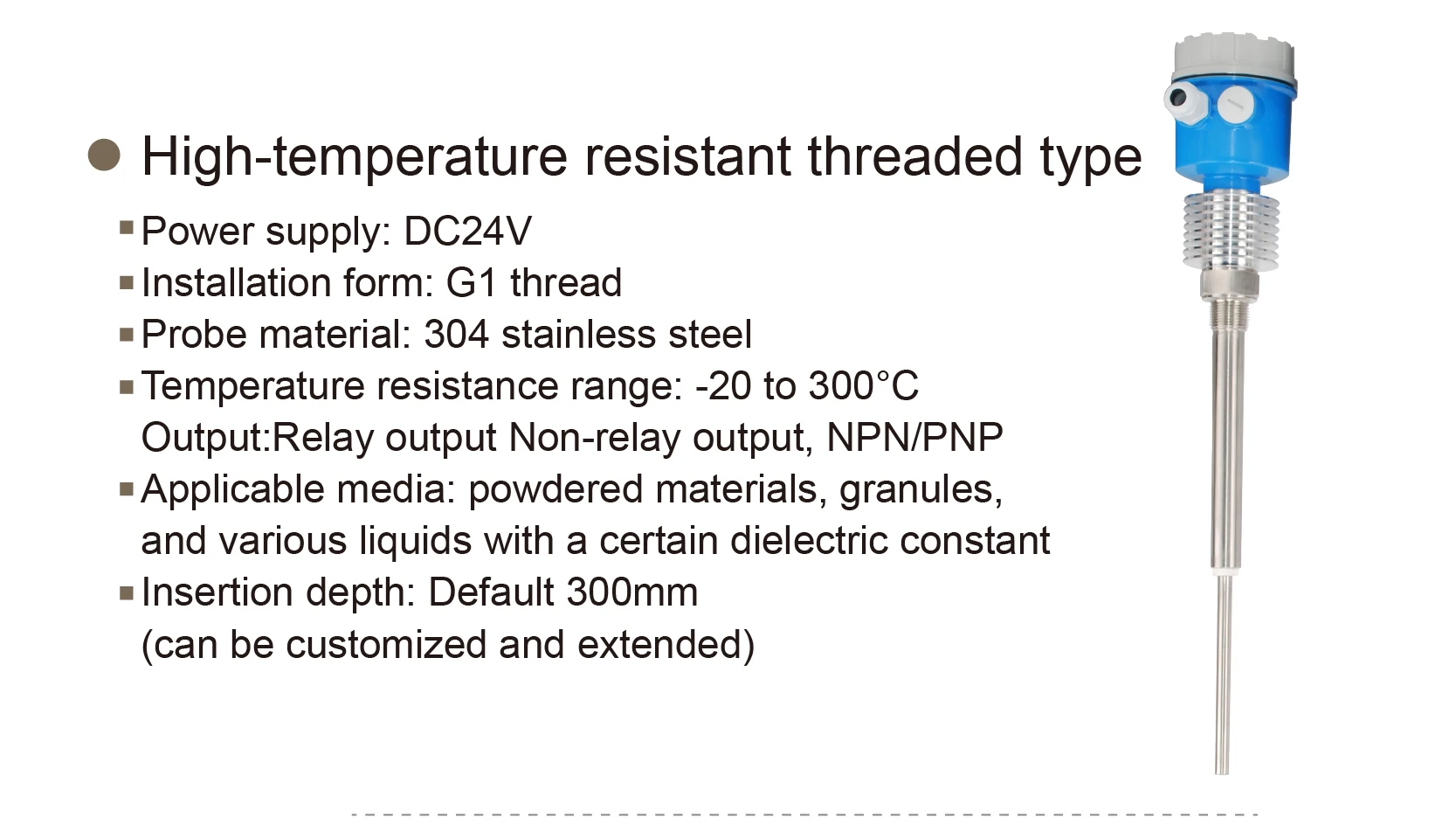

Temperature Resistance: Standard 80°C, customizable up to 500°C.
Material: SUS304. SUS316L and PTFE coating are available for customization.
Output: Relay
For more customization options, please contact us.
PARAMETERS
Parameter | Specification |
Power Supply | 220VAC 50Hz or 24VDC (recommended) |
Relay Contacts | 1 SPDT, 5A 220VAC |
Probe Material | SUS304/316, Insulation: PP or Teflon (custom length available) |
Sensitivity Range | 0.5pF to 750pF |
Operating Temp | -10°C to 80°C (standard); high-temp version customizable |
Thread Connection | 1" NPT or 1" PF (customizable) |
Delay Time | Adjustable 0-30s |
Note: The above dimensions apply only to flanges of PN16 rating.
DN | Outer Diameter (D) | Bolt Circle Diameter (K) | Number of Bolt Holes - Diameter (n-φL) | Flange Thickness (C) | Raised Face Height (f) |
10 | 90 | 60 | 4-φ14 | 14 | 2 |
15 | 95 | 65 | 4-φ14 | 14 | 2 |
20 | 105 | 75 | 4-φ14 | 16 | 2 |
25 | 115 | 85 | 4-φ14 | 16 | 2 |
32 | 140 | 100 | 4-φ18 | 18 | 2 |
40 | 150 | 110 | 4-φ18 | 18 | 3 |
50 | 165 | 125 | 4-φ18 | 20 | 3 |
65 | 185 | 145 | 8-φ18 | 20 | 3 |
80 | 200 | 160 | 8-φ18 | 22 | 3 |
100 | 220 | 180 | 8-φ18 | 24 | 3 |

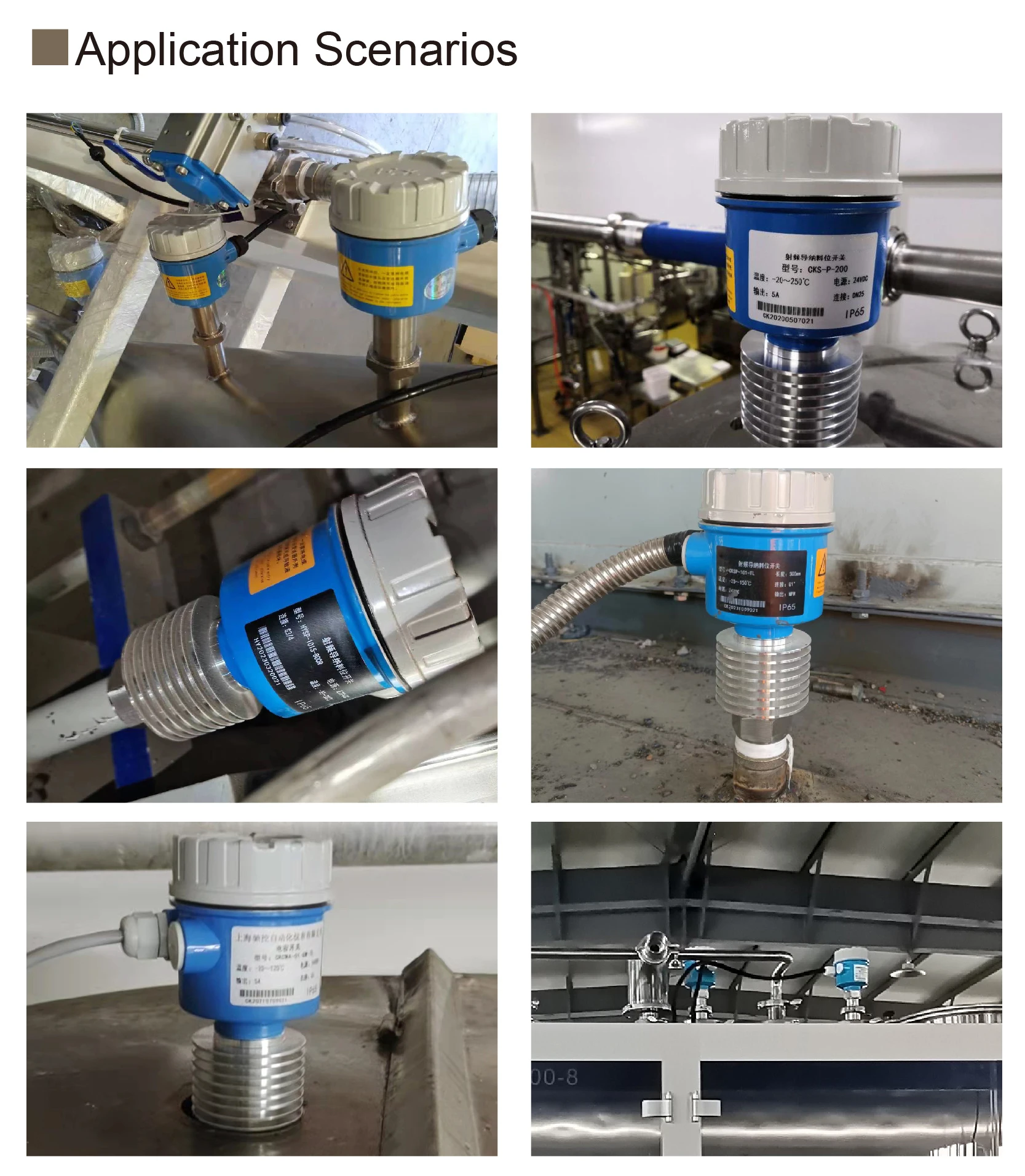

APPLICATION
This device is widely used for industrial material level monitoring across various media. It is ideal for automatic high and low level detection of liquids, powders, and solid particles.
FEATURES
High-precision RF capacitance technology effectively reduces interference caused by material build-up.
Adjustable sensitivity and delay settings to meet different operating requirements.
Supports high-temperature applications with customizable connection methods and probe lengths/materials.

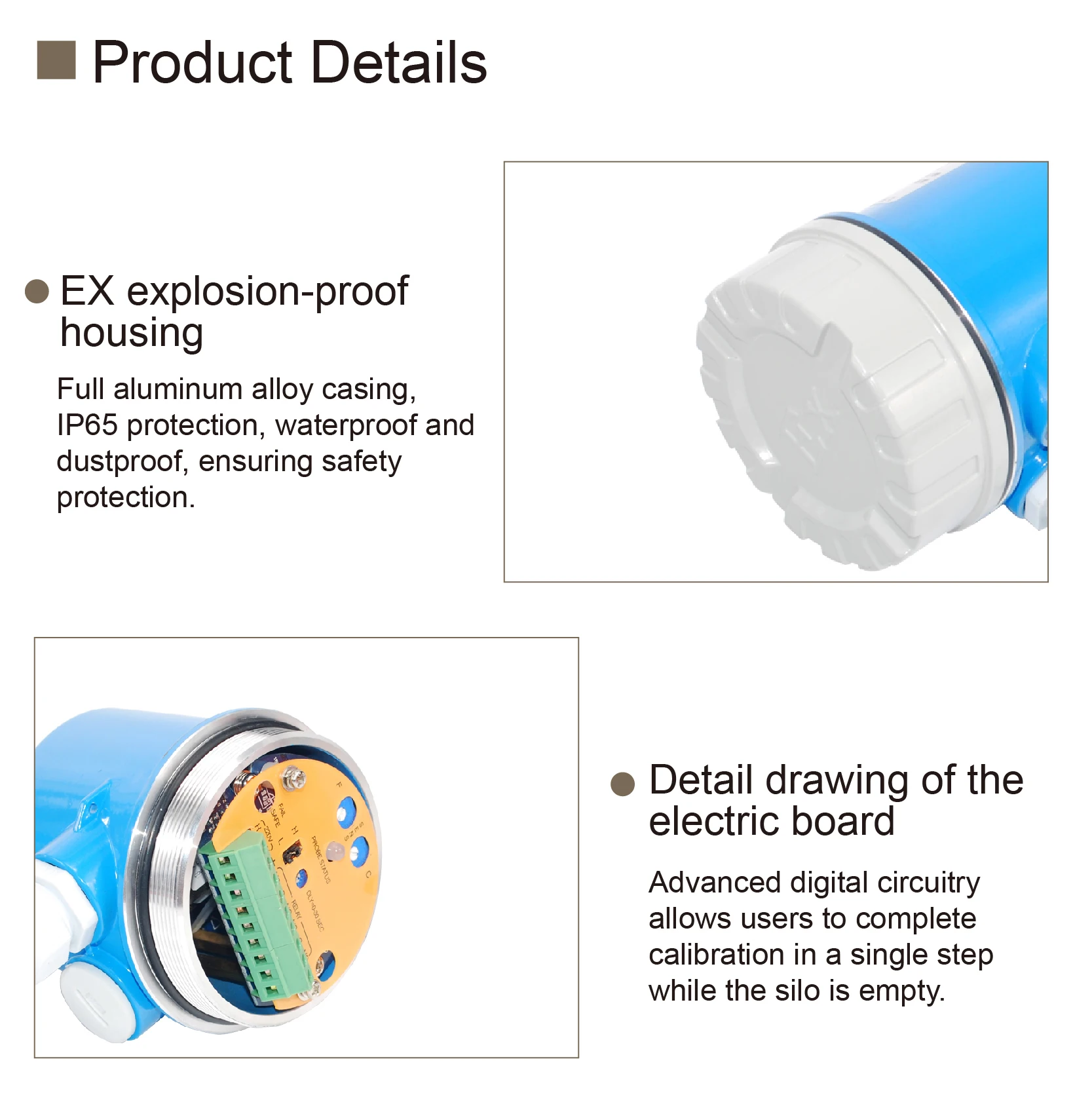

Dustproof and waterproof structure ensures stable performance in harsh industrial environments.
FAQ
Q: How can I set high and low-level alarms?

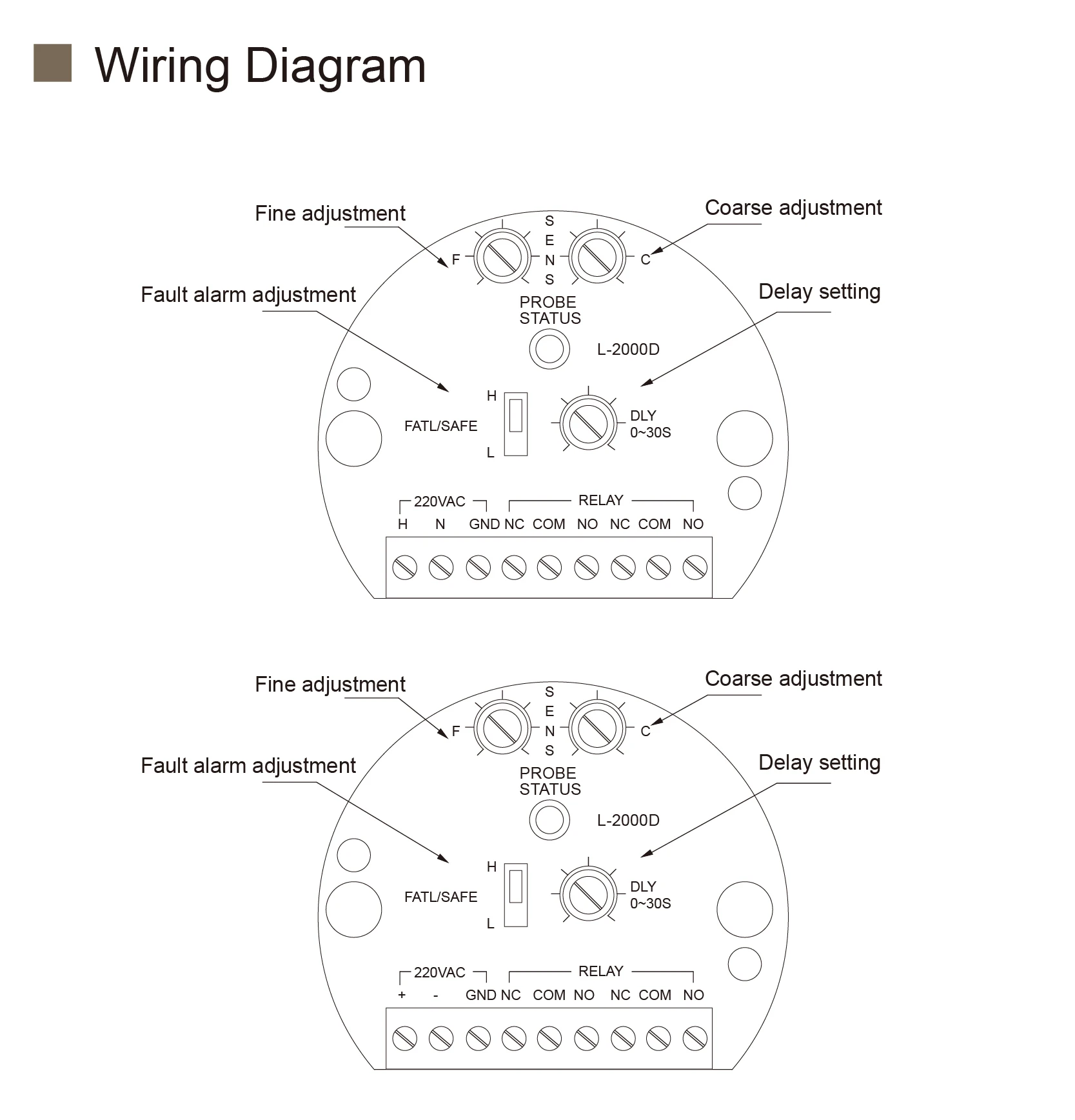

A: The high and low-level alarm modes can be easily selected through the jumper settings on the control panel.
