S18 Water Pump Pressure Controller Adjustable Pressure Automatic Switch Pipeline

Product Description

Product Specifications

Thread Size: 1 inch

Rated Voltage: 220V–240V

Starting Pressure Options:
1–2.5KG
1–2.8KG
0.3–7.9KG
1.5KG

Working Temperature Range:
60℃–70℃ or 60℃–100℃, depending on the model

Pump Lift Height:
≥15m
≥25m
≥28m
≥79m
The pump lift height varies by model.

Rated Current: 16A

Power Options:
1.1KW
2.2KW

Power Cord:
Included or not included, depending on the model

Connection Cable:
Included or not included, depending on the model

Pressure Gauge:
Included or not included, depending on the model

Important Notes

Pressure adjustment is used only to set the starting pressure or delay time. It does not control the stopping pressure or the water flow rate.

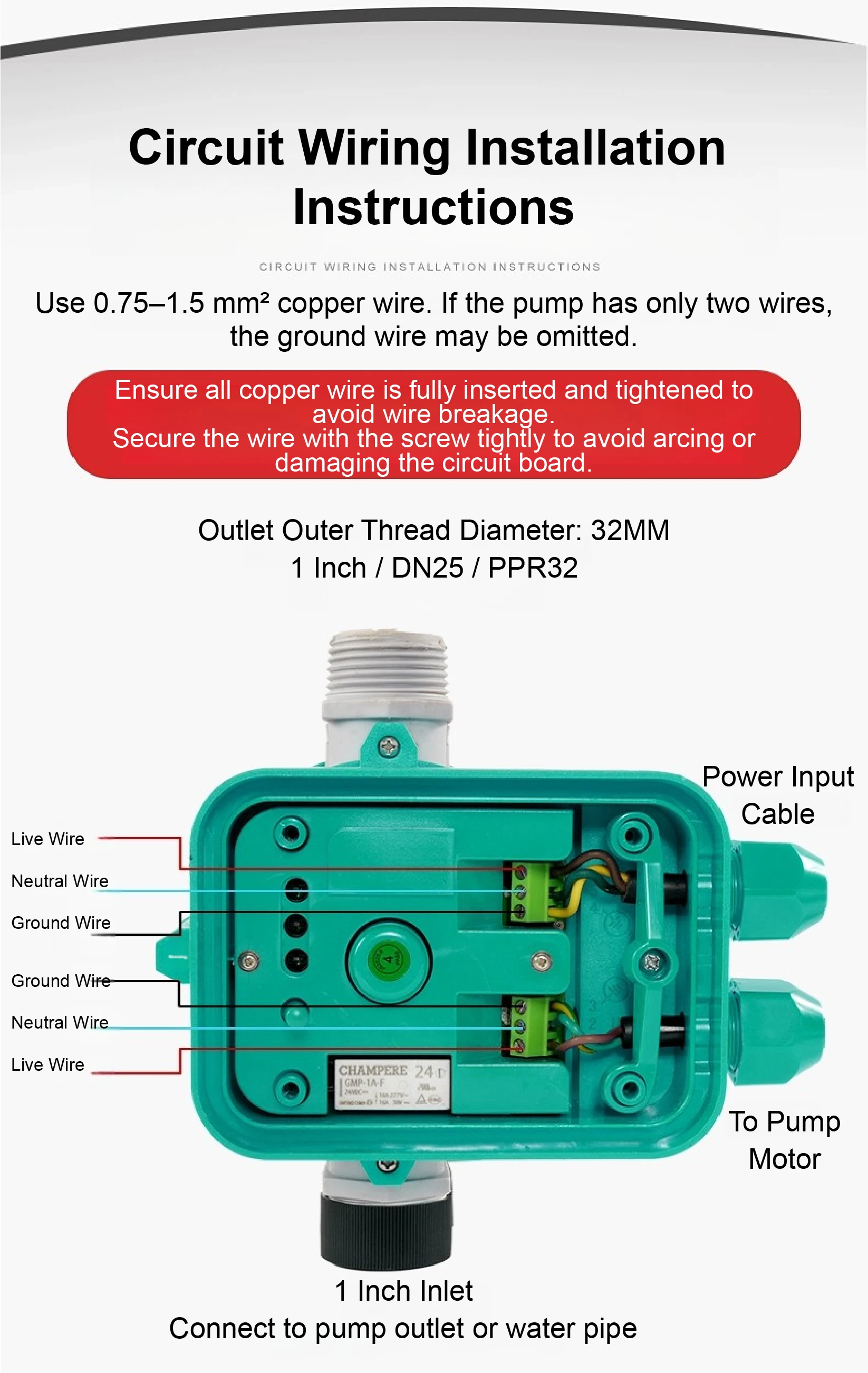

Wiring Instructions

Use 0.75–1.5mm² copper wire.

If your pump has only two wires, a ground wire may not be required.

Make sure all copper wires are fully inserted into the terminals and all screws are firmly tightened.

Loose wiring may cause a short circuit and damage the control board.

For any questions or assistance, please contact us.

2. Parameters

Features

Automatic Start & Stop

The pump automatically starts and stops according to water demand, helping reduce energy consumption and minimize system wear for more efficient operation.

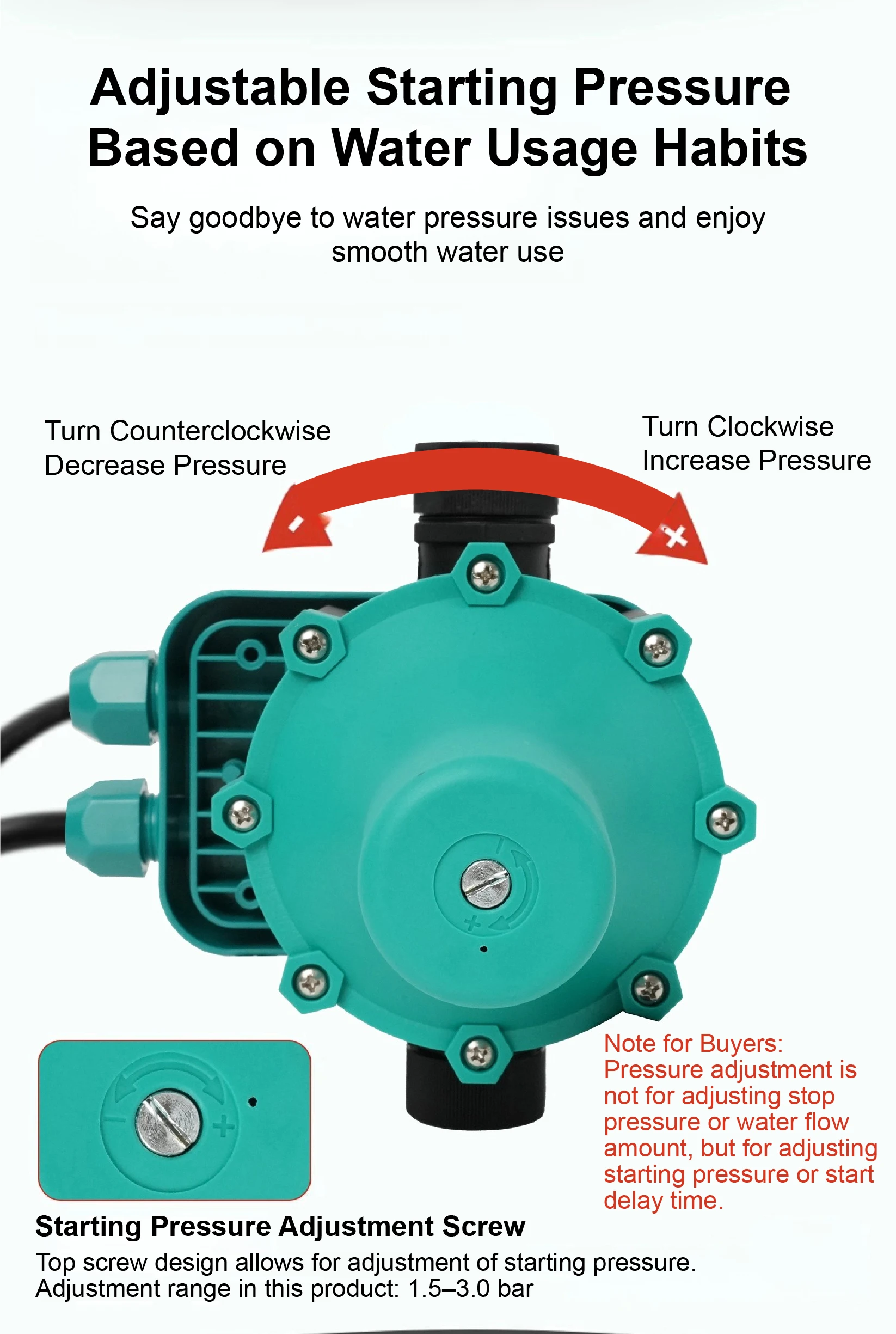

Adjustable Start Pressure

The top-mounted adjustment screw allows you to easily customize the starting pressure to match different water usage requirements.

Dry-run Protection

The controller automatically shuts off the pump when no water supply is detected, effectively protecting the pump from dry-running damage.

Fault Indicator

Equipped with a built-in LED indicator that quickly displays system faults, making maintenance and troubleshooting faster and easier.

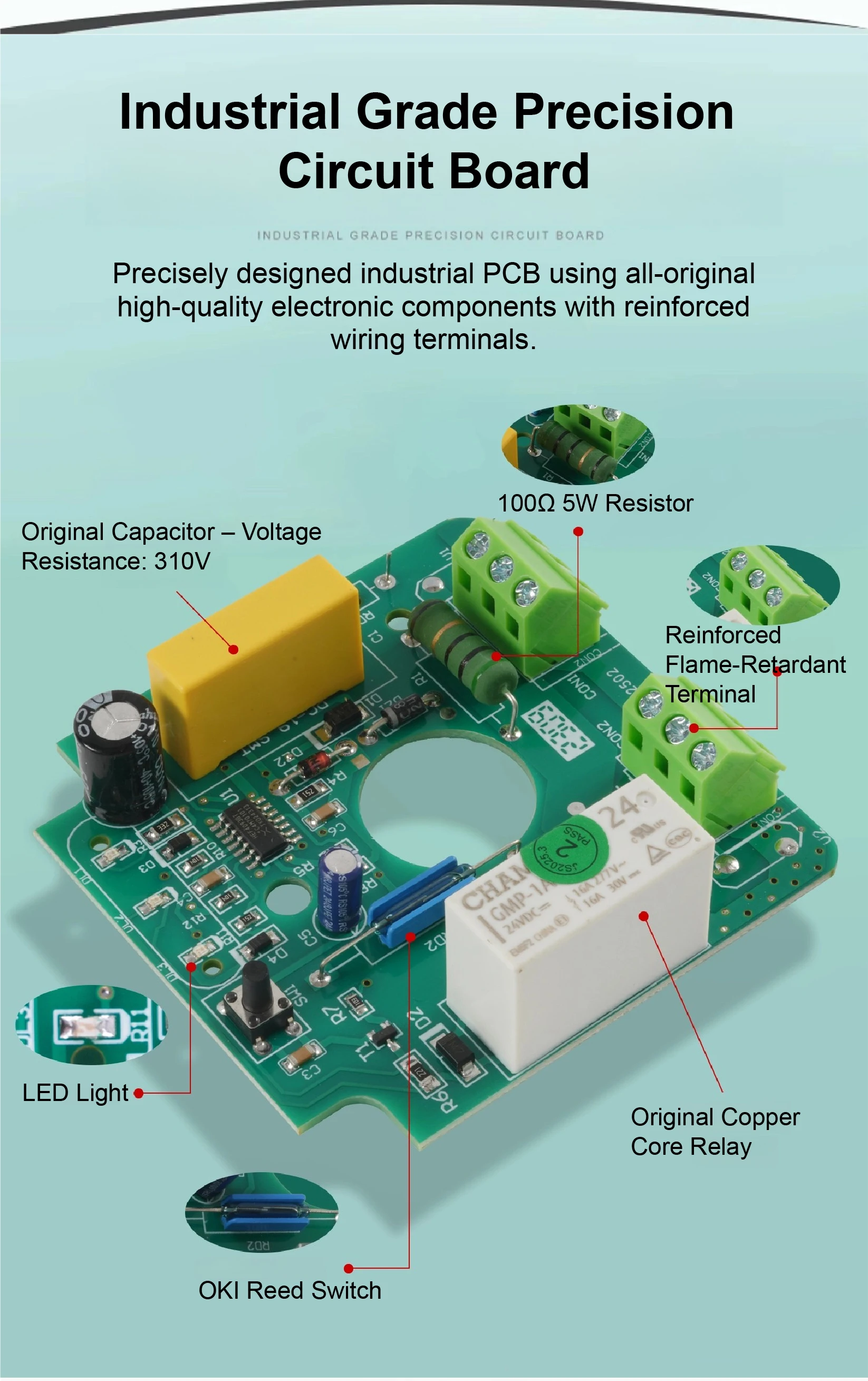

Industrial-grade PCB

Built with high-quality electronic components and reinforced terminals to ensure stable performance, improved durability, and extended service life.

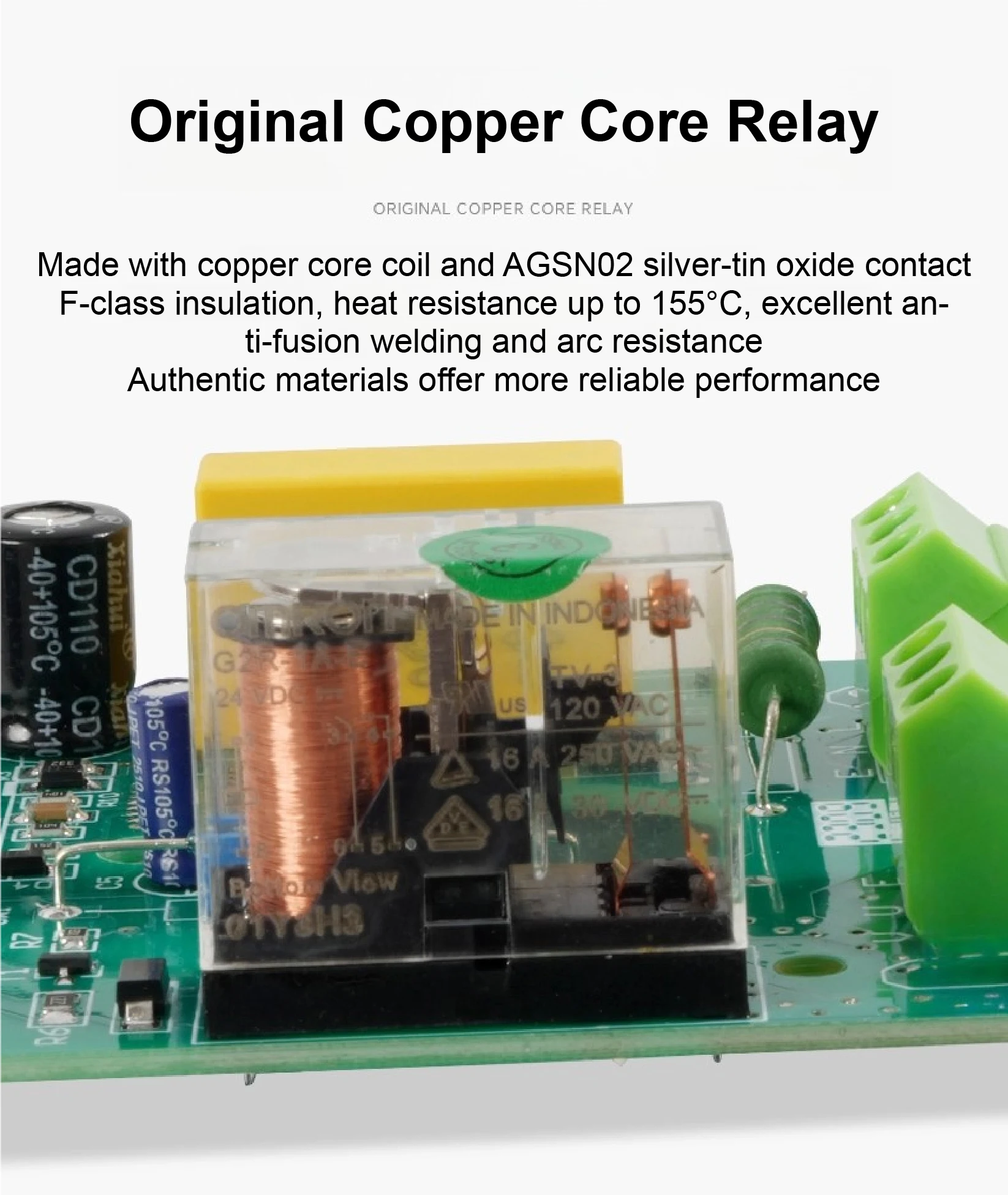

Copper-core Relay

Designed with a copper coil and silver oxide tin contacts for excellent conductivity, reliable switching, and long-term performance.

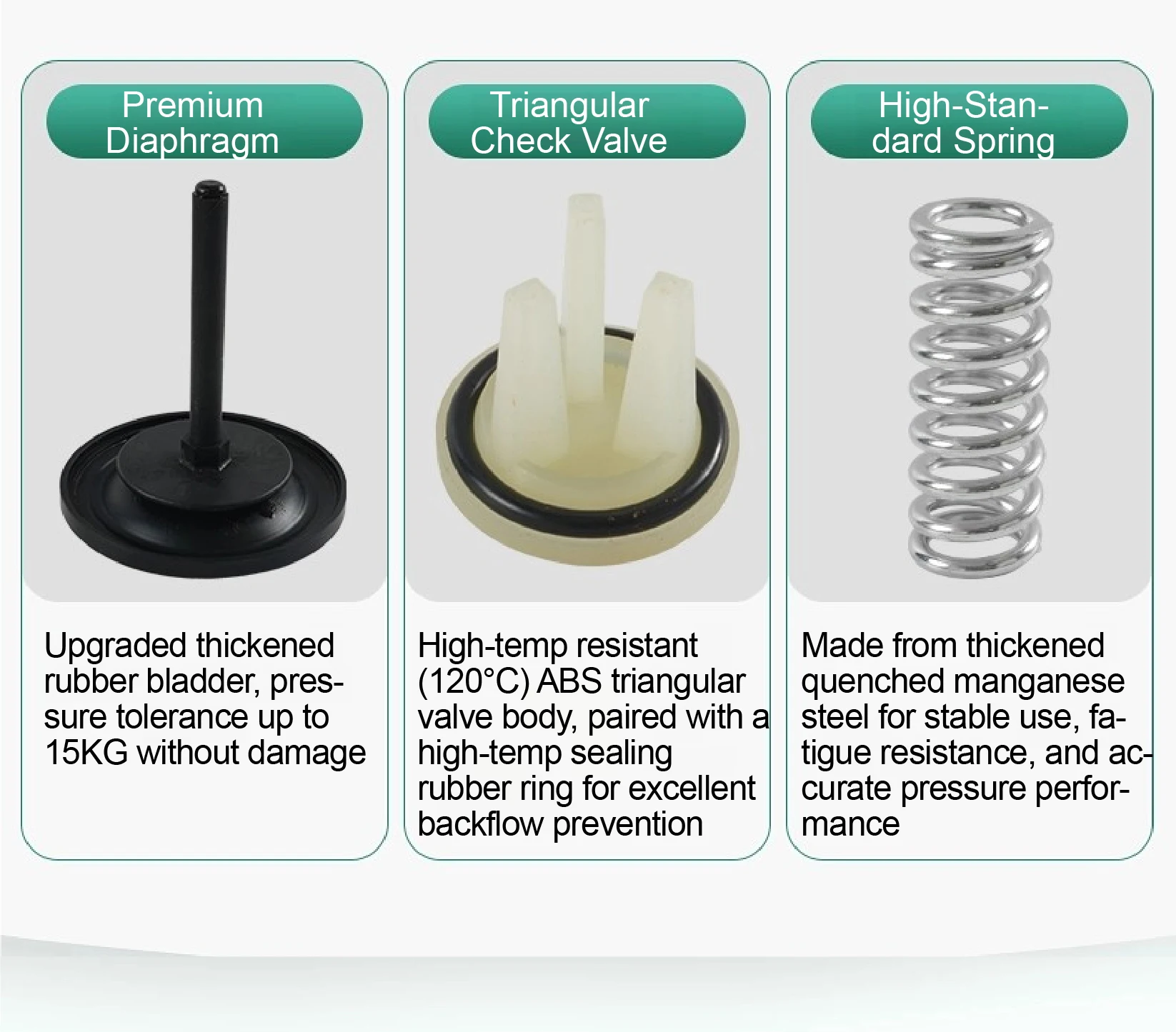

Upgraded Diaphragm

The thickened rubber diaphragm is highly durable and can withstand pressures up to 15KG, offering excellent resistance to bursting.

High-Temperature Check Valve

Features a heat-resistant ABS triangle valve and sealing ring that can withstand temperatures up to 120°C while effectively preventing backflow and leakage.

Heavy-duty Spring

Made from quenched manganese steel, the reinforced spring resists deformation and provides stable, accurate pressure control over extended use.

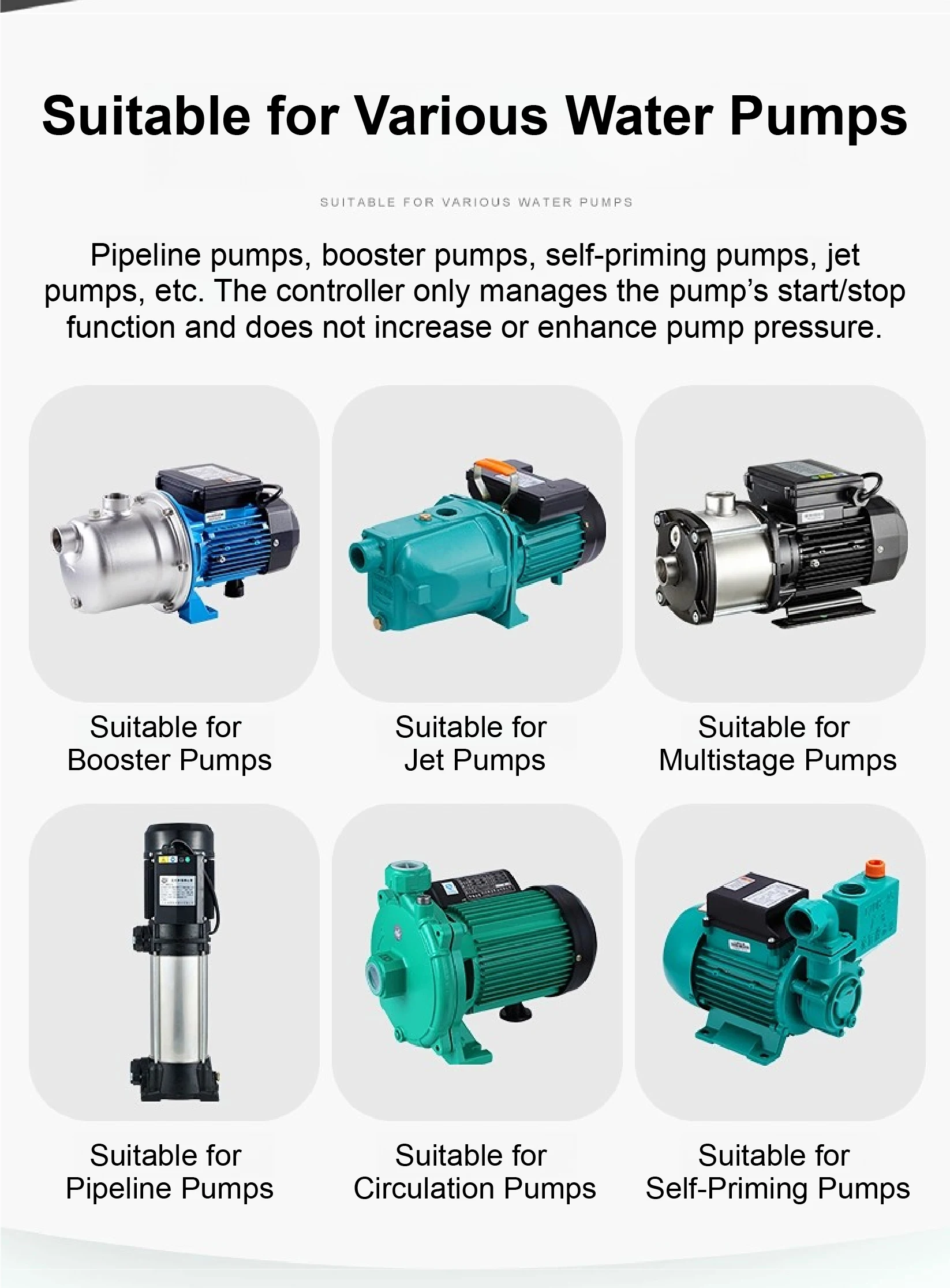

Applications

Suitable for use with pipeline pumps, booster pumps, self-priming pumps, and circulation pumps, making it ideal for a wide range of household and industrial water supply systems.

Important Note

This controller is designed only for automatic pump start and stop control. It does not increase, regulate, or boost water pressure.

FAQs

Q1: Does this controller increase water pressure?

A1: No. This controller only manages the pump’s automatic start and stop functions. The actual water pressure depends on the performance of your pump.

Q2: Can I adjust the startup pressure manually?

A2: Yes. The controller is equipped with a top-mounted adjustment screw, allowing you to easily customize the startup pressure according to your needs.

Q3: How should I wire the controller correctly?

A3: Please use 0.75–1.5mm² copper wire for installation. If your pump only has two wires, the ground wire is optional. Ensure all copper wires are fully inserted and all screws are securely tightened to prevent arcing, poor contact, or damage to the control board.
