Product Description
MEMS Gas Flow Meter RS485 Thermal Mass Flow Sensor Air Oxygen CO2 Methane Argon DC24V for PV Kiln Energy
MEMS Gas Flow Meter RS485 Thermal Mass Flow Sensor Air Oxygen CO2 Methane Argon DC24V for PV Kiln Energy1.NOTE
This flow meter is designed to measure gases such as air, nitrogen, oxygen, argon, methane, and propane.
Due to page limitations, not all compatible gases and flow ranges are listed. Before placing an order, please confirm the gas type, pipe diameter, flow range, and thread size with our customer service team to ensure the correct model selection.
For special or customized requirements, please contact us directly.
Default Parameters:
Power Supply: DC 24V
Wetted Material: 304 Stainless Steel
Signal Output: RS485 + 4–20mA + PNP
Interface: G1/2, G5/8, G3/4, G1 female thread, customizable

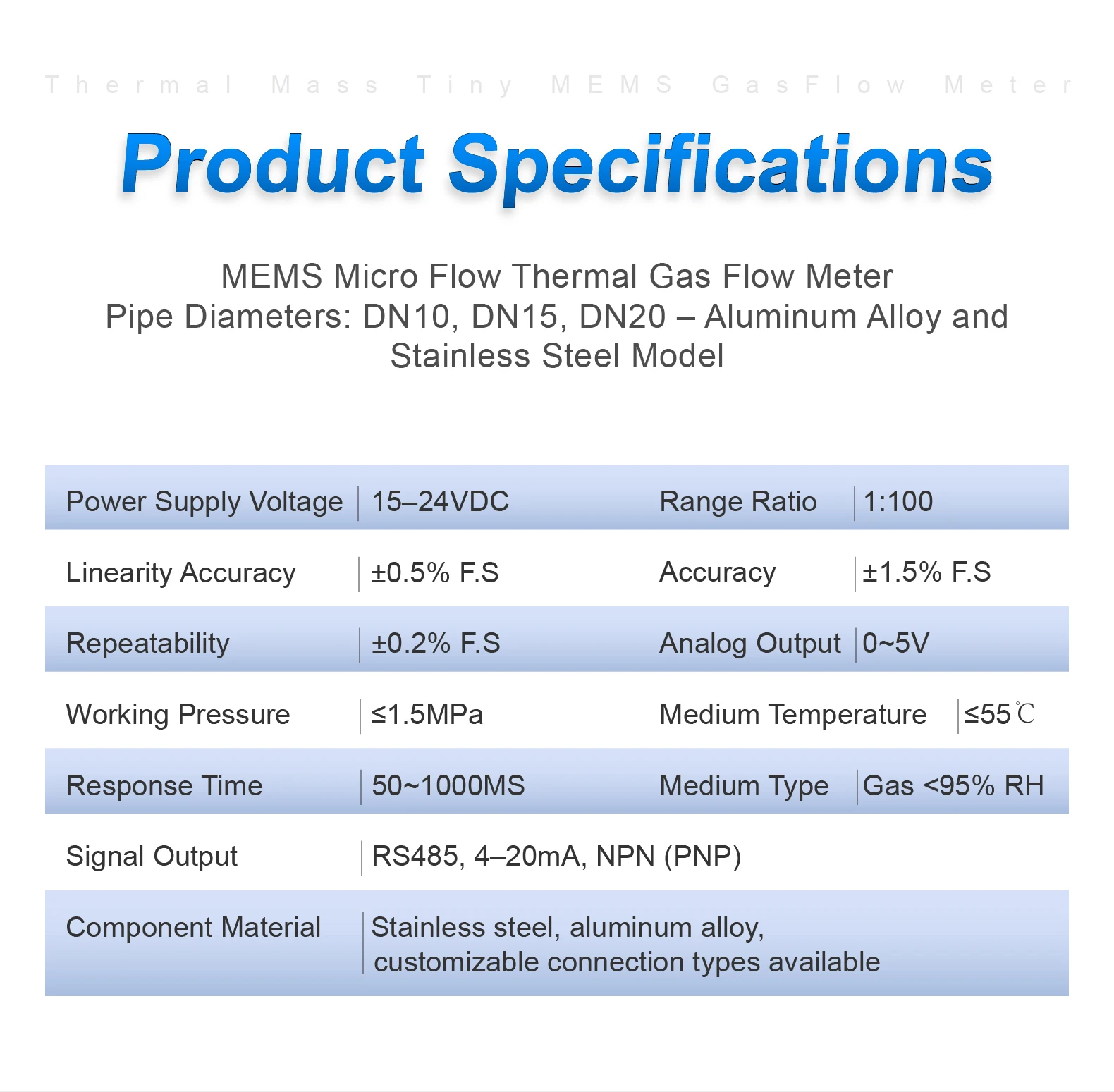

2. Parameters
Parameter | Specification |
Product Type | MEMS Thermal Gas Flow Meter |
Pipe Sizes | DN10 / DN15 / DN20 |
Material | Stainless Steel |
Power Supply | 24V DC |
Measuring Range Ratio | 1:100 |
Accuracy | ±1.5% F.S |
Linear Precision | ±0.5% F.S |
Repeatability | ±0.2% F.S |
Output Signals | RS485 / 4–20mA / PNP (NPN) |
Analog Output | 0–5V |
Response Time | 50–1000ms |
Operating Pressure | ≤1.5MPa |
Medium Temperature | ≤55°C |
Medium Type | Gases (RH < 95%) |
Connector Options | Multiple adapter sizes available |
3. Features

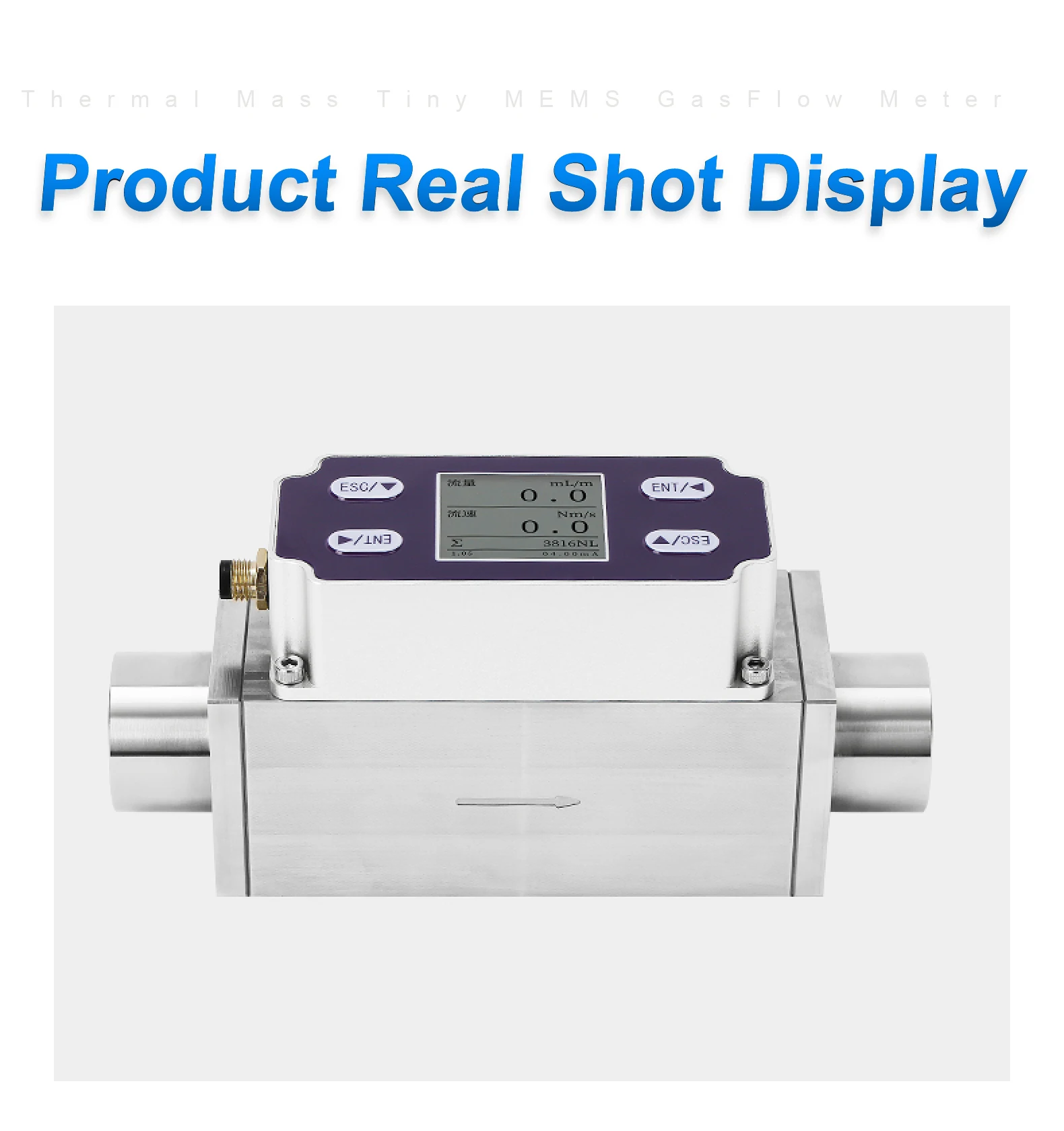

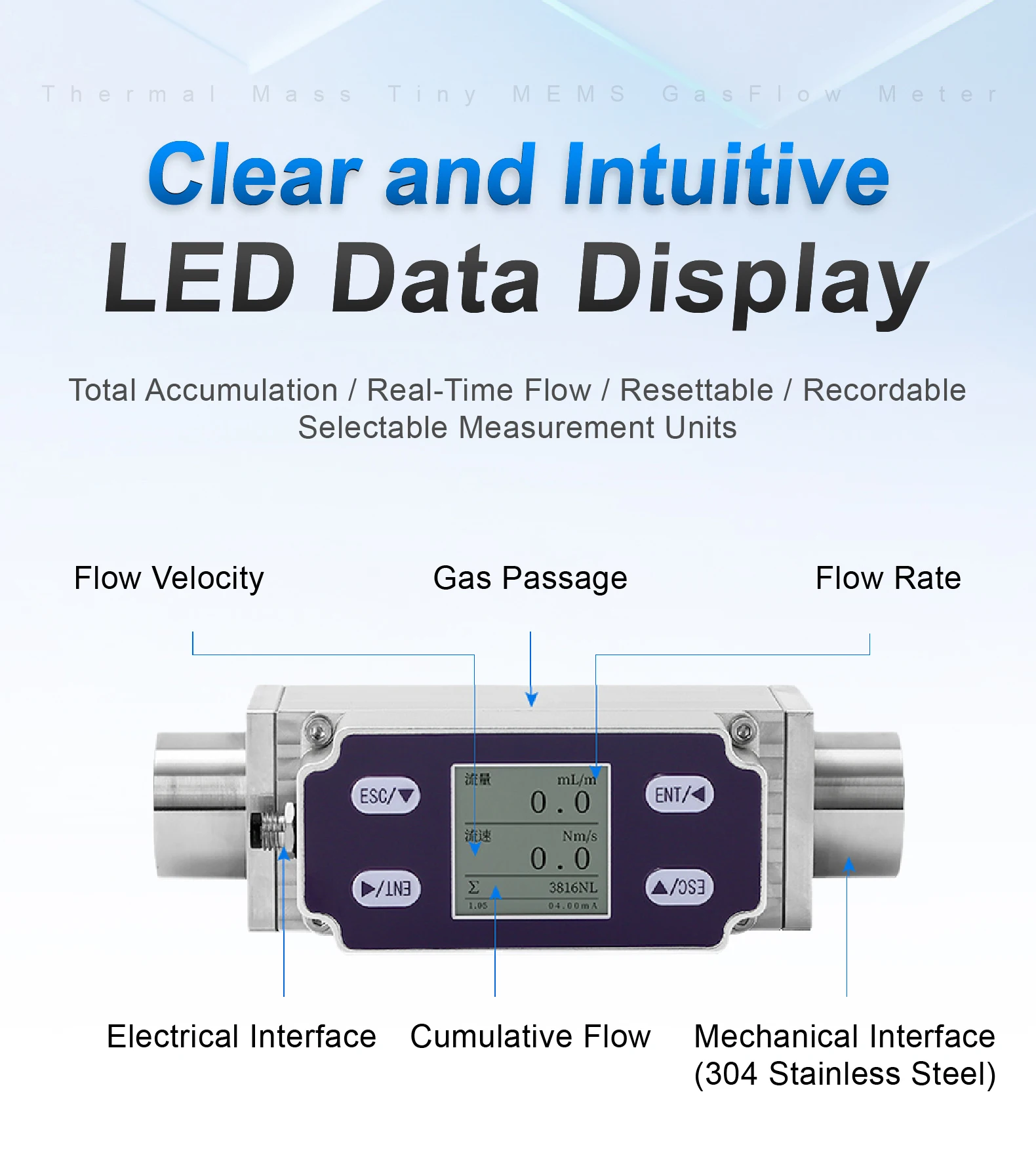

LED Digital Display
Real-time flow rate and accumulated flow are clearly displayed, allowing convenient monitoring and easy operation.

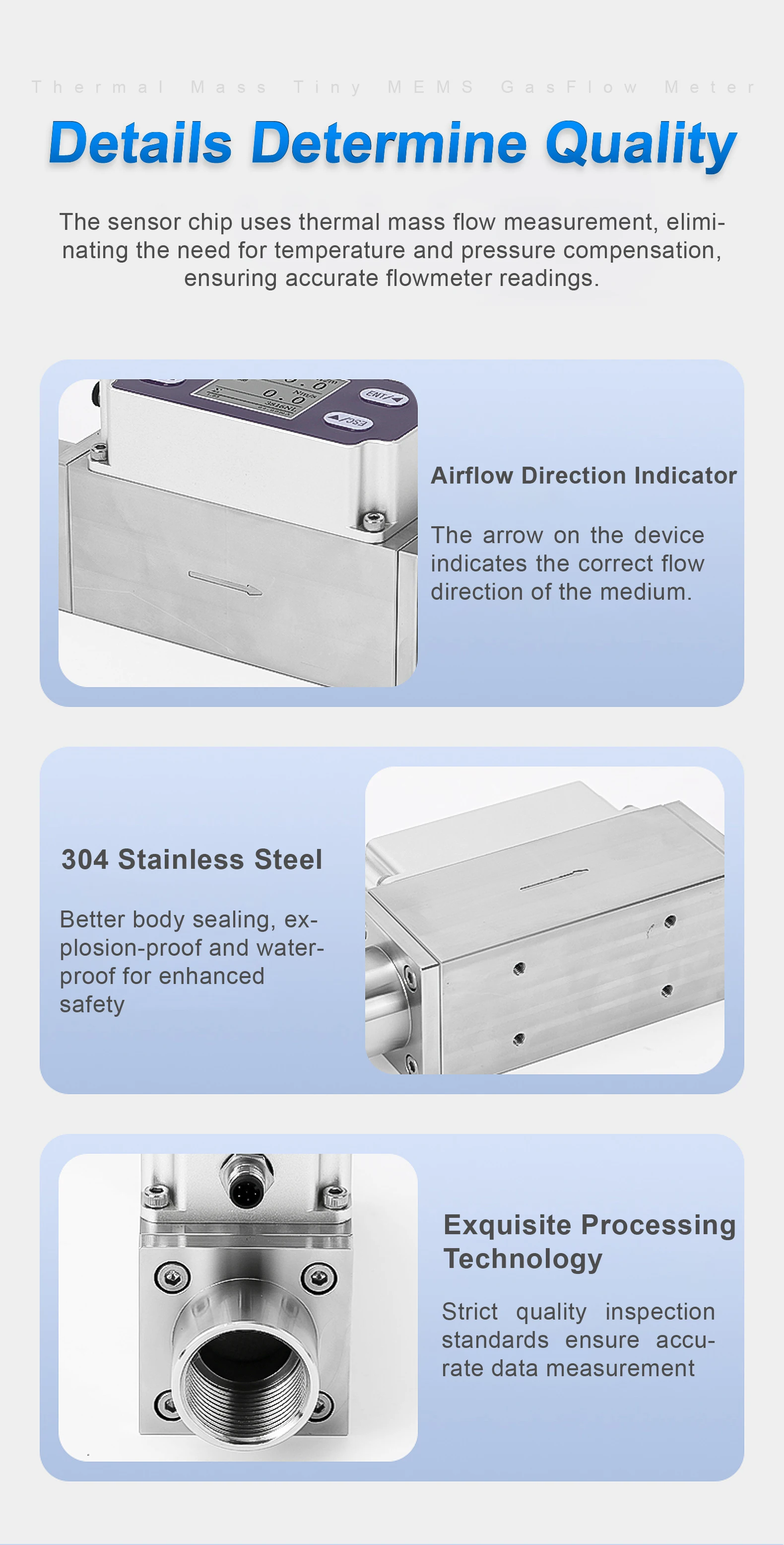

Flow Direction Indicator
Clear flow direction markings help ensure correct installation and stable operation.

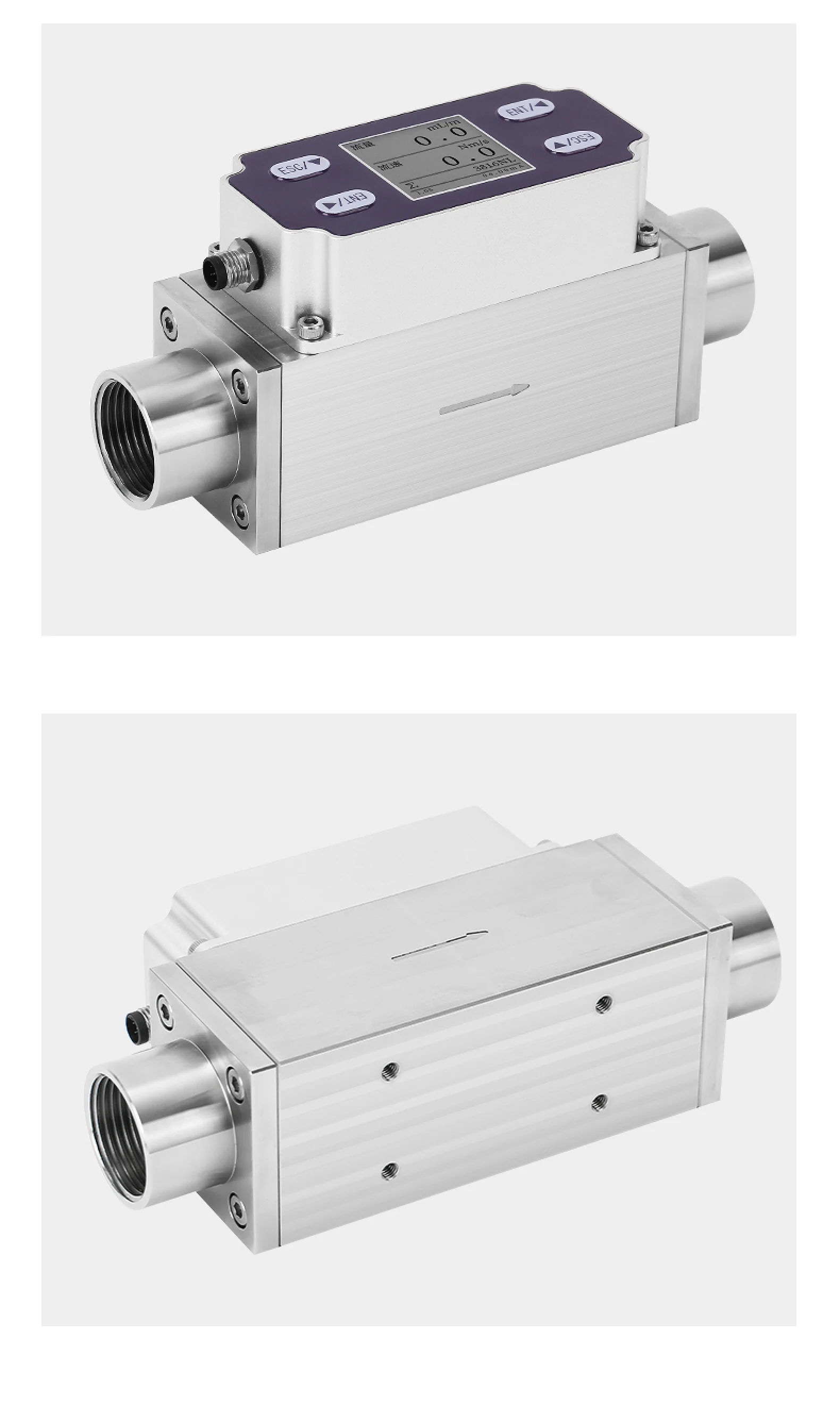

304 Stainless Steel Housing
Made of high-quality 304 stainless steel with excellent sealing performance. Waterproof and explosion-proof design provides enhanced durability and safety.

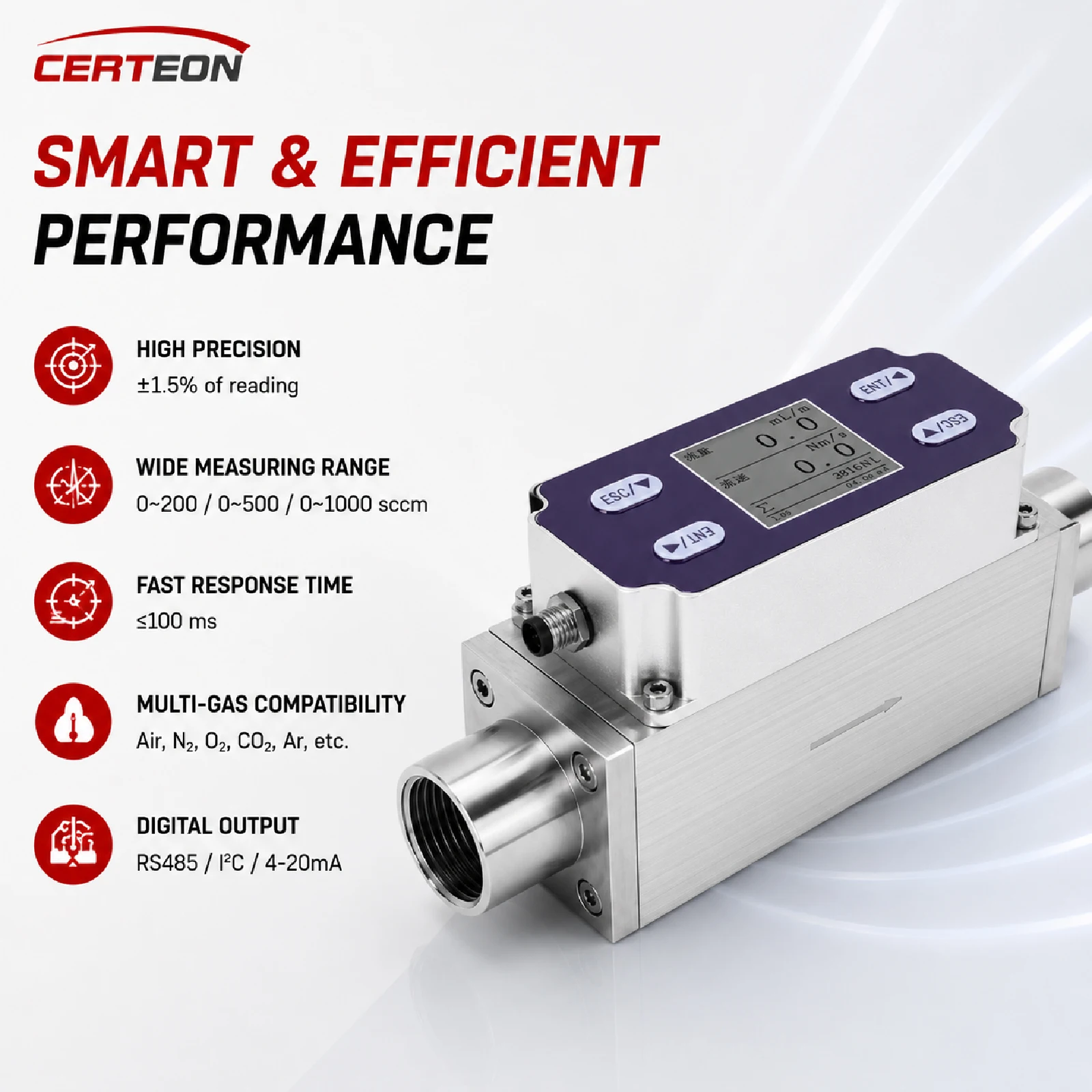

High Accuracy and Fast Response
Advanced MEMS sensor technology delivers accurate measurement with fast response speed and reliable performance.
Customizable Connections
Multiple adapter and connection specifications are available to meet different installation requirements.
4. Applications
Suitable for measuring gases such as air, CO₂, N₂, O₂, Ar, and other non-corrosive gases.
Widely used in industries including new energy, lithium battery manufacturing, kilns, photovoltaic systems, semiconductors, electromechanical equipment, food processing, chemical engineering, pharmaceuticals, agriculture, glass manufacturing, and scientific research.
5. FAQs
Q1: Can the total flow value be reset?
A1: Yes, the device supports manual reset of the accumulated total flow value.
Q2: Does it support RS485 communication?
A2: Yes, the flow meter supports RS485, 4–20mA, and NPN/PNP signal outputs.
Q3: Can it measure gases with high humidity?
A3: Yes, it is suitable for gases with relative humidity below 95%.
