Product Description

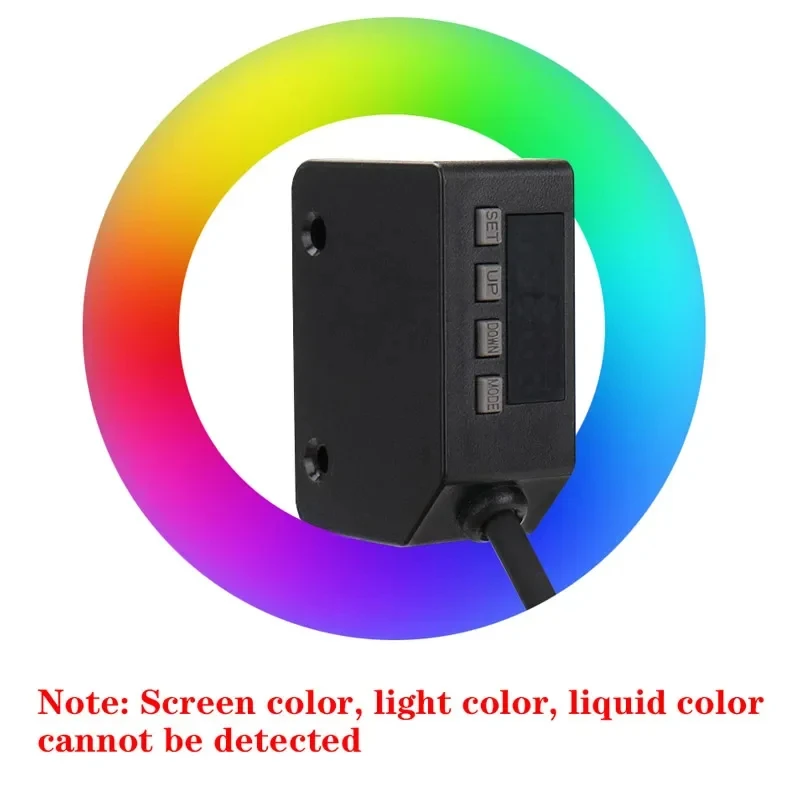

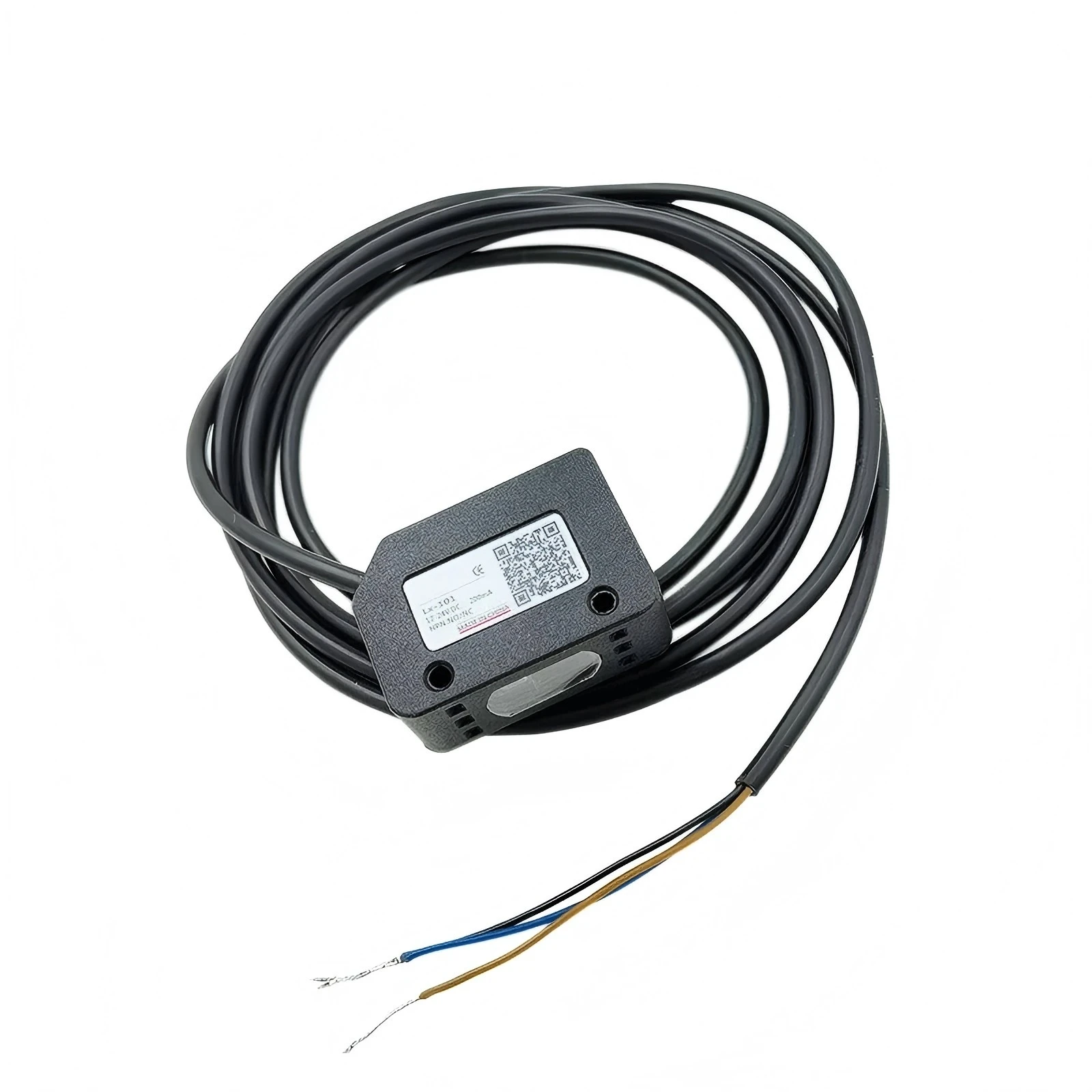

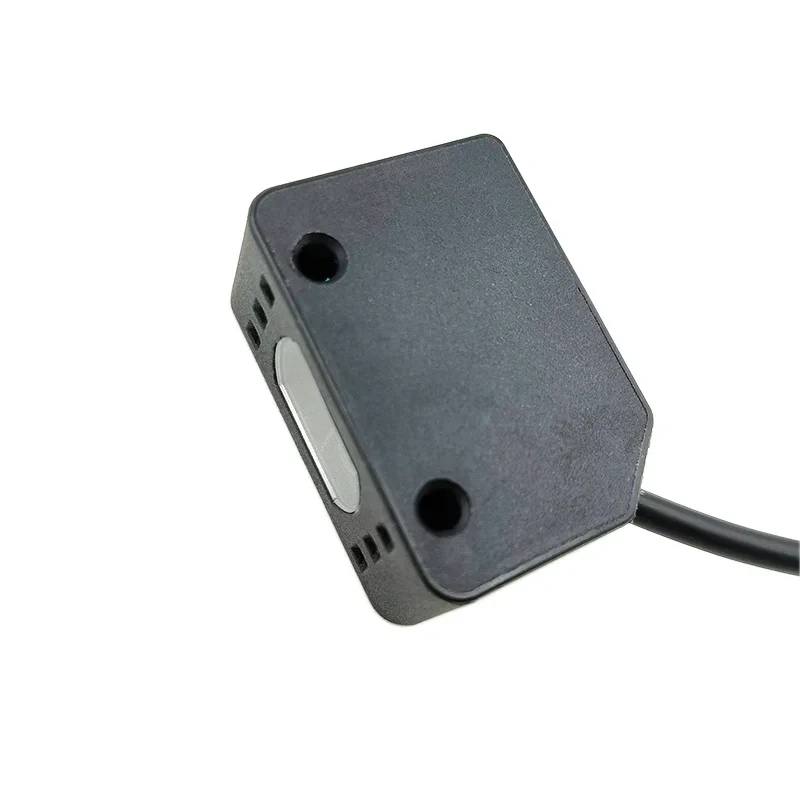

LX101 Color Code Sensor Label Sensor Photoelectric Contrast Sensor 12-24V DC Digital Display for Packaging Machine
LX101 Color Code Sensor Label Sensor Photoelectric Contrast Sensor 12-24V DC Digital Display for Packaging Machine1. Descriptions
The LX-101 color mark sensor features a tri-color LED light source and fast 0.5ms response time, ideal for detecting subtle color differences with high precision. It supports NPN output and is perfect for automated labeling, printing, and packaging lines.

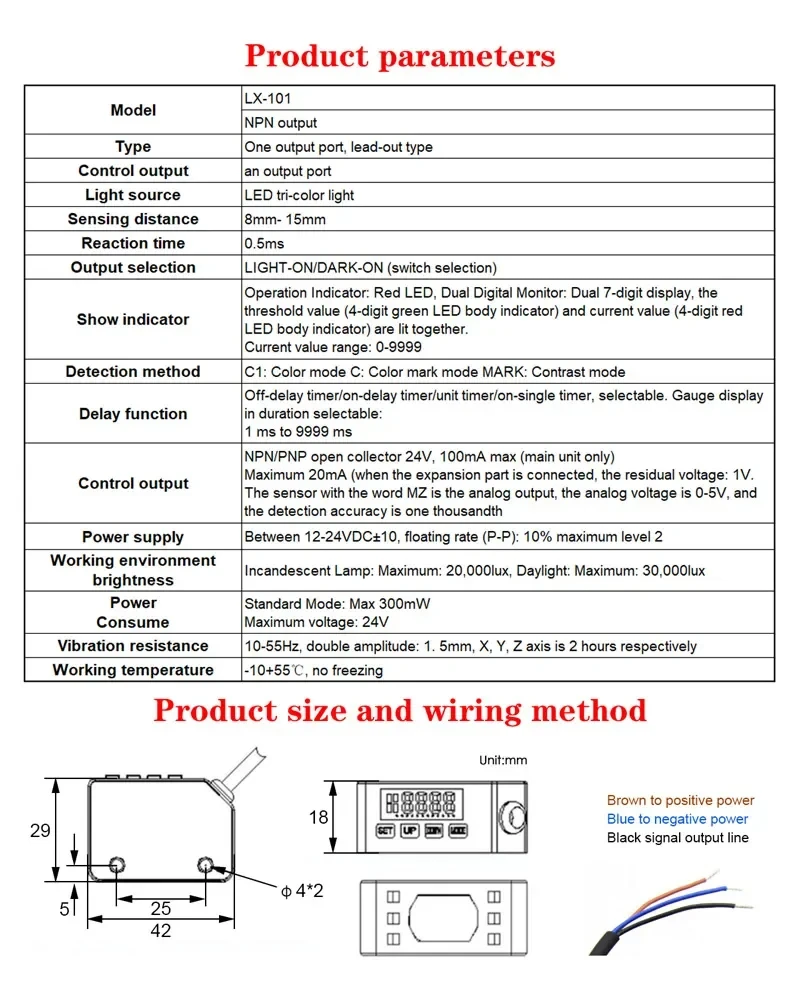

2. Parameters
Parameter | Value |
Model | LX-101 |
Type | One output port, lead-out type |
Output Type | NPN output |
Light Source | LED tri-color light |

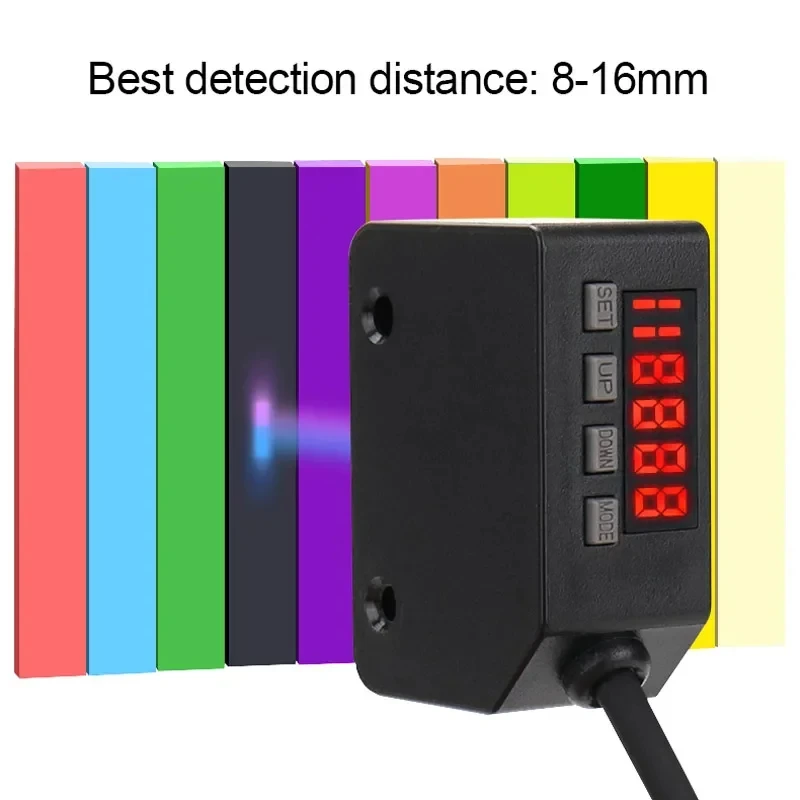

Sensing Distance | 8mm - 15mm |
Reaction Time | 0.5ms |

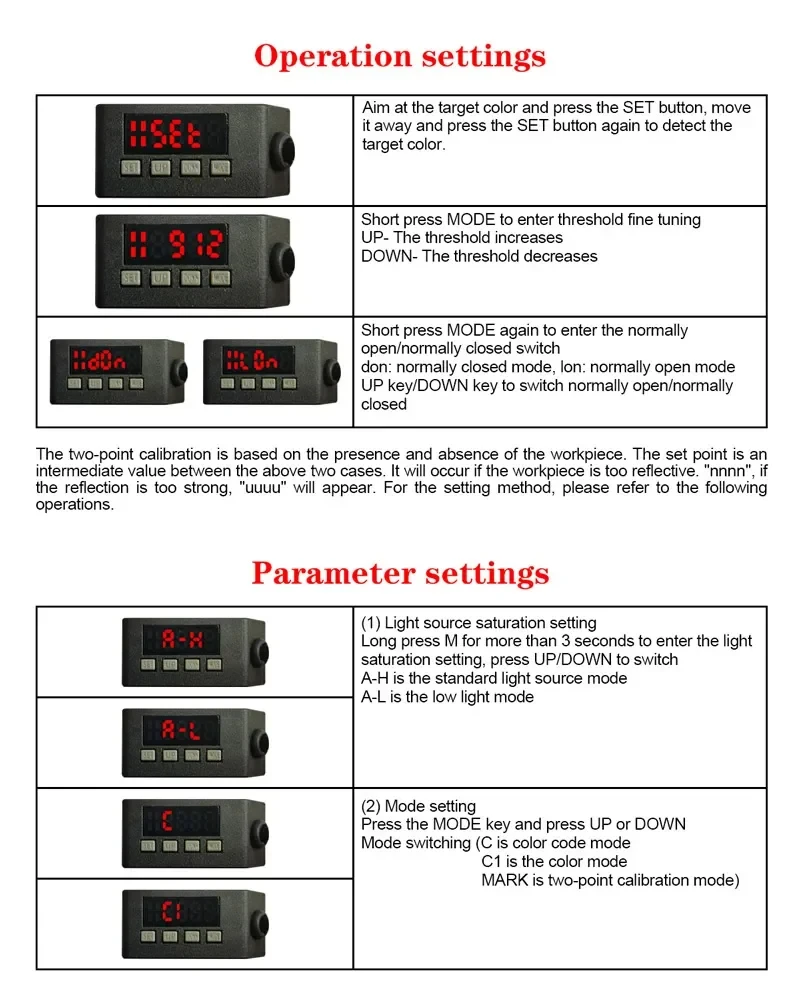

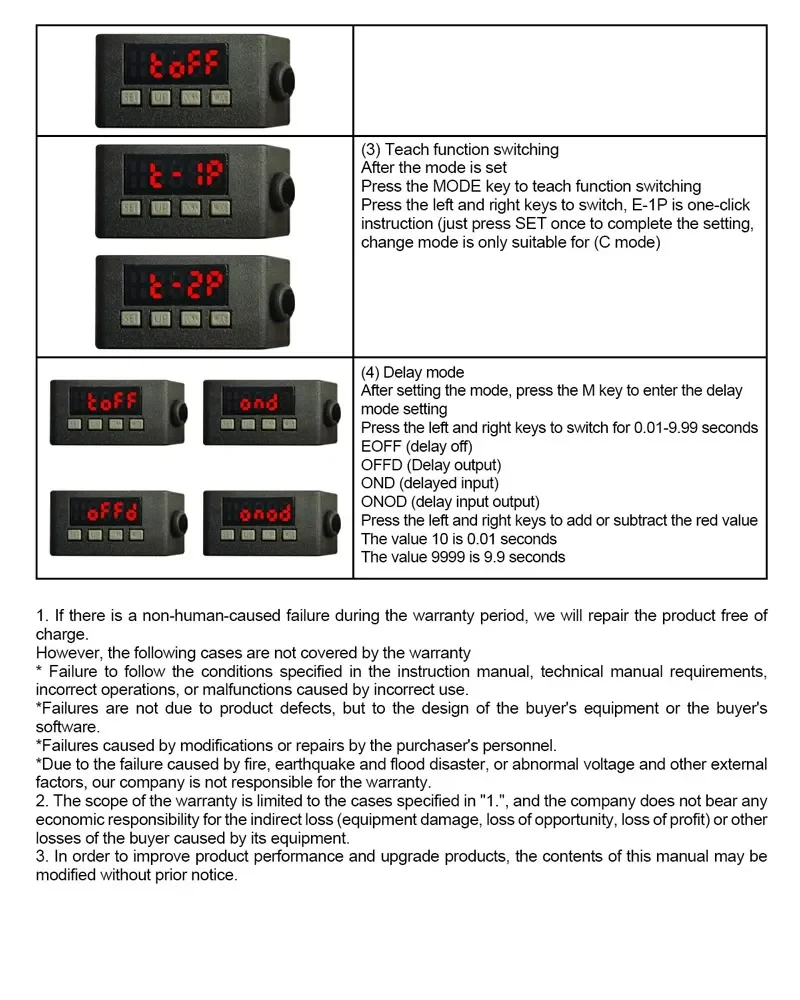

Detection Modes | Color mode (C1), Mark mode (C), Contrast mode (MARK) |
Display Range | 0~9999 |
Control Output | NO/NC switchable |
Power Supply | 12–24VDC |
Operating Temp. | -10°C ~ +55°C, no freezing |
3. Features
High-Speed Response (0.5ms)
Ensures fast and reliable detection on high-speed production lines.
Tri-color LED Source
Enhances contrast and improves accuracy in color mark detection.
Adjustable Detection Modes
Switchable between color, contrast, and mark detection for versatile applications.
4. Applications

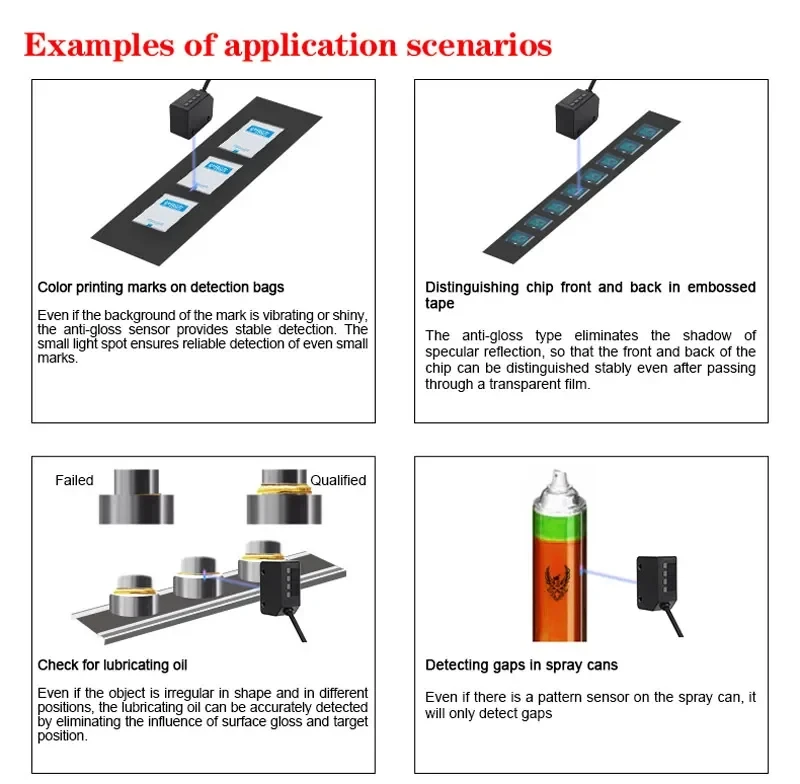

Ideal for color mark detection in packaging machines, label printers, cutting equipment, and automated inspection lines.
