Product Description

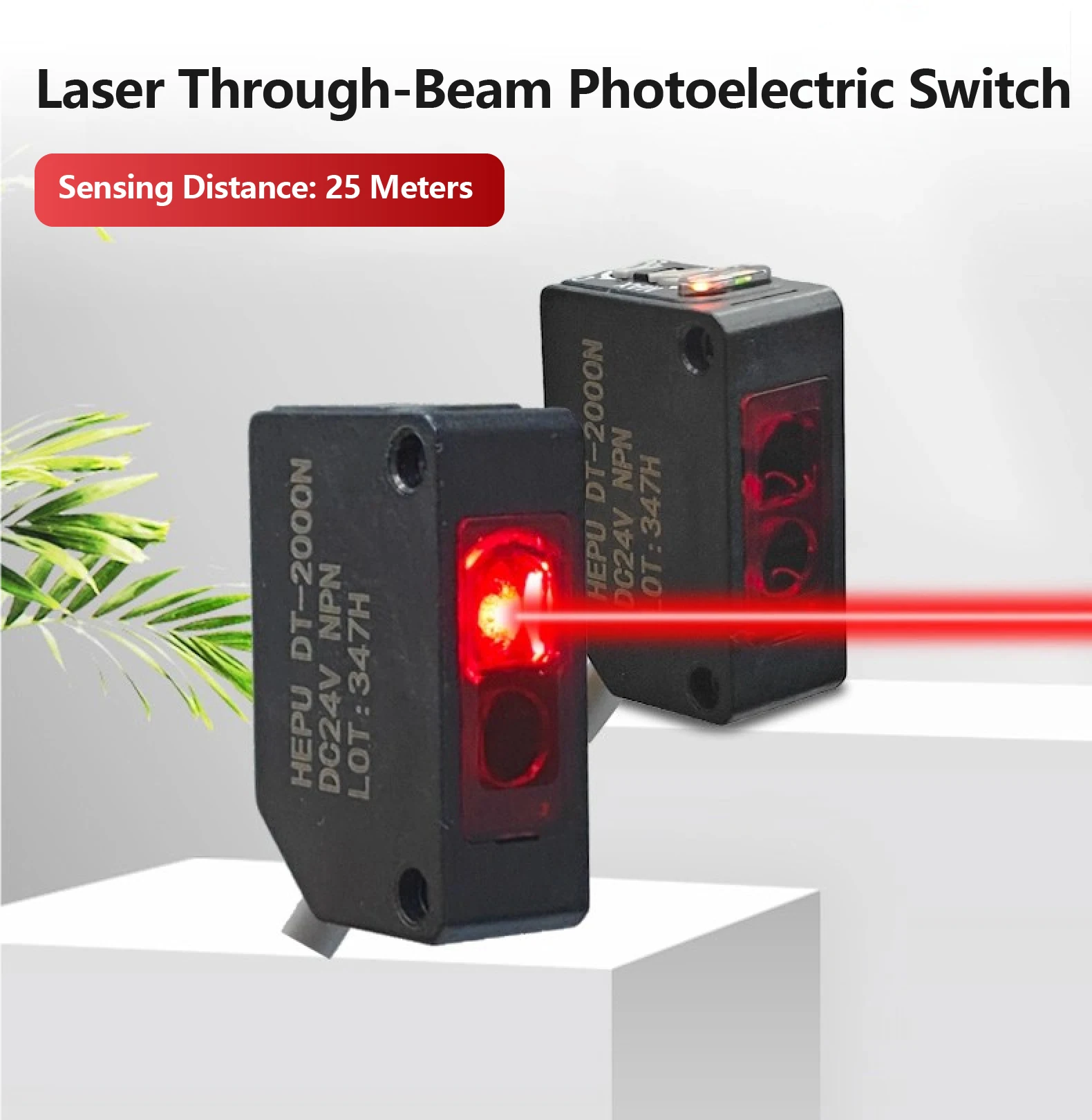

DT LDT Laser Photoelectric Sensor Through Beam 20m 30m DC10-30V NPN PNP Industrial Optical Detection Switch
DT LDT Laser Photoelectric Sensor Through Beam 20m 30m DC10-30V NPN PNP Industrial Optical Detection Switch1.NOTE：
Default Configuration:
Cable type, 2m length
Output: NPN or PNP open collector
Power supply: DC10–30V (DT) / DC12–24V (LDT)
Protection grade: IP67
Detection distance: DT up to 25m / LDT up to 30m
Optional Configuration:
Connector type instead of cable
Output mode: NO / NC switching

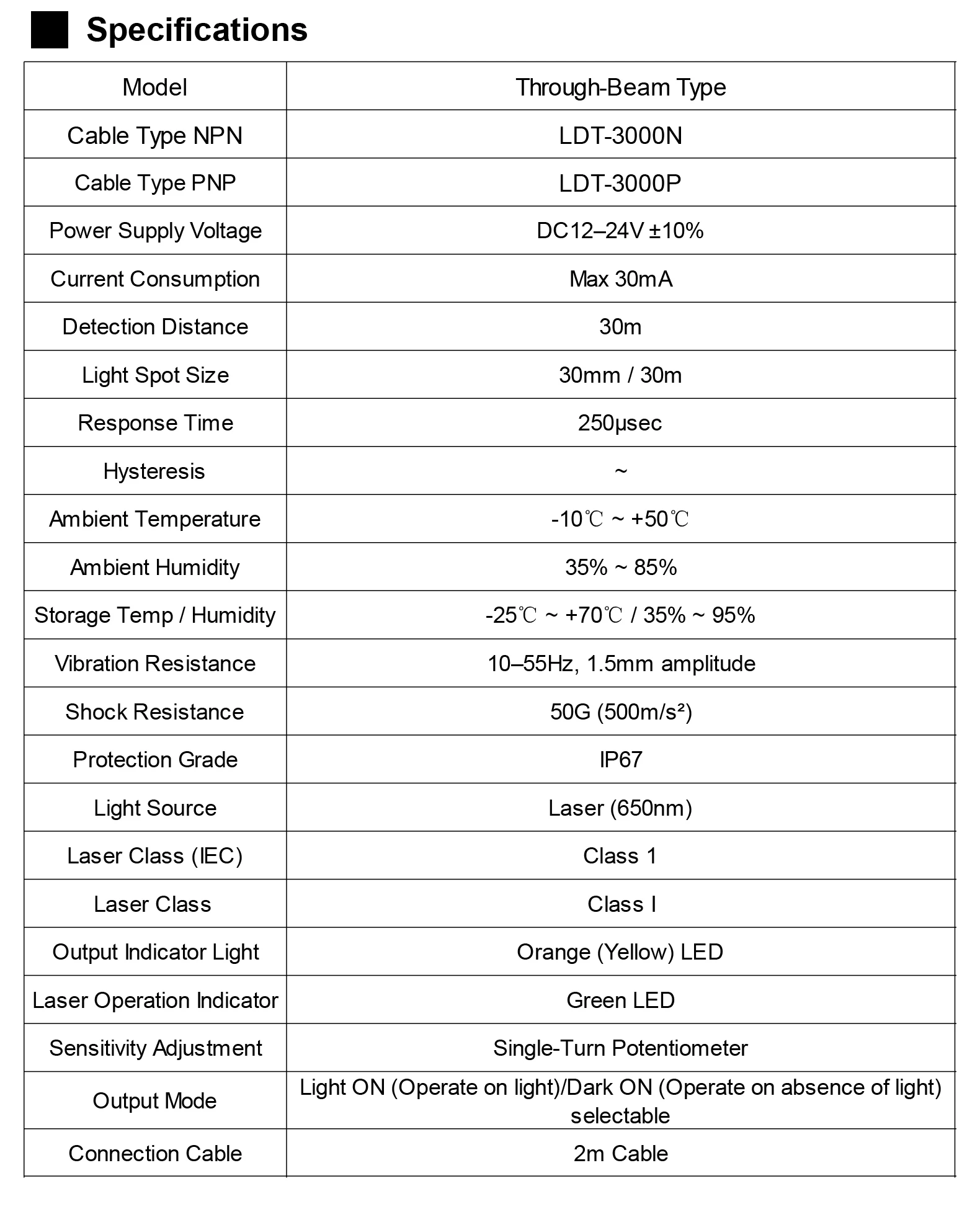

2. Parameters
Parameter | Specification |
Model Variants | DT-2000N/P/CP/CN, LDT-3000N/P |
Detection Distance | 25m (DT Series), 30m (LDT Series) |
Light Source | 4 Red LEDs (632nm) / Laser (650nm) |
Response Time | ≤500μs (DT), ≤250μs (LDT) |
Output Type | NPN/PNP, NO/NC selectable |
Power Supply | DC10–30V (DT), DC12–24V (LDT) |
Protection Rating | IP67 |
Operating Temp / Humidity | -25~+55°C, 35–85% RH |
Vibration/Shock Resistance | 10–55Hz, 1.5mm / 100G (DT), 50G (LDT) |
Material | Housing: ABS, Lens: PMMA |
Indicator LEDs | Orange (Output), Green (Stability) |
3. Features
Long Detection Range:
Up to 30 meters for reliable long-distance object detection.
High-Visibility Light Spot:
Large, clearly visible light spot makes installation alignment easy.
Dust-Resistant Detection:
Enhanced light reception tolerance minimizes dust interference.
Fast Response Time:
Ultra-fast response as low as 250μs for high-speed applications.
Durable & Waterproof:
IP67-rated housing for stable performance in harsh environments.
LED/Laser Light Source:
4-LED or Class 1 laser ensures stable emission with low degradation.
4. Applications
Ideal for object detection in automated production lines, packaging machines, logistics systems, and outdoor sensing environments.
5. FAQs
Q1: Is it suitable for dusty environments?
A: Yes, the sensor has high light reception tolerance and is resistant to dust interference.
Q2: Can I use it in outdoor applications?
A: Yes, with IP67 protection, it performs well in various industrial and outdoor conditions.
Q3: How do I switch between NO and NC modes?
A: The sensor allows selection between Normally Open and Normally Closed modes via setting.
