SA801 Photoelectric Limit Switch Button Type Optical Sensor for Automation Equip

Product Description

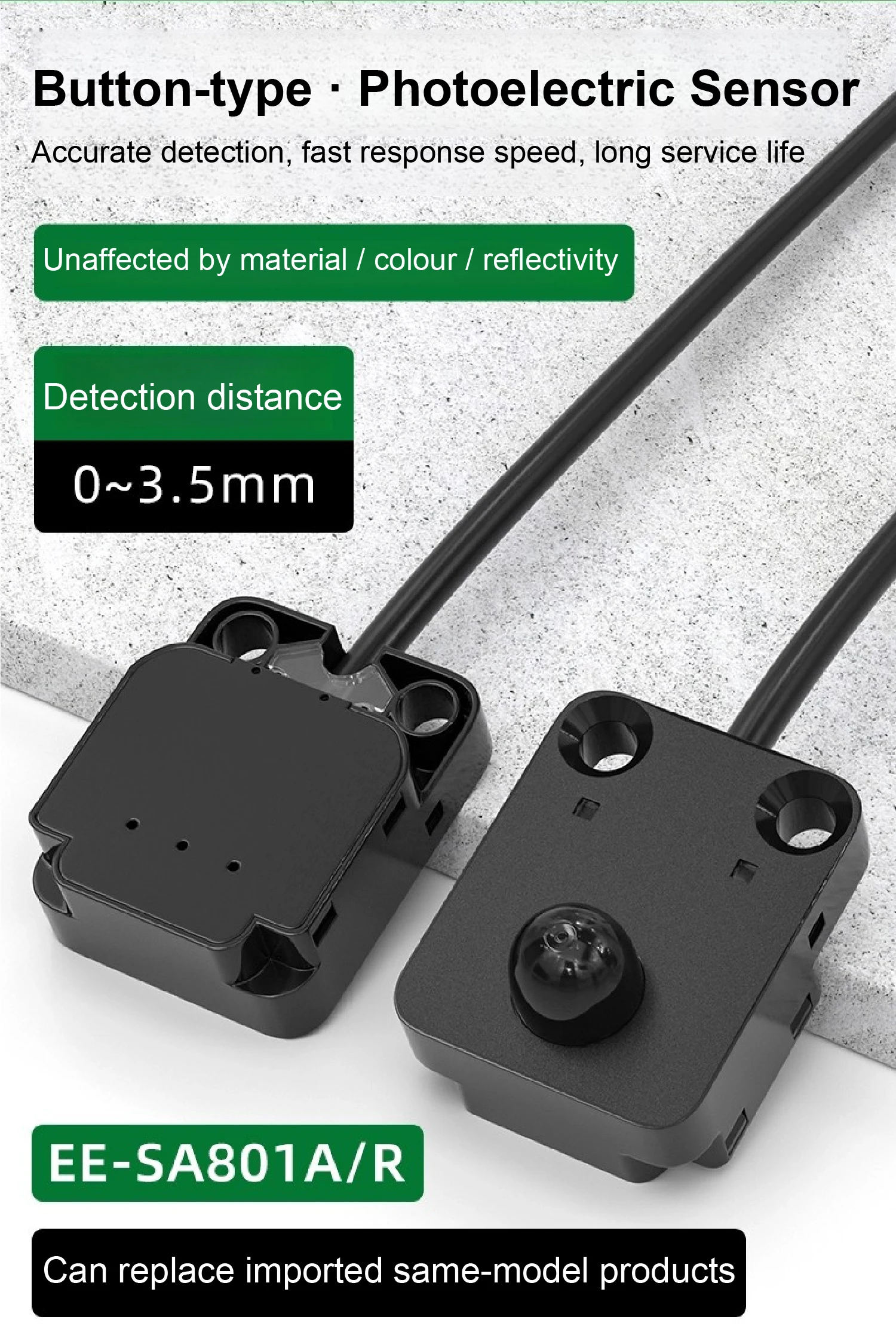

1.Product Overview

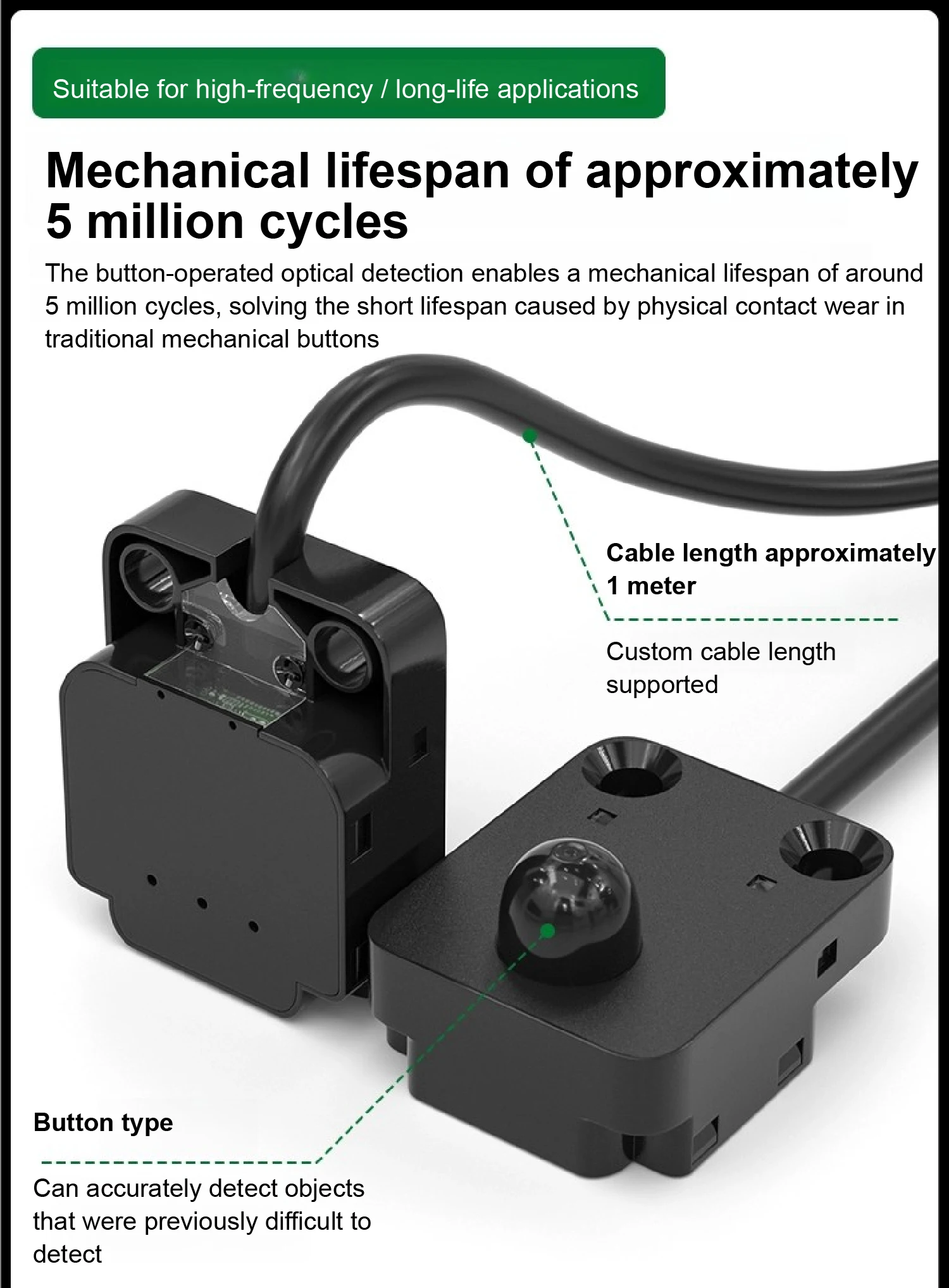

This compact button-type photoelectric sensor provides fast response speed and highly reliable detection performance, regardless of the target’s color, material, or surface reflectivity. Its ultra-slim structure allows easy installation in narrow or space-constrained environments.

Designed for industrial applications, the sensor is equipped with four red LED indicators that can be viewed from multiple angles, making operation status monitoring simple and convenient. With a durable design and service life exceeding 5 million cycles, it ensures stable long-term performance.

Default Configuration

Model Options
NPN Output: EE-SA801A
PNP Output: EE-SA801R

Specifications

Type: Button-type Photoelectric Sensor

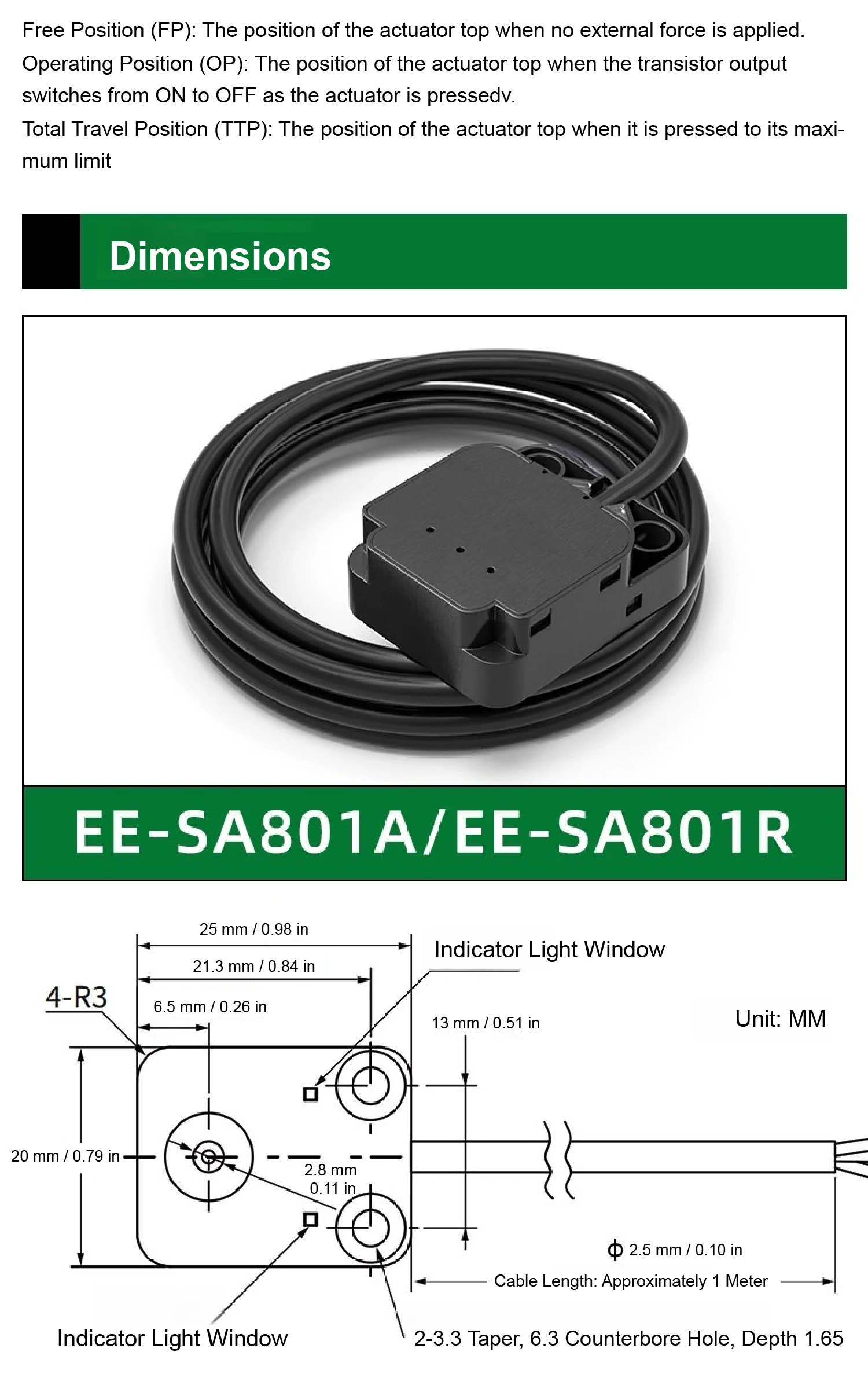

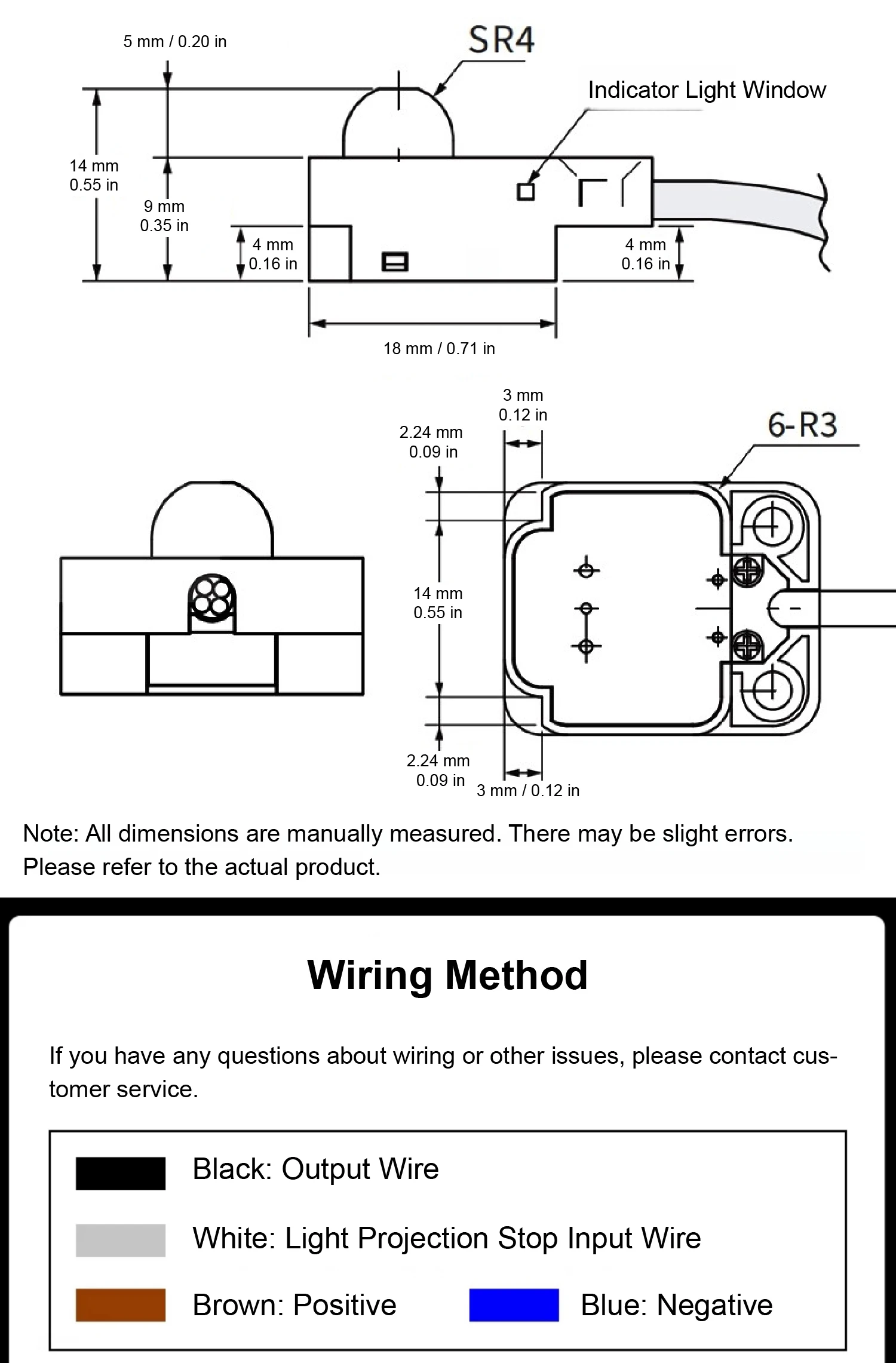

Free Position (FP): 5 ± 0.4 mm
Operating Position (OP): 3.5–4.5 mm
Total Travel Position (TTP): Max. 0 mm
Cable Type: Lead-out cable, approximately 1 m (customizable)

Additional Information

Due to limited space, not all specifications are displayed. Custom configurations and special requirements are available upon request. Please contact us for more details.

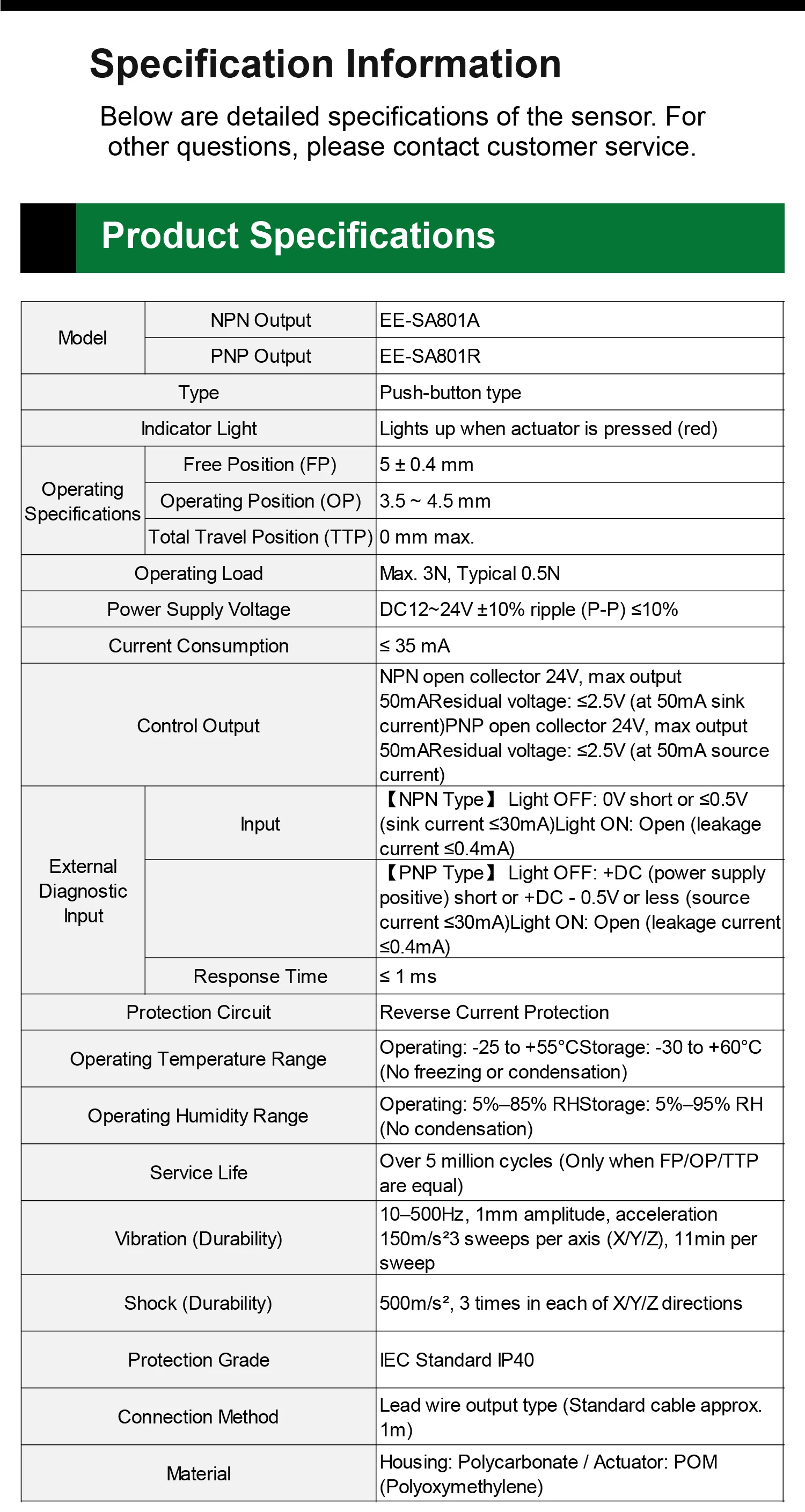

2. Technical Specifications

Models:EE-SA801A NPNEE-SA801R PNP

Type:Button-Type Sensor

Indicator Light:Red LED turns on when the actuator is pressed

Free Position FP:5 ± 0.4 mm

Operating Position OP:3.5 to 4.5 mm

Total Travel Position TTP:Max. 0 mm

Operating Load:Typical 0.5 NMax. 3 N

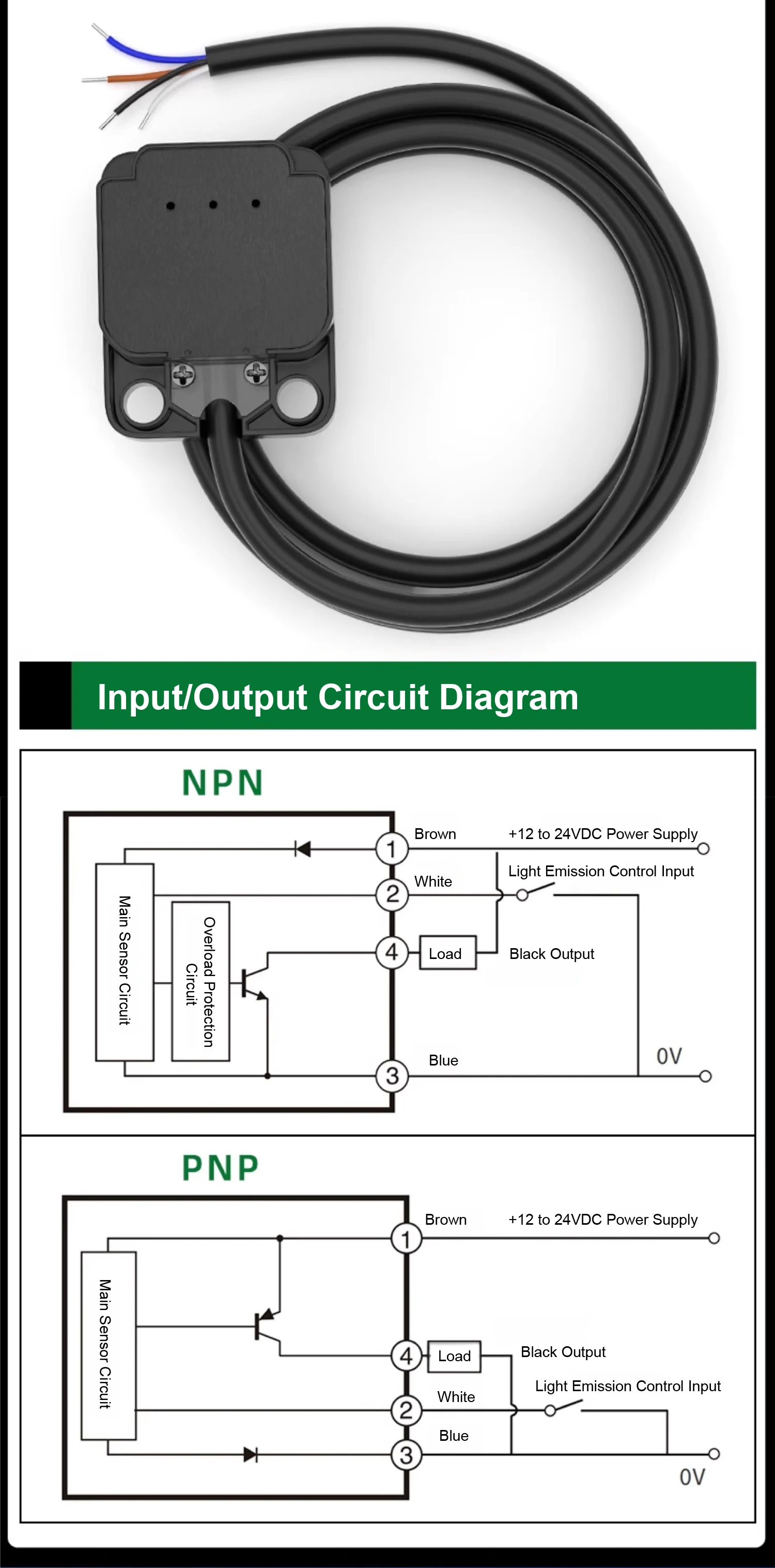

Supply Voltage:DC 12 to 24 V ±10%Ripple P-P: 10% max.

Current Consumption:Max. 35 mA

Control Output:
NPN open-collector output
24 V max.
50 mA max.

Residual Voltage:2.5 V max. at 50 mA load

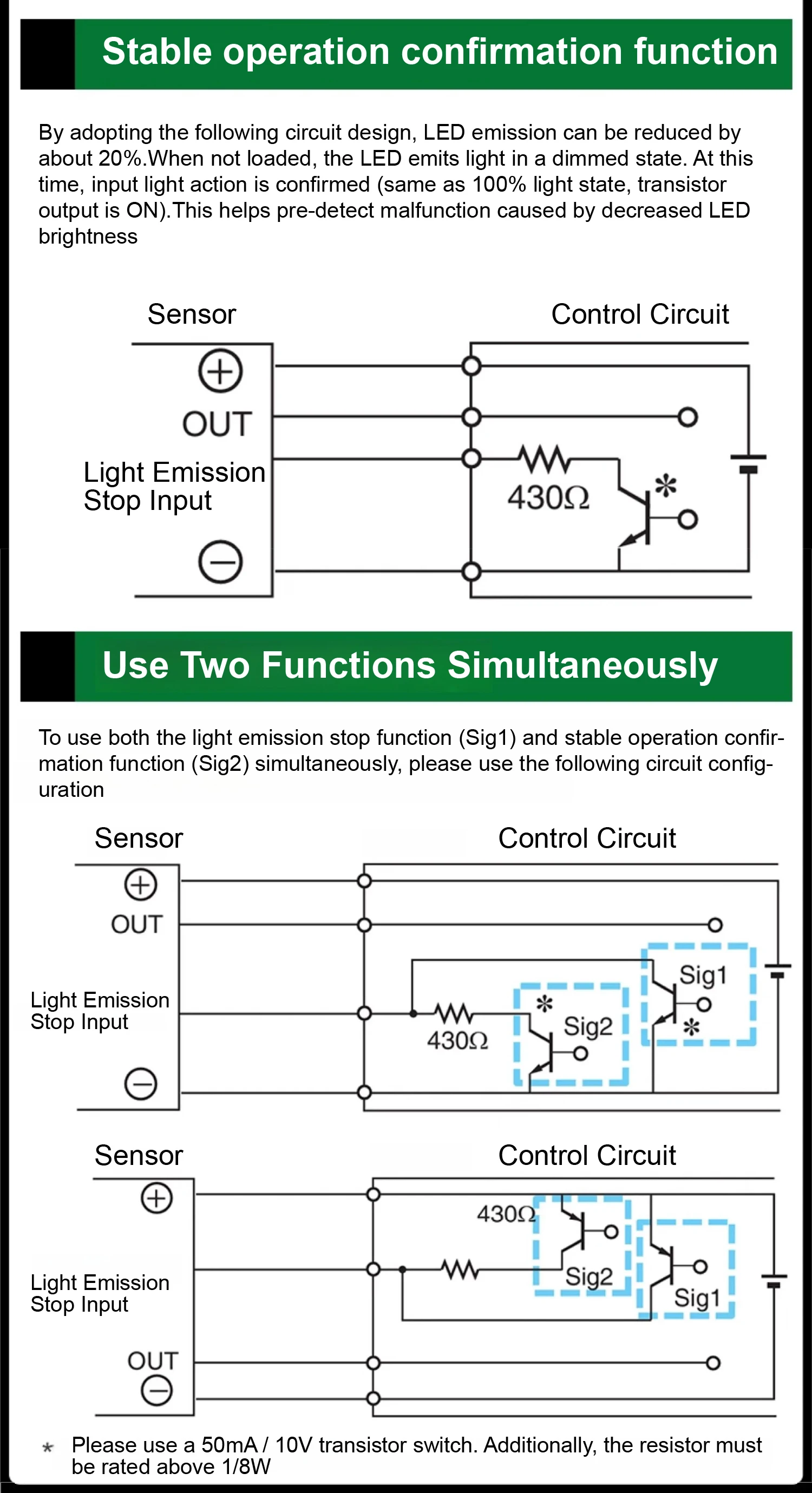

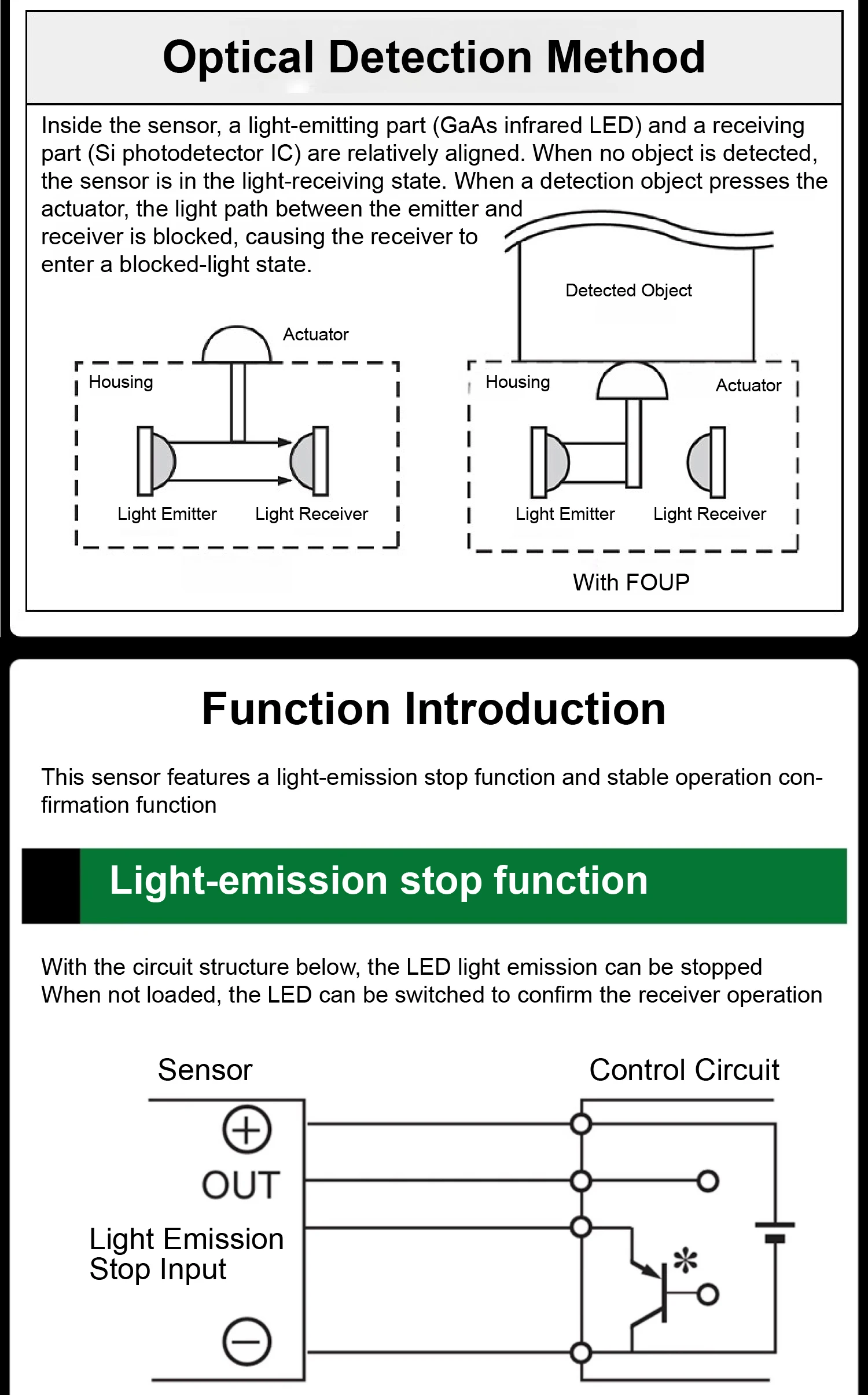

External Diagnosis Input:
NPN: Light OFF at 0.5 V or less, Light ON when open
PNP: Light OFF at +DC −0.5 V or higher, Light ON when open

Response Time:1 ms max.

Protection Circuit:Reverse polarity protection

Operating Temperature:−25 to +55 °C

Storage Temperature:−30 to +60 °C, no freezing or condensation

Operating Humidity:5 to 85% RH

Storage Humidity:5 to 95% RH, non-condensing

Service Life:Over 5 million cycles FP to OP to FP

Vibration Resistance:10 to 500 Hz, 1 mm amplitude, 150 m/s², 3 sweeps per axis

Shock Resistance:500 m/s², 3 shocks per axis X, Y, and Z

Protection Rating:IP40, IEC standard

Connection Method:Lead-out cable, approx. 1 m

Material:
Housing: Polycarbonate
Actuator: Polyacetal

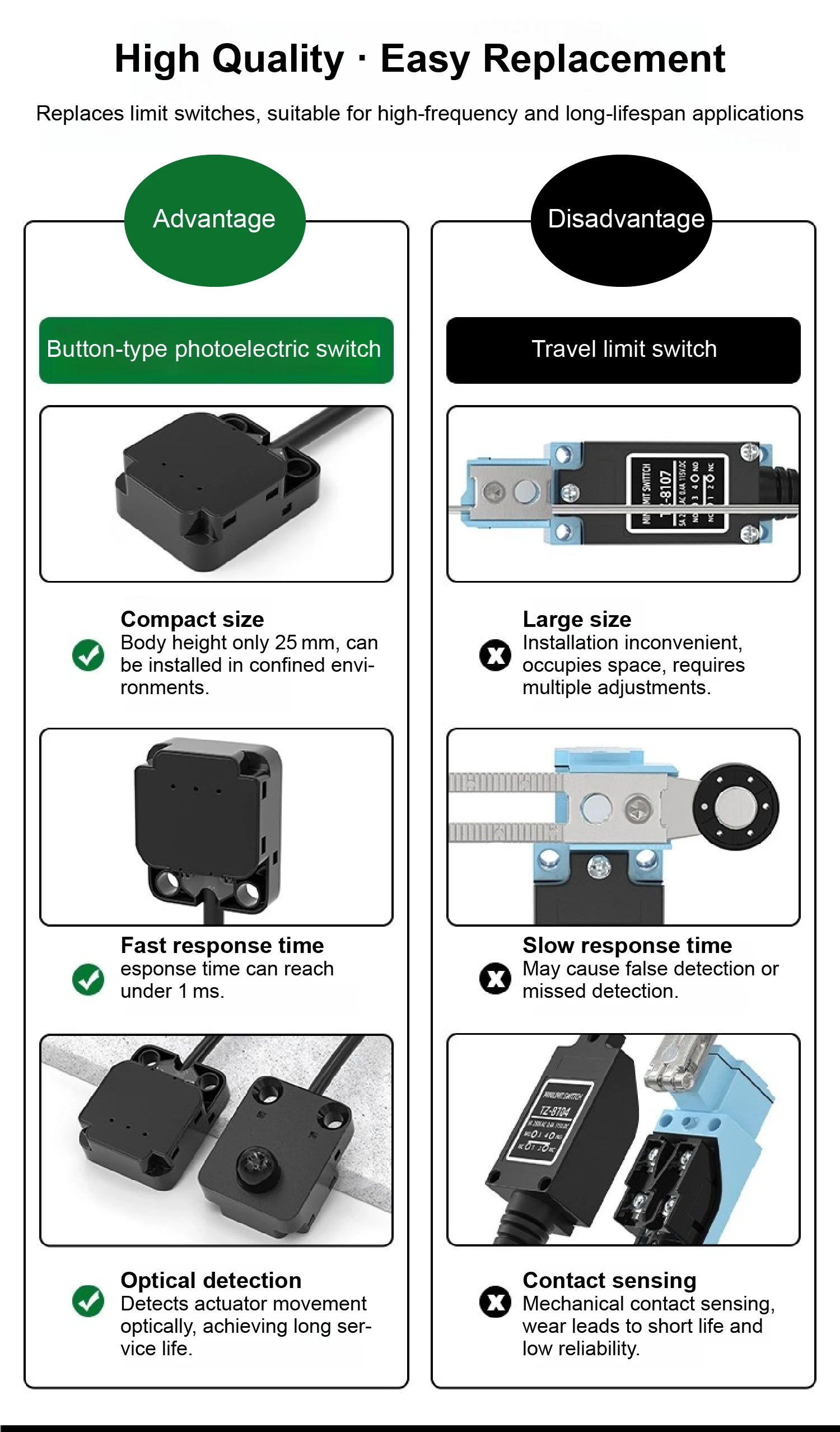

3. Key Features
Reliable Surface Detection

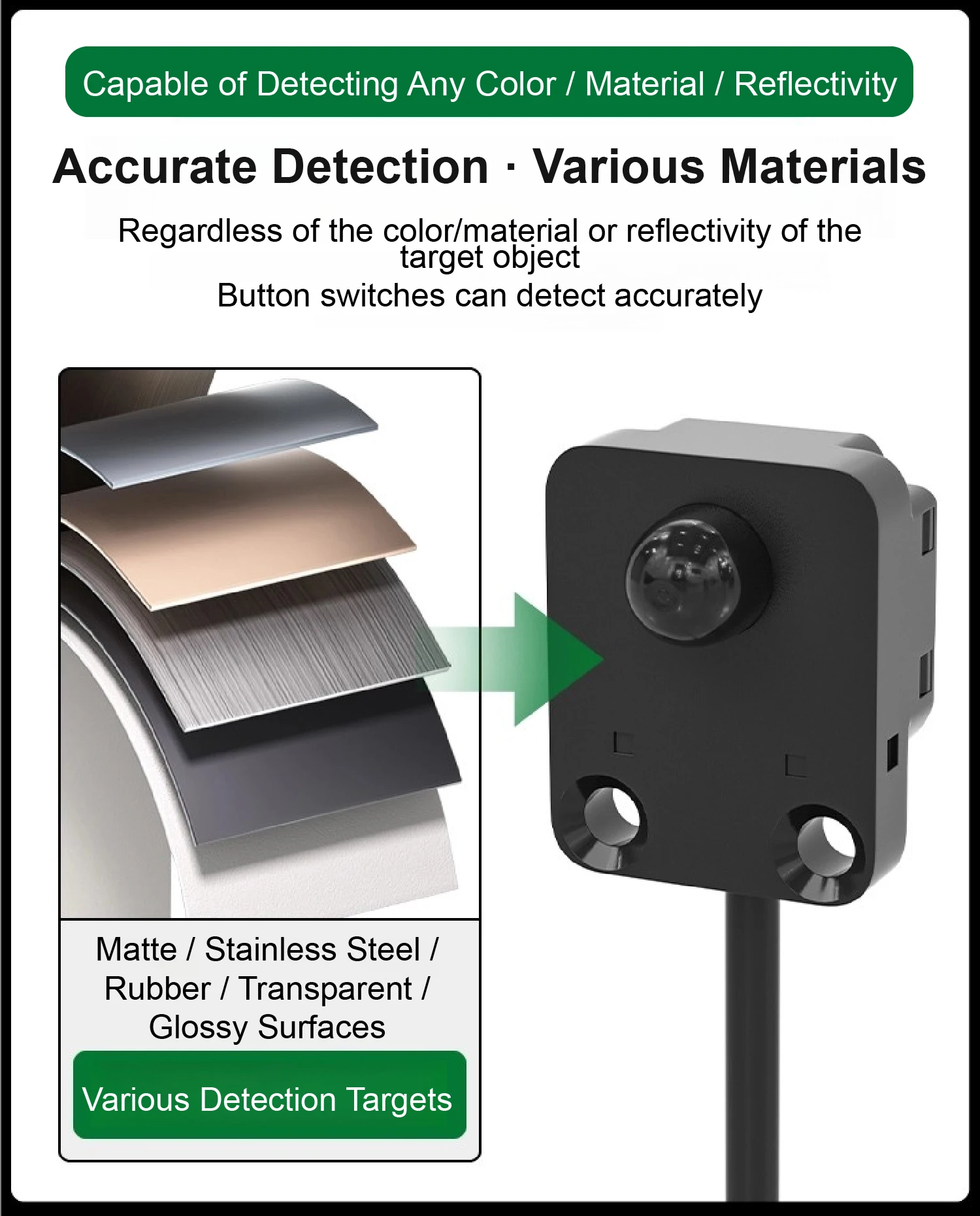

Effectively detects black, transparent, and reflective objects without being affected by material or color, ensuring stable and consistent performance.

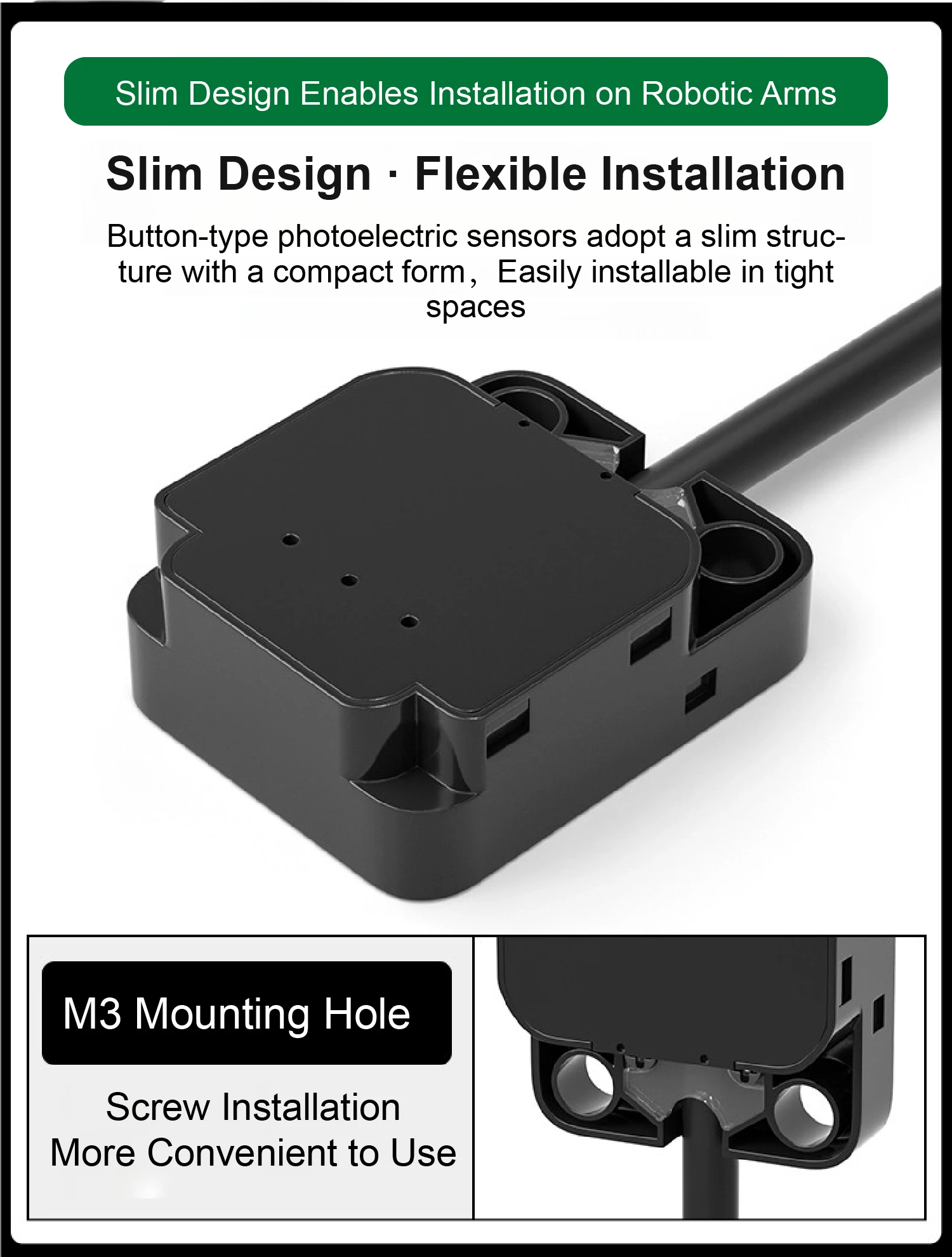

Slim and Space-Saving Design

The ultra-compact body is easy to install in narrow spaces, making it ideal for robotics, automated equipment, and space-limited machinery.

Ultra-Fast Response Time

Provides a response time within 1 ms, delivering accurate and reliable detection for high-speed industrial applications.

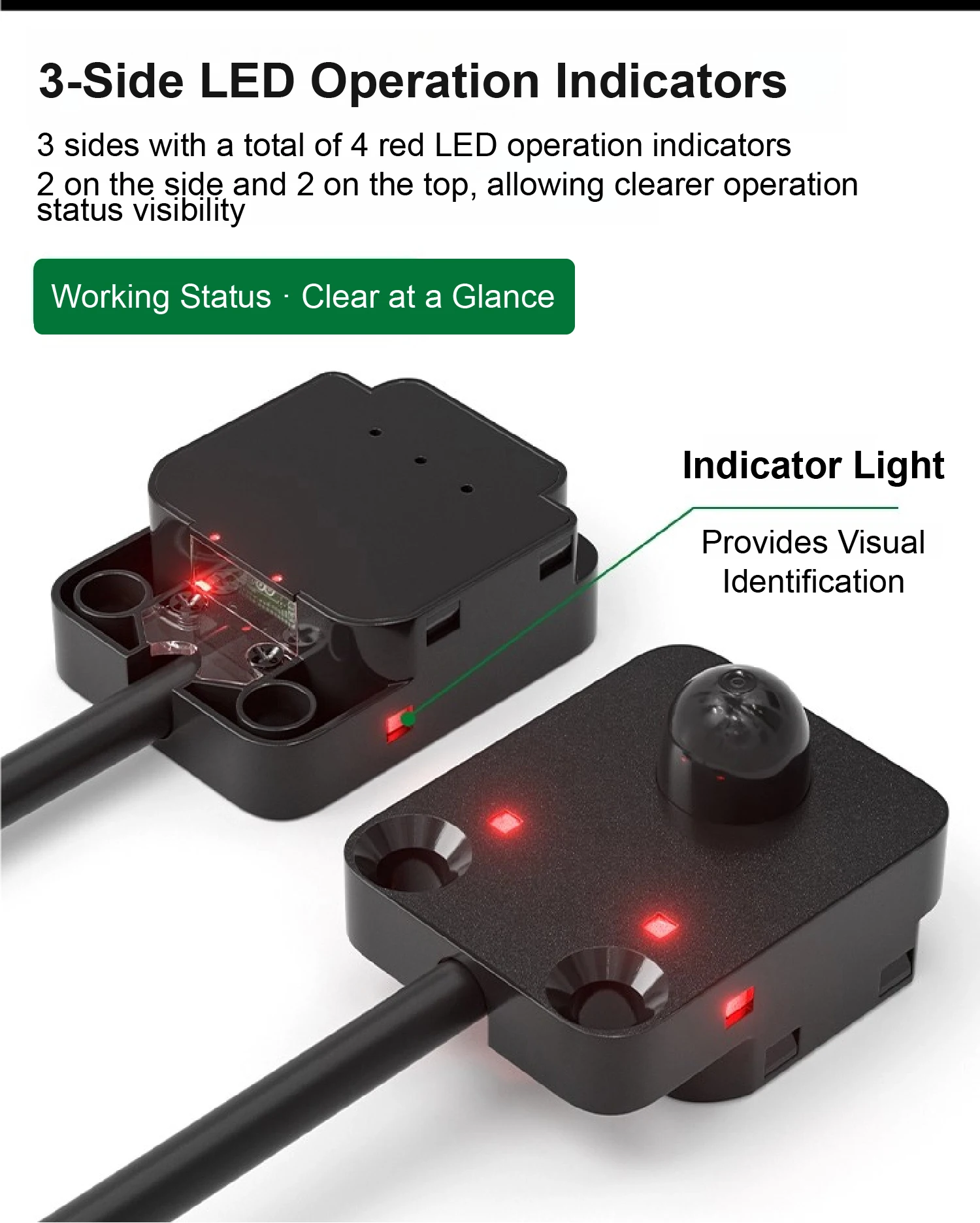

All-Angle LED Visibility

Four red LEDs are positioned on the top and sides, allowing clear 360° status visibility from multiple directions.

Extended Service Life

Designed for long-term durability, with a service life of more than 5 million cycles.

Industrial-Grade Durability

Built to withstand high vibration, impact, and demanding working environments, with an IP40-rated protective enclosure.

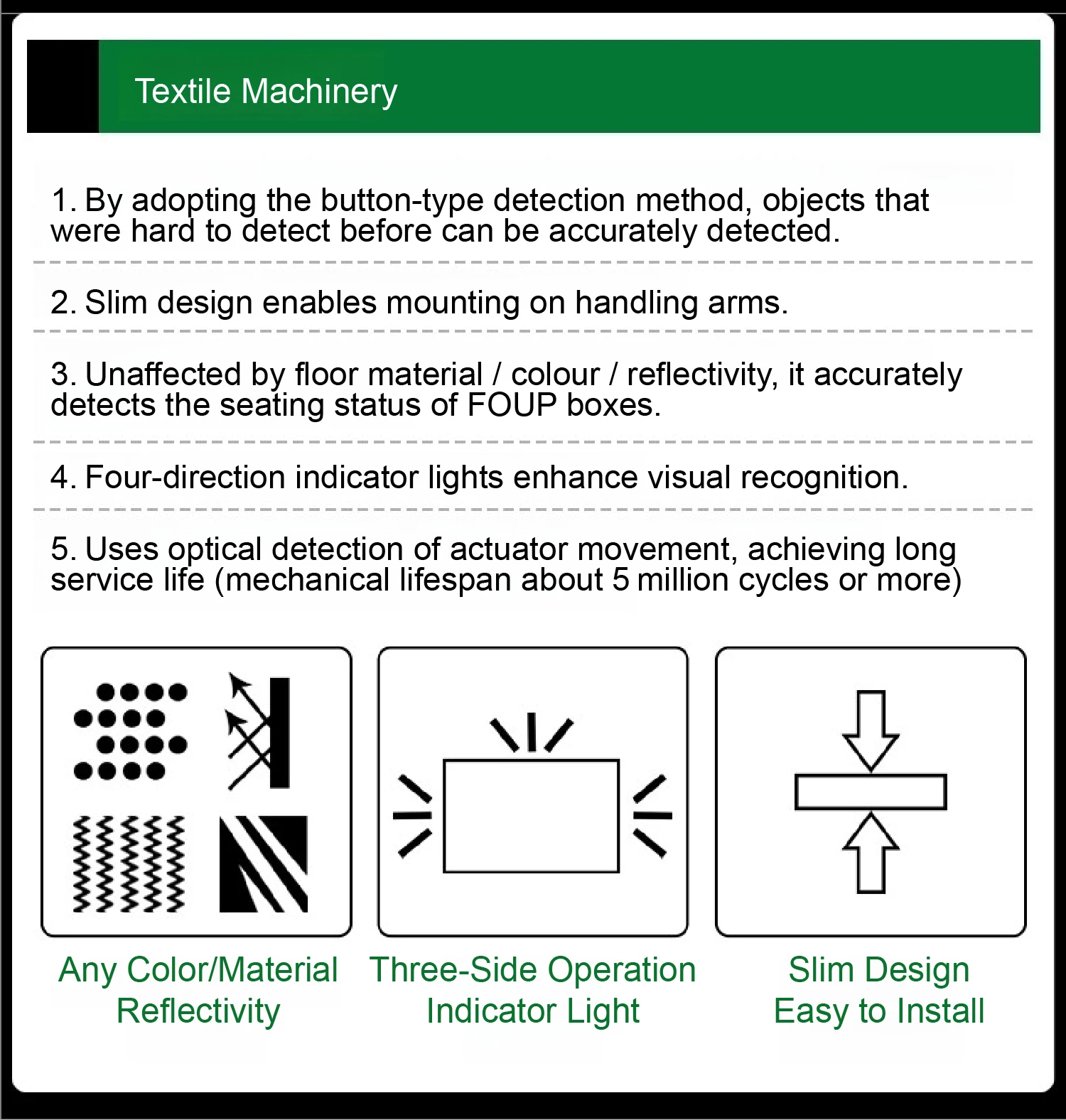

4. Applications
Suitable for a wide range of industrial environments, including:

Machine tools

Textile machinery

Packaging and automation lines

Logistics and conveyor systems

Chemical processing plants

Automotive assembly and maintenance

5. Frequently Asked Questions

Q1: Can the sensor detect black or transparent objects?

Yes. The advanced optical design provides stable and reliable detection for a wide range of surface materials, including black and transparent objects.

Q2: How is the sensor installed?

The sensor is designed with M3 mounting holes and a compact slim body, making installation simple and convenient even in limited spaces such as robotic arms, compact equipment, and narrow control panels.

Q3: Can the sensor be used in humid environments?

Yes. The sensor operates reliably in environments with up to 85% humidity and can be stored in conditions up to 95% humidity. It also includes anti-condensation protection for enhanced stability and durability.
