Product Description

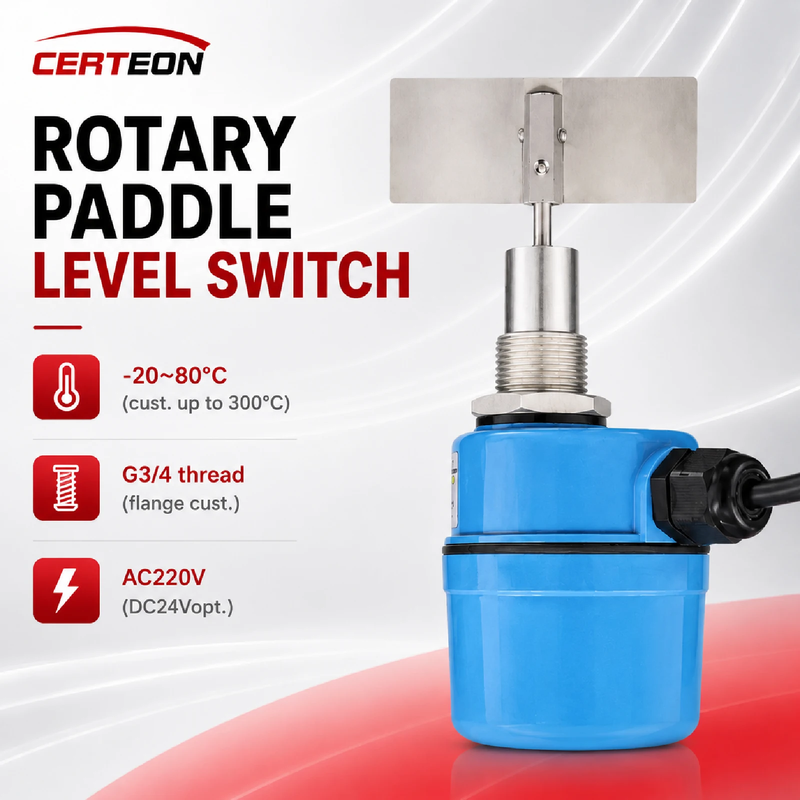

SR80 Rotary Paddle Level Switch Threaded Flange Chemical Water Reservoir Coal Powder Level Sensor AC220V DC24V IP65
SR80 Rotary Paddle Level Switch Threaded Flange Chemical Water Reservoir Coal Powder Level Sensor AC220V DC24V IP651.NOTE
Default Configuration
G3/4 threaded connection
304 stainless steel blade
Standard version temperature resistance: -20°C to 80°C
High-temperature version temperature resistance: -20°C to 200°C
AC 220V power supply (customizable to DC 24V)
IP65 protection rating
Optional Configurations
Blade types available: A, B, C, or D
Extended rod lengths available
Material upgrade option: 316 stainless steel
Custom flange connection available
Special Notes
Due to space limitations, not all configuration options are listed.
For customized requirements such as special power supply, rod length, or other specifications, please contact us directly.
2. Parameters
Parameter | Details |
Power Supply | AC220V (Customizable DC24V) |
Blade Material | Stainless Steel 304 (Customizable 316) |
Working Temperature | -20°C to 80°C (up to200°C for HT) |
Connection | G3/4 Thread (Customizable Flange) |
Protection Level | IP65 |
Installation | Horizontal / Side Mounting |
3. Features
Customizable Blade Options
Available with blade types A, B, C, and D to meet different installation and mounting requirements.
High Durability
Made from aluminum alloy and stainless steel for excellent strength, corrosion resistance, and long-term performance in industrial environments.
Wide Temperature Range
The high-temperature version can withstand temperatures up to 200°C, making it suitable for demanding and extreme working conditions.
Reliable Level Detection
Provides accurate level detection with adjustable torque, allowing sensitivity to be customized according to different application needs.
4. Applications
Designed for monitoring powder, granule, and fine particle levels in silos, hoppers, and tanks.
It is well suited for use in cement production, grain storage, chemical processing, and other industrial applications where reliable material level monitoring is required.
5.FAQs
Can the blade material be customized?
Yes, stainless steel 316 material is available upon request.
Is it suitable for high-temperature environments?
Yes, the high-temperature version can withstand temperatures up to 300°C.
How is the product installed?
It supports both horizontal and side mounting. Please follow the provided installation guidelines for proper setup.
