Product Description
ZJ LCD M Oval Gear Flow Meter Digital LCD Oil Fuel Liquid Flow Meter DC24V Petroleum Chemical Industry
ZJ LCD M Oval Gear Flow Meter Digital LCD Oil Fuel Liquid Flow Meter DC24V Petroleum Chemical Industry1.NOTE

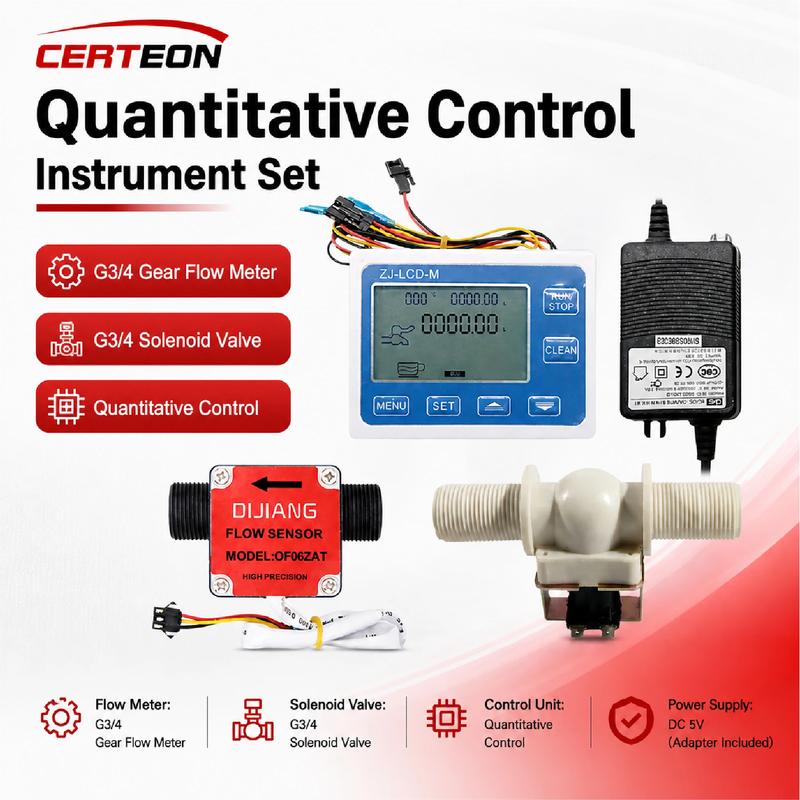

Default Configuration:
Quantitative Control +Gear Flow Meter (G3/4)+Solenoid Valve (G3/4)
Default Configuration:
· Quantitative Control: DC 24V
· Gear Flow Meter (G3/4): DC 5V, Flow Range: 30-3000L/H
· Solenoid Valve (G3/4): DC 12V (Normally Closed)
Reminder! Ensure you select the correct pipe diameter and set the appropriate K-value for accurate measurement.
Note: Water pressure is required for operation. Pressure range: 0.5-8 bar. It cannot be used in a pressureless environment!
2. Parameters
Main Unit (ZJ-LCD-M)
Parameter | Specification |
Model | ZJ-LCD-M |
Operating Voltage Range | DC24V ±8V / 1A |
Solenoid Valve Voltage | DC12V / 0.3A-0.5A (Normally Closed) |
Flow Sensor Voltage | DC5V (Pulse Signal Input) |
Quantitative Range | 0.1 - 9999 L/Gal (K-value Programmable) |
Constant Max Value | 1 - 9999 L/min, Gal/min |
Flow Meter (OF06ZAT)
Parameter | Specification |
Type | 6-point Flow Meter (G3/4) |
Model | OF06ZAT |
Interface Size | G3/4 (3/4") |
Frequency Formula | F = 1.2 × Q (L/min) |
Inner/Outer Diameter | 16mm / -- |
Thread Length | 18.7mm |
Material | PPS |
Voltage Range | 3.5 - 24VDC |
Current Consumption | ≤10mA (DC5V) |
Flow Range | 30 - 3000 L/h |
Operating Temperature | ≤80°C |
Operating Humidity | 35% - 90% RH (No Frost) |
Max Pressure | ≤1.2MPa |
Storage Temperature | -25 ~ +80°C |
Storage Humidity | 25% - 95% RH |
Applicable Liquids | Non-corrosive, Low-viscosity Fluids |
Measurement Accuracy | (20-3600 L/h) ±1% (Measured with Water) |
Solenoid Valve (6-Point Inlet Valve)
Parameter | Specification |
Installation Method | Horizontal |
Medium | Water |
Pipe Connection | Inlet: G3/4, Outlet: G3/4 |
Standard Voltage | DC12V / DC24V / AC220V |
Working Pressure | 0.02 ~ 0.8MPa |
Operating Temperature | 0 ~ 100°C |
Valve Material | Food-grade Nylon |
Type | Normally Closed Inlet Valve |
Inner/Outer Diameter | 20mm / 26mm |
Thread Length | 38mm |
3. Features
High Precision Measurement– Adjustable K-value ensures accurate liquid/gas flow measurement.
Easy Installation & Setup– Plug-and-play design with a user-friendly interface.
Multi-Industry Applications– Ideal for petroleum, chemical, and food industries.
Durable & Reliable– Made with high-quality materials for long-term stability.
Customizable Display– English default panel, Chinese panel available upon request.
4.Applications
Petroleum Industry
Chemical Processing
Food & Beverage Industry
Water Treatment Systems
Industrial Flow Control
5.FAQs
Q1:Does this flow meter require water pressure?
A1:Yes, it requires a pressure range of 0.5-8 kg. It will not work in a zero-pressure environment.
Q2:Can I adjust the K-value for better accuracy?
A2:Yes, the K-value can be set on the display for precise calibration.
Q3:Is the display in English or Chinese?
A3:The default panel is in English. If you need a Chinese panel, please leave a note or contact customer service.
