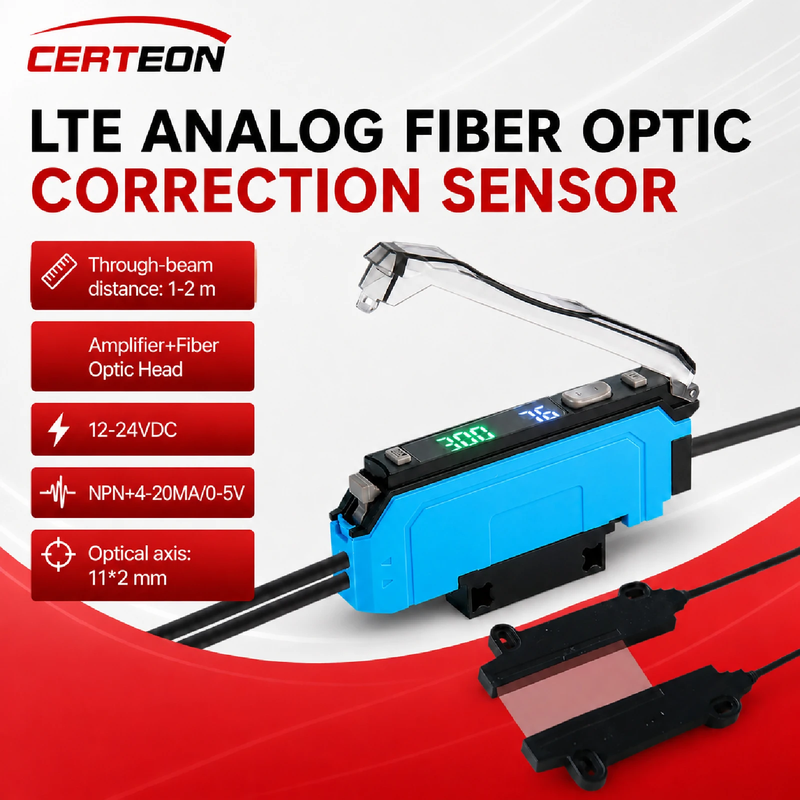

61MV LTE11LTE Fiber Optic Sensor Analog Web Edge Guide 4-20mA 0-5V NPN DC12-24V Printing Packaging
61MV LTE11LTE Fiber Optic Sensor Analog Web Edge Guide 4-20mA 0-5V NPN DC12-24V Printing PackagingNOTE
Default Parameters
Amplifier
Power supply: DC 12–24 V
V61MA: NPN + 4–20 mA output
V61MV: NPN + 0–5 V output
Fiber Optic Heads

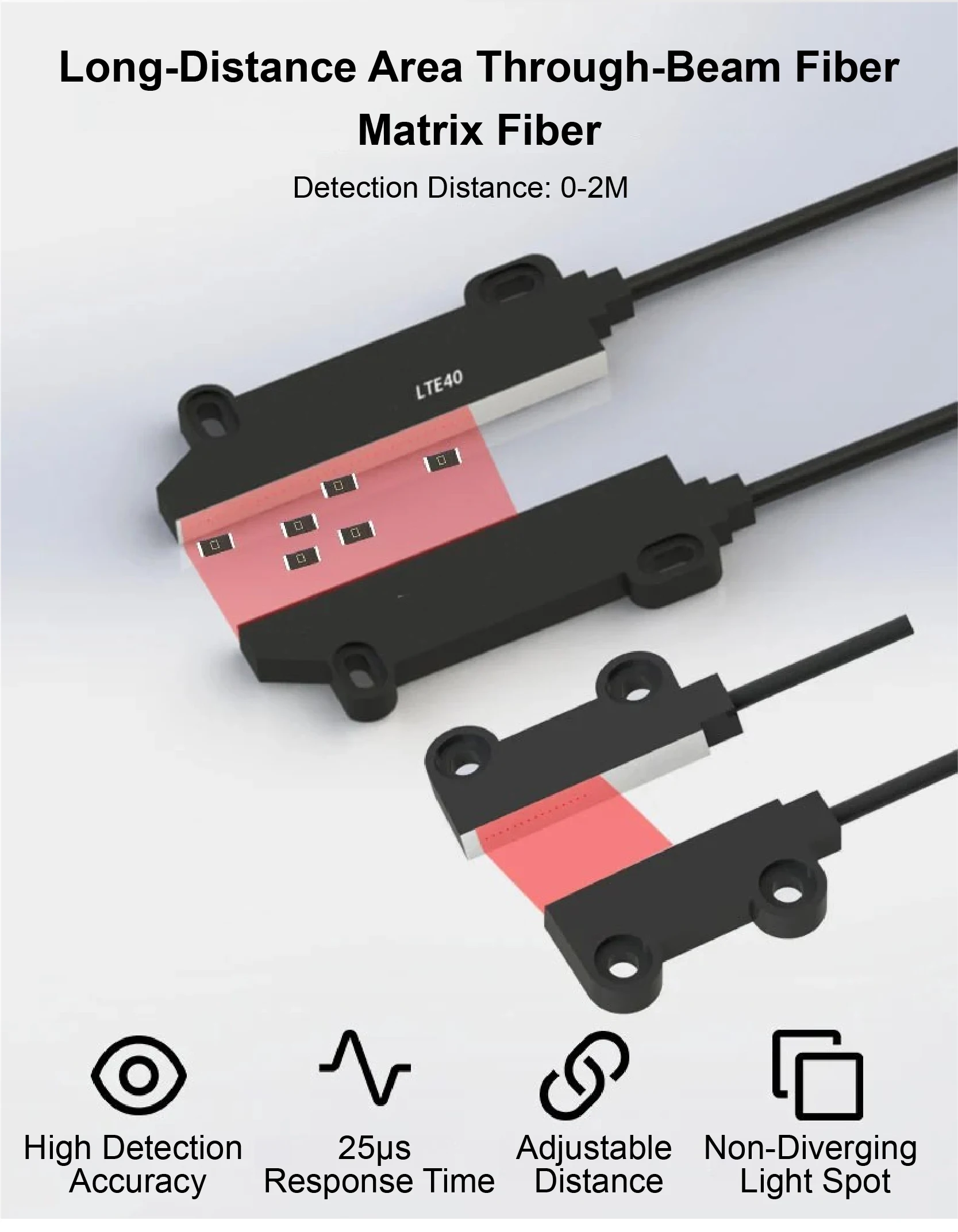

Model LTE40: 40 × 3 mm, through-beam sensing distance up to 2 m
Model LTE11: 11 × 2 mm, through-beam sensing distance up to 1 m

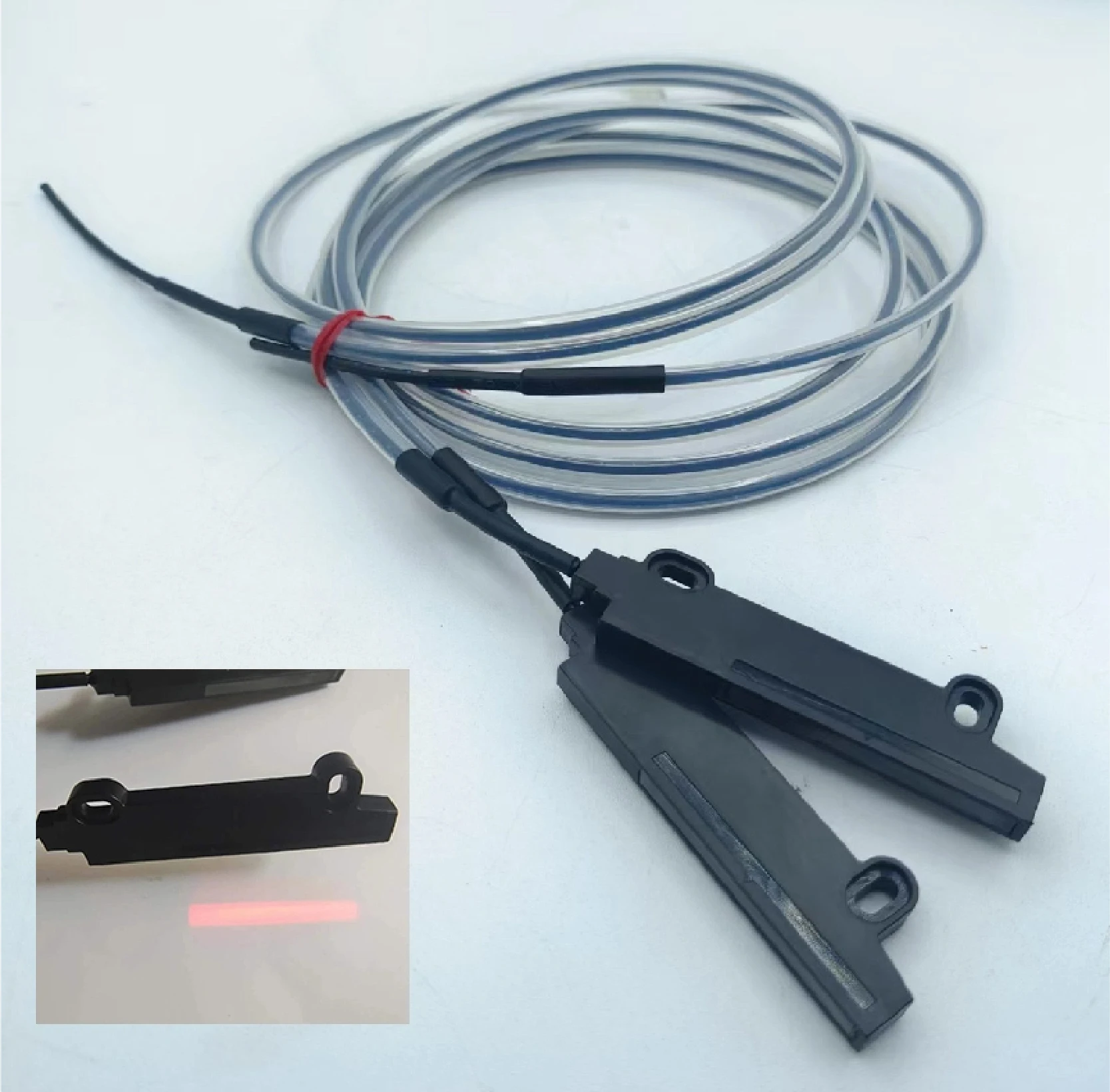

Fiber Optic Cable
Default cable length: 2 m
2. Parameters
Fiber Head Parameters

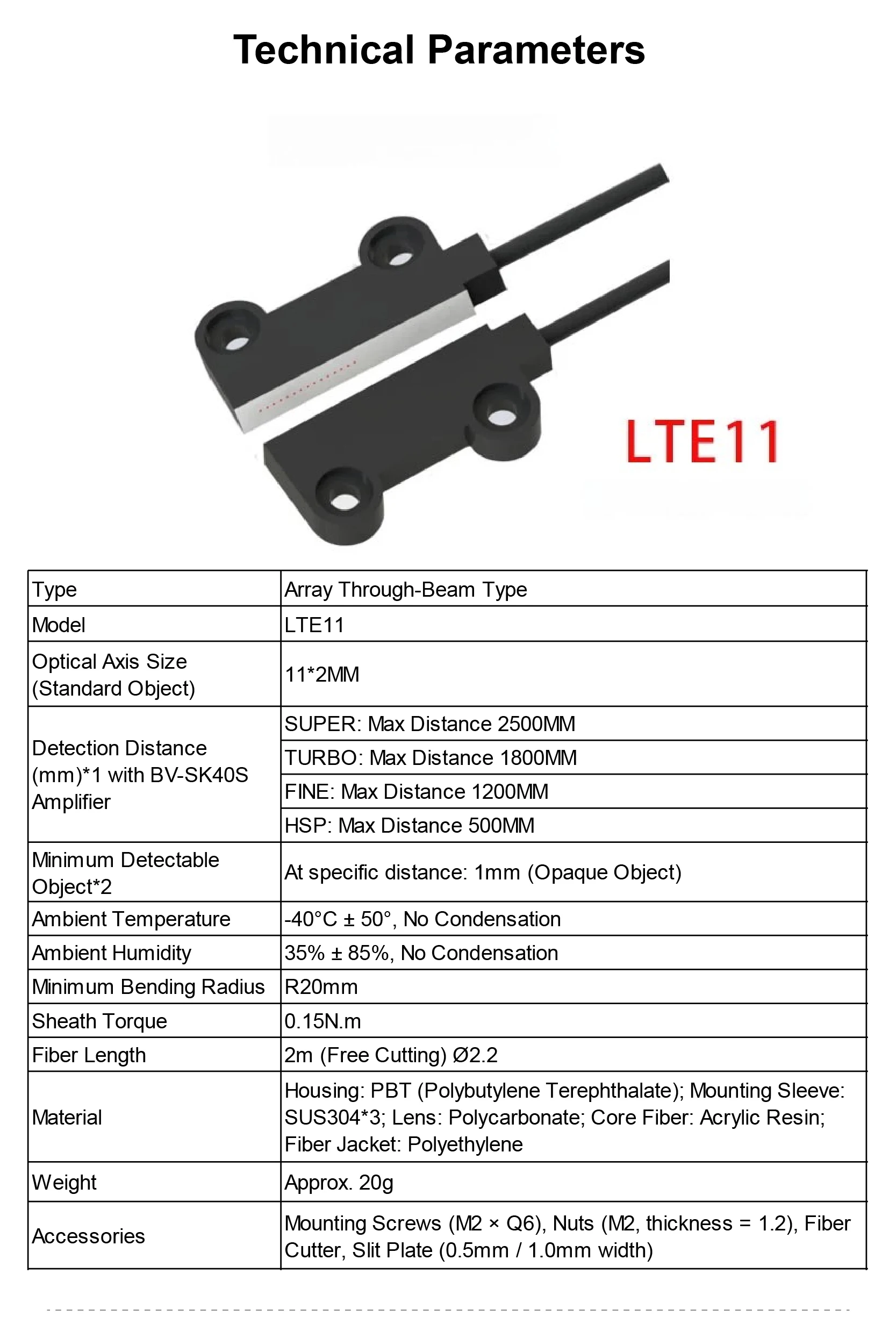

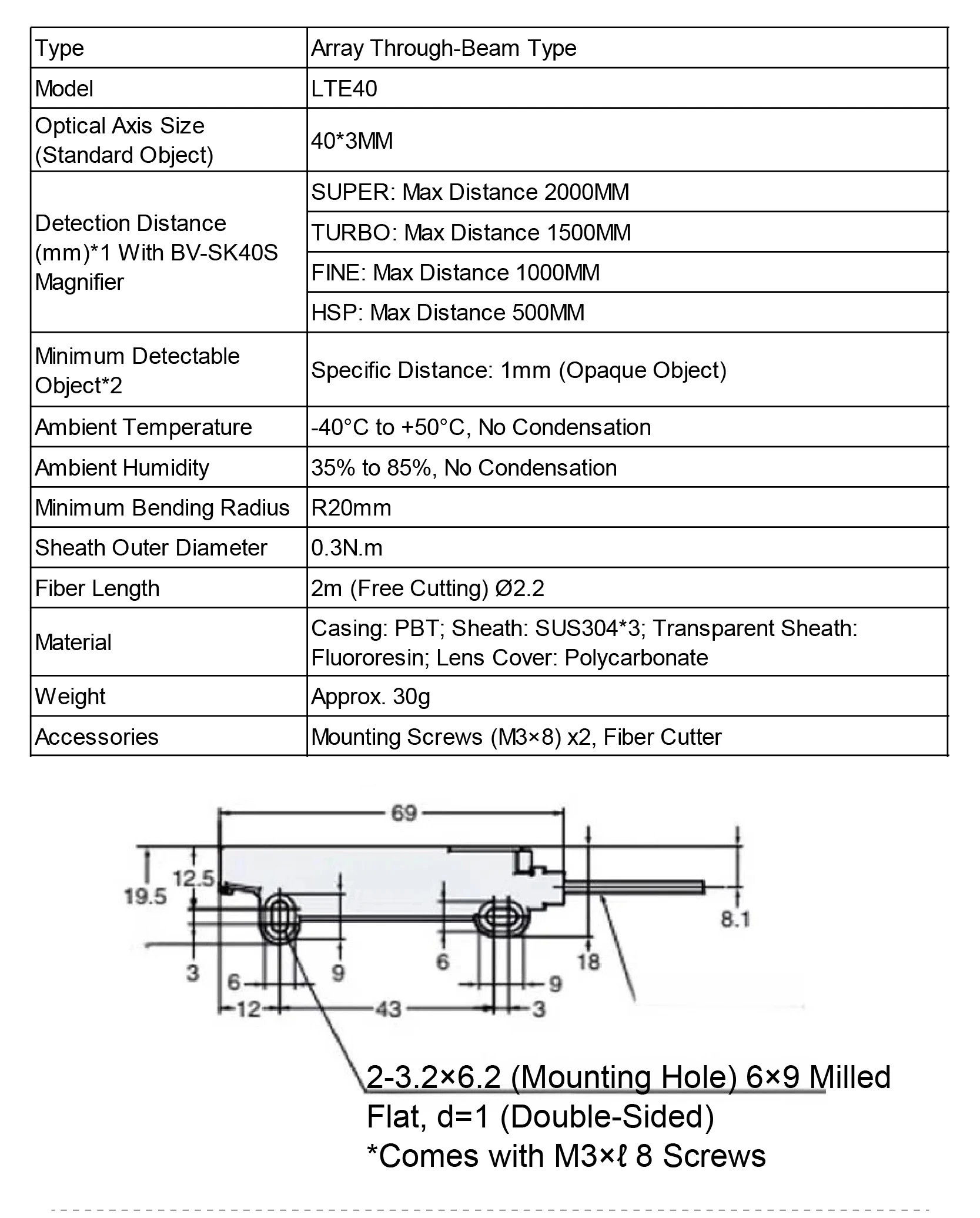

Item | LTE40 | LTE11 |
Type | Array Through-beam Fiber Sensor | Array Through-beam Fiber Sensor |
Model | LTE40 | LTE11 |
Optical Axis Size | 40×3mm | 11×2mm |
Detection Distance (with amplifier BV-SK40S) | SUPER: 2000mm | SUPER: 2500mm |
Min. Detectable Object | 1mm (opaque, specific distance) | 1mm (opaque, specific distance) |
Operating Temperature | -40℃ to +50℃ (no condensation) | -40℃ to +50℃ (no condensation) |
Operating Humidity | 35%–85% (no condensation) | 35%–85% (no condensation) |
Min. Bend Radius | R20mm | R20mm |
Torque Resistance | 0.3N·m | 0.15N·m |
Fiber Length | 2m (cuttable) Ø2.2 | 2m (cuttable) Ø2.2 |
Material | Housing: PBT; Screws: SUS304; Lens: Resin; Core Fiber: Acrylic; Sheath: PE | Housing: PBT; Screws: SUS304; Lens: Resin; Core Fiber: Acrylic; Sheath: PE |
Weight | Approx. 30g | Approx. 20g |
Accessories | M3×8 screws, partition, fiber cutter | M2×6 screws, M2 nuts, fiber cutter, slit plate (0.5mm/1.0mm) |
Amplifier Parameters

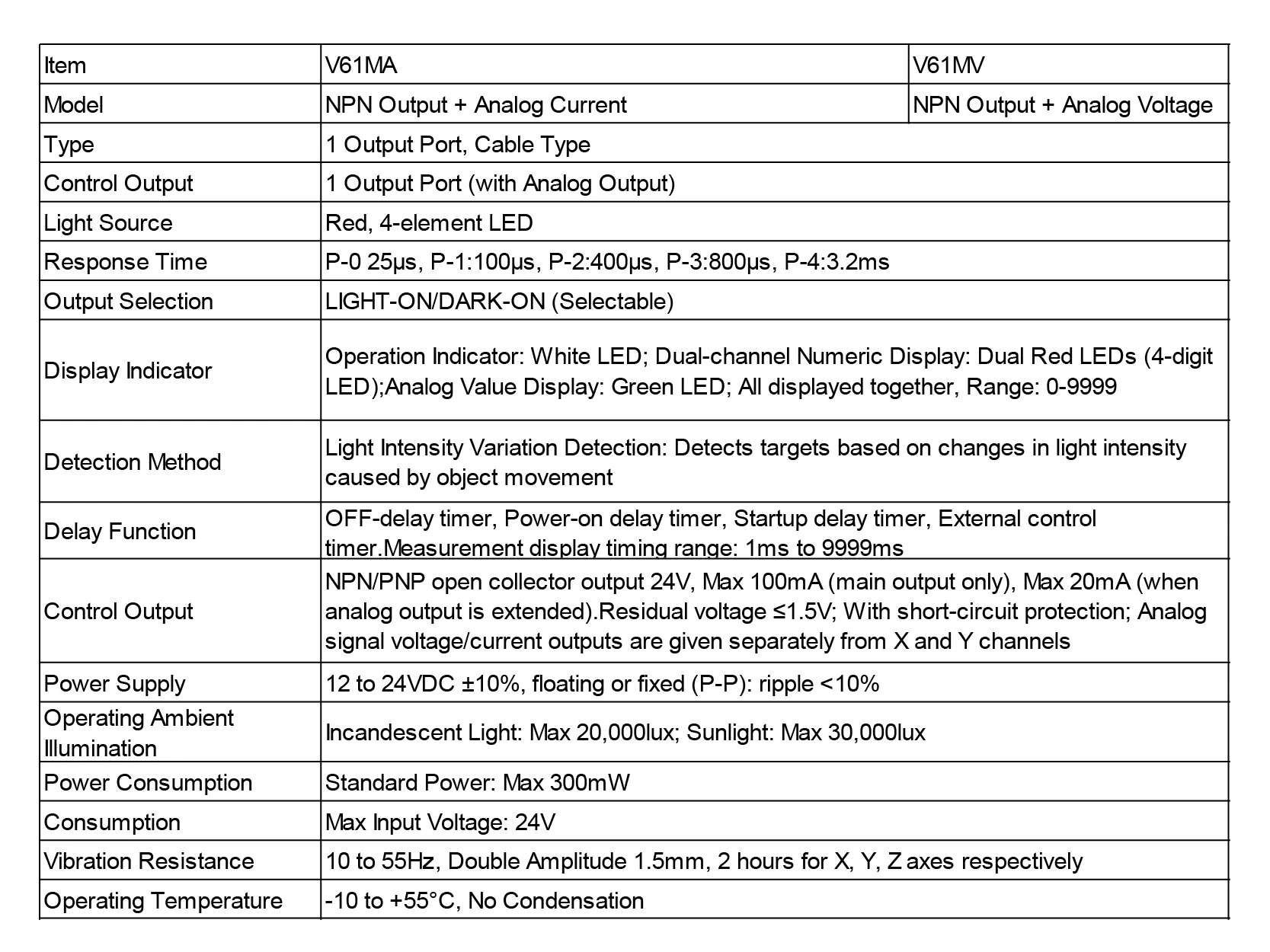

Model | V61MA | V61MV |
Output Type | NPN + Analog Current (4–20mA) | NPN + Analog Voltage (0–5V) |
Control Output | 1 output (with analog output) | Same as V61MA |
Light Source | Red LED, 4-element | Same as V61MA |
Response Time | 25μs / 100μs / 400μs / 800μs / 3.2ms | Same as V61MA |
Output Mode | LIGHT-ON / DARK-ON (selectable) | Same as V61MA |
Display | Dual 7-segment display: Threshold (green) + Current value (white), range 0–9999 | Same as V61MA |
Detection Method | Light intensity detection, zone detection, auto-sensitivity | Same as V61MA |
Timer Function | Off-delay, On-delay, One-shot, On-delay One-shot, range 1–9999ms | Same as V61MA |
Control Output Capacity | NPN/PNP open collector 24V, max.100mA (main unit) / 20mA (expansion), residual voltage ≤1V | Same as V61MA |
Analog Output | Current: 4–20mA | Voltage: 0–5V |
Power Supply | DC12–24V ±10% | DC12–24V ±10% |
Ambient Light Resistance | Sunlight: ≤30,000 lux; Incandescent: ≤20,000 lux | Same as V61MA |
Power Consumption | Max. 300mW | Max. 300mW |
Max. Voltage | ≤24V | ≤24V |
Vibration Resistance | 10–55Hz, double amplitude 1.5mm, 2h in X/Y/Z axis | Same as V61MA |
Operating Temperature | -10℃ ~ +55℃ (no freezing) | -10℃ ~ +55℃ (no freezing) |

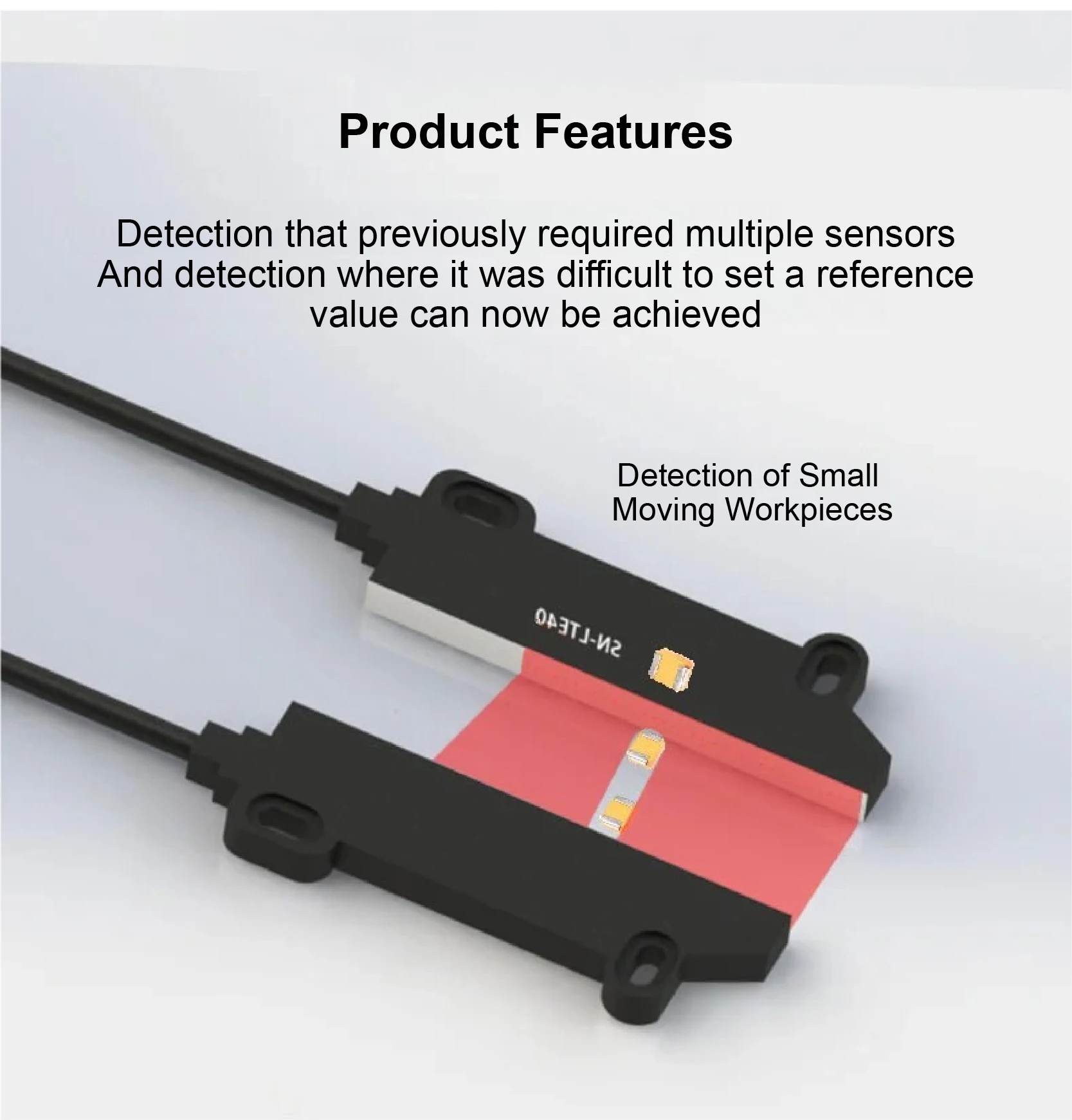

Features

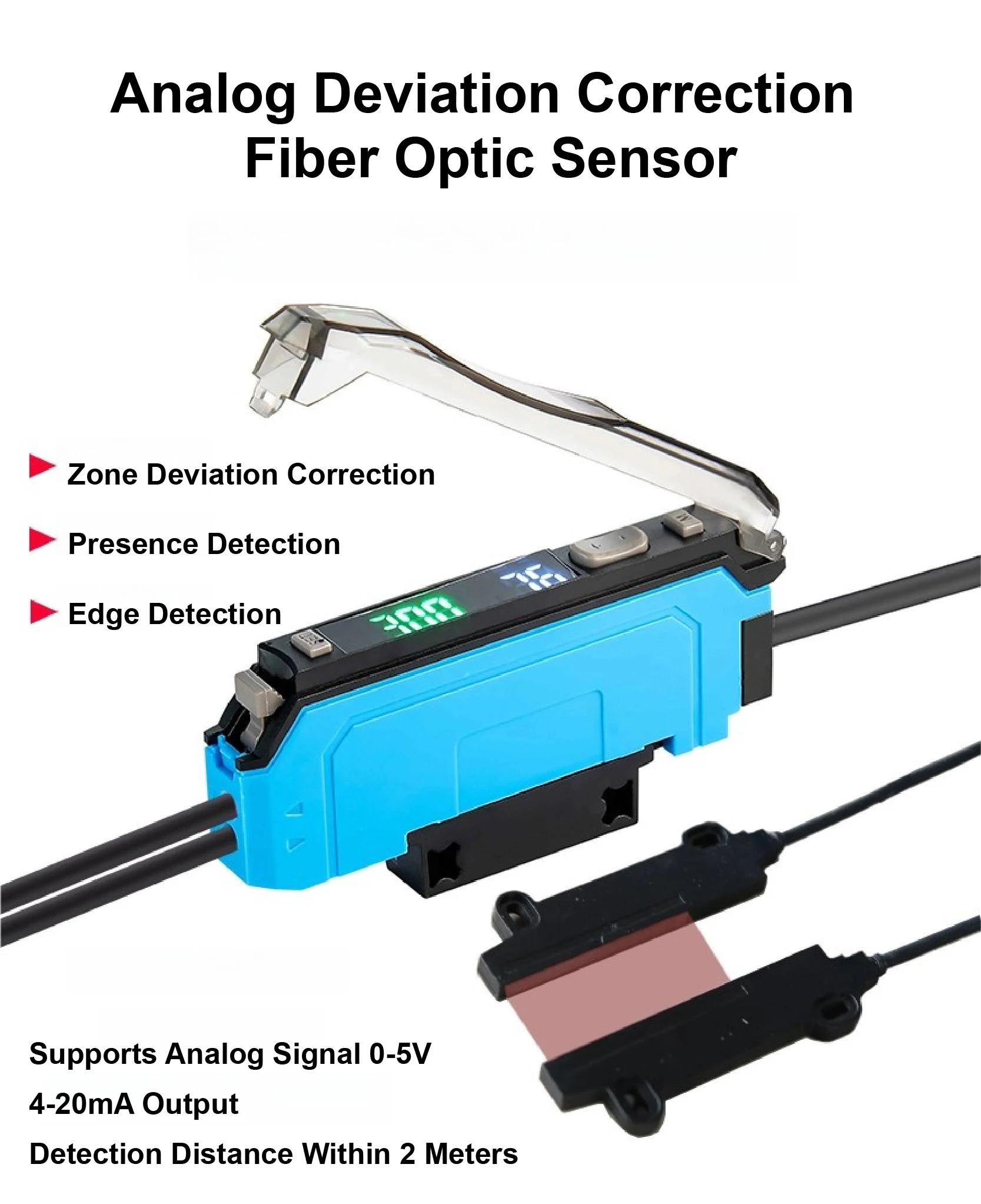

Ultra-fast 25 μs response time
Ensures accurate and stable correction performance in high-speed operating environments.
Dual analog output (0–5 V / 4–20 mA)
Compatible with PLCs, controllers, and various industrial automation systems for flexible integration.

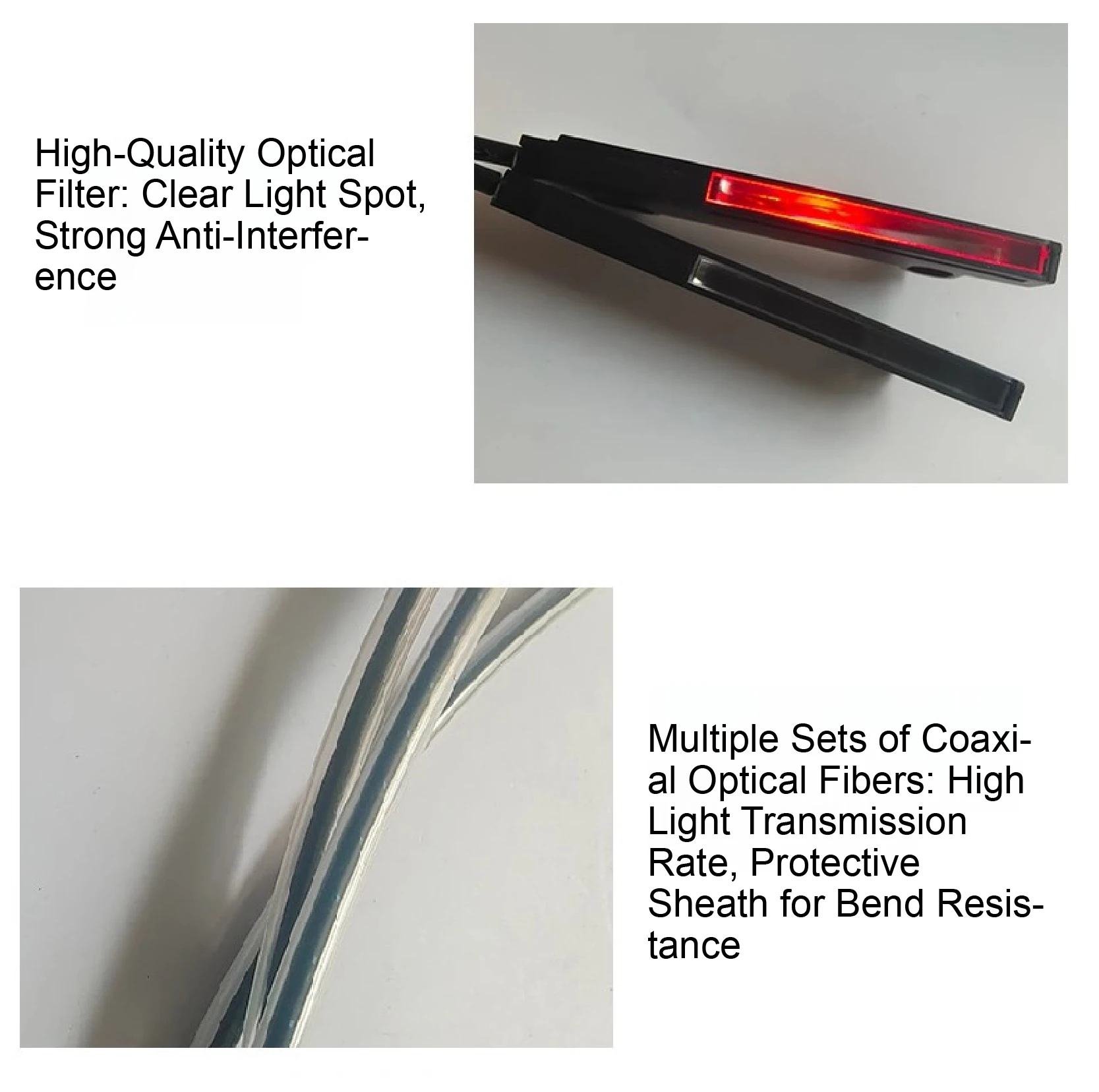

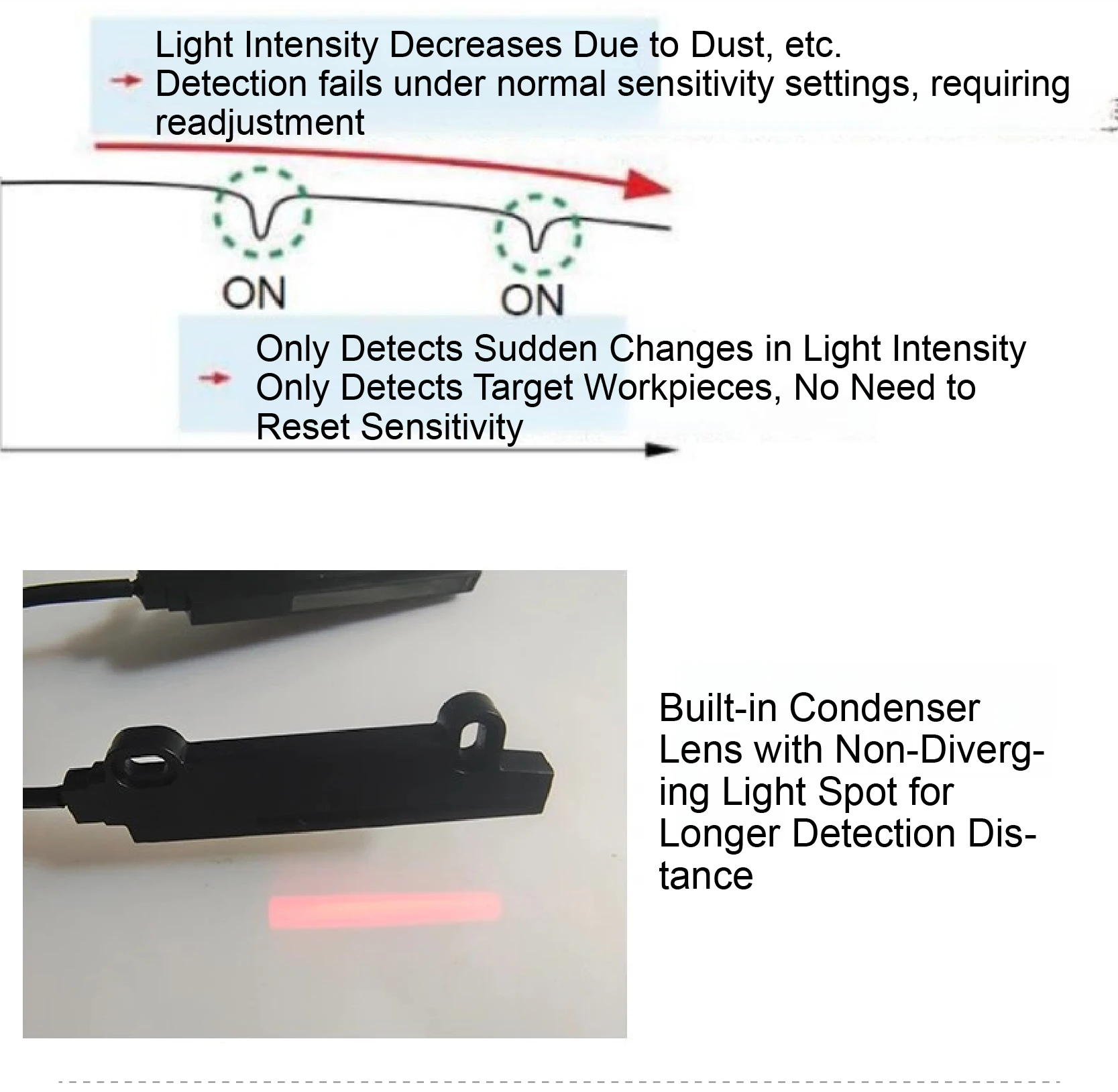

Clear light spot with high-quality optical filter
Provides strong anti-interference capability and reliable detection accuracy.
Durable fiber optic cable with protective sheath
High light transmission efficiency, excellent bending resistance, and extended service life.
Compact structure with installation accessories included
Easy and convenient installation, saving setup time and improving efficiency.

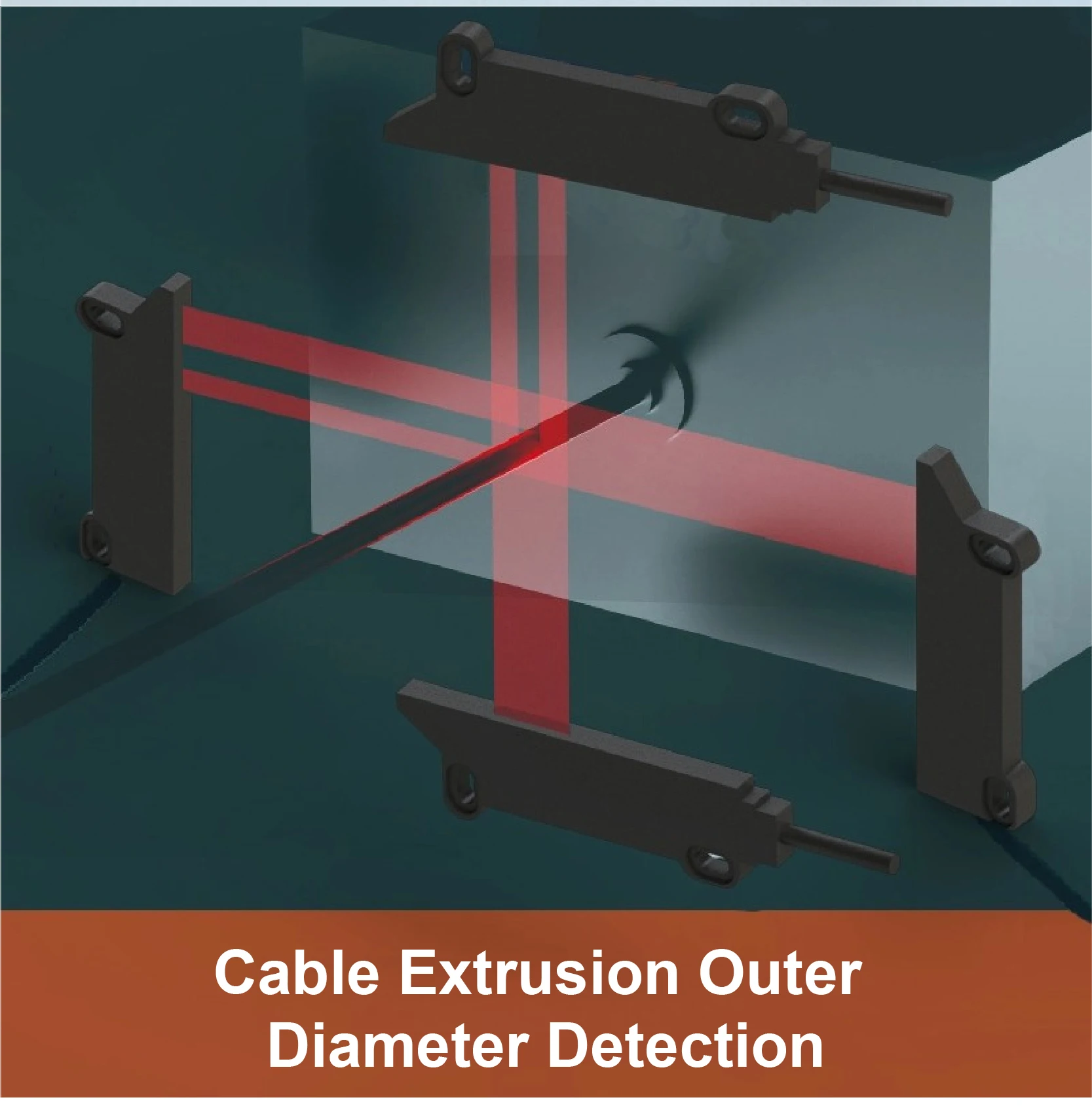

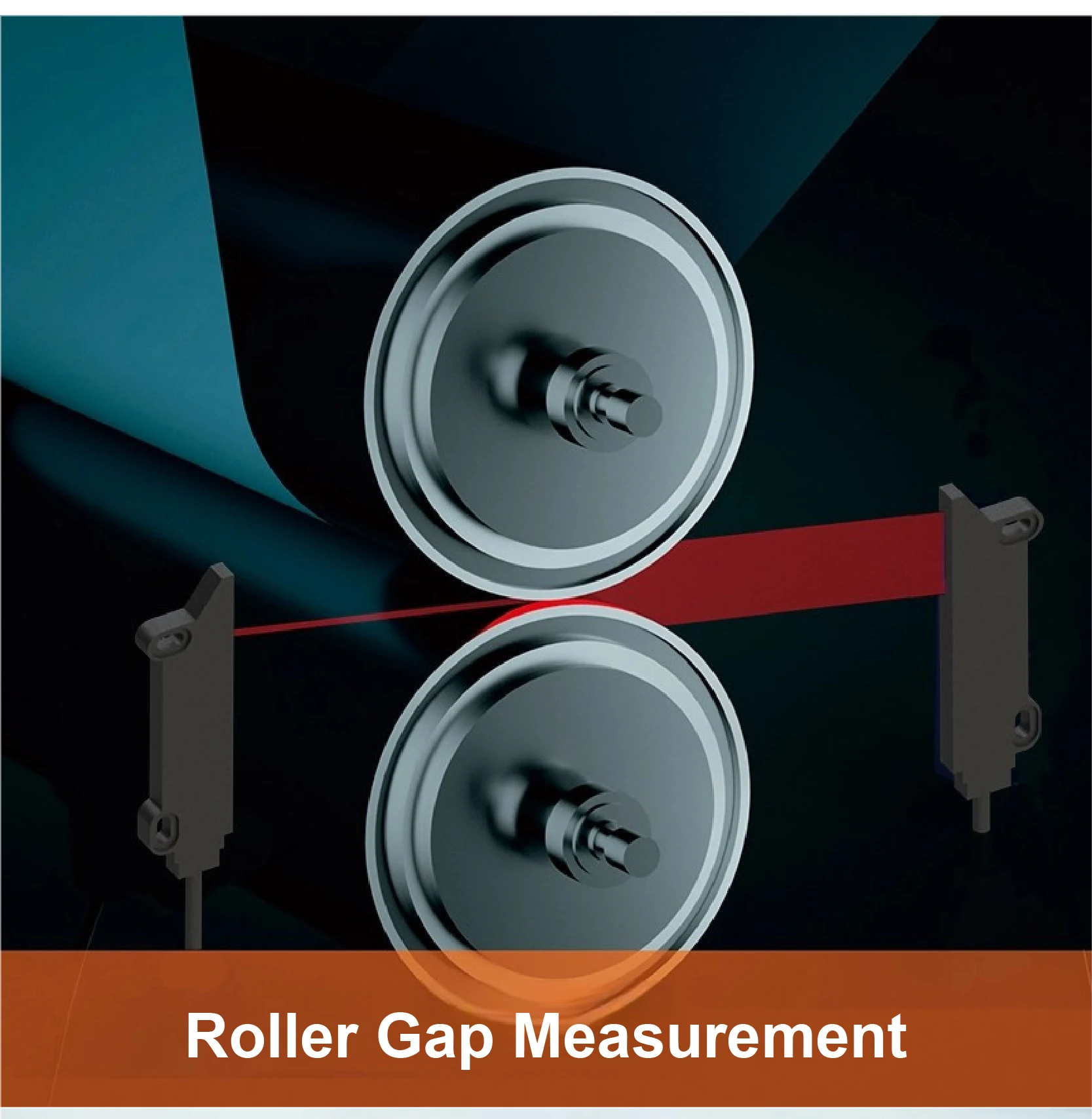

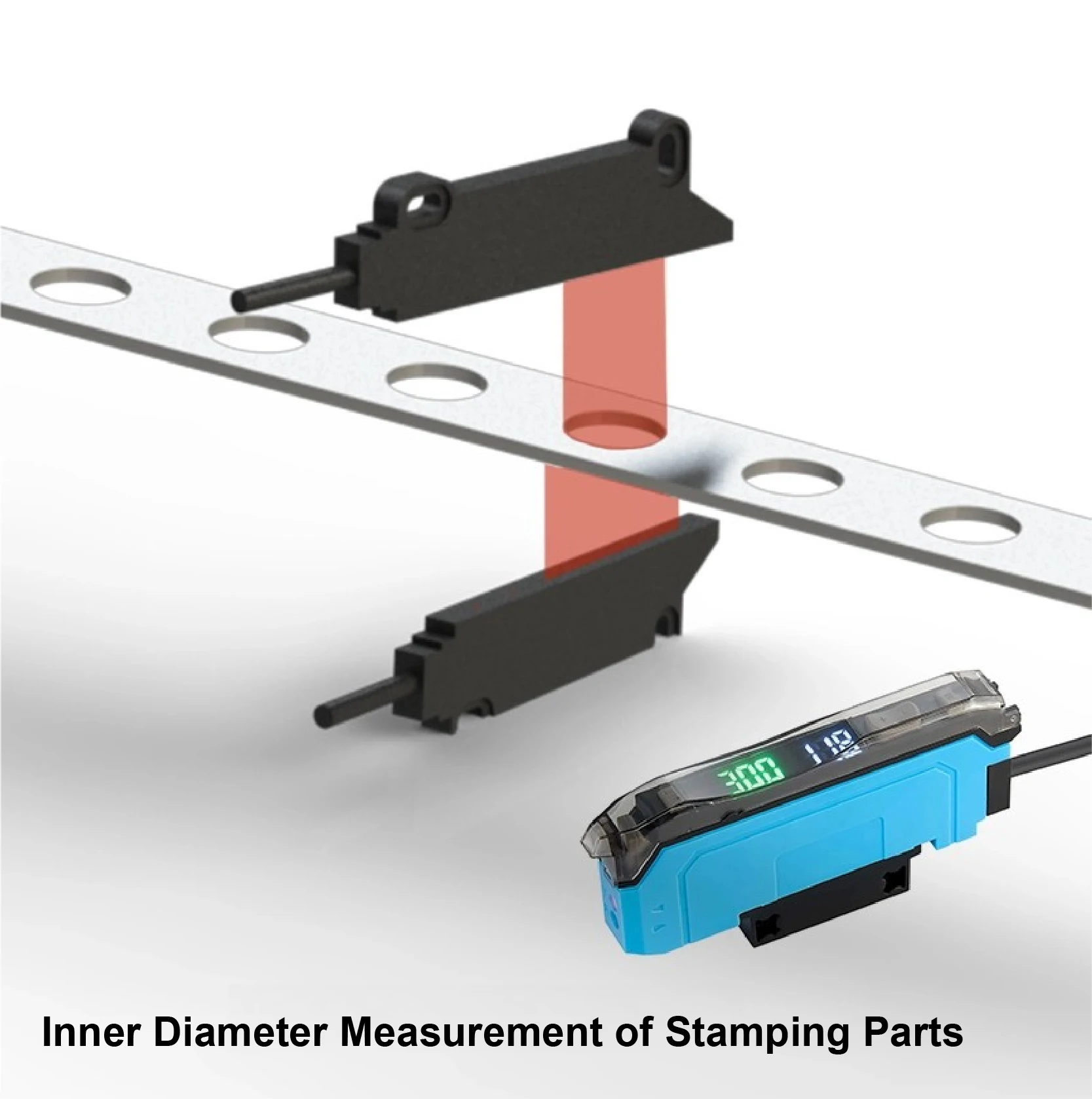

Applications
Printing and packaging alignment correction
Textile and film edge positioning
Industrial automation positioning systems
High-speed conveyor and object detection
FAQs
Q1: Can this sensor operate under strong ambient light conditions?
A1: Yes. It offers excellent resistance to ambient light interference, supporting up to 30,000 lux sunlight and 20,000 lux incandescent light.
Q2: How do I choose between LTE40 and LTE11 fiber optic heads?
A2: LTE40 is designed for a wider detection area of 40 × 3 mm, while LTE11 is ideal for narrow and high-precision detection with an 11 × 2 mm sensing area.
Q3: Is the fiber optic cable length adjustable?
A3: Yes. The standard cable length is 2 m and can be cut according to your installation requirements.
