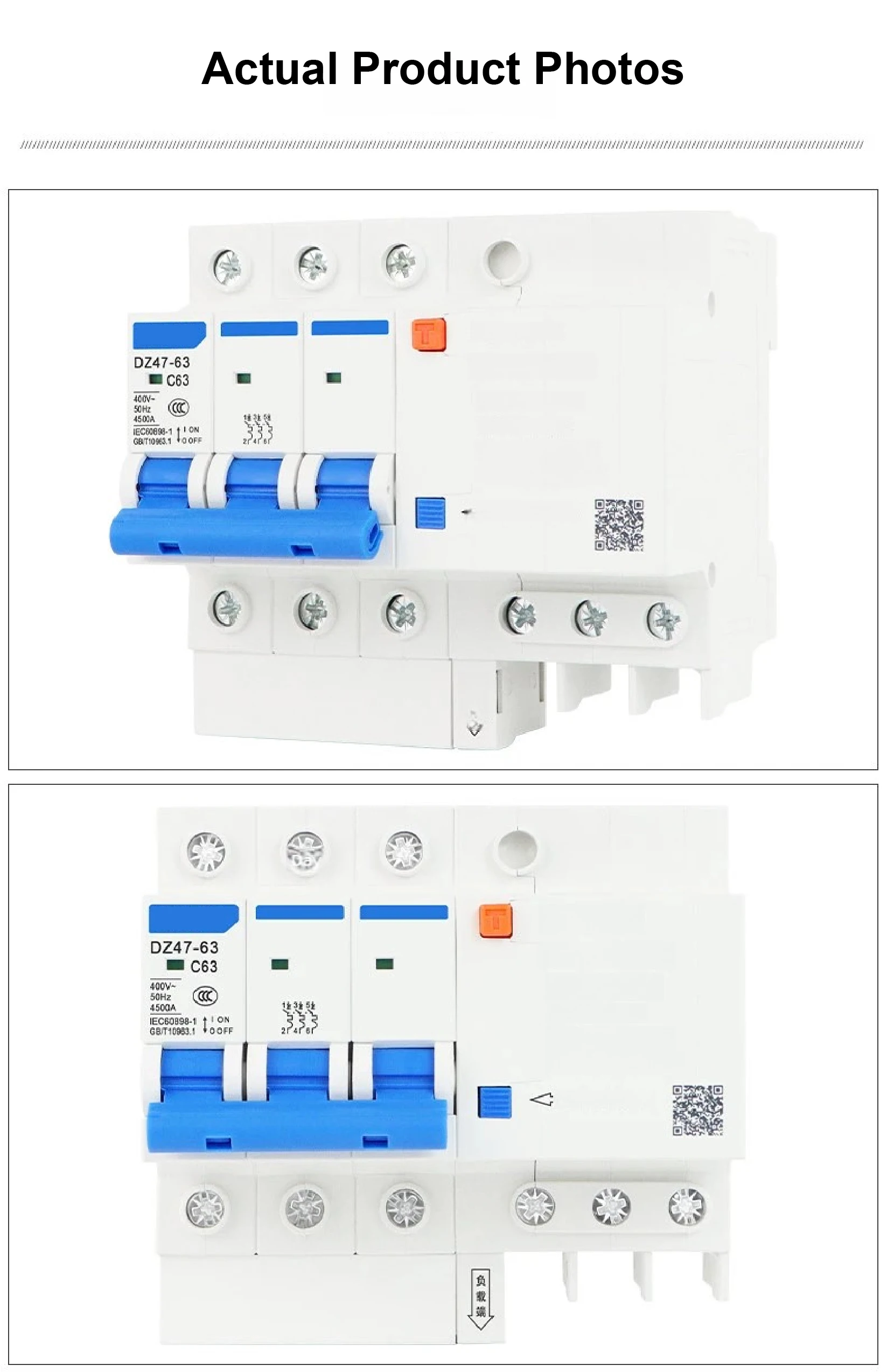

DZ47S-63 Three Phase Motor Protection Breaker Phase Loss Protection Switch 3P AC

Product Description

1.NOTE

Number of Poles: 3P

Rated Voltage: AC 380V

Rated Motor Power: 12 kW

Phase-Loss Trip Time: ≤ 0.3 s

Installation Type: DIN Rail Mounting

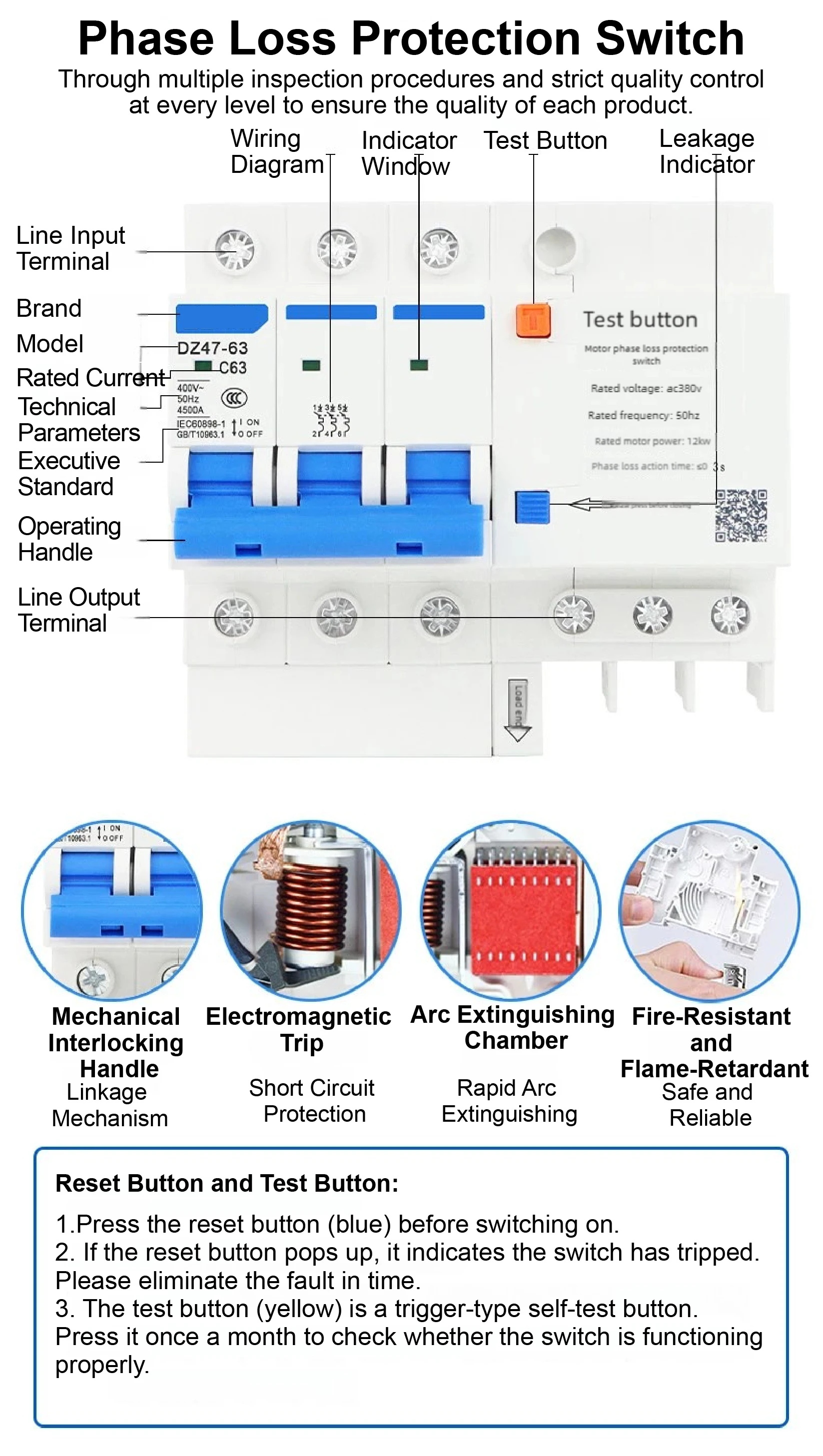

Precautions:

1. Press the reset button (blue) before switching on.

2. If the reset button pops up, it indicates the switch has tripped—please troubleshoot promptly.

3. The test button (yellow “T” button) is used for functional testing. Press it once a month to check whether the switch is operating properly.

Please note that, due to space limitations, not all specifications are displayed. If you have specific customization requirements or need additional technical details, please contact us for further assistance.

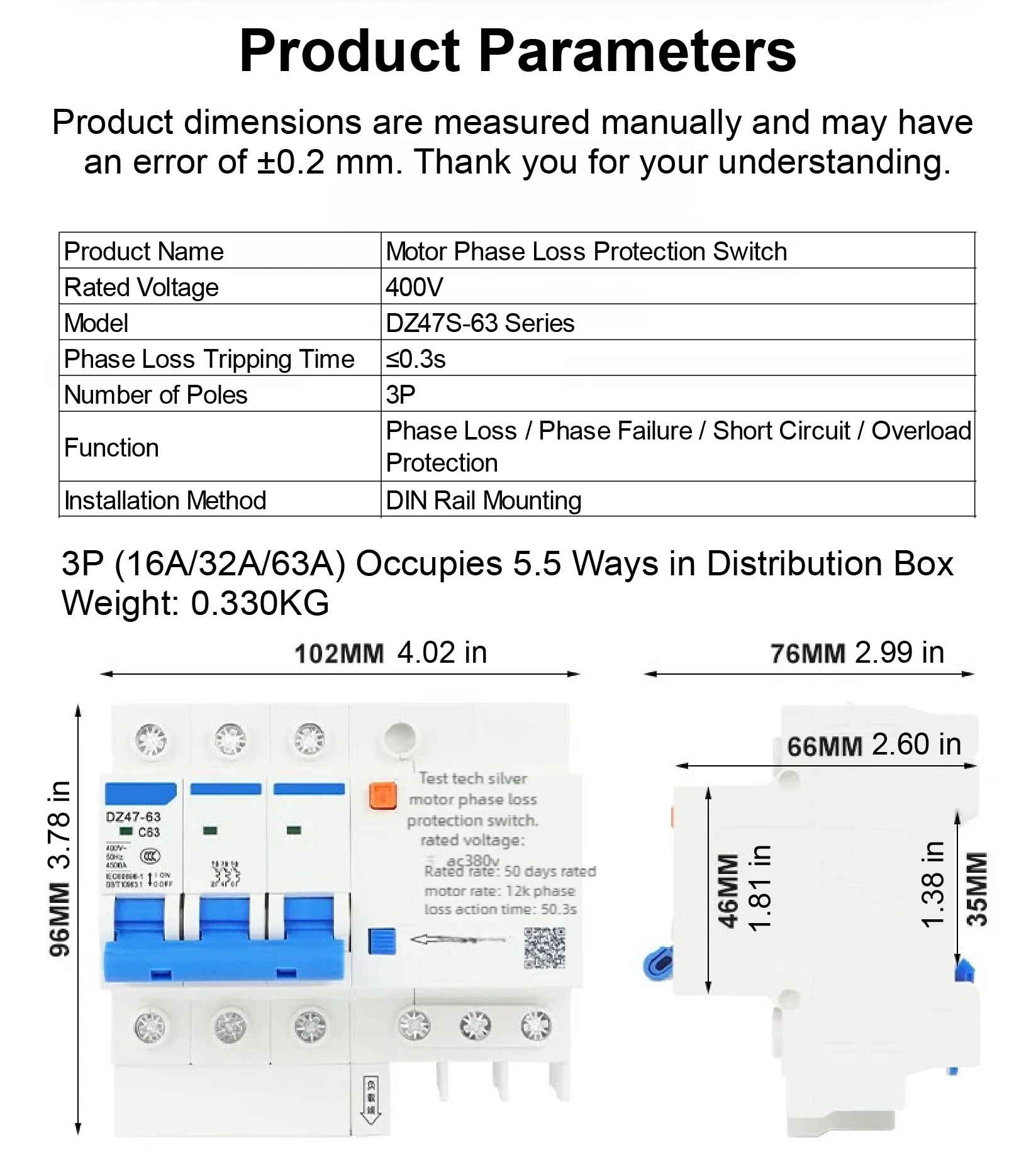

2.Parameters

3.Features

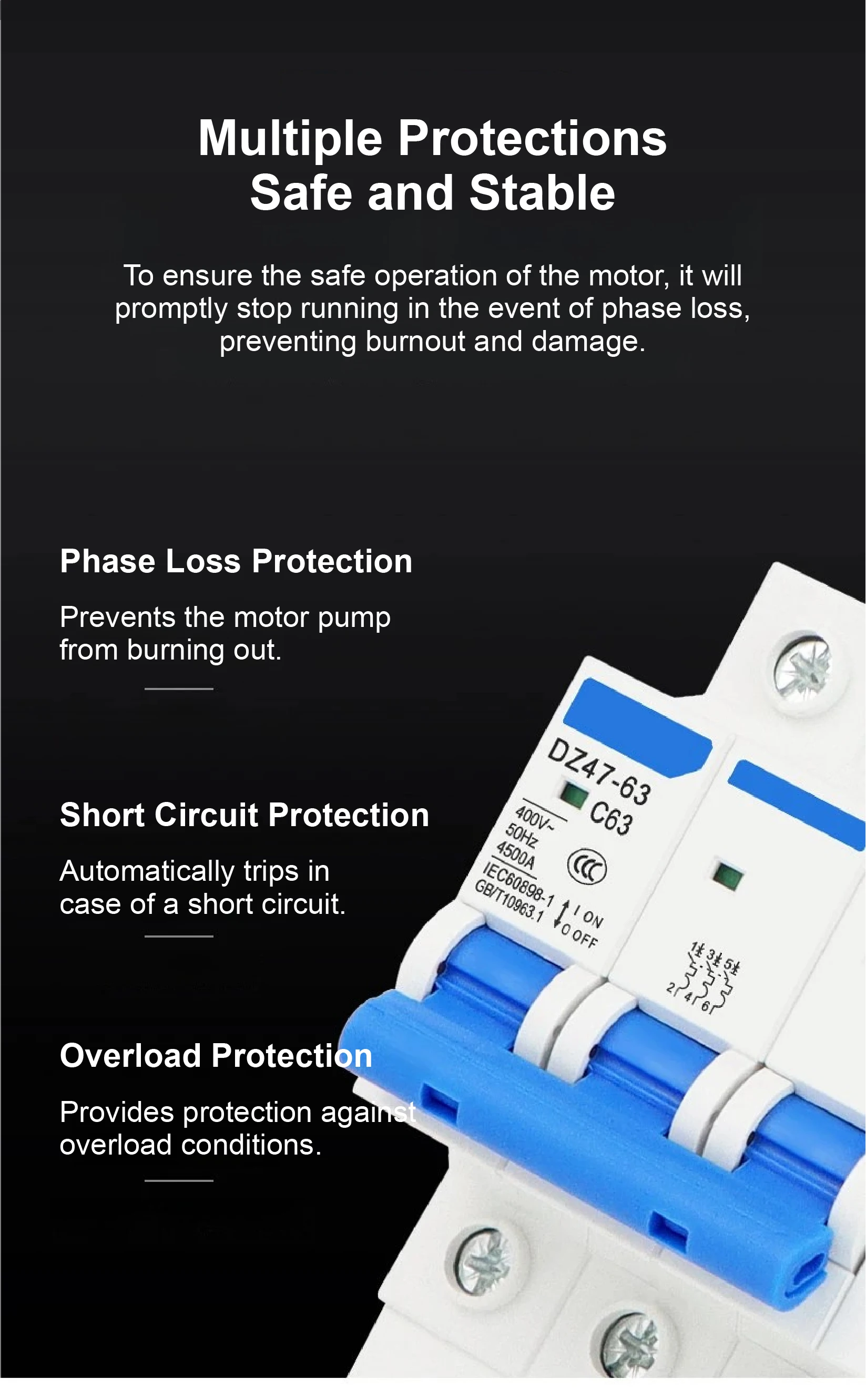

Multi-layer Protection

Protects against phase loss, overload, and short circuits for reliable motor operation.

Fast Tripping Response

Rapid disconnection within 0.3 seconds helps prevent motor burnout and reduce downtime.

Electromagnetic Trip System

Delivers accurate and dependable short-circuit protection.

Arc Extinguishing Chamber

Quickly suppresses electrical arcs to improve operating safety.

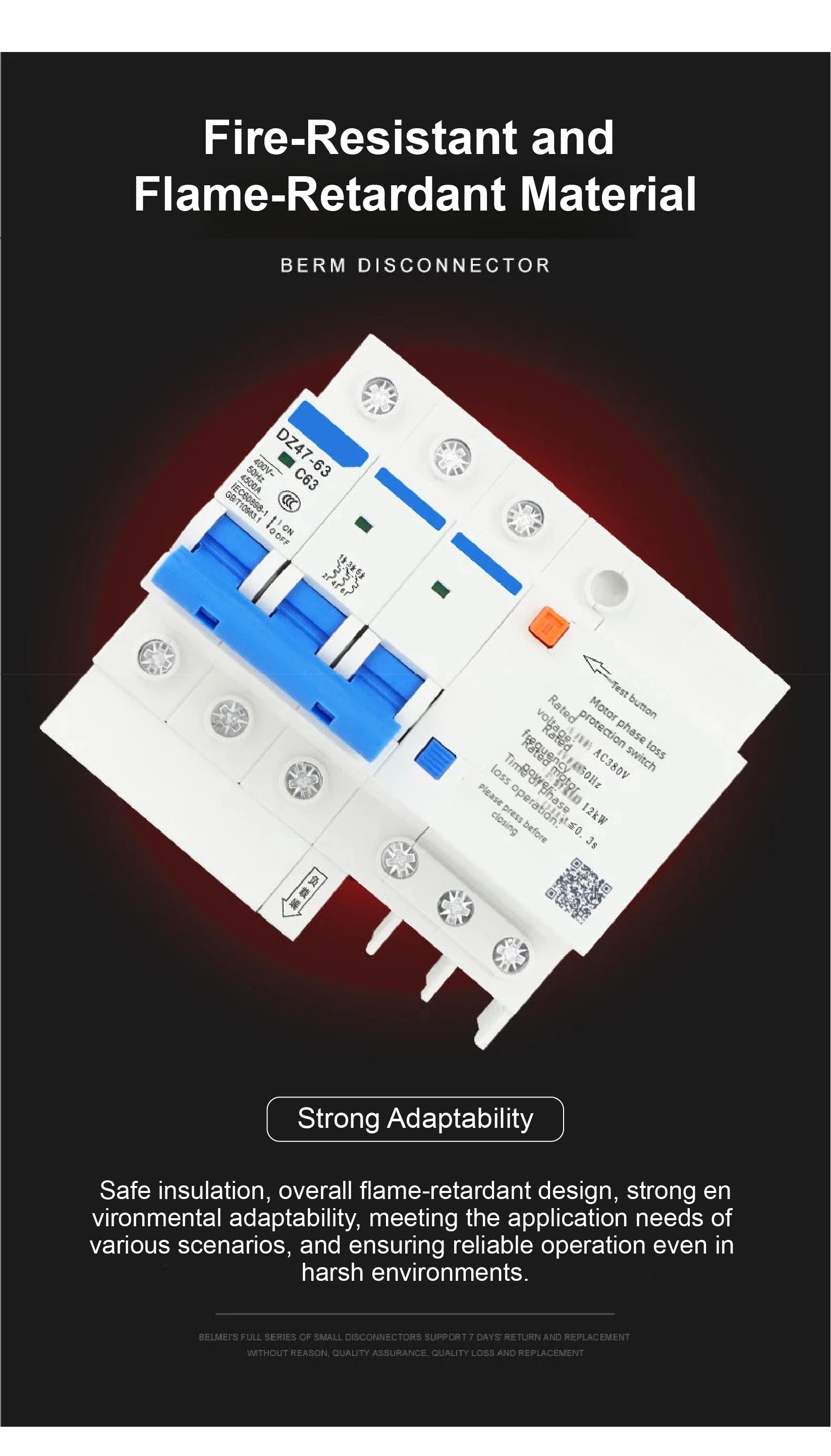

Fire-resistant Insulation

Flame-retardant housing supports safe use even in harsh environments.

Secure Installation

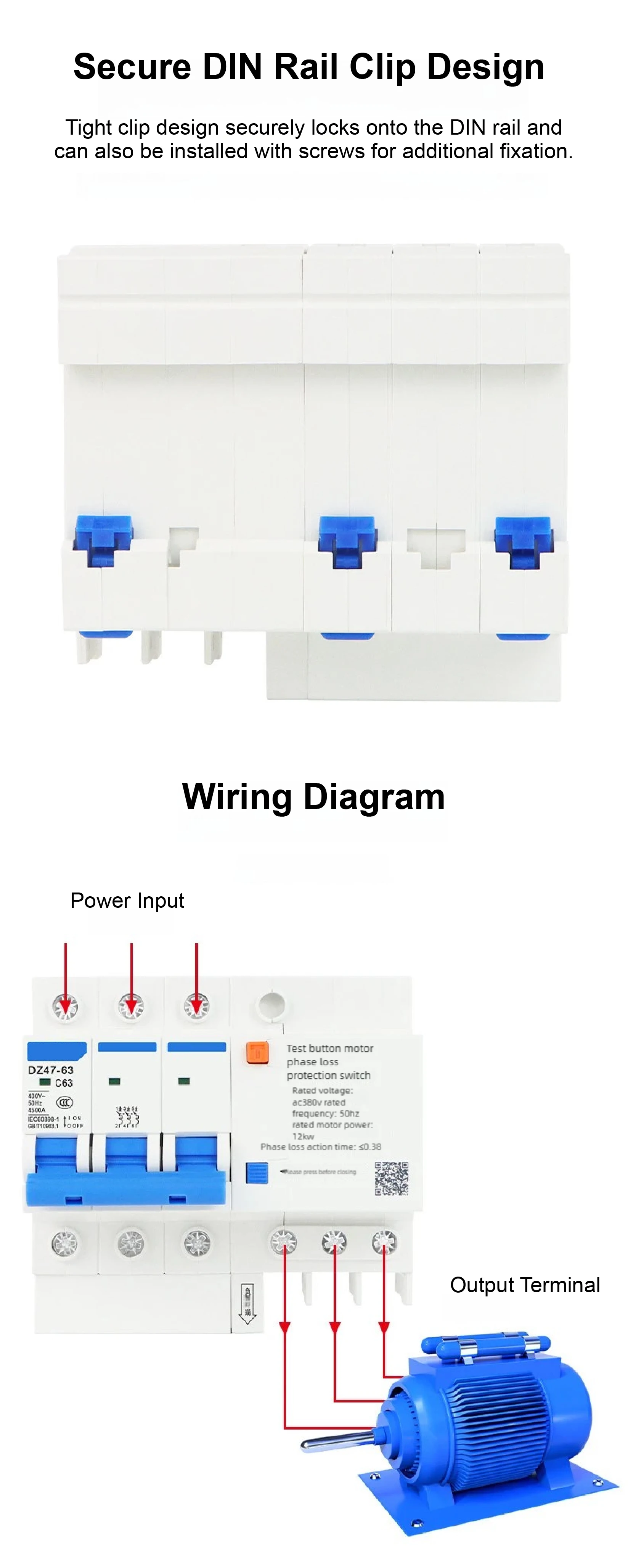

Snap-on DIN rail mounting allows easy installation, with optional screw fixing for added stability.

Linked Handle Mechanism

Ensures synchronized operation for easier control and improved reliability.

4.Applications

Suitable for industrial motors, pumps, fans, compressors, and automation systems.

Widely used in control panels, power distribution systems, factory equipment, and other industrial electrical applications.

5.FAQs

Q1: Is this product suitable for all three-phase motors?
A: It is compatible with most three-phase motors within the specified rated voltage and current range.

Q2: How is the product installed?
A: It supports standard DIN rail installation and can also be fixed securely with screws.

Q3: What happens when phase loss occurs?
A: The breaker trips within 0.3 seconds or less to stop the motor quickly and help prevent damage.
