Product Description
Liquid Level Sensor WKC319-KP Beer Beverage Foam Detection Tri Clamp Contact Type NPN PNP DC12-24V LED Indicator
Liquid Level Sensor WKC319-KP Beer Beverage Foam Detection Tri Clamp Contact Type NPN PNP DC12-24V LED Indicator1. NOTE
Default Parameters
Model: WKC319-KP
Power Supply: DC 12–24V
Output: Dual Output NPN + PNP
Protection Rating: IP68
Operating Temperature: -25°C to +85°C
For customized specifications, please contact us.

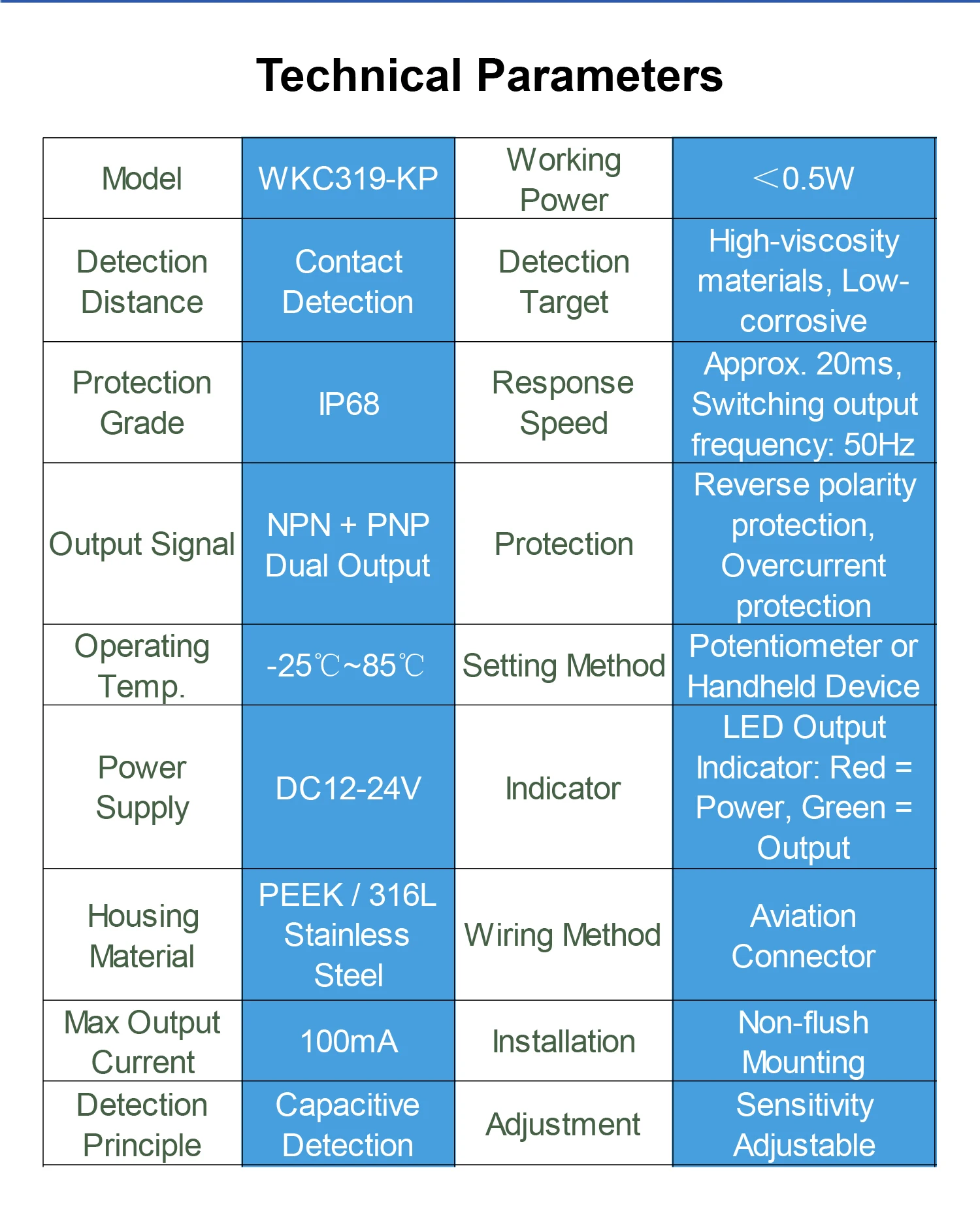

2.Parameters
Specification | Value |
Model | WKC319-KP |
Detection Method | Contact, Capacitive |
Detection Distance | Contact type |
Protection Grade | IP68 |
Output Signal | NPN + PNP dual output |
Operating Temperature | -25℃ ~ +85℃ |
Power Supply | DC 12–24V |
Housing Material | PEEK / 316L Stainless Steel |
Max Output Current | 100mA |
Power Consumption | < 0.5W |
Detection Target | High-viscosity, low-corrosive liquids |
Response Time | 20ms |
Output Frequency | 50Hz |
Protections | Reverse polarity, Overcurrent |
Sensitivity Adjustment | Potentiometer or handheld device |
Display Indicator | Red = Power, Green = Output |
Wiring | Aviation connector |
Mounting | Non-flush |
3.Features
Hygienic Design
Suitable for food and beverage filling machines, with sanitary chuck mounting for cleaner and safer operation.
Capacitive Detection
Provides accurate monitoring for high-viscosity and low-corrosive liquids.
Robust Materials
Made with PEEK and 316L stainless steel for excellent durability, wear resistance, and long service life.
Dual Output NPN and PNP
Supports both NPN and PNP outputs for flexible integration with different control systems.
Easy Setup
Sensitivity can be easily adjusted by potentiometer or handheld configurator.
IP68 Protection
Ensures reliable performance in harsh and demanding working environments.
4.Applications
Widely suitable for food filling machines, beer brewing systems, beverage processing lines, and other hygienic industry equipment that requires reliable liquid level detection.
5.FAQs
Q1: Can it detect all types of liquids?
A1: This sensor is suitable for viscous and low-corrosive liquids. It is not recommended for highly corrosive fluids.

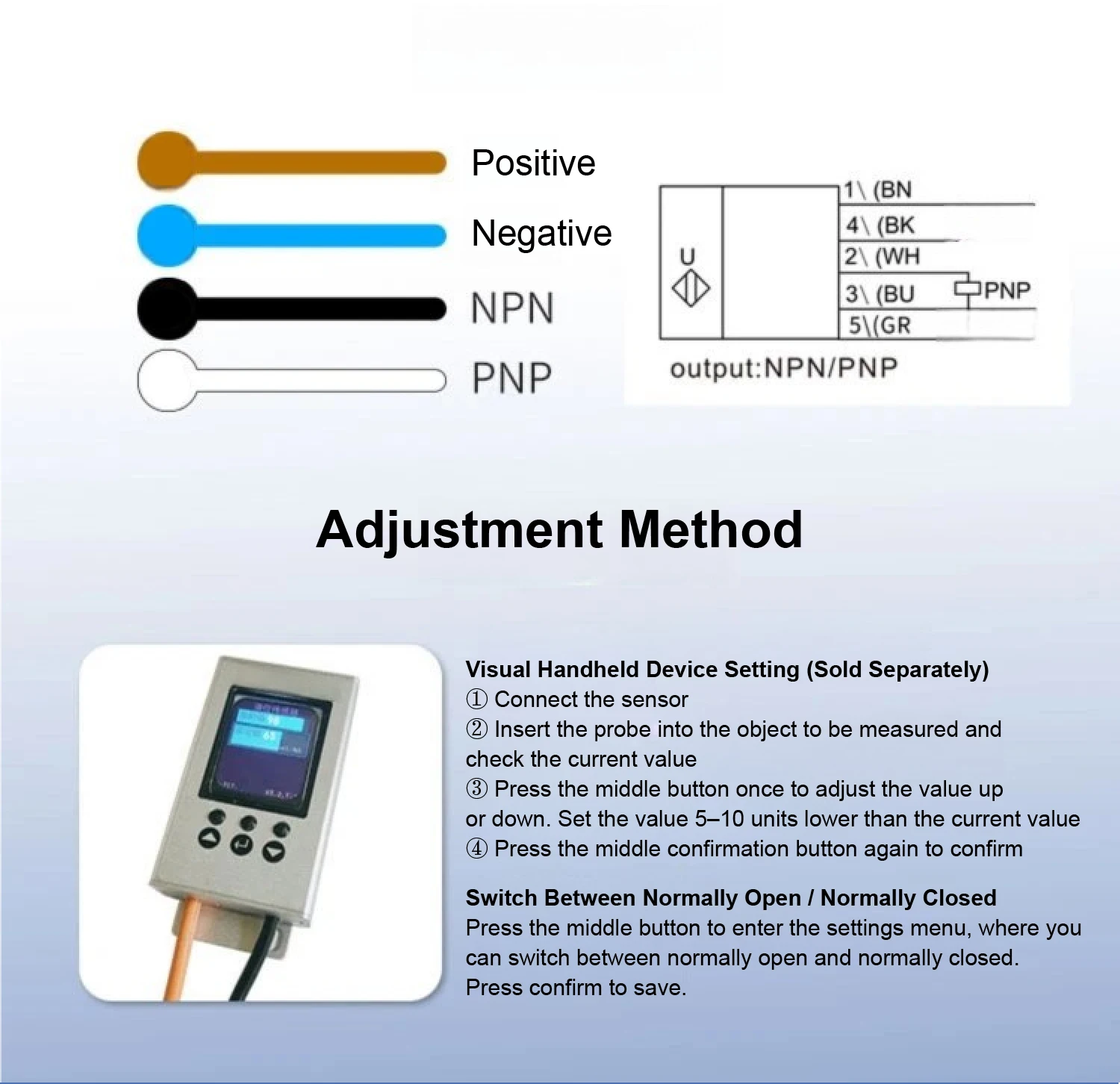

Q2: How can the sensitivity be adjusted?
A2: The sensitivity can be adjusted using the built-in potentiometer or a handheld configurator. The handheld configurator is sold separately.

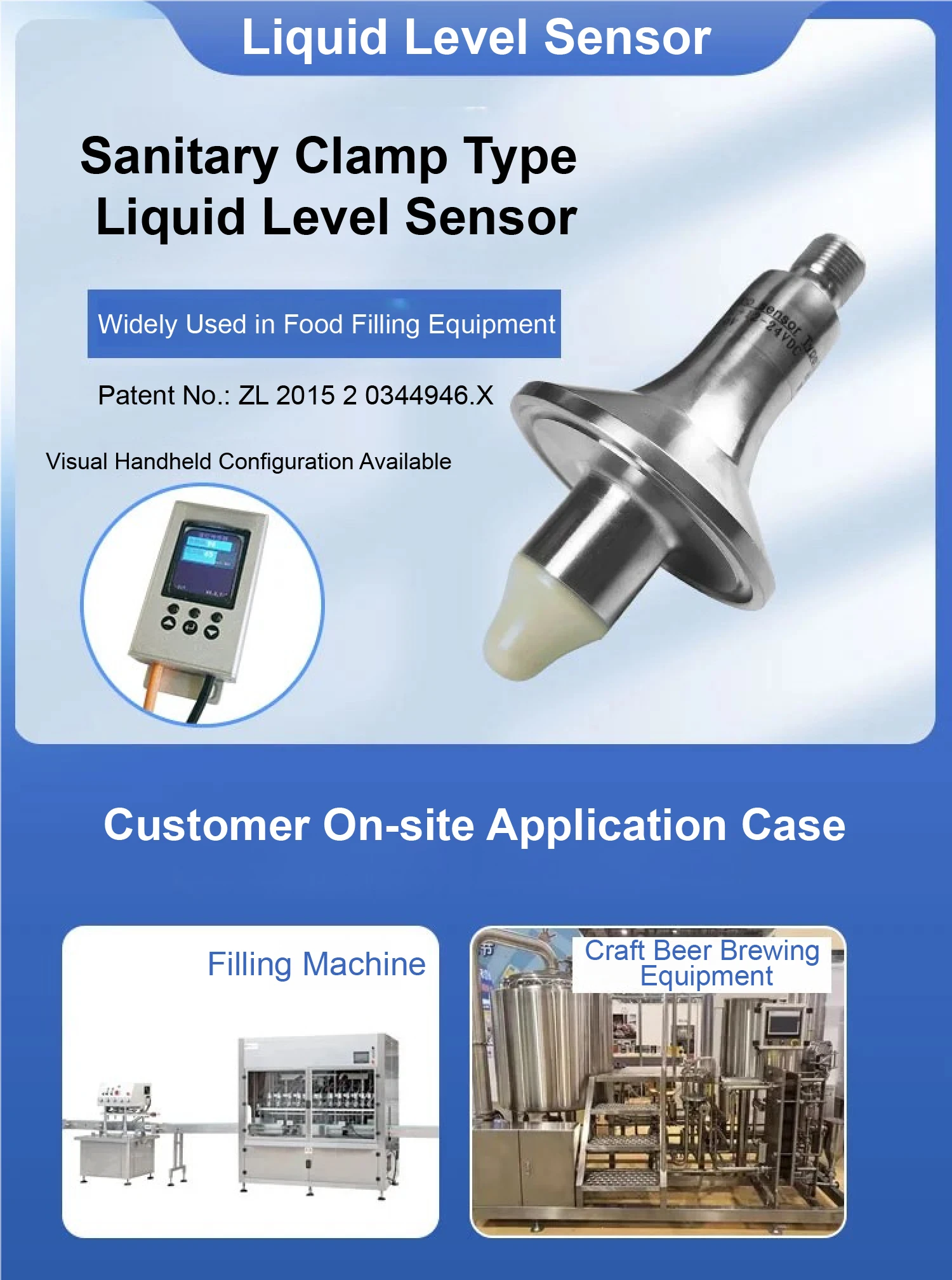

Q3: What installation method does it support?
A3: The sensor supports sanitary clamp mounting, making it suitable for food-grade equipment.
