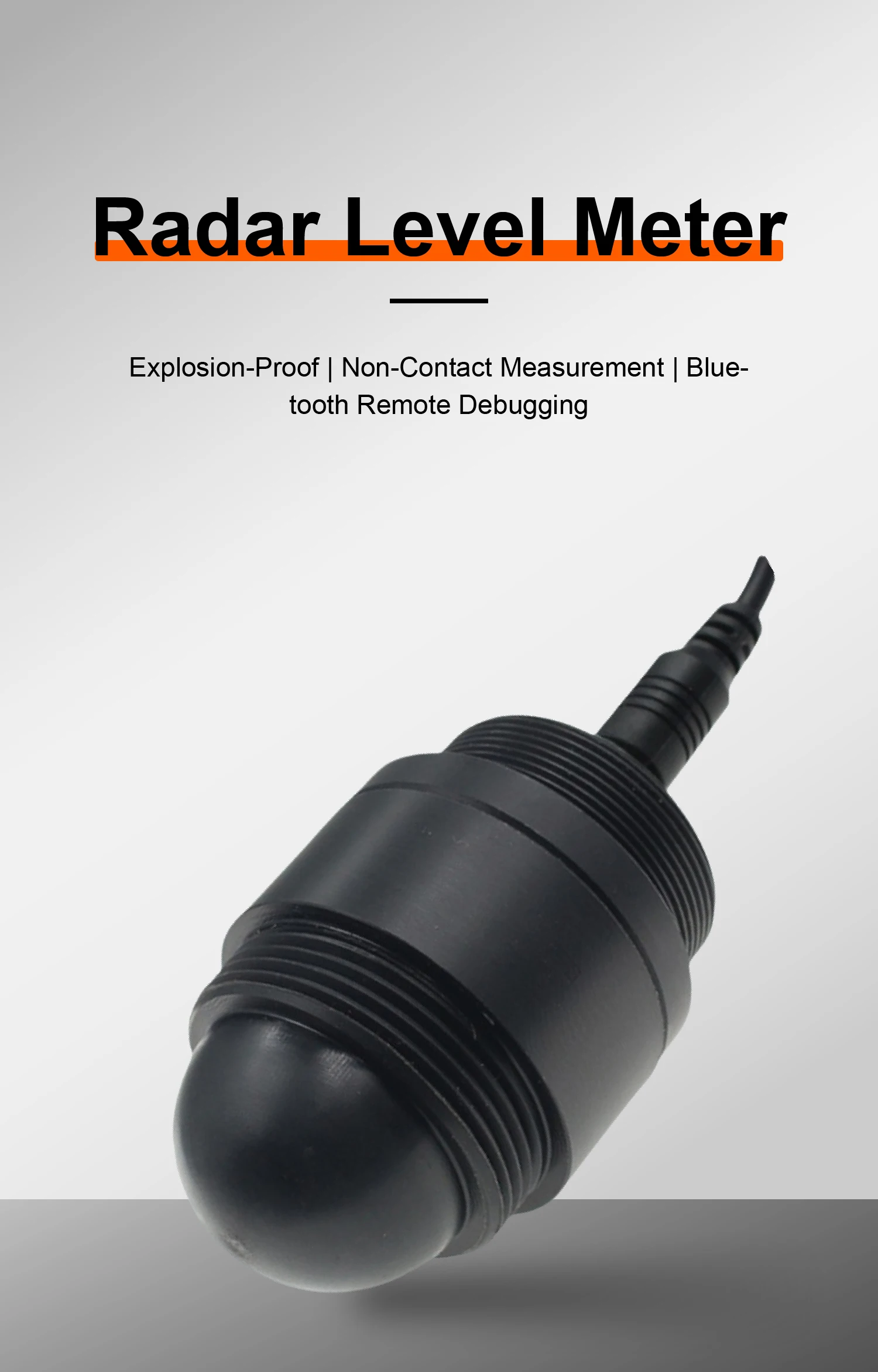

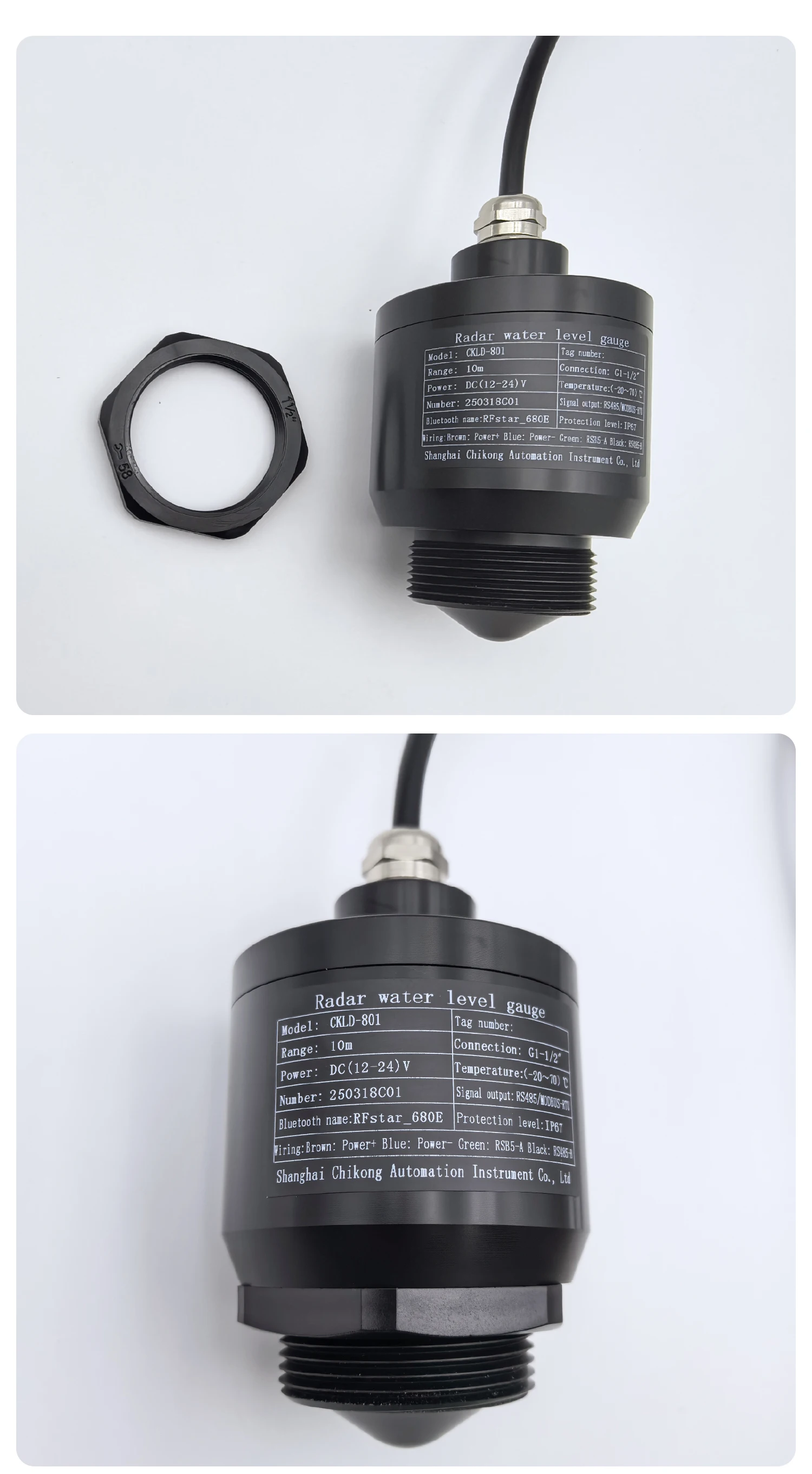

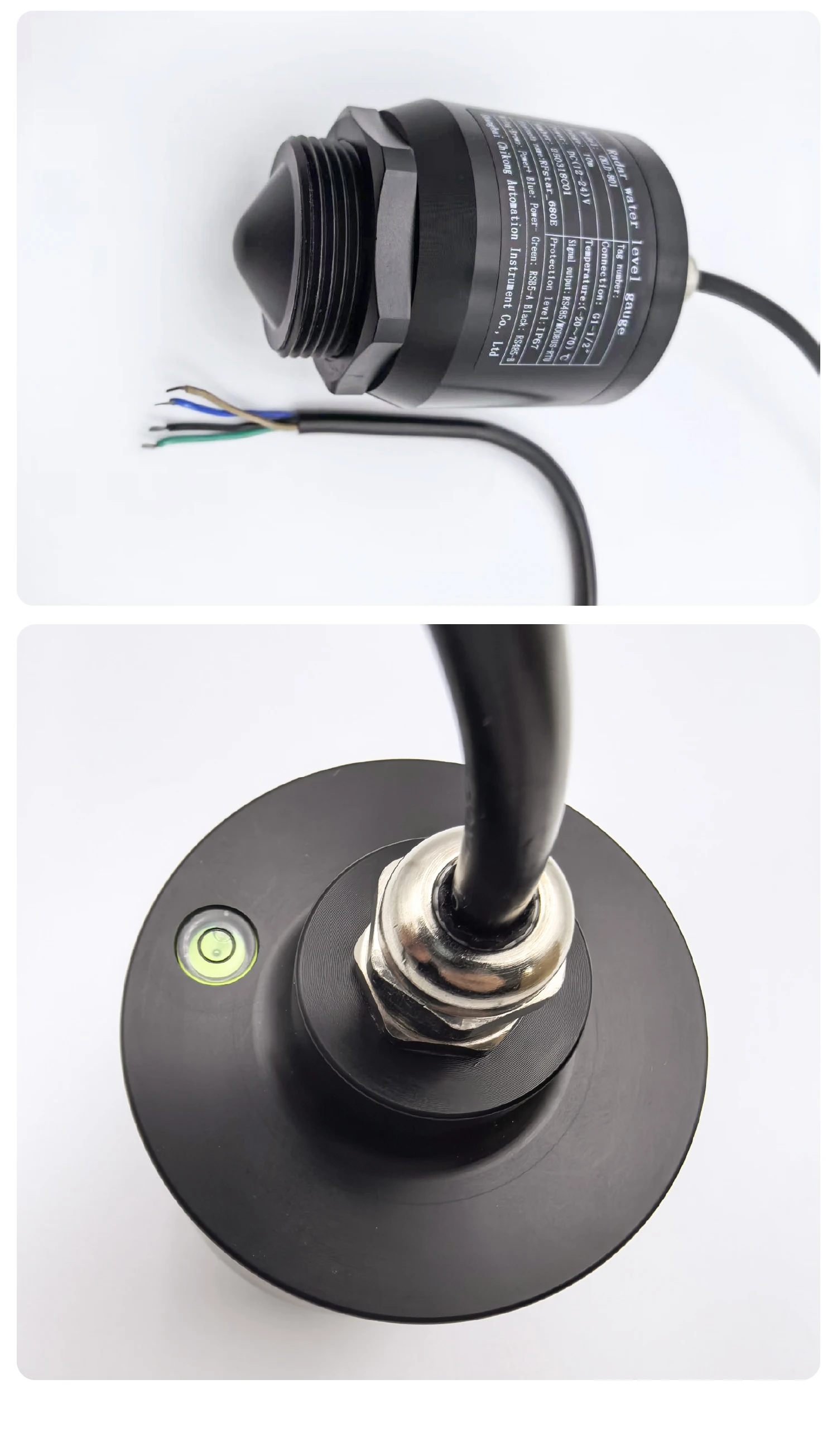

Radar Water Level Sensor Non Contact Level Transmitter 65m RS485 4-20mA PP Probe

Product Description

Please note: this radar level sensor is designed for measuring water only. It cannot be used for other types of liquids.

1.Note

Due to page limitations, not all product configurations may be displayed. For specific requirements or customized solutions, please contact us.

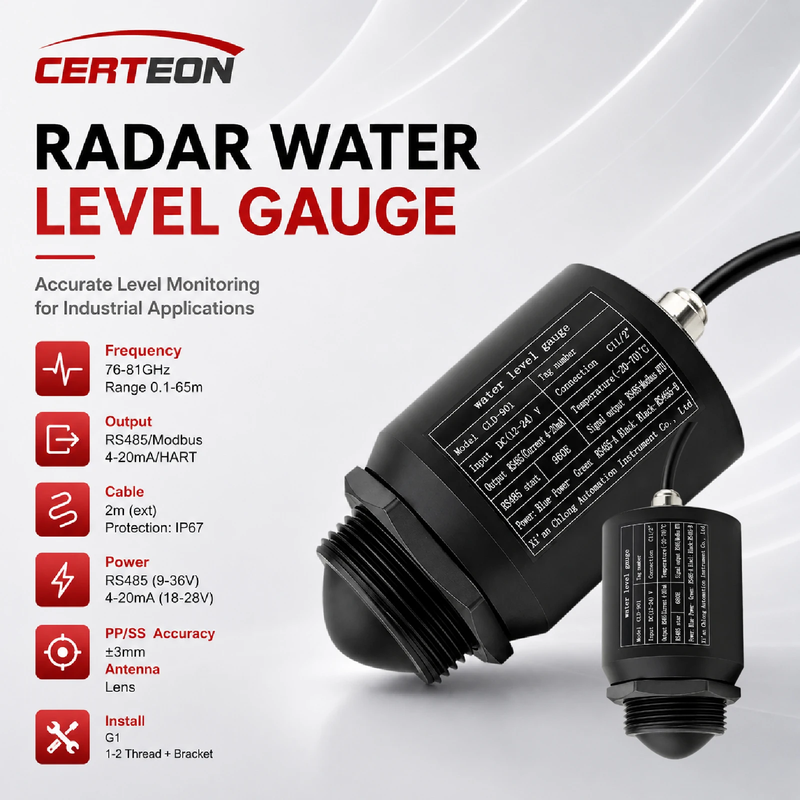

Standard Configuration

Frequency: 76–81GHz

Measuring Range: 0.1–65m

Accuracy: ±3mm

Power Supply: RS485: 9–36VDC / 4–20mA: 18–28VDC

Output Signal: RS485 / 4–20mA

Material: PP

Antenna Type: Lens Antenna

Cable Length: 2m, extendable upon request

Protection Rating: IP67

Installation Method: G1-2 Thread + Bracket

Optional Configurations

Measuring Range: Up to 120m, customizable

Power Supply Options: DC24V / DC12V / AC220V

Output Signal Options: 4–20mA / HART / RS485 / Modbus / Bluetooth

Flange Standards: ANSI / JIS / DIN / EN

Cable Length: Custom lengths available, such as 5m, 10m, and 20m

Material Options: SS316L / PTFE Anti-Corrosion Coating

Installation Methods: Flange / Thread / Clamp

Environmental Adaptability: Suitable for high temperature, high humidity, and corrosive environments

Usage Guidelines

Please select the correct SKU according to your application requirements, including measuring range, output signal, power supply, installation method, and working environment.

For applications under extreme conditions, such as high humidity, high temperature, temperature fluctuations, or corrosive environments, please confirm the required specifications before ordering.

The sensor should be installed perpendicular to the liquid surface to ensure accurate measurement and avoid radar beam interference.

Install the device away from obstacles, strong vibration sources, and strong magnetic fields that may affect signal stability.

Before installation, confirm that the power supply voltage and cable specifications match the product requirements. Using the recommended cable size helps ensure stable and reliable performance.

The standard cable length is 2 meters. Custom cable lengths are available upon request to meet different installation needs.

Regular inspection and cleaning are recommended to maintain stable operation and long-term measurement accuracy.

Customized technical parameters and installation solutions are available. Please contact us for tailored support based on your project requirements.

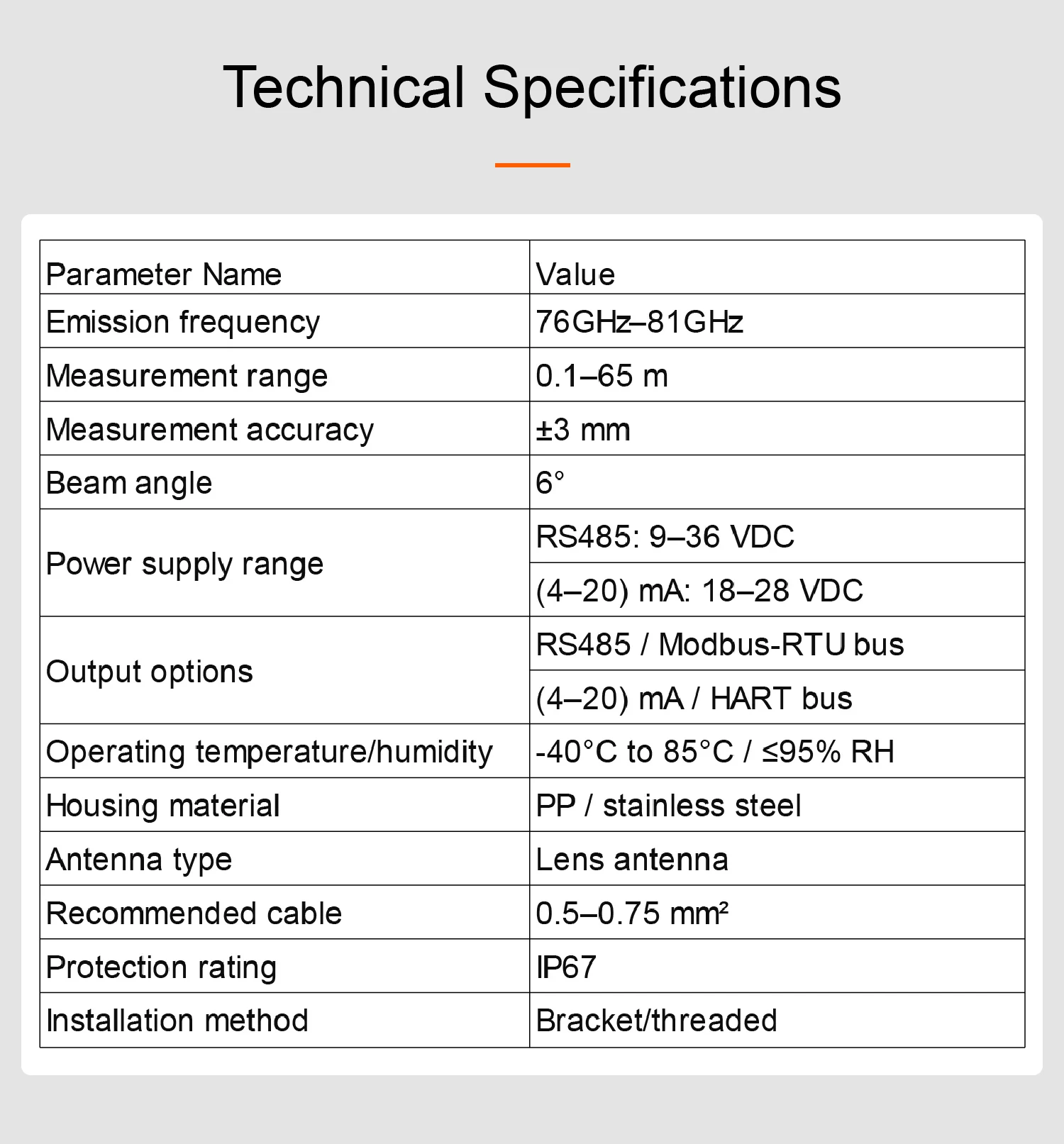

2.Specifications

3.Applications
Widely used in a variety of industrial liquid level measurement applications, including:

Chemical Plants

Reservoirs

Power Plants

Dyeing Factories

Suitable for both indoor and outdoor installations, providing stable and reliable level monitoring in demanding industrial environments.

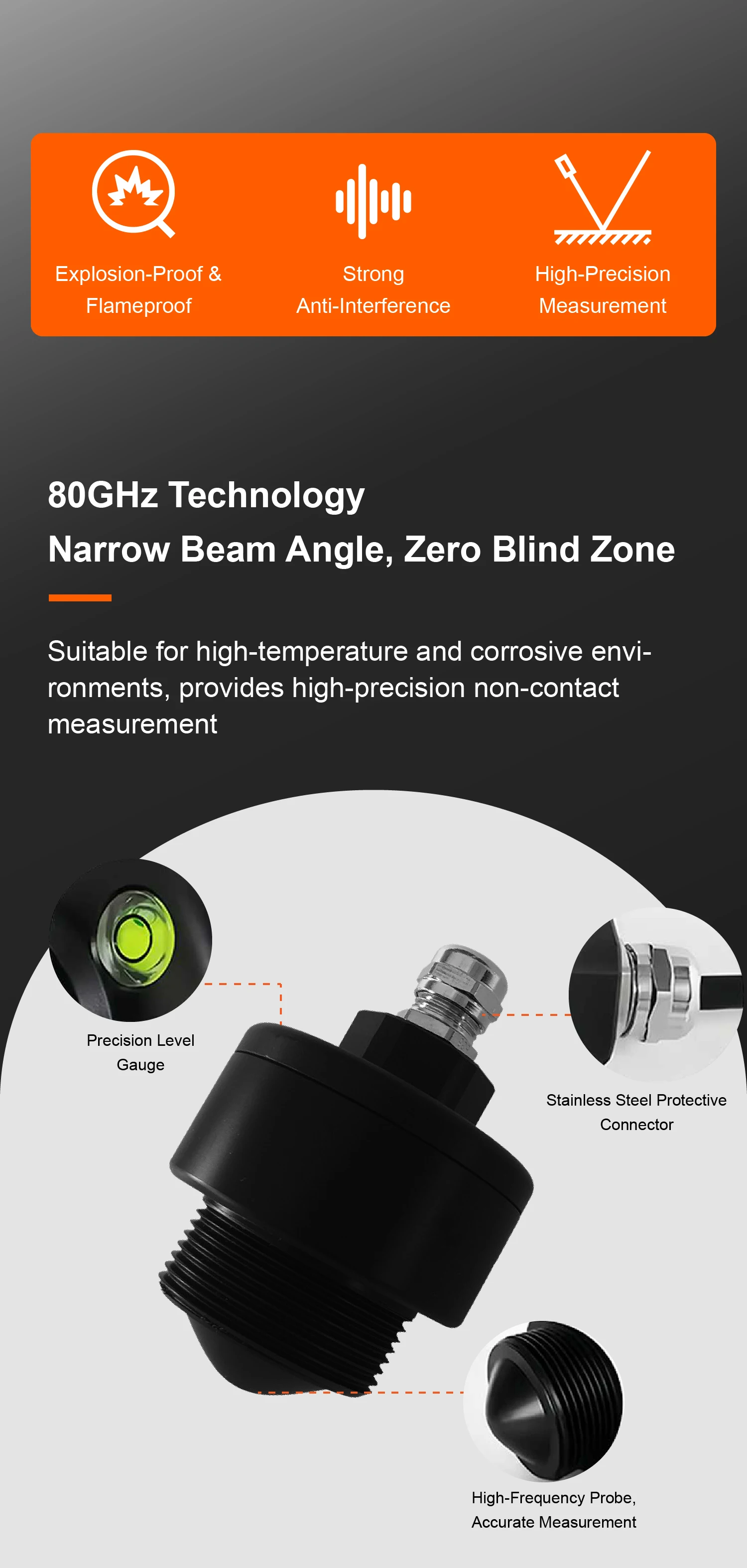

4.Key Features

Advanced Intelligent Chip

Equipped with a high-performance intelligent processing chip and compact RF architecture, delivering stronger signal processing capability, improved signal-to-noise ratio, and highly stable measurement performance.

Long-Distance RS485 Communication

Supports RS485 communication with MODBUS protocol, enabling reliable data transmission over distances of up to 2000 meters for seamless integration into industrial control systems.

IP67 Protection Rating

Designed with a rugged IP67-rated enclosure to ensure dependable operation in harsh environments, including rain, snow, dust, fog, and other challenging weather conditions.

High Measurement Accuracy

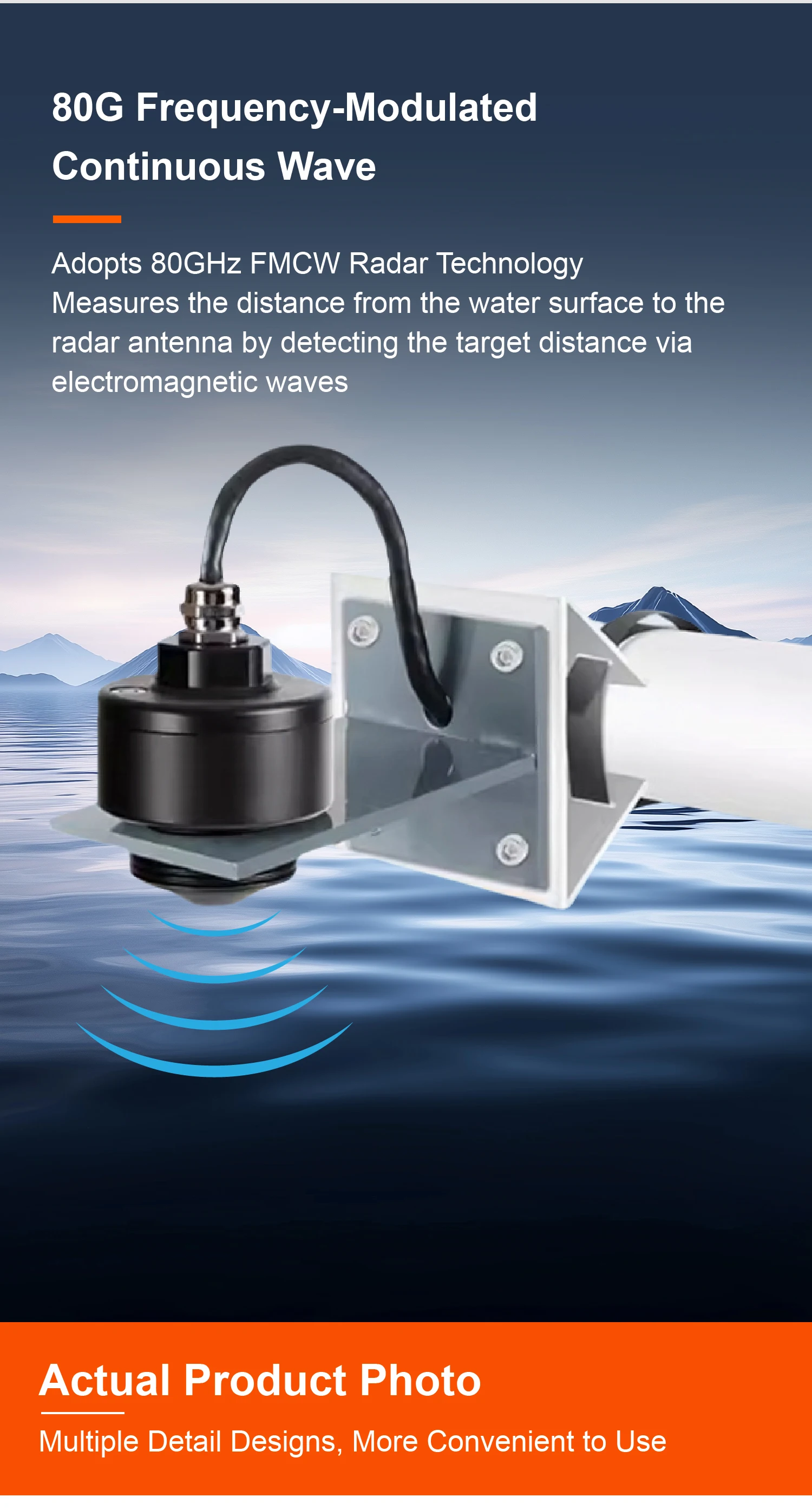

Utilizes 76–81GHz millimeter-wave radar technology to provide precise, stable, and non-contact level measurement with excellent resistance to environmental interference.

Easy Installation and Setup

Simple installation design with clear mounting guidance helps ensure optimal measurement accuracy while minimizing signal interference from surrounding structures.

Strong Environmental Adaptability

Engineered to perform reliably in high humidity, high-temperature, and corrosive environments, making it suitable for a wide range of industrial applications.

Maintenance-Friendly Design

Non-contact measurement technology reduces wear and maintenance requirements while ensuring long-term operational stability and reliability.

5.FAQ

Q1: How can I ensure accurate measurements?

A1: For the best measurement performance, install the sensor perpendicular to the liquid surface and keep it away from objects that may interfere with the radar beam. Proper installation helps ensure stable and accurate readings.

Q2: Can this sensor operate in harsh environments?

A2: Yes. The sensor features an IP67 protection rating and is designed to perform reliably in demanding environments, including exposure to rain, humidity, dust, and other challenging industrial conditions.

Q3: Can the product be customized for specific applications?

A3: Yes. We provide customized solutions based on your application requirements, including measuring range, output signal, power supply, installation method, materials, and environmental conditions. Please contact us for detailed consultation.
