Product Description
G1 Quantitative Control Instrument Set DN25 Flow Meter Controller Batch Filling System for Water Chemical Oil Liquids
G1 Quantitative Control Instrument Set DN25 Flow Meter Controller Batch Filling System for Water Chemical Oil Liquids1.NOTE
Pressure Requirement
This system operates with a water pressure range of 0.5–8 kg (0.05–0.8 MPa). A pressurized water supply is required for proper operation. The system will not function without water pressure.
Flow Meter K-Value Setting
To ensure accurate flow measurement, different pipe diameters require different K-value settings. The K-value can be adjusted according to your installation requirements for precise calibration.
Default Configuration

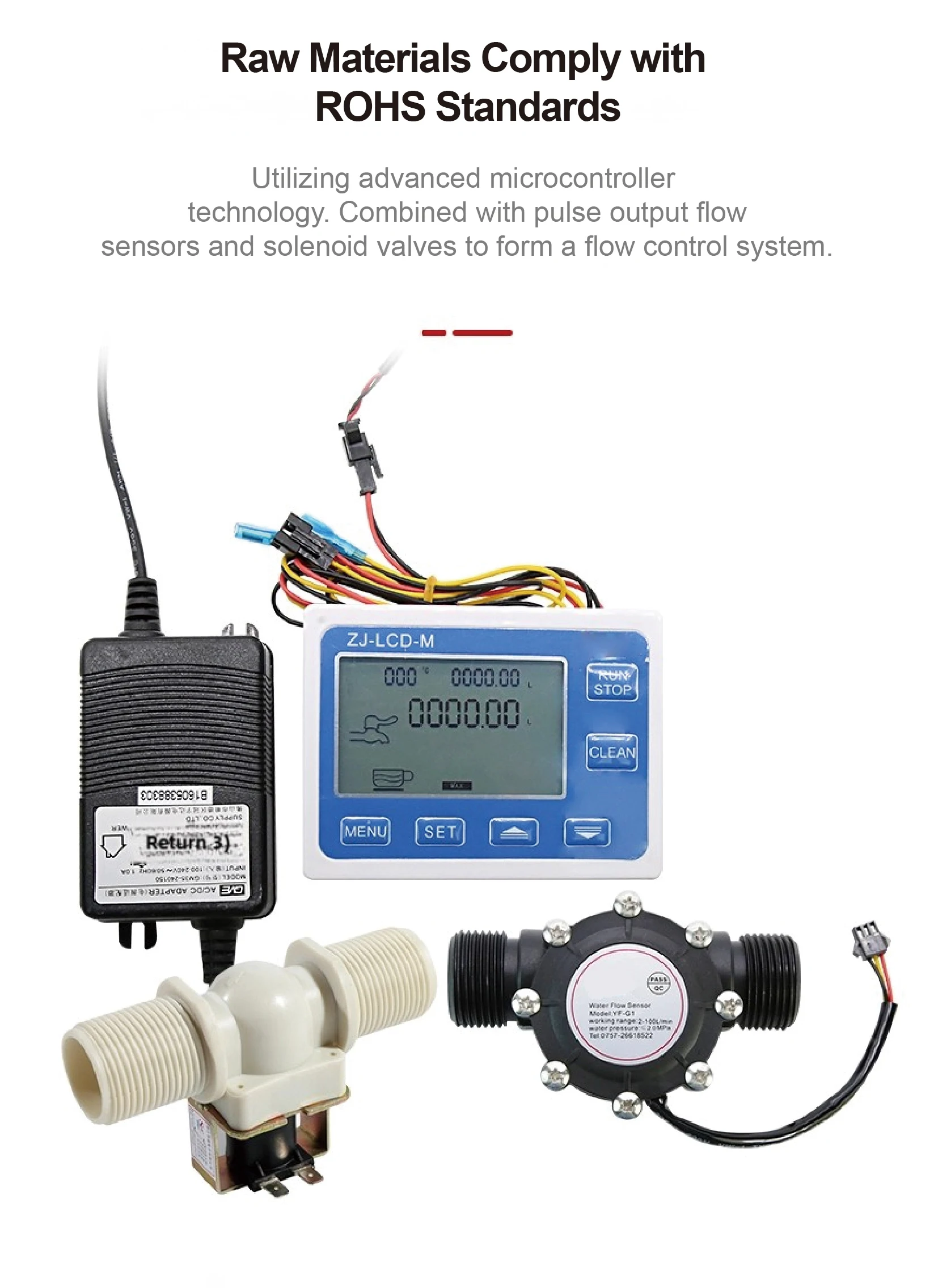

Control Unit Model: ZJ-LCD-M
Flow Sensor Model: YF-G1 (1-inch connection)
Power Supply: DC 24V ±8V
Flow Measurement Range: 2–100 L/min
Measurement Accuracy: ±3%
Calibration Method: Adjustable through K-value settings
Optional Function

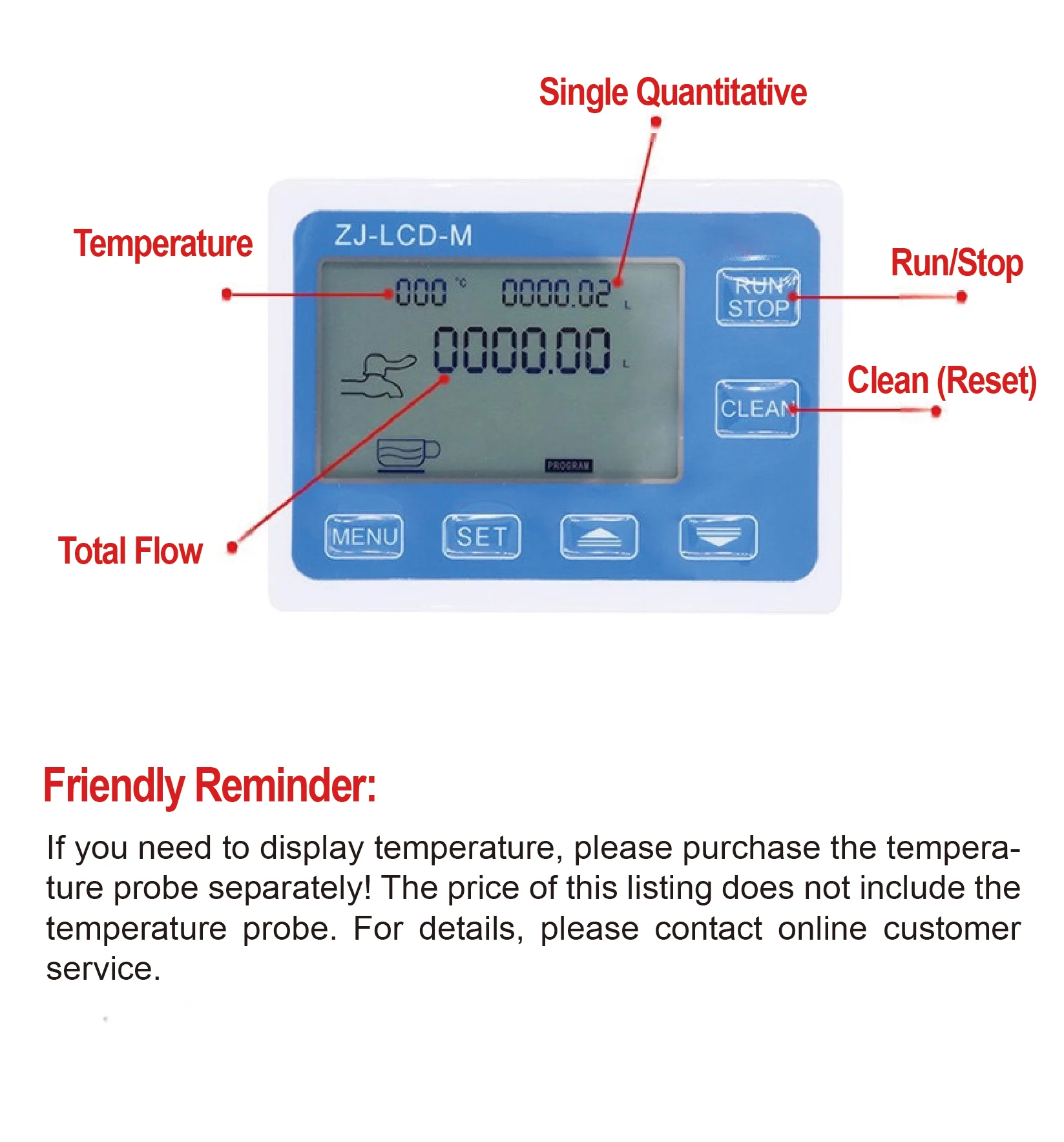

Temperature Display Function
Temperature monitoring requires an additional temperature sensor, which is sold separately.
Important Ordering Information
Please confirm all required functions and pipe specifications before placing your order. Verifying these details in advance helps ensure compatibility and avoids incorrect configurations or mismatched components.

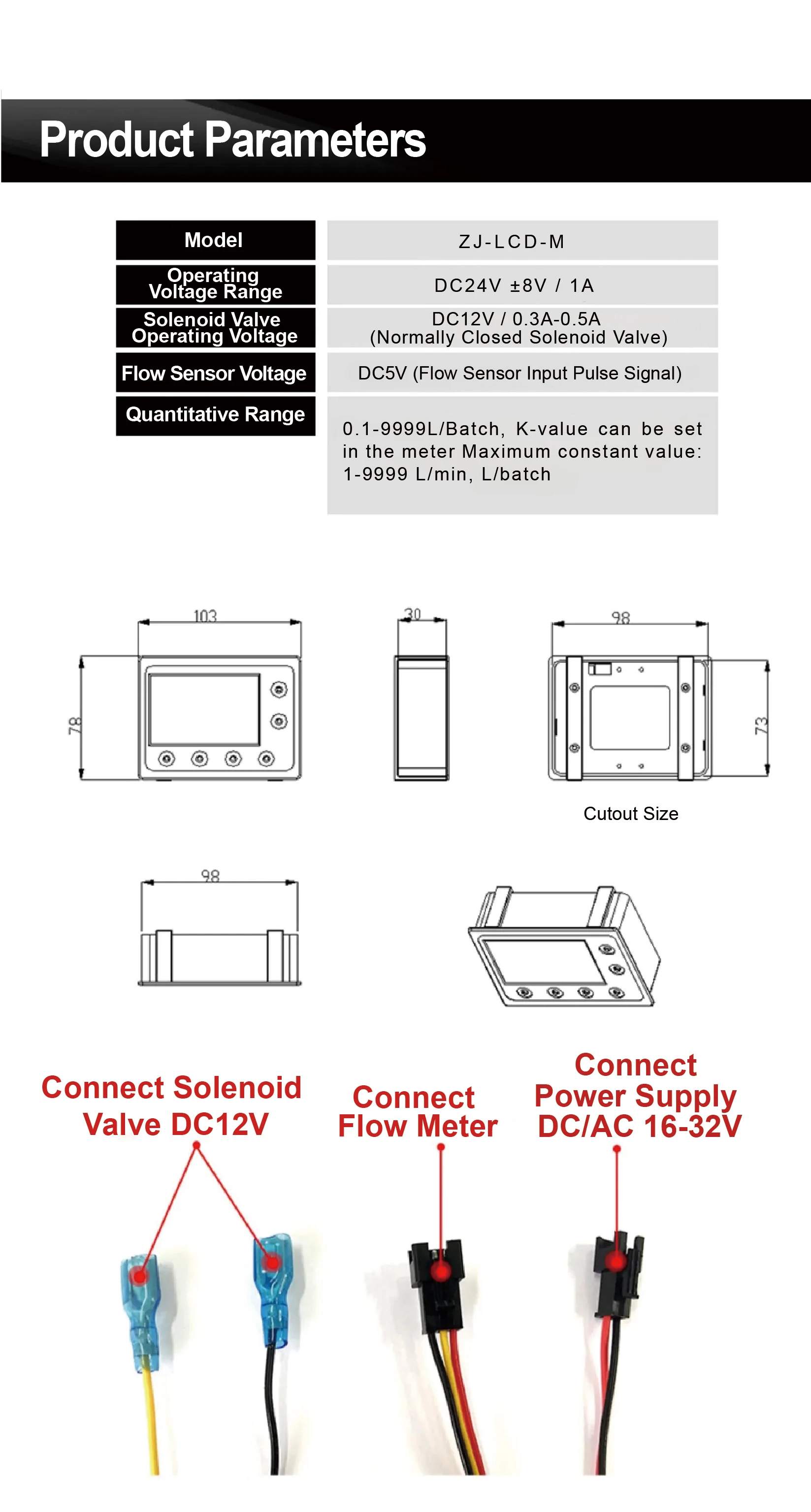

2. Parameters
Parameter | Specification |
Model | ZJ-LCD-M |
Working Voltage | DC24V±8V / 1A |
Solenoid Valve Voltage | DC12V / 0.3A-0.5A (normally closed) |
Flow Sensor Voltage | DC5V (pulse signal input) |
Quantitative Range | 0.1-9999 L/Gallon |
K-Factor Range | 1-9999 L/min or Gallon/min |

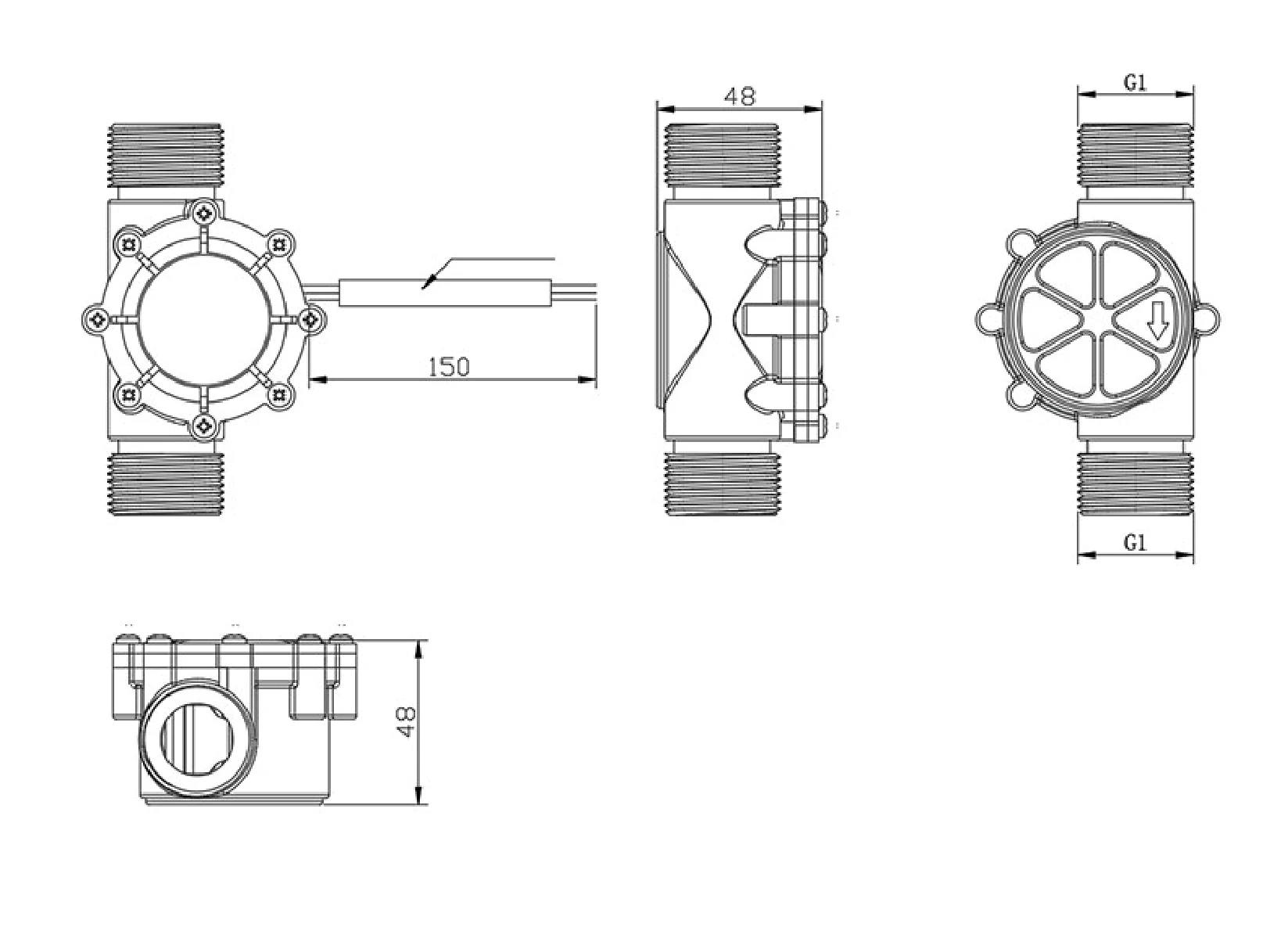

Flow Sensor Model | YF-G1 |
Connector Size | 1 inch (Inner 22.7mm / Outer 32.8mm) |
Operating Voltage (Flow Sensor) | DC3.5~24V |
Flow Rate Range | 2～100 L/min ±3% |
Material | Nylon |
Max Water Pressure | <1.75MPa |
3. Features

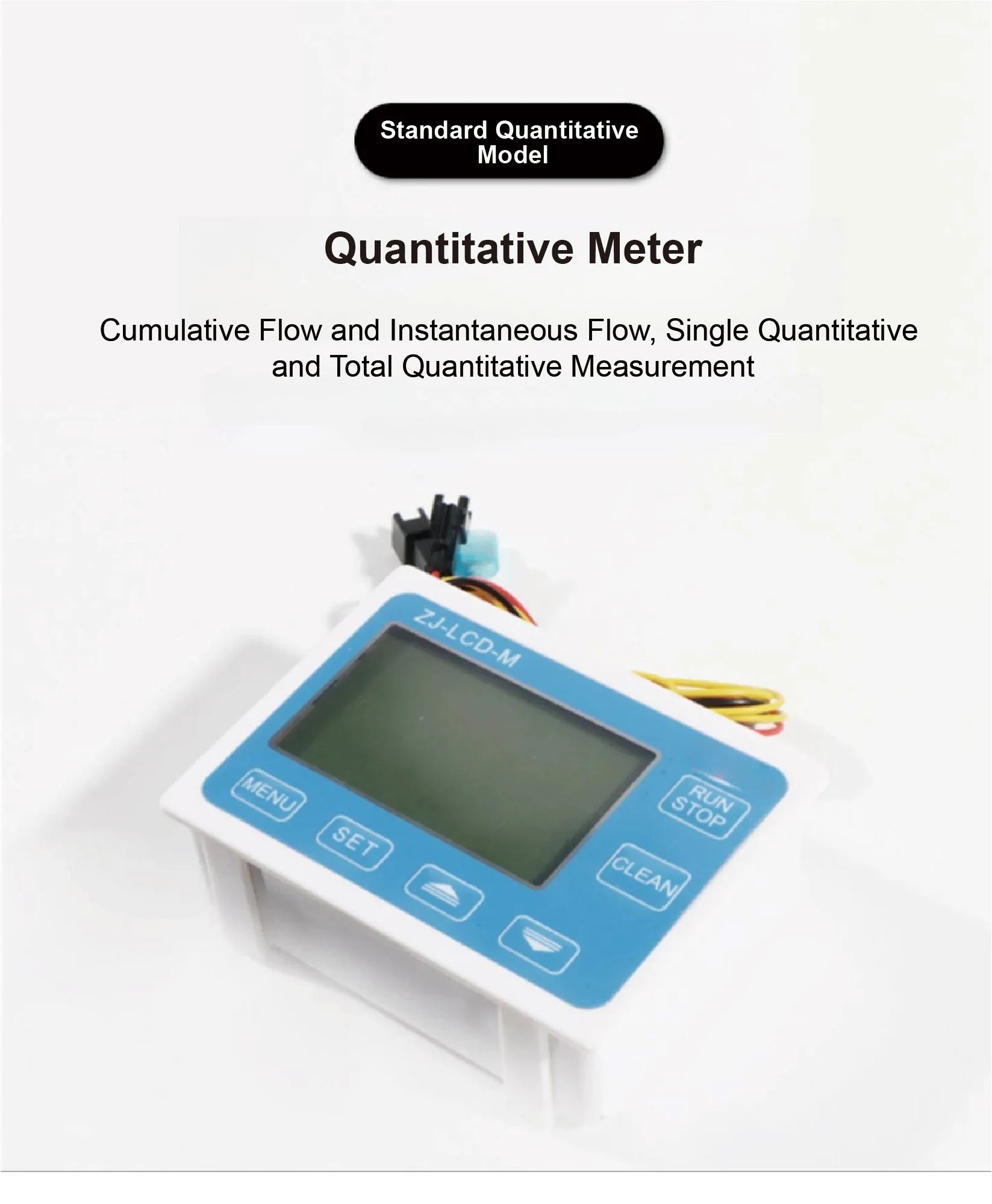

Precise Quantitative Control
Accurately controls both cumulative and real-time flow. The adjustable K-factor allows easy calibration for improved measurement accuracy.

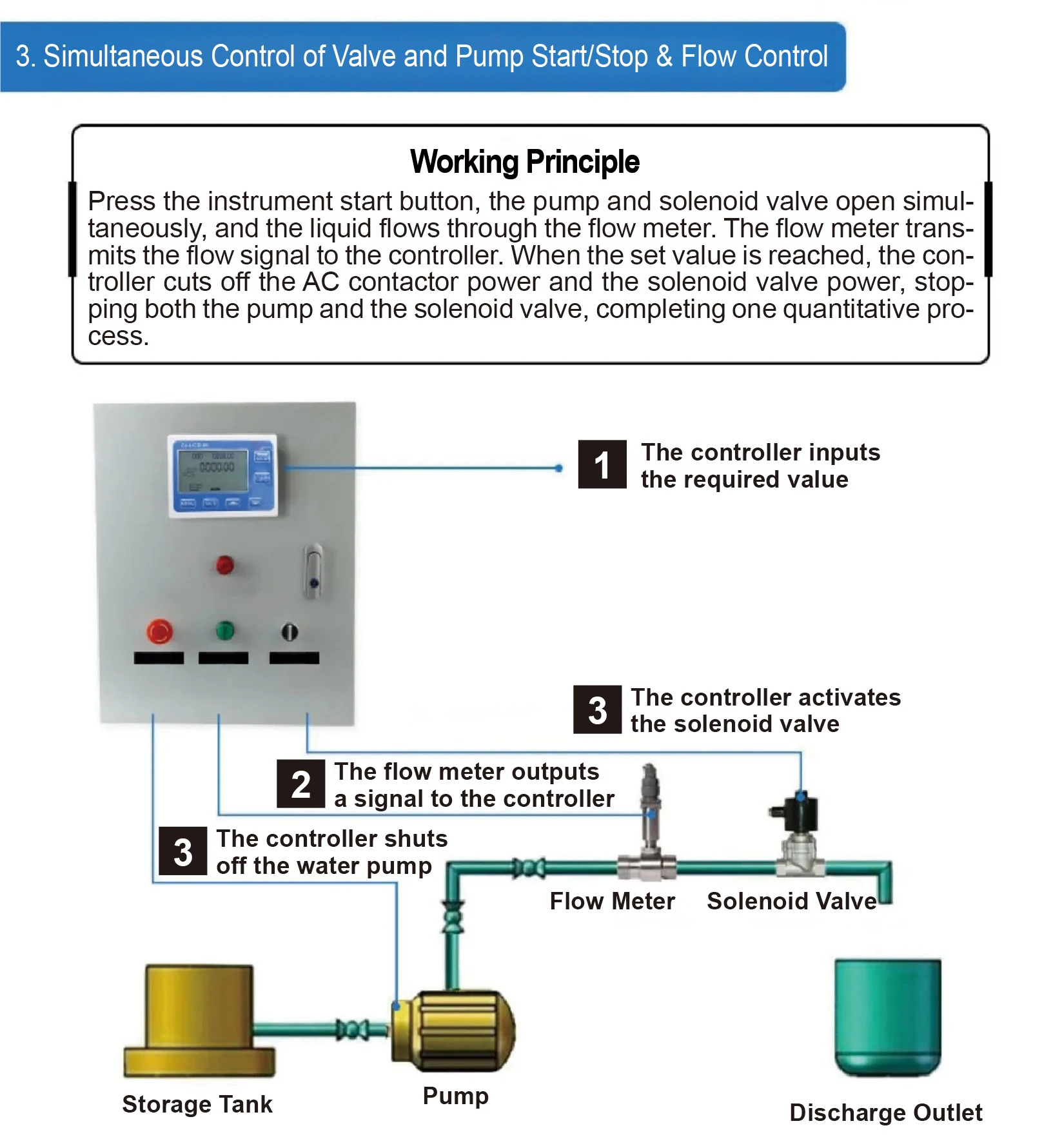

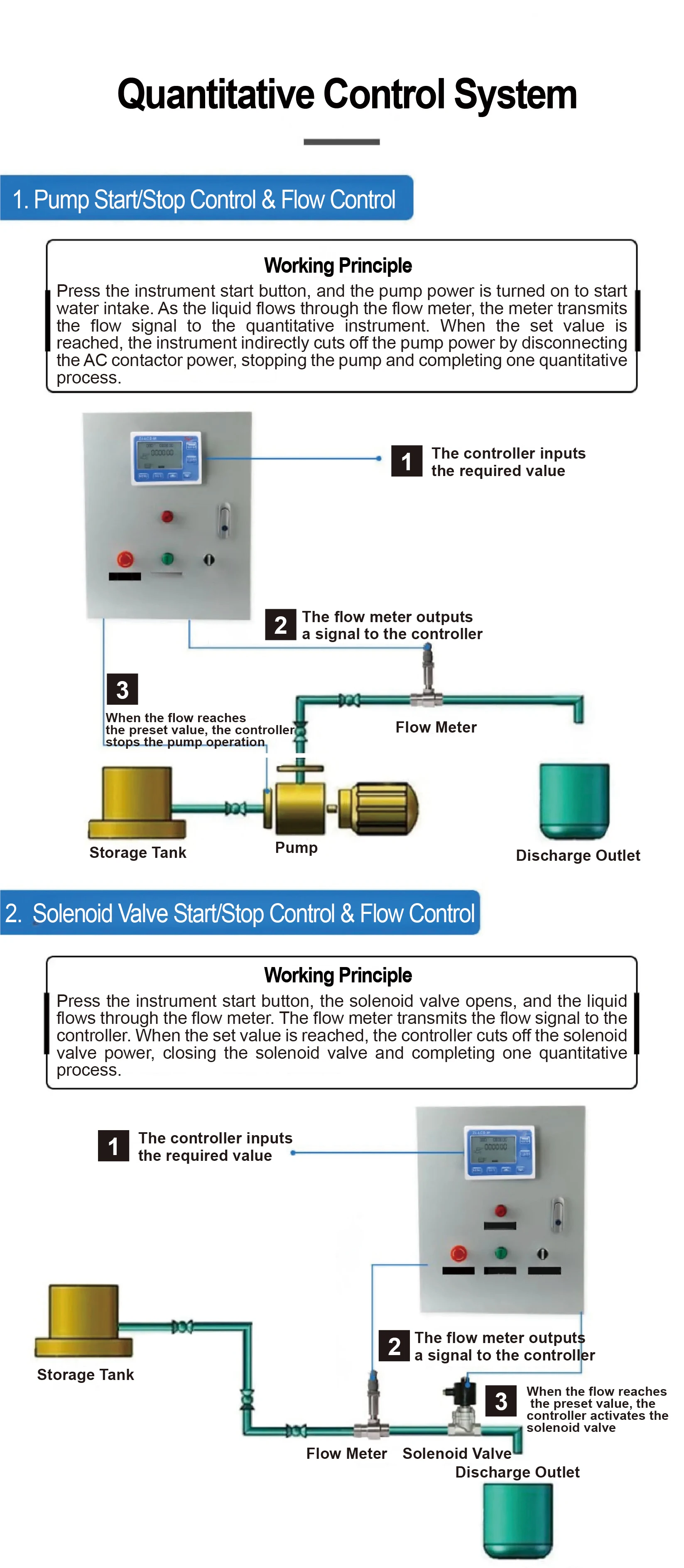

Multiple Control Modes
Supports independent or combined control of the pump and solenoid valve, providing flexible flow management for different application needs.
Wide Voltage and Flow Range Compatibility
The flow sensor operates within a DC 3.5V to 24V voltage range and supports flow measurement from 2 to 100 L/min.

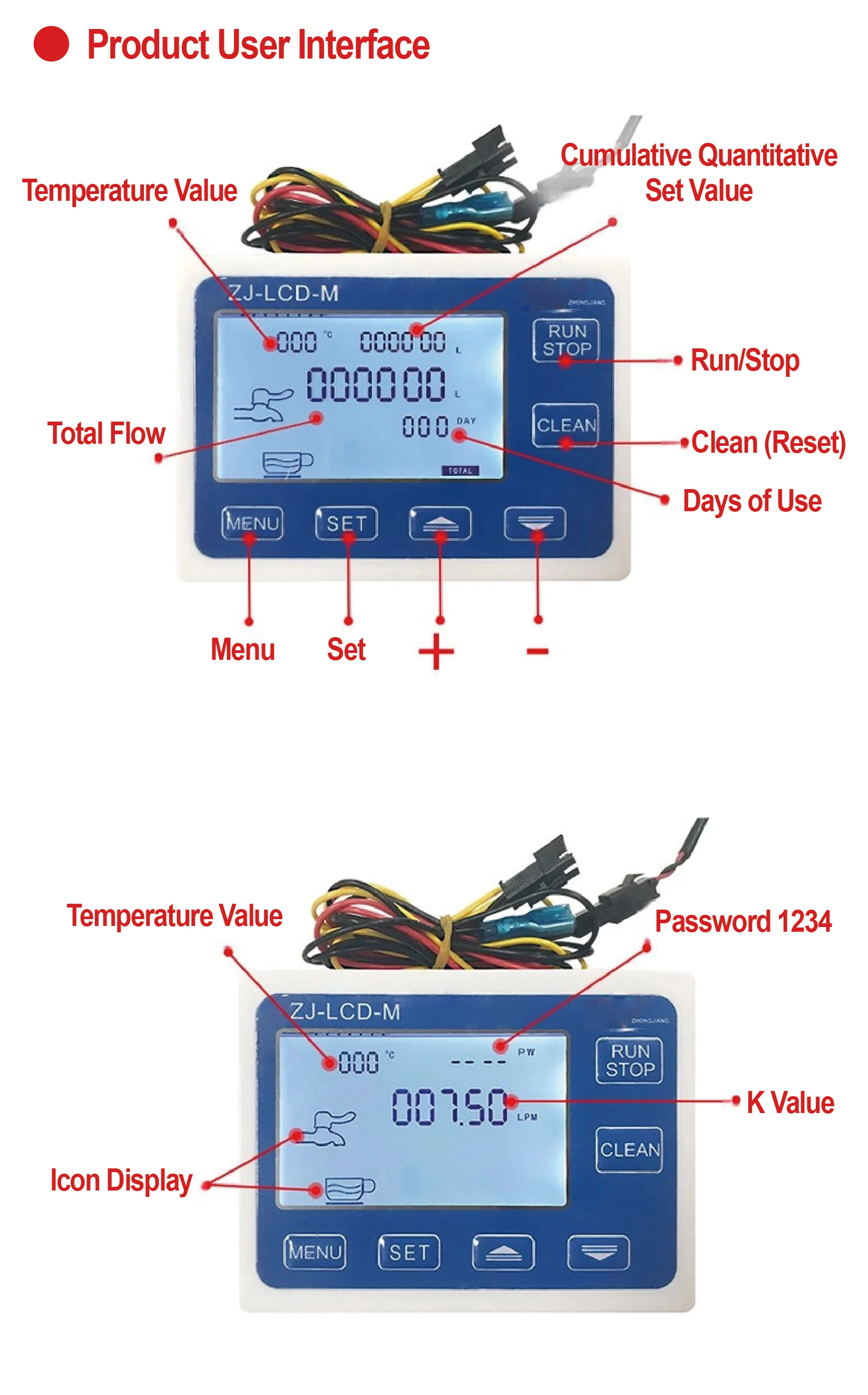

Easy Operation
Designed with a user-friendly interface and available in both English and Chinese display options. The default panel language is English.
High Durability and Safety
Made with a durable nylon body and tested under 1.7MPa pressure to ensure leak-proof, deformation-resistant performance.
Flexible Unit System
Supports both liters and gallons, making it suitable for international use.
4. Applications
Ideal for industrial flow measurement and batching control, widely used in petroleum, chemical processing, food processing, and water treatment industries.
5. FAQs
Q1: Can this device operate without water pressure?
A1: No. The device requires a water pressure range of 0.5–8 kg to function properly and is not suitable for applications without sufficient pressure.
Q2: Can flow meters of different sizes be connected?
A2: Yes. However, the K-factor must be adjusted on the display according to the specific pipe size to ensure accurate measurements.
Q3: Does the system display temperature?
A3: No. Temperature display is not included as a standard feature. If temperature monitoring is required, a compatible temperature sensor can be purchased separately.
