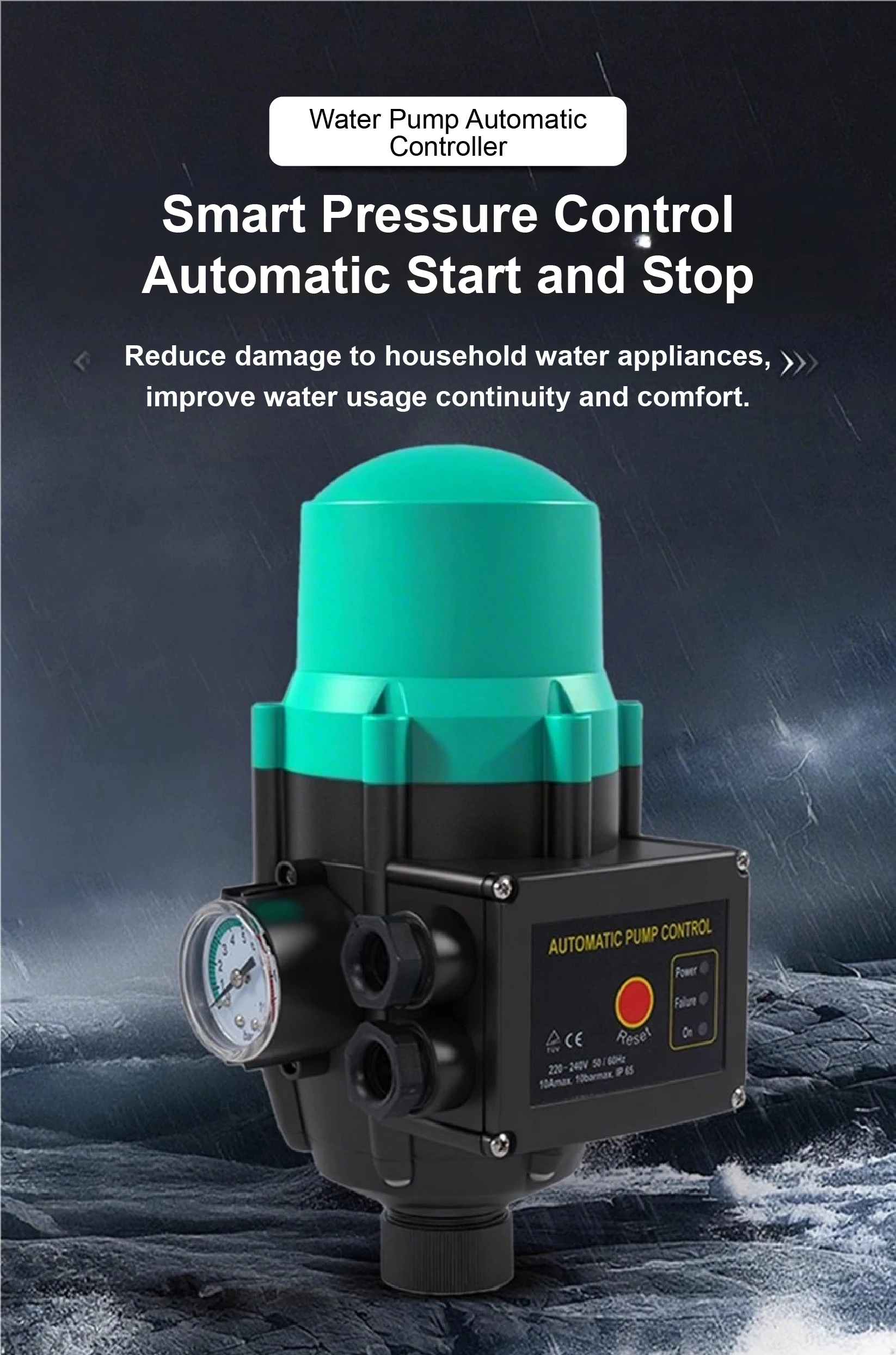

PS02 Automatic Start Stop Booster Water Pump Pressure Switch Controller G1 G2 1-

Product Description

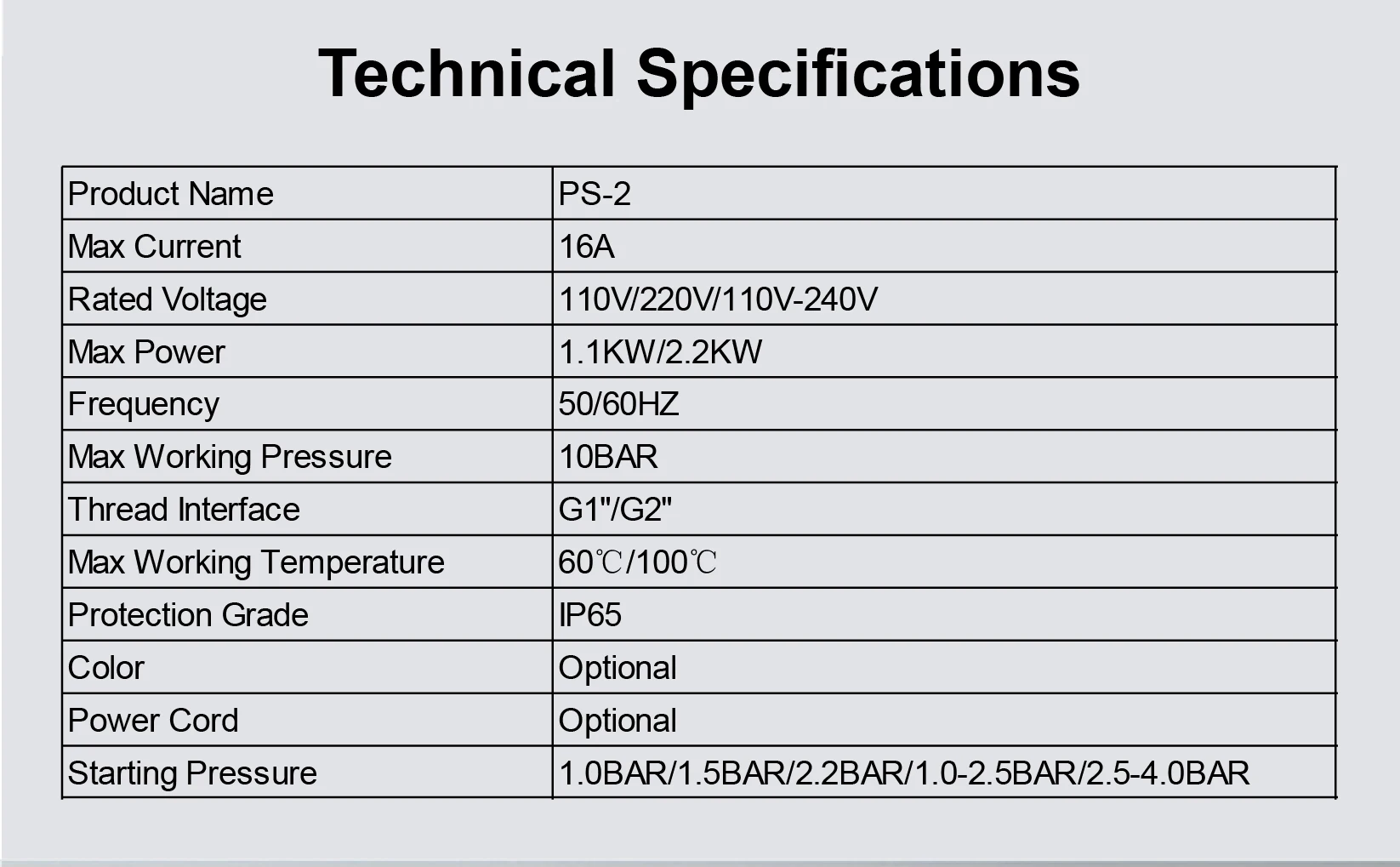

Default Configuration

Current: 10A / 30A
Power: 1.1kW / 2.2kW
Working Temperature: 60°C
Connection Thread: G1 / G2
Power Cord: Optional
Connection Cable: Optional
Pressure Gauge: Included

Start Pressure Options

1.0 BAR
1.5 BAR
2.2 BAR
1.0–2.5 BAR
2.5–4.0 BAR

Important Notes

Please make sure the controller power is equal to or higher than the pump power.

The cable length includes internal wiring. Slight differences may occur between production batches.

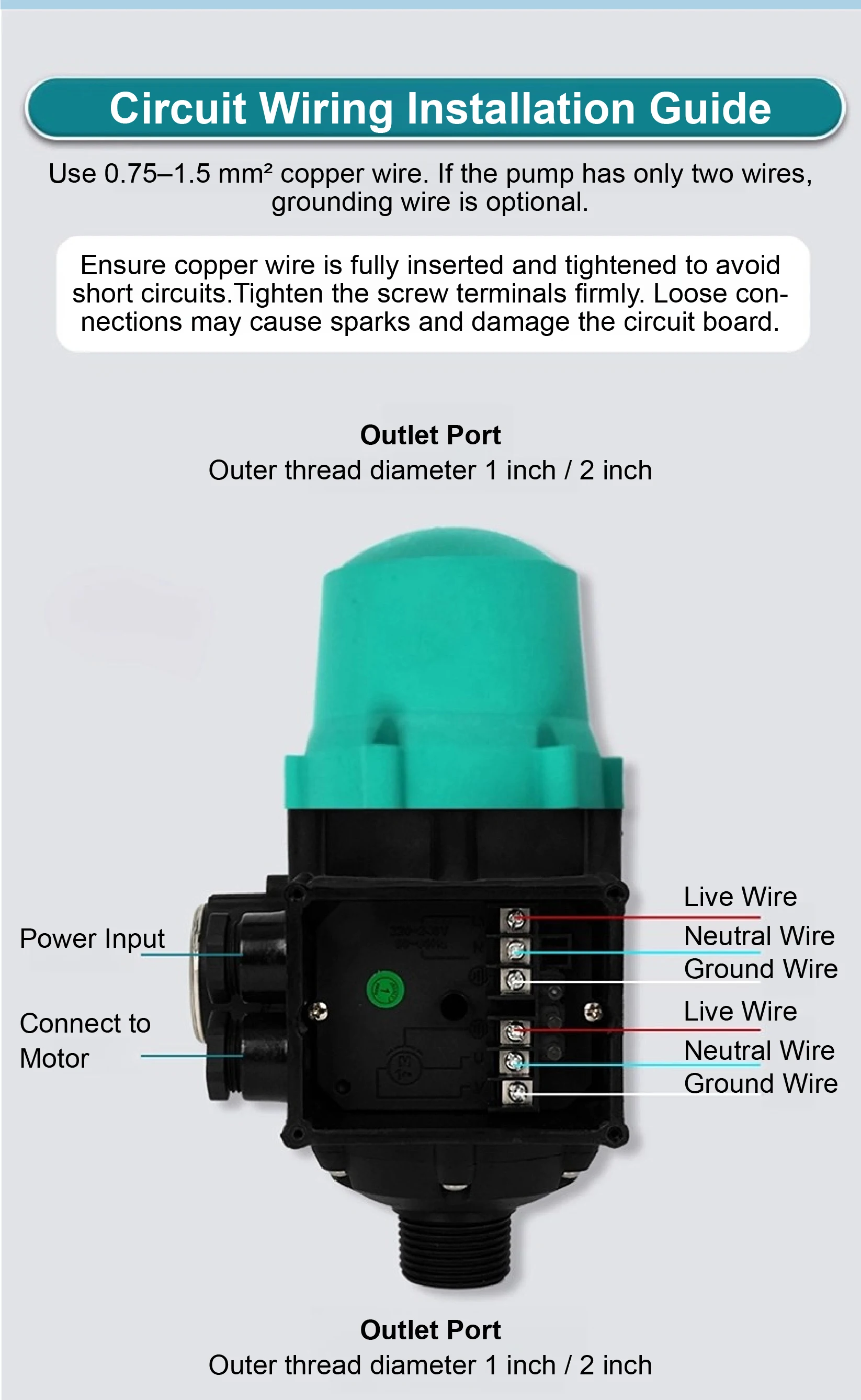

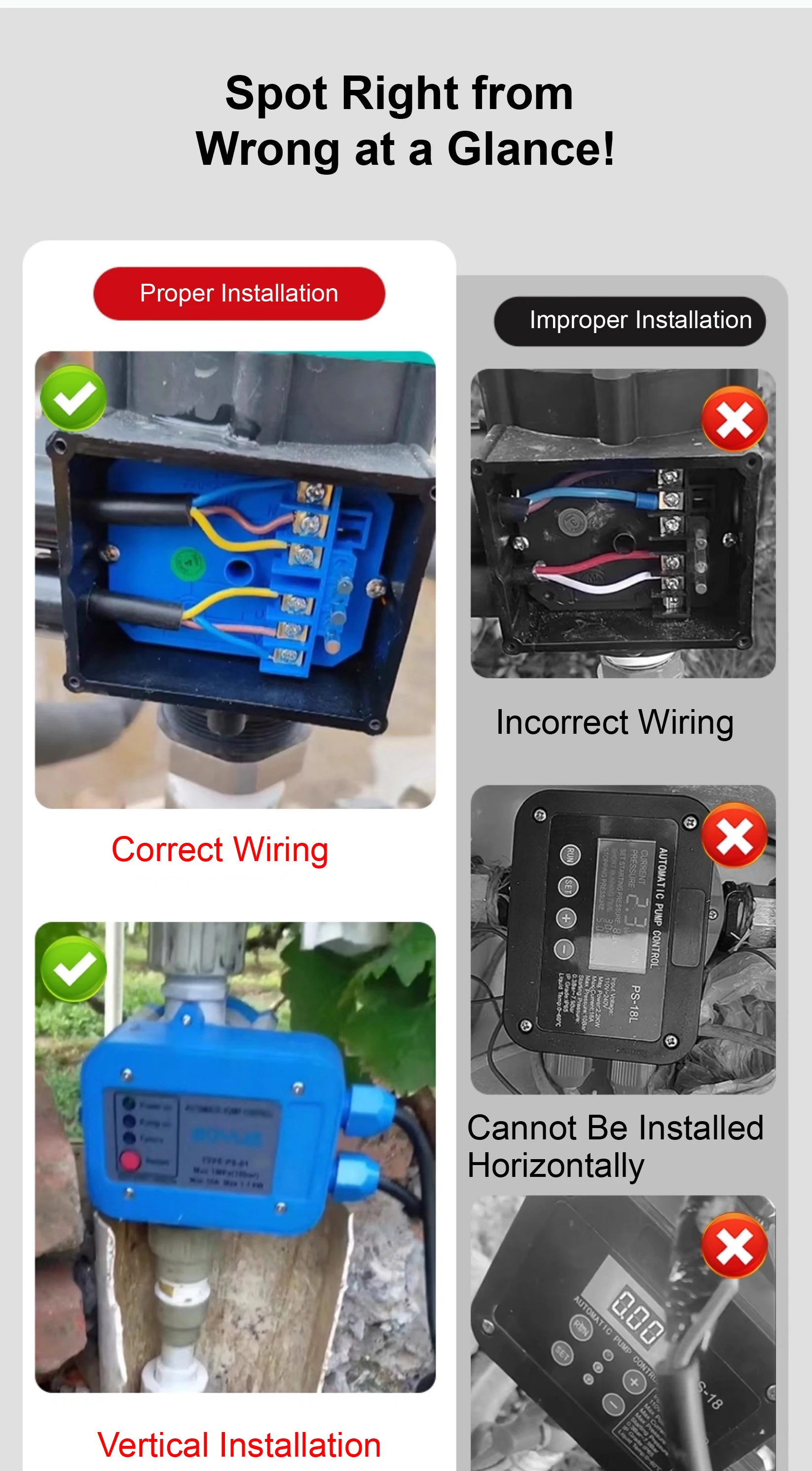

For installation, please use 0.75–1.5 mm² copper wire. If your water pump uses a two-core wire, grounding is not required.

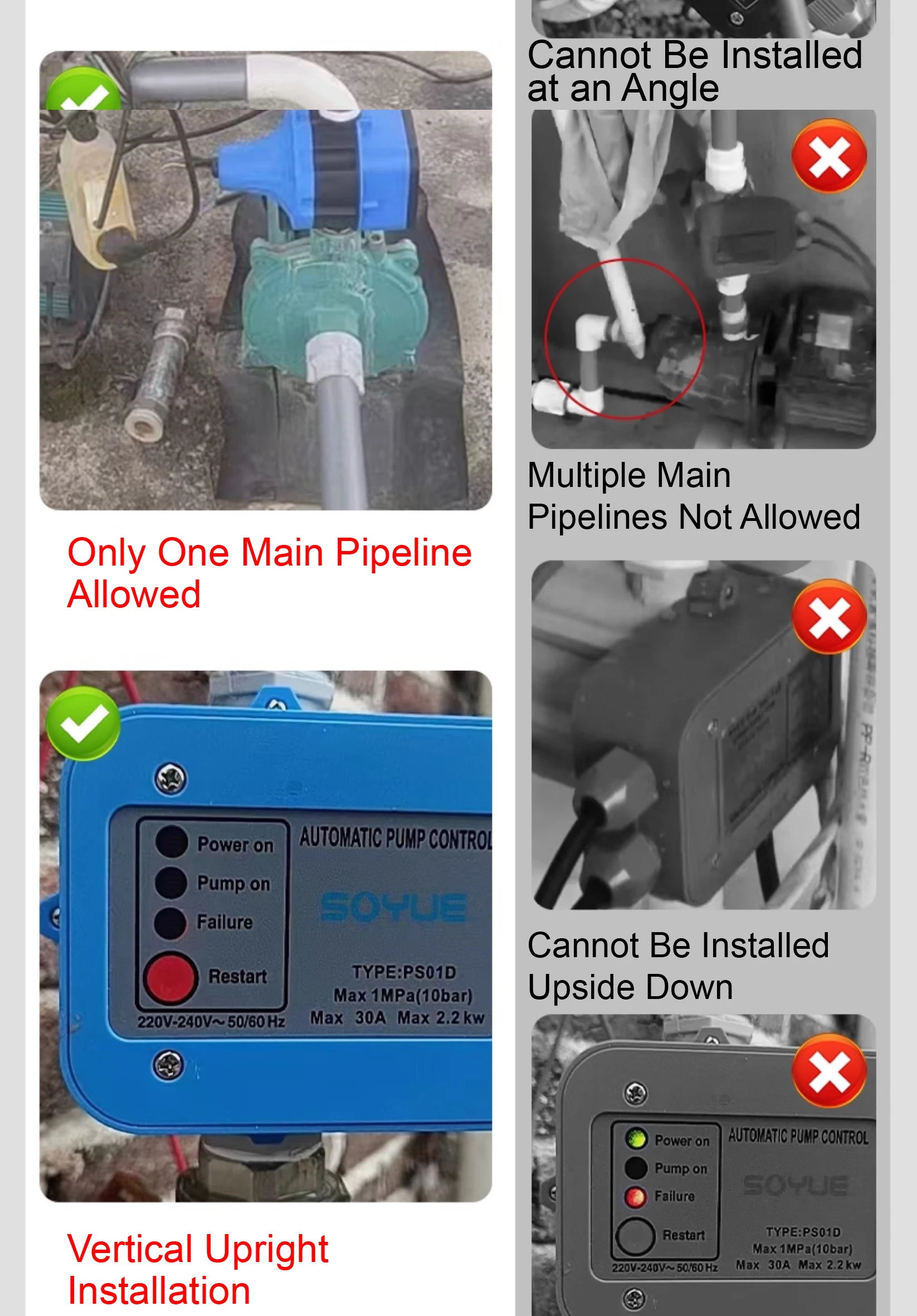

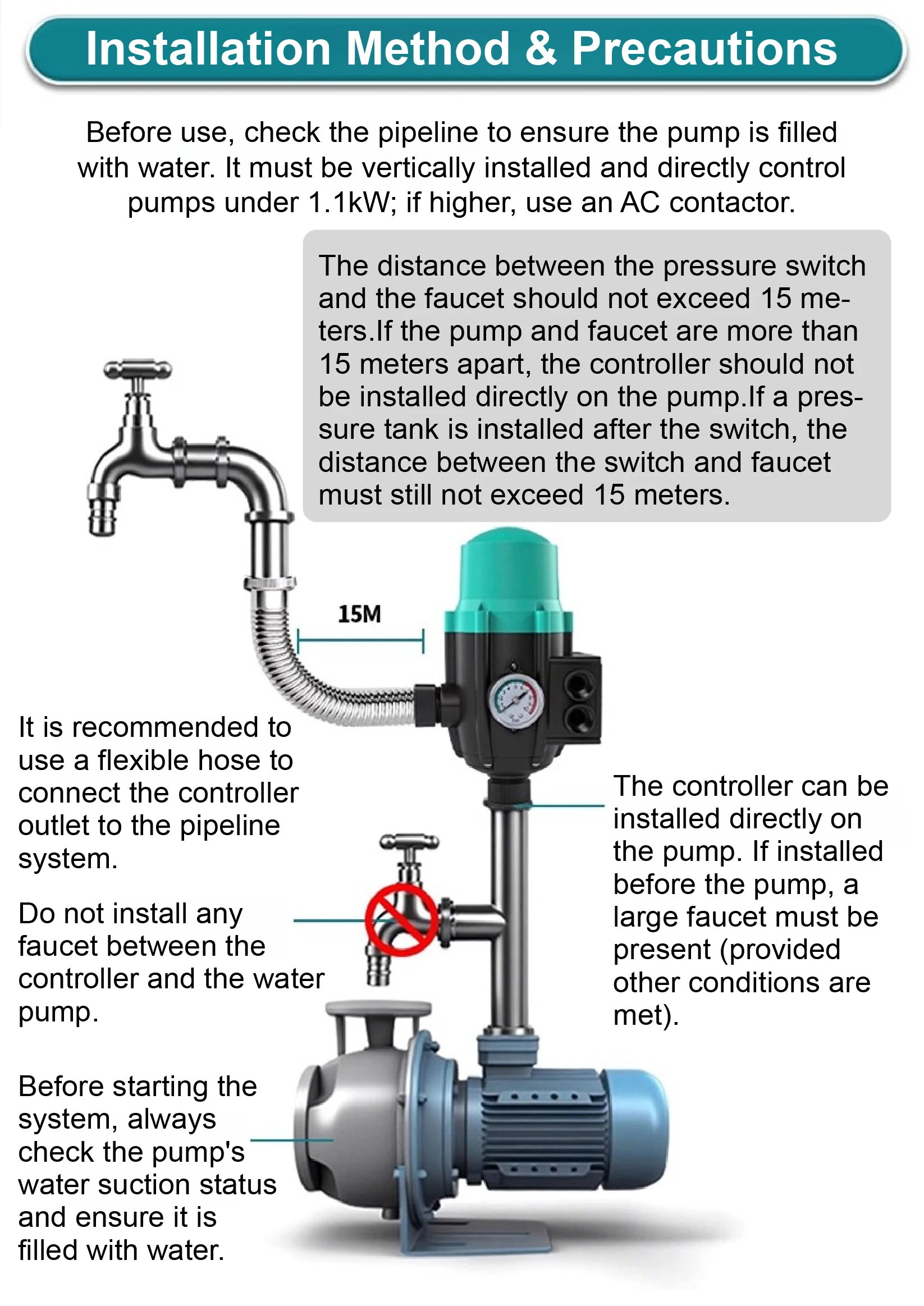

Install the controller vertically in a forward-facing position with a single main pipeline.

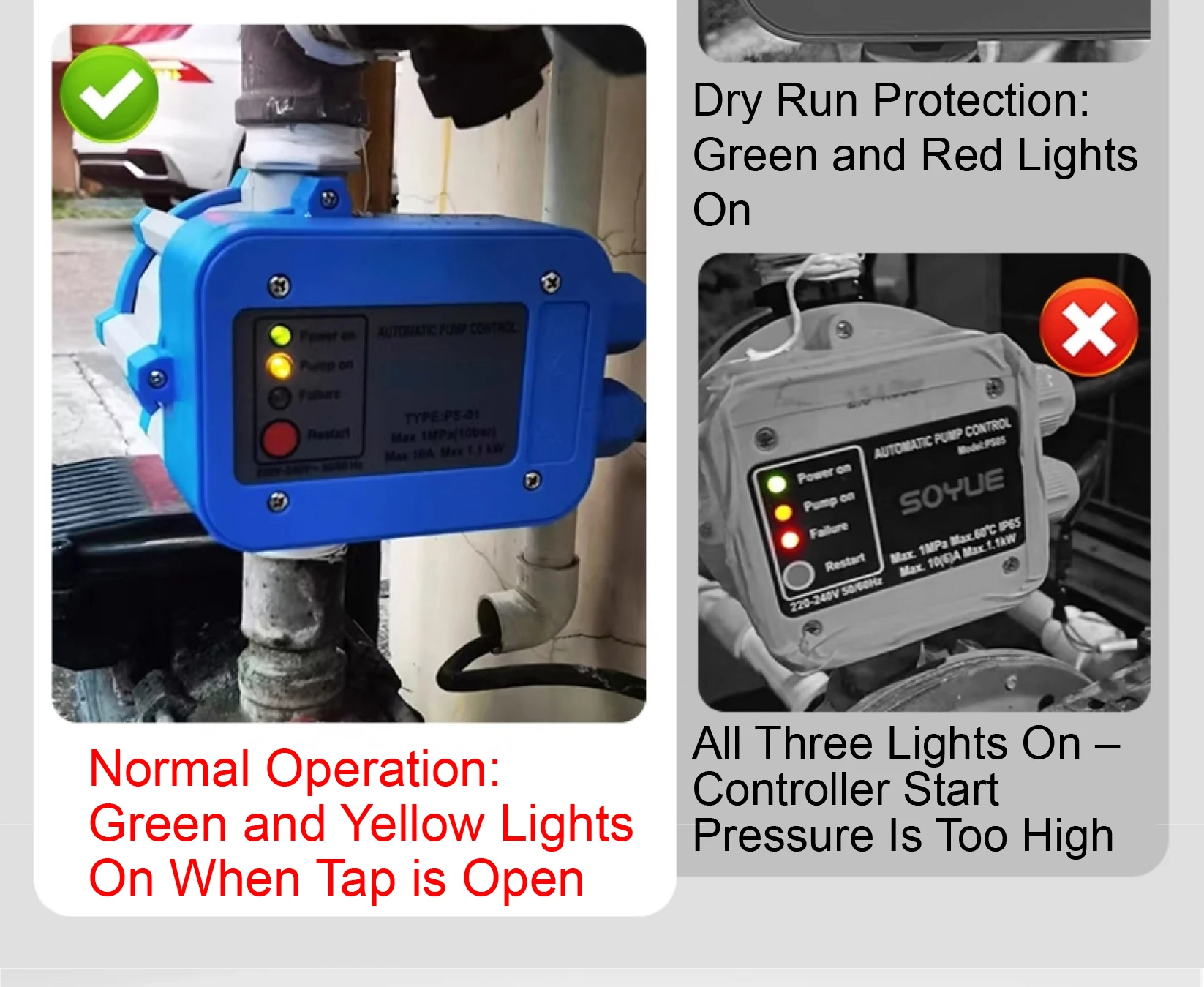

During normal operation, both the green and yellow indicator lights will turn on when the faucet is opened.

Due to limited display space, not all specifications are listed. If you need custom configurations or have special requirements, please contact us directly.

2. Parameters

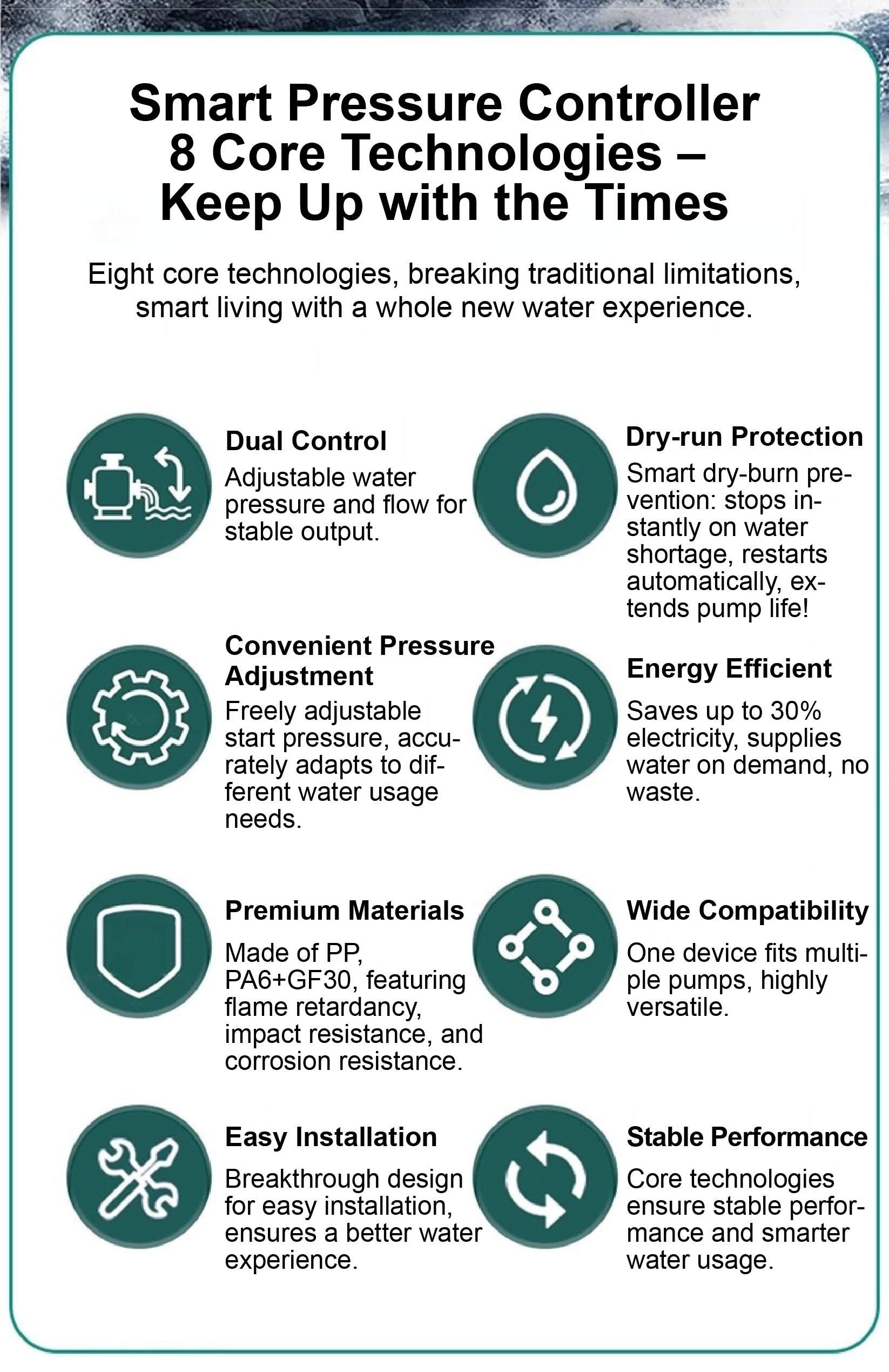

Features

Stable Water Flow Output
Dual pressure and flow regulation ensures a smooth and stable water supply without sudden pressure fluctuations or water hammer effects.

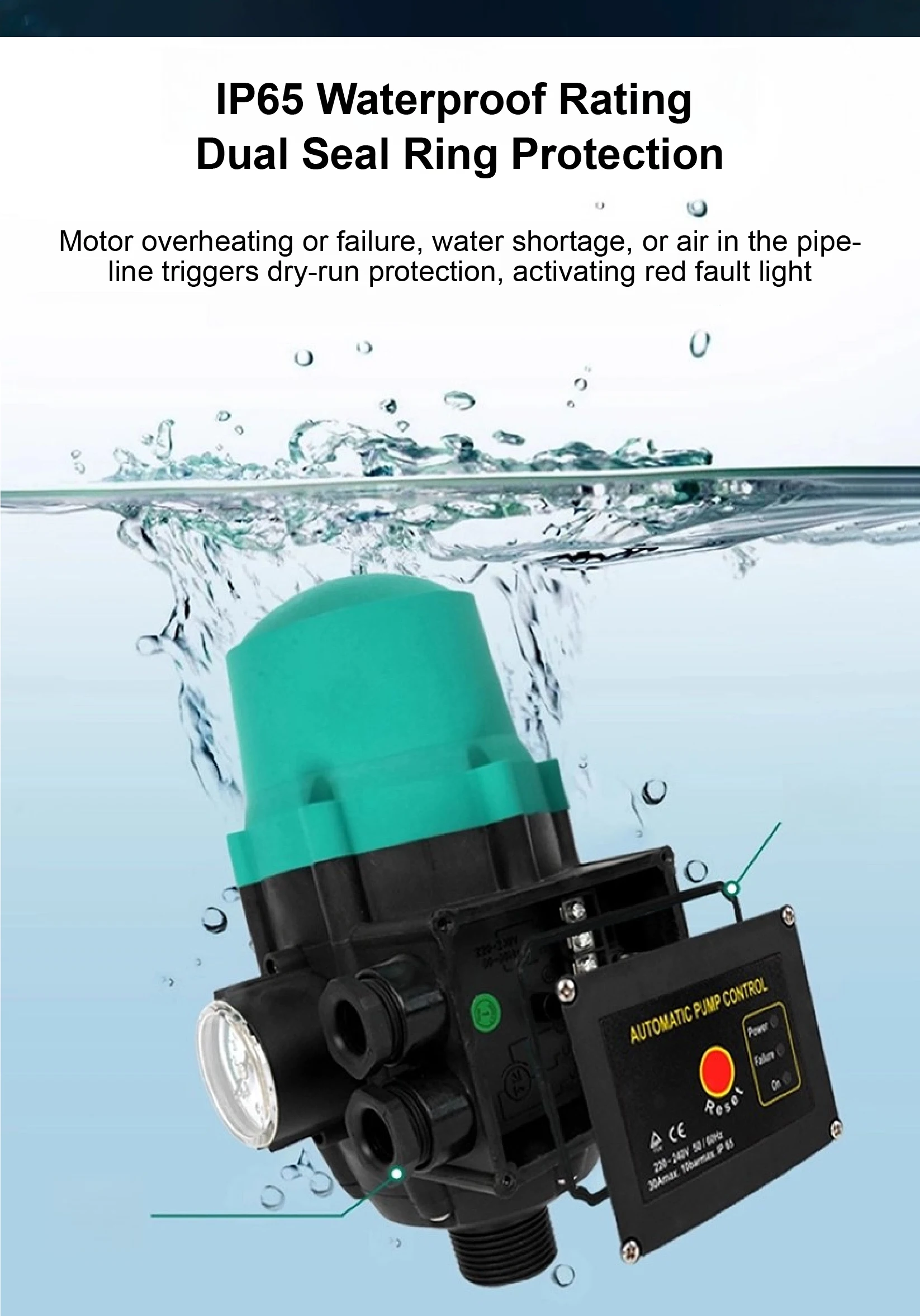

Dry-Run Protection
Automatically stops the pump when water supply is insufficient, helping prevent overheating and extending pump lifespan.

Adjustable Start Pressure
The start pressure can be accurately adjusted through the top-mounted screw, allowing flexible control for different water usage needs.

Energy-Efficient Operation
The intelligent control system supplies water only when needed, reducing unnecessary power consumption and saving up to 30% energy.

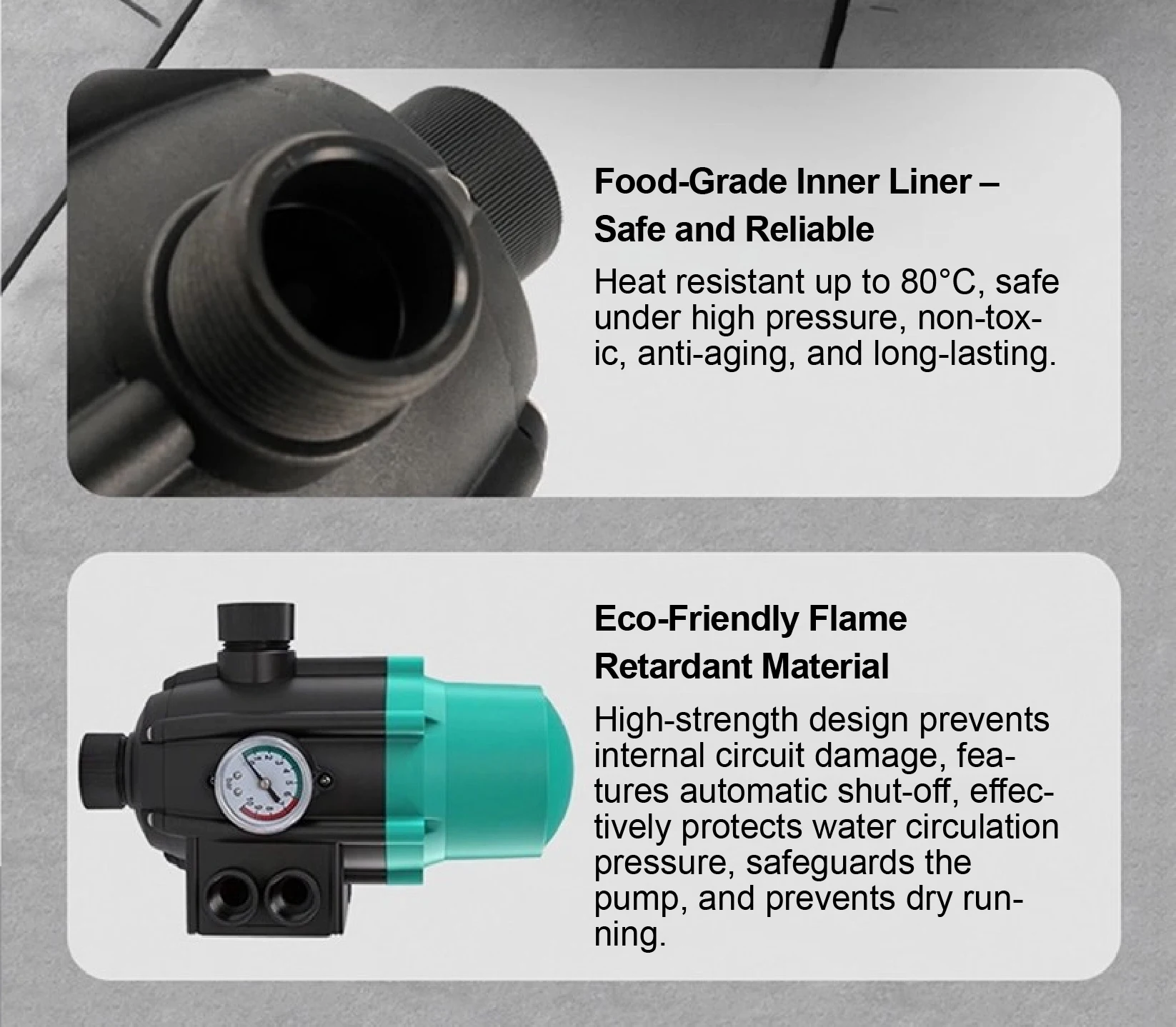

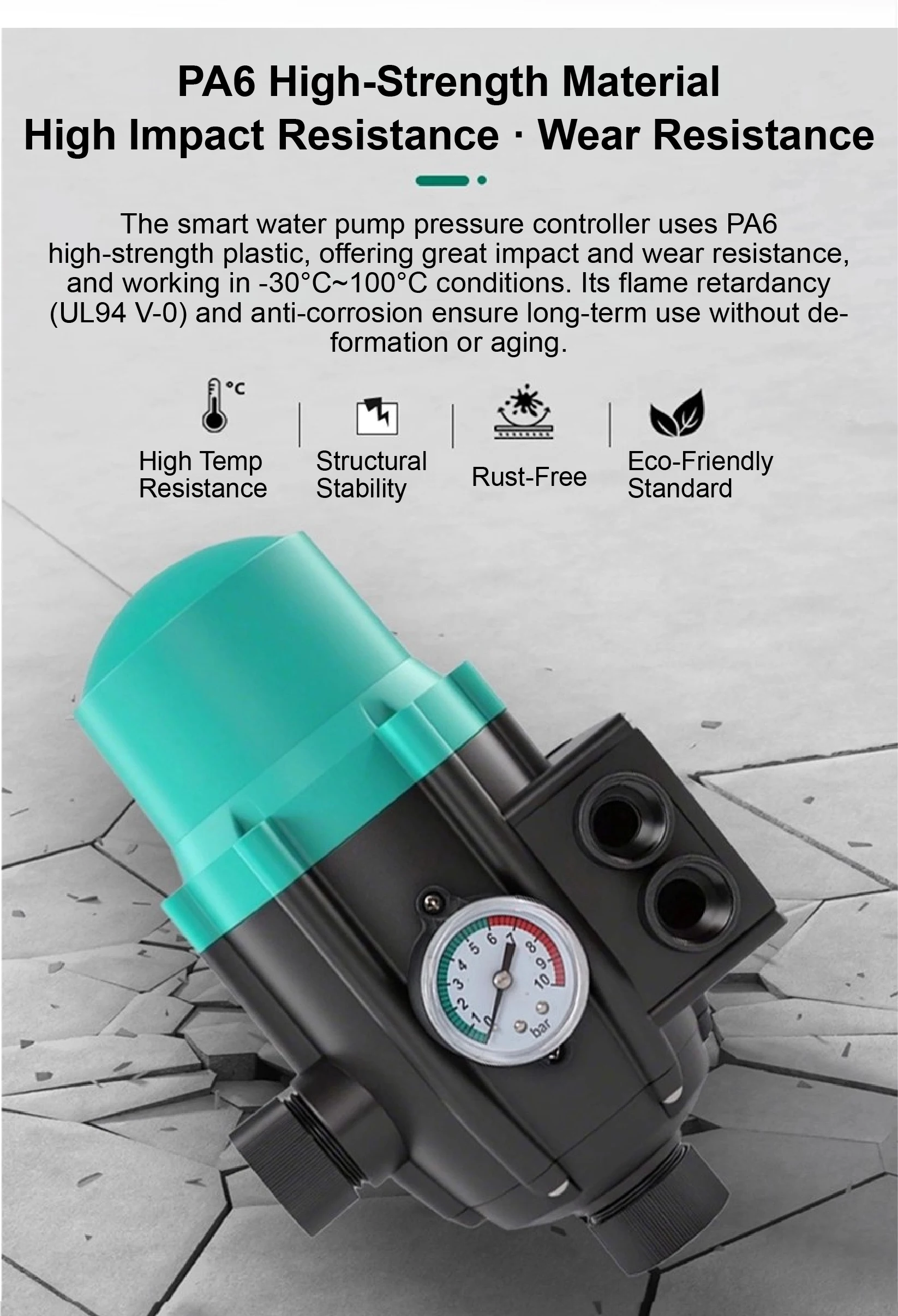

Durable Construction Materials
Made from high-quality PA6+GF30 and PP engineering plastics for excellent heat resistance, impact resistance, and corrosion protection.

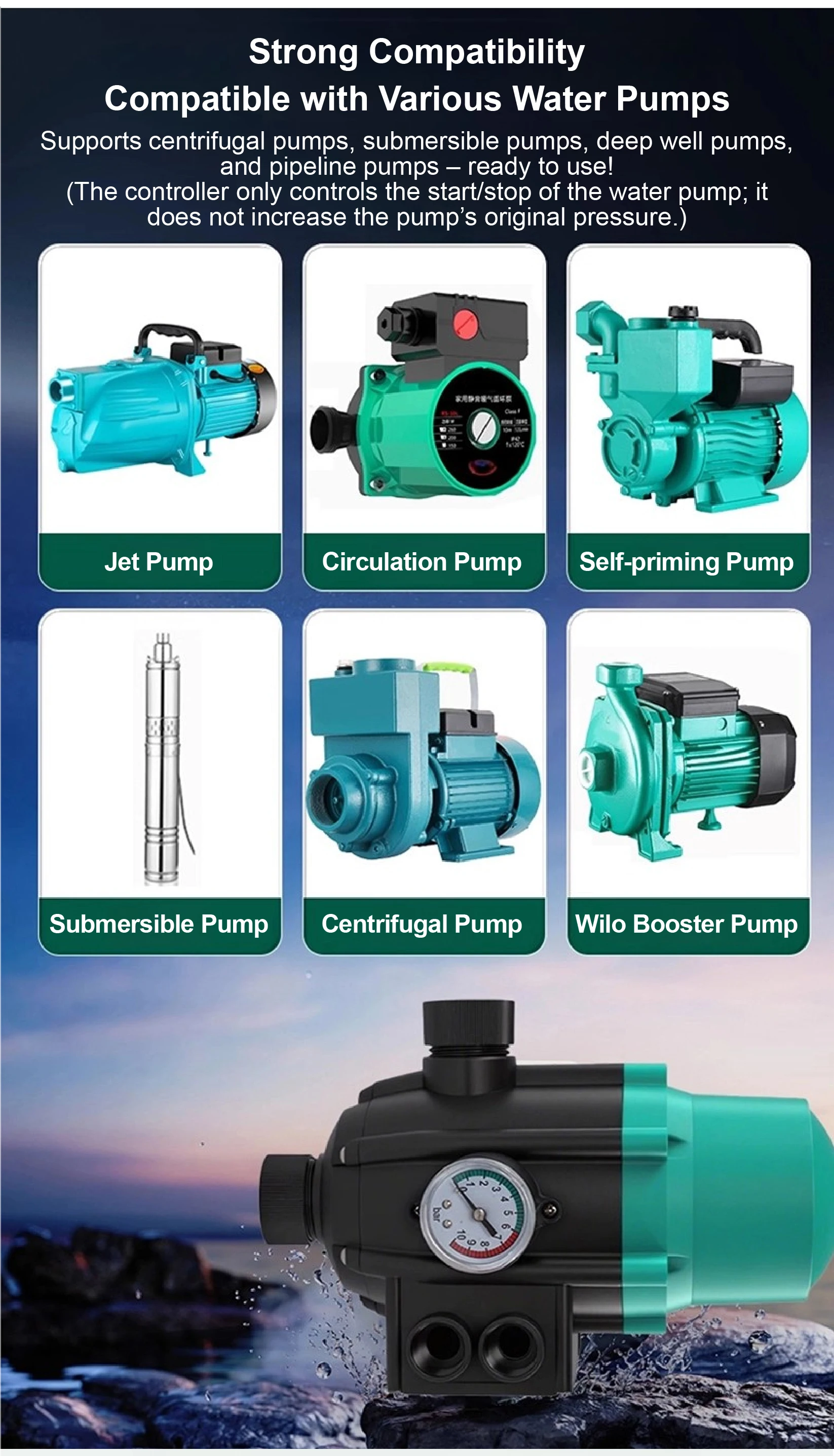

Wide Pump Compatibility
Compatible with centrifugal pumps, submersible pumps, deep-well pumps, and pipeline pumps.
Note: The controller does not increase the actual pressure of the pump.

High-Precision Control Circuit
Built with an industrial-grade PCB for precise pressure control with ±0.1 Bar accuracy and a rapid 0.1-second response time. The integrated chip also improves resistance to moisture and electrical interference.

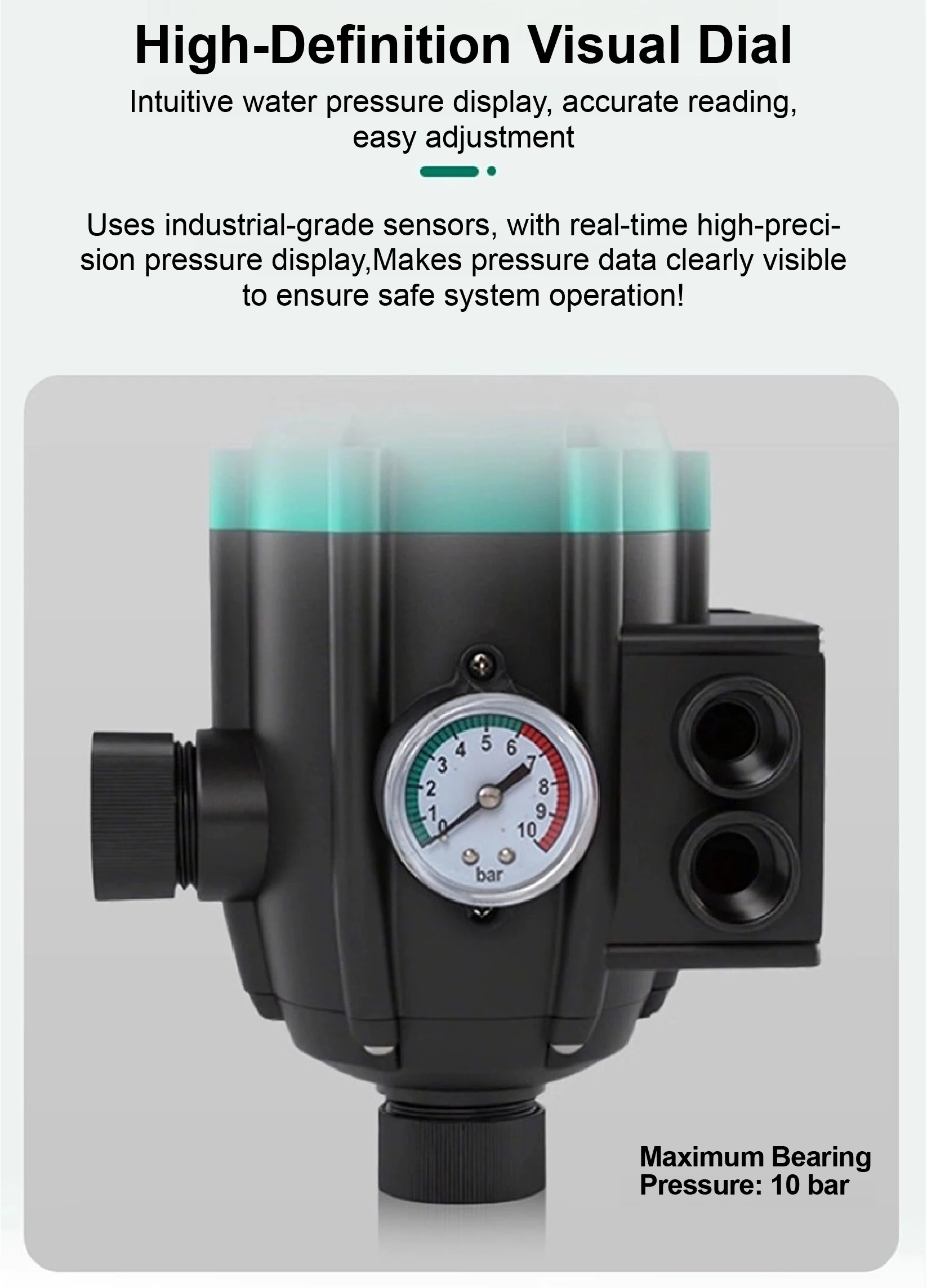

Clear Pressure Gauge Display
Equipped with a high-precision pressure gauge for real-time pressure monitoring and easy adjustment.

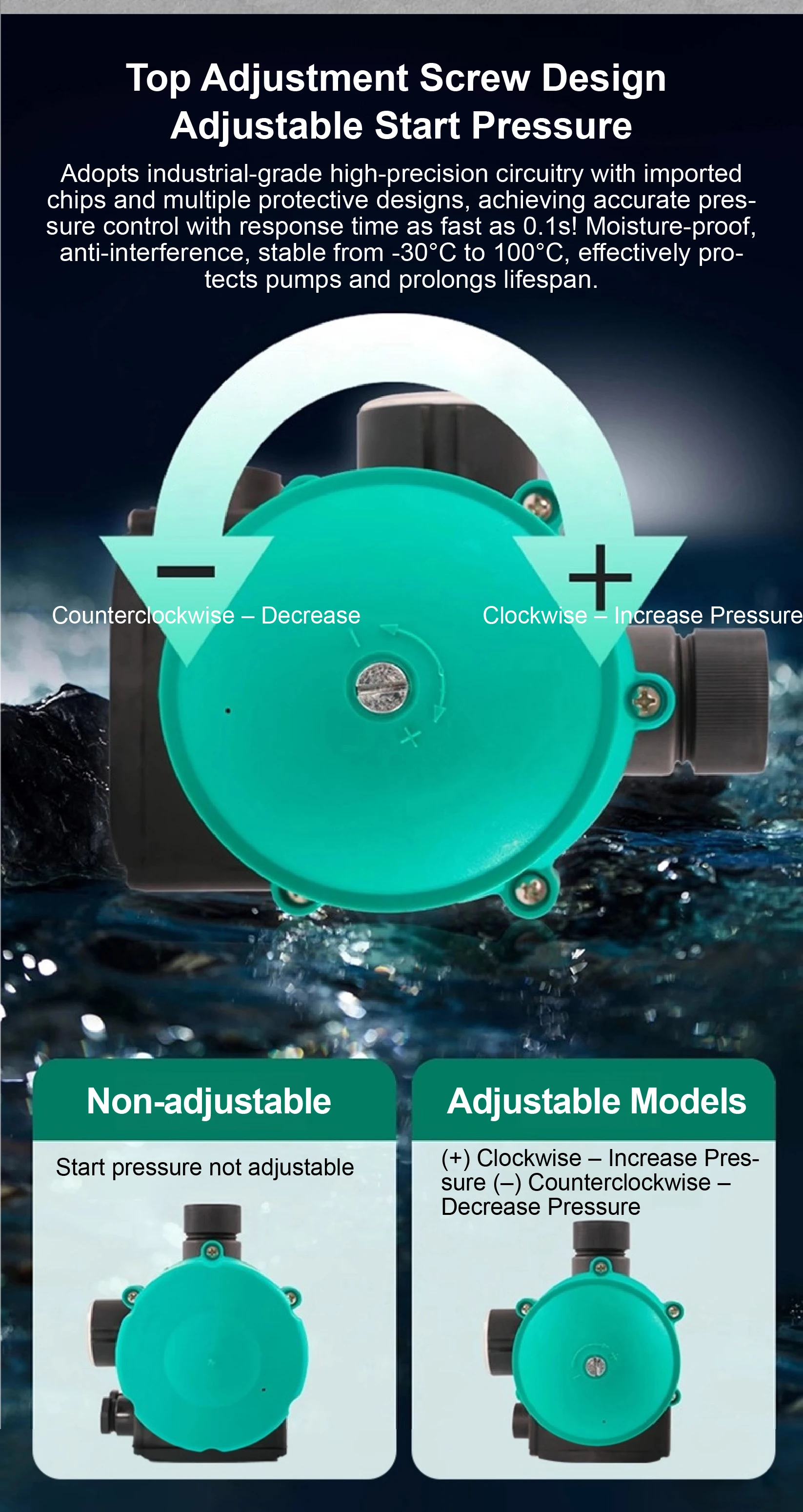

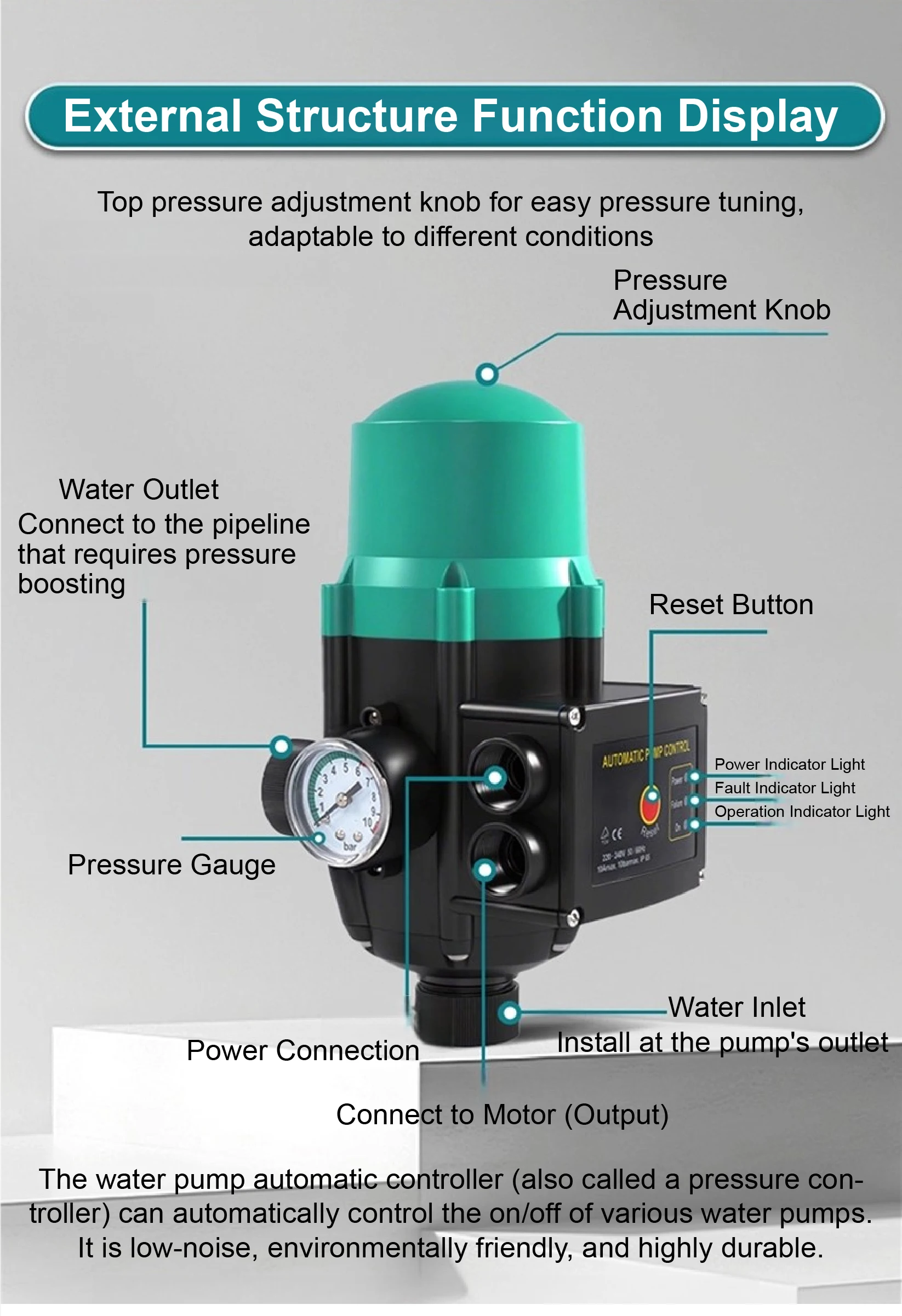

Top-Mounted Adjustment Screw
Convenient top-access adjustment design allows quick and simple fine-tuning of the start pressure.

Applications

Suitable for residential water supply systems, agricultural irrigation, industrial water systems, and various applications using centrifugal pumps, submersible pumps, deep-well pumps, or pipeline pumps.

FAQs

Q1: Can this controller increase the pressure of my water pump?
A1: No. This controller is designed to automatically control the pump’s start and stop functions based on pressure levels. It does not increase the original pressure output of the water pump.

Q2: What types of water pumps is it compatible with?
A2: The controller is compatible with centrifugal pumps, submersible pumps, deep-well pumps, and pipeline pumps.

Q3: Is the start pressure adjustable?
A3: Yes. The start pressure can be easily adjusted using the top-mounted adjustment screw. Multiple pressure ranges are available to meet different installation and usage requirements.
