Product Description

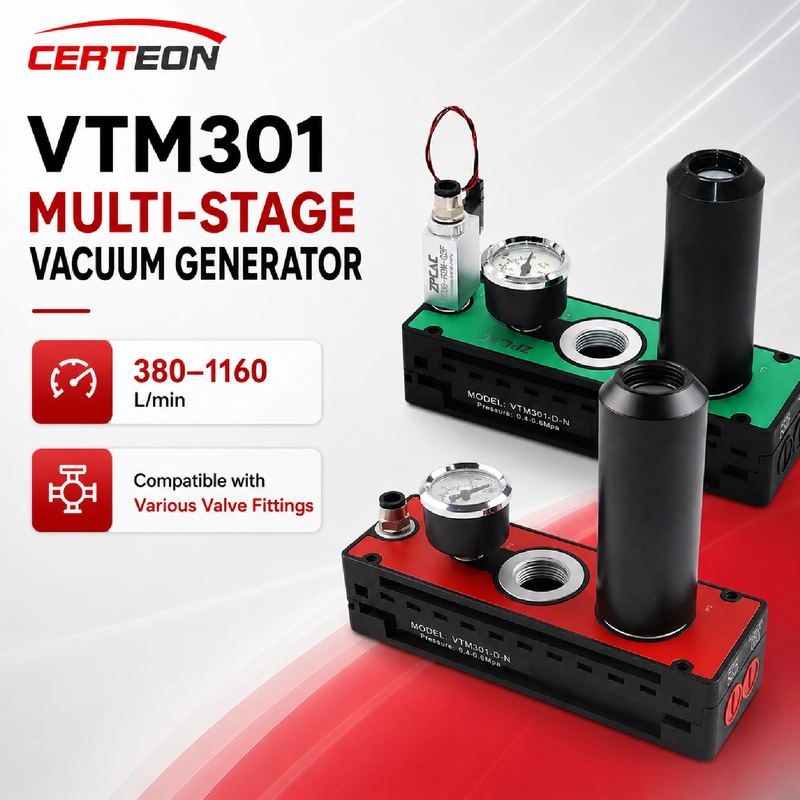

VTM301 Multi Stage Vacuum Generator 380-1160L/min High Vacuum Pneumatic Vacuum Pump for Suction Cup Handling
VTM301 Multi Stage Vacuum Generator 380-1160L/min High Vacuum Pneumatic Vacuum Pump for Suction Cup Handling1.NOTE
VTM301-D-N:
Air Consumption: 120–160 L/min
Maximum Vacuum Flow: 380 L/min
VTM302-D-N:
Air Consumption: 220–320 L/min
Maximum Vacuum Flow: 620 L/min
VTM303-D-N:
Air Consumption: 320–460 L/min
Maximum Vacuum Flow: 860 L/min
VTM304-D-N:
Air Consumption: 420–560 L/min
Maximum Vacuum Flow: 990 L/min
VTM305-D-N:
Air Consumption: 560–805 L/min
Maximum Vacuum Flow: 1080 L/min
VTM306-D-N:
Air Consumption: 660–940 L/min
Maximum Vacuum Flow: 1160 L/min
Multiple Configuration Options
This series is compatible with vacuum filters and can be equipped with a digital vacuum gauge, built-in check valve, 1/4" control valve, vacuum release valve, and air supply valve.
Due to page space limitations, some available configurations may not be fully displayed. For customized options or specific requirements, please contact our customer service team.
2. Parameters
Model | Optimal Air Pressure (bar) | Max Vacuum Degree (-kPa) | Max Vacuum Flow Rate (L/min) | Air Consumption (L/min) | Hose Inner Diameter (≤2m) |
VTM301 | 4~6 | 94 | 380 | 120~160 | Air Supply: Φ4 |
VTM302 | 4~6 | 94 | 620 | 220~320 | Air Supply: Φ6 |
VTM303 | 4~6 | 94 | 860 | 320~460 | Air Supply: Φ8 |
VTM304 | 4~6 | 94 | 980 | 440~600 | Air Supply: Φ8 |
VTM305 | 4~6 | 94 | 1080 | 560~805 | Air Supply: Φ10 |
VTM306 | 4~6 | 94 | 1160 | 660~940 | Air Supply: Φ10 |
3. Features
Digital Vacuum Gauge
Displays the vacuum level in real time, allowing for accurate monitoring and efficient control during operation.
Built-in Check Valve
Prevents backflow to help protect the vacuum system and connected components.
1/4" Control Valve
Standard 1/4" size, compatible with a wide range of vacuum setups and industrial systems.
Vacuum Breaker with Air Supply Valve
Allows quick vacuum release and air replenishment, helping improve operating efficiency and reduce downtime.
Vacuum Filter Compatible
Can be used with vacuum filters to support cleaner, dust-free operation and better system protection.
4. Applications
Laboratory vacuum systems
Industrial automation equipment and robotic arms
Vacuum packaging machines
Semiconductor and electronic component handling
Dust-free filtration systems and material transfer equipment
5. FAQs
Q1: Can this unit be used with all vacuum pumps?
A1: Yes. It is compatible with most standard vacuum pumps equipped with 1/4-inch connections.
Q2: Is the vacuum gauge easy to calibrate?
A2: Yes. The digital display supports quick calibration and reset, making operation simple and efficient.
Q3: Can it run continuously?
A3: Yes. It is designed to provide stable, continuous vacuum control for industrial applications.
