Product Description

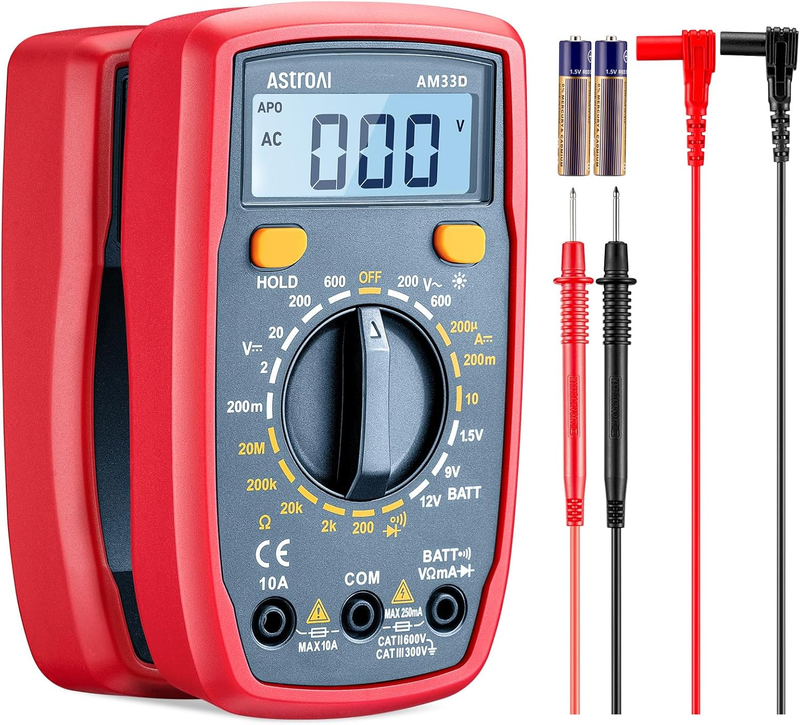

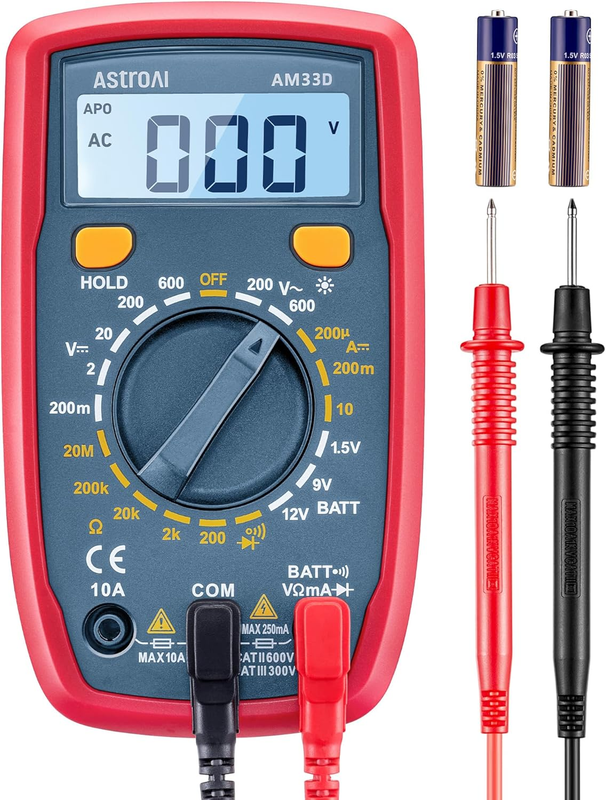

AstroAl Digital Multimeter 2000, Multimeter Tester with Volt Amp Ohm, Multi Meter Measures Voltage, Current, Resistance, Continuity and Diode, Electrical Tester with Test Leads, Backlight LCD Display
- 【VERSATILE DIGITAL MULTIMETER】Accurately measures AC/DC Voltage, DC Current, Resistance, and Diode. This multimeter is a really useful tool for solving industrial and household electrical issues. Suitable for household outlets, fuses, batteries (including vehicles), automotive circuit troubleshooting, charging systems, testing electronics in Cars etc.

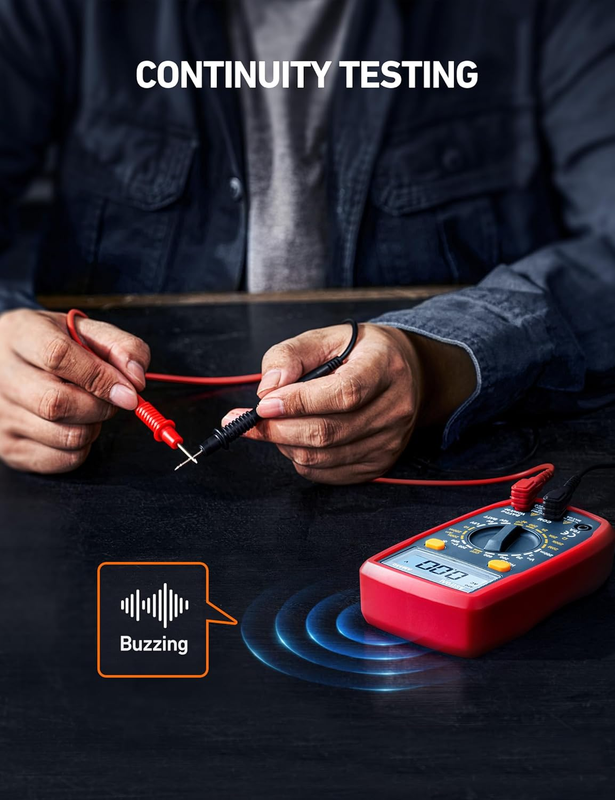

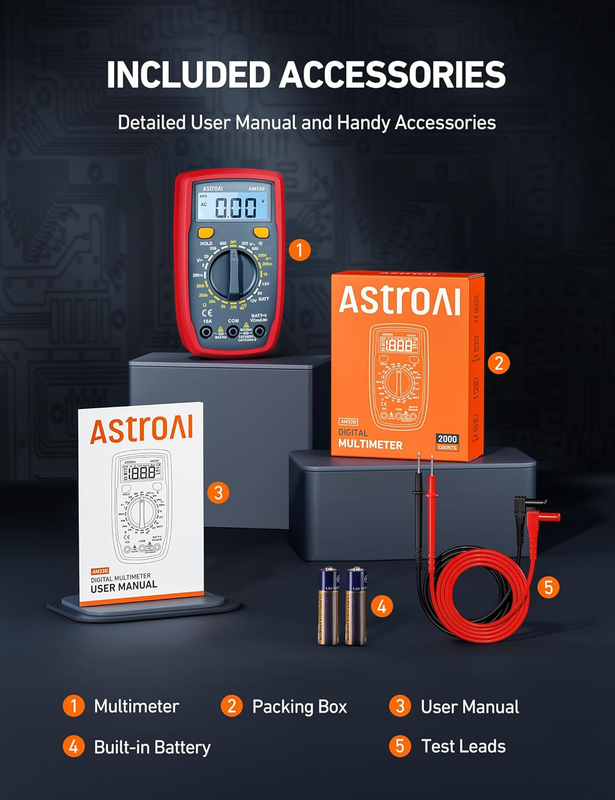

- 【EASE OF USE】Support data hold, auto shutoff and continuity buzzer. Includes convenient feature like LCD backlit screen makes it easy to use in dimly light areas. Batteries/ set of test leads/ user manual are Included.
- 【TROUBLESHOOTING WITH ACCURACY】This multimeter has a sampling speed of 2 times per second; Built-in a backlight LCD display with 3 ½ digits (1999 count) 0.6”, and high polarity including negative and positive readings.
- 【ENSURES SAFETY】Double fuse is anti-burn and protects from overloading. The silicone cover can protect the multimeter from failing damage and prevent electric shocks. And low battery indication will be displayed when battery power is low.
- 【PROFESSIONAL TECHNICAL SUPPORT TEAM】If you have any questions about the product, feel free to contact us! Our California-based support team will respond within 24 hours.
Product Description
AstroAI Digital Multimeter Series
| Customer Reviews | 4.5 out of 5 stars48,247 | 4.4 out of 5 stars4,011 | 4.6 out of 5 stars282 | 4.5 out of 5 stars9,682 | 4.4 out of 5 stars7,604 | 4.6 out of 5 stars1,288 | 4.5 out of 5 stars9,682 |
| Price | $23.99$23.99 | $25.99$25.99 | $26.99$26.99 | $32.39$32.39 | $26.99$26.99 | $50.38$50.38 | $64.99$64.99 |
| AC/DC Voltage | AC 500V / DC 500V | ✔ | AC 600V / DC 600V | AC 600V / DC 600V | AC 600V / DC 600V | AC 750V / DC 1000V | AC 750V / DC 1000V |
| AC/DC Current | Only DC Current | ✔ | ✘ | Only AC Current | ✔ | ✔ | 1000 A AC/DC |
| Range Selection | Manual | ✔ | Smart Auto | Manual and Auto | Manual and Auto | Manual and Smart Auto | Manual and Auto |
| Maximum Display | 2000 Counts | ✔ | 4000 Counts | 2000 Counts | 4000 Counts | 10000 Counts | 6000 Counts |
| Resistance/Continuity | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Diode | ✔ | ✔ | ✘ | ✔ | ✔ | ✔ | ✔ |
| Capacitance/Frequency | ✘ | ✔ | ✘ | Only Capacitance | Only Capacitance | ✔ | ✔ |
| Temperature | ✘ | ✔ | ✘ | ✘ | ✘ | ✔ | ✔ |
| True RMS | ✘ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| NCV Detection | ✘ | ✘ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Inrush | ✘ | ✔ | ✘ | ✘ | ✘ | ✘ | ✔ |
Specifications
| Max Display | LCD 3 ½ digits (1999 count) 0.6” high |
| LCD Size | 49 x 17mm |
| Sampling Speed | 2 times per second |
| Operating Environment | 32~104 ºF; 0~40 ºC, at <80%RH |
| Storage Environment | 14~122 ºF; -10~50 ºC, at <85%RH |
| Power | 1 x 9V Battery NEDA 1604/6F22/006P |
| Product Size | 130 x 73 x 37mm |
| Product Net Weight | 145g (including battery) |
| DC Voltage | 200mV ±(0.5%+3); 2000mV/20V/200V± (0.8%+2); 500V ±(0.8%+3) |
| AC Voltage | 200V/500V ±(2.0%+10) |
| DC Current | 2000μA/20mA/200mA ± (2.0%+5); 10A ± (2.5%+5) |
| Resistance | 200Ω±(1.5%+5); 2KΩ/20KΩ/200KΩ ±(1.0%+4); 20MΩ ± (1.0%+10); 200MΩ ±(1.0%+10) |
Why does my multimeter not show results？
1) The plugs of test leads are not fully inserted or not inserted into the correct sockets. Please refer to the manual to reinsert them.
2) Please make sure the dial is set to the correct range.
Does it work for Low voltage？
Note: This multimeter can not measure AC voltage below 100mV. It does not apply to scenarios such as body voltage.
What should I do if this item does not work?
Incorrect testing may have caused the fuse to blow. Please replace it with new fuses.
