0-10V Analog Module/3 Channel Voltage Output RS485 MODBUS RTU Communication Prot

Product Description

1.Product description

Three voltage output channel: DC0~10V

RS485 MODBUS RTU standard communication protocol

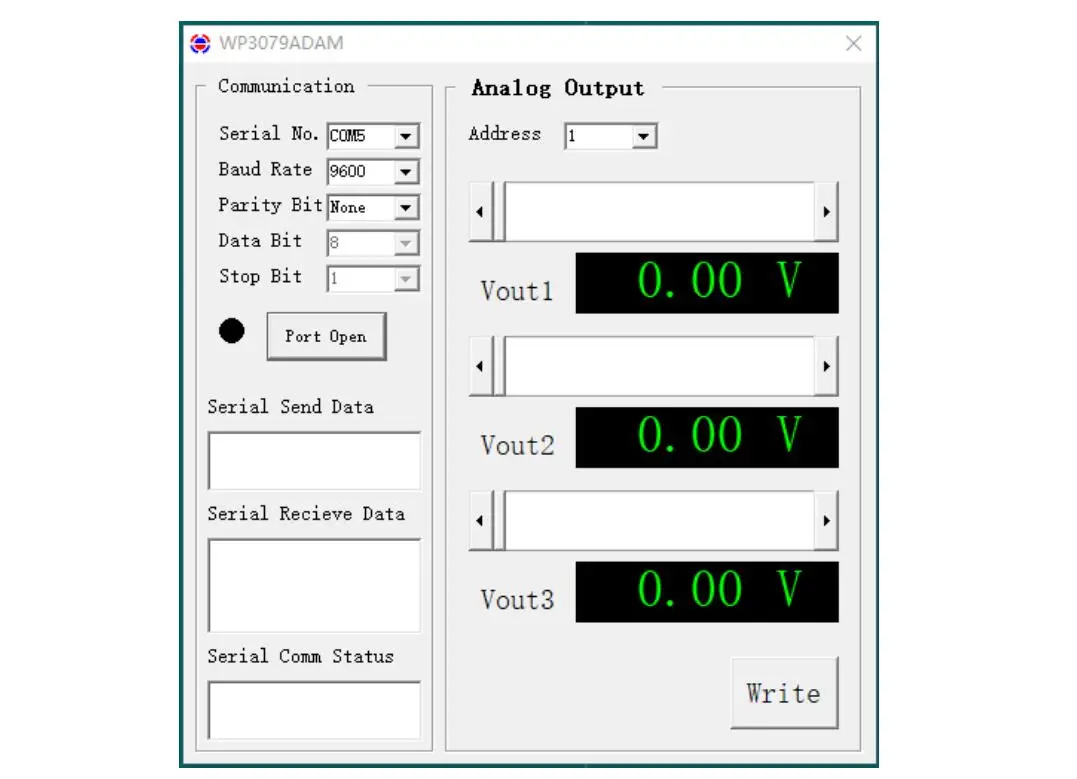

Netted with configuration software, PLC or industry touch panel

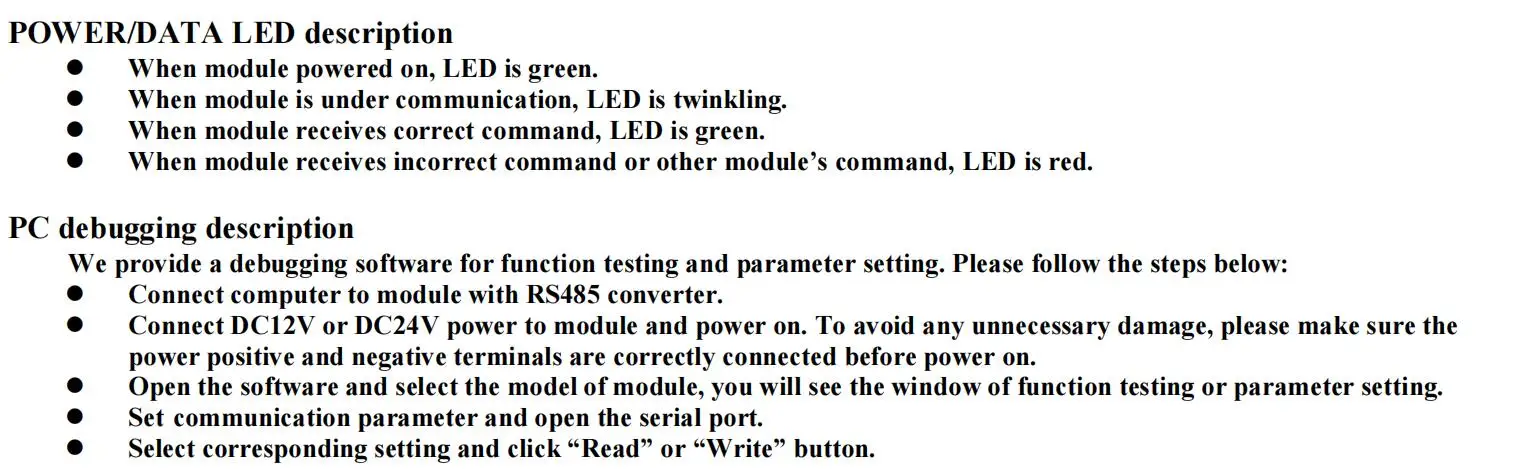

Communication status LED

Communication circuit designed for thunder protection and interference immunity

Used for signal collection and control in industrial field

2.Specification

Analog output channel 3ch

Analog output range DC0~10V

Analog output accuracy ±0.03V

Minimum output load 30KΩ

Working temperature -20~70℃

External power supply DC9V~30V/2W

Isolation protection DC1500V

Installation method Standard DIN slide rail or screw

Dimension 125×73×35mm
