JPX-6012 Optically isolated USB to rs485 422 232 interface industrial grade ligh

Product Description

Specifications:

★Standard: Comply with USBV1.0, 1.1, 2.0 standard EIA RS-232, RS-422, RS-485 standard, USB signal: vcC, DATA+, DATA-, GND

★RS-232 signal: DB-9, GND, TXD, RXDRS-422 signal: T+, T-, R+, R-

RS-485 signal: A, B

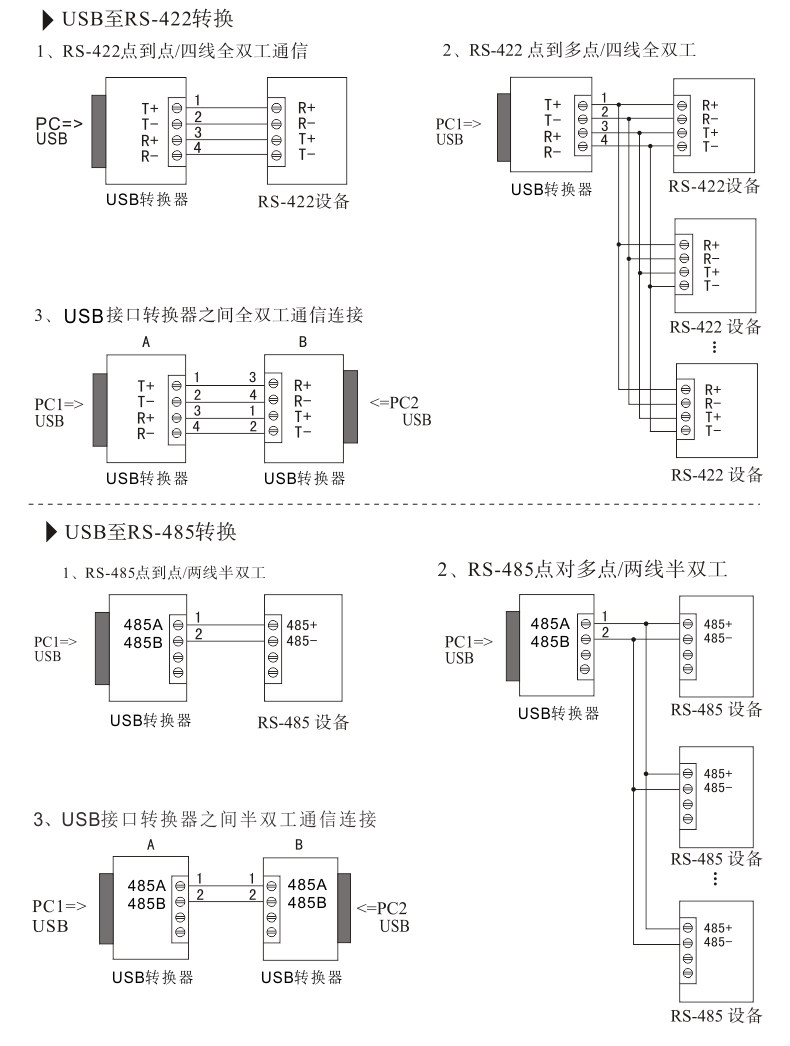

★Working mode: asynchronous work, point-to-point or point-to-multipoint, 3-wire communication, 2-wire half-duplex, 4-wire full-duplex

★Direction control: The data flow direction automatic control technology is used to automatically determine and control the data transmission direction

★Baud rate: 300-921.6Kbps, automatic detection of serial signal rate

★Load capacity: support point-to-multipoint, each converter can connect 128 RS-422 or RS-485 interfaces

equipment

★Transmission distance: USB interface does not exceed 5 meters, RS-232 interface does not exceed 15 meters, RS-422/RS-485

The interface is greater than 1200 meters

★Interface protection: surge protection, ±15KV electrostatic protection

★Interface form: USB end B-type interface female, DB9 male connector, 10-position binding post

★Signal indication: 2 signal indicators send (TXD), receive (RXD)

★Transmission medium: DB9 wire, twisted pair, shielded wire

★Dimensions: 122mm*62mm*26mm

★Using environment: -40℃ to 85℃, relative humidity is 5% to 95%

★Support all series of Win/Linux, etc.

Product overview:

The USB interface converter is designed for industrial automation communication to solve the problem of no communication serial port in modern PCs. However, many important devices in the industrial environment still use RS-232/RS-422/RS-485 interface interface design, so Many users use USB to RS-232/RS-422/RS-485 converters to realize data transmission between PC and RS-232/RS-422/RS-485 devices, which can realize long-distance serial communication. The communication interface end adopts photoelectric isolation technology, 600W lightning protection and surge protection circuit, providing 1500V isolation voltage can effectively suppress lightning and ESD protection.

Features:

★Built-in photoelectric isolator and 600W surge protection circuit

Can provide 1500V isolation voltage, can effectively suppress lightning and ESD, and can effectively prevent lightning strikes and common ground interference

★Built-in processor automatically senses the direction of channel data flow

Automatically determine the channel status, automatically switch the enable control circuit, and easily solve the problem of serial port data transceiver conversion delay

★Powered by USB interface

Built-in overload protection is safe and reliable, suitable for any host USB interface access
