Product Description

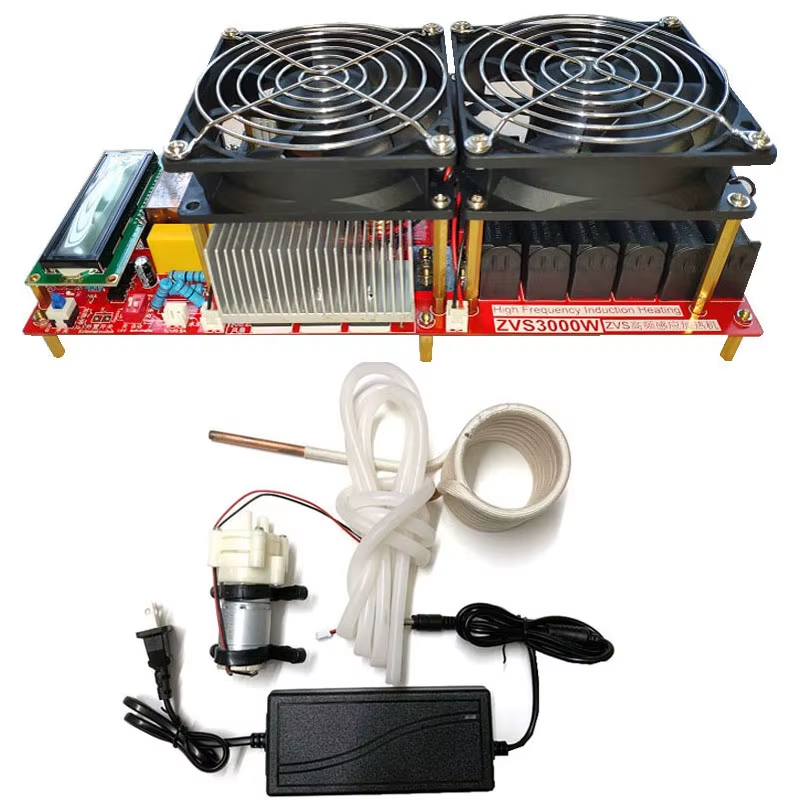

3000W 55A ZVS High Frequency Induction Heater Module Flyback Driver Heater Good Heat Dissipation + Coil +pump +power Adapter
3000W 55A ZVS High Frequency Induction Heater Module Flyback Driver Heater Good Heat Dissipation + Coil +pump +power AdapterIf you need a crucible, you can buy it at the link belowIf you need 53.5V heating power, please contact the sellerSpecification:Heating voltage: DC24---DC65V (direct current)Heating current: 0A--65A (long time 55A, short time: 55A--65A)Heating rated power: 3000W (set at 53.5V)Copper tube resonance frequency: about 60KHZ--65KHZ (measured under the default copper tubeMagnitude)Circuit board size: 270*105*100MMUndervoltage protection: protection when the power supply voltage is less than 20V (display U<20V)Over-temperature protection: protect when the heat sink temperature is higher than 65C, (display ℃>65), and return to normal when the temperature drops to 55 degreesOvercurrent protection: when the heating current is greater than 65A, or when the copper tube is short-circuited (display A>65A)Mos tube breakdown short circuit protection: yes (display MOS-XX), need to check MOS tube and replace.Anti-reverse connection of heating power access: yesPot detection function: Yes (on and off can be set manually)Whether the water pump fan is automatic: yes (can be set manually to select automatic and on)Pump circulating water consumption: short-term work of 5 to 10 pounds of water / long-term work of more than 20 pounds (water temperature is hot, you need to change the water, too high water temperature will damage the pump)Metals and materials that can be directly heated: iron, steel, stainless steel, tungsten steel, graphite crucible, etc. (Metals whose names contain iron or steel can be added directlyheat)Metals that are difficult to heat without heating are: gold, silver, copper, aluminum, tin, lead, etc. Those whose names do not contain iron and steel characters are basically difficult to induction heat or do not heat! !Direct heating metal temperature: 53.5V voltage: solid about 700 ℃ (reddish) hollow thin tube about 900C (red light)Heating graphite crucible temperature: 53.5V voltage (and cover insulation sheet) the highest: about 1600C, (the voltage is also a little lower than the temperature when the welding machine is powered by a hundred degrees: about 1500 ℃)use:Melting of metals within 1500℃ melting point, heating or quenching of steel workpieces at 100℃-900℃, DIY induction cooker, driving high voltage package, etc.
