Name: JUNTEK JDS6600: Series 15MHz-60MHz DDS Function Signal Generator CNC Dual Channe
Brand: Prime Living
SKU: H-168173356395
Price: 311.99 CAD
Availability: InStock

Product Description

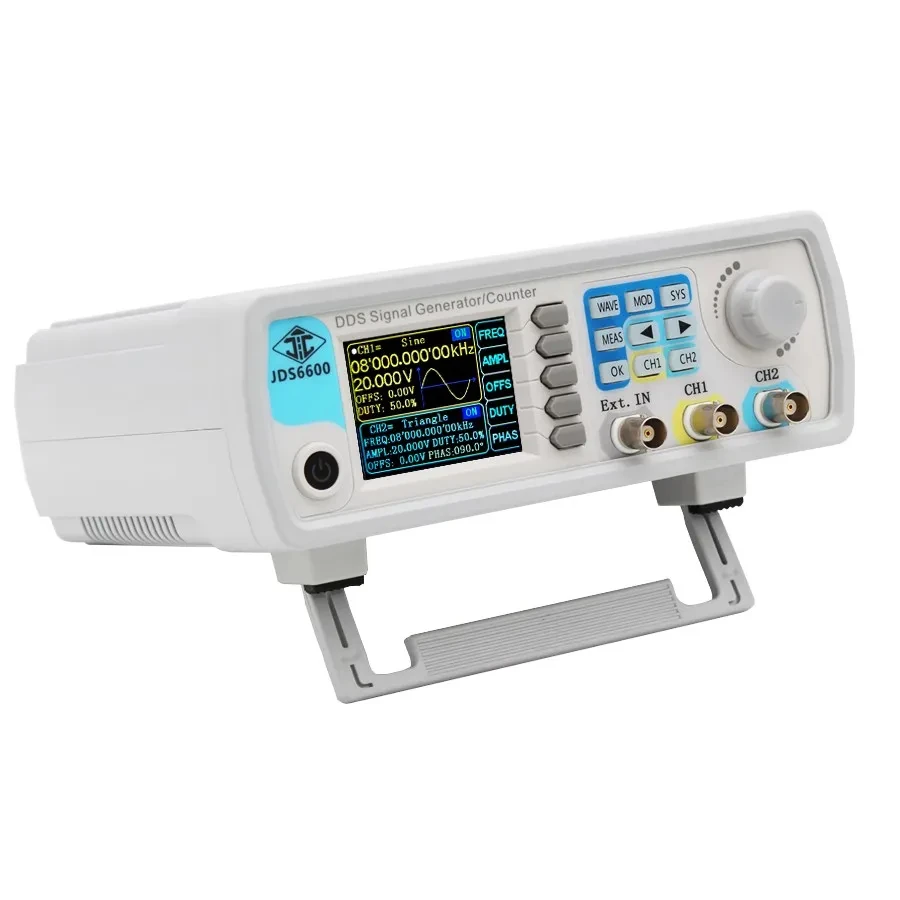

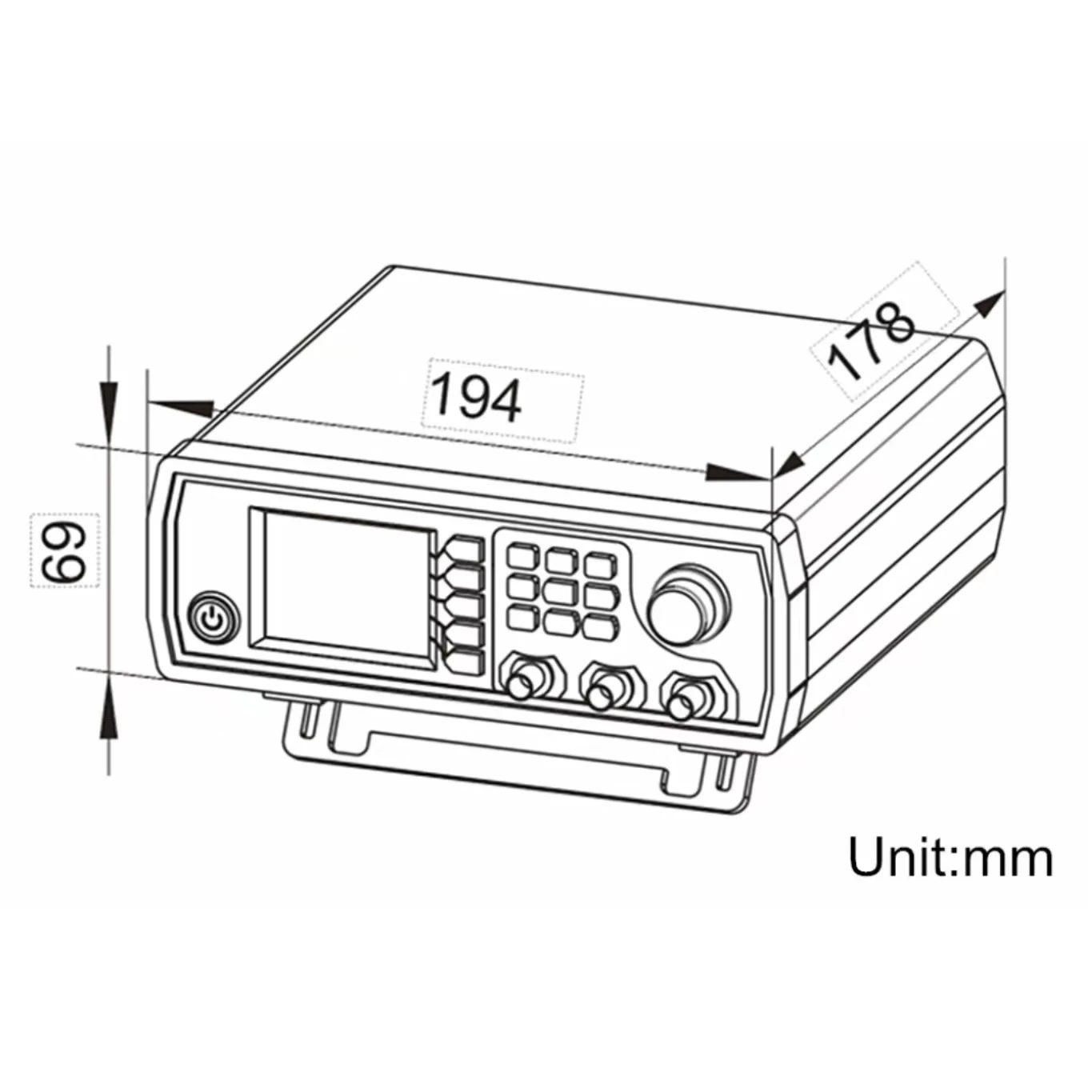

JUNTEK JDS6600: Series 15MHz-60MHz DDS Function Signal Generator CNC Dual Channel Frequency Counter Arbitrary Waveform Generator

Please make a note if you need different types of plugs. Thank you for your cooperation

Description：

JDS6600 Dual-channel Function Signal generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter, etc.
The instrument adopts the Direct Digital Synthesizer(DDS) technology and provides stable, precise, pure and low distortion signals. It's a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching.

Frequency characteristics

Model	JDS6600-15M	JDS6600-30M	JDS6600-40M	JDS6600-50M	JDS6600-60M
Sine frequency range	0~15MHz	0~30MHz	0~40MHz	0~50MHz	0~60MHz
Square frequency range	0~15MHz	0~25MHz	0~25MHz	0~25MHz	0~25MHz
Triangle frequency range	0~15MHz	0~25MHz	0~25MHz	0~25MHz	0~25MHz
Pulse frequency range	0~6MHz	0~6MHz	0~6MHz	0~6MHz	0~6MHz
TTL digital frequency range	0~6MHz	0~6MHz	0~6MHz	0~6MHz	0~6MHz
Arbitrary wave frequency range	0~6MHz	0~6MHz	0~6MHz	0~6MHz	0~6MHz
Pulse width adjustment range	100nS - 4000S	50nS - 4000S	40nS - 4000S	30nS - 4000S	25nS - 4000S
Square wave rise time	≤25nS	≤15nS	≤10nS	≤10nS	≤10nS
Minimum frequency resolution	0.01uHz(0.00000001Hz)
Frequency accuracy	±20 ppm
Frequency stability	±1 ppm/3h
Waveform specifications
Waveform types	Sine, square, triangle, pulse (duty-cycle correction, pulse width and cycle time adjustable), arbitrary wave, CMOS, DC level, half-wave, full-wave, pos-ladder, neg-Ladder, noise, exponential rise, exponential fall, tone, cink pulse, lorentz pulse, and 60 kinds user-defined waveforms.
Waveform length	2048 points
Waveform sampling rate	266 MSa/s
Waveform vertical resolution	14 bits
Sine wave	Harmonic suppression	≥45dBc(<1 MHz); ≥40dBc(1 MHz~20 MHz)
	Total harmonic distortion	<0.8%(20 Hz~20 kHz,0dBm)
Square and Pulse wave	Overshoot (Square)	≤5%
Pulse and Partial sine wave	Duty-cycle adjustment range	0.1 - 99.9%
Sawtooth wave	Linearity	≥98%(0.01 Hz~10 kHz)
Output specifications
Sine wave amplitude range	Frequency ≤ 10MHz	10MHz ≤ Frequency ≤ 30MHz	30MHz ≤ Frequency
	2mVpp~20Vpp	2mVpp~10Vpp	2mVpp~5Vpp
Square wave,Triangle wave amplitude range	Frequency ≤ 10MHz	10MHz ≤ Frequency ≤ 25MHz
	2mVpp~20Vpp	2mVpp~5Vpp
Amplitude resolution	1 mV
Amplitude stability	±0.5%/5 h
Amplitude flatness	±5%(<10 MHz); ±10%(>10 MHz)
Waveform output
Output impedance	50Ω±10%(typical)
Protection	All signal outputs can work within 60s when the load is short-circuited
DC offset
Offset adjusting range	Output Amplitude>2V	0.2V	0＜Output amplitude≤0.2V
	-9.99V~9.99V	-2.5V~2.5V	-0.25V~0.25V
Offset resolution	0.01 V
Phase specifications
Phase adjusting range	0 ~ 359.9°
Phase resolution	0.1°
TTL/COMS Output
Low level	<0.3 V
High level	1 - 10 V
Level rise/fall time	≤20ns
External measurement function
Frequency meter function	Frequency measurement range	1 Hz~100 MHz
	Measurement accuracy	Gate time continuously adjusted between 0.01S~10s
Counter function	Counting range	0-4294967295
	Coupled mode	2 Coupling modes, DC and AC
	Counting method	Manual operation
Input signal voltage range	2 – 20 Vpp
Pulse width measurement	0.01us (resolution), 20s (MAX measuring time)
Period measurement	0.01us (resolution), 20s (MAX measuring time)
Sweep function
Sweep channel	CH1 or CH2
Sweep type	Linear sweep, logarithmic sweep
Sweep time	0.1s~999.9s
Setting range	Arbitrarily set between start point and stop points
Sweep direction	Forward, backward and round trip
Bursting function
Number of pulses	1-1048575
Burst mode	Manual burst, CH2 burst, external burst (AC), external burst (DC)
General technical parameters
Display type	Display type	2.4 inch TFT color LCD
Storage and load	Quantity	100 groups
	Position	00 to 99(extract 00 place data at default boost state)
Arbitrary wave	Quantity	1 to 60, totally 60 groups (default boost 15 groups)

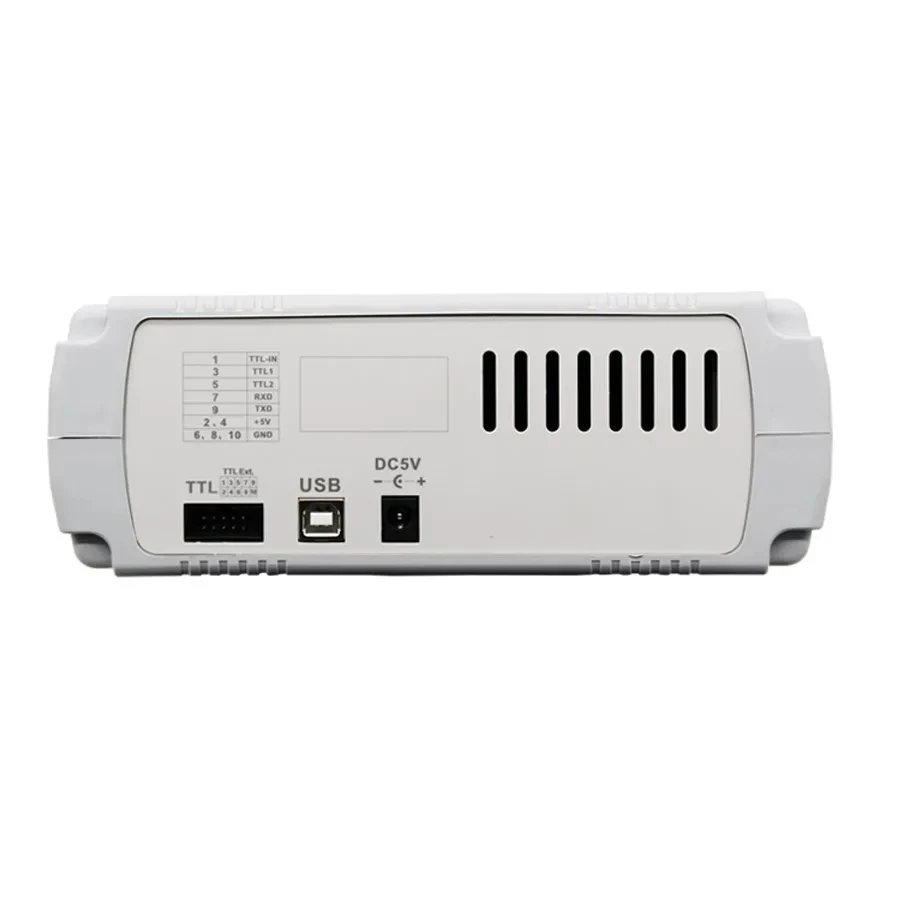

Interface	Interface mode	USB to serial interface
	Extension interface	With TTL level mode serial interface for user secondary development
	Communication speed	Adopt standard 115200 bps
	Protocol	Using the command line,the protocol is made public
Power supply	Voltage range	DC 5 V±0.5 V
Manufacturing process	Surface-mount technology, large scale integrated circuit, high reliability, long service life
Prompt tone	Users can turn on or off by setting program
Operating characteristics	All key operations,knob continuous adjustment
Environmental	Temperatire: 0~40℃; Humidity: ＜80%

Feature：

1. 320*240 2.4" TFT color LCD display, simultaneously display parameters of CH1 and CH2.

2. Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation.

3. JDS6600-15M, the maximum sine wave frequency is 15MHz, and the maximum square wave is 15MHz, 266MSa/s sampling rate and 14bits vertical resolution.
4. 60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits, can re-call and check custom waveforms, draw arbitrary waveforms.
5. Completely independent dual channels output, synchronizing operation and adjustable phase difference.
6. Duty-cycle of each channel can be adjusted independently, the adjusting resolution is 0.1%.
7. High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 0.01uHz.
8. High amplitude resolution: the minimum amplitude resolution can reach 1mV, amplitude range is 2mVpp~20Vpp.
9. Sweep function: linear sweep and logarithmic sweep functions; 0.1s-999.9s sweep time; forward, backward and roundtrip sweep directions.
10. Pulse trains burst output function: allow the unit output 1~1048575 arbitrary pulse trains.
11. Measurement functions: can measure signal frequency, cycle, positive/negative pulse width and duty cycle; 1Hz~100MHz frequency range.
12. -9.99V~9.99V DC offset range, offset resolution: 0.01V.
13. With digital signal output function, CMOS output range 0~10V.
14. Storage feature: can store 100 groups of parameters set by the user and extract at any time.
15. Counter function: with DC and AC coupling modes.
16. Arbitrary wave editing function: user can edit arbitrary wave on PC and then download to output from the instrument.
17. Communication function: the PC can be used to control the instrument.
18. output short-circuit protection: all signal output can work 60s under load short-circuit condition.

Teachnical Parameters：

Sine frequency range: 0~15MHz

Square frequency range: 0~15 MHz

Triangle frequency range: 0~15 MHz

Pulse frequency range: 0~6 MHz

TTL digital frequency range: 0~6 MHz

Arbitrary wave frequency range: 0~6 MHz

Square rise time: ≤10nS

Pulse width adjustment range: 25nS - 4000S

Frequency accuracy: ±20 ppm

Frequency stability: ±1 ppm/3h

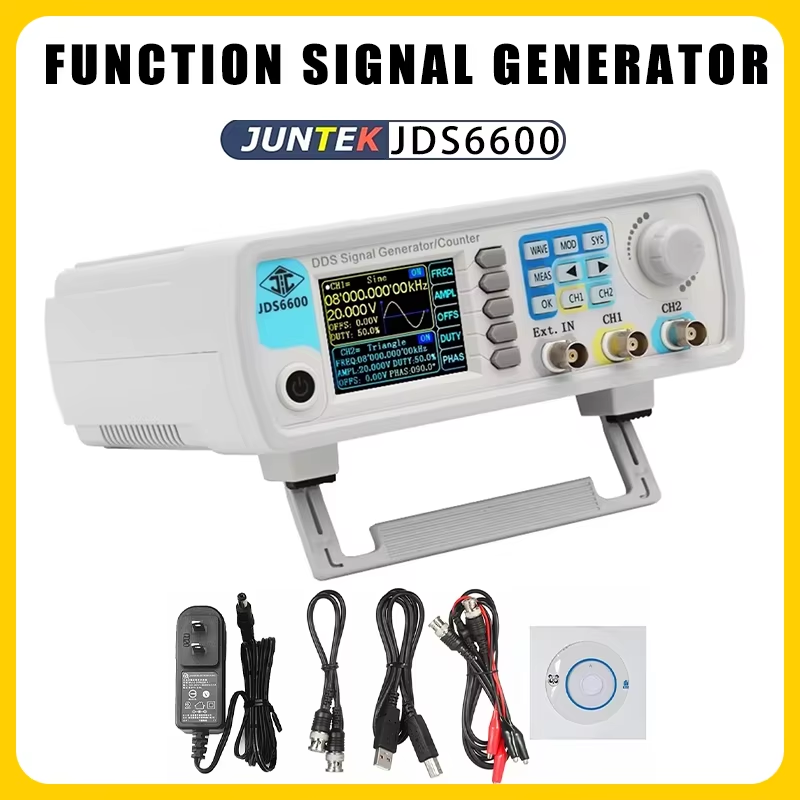

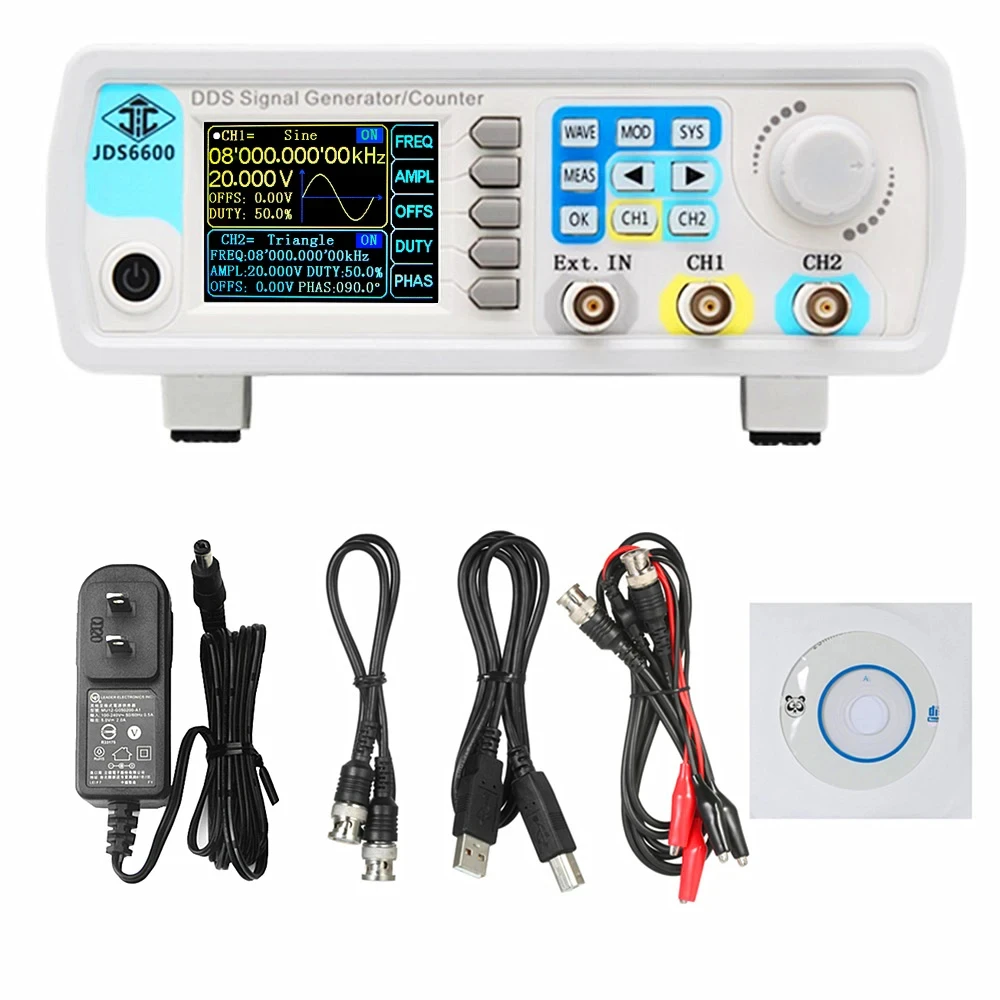

Package Included:

1 x JDS6600 DDS Signal Generator

1 x CD

1 x Power Adapter

1 x USB Data Cable

1 x BNC-BNC Cable

2 x BNC-Clip Cable

1 x Instruction Manual
