XH-W2050 Transmitter output thermostat super intelligent temperature control out

Product Description

Specifications:

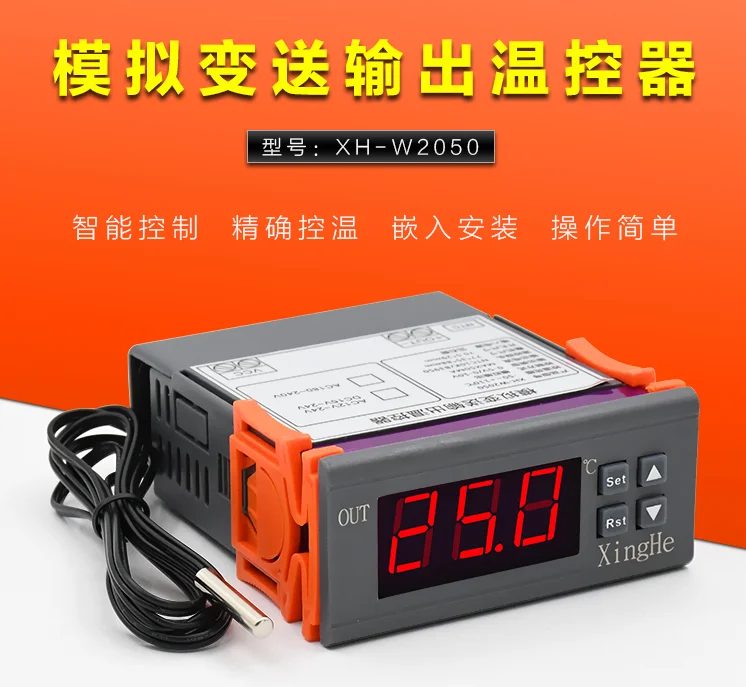

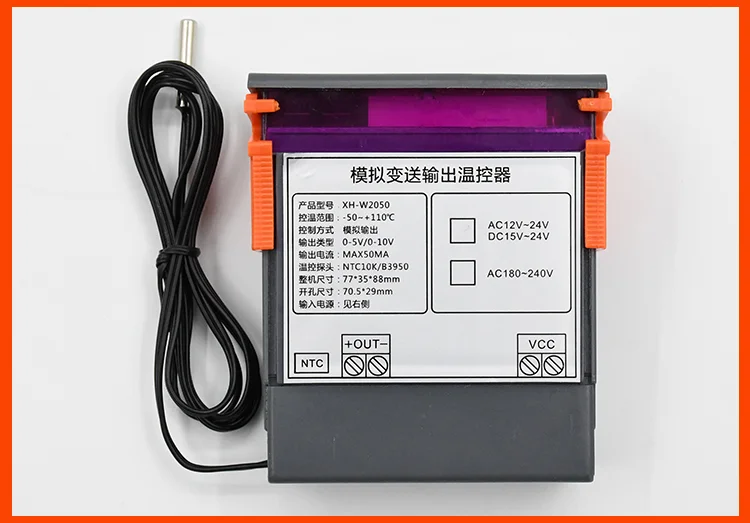

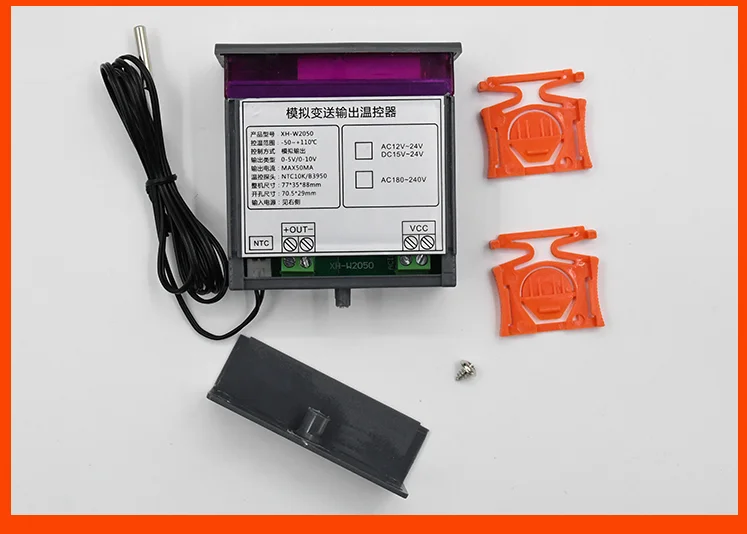

Product Name: Analog Transmitter Input Thermostat

Product Model: XH-W2050

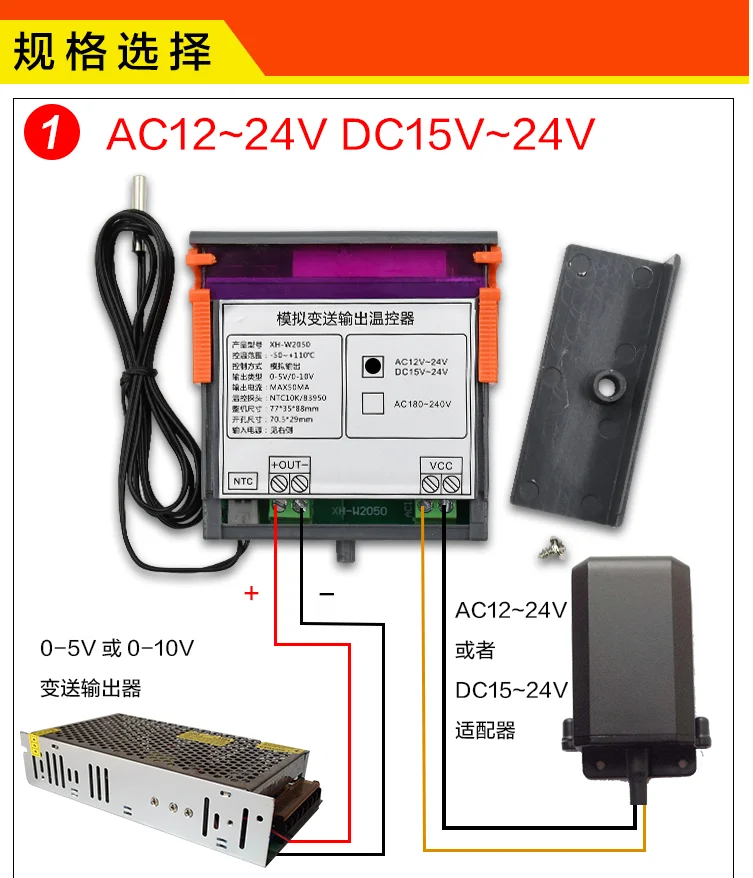

Specifications: AC12~24V DC15V~24V

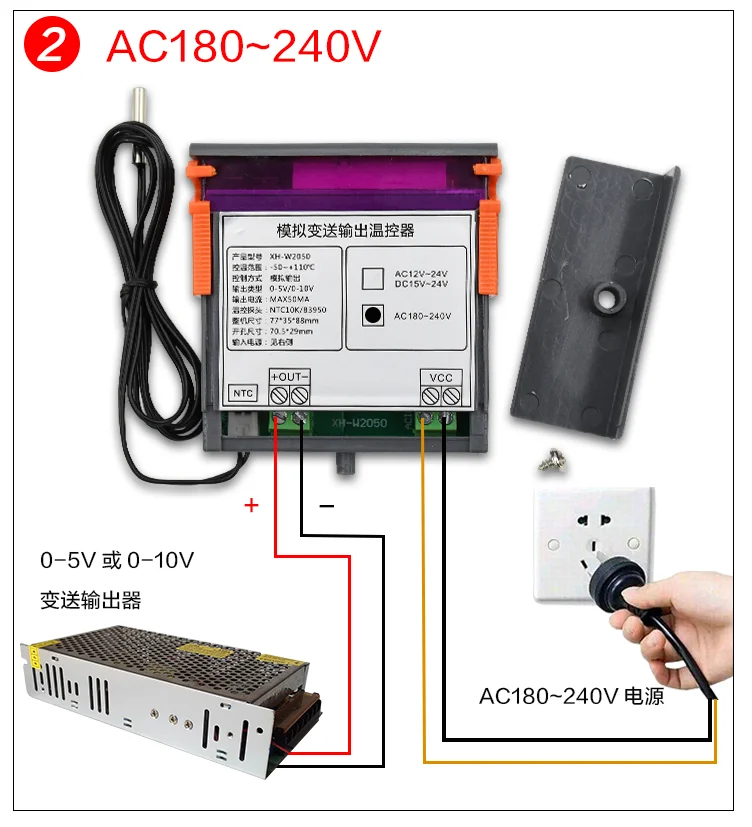

AC180~240V

Output voltage: 0~5V 0~10V

Temperature control range: -50℃~110℃

Control accuracy: 0.1℃

Video screen size: 0.56 inch red three-digit digital tube

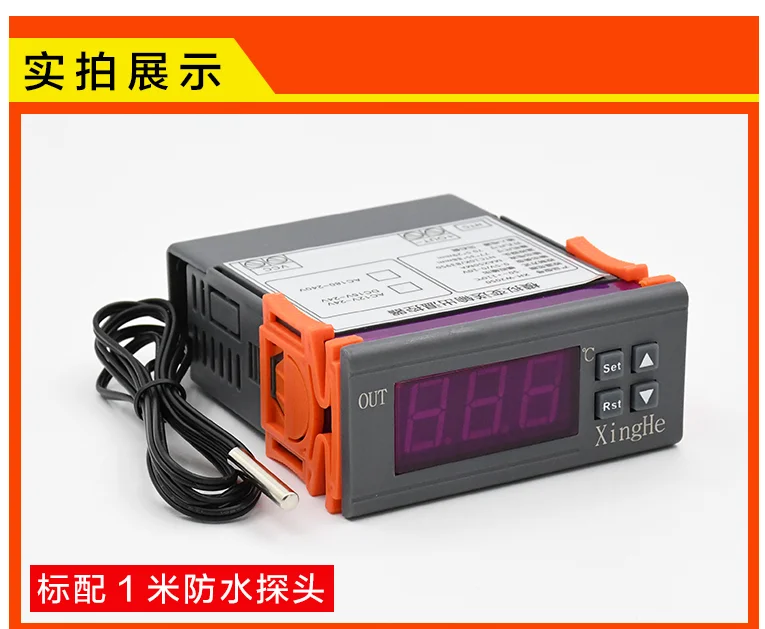

Probe length: standard 1 meter waterproof probe

Use environment: -10~50℃≤85%RH

Appearance size: 75*35*85mm

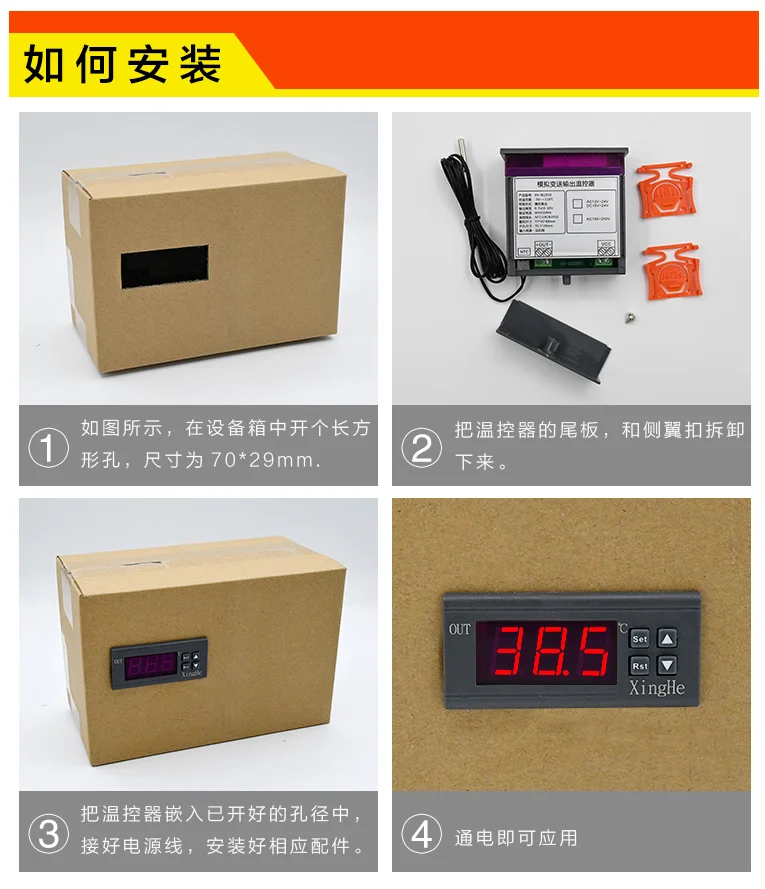

Embedded hole: 70*29

Product net weight: 85g

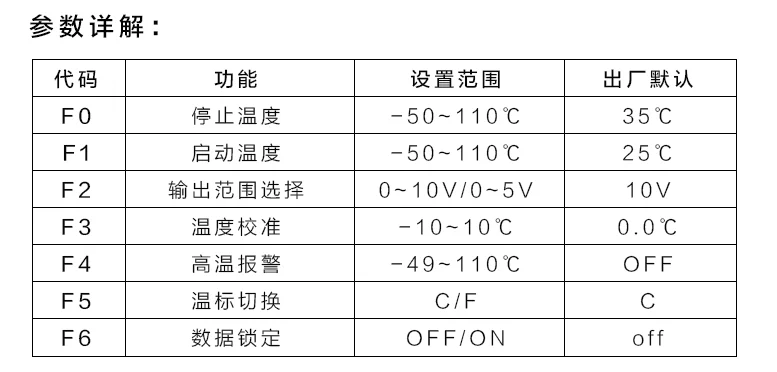

F0 : Temperature setting 1

The default 35℃ can be set in the range -50℃~ +110℃

F1: Temperature setting 2

The default 25℃ can be set in the range -50℃~ +110℃

F2: Output temperature range selection

Default 10

10: Output 0-10 V

5: Output 0-5V

F3 : temperature calibration value

Default 0.0 ℃

The setting range is -10℃~ +10℃

Temperature after calibration = current temperature + temperature calibration value

F4: High temperature alarm

Default: OFF (off)

ON (open): the default 110℃ in the open state

F5: temperature scale switch

Default Cc: Celsius

F: Fahrenheit

F6 : data lock

Default OFF (closed)

ON

The FO - F5 parameter value cannot be changed after the data lock is turned on

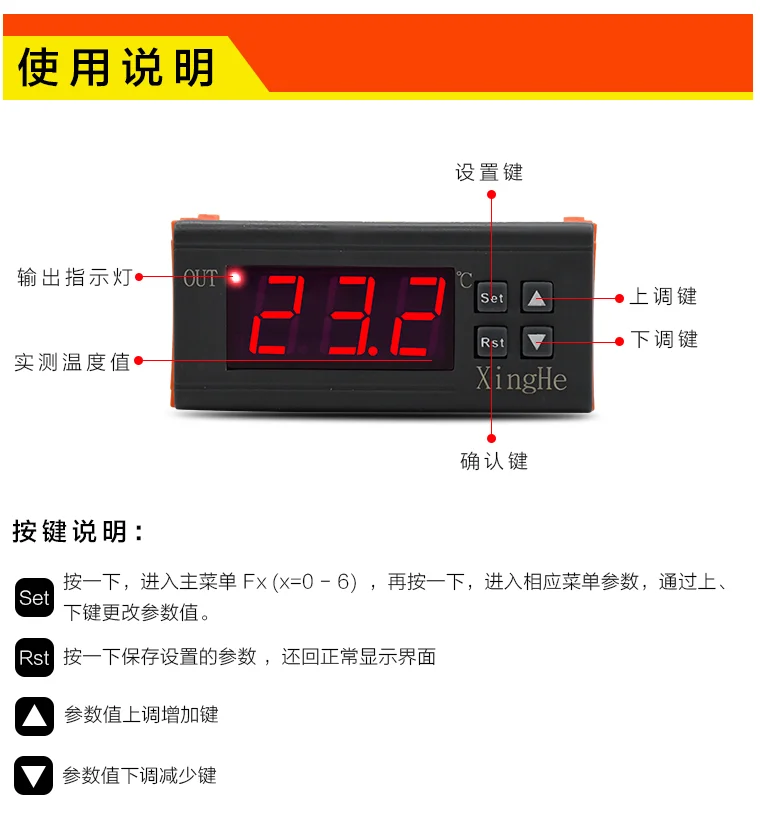

Instructions:

When stop temperature < start temperature = no voltage output indicator light is off

When stop temperature > start temperature = there is voltage output indicator lights up

For example F0: 35℃F1: 25℃F2: 10

Temperature difference = 35°C - 25°C = 10°C

Output voltage 10 : 0 - 10V indicator light on, temperature difference 10℃, corresponding voltage 10V

Namely: 25℃ output voltage 0V

26°C output voltage 1 V

27℃ output voltage 3V...

34℃ output voltage 9V

35℃ output voltage 10v

The higher the temperature, the higher the output voltage
