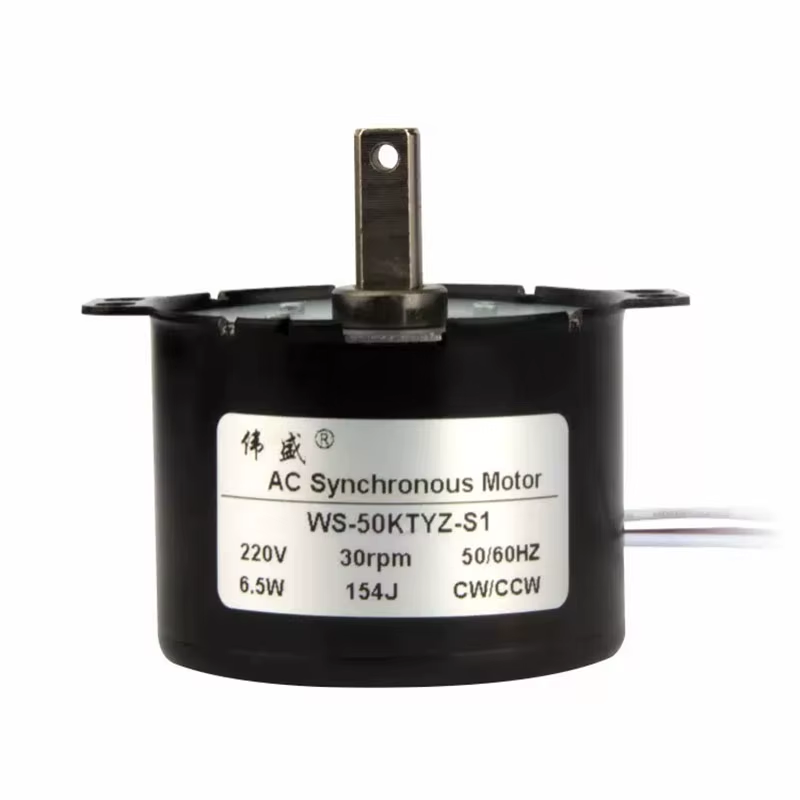

50KTYZ permanent magnet synchronous motor 220V 6.5W 2.5/5/10/20/30RPM AC motor

Product Description

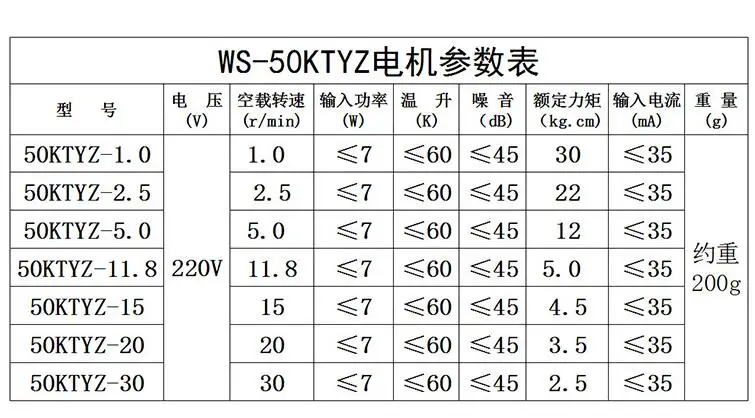

Specification:
Model: WS-50KTYZ
Voltage: AC220V-240V
No-load speed: 1r/min-30r/min
Power: 6.5W
Output torque: 2.5kg.cm-30kg.cm
Weight: 205g

Motor use precautions:
1. Confirm that the motor voltage is correct before use. If it is a DC motor, confirm whether the power supply current is sufficient.
2, can not be overloaded, overload reasons are mainly divided into two parts, the torque and the force of the shaft, the load torque can not exceed the motor
The rated torque, the force of the shaft can not exceed the axial and radial allowable force of the shaft. After the load is applied, the measured current of the motor is not
Can exceed the rated current, the general motor must be equipped with a fuse to avoid overloading the motor
3. Do not store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce the motor effect.
4. When assembling the transmission parts such as gears and pulleys on the motor shaft, do not hit them abnormally when pressing in.
5. When the motor terminals of the positive and negative poles are to be soldered, the soldering iron temperature is 340 °C, 40 °C, and the heating time is within 3 seconds.
Do not deform the plastic. In the work, let the solder point flow into the motor or break the end of the wire, which will make the motor function decline.
6. When installing the motor, pay attention to whether the screw is too long, and prevent the long screw from colliding with the parts inside the motor.

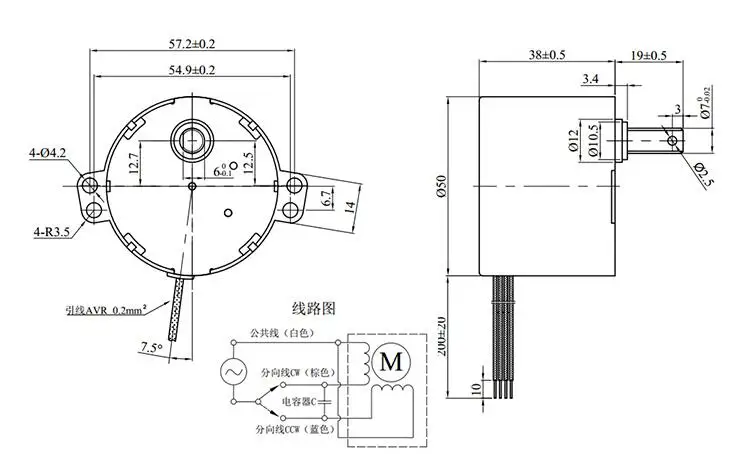

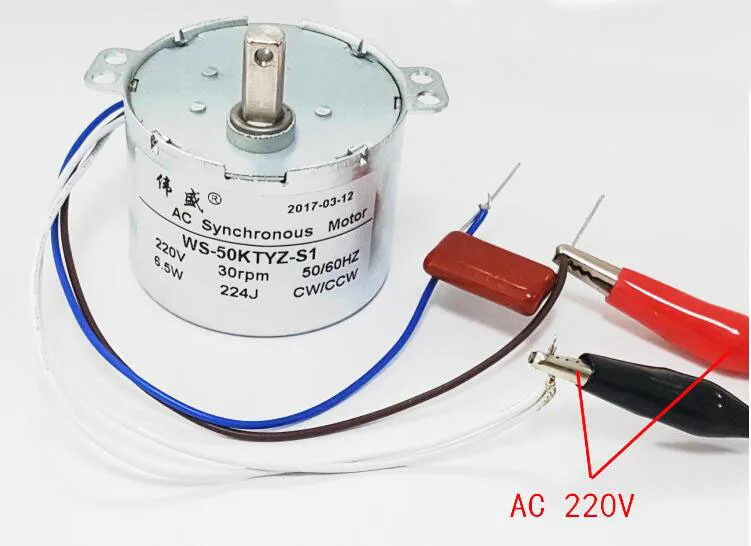

Wiring:
1. Two white lines and one into one
2. Capacitor connected to blue and brown lines
3. White line + brown line (motor forward)
4. White line + blue line (motor reverse)
