Product Description
Upgraded version Universal 12V 16.5A Autos Electric Supercharger Turbo intake Fan Boost with ESC40A Airplane Tool accessories

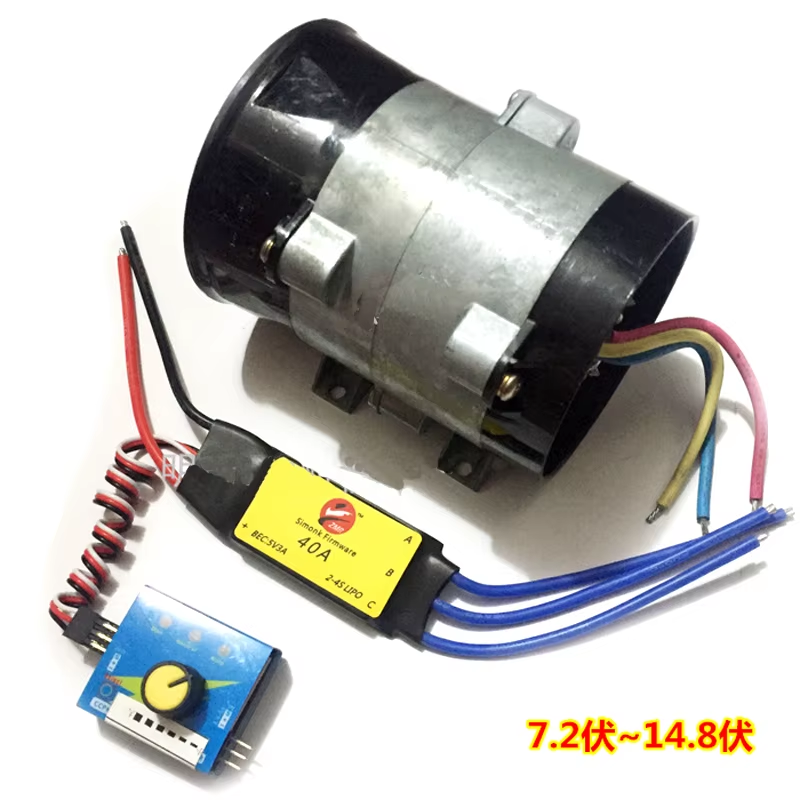

Upgraded version Universal 12V 16.5A Autos Electric Supercharger Turbo intake Fan Boost with ESC40A Airplane Tool accessoriesCar Auto Electric turbine Turbo Fan Turbo charger Tan Boost Intake Fans 12V 16.5A90%New Old items shown the photo.Turbine front and back plastic material CAP removable if you don't want it.Speed: 35000 rpmVoltage: DC 7.4-16.8VMaximum current: 24AMaximum power: 380WMaximum thrust: 1200gKV value: 3100Maximum speed: 52000RPM (loud voice)Number of poles: 6Winding connection: Y-type 5-wire and aroundESC voltage: 7.4-14.8VPackage include: Turbine + Brushless 40A ESC(Electronic Speed Control)Notice:Don't wiring the turbine directly to Power.This have to connected up Driver ESC electronic speed control.Don't Let the turbine contact with car iron part(because of other iron part also negative electrode "-")
1.The first step is to insert the three-pin plug of the ESC into the out position of the tester according to the photo. The white wire is aligned with the s pole, and any of the three rows is inserted into one of them. Turn the knob to the minimum position.
2.The second step is to weld the three wires of the motor and the three wires of the ESC arbitrarily without distinguishing colors. After welding, use tape to prevent short circuits.
3.The third step is to connect the power supply with 12~14.8V DC, the red ESC to the positive pole, and the black to the negative pole. After the power is turned on, the motor will beep and stop calling after a few seconds. At this time, slowly turn the knob of the tester to start the motor. The normal running wind is discharged from the wired end of the motor. If it does not mean that the motor is reversed, the motor needs to be turned off. Two of the wires were removed, adjusted, and then welded. At this time, the motor works normally.
