Product Description

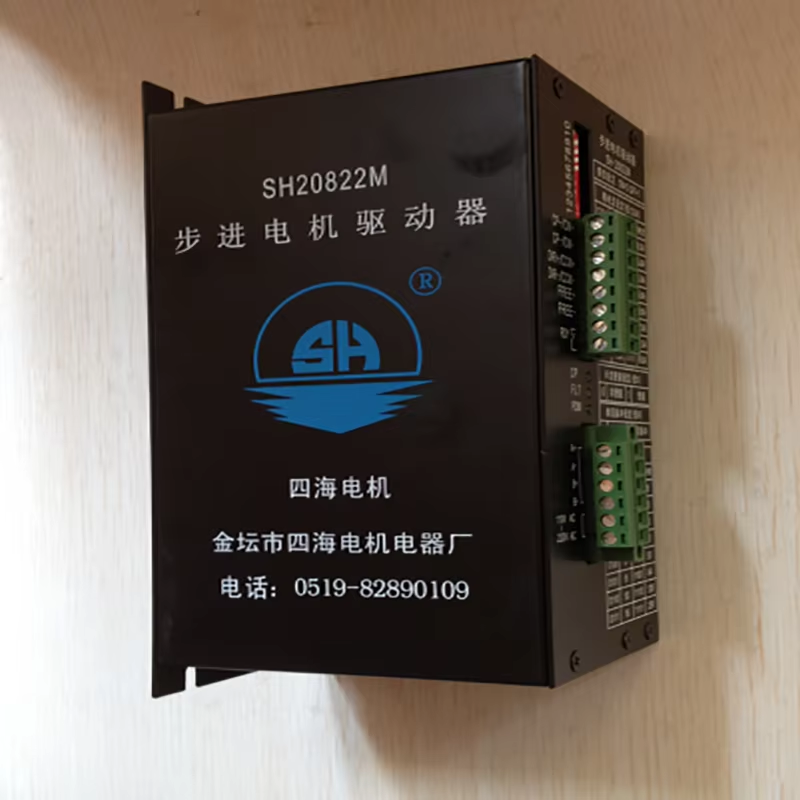

Stepper motor driver SH-20822M brand guarantee
Stepper motor driver SH-20822M brand guaranteeBrand: Four Seas
Model: SH-20822M
Series Model
Phase
Maximum current
(A)Voltage range
(V)Adapted motor
Remarks
T series
2H7055T | 2 phase | 2.0-5.5 | 20-70 | 57, 60, 85, 86 series | |
2H8006T | 2 phase | 2.5-6.0 | 20-60 | 60, 85, 86, 110 series | |
2H1106T | 2 phase | 2.0-6.0 | 50-110 | 85, 86, 110, 130 series | |
2H2208T | 2 phase | 4.5-8.0 | 110-230 | 85, 86, 110, 130 series |
A series
2M422A | 2 phase | 2.5 | 10-36 | 35, 42 series two-phase motors | |
2M432A | 2 phase | 3.2 | 12-40 | 42, 57 series two-phase motors | |
2M542A | 2 phase | 4.2 | 24-36 | 42, 57 series two-phase motors | |
SM80A | 2 phase | 2.0 | 40-110 | 85, 86 series two-phase motors | |
3M583A | Phase 3 | 1.5-5.9 | 20-50 | 57, 85 series three-phase motors | |
MD-3008A | Phase 3 | 1.7-6.8 | 150-220 | 110, 130 series three-phase motors | |
CW-5045 | 2 phase | 1.5-4.5 | 24-36 | 57, 60 type two-phase |
B series
D series
WT-2046D | 2 phase | 2.4-7.2 | 24-80 | 85, 86, 110 series two-phase motors | |
SH-20611D | 2 phase | 0.25-6.0 | 50-110 | 85, 86, 110 series two-phase motors | |
WT3H2208 | Phase 3 | 4.0-8.0 | 80-220 | 110, 130 series three-phase motors |
M series
SH-20822M | 2 phase | 0.5-8.0 | 85-220 | 10. 130 series two-phase motors |
