DST-1R3P-H 3-way differential to collector 2/3/4/6/8 channel 5v to 24v encoder s

Product Description

Specifications:

Module introduction:

1. The maximum operating frequency of this module is 2MHZ, which realizes single-chip, ARM, DSP signal --> PLC high-speed signal port.

2. Convert low voltage signal to high voltage collector signal output, two channels, electrical isolation between output and input.

3. The output adopts push-pull output mode, compatible with NPN or PNP input PLC interface.

4. It can supply power for modules such as grating ruler, and there is a voltage conversion module inside, and the limit can output 5V, 100mA.

5. Dimensions: 47*87*39mm (length*width*height).

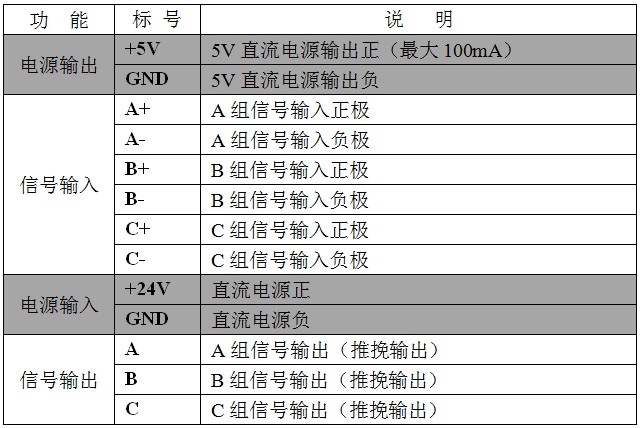

Module wiring terminal description

Module Wiring Example

Note: The module can provide 5V, 100mA output. It is necessary to pay attention to whether the differential signal generating device needs 5V to provide it, otherwise it is suspended and does not need to be connected (such as a servo driver). Differential signal generating equipment consumes a lot of electricity (such as a high-power grating ruler), and needs to be powered by a 24V to 5V power supply module.

接线方式1（NPN->模块->NPN）：接线方式2（NPN->模块->PNP）：接线方式3（PNP->模块->PNP）：接线方式4（PNP->模块->NPN）：接线方式5（差分信号->模块->PNP）（此款用5V转24V）：接线方式6（差分信号->模块->NPN）（此款用5V转24V）：

四，模块技术参数指标：

信号发生设备：固纬AFG-2005，数字示波器：美国泰克TBS2102，数字万用表：安捷伦U1253B。

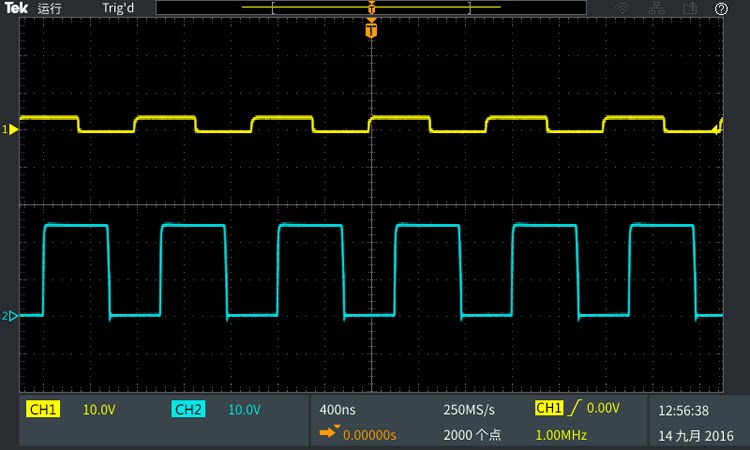

示波器显像图：图中以其中一个通道为示例，黄色CH1为5V脉冲信号输入，粉蓝色CH2为该模块24V脉冲信号输出，输入输出对比延时约为100nS。
