Intelligent Isolated RS485 Hub 4-Port Splitter 1-to-4 RS232/RS485 Converter with

Product Description

Description:

M-206 RS-485 hub is developed for the high requirements of field bus systems. The device is snapped onto standard DIN rails in the control cabinet and supplied with 24 VDC. You can use the M-206 in all common RS-485 2-wire bus systems for its transparent protocol feature.

Possible Applications:

- Electrical isolation and bus segmentation – Increasing system availability

- Increasing the range – Extending the number of devices

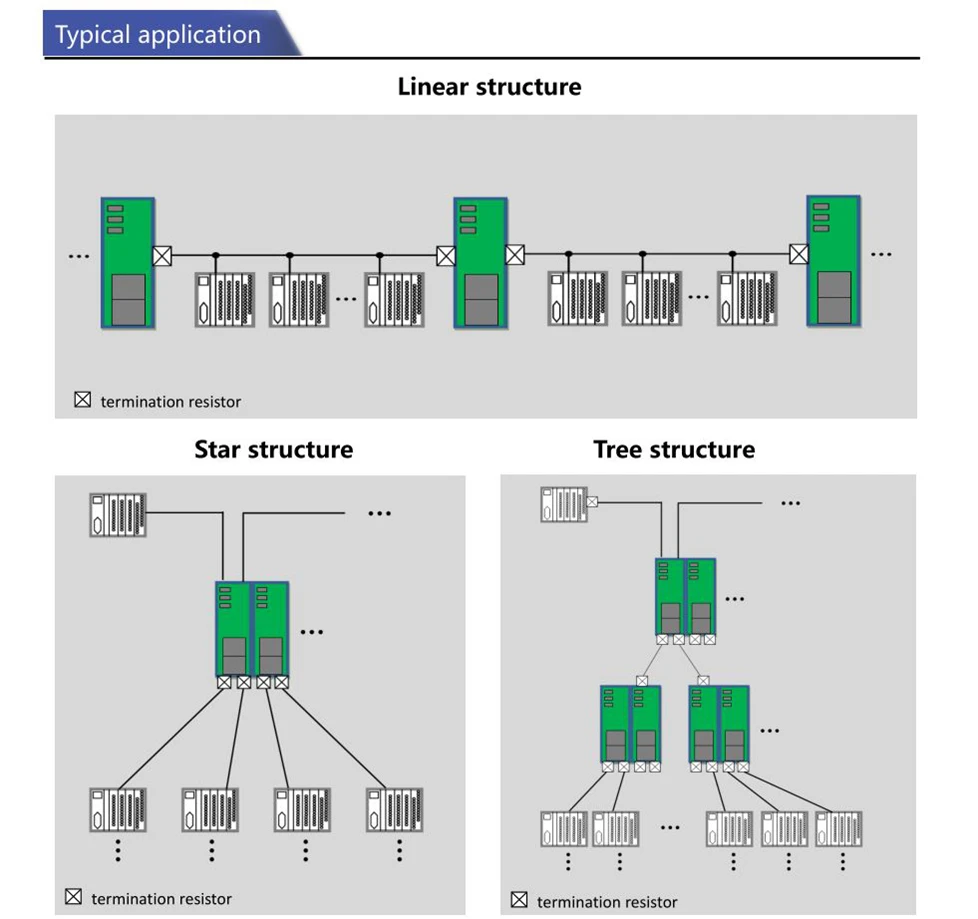

- Creation of mixed and network structures

Features:

- 1 Port RS-232 / 485 to 4 Port RS-485 hub

- Automatic transmit/receive changeover

- 1.5KV optical isolation with surge protection

- High-quality 3-way isolation

- 128 nodes on bus for each port

- LED indicators for data transmission and bus faults

- 1.2Kbps -187.5Kbps self-adapting baud-rate

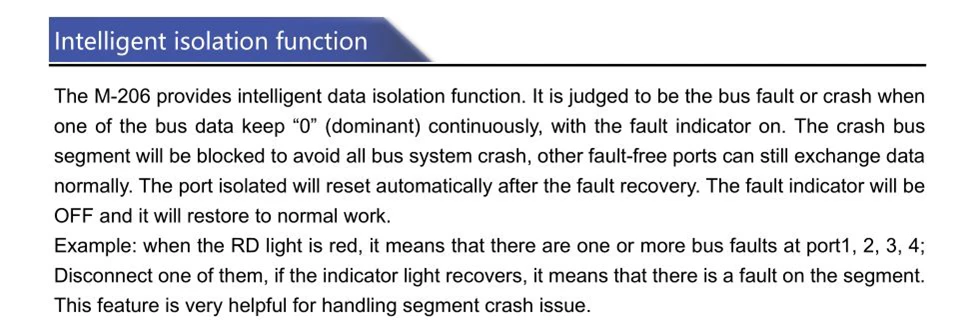

- Intelligent isolation for bus faults and crash

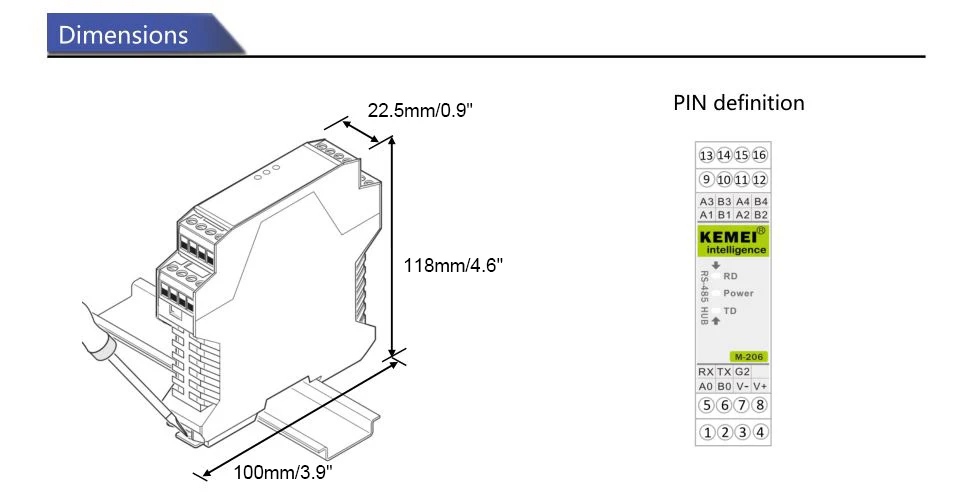

- Space-saving slim 22.5mm/0.9" device

- Plug-in screw connection terminal blocks

Package Included:

- 1 x RS485 Hub

- 1 x 4P Terminal Block
