Product Description

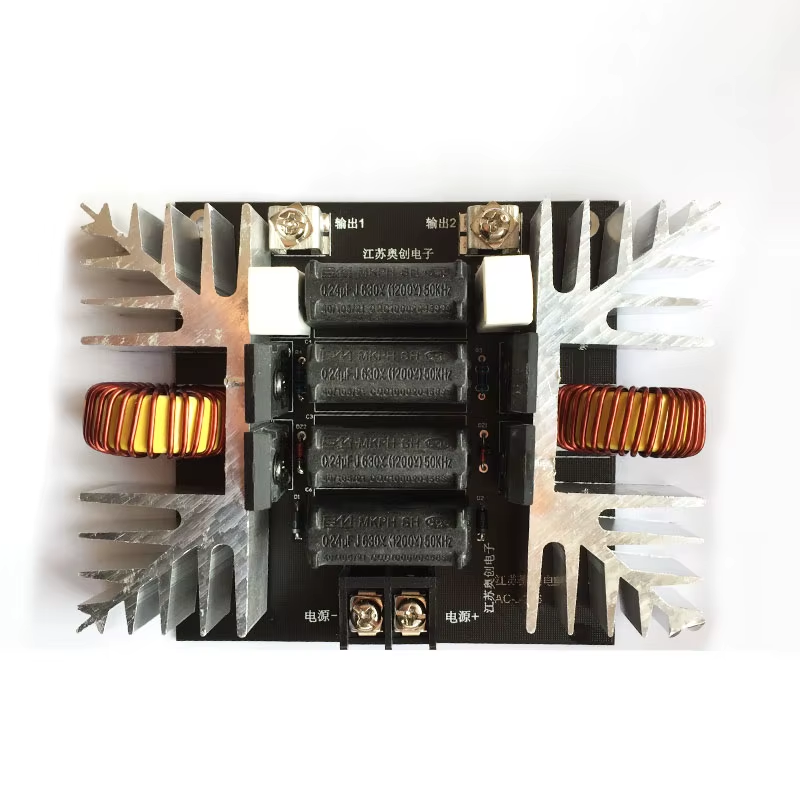

1500W 10A induction heating ZVS drive board quenching four tube high voltage package drive Jacob ladder Make DIY
1500W 10A induction heating ZVS drive board quenching four tube high voltage package drive Jacob ladder Make DIYNote :the PCB board is Sent at randomSpecification:Product Name: ZVS induction heating driver boardProduct model: AC-Z306Output power: max 1500WNumber of power tubes: 4Input voltage: DC12~50VResonant capacitor: 1.2uFInput current: greater than 10AWork trouble: 30~50KHzSize: 130 × 100 × 35mm
Notes:1, Buyers need to bring their own power and cooling unit.2, The circuit board using double-sided fiberglass board, mainly copper traces are used to widenUse the entire back surface of the resonant circuit common,Continuous work, please add a fan to blow down from above,To the resonance capacitors and other components cool.3,The use of switching power supply Please note that due to high power are generally slow start function,which just opened machine output voltage is slowly rising,while it is turned on before the induction heating circuit if the voltage rises to 12V,because start insufficient voltage can not afford to vibration,resulting in two simultaneous conduction mos tube so burned components.So the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit.About Prime Living
