Product Description

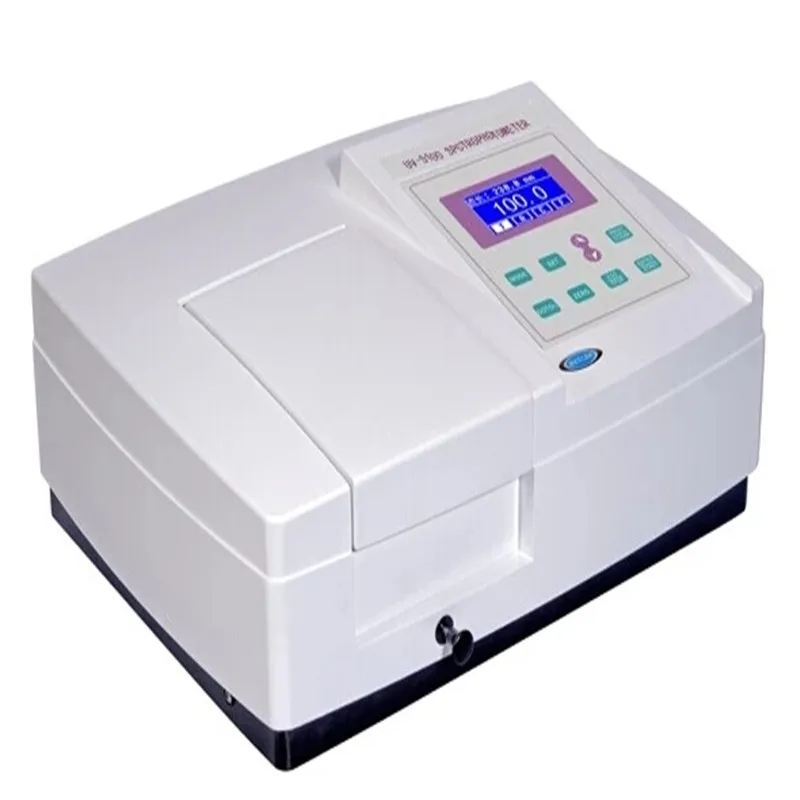

UV-5100B Auto Setting Wavelength UV/VIS Spectrophotometer / Wavelength Range 190-1000nm UV5100B
UV-5100B Auto Setting Wavelength UV/VIS Spectrophotometer / Wavelength Range 190-1000nm UV5100BUV-5100B Auto Setting Wavelength UV/VIS Spectrophotometer / Wavelength Range 190-1000nm UV5100B
UV-5100B is a parctical UV visible spectrophotometer. It's special structural design ensures
high reliability and easy replacing of components.
[Features]
Low stray light
UV-5100B is made of high quality components with rigid structure which ensures low stray
light.
Auto setting wavelength
Users can set wavelength automatically through arrow keys to avoid operation errors.
Stability and durability
UV-5100B users a rigid die-cast aluminum base as its optical mount to ensure instrument
stability and reliability.
Data output
UV-5100B is equipped withUSB port to connected with a PC to display spectrum scanning,
kinetics and multi wavelength testing results on the screen. The software is optional.
Standard curve
UV-5100B can set up various standard curves according to customer's solutions and find theconcentration of unknown solutions.
Multiple results readout
UV-5100B can display wavelength, absorption and transmittance with 5 results per screen.
It also has a memory store of up to 200 results.
[Technical Specification]
Model | UV-5100B |
Optical System | Single beam,grating 1200 lines/mm |
Wavelength Range | 190-1000nm |
Bandwidth | 2nm |
Wavelength Accuracy | ±1nm |
Wavelength Repeatability | 0.2nm |
Wavelength Setting | Auto |
Photometric Accuracy | ±0.5%T |
Photometric Repeatability | ≤0.2%T |
Photometric Range | -0.3-3A,0-200%T,0-9999C |
Stray Light | ≤0.05%T@220, 360nm |
Stability | ±0.001A/h @500nm |
Display | 128*64 LCD |
Detector | Silicon Photodiode |
Light Source | Tungsten Lamp& DeuteriumLamp |
Output | USB& Parallel Port(Printer) |
Power Requirements | AC 85~250V |
Dimension | 490*370*220mm |
Weight | 15kg |
[Standard Accessories]
Item | Description | Quantity | Unit |
1 | Spectrophotometer | 1 | set |
2 | 1cm Glass cuvette | 4 | pcs |
3 | Power cord | 1 | pcs |
4 | User’s Manual | 1 | pcs |
5 | 1 cm quartz cuvette | 2 | pcs |
6 | Dust Cover | 1 | pcs |
