Product Description

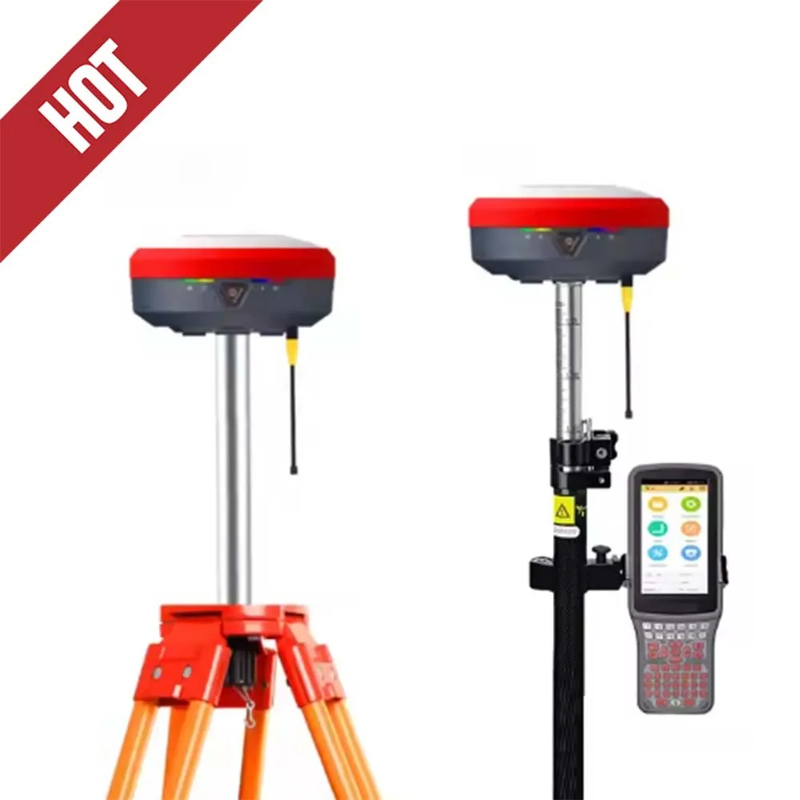

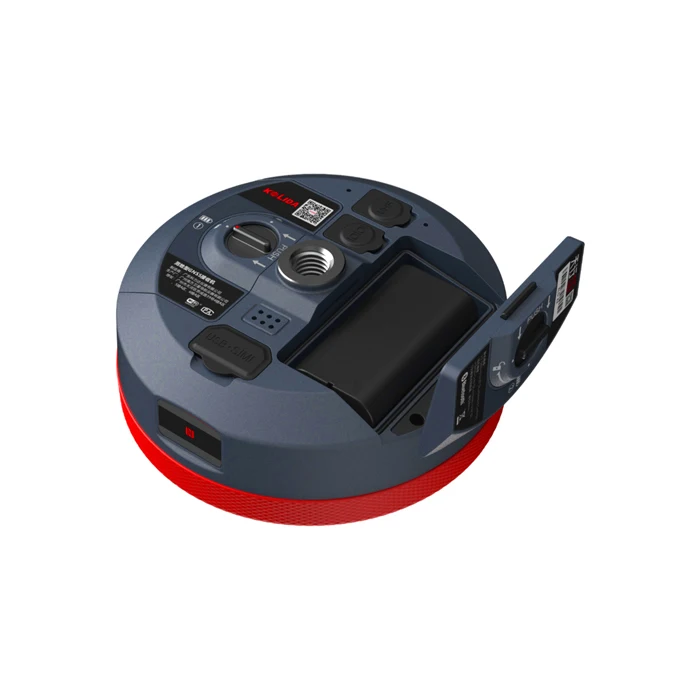

RTK GPS GNSS K7 Base And Rover，Intelligent Design 1598 Channel ，IMU，New Radio Farlink Tech

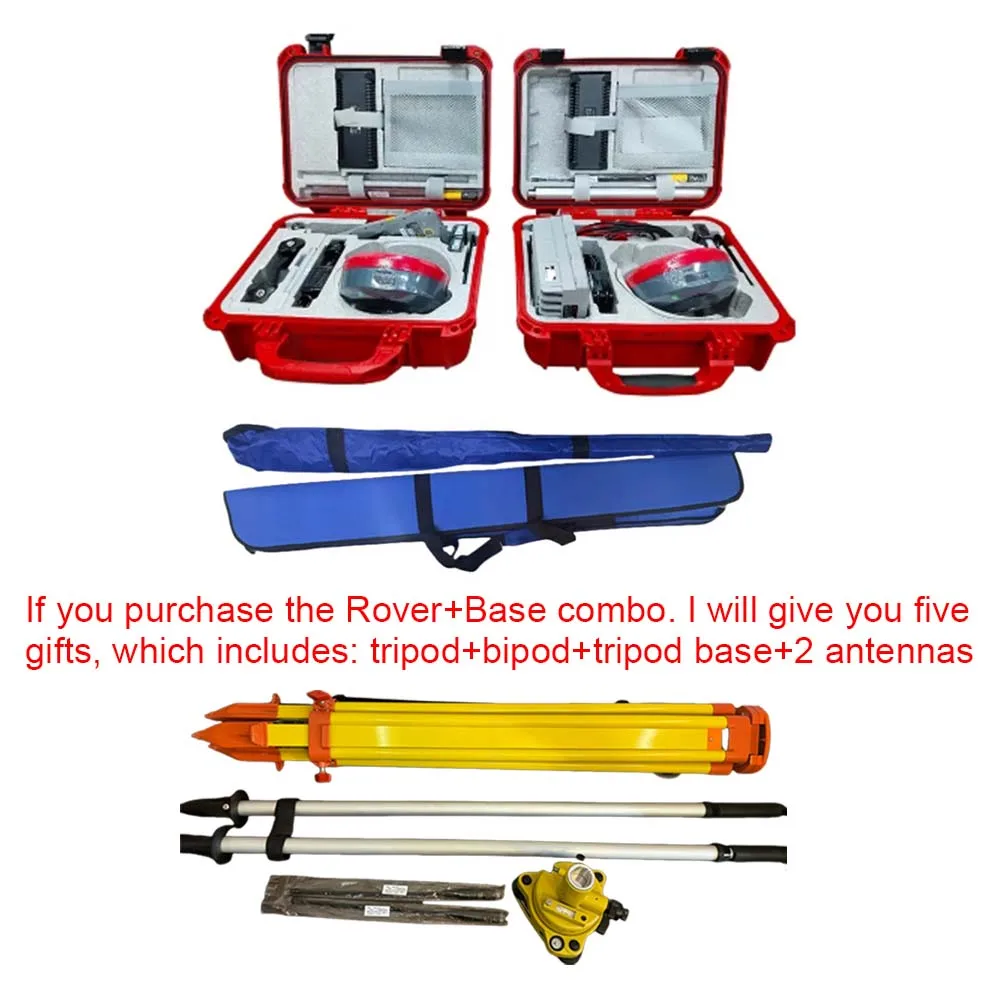

RTK GPS GNSS K7 Base And Rover，Intelligent Design 1598 Channel ，IMU，New Radio Farlink TechRTK GPS GNSS Kolida K7 Base And Rover，Intelligent Design 1598 Channel ，IMU，New Radio Farlink TechAttention: If you purchase the Rover+Base combo, please contact customer service to collect the gift. The gift includes: tripod, tripod base, bipod, and 2 antennas.
SpecificationMeasurement Performance | Signal tracking | BDS-2:B1I, B2I, B3I; BDS-3:B1I, B3I, B1C, B2a, B2b |
| GPS:L1C/A,L2P,L2C,L5,L1C* | ||
| GLONASS: G1, G2, G3*; SBAS: L1C/A,L5* | ||
| Galileo: E1,E5b,E5a,E5 AltBoc*,E6c* | ||
| QZSS: L1, L2C, L5; IRNSS: L5* | ||
| 1598 channels | ||
GNSS features | Positioning output frequency 1Hz to 20Hz; initialisation time less than 10 seconds | |
| Initialisation reliability >99.99% | ||
| Full constellation reception technology, which can fully support signals from all current GNSS constellations | ||
| Highly reliable carrier tracking technology, which greatly improves carrier accuracy and provides users with high quality raw observation data | ||
| Intelligent dynamic sensitivity positioning technology, adapting to various environmental changes, adapting to harsher and more distant positioning environments | ||
| Highly accurate positioning processing engine | ||
Positioning Accuracy | Code differential GNSS positioning | Horizontal: 0.25 m + 1 ppm RMS |
| Vertical: 0.50 m + 1 ppm RMS | ||
| Static CNSS measurements | Plane: ± (2.5mm + 0.5 x 10-6D); Elevation: ± (5mm + 0.5 x 10-6D); (D is the length of the baseline being measured, in mm) | |
| Real-time dynamic measurement | Plane: ± (8 mm + 1 x 10-6D); Elevation: ± (15 mm + 1 x 10-6D) (D is the length of the measured baseline in mm) | |
Operating Systems/User Interaction | Operating system: Linux | |
| Keypad: single button | ||
| Indicator lights: Four indicator lights. Satellite light, differential signal light, Bluetooth light, power light | ||
| Web interaction: support WI-FI and USB mode to access the receiver built-in Web management page, monitor the host status, free configuration of the host, etc. | ||
| Voice: iVoice intelligent voice technology, intelligent status announcement, voice operation prompt; default support for Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish | ||
| Secondary development: provide secondary development package, open OpenSIC observation data format and interaction interface definition for secondary development | ||
| Data cloud service: powerful cloud service management platform, allowing remote management and configuration of equipment, viewing progress, managing jobs, etc. Can use Qualitec servers or build your own servers | ||
Hardware | Size: 156mm*78mm (diameter, height) | |
| Weight: 1.3kg (with battery) | ||
| Material: magnesium alloy | ||
| Operating temperature: -30 °C to +70 °C; storage temperature: -40 °C to +80 °C | ||
| Humidity resistant to 100% condensation | ||
| Protection class: IP68, waterproof: 1m immersion, dustproof: completely protected against dust ingress | ||
| Resistant to a 2 m drop with a pole | ||
Electrical | Power supply: 6~28V wide voltage DC design with overvoltage protection | |
| Battery: detachable dual battery design, support hot-swappable, voltage: 7.4V, 3400mAh/block | ||
| Power solution: Mobile station mode, typical endurance time >20 hours at full charge, support battery power supply, rechargeable battery power supply | ||
Communication | I/O ports | 5 pole LEMO external power connector + RS232 |
| Type-C interface for power supply, data transmission | ||
| One radio antenna port | ||
| Micro SIM card slot (medium card) | ||
Radio modems | Built-in transceiver radio, typical operating distance 10km; support radio relay, network routing function. | |
| Operating frequency 410-470MHz; communication protocols: Farlink,TrimTalk450S,ZHD,SOUTH,HUACE,Satel | ||
4G all-access | Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing, continuous online during work; built-in network antenna | |
| Equipped with a 4G tell-tale network communication module, compatible with various CORS systems access | ||
Bluetooth | Bluetooth 3.0/4.1. | |
| Bluetooth 2.1+EDR standard | ||
NFC wireless communication | NFC wireless communication technology, Bluetooth automatic pairing can beachieved by touching the handbook and the main unit (requires handbook also equipped with NFC wireless communication module) | |
eSIM (optional) | The eSIM chip can be embedded in the handbook to provide network resources in real time to ensure continuous online network operation of the host computer, supporting external card solutions | |
WIFI | Standard | 802.11b/g/n standards |
WIFI Hotspot | With WIFI hotspot function, any intelligent terminal can be connected to the receiver for rich personalization of the receiver functions | |
| Data transfer between industrial handbooks, intelligent terminals and other data collectors and receivers via WIFI | ||
| WIFI data chain | Receiver can be connected to WIFI for differential data broadcast or reception via WIFI | |
Data Storage/Transfer | Data storage | 8G internal solid state memory |
| Auto-cycle storage (automatically delete the earliest data when there is not enough storage space) | ||
| Supports external USB memory for data storage | ||
| Rich sampling interval, up to 20Hz raw observation data acquisition | ||
Data transfer | One-button intelligent copy of static data directly from the host computer via external USB memory | |
| Plug-and-play USB data transfer method | ||
| Supports USB, FTP download, HTTP data transfer | ||
Data format | Static data formats: Southern STH, Rinex 2.01 and Rinex 3.02 and many more | |
| Differential data formats: RTCM3.0, RTCM3.2 | ||
| GPS output data formats: NMEA 0183, PJK planar coordinates, binary codes | ||
| Network mode support: VRS, FKP, MAC, NTRIP protocol support | ||
Sensors | Inertial tilt measurement | Built-in IMU inertial measurement sensor, supports inertial tilt measurement function,automatically corrects coordinatesaccording to the tilt direction and angle of the centering rod |
| Tilt angle: 0°～60°; IMU update rate: 200HZ | ||
| Tilt compensation accuracy | 1.8 m pole; RMS: 8 mm + 0.7 mm/°tilt | |
Temperature sensors | Built-in multiple temperature sensors, using intelligent frequency conversion temperature control technology, real-time monitoring and adjustment of the host temperature |
Product Description
*1598 GNSS channels, best-in-class signal tracking capability
*GPS + GLONASS + BDS + GALILEO + QZSS

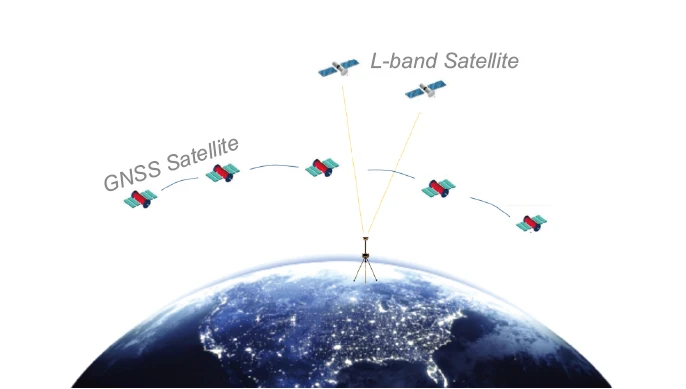

*Centimeter level correction data through L-band
*2G, 3G & 4G Network mode up to 8-10 km working range
*Inertial Measurement up to 60° tilt angle down to 2cm accuracy
*Dual battery hot-swappable, Up to 20 hours working

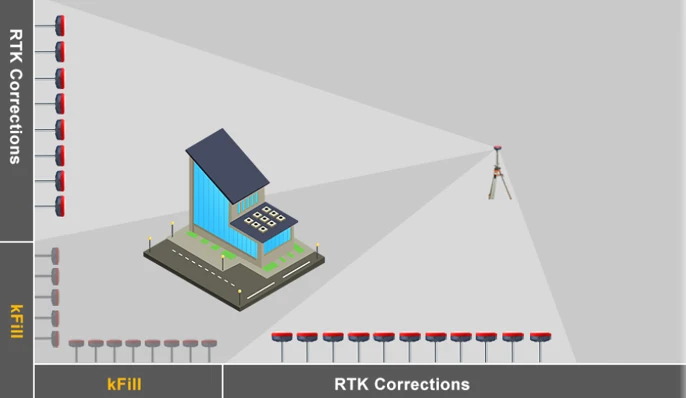

kFill, Save RTK Correction Signal Loss

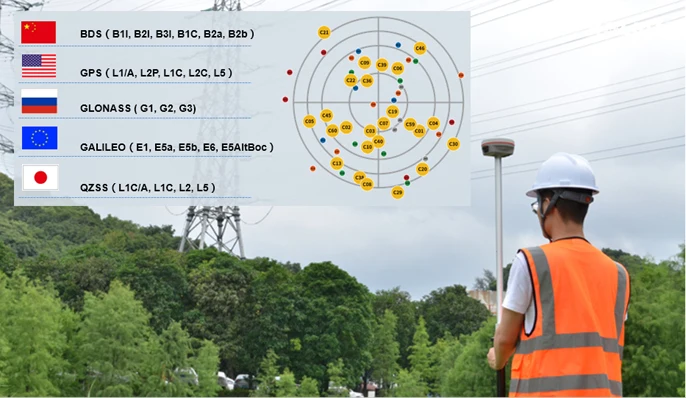

The Best-in-Class GNSS EngineThe integrated advanced 1598-channel GNSS technology helps K7 to collect signal from GPS, Glonass, Beidou, Galileo, QZSS, in particular the latest BeiDou III. It greatly improved the data quality and satellite signal capturing speed of GNSS surveying.
Constantly Upgraded Inertial MeasurementKOLIDA's 3rd generation inertial sensor and algorithm are onboard now. The working speed and stability have been improved for 30% from the last version. When the GNSS fixed solution is lost and recovered again, Inertial sensor can remain the working status in a few seconds, no need to spend time to reactivate it...

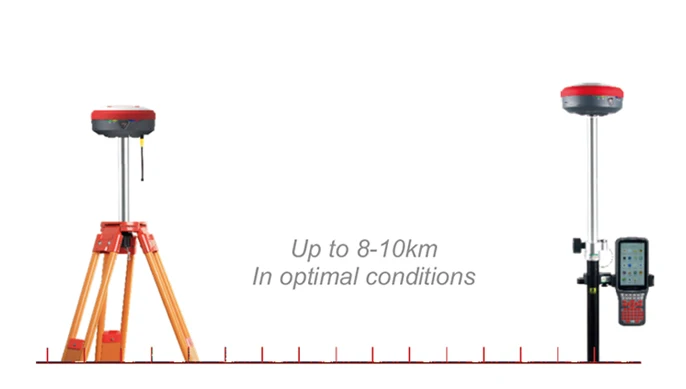

New Radio, Farlink Tech.Farlink technology is developed to send large number of data and avoid data loss.This new protocol improves the signal-catching sensitivity from -110db to -117db, so K7 can transmit to 10 km away by only 1 watt power consumption.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable forproducing PET plastic containers and bottles in all shapes.

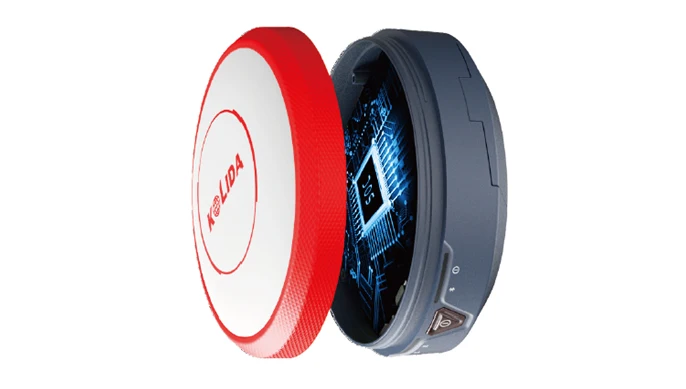

Extra Robustness,Long Service Life.
The top cap, seal ring, bodywork, indicator light, painting... everything is new and quality.Our goal is to provide an exceptional feel and durability.
Working Continuously Up to 20 Hours
Thanks to the low consumption operation system design, K7 can work up to 15-20 hours in RTK rover mode, up to 20 hours in static mode. Type-C USB port is onboard now.A reinforced battery compartment has been designed for K7, there are three times protection to prevent the battery "drop off".

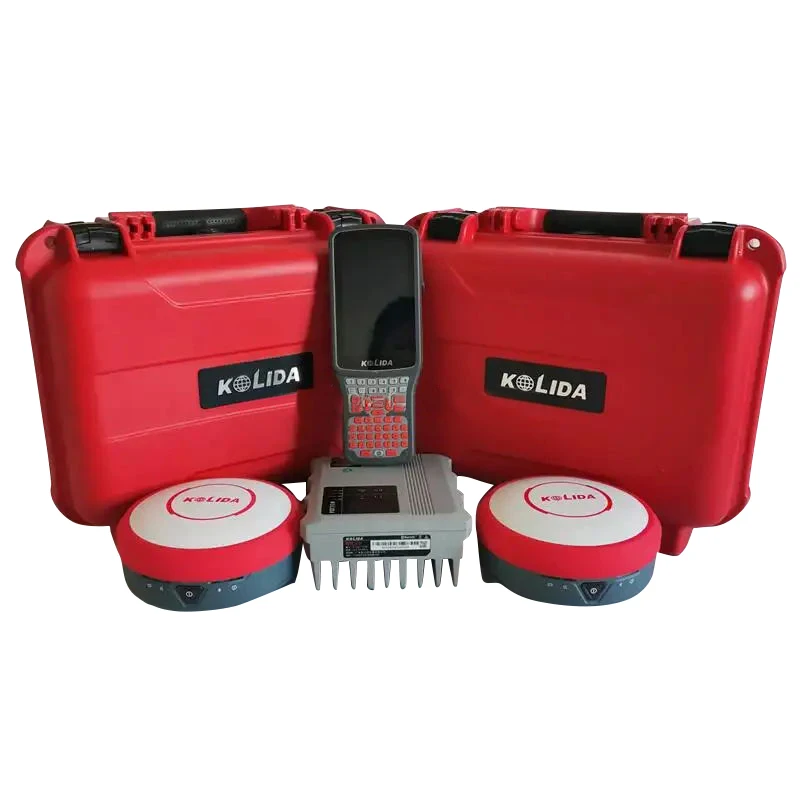

Product Display
