Product Description
ETCR6450 Mini Digital multimeter AC DC 1000A Resistance/Capacitance/Frequency Clamp Meter

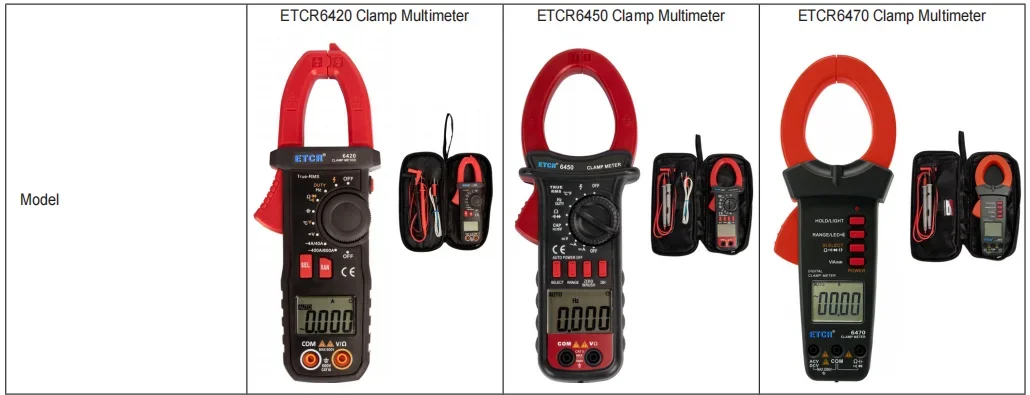

ETCR6450 Mini Digital multimeter AC DC 1000A Resistance/Capacitance/Frequency Clamp MeterETCR6420 ETCR6450 ETCR6470 2000V Clamp Multimeter Auto Range Digital AC DC Voltage True RMS Capacitance 10mF NCV Temperature
Feature:
1. The combination of manual gear and automatic gear makes it easy for novices or experienced electricians. 2. The capacitance measurement range is as high as 10mF, and the measurement speed of large capacitance is very fast. 3. The structure is small and exquisite, the operation is simple, and it is easy to carry with the lanyard. It is an ideal tool for electrical measurement. 4. It can measure AC and DC voltage, AC current, resistance, duty cycle, frequency, NCV, true effective value, temperature measurement. 5. Wide range and high measurement accuracy can meet the needs of basic electrical measurement.
Specification:
Auto Range | √ |
AC Conversion Type | true RMS |
Overload Protection | √ |
Auto Shutdown | √ |
Duty Ratio Measurement | √ |
Short Circuit Buzzer | √ |
Low Voltage Indicator | √ |
Input Impedance | About 10MΩ |
Data Hold | √ |

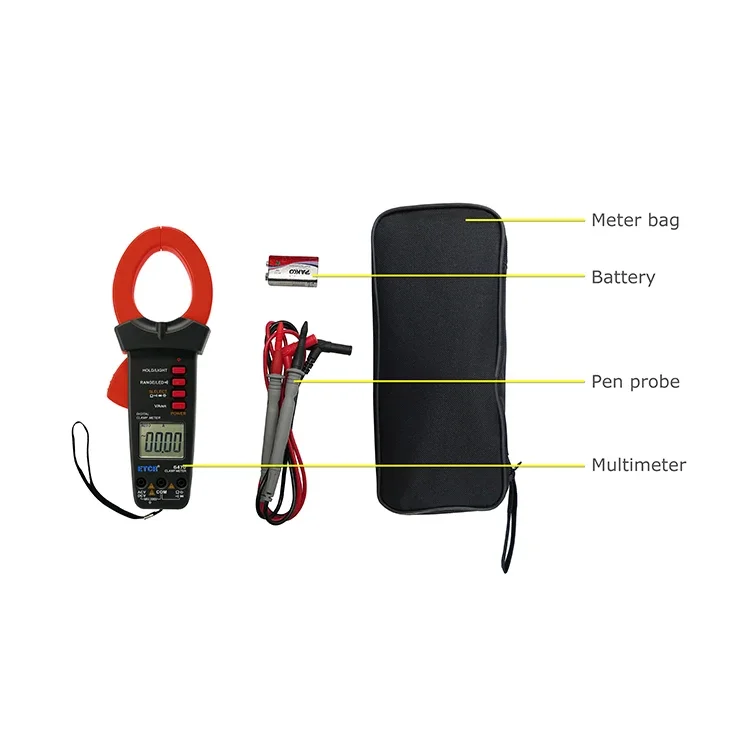

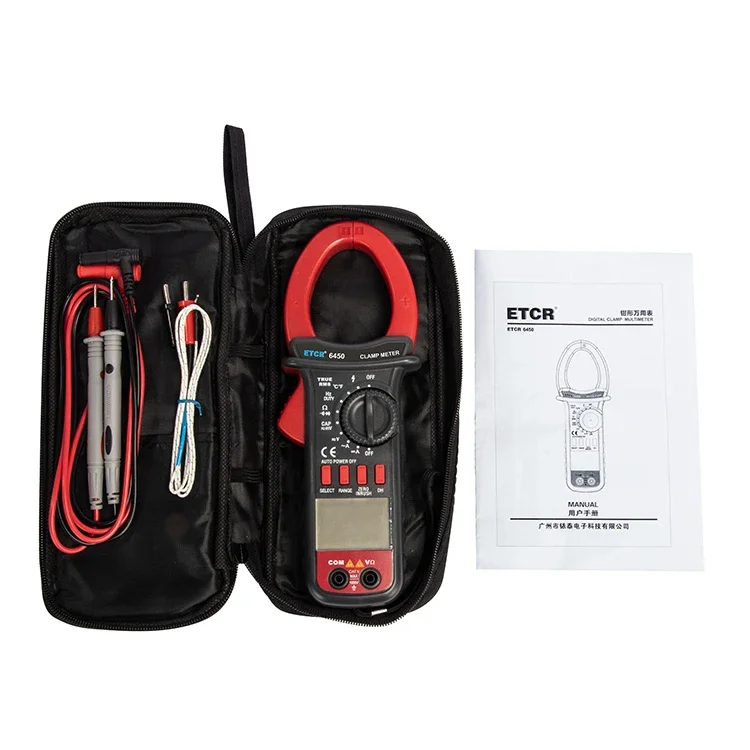

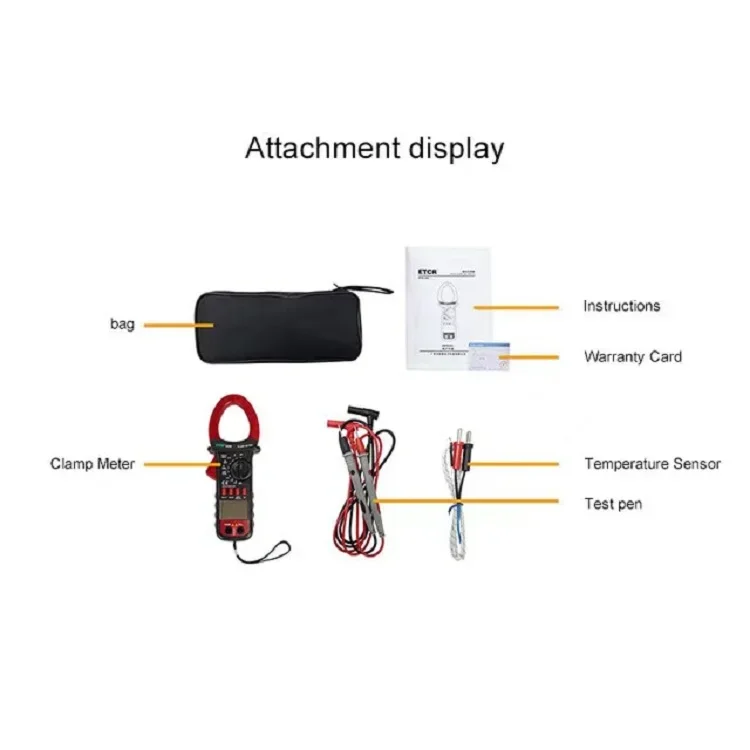

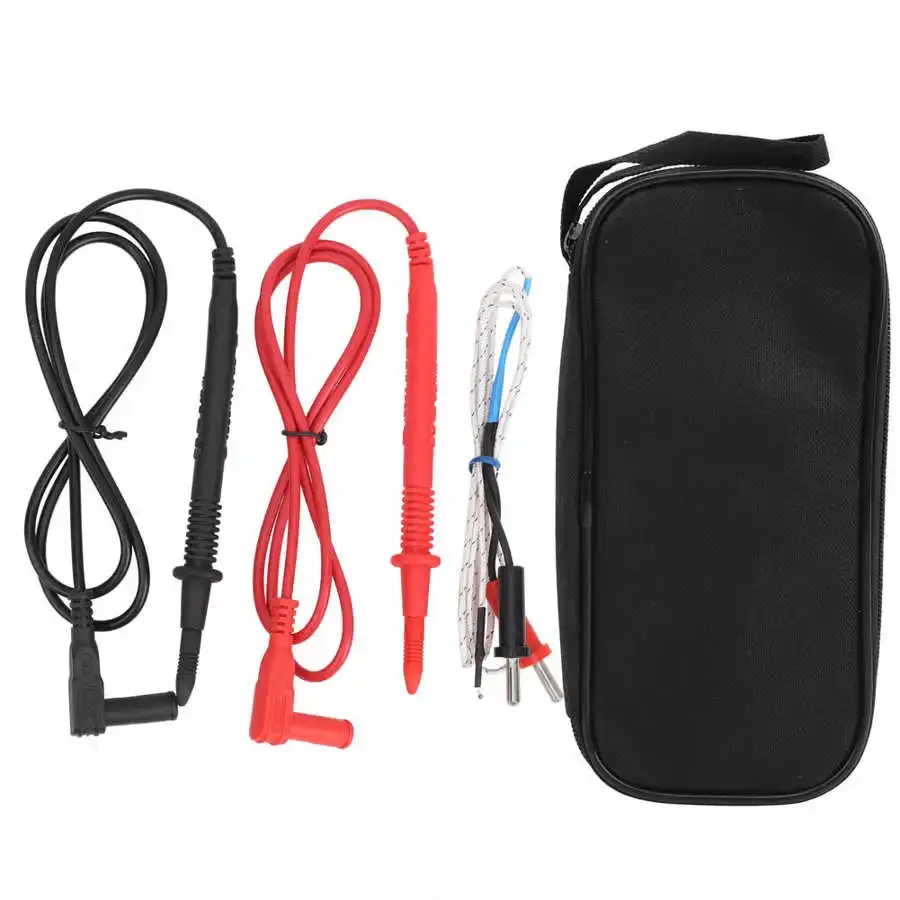

Accessories | Meter: 1pcs; Pen probe: 1set: Temperature sensor:1pcs; Tester Bag:1pcs |
DC Voltage | 400m～600V | 400mV～ 1000V | 2V～2000V |
AC Voltage | 4V- 600V | 400mV～ 700V | 2V～ 2000V |
DC Current | ,-- | 40A～1000A | 20A～ 2000A |
AC Current | 4A～ 600A | 4A～ 1000A | 20A～ 2000A |
Resistance | 100Ω ~ 40MΩ | 400Ω ~ 40MΩ | 200Q～ 20MQ |
Capacitance | 10n ～ 10mF | 10nF ～ 10mF | 20uF～ 200uF |
Frequency | 10Hz ~ 40MHz | 10Hz～ 40MHz | AC Voltage:40Hz～ 400Hz AC Current:50Hz～ 60Hz |
Temperature | -50℃～ 1000℃ | -50℃～1000℃ | ,-- |
CT Size | Ф27mm | Ф52mm | Ф55mm |
Power Supply | LR03 X 2 | 6F22 9VX1 | 6F22 9VX1 |
Meter Dimension | 213x80x35mm | 249x89x38mm | 27Ox100x46mm |
VWeight | 230g（with battery） | 360g (with battery) | 460g （with battery） |
Diode Test | Can measure the LED work voltage below 3V | DC forward current about 0.5mA DC reverse voltage about 3.2V Open circuit voltage about 0.6V | |
Surge Current Measurement | - | √ | √ |
NCV(Live line)Measurement | √ | √ | √ |
Manual Range | √ | √ | √ |

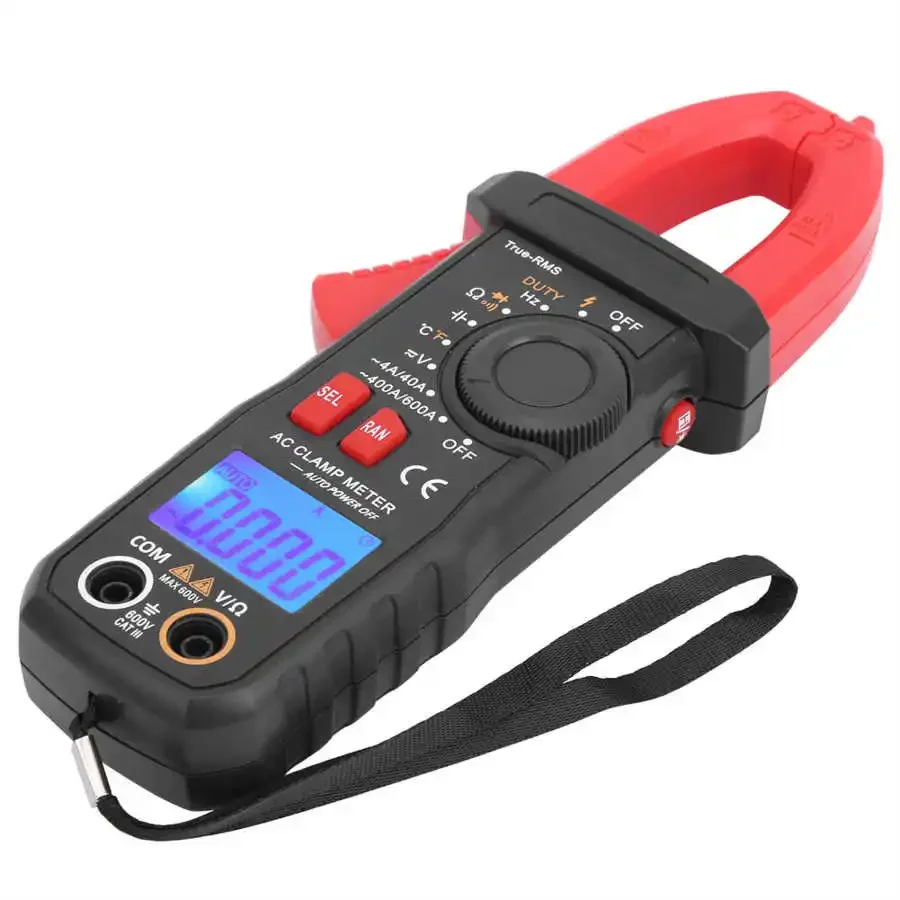

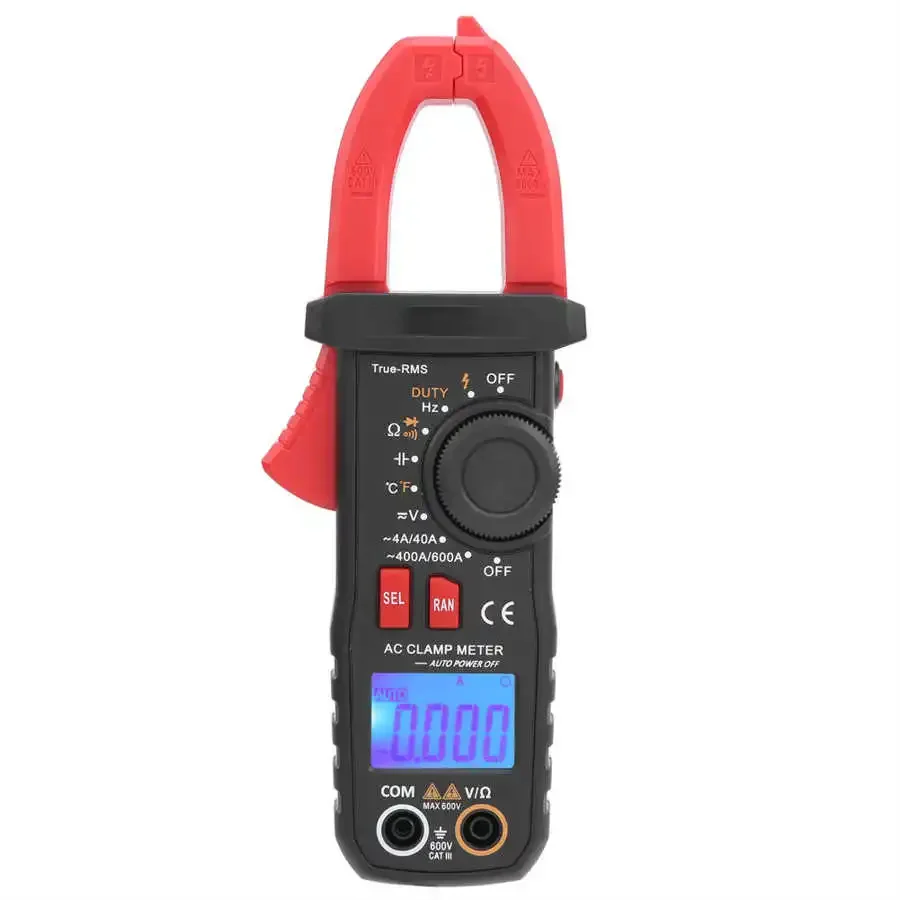

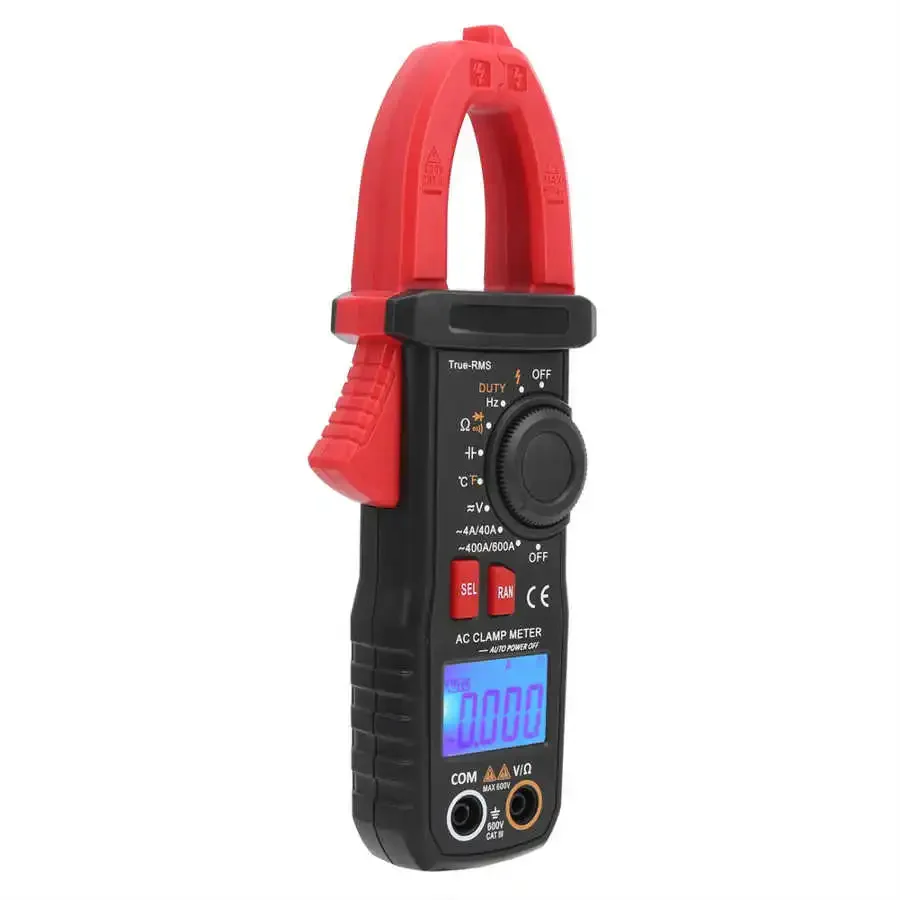

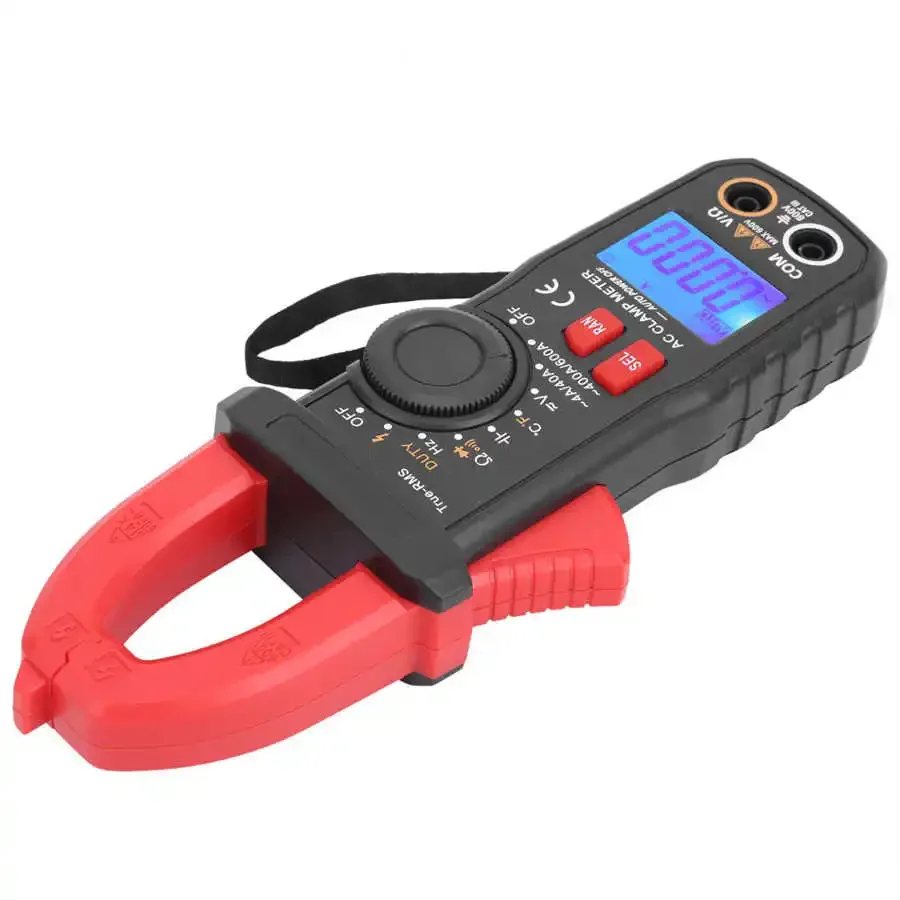

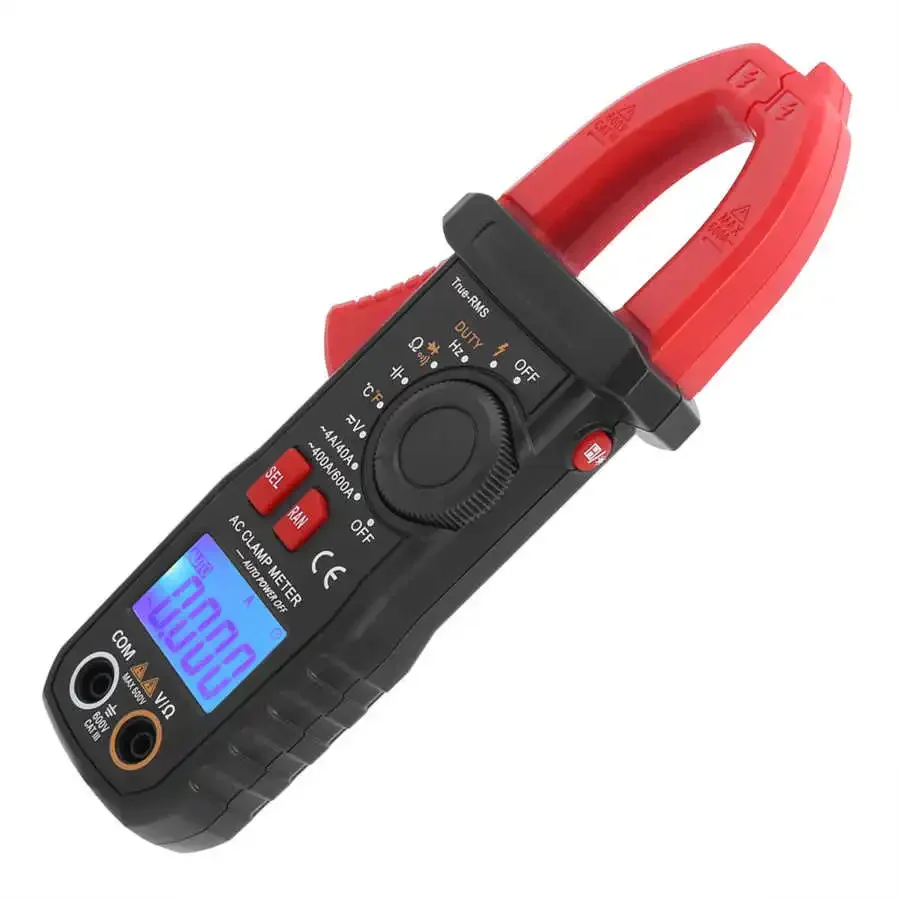

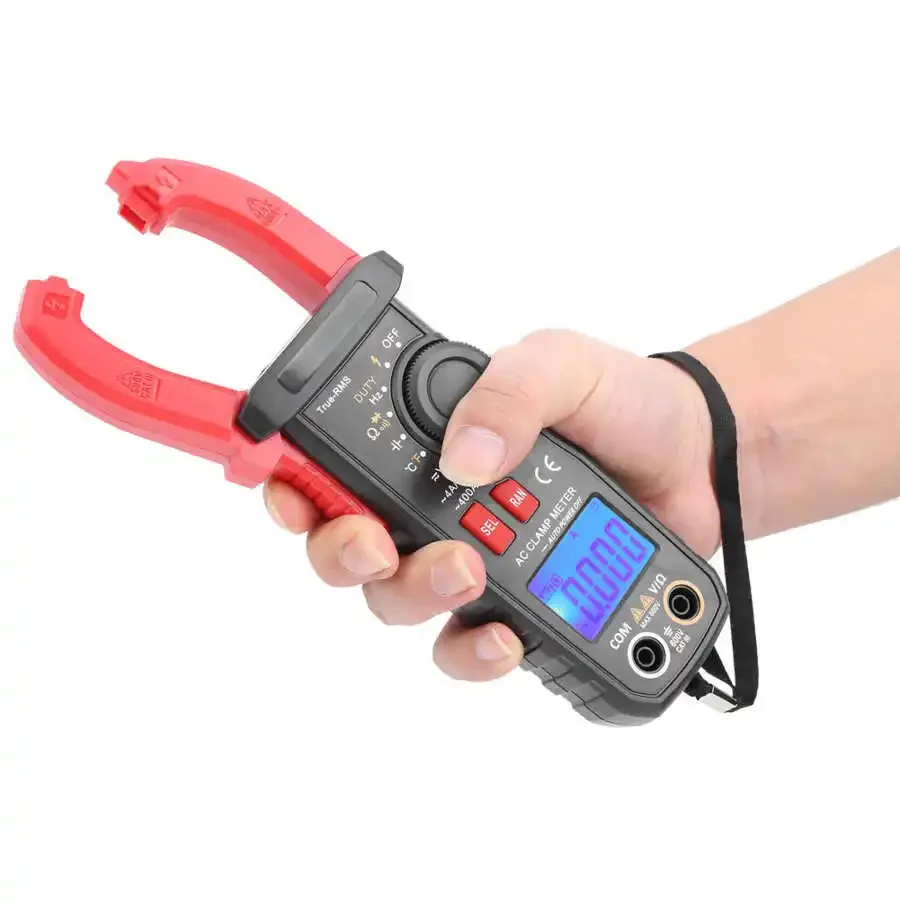

Pictures of ETCR6420 :

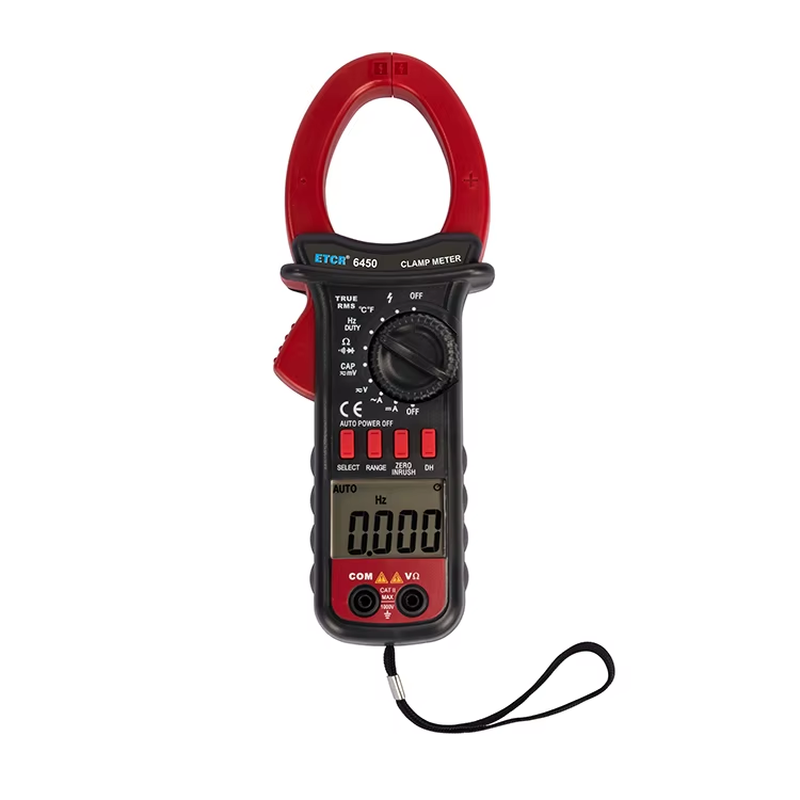

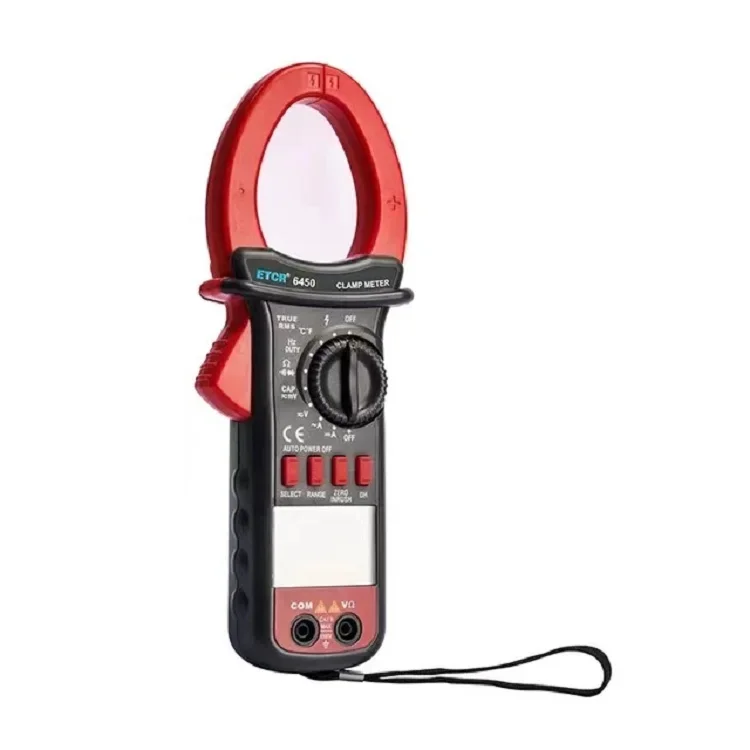

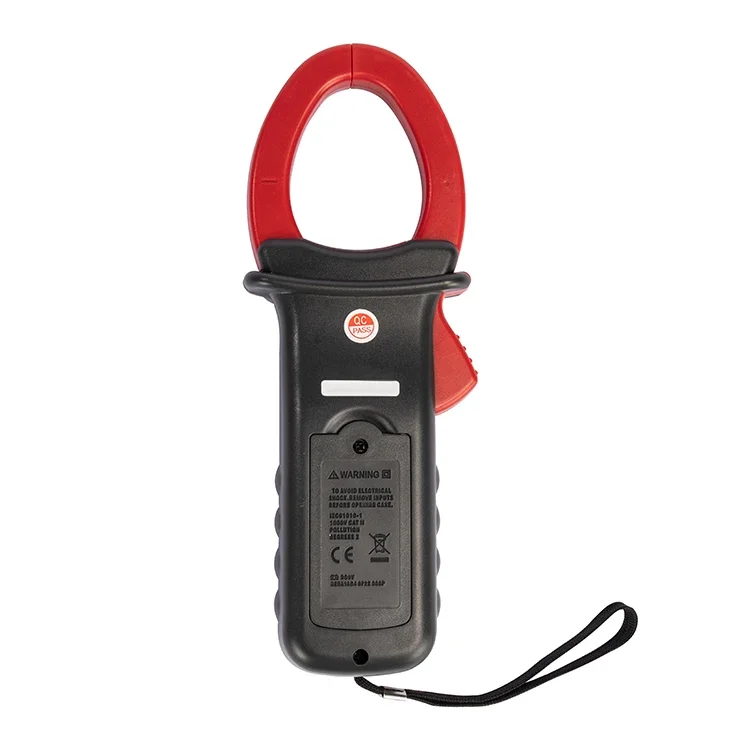

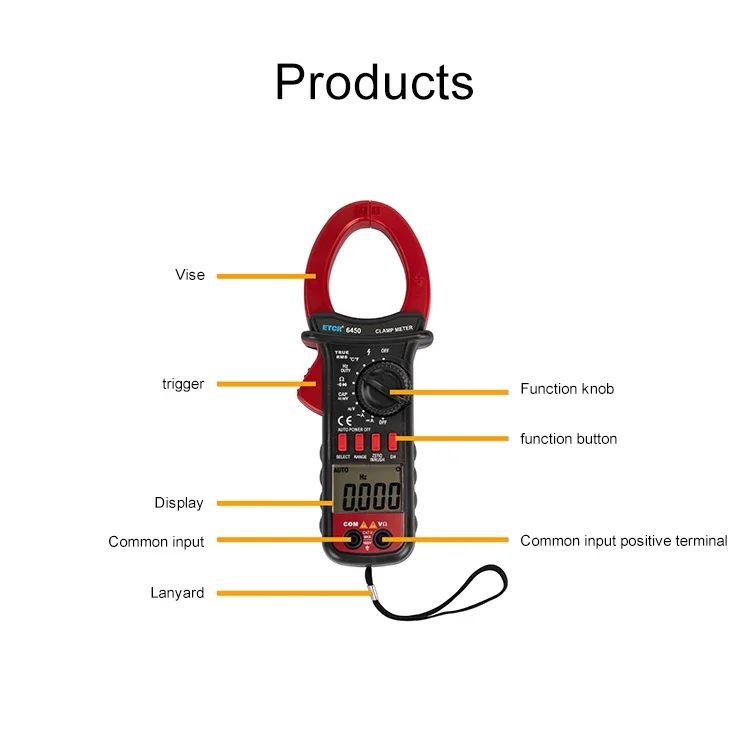

Pictures of ETCR6450 :

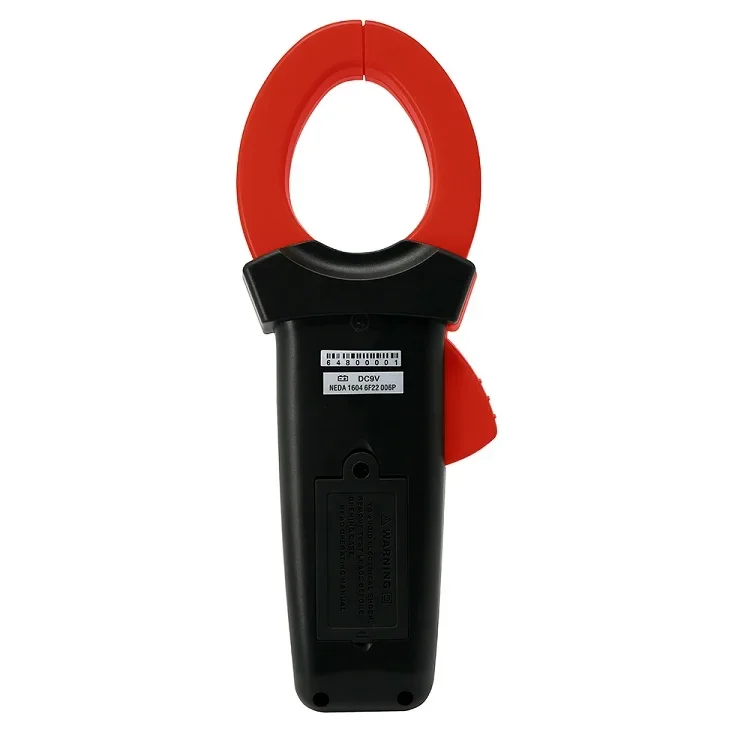

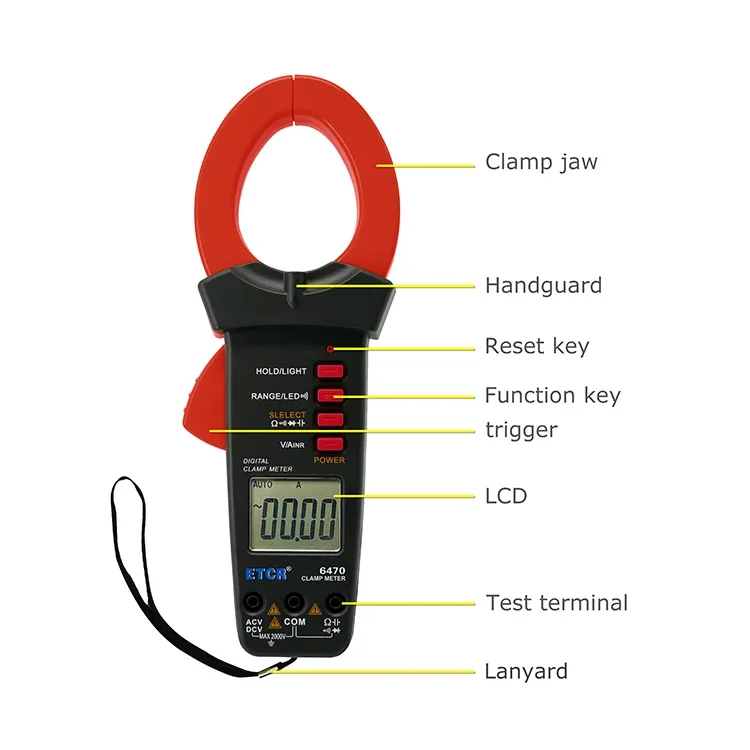

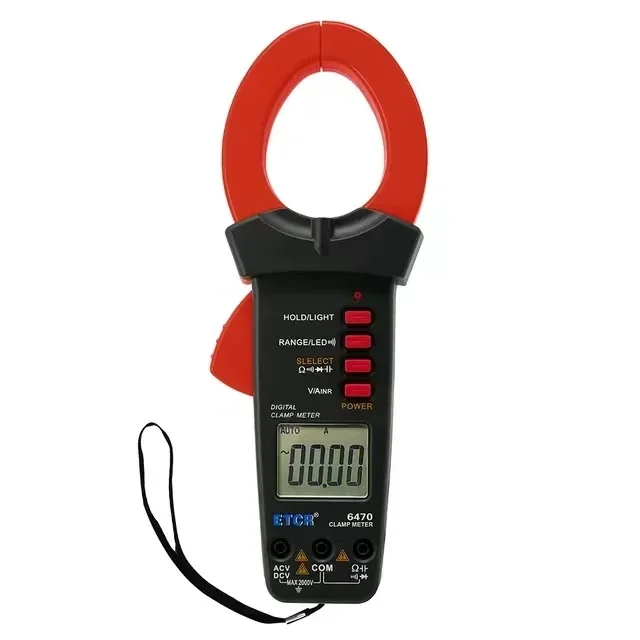

Pictures of ETCR6470 :
