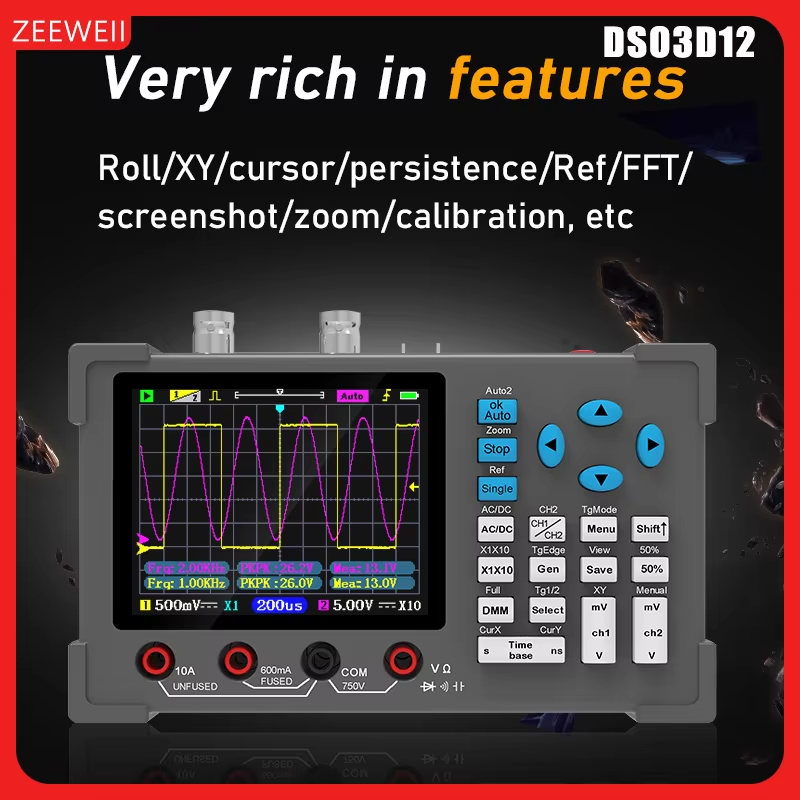

DSO3D12 3-In-1 Signal Generator 120M Bandwidth Dual Channel Multimeter, 250MSa/S

Product Description

Description

This DSO3D12 120M bandwidth oscilloscope with very low price and excellent performance. like adopt ARM and FPGA chip collocation, also Includes a high-accuracy true RMS multimeter and a 2.5V signal generator. Fully automatic measurement mode is supported.Come on and try it, it will not let you down.

Features:
Adopts ARM and FPGA chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.
Wide applications: can be used for such as sin-gle-chip debugging, car maintenance, home appliance maintenance,DIY debugging, electronic competition, power supplys debugging, frequency converter and so on.

Built-in high-precision multimeter, support voltage/current/resistance/diode/continuous/capacitor. The multimeter is isolated from the oscilloscope.The accuracy is high and it is also supported for fast calibration.
The bottom of the oscilloscope can output a variety of waveforms of 2.5V amplitude such as sine waves, square waves, trian-gle waves, half waves, singh waves, which the frequency adjustment ranges is 0~2MHz.

There are 14 measurement options available: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.

Specifications:

Material: ABS
Channels: 2
Coupling: AC/DC
Bandwidth 120M(ch1 only),dual channel mode is 60M.
Multimeter：voltage/current/resistance/diode/continuous/capacitor.
XY mode: support
Equivalent sample rate: 500M(algorithm)
Real-time sample rate: 250M
Screenshot: support
Rise time: <3ns
Frequency: ±0.01%
Single trigger: support
Impedance: 1MΩ
FFT: support
Fully-Auto: support
Time base: 5ns~10s
Wa-ve out amp: 2.5V
Ver sensitivity: 10mV/div~10V/div(X1)
Waves out freq: 0-2MHz
Max voltage ±40V(x1), ±400V(x10)
Trigger type: rise/fall
Display mode: YT/Roll
Persistence: None/1s /∞
