Product Description
G3 GPS RTK ，Rover and Base, Land Surveying Instrument, Language Switchable, Integrated Transceiver Farlink Radio Protocol

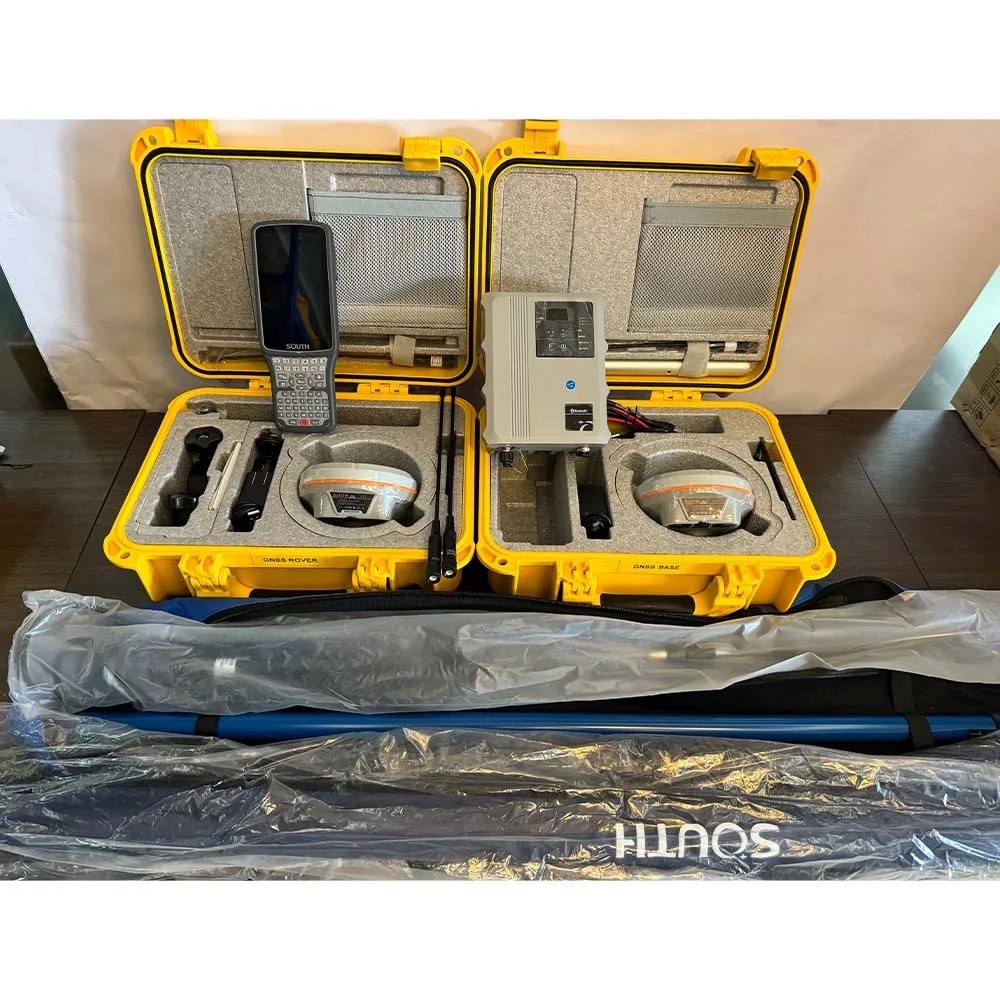

G3 GPS RTK ，Rover and Base, Land Surveying Instrument, Language Switchable, Integrated Transceiver Farlink Radio Protocol01 / CONCEPTSOUTH Galaxy G3 GNSS RTK: Professional Precision for Global Surveying1598 Channels | IMU 60° Tilt | IP68 Industrial GradeIf you purchase the Rover+Base combo. l will give you fivegifts, which includes: tripod+bipod+tripod base+2 antennas
Specification
| Model | G3 | |
| GNSS performance | Channels | 1598 |
| GPS | L1, L1C, L2C, L2P, L5 | |
| GLONASS | L1 C/A, L1P, L2C/A, L2P, L3 | |
| BDS | BDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b | |
| GALILEO | E1, E5A, E5B, E6C, AltBOC | |
| SBAS | L1 WAAS/MSAS/EGNOS/GAGAN | |
| IRNSS | L5 | |
| QZSS | L1, L2C, L5 | |
| MSS L-Band | BDS-PPP | |
| Positioning output rate | 1Hz~20Hz | |
| Initialization time | <10s | |
| Initialization reliability | >99.99% | |
| Positioning precision | Code differential GNSS | Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS |
| Static(long observations) | Horizontal: 2.5 mm + 0.1 ppm RMS Vertical: 3 mm + 0.4 ppm RMS | |
| Rapid static | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS | |
| PPK | Horizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS | |
| RTK(UHF) | Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS | |
| RTK(NTRIP) | Horizontal: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMS | |
| RTK initialization time | 2-8s | |
| SBAS positioning | Typically < 5m 3DRMS | |
| SBAS positioning | Typically<1m 3DRMS | |
| BANDA-L | Horizontal: 5-10cm (5-30min) Vertical: 10-30cm (5-30min) | |
| IMU | Less than 10mm + 0.7 mm/° tilt to 30° | |
| IMU tilt angle | 0° ~ 60° | |
| User interaction | Operaing system | Linux |
| Buttons | Single button operation | |
| Indicators | 5 LED indicatorss (Satellite , Charging , Power, Datalink , Bluetooth) | |
| Web interaction | With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely | |
| Voice guide | It provides status and operation voice guidance, and supports Chinese/English/ Korean/Spanish/Portuguese/Russian/Turkish | |
| Secondary development | Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition | |
| Data cloud service | The powerful cloud platform provides online services like remote manage, firmware update, online register and etc. | |
| Hardware performance | Dimension | 130mm (W) ×130mm (L) × 80mm (H) |
| Weight | 790g (battery included) | |
| Material | Magnesium aluminum alloy shell | |
| Operating temperature | -45°C ~ +75°C | |
| Storag temperature | -55°C ~ +85°C | |
| Humidity | 100% Non-condensing | |
| Waterproof/Dustproof | IP68 standard, protected from long time immersion to depth of 1m, and fully protected against blowing dust | |
| Shock and vibration | Withstand 2 meters drop onto the cement ground naturally MIL-STD 810G | |
| Power Supply | 6-28V DC, overvoltage protection | |
| Battery | Inbuilt 7.2V 6800mAh rechargeable, Li-ion battery | |
| Battery life | Single battery: 15h (Rover Bluetooth mode) | |
| Communications | I/O port | 5PIN LEMO external power port + Rs232 Type-C interface (charge , OTG to USB disk, data transfer with PC or phone , Ethernet )1 UHF antenna interface |
| Internal UHF | 2W radio, receive and transmit, radio router and radio repeater | |
| Frequency Range | 410 - 470MHz | |
| Communication Protocol | Farlink, Trimtalk450s, SOUTH, HUACE, Hi-target, Satel | |
| Communication range | Typically 8km with Farlink protocol | |
| Bluetooth | Bluetooth 3.0/4.1 standard, Bluetooth 2.1 + EDR | |
| NFC Communication | Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else) | |
| WIFI | Modem | 802.11 b/g standard |
| WIFI Hotspot | AP mode, Receiver broadcasts its hotspot form web UI accessing with any mobile terminals | |
| WIFI data link |
Channels | 1598 Channels |
Initialization Time | 2 to 8 seconds |
Water/Dustproof | IP68 |
Internal UHF | 2W |
IMU Tilt Angle | 0 to 60 degrees |
Battery Life | 15 Hours |
Power Supply | 6 to 28 V DC |

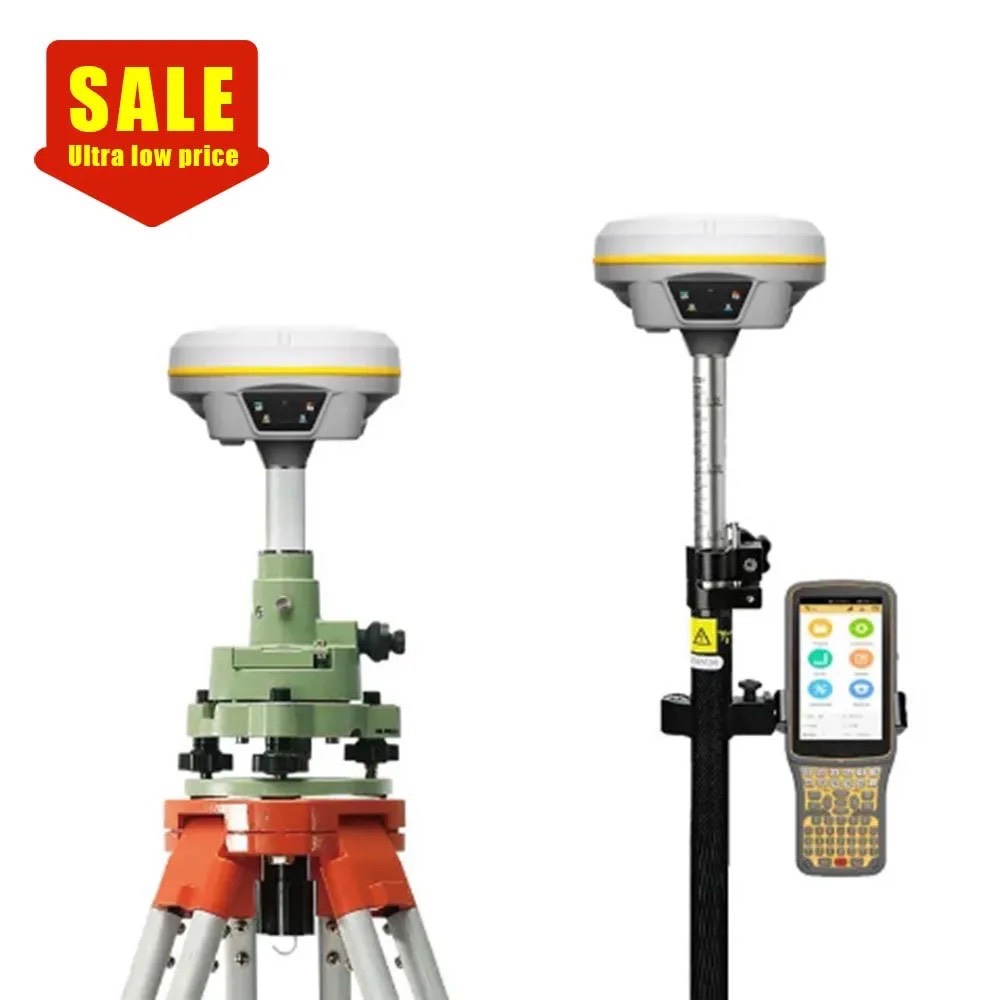

Dual-Mode Versatility & 1598-Channel PrecisionSeamlessly switch between Rover and Base modes with the built-in integrated transceiver. Utilizing 1598 channels for ultra-high-speed signal tracking, the South G3 provides centimeter-level accuracy even in the most signal-challenged environments.
1598-Channel Precision & IP68 DurabilityUtilize 1598 channels for ultra-high-speed signal tracking, delivering centimeter-level accuracy even in signal-challenged environments. Protected by an IP68-rated housing, this instrument is fully dust-proof and immersion-resistant for the most rigorous field conditions.
IP68-Rated Durability for Industrial SuccessMaintain peak performance in extreme conditions with an IP68-certified housing. This rugged design provides complete dust-proof protection and immersion resistance, ensuring your instrument survives the rigors of any land surveying site.

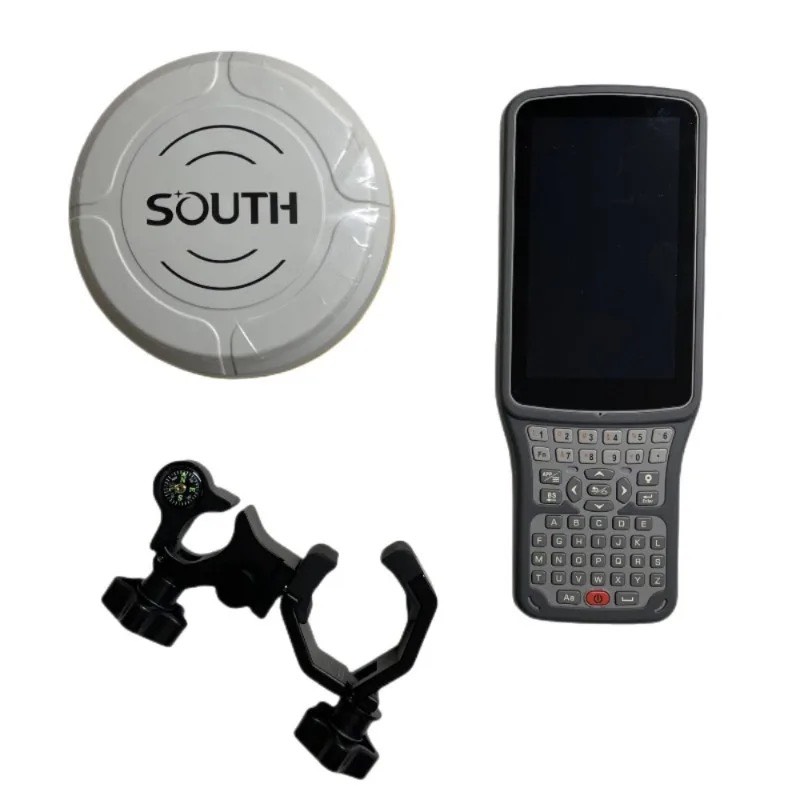

Stable Farlink Communication & Optimized WorkflowEnsure reliable long-range data communication with the advanced Farlink Radio Protocol. Paired with an intuitive controller, the G3 is engineered to streamline your workflow and handle complex topographical mapping with authoritative precision.
Advanced Farlink Radio & ConnectivityEnsure reliable long-range data communication with the advanced Farlink Radio Protocol. Featuring an integrated 2W internal UHF transceiver, it maintains signal integrity across expansive industrial sites while allowing seamless switching between Rover and Base modes.
Streamlined All-in-One Surveying WorkflowOptimize your field operations with this complete, professional RTK set. Specifically designed to handle complex topographical mapping and construction layouts, it integrates IMU tilt compensation and 15-hour battery life for authoritative precision and maximum efficiency.FREQUENTLY ASKED QUESTIONSQ:Can the South G3 be used as both a Base and a Rover?A:Official Response:Yes, the G3 features an integrated transceiver that allows it to switch roles between Base and Rover depending on your site requirements.Q:What is the accuracy of the tilt measurement?A:Official Response:The built-in IMU supports up to 60-degree tilt with high precision, allowing you to measure points where vertical centering is difficult.Q:Is the device durable enough for rainy conditions?A:Official Response:Absolutely. With an IP68 rating, the device is fully dust-proof and can withstand immersion in water, making it ideal for harsh field environments.Q:How long does the battery last in the field?A:Official Response:The South G3 provides up to 15 hours of continuous operation, ensuring a full day of productivity without needing a recharge.About Prime Living
