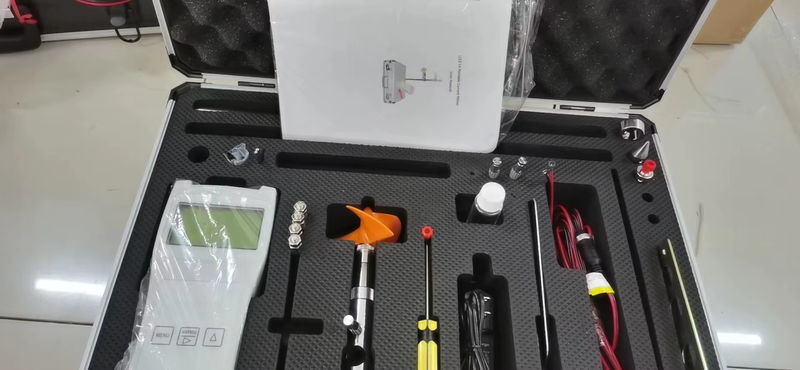

LJ12-1A Liquid flow meter 0.05~8m/s /portable velocity meter

Product Description

Check formula mean square error: 1.2% or m, V < 0.2 m/s, The relative error δ than plus or minus 5%

LS1206B type spiral paddle type velocity apparatus for testing water flowing scheduled the measuring point time average velocity. This instrument characteristics is, small volume, light and modelling, compact structure, precision, carrying, use convenient, applicable to small rivers, the river sell water, irrigation and drainage channels of ford, water conservancy survey, runoff experiment, etc, and is widely used in the test tube of small and medium-sized pump station efficiency flow measurement and hydraulic machinery efficiency experiment, and the environmental protection department of the wastewater monitoring, seepage flow measurement. The instrument as CBL-type 1 pump station velocity apparatus, in July 1983, the organization by water and electricity identification, agreed that the equipment is used for medium and small single flow test pump station, with instrument installation, the operation is simple, convenient, stable performance, reliable work, the accuracy is accord with international standard ISO 2548-73 "flow test" grade C precision. Approved by the national promotion after use, the user agreement that the small with input and output high characteristic. In 1983 attains the hydropower department the progress of science and technology ministerial levels. The instrument is widely used for irrigation of the small channels

The main technical indicators

1, turning propeller diameter: Φ 60 mm
2, the propeller hydraulic screw torque: H = 120 mm
3, the instrument speed: where V0 acuities were 0.05 m/s
4, instrument speed range: 0.05 ~ 8 m/s
5, the instrument work depth: 40 m
6, wading measurement methods: rod installation
7, CG16 - rod type 1: Φ 16 mm x 1.6 m (can be discharged into four sections)
8, pipe flow installation: the special type rod
9, the signal frequency: every turn two signals
10, using the environment temperature: 0 to 35C
11, continuous working hours: 24 h
12, the mean square error calibration formula: m 1.2% or less, V < 0.2 m/s,
The relative error of the delta plus or minus 5% or less
