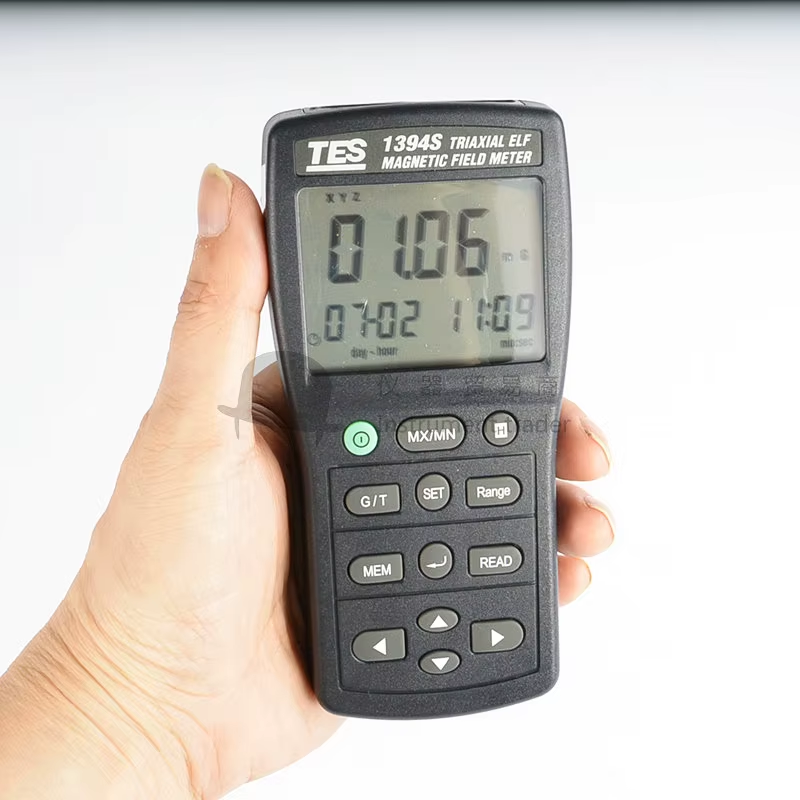

TES-1393/TES-1394S EMF Tester Gauss Electromagnetic Field Meter

FEATURES:

• uses 3 internal orthogonal sensors to test a wide range of ELF magnetic fields, independant of measurement angle;

• measure magnetic field radiation at different bandwidths from 30Hz to 2000Hz;

• display micro tesla (uT) or milli Gauss (mG) units;

• data hold, max hold and min hold functions;

• auto range or manual range select mode;

• data logging capacity with memory size:500 data sets;

• time and calendar function;

• low battery indication;

• over load display;

• auto power off function;

• Applications:

• measure electromagnetic fields of extremely low frequency (ELF) of 30 to 2000Hz;

• measure radiation intensity that is produced from electric transmission equipment, power line, microwave oven, air conditioner, refrigerator, computer monitor, video/audio and so forth

• magnetic field unit is tesla(T),gauss(G);

SPECIFICATIONS:

• The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices. The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths down to 50Hz/60Hz. Display micro Tesla & milli Gauss in the same tester. Data hold, Peak hold function. RS-232 Optical inter face. 999 Datalogging capacity.

  This EMF tester is specifically designed to determine the magnitude of electromagnetic filed radiation generated by power lines, computer's monitor, TV sets, video machinery and many other similar devices.




  Display 3-1/2 digits. Max. indication 1999 Range 20/200/2000 milli Gauss 2/20/200 micro Tesla Resolution 0.01/0.1/1 milli Gauss 0.001/0.01/0.1 micro Tesla Number of Axis Three axis Band Width 30 Hz to 2000 Hz Accuracy ±(3%+3d) at 50Hz or 60HZ, ±(5%+3d) at 40Hz to 200HZ, -3dB at 30Hz to 2000HZ Over-Input Display shows Datalogger 999 reading Sampling Time Approx. 0.5 second Battery 6 pcs size AAA 1.5V Battery Life Approx. 100 hours Operating Temp and Humidity 0 to 50 (32 to 122) below 80%RH Storage Temp and Humidity -10 to 60 below 70%RH Weight Approx. 165g Dimension 154(L) × 72 (W) × 35(H) mm Accessories Included Operation Manual , 6 pcs size AAA(not included package) , [Software for windows, RS-232 Cable.
