Product Description

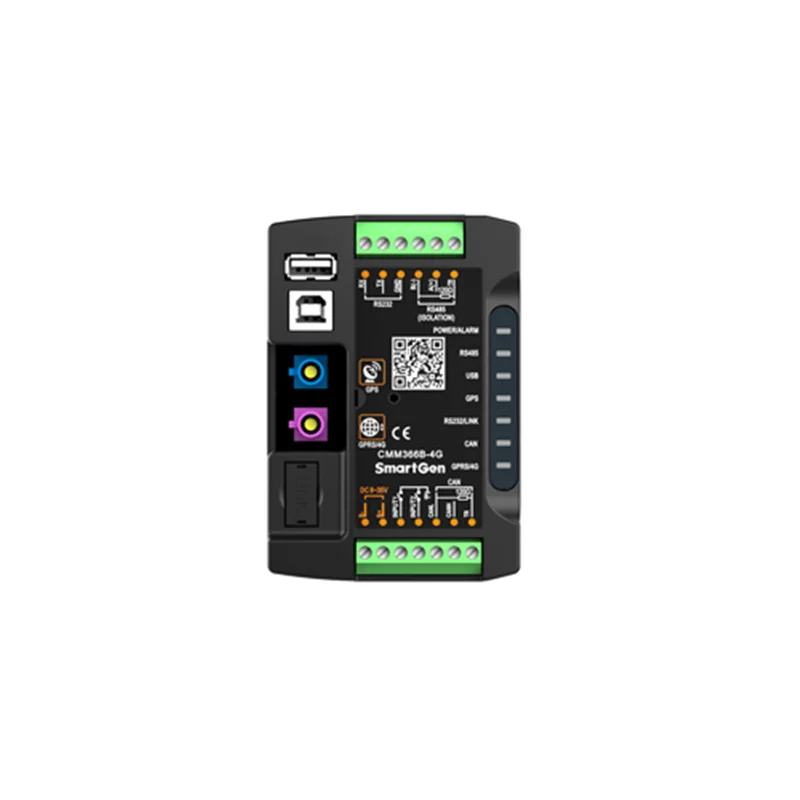

CMM366B-4G Cloud Monitoring Modem 4G connects cloud server
CMM366B-4G Cloud Monitoring Modem 4G connects cloud serverCMM366B-4G Cloud Monitoring Modem 4G connects cloud server
CMM366B-4G/CMM366CAN-4G Cloud Monitoring Communication Module is 4G wireless network communication protocol switching module of global network communication, which can achieve genset (with SCI) connection with Internet. After logging into cloud server, module will receive corresponding genset controller communication protocol from cloud server. Cloud server module can obtain genset data information via RS485, USB, LINK, CAN, or RS232, and send the information to related could server via 4G wireless network. Users can at real time monitor genset running status and check genset running records by mobile APP (IOS or Android), or PC etc. terminal device.
It not only can realize genset monitoring, but also can be connected with some digital alarm inputs, to realize monitoring of genset entrance guard, prevention of burglary, fire control etc. ancillary facilities.
It has GPS positioning function, which can upload the obtained longitude and latitude, altitude information at real time to the corresponding cloud server.
CMM366CAN-4G cloud monitoring communication module has CAN port, but CMM366B-4G hasn't. Except for this, these two cloud monitoring communication modules has same functions.
PERFORMANCE AND CHARACTERISTICS
Connected to cloud server via 4G wireless network, one cloud monitoring module for one genset;

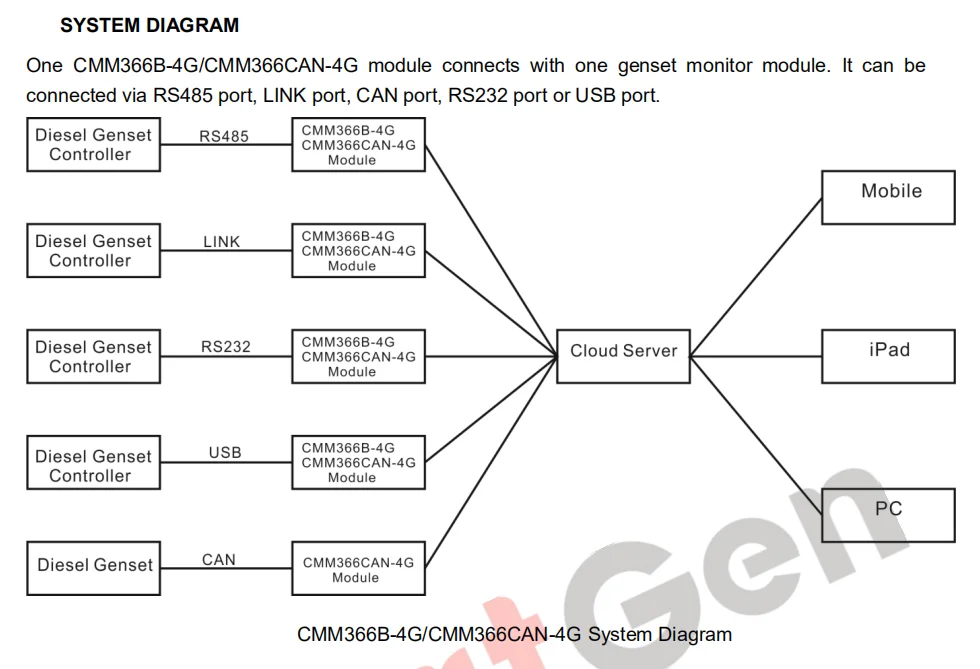

Multiple communicating ports with genset control module: RS485, RS232, LINK, CAN, USB (Host); which can monitor most genset control modules of leading brands internationally;
Wide power supply: DC (8~35)V, which can directly use genset build-in start battery;
With ARM-based 32-bit SCM, high integration of system and strong programming ability;
GPS positioning function to obtain genset location information, to realize genset location;
Applying network data communication protocol of Json format, upload the genset data changes at real time, meanwhile compression algorithm is applied, which extremely reduces network flow;
Immediately upload the data to cloud server when genset alarms occur;
Event log memory function, which can ensure data won't get lost when network is not steady;
Cloud Modem can be upgraded by 4G signal, convenient for module' s maintenance;
2 configurable digital input ports, which can be connected with external alarm signals;
Module panel has power and multiple communication status indicators; clear for watching module working status;
Lamp test function;
Parameter setting function: users can do parameter setting by module USB port;
Applying standard π-type 35mm guide-rail installation or screw-fixed installation, and the module can be installed in the genset control box;
Modular structure design, flame retardant ABS enclosure, light weight, compact structure with easy installation.
