Product Description

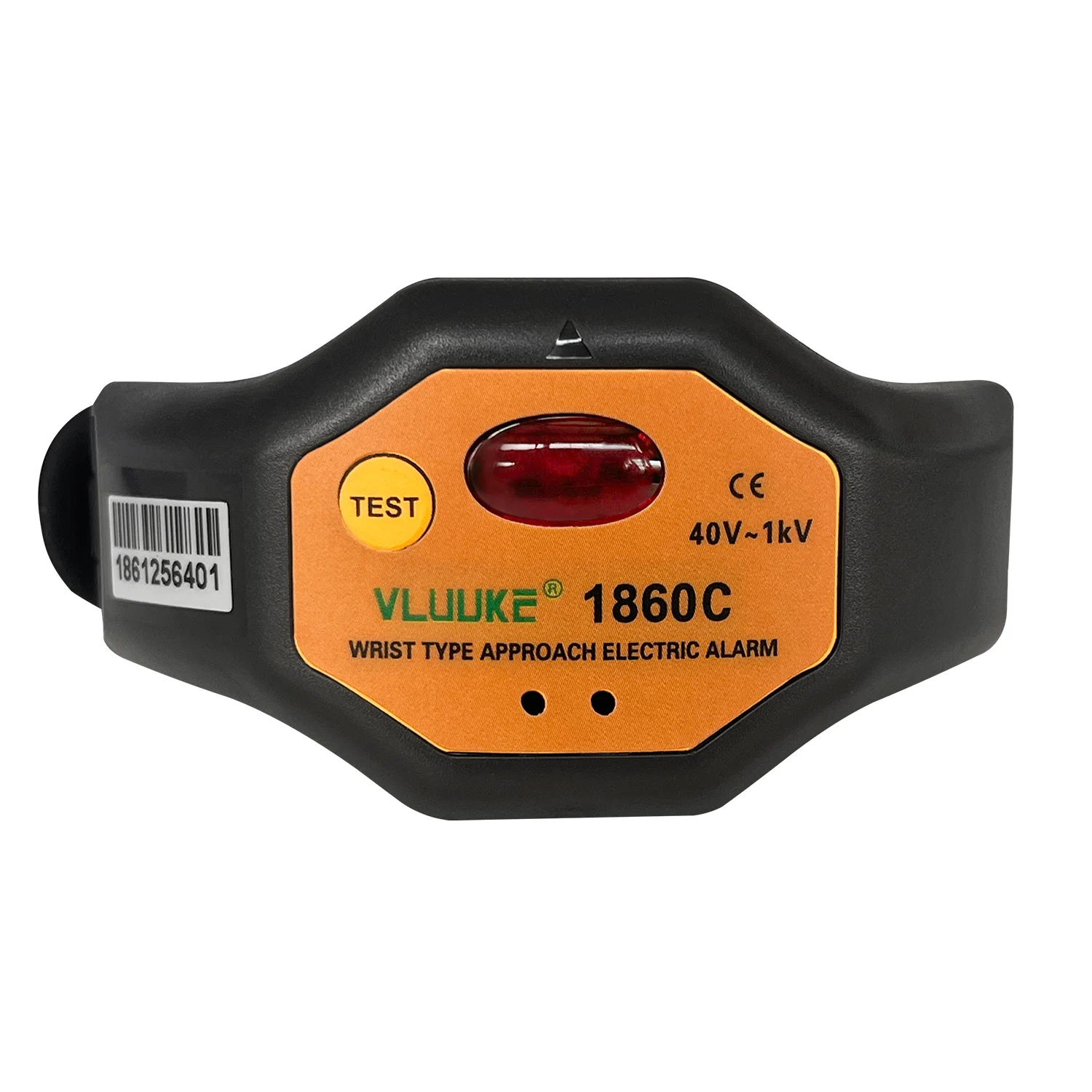

VC1860C High Accuracy Non-contact Low Voltage Wrist Type Electric Proximity Alarm Safety Detector 1 Year IP67 Protection
VC1860C High Accuracy Non-contact Low Voltage Wrist Type Electric Proximity Alarm Safety Detector 1 Year IP67 Protection
VC1860CSeries Wrist Type High Voltage Approach Electric Alarm provide a safe, practical and convenient new type high voltage alarm device for close-electric operator. During live electric working, the safe distance between operator and live body should not be closer than the requirement of relevant working regulations. After the operator wearing this alarm, when close to the high voltage charged body for a certain distance, according to the corresponding safe distance of voltage level, the alarm will make out the sound and light alarm to remind the electrical workers to pay attention to safety and avoid high voltage electric shock accidents.VC1860C Series Wrist Type High Voltage Approach Electric Alarm develop with two model of high voltage alarm(above 1kV) and low voltage alarm(below 1kV), adopt non-contact induction technology, accurate alarm, power saving and durable, standby time up to 12 months. The alarm with unique automatic trigger detection function to ensure the safety of close-electric workers. The alarms are widely used in electric power, railway, industrial and mining enterprises and other close-electric working places.
| Product Name | Model | Voltage Alarm Range | Application |
| HV Approach Electric Alarm | VC1860 | 0.4kV~500kV | High voltage alarm |
| LV Approach Electric Alarm | VC1860C | 40V~1kV | Low voltage alarm |
| Model | Voltage Level | Safe Distance | Working Distance |
| VC1860 | 0.4kV | 0.02m | |
| 1kV | 0.10m | ||
| 6.6kV | 0.70m | ||
| 10kV | 0.70m | 1.00m | |
| 35kV | 1.00m | 1.60m | |
| 66kV | 1.50m | 2.20m | |
| 110kV | 1.50m | 2.50m | |
| 220kV | 3.00m | 3.50m | |
| 330kV | 4.00m | 4.50m | |
| 500kV | 5.00m | 5.50m | |
| VC1860C | 40V | 5cm | |
| 110V | 10cm | ||
| 220V | 15cm | ||
| 600V | 40cm | ||
| 1kV | 60cm |
2.Higher voltage levels not described in the corresponding models in the table can generate alarms at a certain distance, but the actual alarm distance error will be larger.
| Function | Approach Electric Alarm |
| Power Supply | CR1632 (140mAH) button cell 1PCS |
| Alarm Voltage Range | VC1860: 0.4kV~500kV(high voltage alarm) VC1860C: 40V~1kV(low voltage alarm) |
| Alarm Distance Error | ±10cm（23℃±1℃,80%RH,under base condition） |
| Working Frequency | 50Hz/60Hz |
| Electricity Testing Mode | Non-contact mode |
| Detection Mode | Automatic trigger |
| Battery Life | Continues working (sound and light alarm): about 24 hours |
| Standby time: about 12 months | |
| Alarm Mode | Indicator: LED light visibility under 8000LX visible light |
| Buzzer: above 60dB (60CM apart) | |
| Weight | Meter: 40g (include battery); Total: 0.08kg (include accessories) |
| Dimensions | 90mmX40mmX35mm |
| Protection Level | IP54 |
| Working Temperature | -10℃~40℃; below 80%RH |
| Store Temperature | -10℃~60℃; below 70%RH |
alarm may change according to the situation on the field.
