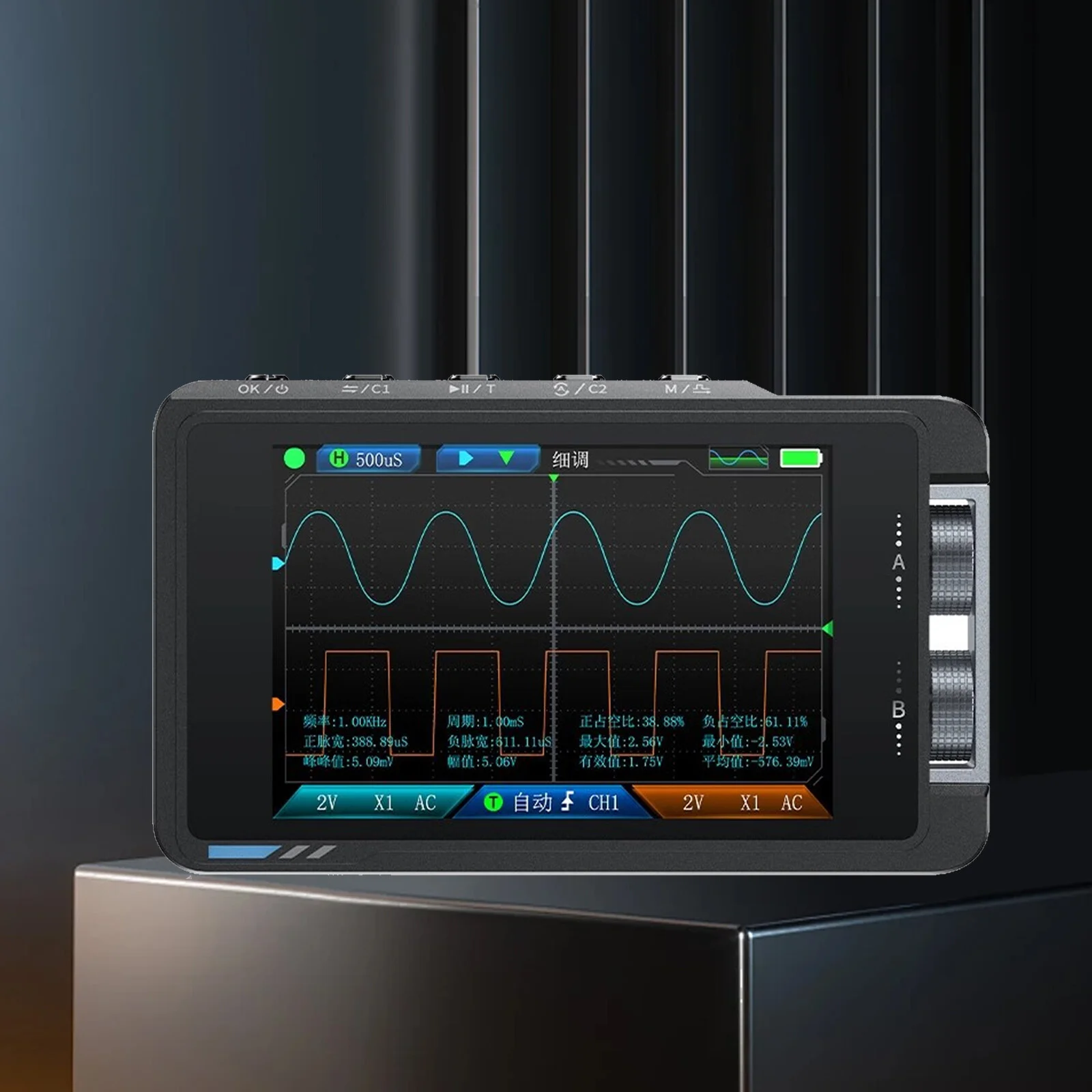

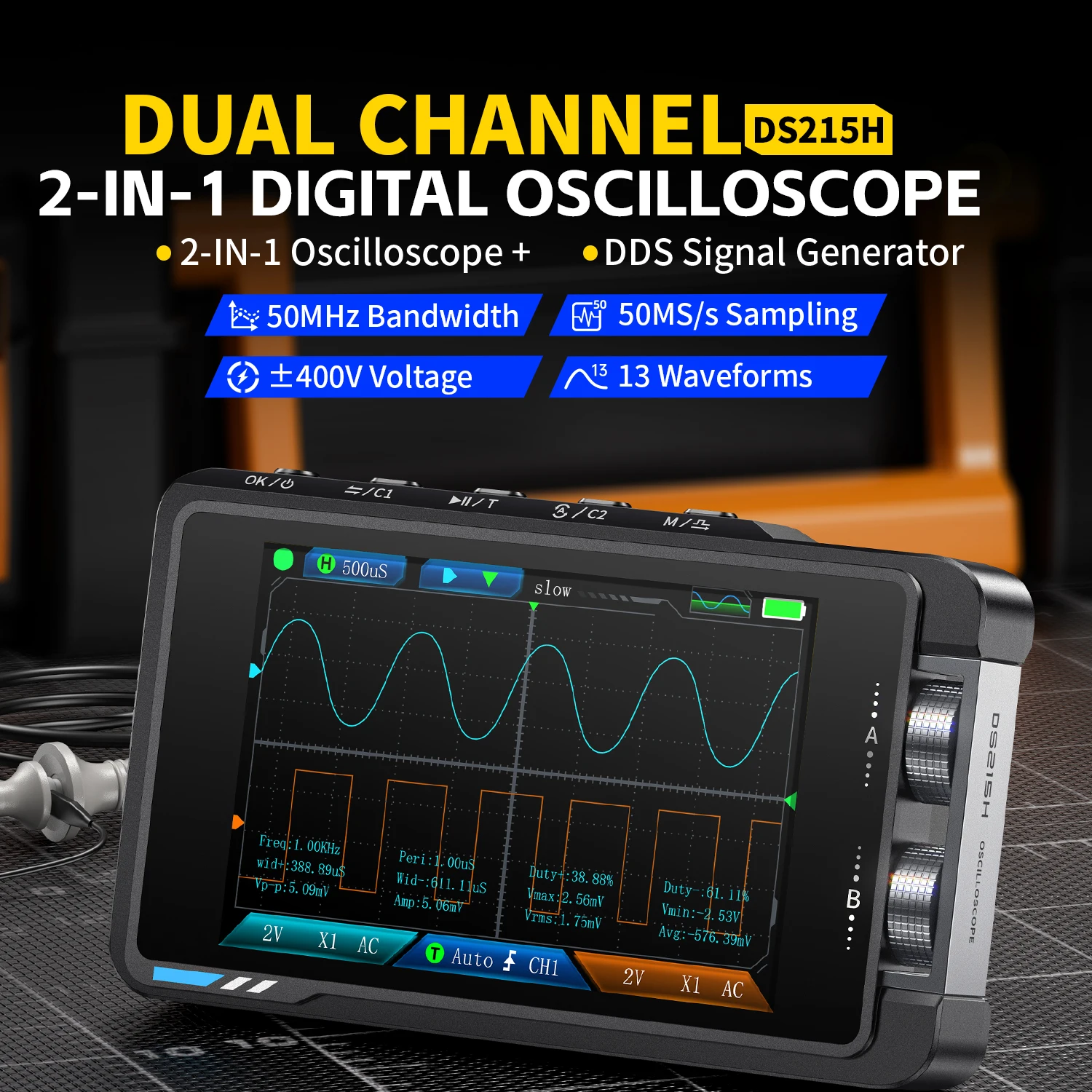

DS215H 2-In-1 Digital Oscilloscope Signal Generator 50M 250MS/S Dual CH 2-IN-1 D

Product Description

Key Features:

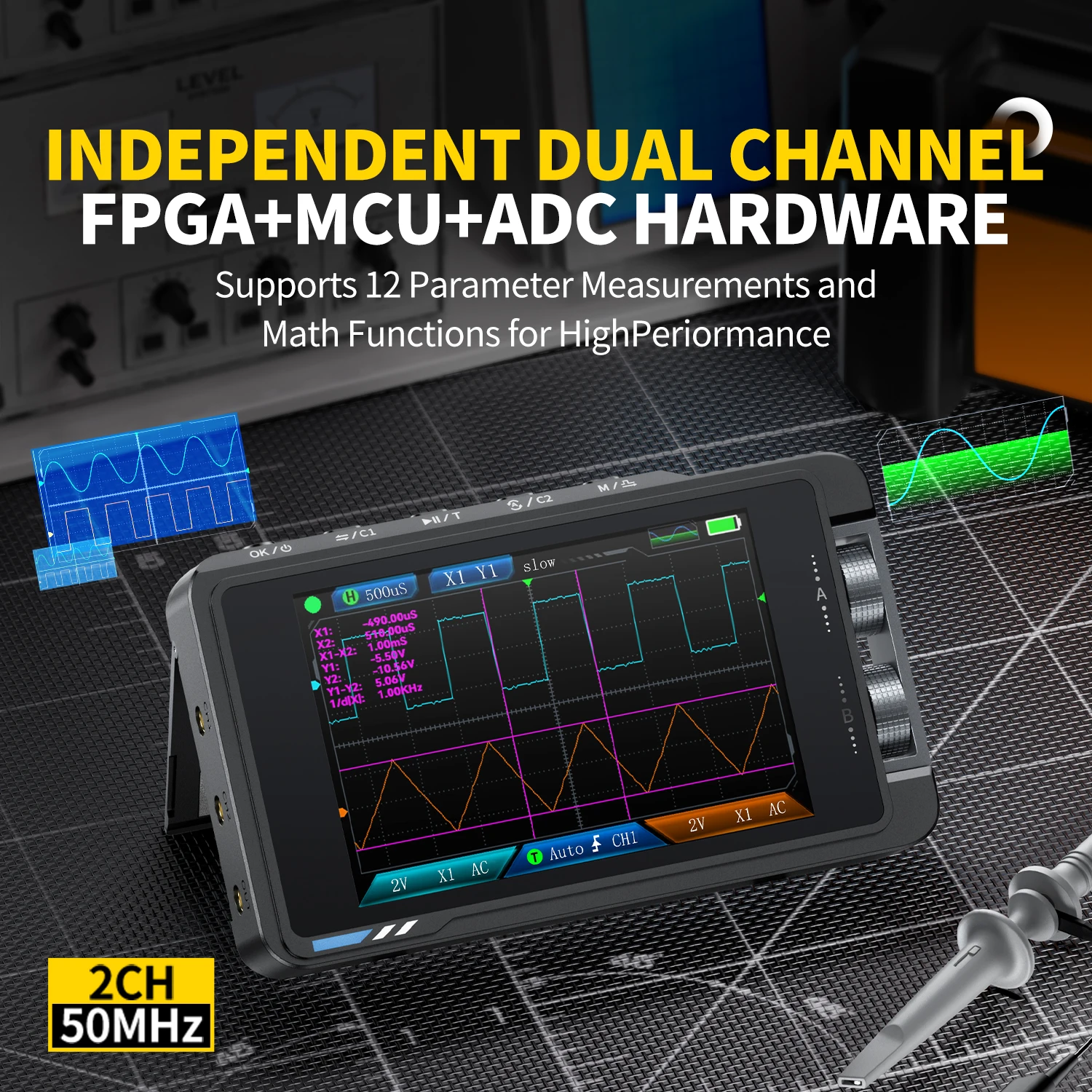

1. High-precision measurement: The FNIRSI-DS215H offers high precision with a sampling rate of up to 250MS/s and a 50MHz analog bandwidth, ensuring accurate measurements for various applications.
2. Wide voltage protection: Supports peak voltage measurements up to ±400V, offering reliable and safe performance in high-voltage scenarios.

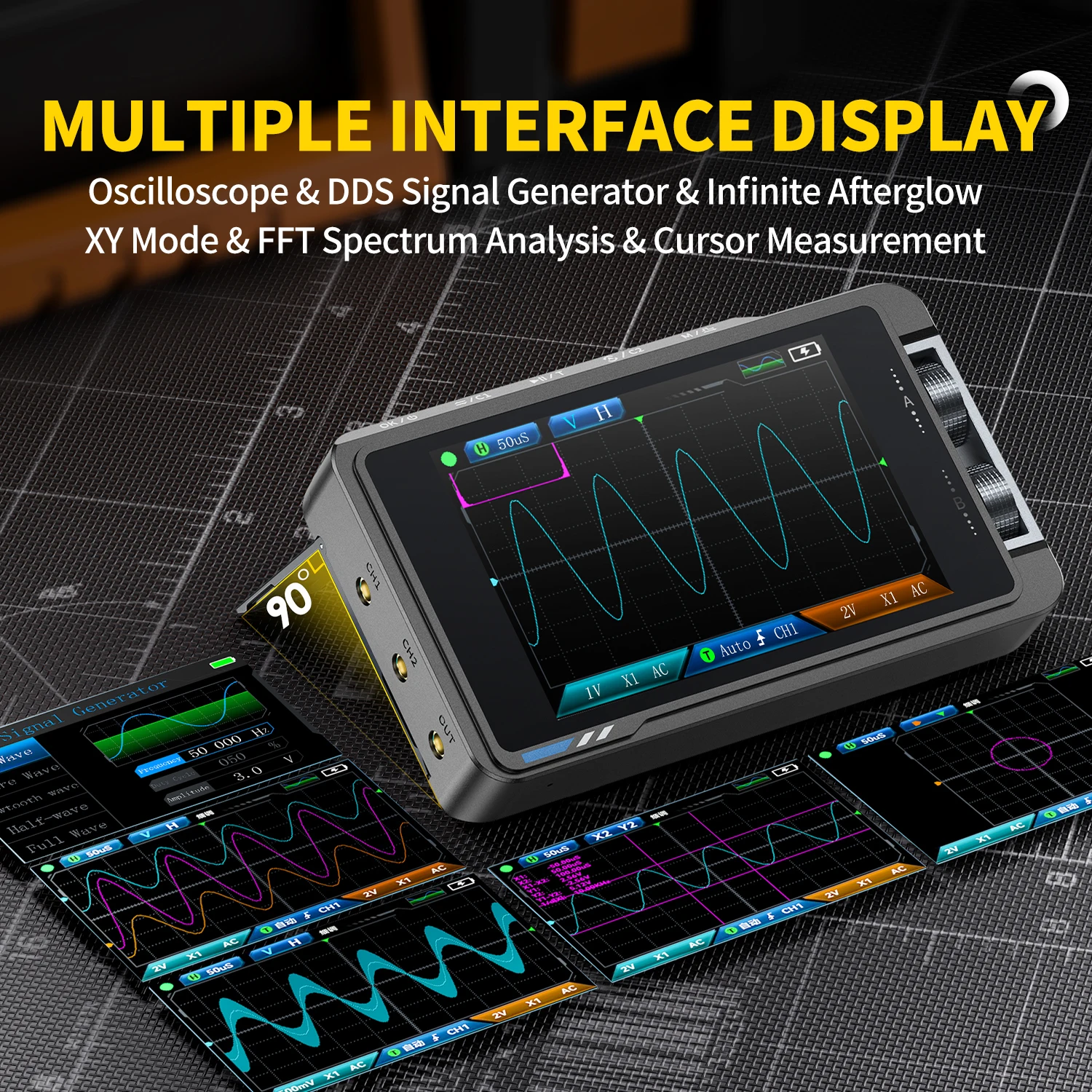

3. Waveform storage: The device supports screenshot saving and viewing, making data analysis more convenient and efficient.

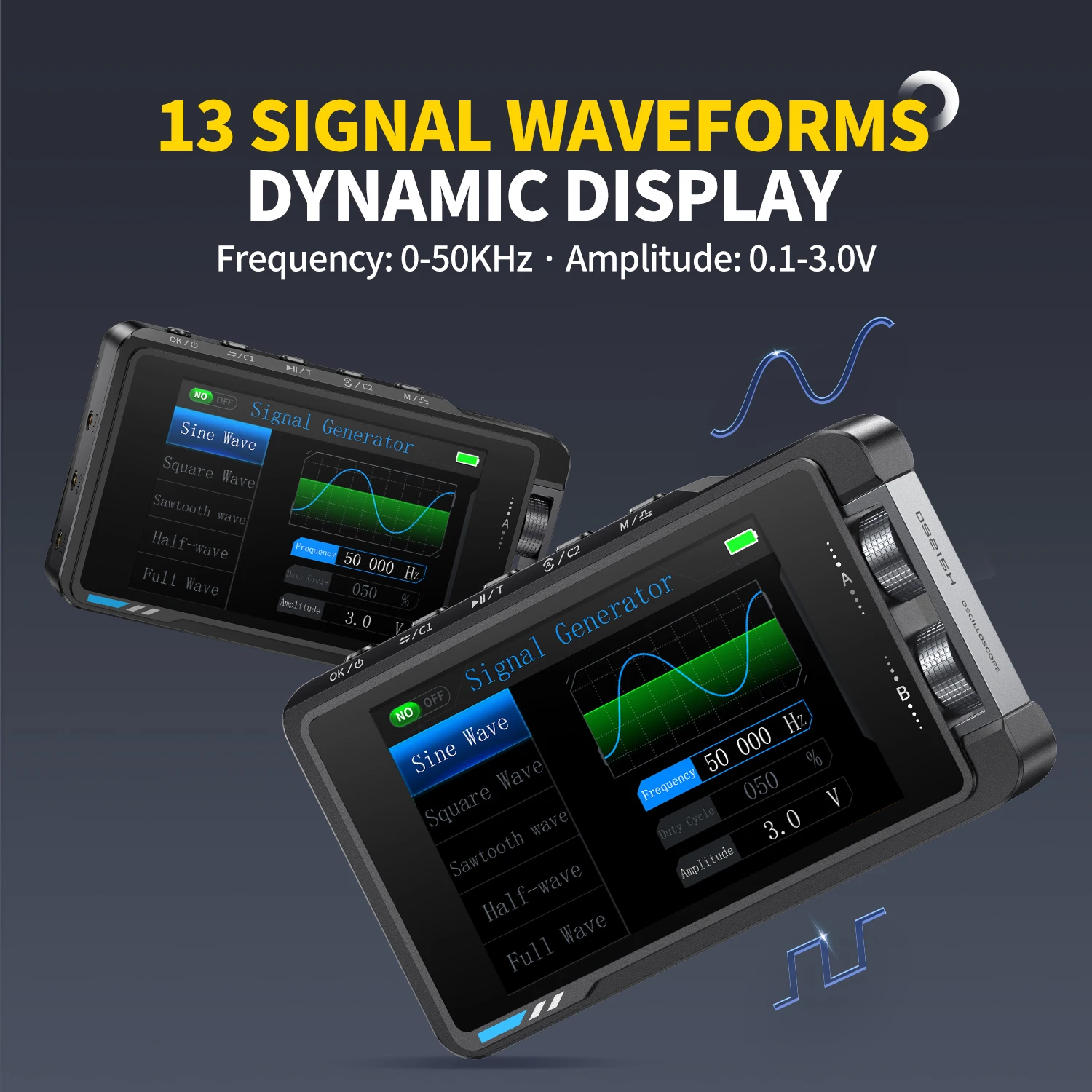

4. Signal generator functionality: It features 13 waveform outputs with a frequency range of 0-50 KHz, adjustable by a 1Hz step. The output parameters, including frequency, amplitude, and duty cycle, are fully adjustable to meet various needs.
5. Portable design: The device is equipped with a 3.5-inch display (480×320 resolution) for clear and intuitive visuals. Its compact and lightweight design makes it ideal for mobile use.
6. Long battery life: Powered by a 1500mAh rechargeable lithium battery, it supports up to 4 hours of continuous operation, ensuring long-lasting performance for on-the-go use.
7.Ideal for professionals: The FNIRSI-DS215H is designed to provide powerful and flexible features, offering users a portable and efficient tool for maintenance, R&D, and testing tasks.

Basic Parameter

1.Display：3.5-inch IPS high-definition color screen
2.Backlight：Brightness Adjustable
3.Power supply：TYPE-C（5V/1A）
4.Battery：1500mAh
5.Languages：, English, русский, , Español, Português, Deutsch, 한국어
6.Product size：≈66x110x19.5mm
7.Bare weight：≈138g

Parameter 1

1.Channel: Dual Channel
2.Bandwidth: 50 MHz
3.Real-time sampling rate: 250 MSa/s
4.Storage space: 14M
5.Time base range: 20ns/div - 20s/div
6.Vertical sensitivity: 10mV/div - 10V/div
7.Waveform display mode: Scroll
8.Vertical resolution: 8 bits
9.Input impedance: 1ΜΩ
10.Measurement data: Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp,Dduty cycle, Pulse width
11.Probe attenuation factor: 1x / 10x
12.Input coupling: AC / DC
13.Trigger type: Rising edge / Falling edge
14.Peak voltage: ±400V
15.Trigger level range: 8 grids (positive and negative)
16.Trigger mode: Auto / Normal / Single

Parameter 2

1.Output waveform: Supports multiple waveform outputs
2.Waveform frequency: 0-50 KHz
3.Square wave duty cycle: 0-100%
4.Waveform amplitude: 0.1V - 3.0V

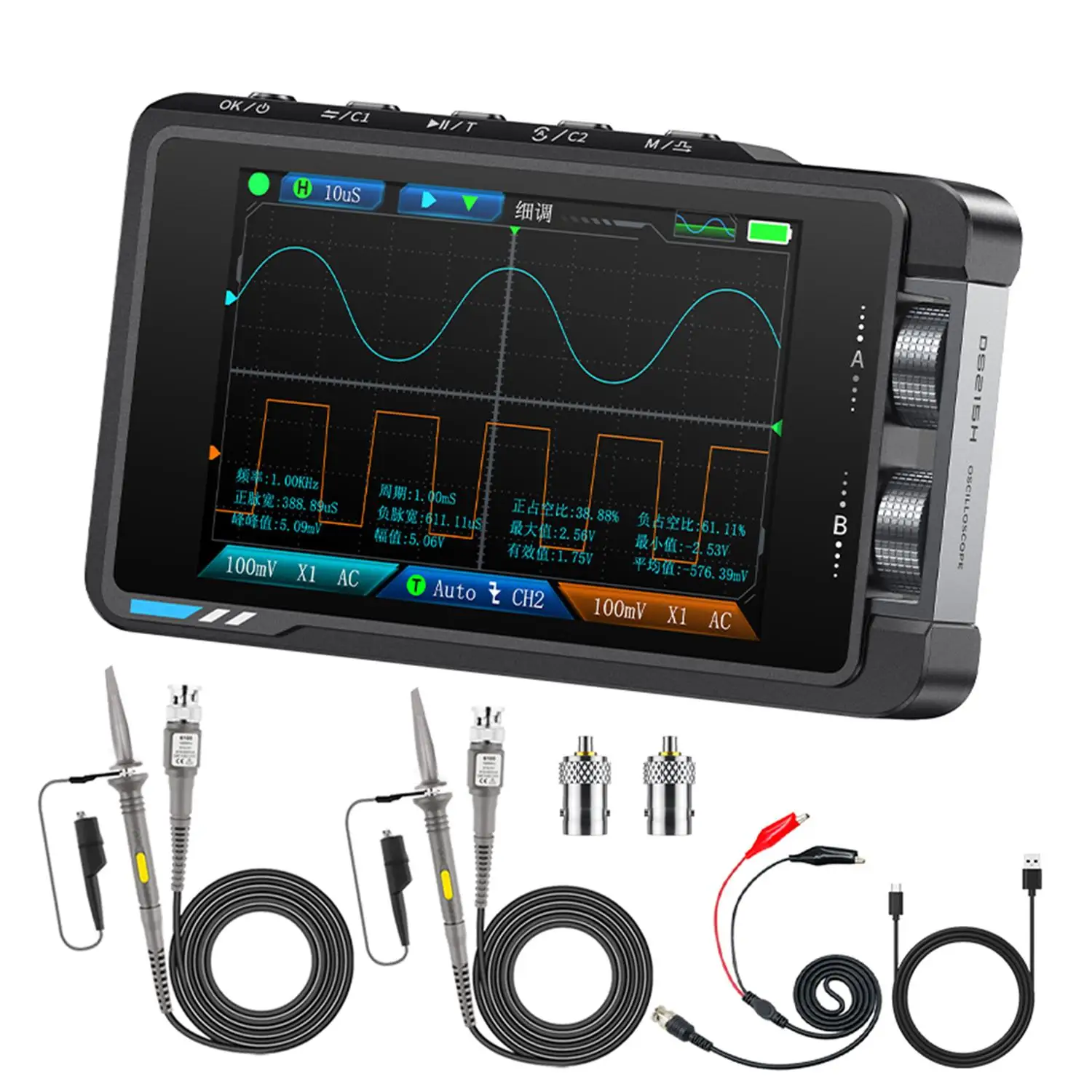

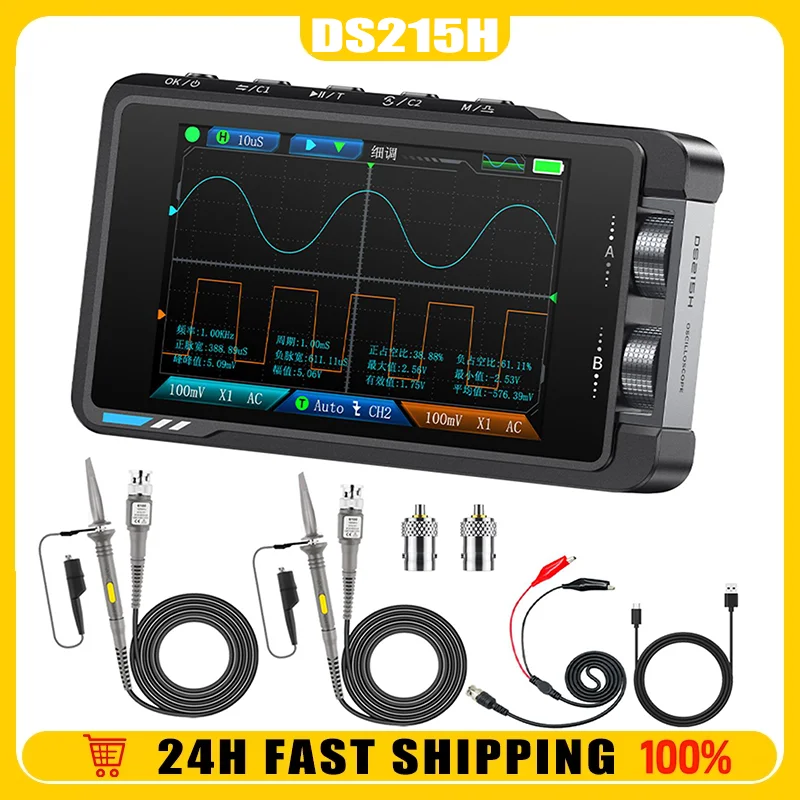

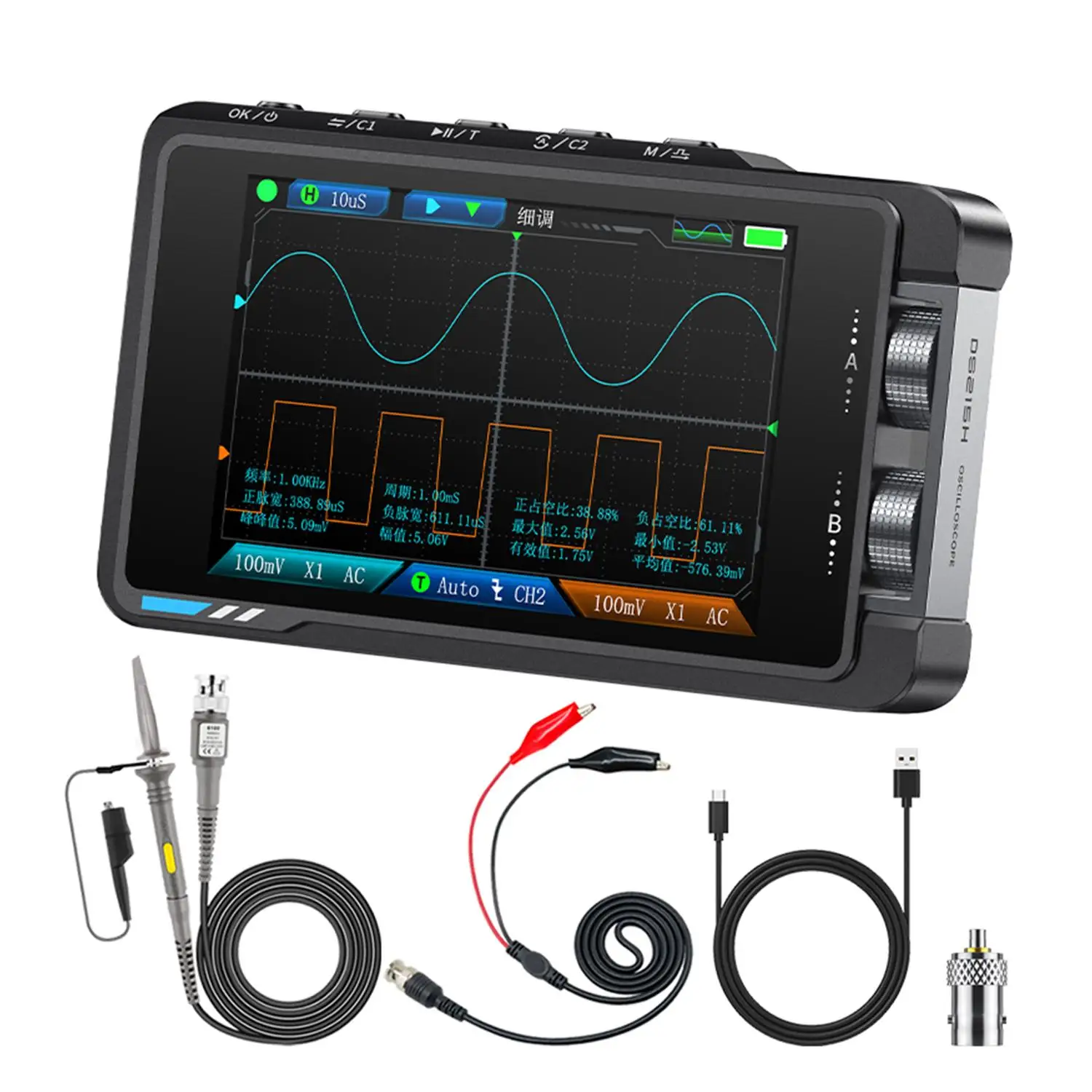

NO.1(Standard)

Host device *1

P6100 high vltage probe *1

Adapter *1

Alligator clip probe *1

Charging cable *1

User manual *1

Packaging color box *1

NO.2(Option)

Host device *1

P6100 high vltage probe *2

Adapter *2

Alligator clip probe *1

Charging cable *1

User manual *1

Packaging color box *1
