Product Description

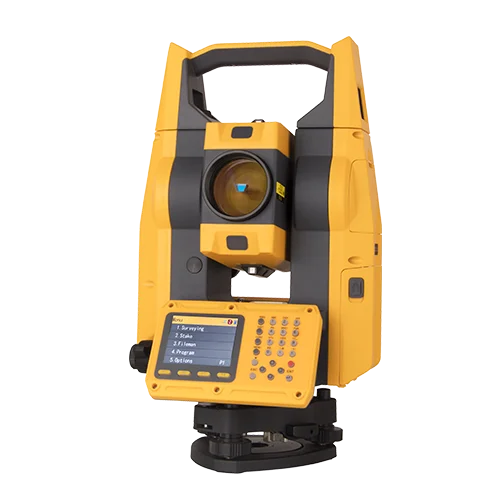

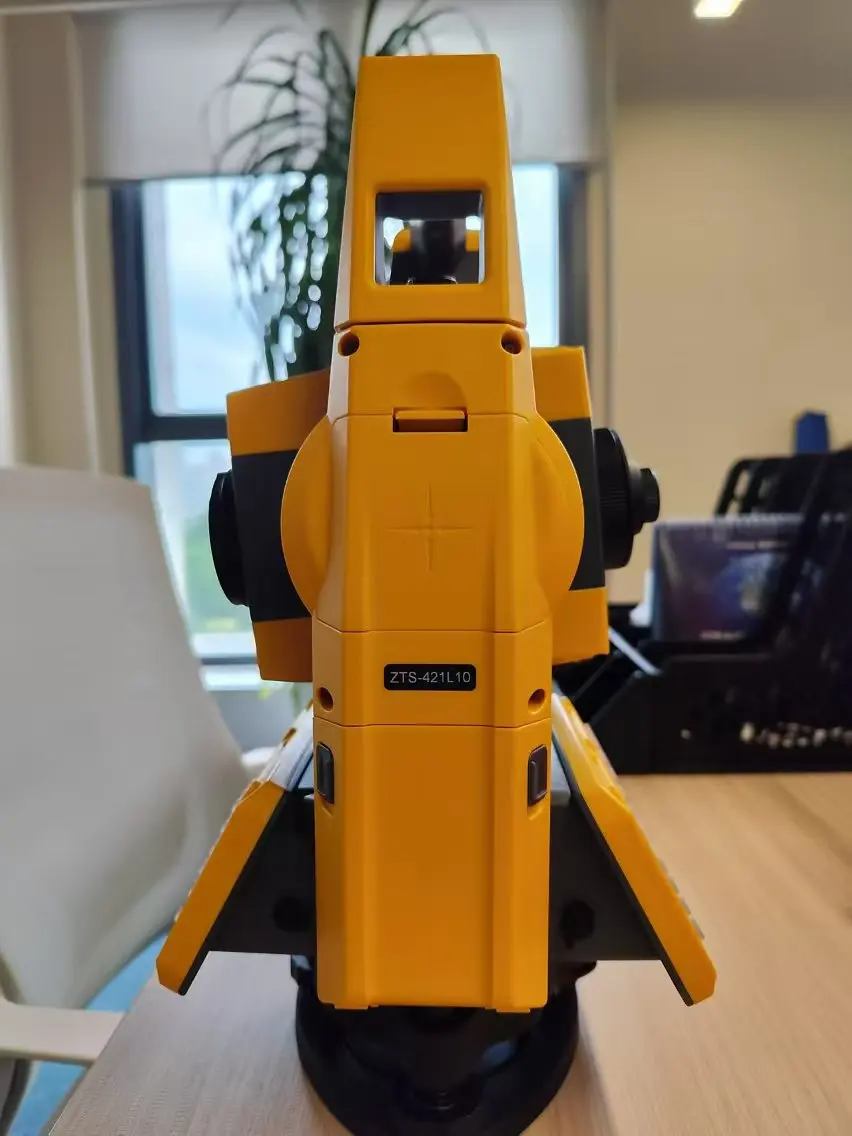

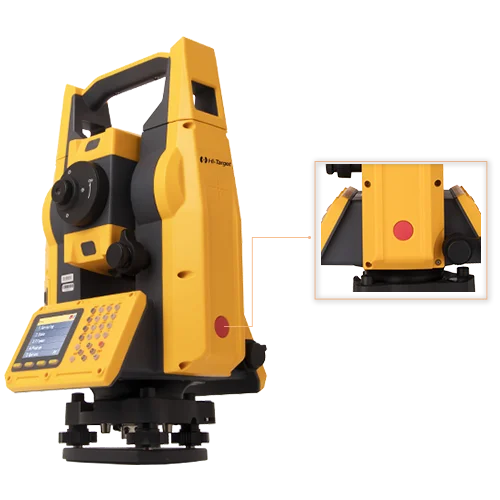

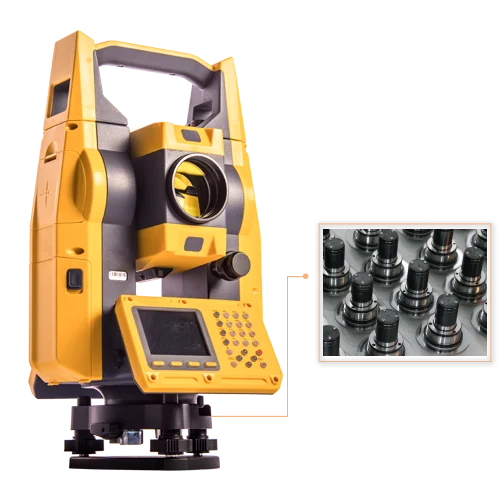

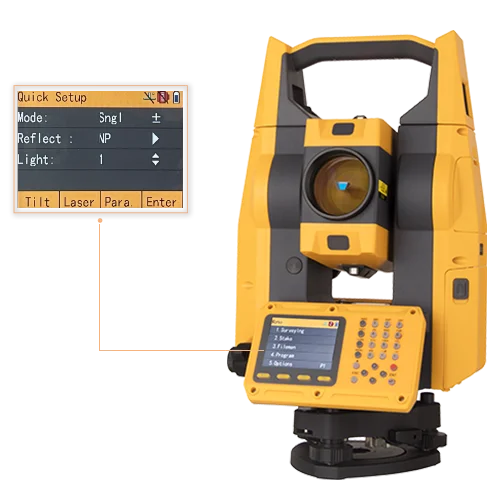

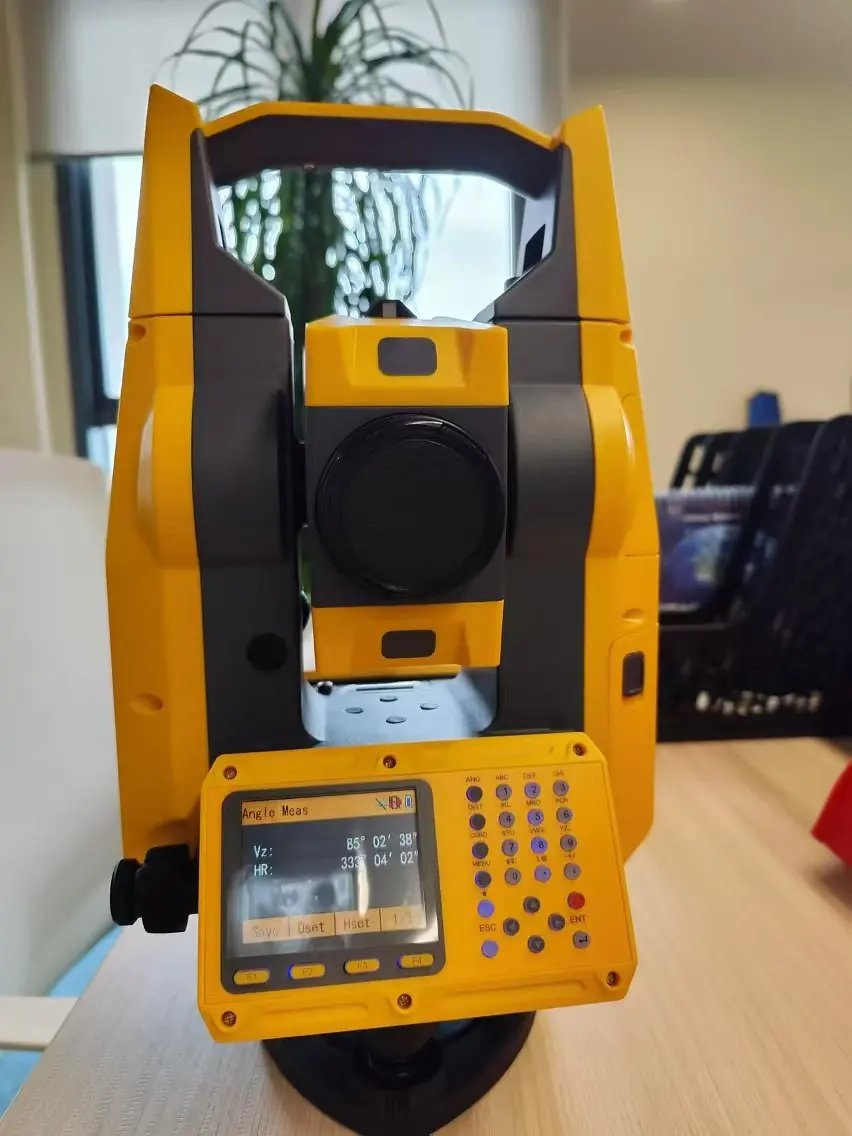

ZTS-421L10 /HTS-521L10 Survey Instrument 2'' Accuracy Survey Total Station Prism Free 100 Meters
ZTS-421L10 /HTS-521L10 Survey Instrument 2'' Accuracy Survey Total Station Prism Free 100 MetersHi-target ZTS-421L10 /HTS-521L10 Survey Instrument 2'' Accuracy Hi-target Survey Total Station Prism Free 100 MetersProduct Description
Global useful Hi-target ZTS-421L10 /HTS-521L10 Survey instrument with High precision 2'' accuracy Hi-target survey total station
| Angle Measurement | |
| Angle Measuring Principle | Absolute Encoding |
| Minimum Readout | 1" |
| Accuracy | 2" |
| Distance Measurement (Prism Mode) | |
| Single prism1 (General/Good Atmosphere) | 5000m/6000m |
| Accuracy (Fine/Quick/Tracking) | 2mm + 2ppm |
| Measuring Time (Repeat/Tracking) | 0.5s/0.3s |
| Distance Measurement (Reflectorless) | |
| Range (The target is Kodak white board with reflect rate of 90%) | 1000m |
| Accuracy (It may change according to the different reflector conditions) | 3mm + 2ppm |
| Measuring Time | Approx. 1s |
| Telescope | |
| Magnification | 30x |
| Field of View | 1°30' |
| Minimum Focusing Distance | 1.5m |
| Reticle | Illuminated |
| Tilt Sensor | |
| System | Dual-axis liquid tilt sensor |
| Working Range | ±3' |
| Accuracy | 1" |
| Communication | |
| Internal Data Memory | Approx. 80,000 Points |
| Interface | Standard RS232, USB |
| Wireless communication | Bluetooth |
| Data Format | ASCII |
| Power Supply | |
| Battery Type | Rechargeable high-energy lithium battery (Type-C for direct charging) |
| Voltage/Capacity | 7.4V DC / 3000 mAH |
| Operating Time | Optimal 36 hours (Continuous angle measurementAutomatic sensorIP66every 30 seconds) / 18 hours (typical) |
| Measuring Times | Approx. 30000 times |
| Other | |
| Display | 2.8 inch 240*320 pixel highlight color display |
| Keyboard | 2 sides alphanumeric backlit silicone keyboard.Trigger key. |
| Plummet | |
| Type | Laser point, 4 brightness levels adjustment /Optical plummet (optional) |
| Environment | |
| Operating Temperature | -20°C~50°C |
| Storage Temperature | -40°C~70°C |
| Temperature and Air Pressure Input | Automatic sensor |
| Dust&Water Proof (IEC60529 Standard) | IP66 |
1. who are we?We are based in Jiangsu, China, start from 2017,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder
4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES锛�
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card, PayPal, Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
