RIGOL Function Arbitrary Waveform Generator DG902 Pro DG912 Pro DG922 Pro 70/150

Product Description

DG900 Pro Series is a multifunctional signal generator that integrates functions such as function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, frequency meter, etc. The brand new appearance and user-friendly interface design bring a friendly user experience.

Product Features

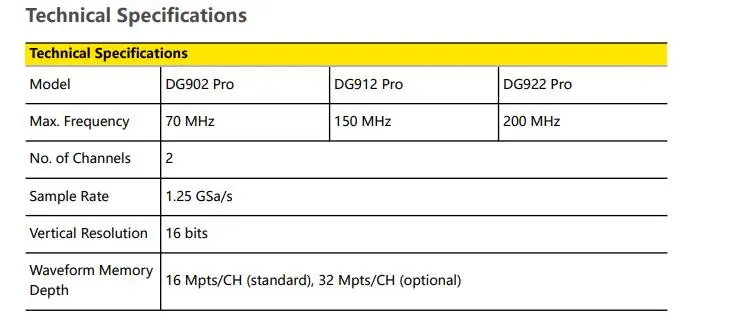

• Max. sample rate: 1.25 GSa/s
• Max. output frequency: 200 MHz
• 16-bit vertical resolution
• Arbitrary waveform editing function with a max. • Arb waveform length of 16 Mpts/CH (32Mpts/CH optional)
• Built-in high-order harmonic generator (max. 20th order)
• Independent signal frequency measurement channel with a max. frequency of 1 GHz
• USB and LAN interfaces for remote connection
• Type-C power interface for powering the instrument with mobile power source, satisfyingtesting requirements in the field
• Standard Web Control function for easier remote cooperation

Outstanding accuracy

1.25GSa/s sampling rate, 16-bit vertical resolution, easy creation of high fidelity signals

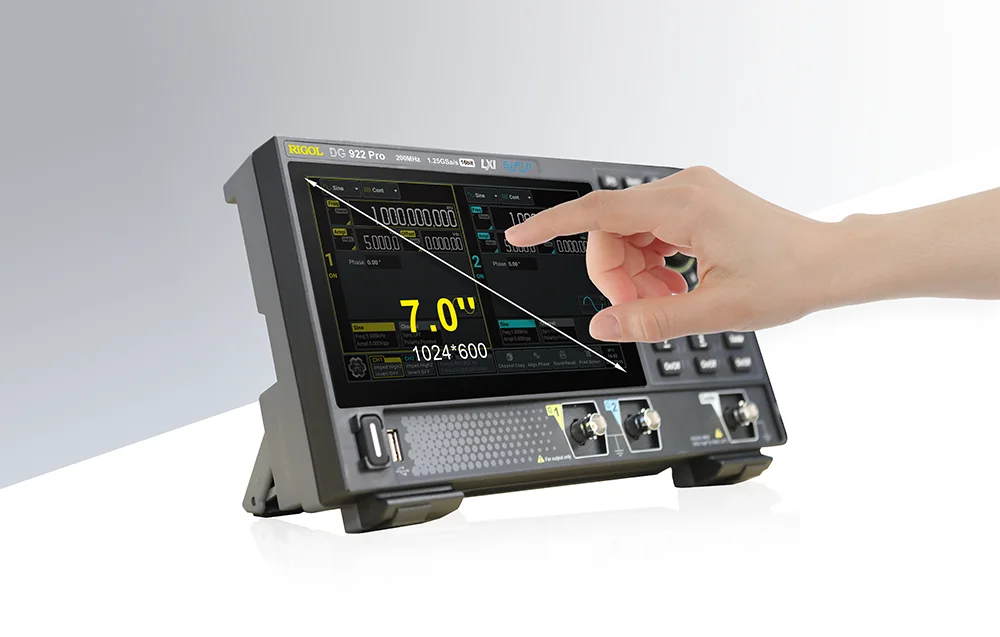

7-inch color touch screen display

7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

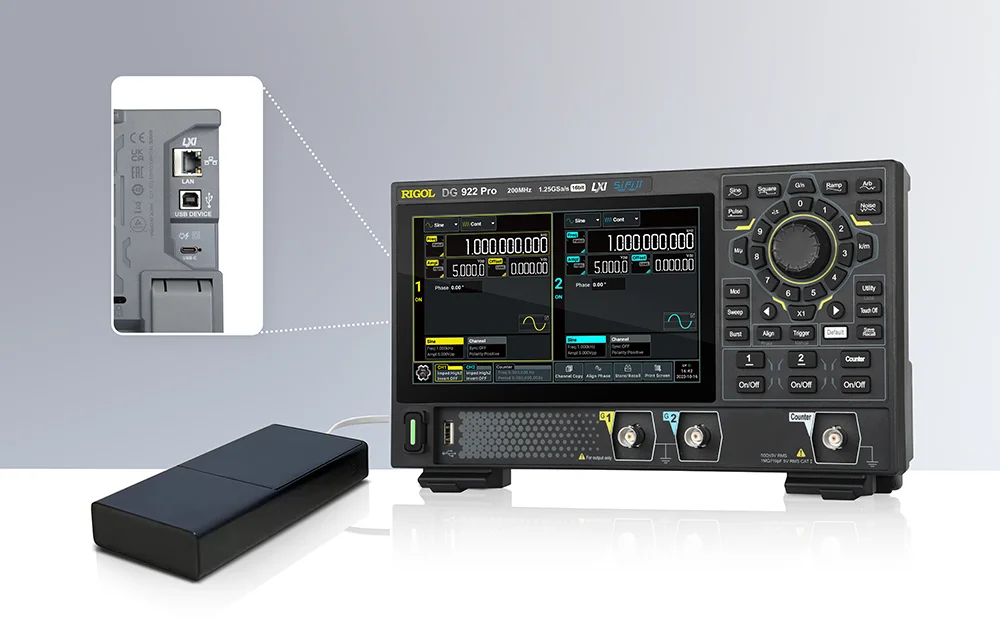

Equipped with Type-C connector

7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

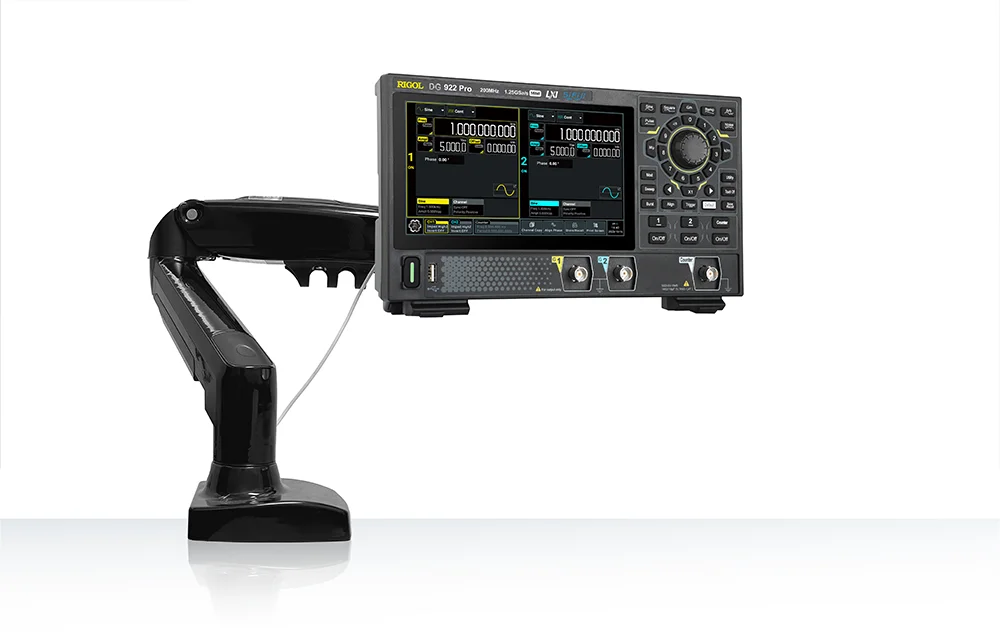

Smart appearance

The 266mm (width) x 165mm (height) x 63mm (depth) DG900 Pro weight only 1.78kg. With its ultra portable design, compact size, and supported by standard display stand, saves your workspace space.

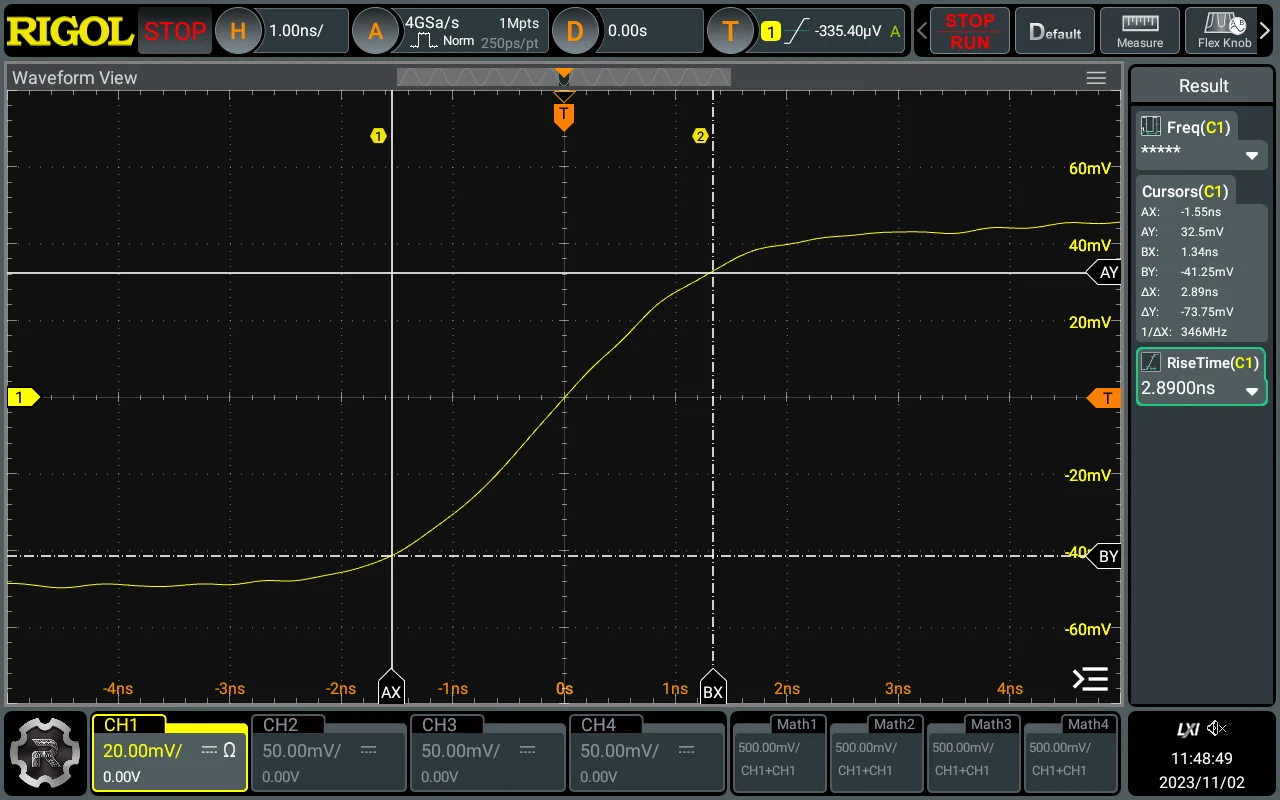

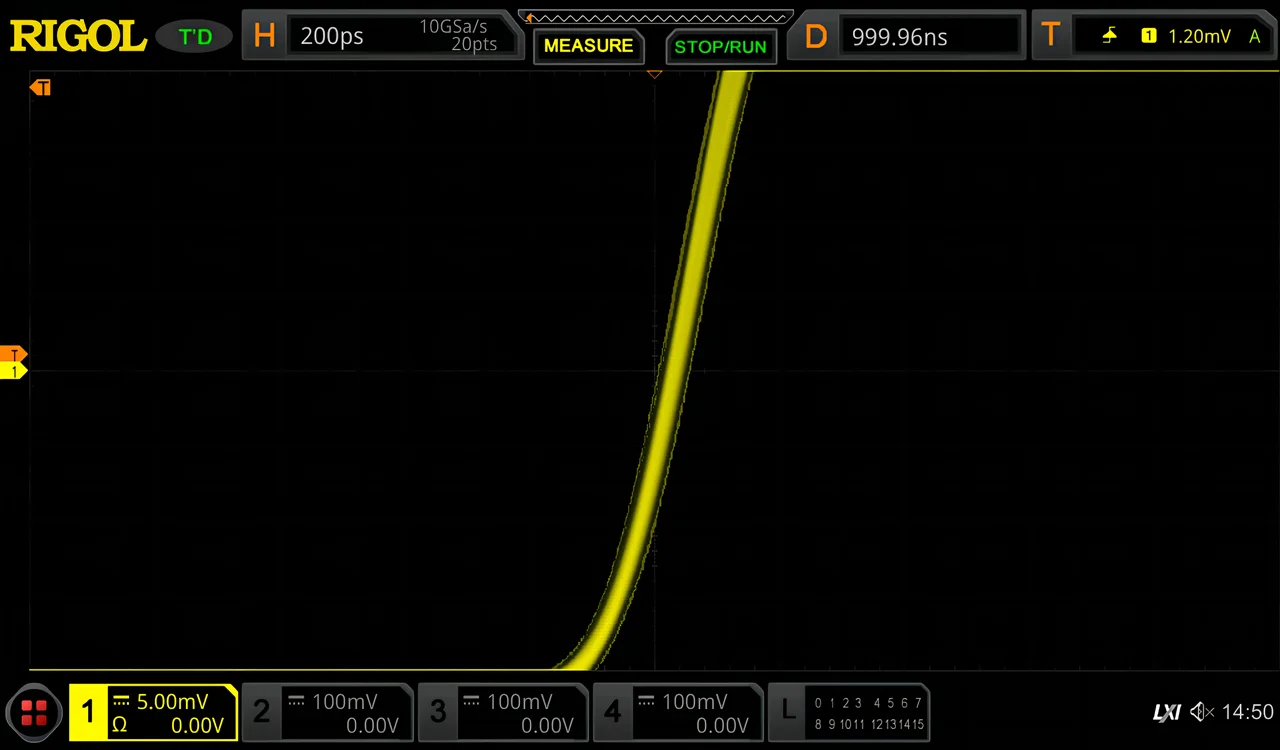

Fast rising edge

60MHz square wave and 50MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.

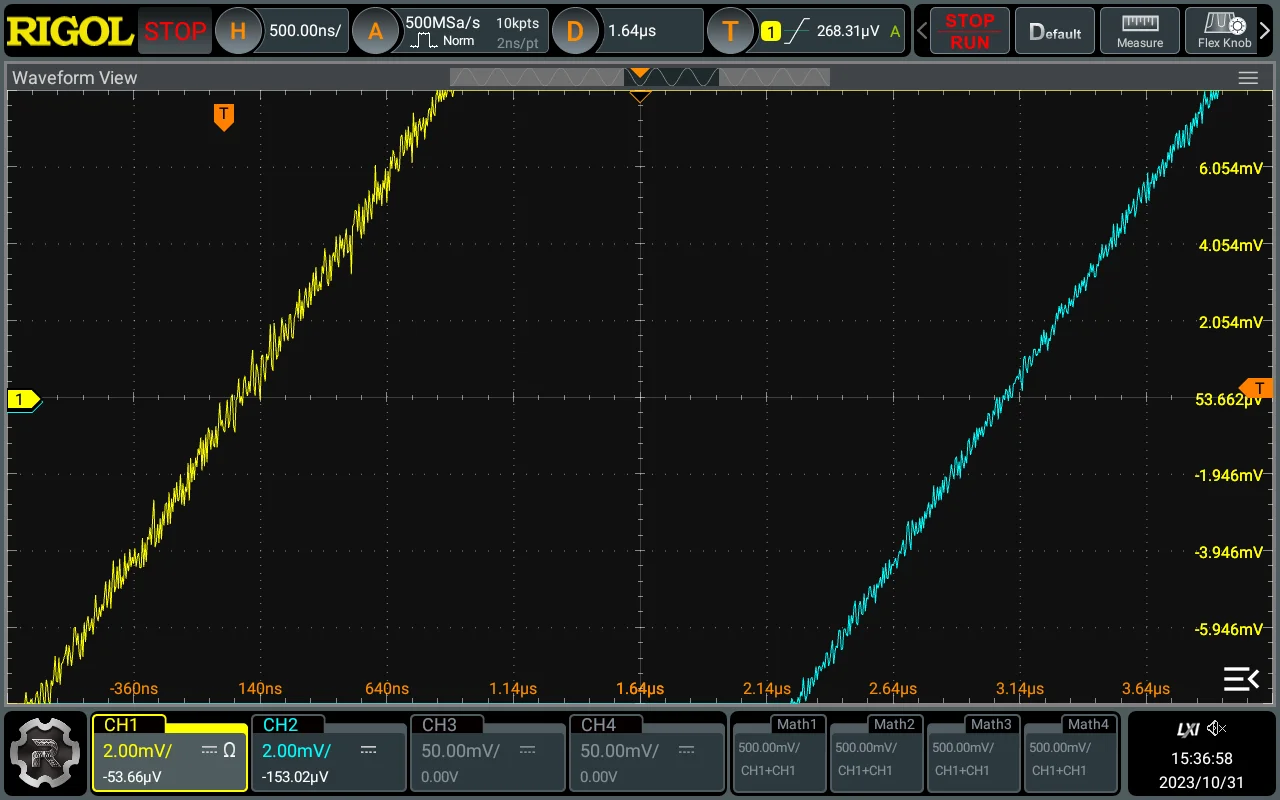

Ultra low signal jitter

Based on RIGOL's SIFI ll technology, the DG900 Pro series can generate any waveform point by point and restore signals without distortion. The sampling rate is precisely adjustable. Compared to traditional DDS signal sources, the generated signal jitter is lower, with all output signal jitter as low as 200ps (rms).

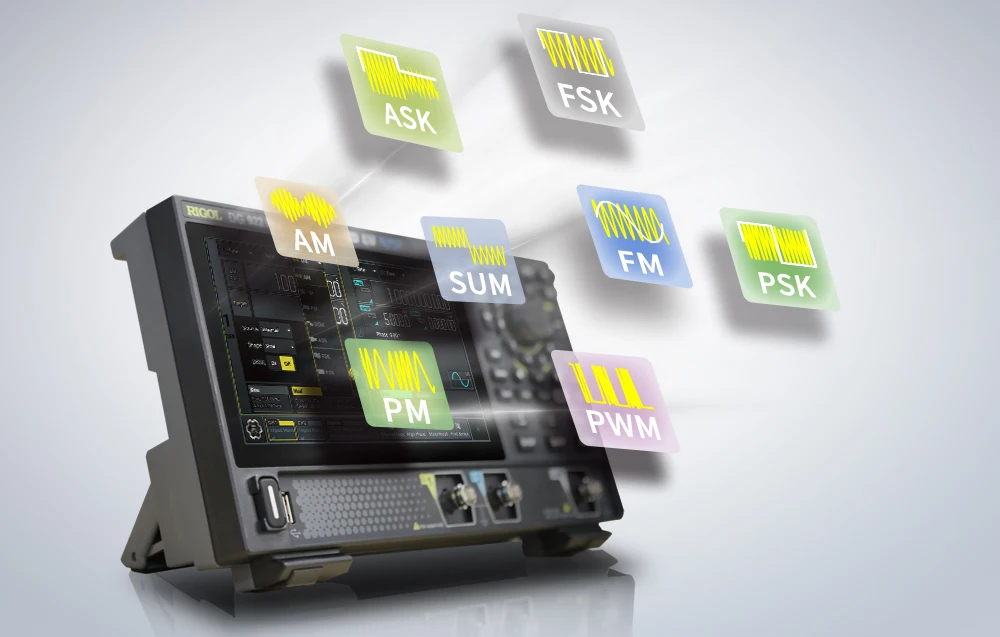

Rich modulation functions

Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.

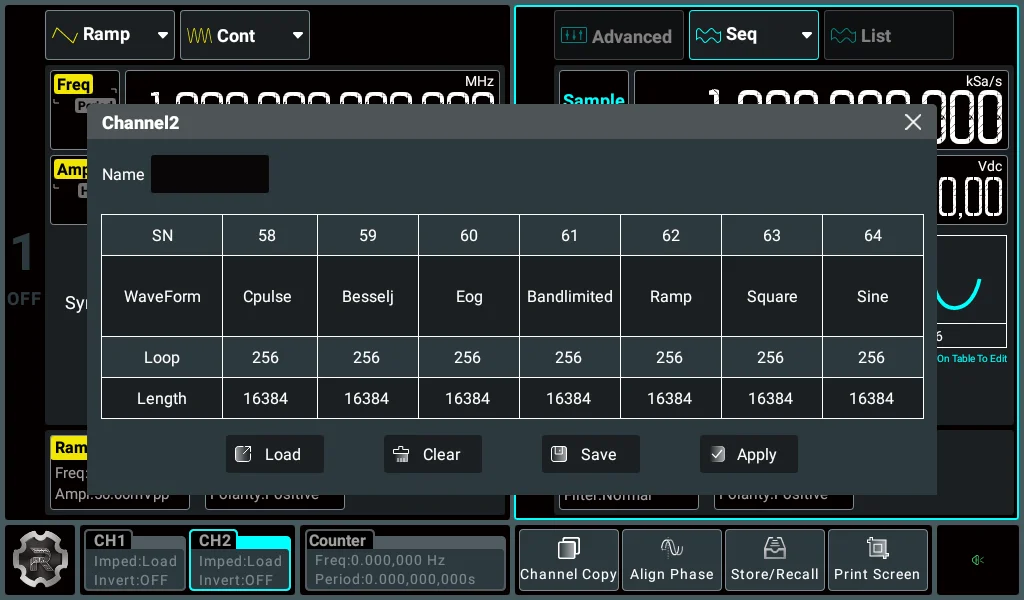

Sequence function

Support up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.

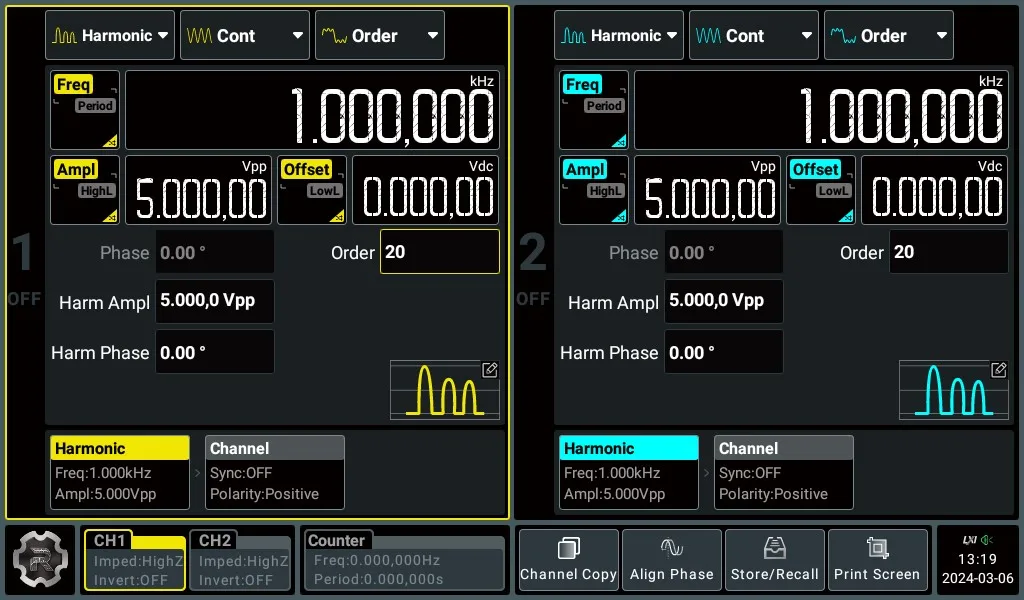

Maximum 20th harmonic generation function

Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices

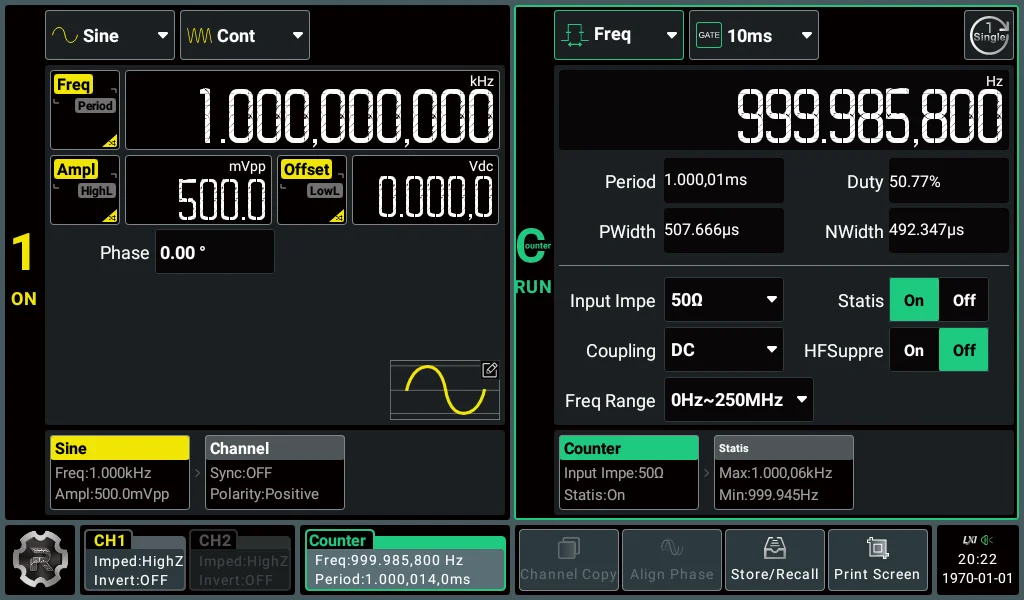

High resolution frequency meter

A 7-bit 500MHz frequency meter that can measure parameters such as frequency, period, duty cycle, positive and negative pulse width from external input signals, and supports statistical analysis of measurement results
