Product Description
LM330 Digital Leeb Hardness Tester Pen Type Leeb Hardness Tester Measuring Range 200-960HLD
LM330 Digital Leeb Hardness Tester Pen Type Leeb Hardness Tester Measuring Range 200-960HLDLM330 Digital Leeb Hardness Tester Pen Type Leeb Hardness Tester Measuring Range 200-960HLD
Application: Defecting fields such as Installed Machineary and Permanent Assembly Parts, Mould Cavity, Heavy Workpieces, Pressure Vessels, Turbine and other Equipments and Small test area.Brief Introduction: LM330 Portable Leeb Hardness Tester OLED Color Screen, Multifunctional and Integrated Hardness Testing Machine. Pen type design, no cable, the impact device and instrument body are integrated. Wireless Bluetooth printing. Interchangeable D/DL impact device can be used in the restricted area measurement. Bluetooth printer, no shackles of cable. Various Special Supporting Rings, Suitable for curved or irregular parts measurement.

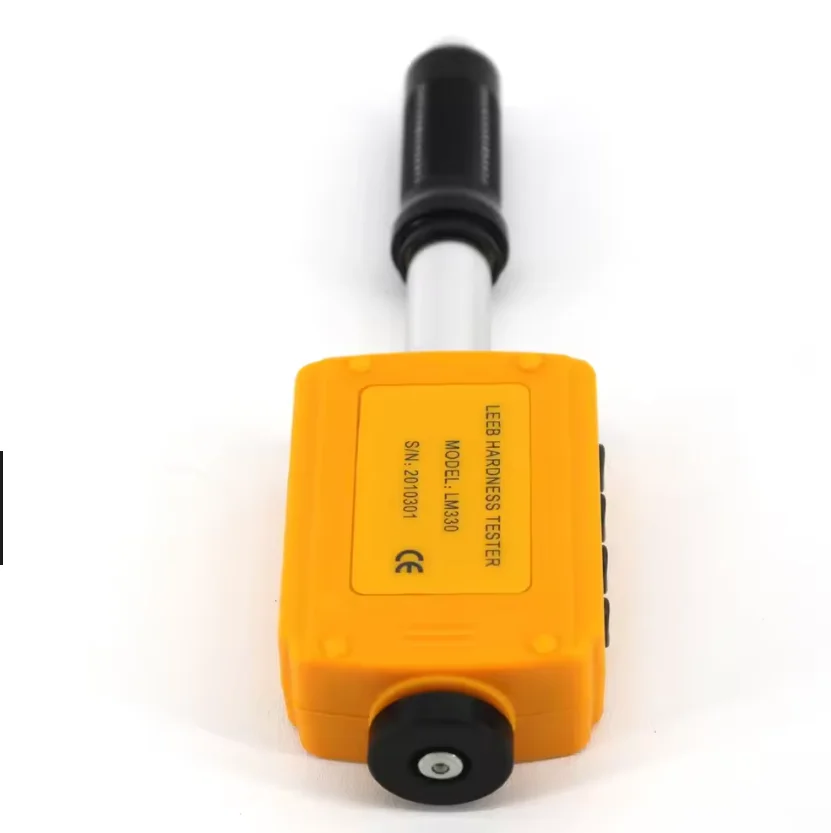

Feature:Pen type design, self contained (Impact device and display integrated): no cables.The unique large-screen OLED color display(1.77-inch OLED Screen)integrated hardness tester in the world Interchangeable D impact device (standard) /DL impact device (optional) can achieve one unit dual use; can be used in the restricted area measurement.With battery compartment, battery can be replaced. Using standard AAA Lithum battery.Highly accuracy in any impact direction (360°), automatically identify impact direction and gravity compensationlEasy Operation, the four soft keys above the screen achieve the various functions
Display | 1.77 inch TFT color display |
Hardness Scale | HL, HB, HRB, HRC, HV, HS, Strength (σb) |
Measuring Range | HLD(200-960) HRC(19.8-68.5)HRB(13.5-100) HB(30-651)HV(80-976) HS(26.4-99.5)σb(375-2639) |
Impact Devices | D type impact device (Standard); Interchangeable DL type impact device (Optional) |
Accuracy | Measuring Error:<±6HLD (HLD=800), Repeatability:<±6HLD (HLD=800) |
Measuring Direction | 360° |
Material | Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Copper-zinc alloy, Copper-tin alloy, Brass, Forged Steel, Alloy Tool Steel |
Resolution | 1HL,1HV,1HB,0.1HRB,0.1HRC,0.1HS |
Calibration | Automatic |
Language | Chinese, English, Traditional Chinese, Spanish and Japanese |
Power | 1 AAA Battery |
Data Memory | 1000 groups (each group includes 2-6 testing values and 1 average value) |
Communication | USB 2.0, Used for charging or data transfer |
Software | LMView software for transmission, storage and printing |
Shut-off | Auto off after 3 minutes of inactivity |
Temperature | -10℃~ +50℃ |
Net Weight | 110g with Dtype impact device, 125g with DL type impact device |

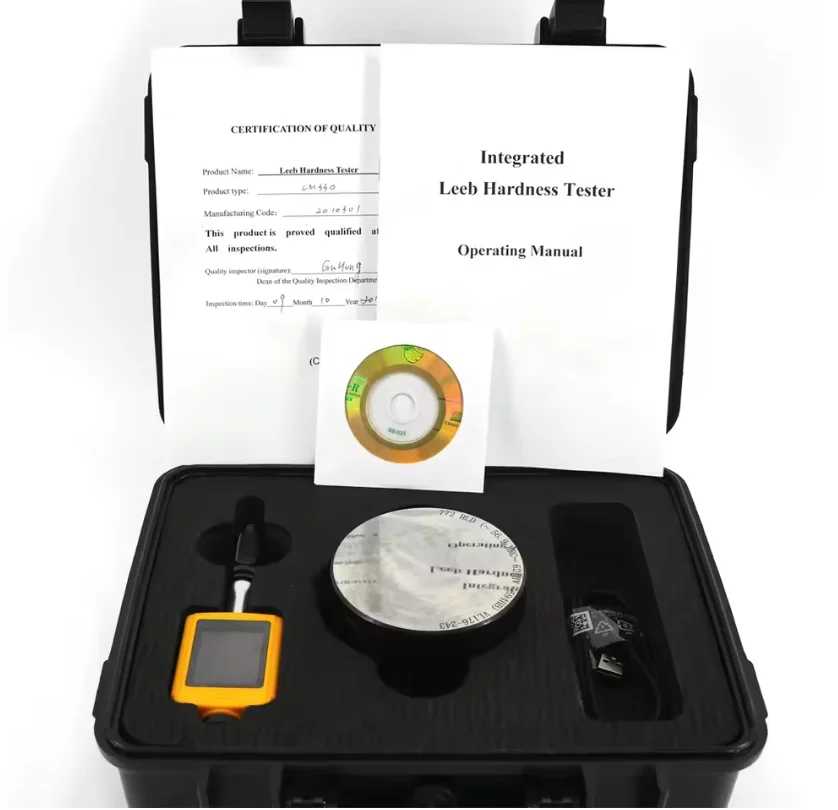

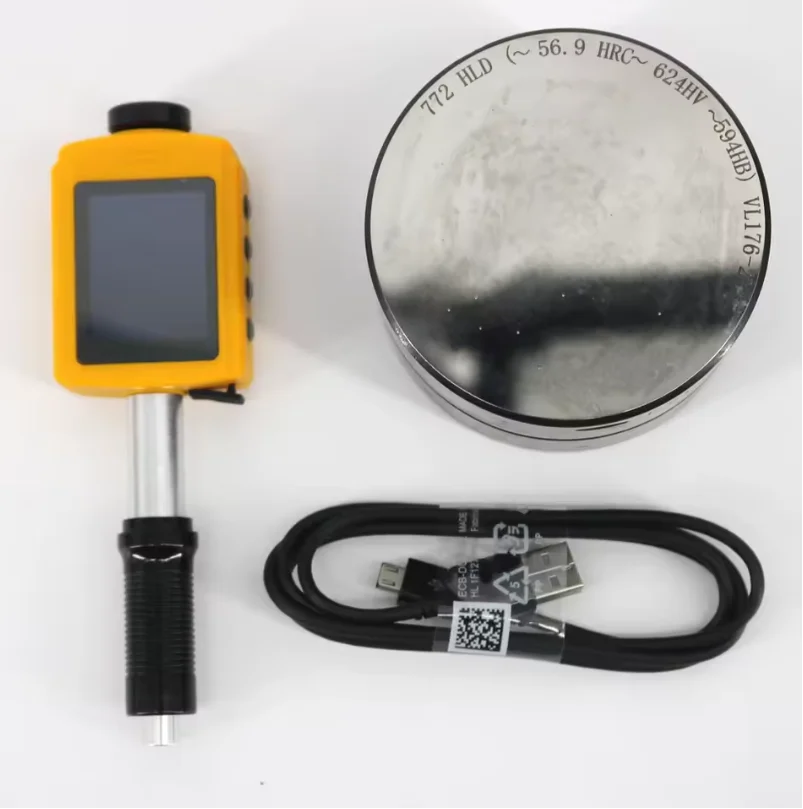

Standard Configuration | LM330 Leeb Hardness Tester, Standard Calibration block, Support Ring, Cleaning Brush, Packing Files |
Optional Accessories | Hardness Calibration Blocks, Support Ring, DL Connector. |
