Product Description

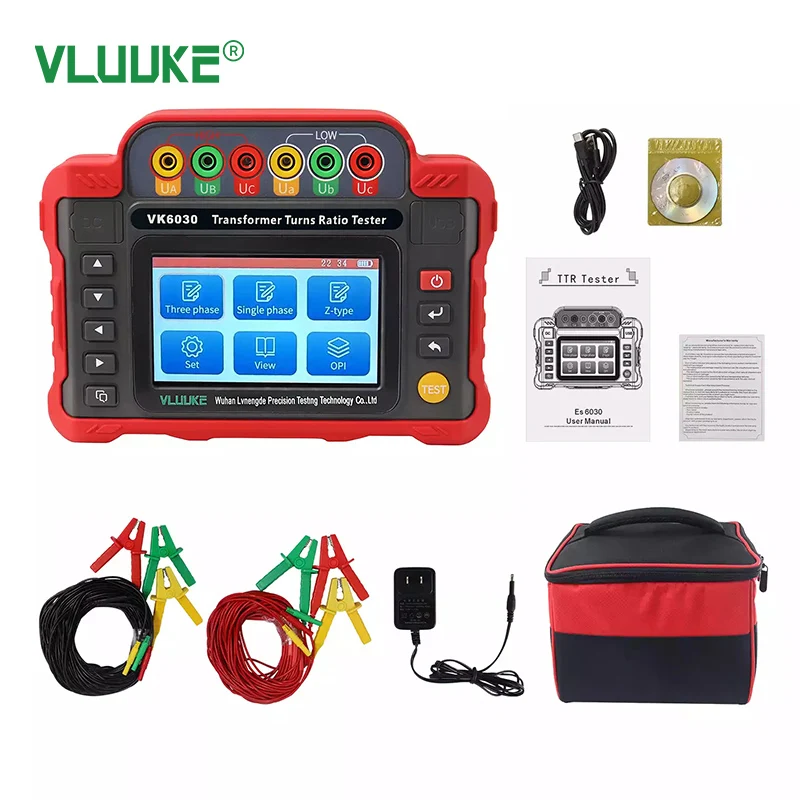

VK6030 Portable Transformer Turns Ratio Tester 220V Handheld Equipment TTR Meter
VK6030 Portable Transformer Turns Ratio Tester 220V Handheld Equipment TTR MeterProduct CharacterVK6030 transformer turns ratio tester adopts microprocessor technology for measurement calculation and automatic control, which can quickly and easily measure the actual transformer ratio and group. It is mainly used in the power industry to measure the transformer ratio and group, and at the same time,it is used by transformer manufacturers and distributors to measure the transformer parameters.
VK6030 transformer ratio tester consists of host, monitoring software,test line, communication line and so on. The host has a charging function without the need to find power on site, full-colour large-screen LCD display,the language can choose Chinese or English, at a glance, touch-screen operation is convenient and easy to use, the port anti-overload function,large-capacity storage of 500 groups of data. Upper computer software with historical data reading, access, save and other functions.
Function | It is mainly used for ratio and group testing of the three phase transformers,and single-phase transformers, PT and CT. This product can be used for blind testing of three phase transformers, as well as ratio and group testing of Z-type transformers. |
Specimen type | Single phase transformer,three phase transformers ,Z -type transformers,PT,CT |
Radio range | 0.9~10000 |
Overload protection | Yes |
Power source | DC9.6V 3800mAh high capacity lithium battery |
Charging function | Yes |
Display mode | 5 inch touch screen(854dots×480dots)Full color LCD display |
Mode of the interaction | Touch screen/buttons |
LCD size | Length and width:108 mmx65mm |
Instrument size | Length, width and height:229mmx166mmx74mm |
Mobil APP | Yes ,Bluetooth connection |
Computer host | Yes, USB line connection |
Data storage | 500group |
Data access | Data access function |
Battery voltage | Real-time display of battery level, indicating the need for timely charging when the battery voltage is low |
Automatic switch off | Auto power off could be set for 1~30 minutes. |
Power consumption | Standby:approx.2w(100% brightness) |
Measurement:12 Max | |
Quality | Instrument :1.5kg (including battery) |
Test line:1.7kg tester line:1.7kg | |
-10℃~40℃;70%rh below | |
Storage temperature and humidity | -20℃~60℃;70%rh below |
Insulation resistance | 10MΩ above |
Pressure resistance | AC 3700V/rms(between circuit and housing) |
Electromagnetic property | IEC61010-4-3,radio frequency≤1V/m |
Suitable for safety regulation | IEC61010-1,CAT Ⅲ 600V,pollution class2 |
