Product Description

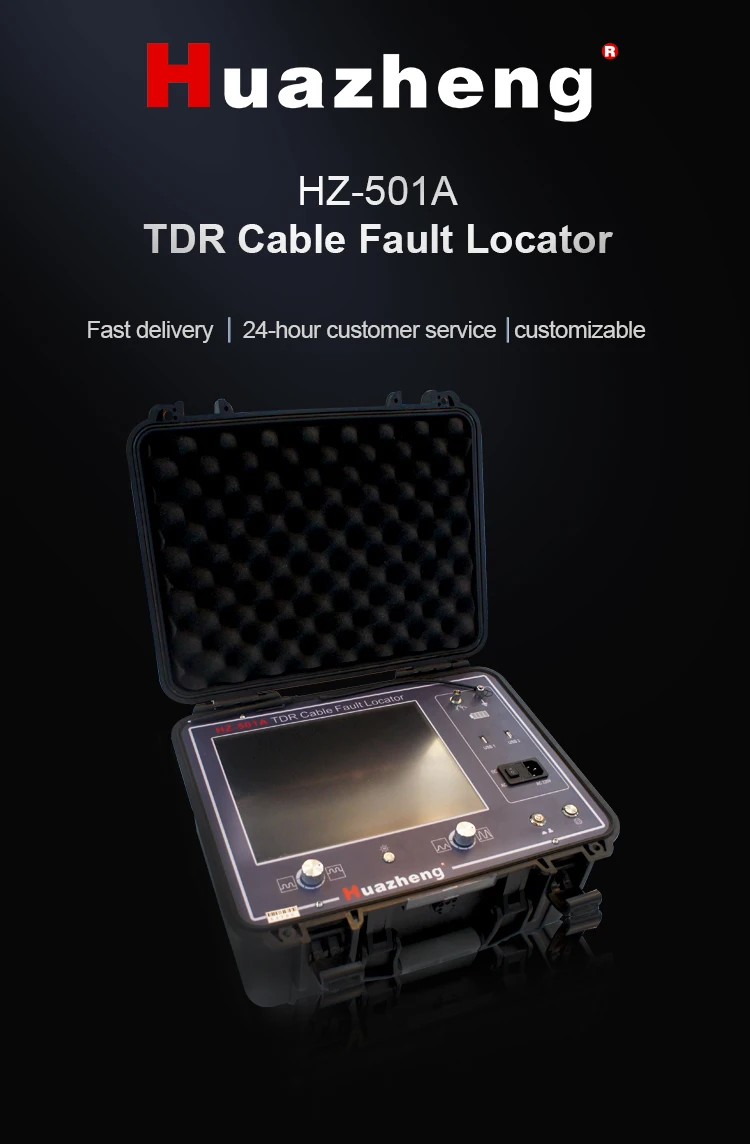

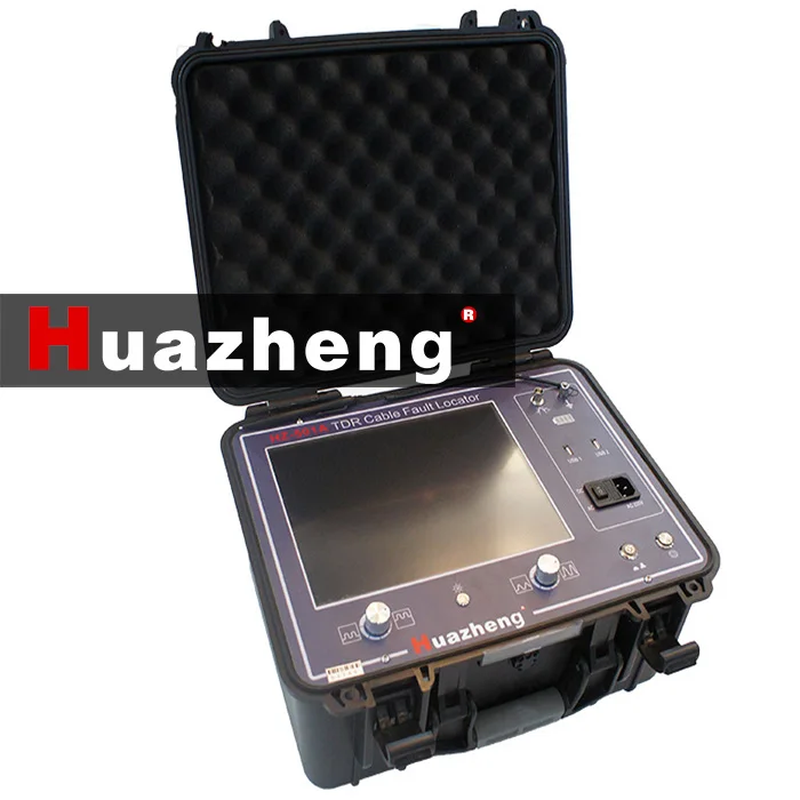

Intellint Underground Cable Locator Electric Cable Fault Distance Locator with 1-Year Warranty
Intellint Underground Cable Locator Electric Cable Fault Distance Locator with 1-Year Warrantycable fault distance locator Intelligent Underground Cable Locator
Product Description
I.the main technical indicators of the system
1) Windows operating system, touch operation mode, online guidance of wireless visual experts, scientific cable management, real-time report generation;
2) System function: fault distance measurement, fault point location, propagation speed test, cable path search, buried depth detection, etc.
3) Test methods: low-voltage pulse, flashover method, audio method, acousto-magnetic synchronization method, valley method, peak method, electromagnetic induction method, etc.;
4) Display control: Flash tester: 12-inch industrial grade computer control, built-in 12V/10Ah DC power supply, can work continuously for 10 hours; other is controlled by single-chip microcomputer, pointer table display;
5) Test range: test distance: 60km, detection depth: 2-5m;
6) Measurement accuracy: rough measurement error: ±10m (absolute value) or 1% (relative value), fine measurement error: ±0.2m (fixed point, path, depth);
7) Sampling frequency: 100MHz, minimum resolution 0.5m (100m/us)
8) Sampling mode: Fully automatic continuous sampling, never miss any single discharge waveform
9) Low voltage pulse: Width: 0.1uS and 2uS Amplitude: 100Vpp
10) Output power: path power: 100W, impact power: 0 ~ 400W
11) Impact high voltage: 0 ~ 35kV
12) Short circuit current: 0 ~ 320mA
13) Burn through power: 0 ~ 1225J
II, the main functional parameters

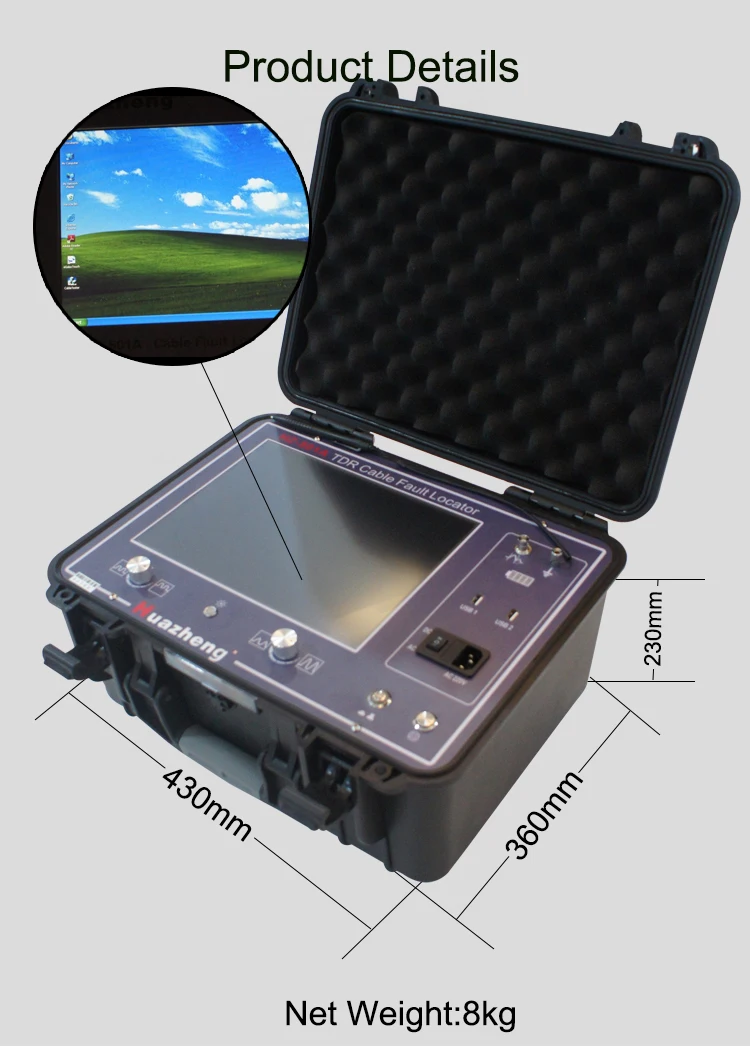

1, 12 inch industrial grade computer control, touch operation mode;
2, XP operating system, super strong cable management system, automatically generate test reports;
3. It has functions such as ranging and speed measurement;
4, 100MHz sampling frequency, the minimum resolution of 0.5m (100m / us);
5, fully automatic continuous sampling, never miss any discharge waveform;
6, test method: flash sampling, low voltage pulse sampling
7, pulse amplitude: 100Vpp
8, pulse width: 0.1uS and 2uS
8, measuring distance: Smax: 60km Smin: 15m
9. Measurement error: rough measurement absolute error: ±10m coarse measurement relative error: ±1%
(DL/T849.1-2004 specifies no more than ± (1% L + 20) m where: L is the cable length)
10, power supply mode: built-in 12V/10Ah DC power supply, can work continuously for 4 hours
Can also be connected to an external AC 220V 50Hz power supply
ABOUT US
Huazheng, established in 2008, is a enterprise which is engaged in the research, development,
sale and service of transformer tester, transformer oil tester, relay tester, high voltage tester, circuit breaker tester. We are a cooperative supplier of the State Grid of China, and we have also
established cooperative relationships with customers in countries and regions such as USA, Brazil, Chile, Vietnam, Indonesia, Korea, Turkey, Dubai, South Africa, etc.We have obtained ISO and
CE certificates. And developed impeccable inspection organization to make sure all of our
products quality comply with international standards(like IEC/ASTM/EN).
